Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#115090) — 62 parça

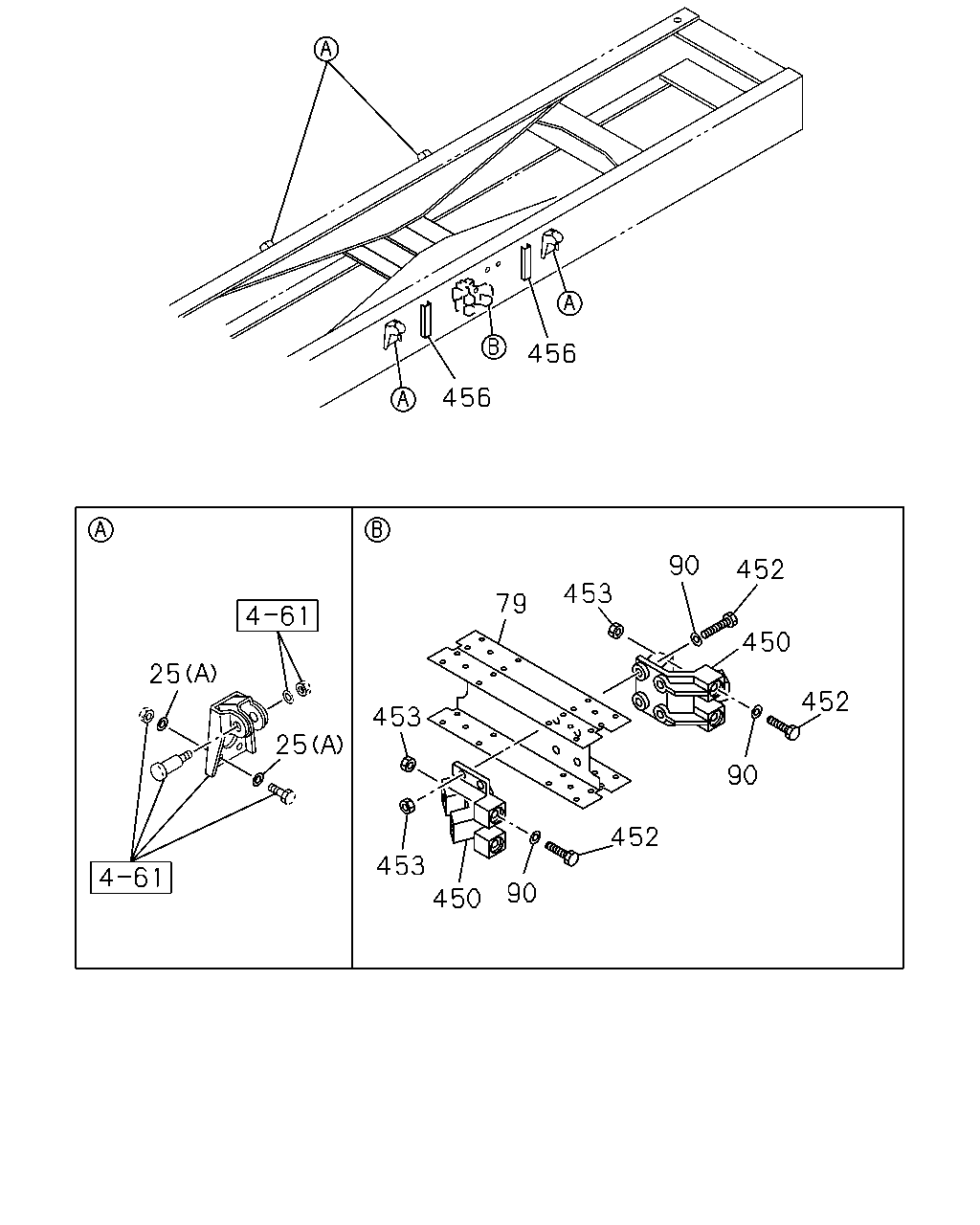

456 456 25 25 79 90 453 453 450 452 90 452 90 450 453 453

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	20	1	1303-
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	80	1	1303-
79	MEMBER; CROSS,TRUNNION ASM	8-98100-624-0	01	1	1303-
90	WASHER; PL ID=16.2	1-09503-316-0	16	1	1303-
450	BRACKET; V ROD	1-53353-122-1	04	1	1303-
452	BOLT; V ROD M16X90	1-09000-675-0	16	1	1303-
453	NUT; V ROD M16 FLANGE	1-09440-066-0	16	1	1303-
456	PATCH; STOPPER	8-98101-608-0	04	1	1303-

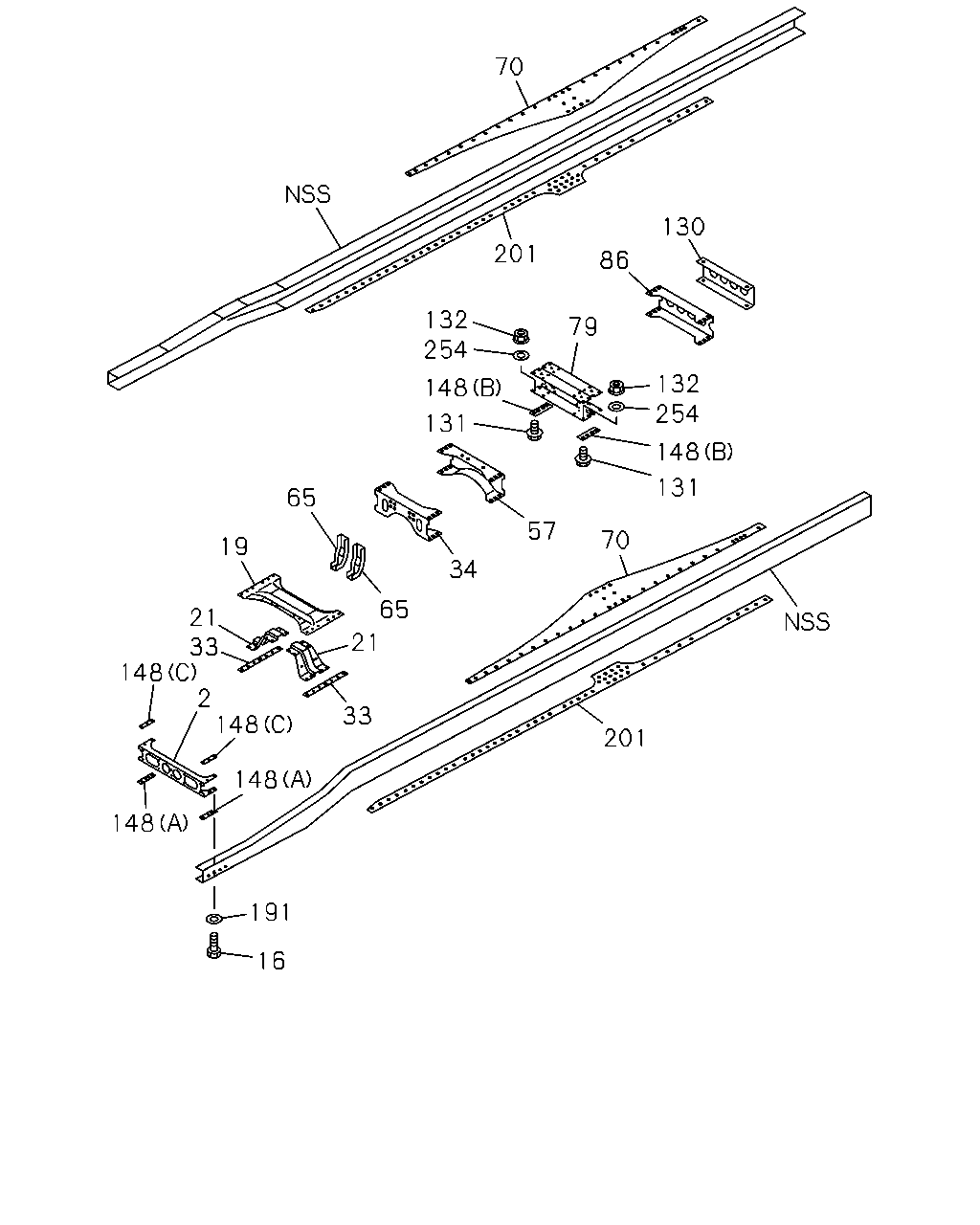

130 70 201 86 132 148 254 131 70 201 57 131 148 254 132 34 65 65 21 33 19 148 148 191 16 148 148 21 79 2 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MEMBER; CROSS,1ST	8-98232-274-1	01	1	1303-
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20951-640-0	02	1	1303-
19	MEMBER; CROSS,2ND	8-98098-303-0	01	1	1303-
21	GUSSET; 2ND CROSS	8-98098-306-0	02	1	1303-
33	SPACER; 2ND C/MBR,UPR	8-98226-916-0	02	1	1303-
34	MEMBER; CROSS,3RD	8-98191-627-0	01	1	1303-
57	MEMBER; CROSS,RR SUSP FRT	8-98100-869-0	01	1	1303-
65	BRACKET; CENTER BRG	8-98103-393-0	02	1	1303-
70	GUSSET; TRUNNION,UPR	8-98226-958-0	02	1	1303-
79	MEMBER; CROSS,TRUNNION ASM	8-98100-624-0	01	1	1303-
86	MEMBER; CROSS,RR SUSP RR	8-98105-054-1	01	1	1303-
130	MEMBER; CROSS,END	8-98105-203-0	01	1	1303-
131	BOLT; END C/MBR M18X60	8-98036-497-0	08	1	1303-
132	NUT; END C/MBR M18	0-91110-518-0	08	1	1303-
148	SPACER; C/MBR (B)	8-98106-951-0	02	1	1303-
148	SPACER; C/MBR (C)	8-98118-884-2	02	1	1303-
148	SPACER; C/MBR (A)	8-98118-885-0	02	1	1303-
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1303-
201	GUSSET; C/MBR	8-98226-966-0	02	1	1303-
254	WASHER; PL,C/MBR ID=19	0-91610-518-0	16	1	1303-

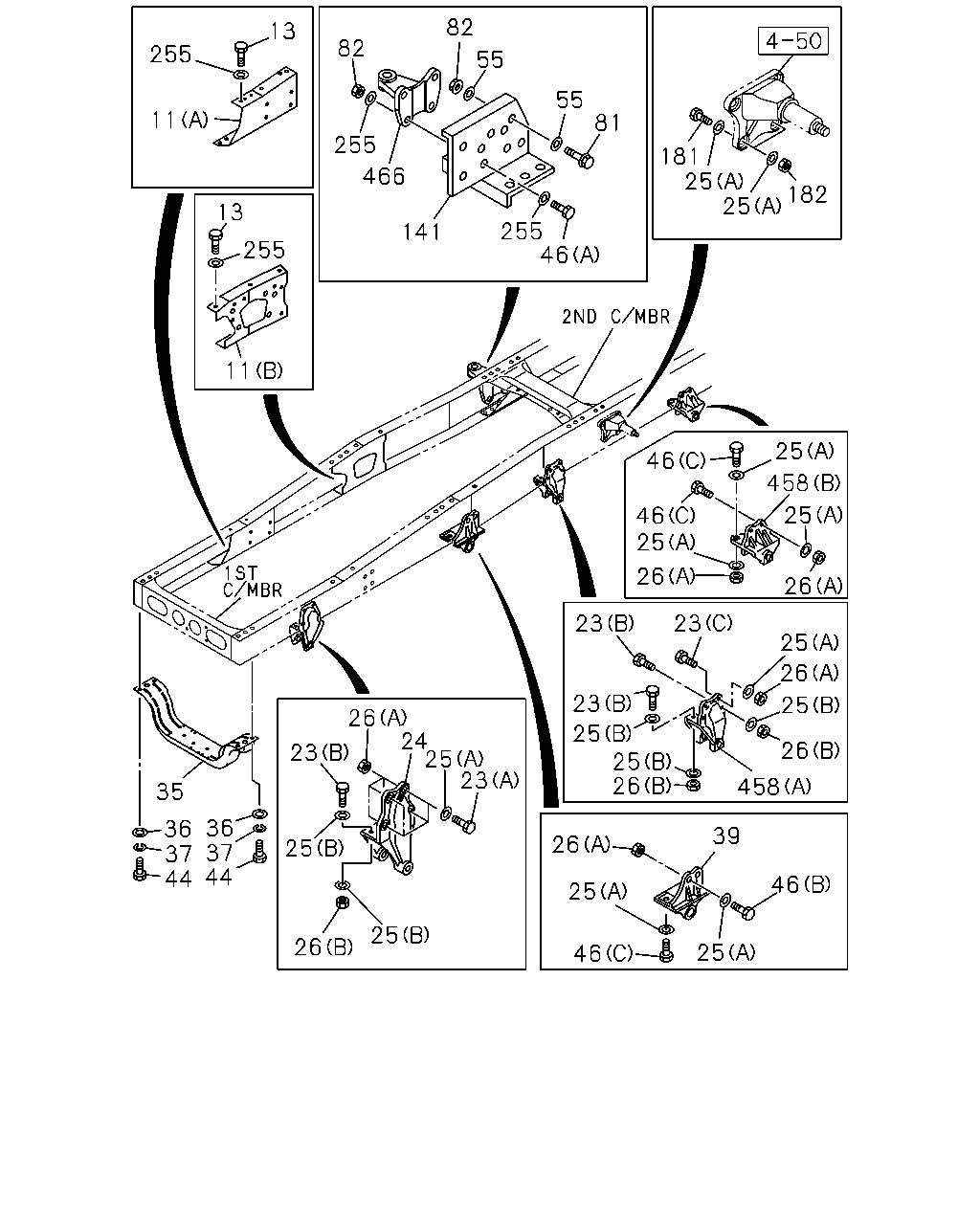

255 11 13 255 82 82 55 81 55 255 141 466 46 13 11 255 181 182 25 25 46 46 25 25 458 26 25 26 23 23 25 26 25 26 458 26 25 25 23 23 25 24 26 23 25 25 26 39 46 26 25 46 25 35 36 36 37 44 37 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BRACKET; ENG MTG (A)	1-53211-367-1	01	1	1303-
11	BRACKET; ENG MTG (A)	1-53211-368-1	01	1	1303-
11	BRACKET; ENG MTG (B)	8-98056-611-1	01	1	1303-
11	BRACKET; ENG MTG (B)	8-98056-612-0	01	1	1303-
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	04	1	1303-
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	08	1	1303-
23	BOLT; BRKT,SPR (C) M14X50	0-20951-450-0	04	1	1303-
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	12	1	1303-
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	1303-
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	1303-
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	20	1	1303-
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	80	1	1303-
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	24	1	1303-
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	12	1	1303-
35	MEMBER; UNDER	1-53174-263-2	01	1	1303-
36	WASHER; PL,UNDER MBR ID=17	0-91614-516-0	04	1	1303-
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	1303-
39	BRACKET; FRT SPR,RR	1-53352-179-0	01	1	1303-
39	BRACKET; FRT SPR,RR	1-53352-180-0	01	1	1303-
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1303-
46	BOLT; BRKT FIX (B) M14X40	0-20951-440-0	04	1	1303-
46	BOLT; BRKT FIX (C) M14X50	0-20951-450-0	12	1	1303-
46	BOLT; BRKT FIX (A) M14X60	0-20951-460-0	04	1	1303-
55	WASHER; PL ID=15	8-98010-627-1	10	1	1303-
81	BOLT; BRKT M14X50	0-20951-450-0	05	1	1303-
82	NUT; BRKT M14	0-91110-514-0	09	1	1303-
141	STIFFENER	8-98100-160-0	01	1	1303-
181	BOLT; S/ABS BRKT TO FRAME M14X50	0-20951-450-0	08	1	1303-
182	NUT; S/ABS BRKT TO FRAME M14	0-91110-514-0	08	1	1303-
255	WASHER; PL,BRKT ID=15	8-98010-627-1	16	1	1303-
458	BRACKET; LEAF SPRING (A)	1-53351-217-0	01	1	1303-
458	BRACKET; LEAF SPRING (A)	1-53351-218-0	01	1	1303-
458	BRACKET; LEAF SPRING (B)	1-53352-067-3	02	1	1303-
466	BRACKET; BOOSTER	1-44515-073-0	01	1	1303-
