◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10863 - EXR RHD FUEL TANK 200L+200L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#11509) — 75 parça

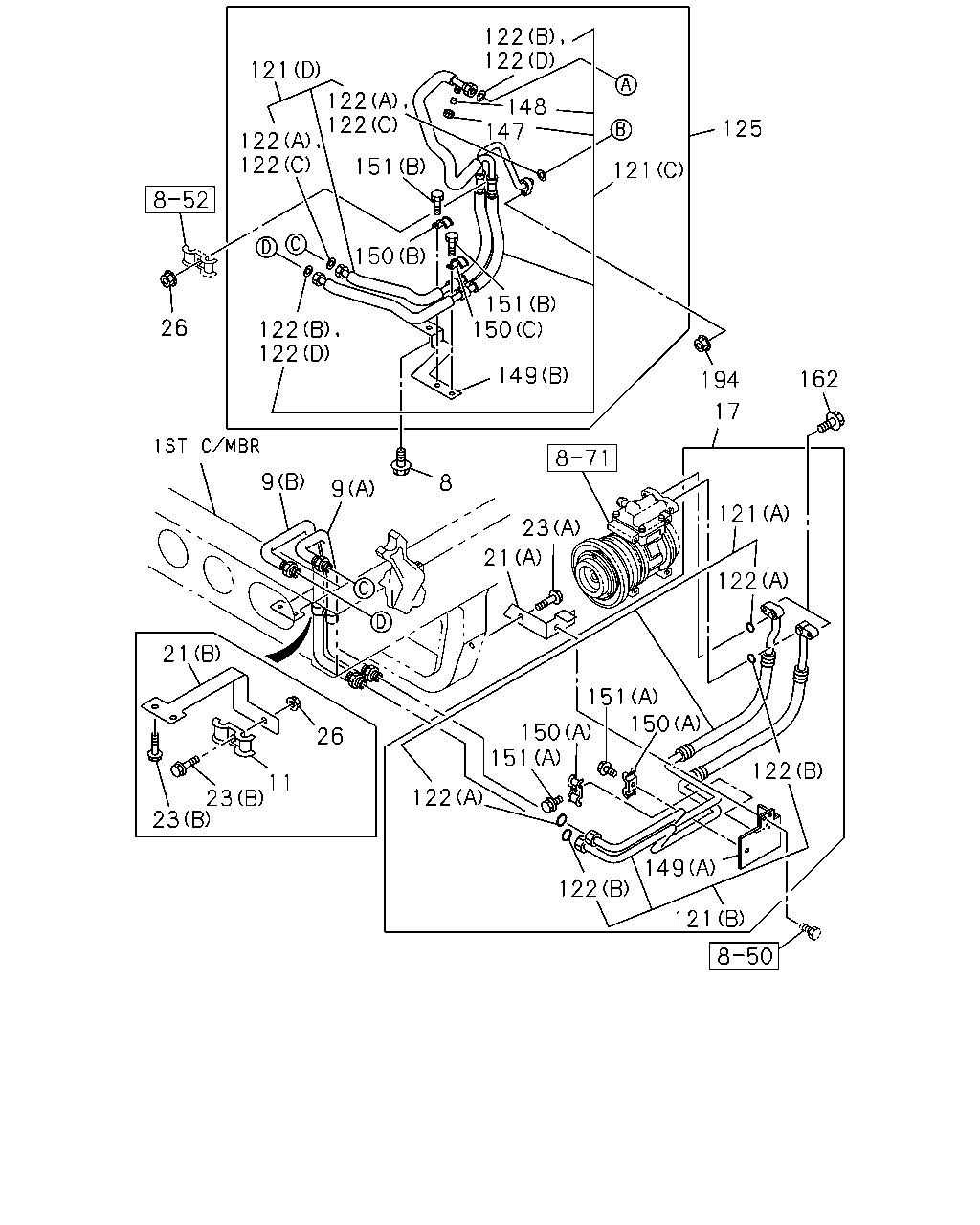

çizim 18696
121 122 122 122 122 122 147 151 122 148 125 121 194 162 17 121 122 23 21 9 8 9 26 122 150 122 151 150 149 150 151 122 26 11 23 23 21 122 121 149 122 150 151
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE 		0-28080-818-0 01 1 0106-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-642-0 01 1 0106-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-644-0 01 1 0106-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 0106-
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-616-1 01 1 0106-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-777-1 01 1 0106-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-018-0 01 1 0106-
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28080-820-0 01 1 0106-0512
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0106-0512
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 0106-0602
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 02 1 0603-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-723-0 01 1 0106-0206
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-863-1 01 1 0207-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-686-1 01 1 0106-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-687-0 01 1 0106-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-706-0 01 1 0106-0509
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-663-1 01 1 0510-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-707-0 01 1 0106-0509
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-664-1 01 1 0510-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7 		8-97095-907-0 02 1 0510-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5 		8-97095-908-0 02 1 0510-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		1-83539-317-0 02 1 0106-0509
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		1-83539-317-0 02 1 0106-0509
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		1-83539-317-0 02 1 0510-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		1-83539-324-0 02 1 0106-0509
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		1-83539-324-0 02 1 0106-0509
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		1-83539-324-0 02 1 0510-
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-484-0 01 1 0106-0509
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-966-0 01 1 0510-
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		1-83539-331-0 01 1 0106-0509
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97095-910-0 01 1 0510-
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-330-0 01 1 0106-0509
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97095-909-0 01 1 0510-
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-017-0 01 1 0106-0509
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-016-0 01 1 0510-
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-025-0 01 1 0106-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-246-0 02 1 0106-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-254-0 01 1 0106-0509
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-262-0 01 1 0510-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-255-0 01 1 0106-0509
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-263-0 01 1 0510-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-328-0 02 1 0106-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0106-
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28680-625-0 02 1 0106-0409
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28080-625-0 02 1 0410-0512
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28050-625-0 02 1 0601-
194 NUT; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE 		0-91150-106-0 01 1 0106-0602
194 NUT; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE 		0-91180-106-0 01 1 0603-
çizim 18697
12 171 156 116 121 116 116 202 33 33 15 14
BalonParca AdiParca NoAdetTipApplied Date
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-658-1 01 1 0106-0206
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-852-2 01 1 0207-
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 01 1 0106-
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83572-412-0 01 1 0106-
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-635-0 01 1 0106-
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0106-0206
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0207-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.5 		1-83539-316-0 02 1 0106-0206
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4 		8-97095-906-0 02 1 0207-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97178-772-0 01 1 0106-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-723-0 01 1 0106-0206
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-863-1 01 1 0207-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-686-1 01 1 0106-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-687-0 01 1 0106-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-706-0 01 1 0106-0509
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-663-1 01 1 0510-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-707-0 01 1 0106-0509
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-664-1 01 1 0510-
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-330-0 01 1 0106-0206
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97095-909-0 01 1 0207-
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97095-911-0 01 1 0106-
202 SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-392-1 01 1 0106-
çizim 19762
189 15
BalonParca AdiParca NoAdetTipApplied Date
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83572-412-0 01 1 0106-
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-635-0 01 1 0106-
189 GROMMET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		9-09575-397-0 01 1 0106-
