4-25 — REAR FINAL DRIVE (#115089) — 2126 parça

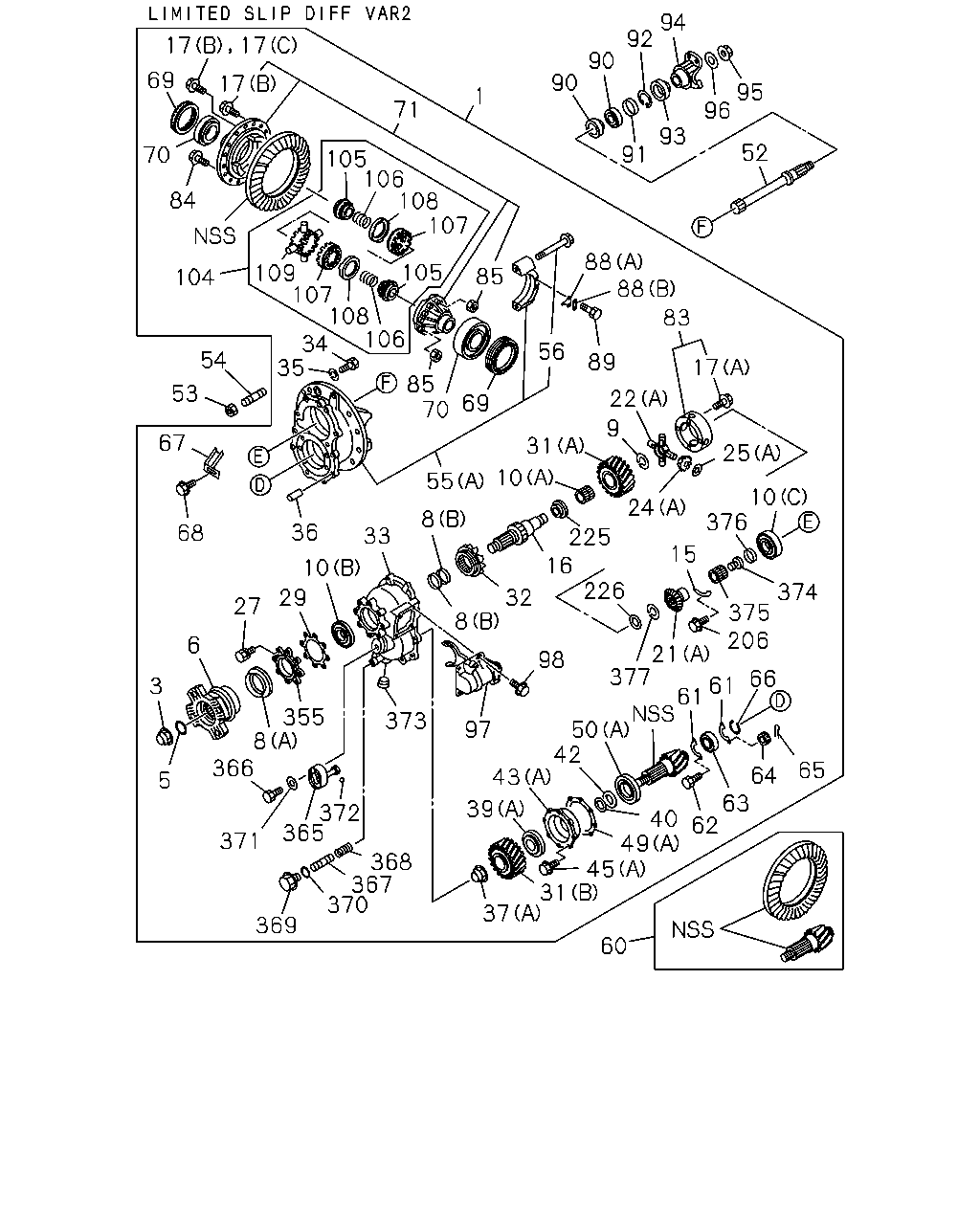

çizim 336418
17 17 69 17 71 1 70 84 104 109 105 106 108 107 107 108 106 34 35 54 53 67 68 36 10 29 27 6 3 5 8 366 371 365 369 370 367 368 372 355 373 33 8 55 85 69 70 60 37 31 45 49 40 62 63 64 65 66 61 61 50 42 43 39 97 98 8 32 226 225 16 377 21 206 375 374 10 376 15 24 25 10 31 9 22 17 83 88 89 56 85 105 88 90 90 92 94 91 93 96 95 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> REARWARD 39/7 		1-41002-547-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> FORWARD 39/7 		1-41002-561-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41003-558-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8 		1-41003-563-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8 		1-41003-555-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8 		1-41003-560-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> FORWARD 39/8 		1-41003-556-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> REARWARD 39/8 		1-41003-561-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9 		1-41003-559-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41003-564-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9 		1-41003-557-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/9 		1-41003-562-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 39/7 		1-41001-393-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 39/7 		1-41002-443-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8 		1-41001-394-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41002-108-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8 		1-41002-119-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41002-761-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 39/8 		1-41001-395-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 39/8 		1-41002-110-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41002-515-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9 		1-41002-514-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41001-396-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9 		1-41002-445-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/7 		1-41001-392-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/7 		1-41002-441-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/7 		1-41001-393-0 01 1 1303-1304 ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/7 		1-41002-443-0 01 1 1303-1304 ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 1303-1304 ● ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 1305-1511 ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 1512- ● ● ● ● ●
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 1303-1304 ● ●
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 1305-1511 ●
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 1512- ● ● ● ● ●
6 FLANGE ASM; INPUT SHAFT 1-37245-343-0 01 1 1303-1304 ● ●
6 FLANGE ASM; INPUT SHAFT 1-37245-343-0 01 1 1305-1511 ●
6 FLANGE ASM; INPUT SHAFT 1-37245-343-0 01 1 1512- ● ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 1303-1304 ● ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 1305-1511 ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 1512- ● ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 1303-1304 ● ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 1305-1511 ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 1512- ● ● ● ● ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 1303-1304 ● ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 1305-1511 ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 1512- ● ● ● ● ●
10 BEARING; INPUT SHAFT
(A) JTEKT 		1-09811-346-0 01 1 1303-1304 ● ●
10 BEARING; INPUT SHAFT
(A) JTEKT 		1-09811-346-0 01 1 1305-1511 ●
10 BEARING; INPUT SHAFT
(A) JTEKT 		1-09811-346-0 01 1 1512- ● ● ● ● ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09811-347-0 01 1 1303-1304 ● ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09811-347-0 01 1 1305-1511 ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09811-347-0 01 1 1512- ● ● ● ● ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 1303-1304 ● ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 1305-1511 ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 1512- ● ● ● ● ●
10 BEARING; INPUT SHAFT
(C) JTEKT 		1-09812-182-0 01 1 1303-1304 ● ●
10 BEARING; INPUT SHAFT
(C) JTEKT 		1-09812-182-0 01 1 1305-1511 ●
10 BEARING; INPUT SHAFT
(C) JTEKT 		1-09812-182-0 01 1 1512- ● ● ● ● ●
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 1303-1304 ● ●
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 1305-1511 ●
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 1512- ● ● ● ● ●
10 BEARING; INPUT SHAFT
(B) JTEKT 		1-09812-198-0 01 1 1303-1304 ● ●
10 BEARING; INPUT SHAFT
(B) JTEKT 		1-09812-198-0 01 1 1305-1511 ●
10 BEARING; INPUT SHAFT
(B) JTEKT 		1-09812-198-0 01 1 1512- ● ● ● ● ●
15 CATCHER; OIL 1-41129-007-0 01 1 1303-1304 ● ●
15 CATCHER; OIL 1-41129-007-0 01 1 1305-1511 ●
15 CATCHER; OIL 1-41129-007-0 01 1 1512- ● ● ● ● ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 1303-1304 ● ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 1305-1511 ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 1512- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M10X55 		1-09070-108-0 08 1 1303-1304 ● ●
17 BOLT; DIFF CAGE SETTING
(A) M10X55 		1-09070-108-0 08 1 1305-1511 ●
17 BOLT; DIFF CAGE SETTING
(A) M10X55 		1-09070-108-0 08 1 1512- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(C) M16X125 		1-09070-007-0 04 1 1303-1304 ● ●
17 BOLT; DIFF CAGE SETTING
(C) M16X125 		1-09070-007-0 04 1 1303-1304 ● ●
17 BOLT; DIFF CAGE SETTING
(C) M16X125 		1-09070-007-0 04 1 1305-1511 ●
17 BOLT; DIFF CAGE SETTING
(C) M16X125 		1-09070-007-0 04 1 1305-1511 ●
17 BOLT; DIFF CAGE SETTING
(C) M16X125 		1-09070-007-0 04 1 1512- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(C) M16X125 		1-09070-007-0 04 1 1512- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1303-1304 ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1303-1304 ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1305-1511 ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1305-1511 ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1512- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1512- ● ● ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-169-0 01 1 1303-1304 ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-169-0 01 1 1305-1511 ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-169-0 01 1 1512- ● ● ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-151-0 02 1 1303-1304 ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-151-0 02 1 1303-1304 ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-151-0 02 1 1305-1511 ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-151-0 02 1 1305-1511 ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-151-0 02 1 1512- ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-151-0 02 1 1512- ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF VAR2<G86> (B) Z=16 		1-41561-151-0 02 1 1512- ● ● ● ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF VAR2<G86> (B) Z=16 		1-41561-151-0 02 1 1512- ● ● ● ●
22 SPIDER; DIFF PINION
(A) 		1-41521-049-2 01 1 1303-1304 ● ●
22 SPIDER; DIFF PINION
(A) 		1-41521-049-2 01 1 1305-1511 ●
22 SPIDER; DIFF PINION
(A) 		1-41521-049-2 01 1 1512- ● ● ● ● ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 1303-1304 ● ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 1303-1304 ● ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 1305-1511 ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 1305-1511 ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 1512- ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 1512- ●
22 SPIDER; DIFF PINION
EXC. LIMITED SLIP DIFF VAR2<G86> (B) OD=35 		1-41521-037-2 01 1 1512- ● ● ● ●
22 SPIDER; DIFF PINION
EXC. LIMITED SLIP DIFF VAR2<G86> (B) OD=35 		1-41521-037-2 01 1 1512- ● ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-055-0 04 1 1303-1304 ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-055-0 04 1 1305-1511 ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-055-0 04 1 1512- ● ● ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-053-0 04 1 1303-1304 ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-053-0 04 1 1303-1304 ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-053-0 04 1 1305-1511 ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-053-0 04 1 1305-1511 ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-053-0 04 1 1512- ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-053-0 04 1 1512- ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF VAR2<G86> (B) Z=10 		1-41551-053-0 04 1 1512- ● ● ● ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF VAR2<G86> (B) Z=10 		1-41551-053-0 04 1 1512- ● ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-023-0 04 1 1303-1304 ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-023-0 04 1 1305-1511 ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-023-0 04 1 1512- ● ● ● ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 1303-1304 ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 1303-1304 ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 1305-1511 ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 1305-1511 ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 1512- ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 1512- ●
25 WASHER; THRUST,PINION
EXC. LIMITED SLIP DIFF VAR2<G86> (B) T=1.6 		1-41552-017-0 04 1 1512- ● ● ● ●
25 WASHER; THRUST,PINION
EXC. LIMITED SLIP DIFF VAR2<G86> (B) T=1.6 		1-41552-017-0 04 1 1512- ● ● ● ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50551-235-0 08 1 1303-1304 ● ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50551-235-0 08 1 1305-1511 ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50551-235-0 08 1 1512- ● ● ● ● ●
29 SHIM; BRG RET
T=0.30 		1-41349-146-0 AR 1 1303-1304 ● ●
29 SHIM; BRG RET
T=0.30 		1-41349-146-0 AR 1 1305-1511 ●
29 SHIM; BRG RET
T=0.30 		1-41349-146-0 AR 1 1512- ● ● ● ● ●
29 SHIM; BRG RET
T=0.40 		1-41349-147-0 AR 1 1303-1304 ● ●
29 SHIM; BRG RET
T=0.40 		1-41349-147-0 AR 1 1305-1511 ●
29 SHIM; BRG RET
T=0.40 		1-41349-147-0 AR 1 1512- ● ● ● ● ●
29 SHIM; BRG RET
T=0.50 		1-41349-148-0 AR 1 1303-1304 ● ●
29 SHIM; BRG RET
T=0.50 		1-41349-148-0 AR 1 1305-1511 ●
29 SHIM; BRG RET
T=0.50 		1-41349-148-0 AR 1 1512- ● ● ● ● ●
29 SHIM; BRG RET
T=1.000 		1-41349-149-0 AR 1 1303-1304 ● ●
29 SHIM; BRG RET
T=1.000 		1-41349-149-0 AR 1 1305-1511 ●
29 SHIM; BRG RET
T=1.000 		1-41349-149-0 AR 1 1512- ● ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-044-0 01 1 1303-1304 ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-044-0 01 1 1305-1511 ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-044-0 01 1 1512- ● ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(B) Z=31 		1-41352-029-0 01 1 1303-1304 ● ●
31 GEAR; DRIVEN,HELICAL
(B) Z=31 		1-41352-029-0 01 1 1305-1511 ●
31 GEAR; DRIVEN,HELICAL
(B) Z=31 		1-41352-029-0 01 1 1512- ● ● ● ● ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 1303-1304 ● ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 1305-1511 ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 1512- ● ● ● ● ●

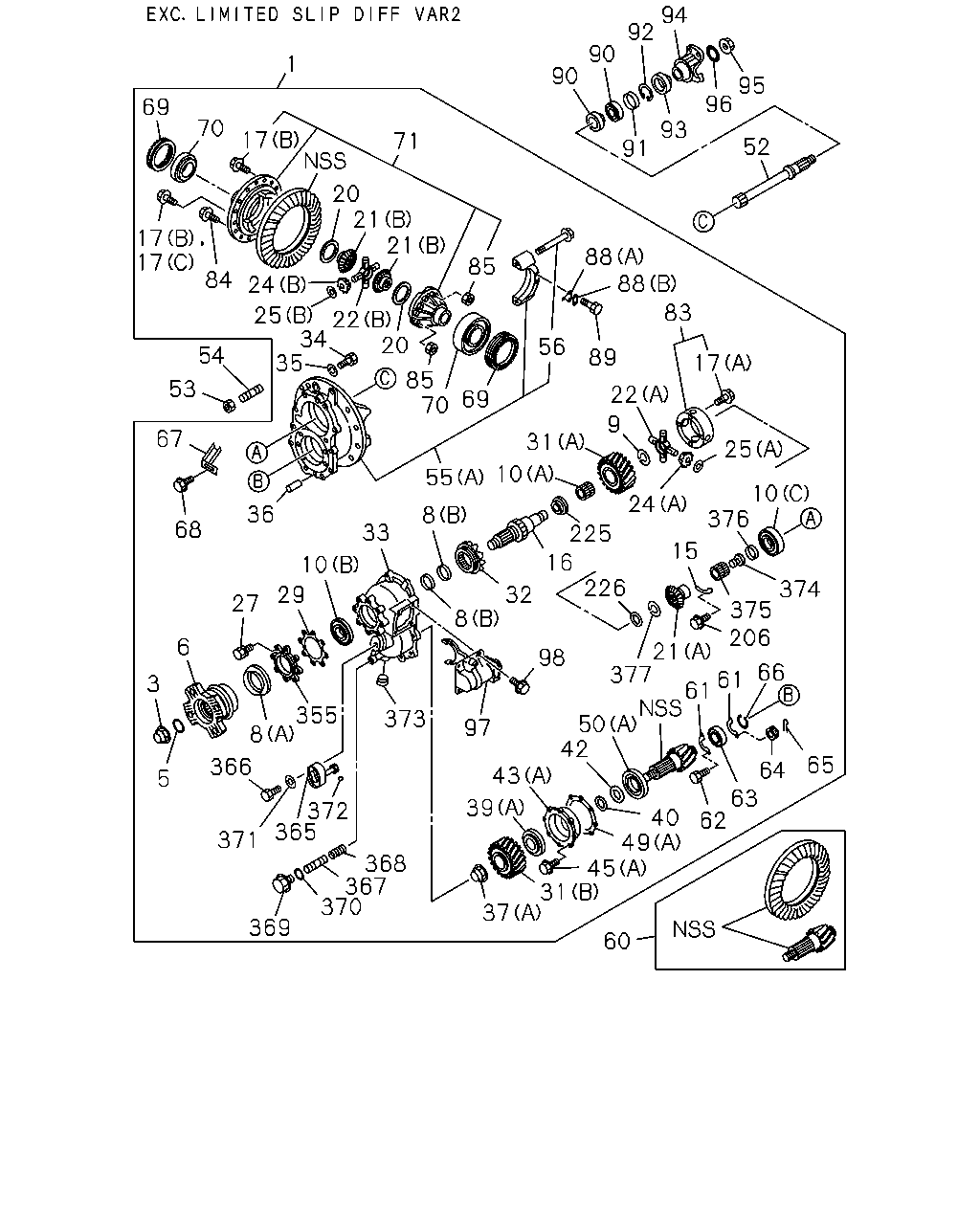

33 CASE; POWER DIVIDER 1-41321-024-1 01 1 1303-1304 ● ●
33 CASE; POWER DIVIDER 1-41321-024-1 01 1 1305-1511 ●
33 CASE; POWER DIVIDER 1-41321-024-1 01 1 1512- ● ● ● ● ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23851-440-0 10 1 1303-1304 ● ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23851-440-0 10 1 1305-1511 ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23851-440-0 10 1 1512- ● ● ● ● ●
35 WASHER; CASE TO CARRIER
ID=14.2 		0-91510-814-0 10 1 1303-1304 ● ●
35 WASHER; CASE TO CARRIER
ID=14.2 		0-91510-814-0 10 1 1305-1511 ●
35 WASHER; CASE TO CARRIER
ID=14.2 		0-91510-814-0 10 1 1512- ● ● ● ● ●
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 1303-1304 ● ●
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 1305-1511 ●
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 1512- ● ● ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1303-1304 ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1305-1511 ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1512- ● ● ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1303-1304 ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1305-1511 ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1512- ● ● ● ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 1303-1304 ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 1305-1511 ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 1512- ● ● ● ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-3 01 1 1303-1304 ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-3 01 1 1305-1511 ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-3 01 1 1512- ● ● ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 1303-1304 ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 1305-1511 ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 1512- ● ● ● ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 1303-1304 ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 1305-1511 ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1512- ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-237-0 AR 1 1303-1304 ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-237-0 AR 1 1305-1511 ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-237-0 AR 1 1512- ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-238-0 AR 1 1303-1304 ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-238-0 AR 1 1305-1511 ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-238-0 AR 1 1512- ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-239-0 AR 1 1303-1304 ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-239-0 AR 1 1305-1511 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-239-0 AR 1 1512- ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-240-0 AR 1 1303-1304 ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-240-0 AR 1 1305-1511 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-240-0 AR 1 1512- ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.40 		1-41229-241-0 AR 1 1303-1304 ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.40 		1-41229-241-0 AR 1 1305-1511 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.40 		1-41229-241-0 AR 1 1512- ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.60 		1-41229-242-0 AR 1 1303-1304 ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.60 		1-41229-242-0 AR 1 1305-1511 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.60 		1-41229-242-0 AR 1 1512- ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.80 		1-41229-243-0 AR 1 1303-1304 ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.80 		1-41229-243-0 AR 1 1305-1511 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.80 		1-41229-243-0 AR 1 1512- ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=9.00 		1-41229-244-0 AR 1 1303-1304 ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=9.00 		1-41229-244-0 AR 1 1305-1511 ●
42 COLLAR; DIST,COLLAPSIBLE
T=9.00 		1-41229-244-0 AR 1 1512- ● ● ● ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 1303-1304 ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 1305-1511 ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 1512- ● ● ● ● ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 1303-1304 ● ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 1305-1511 ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 1512- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 1303-1304 ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 1305-1511 ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 1512- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 1303-1304 ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 1305-1511 ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 1512- ● ● ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1303-1304 ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1305-1511 ●

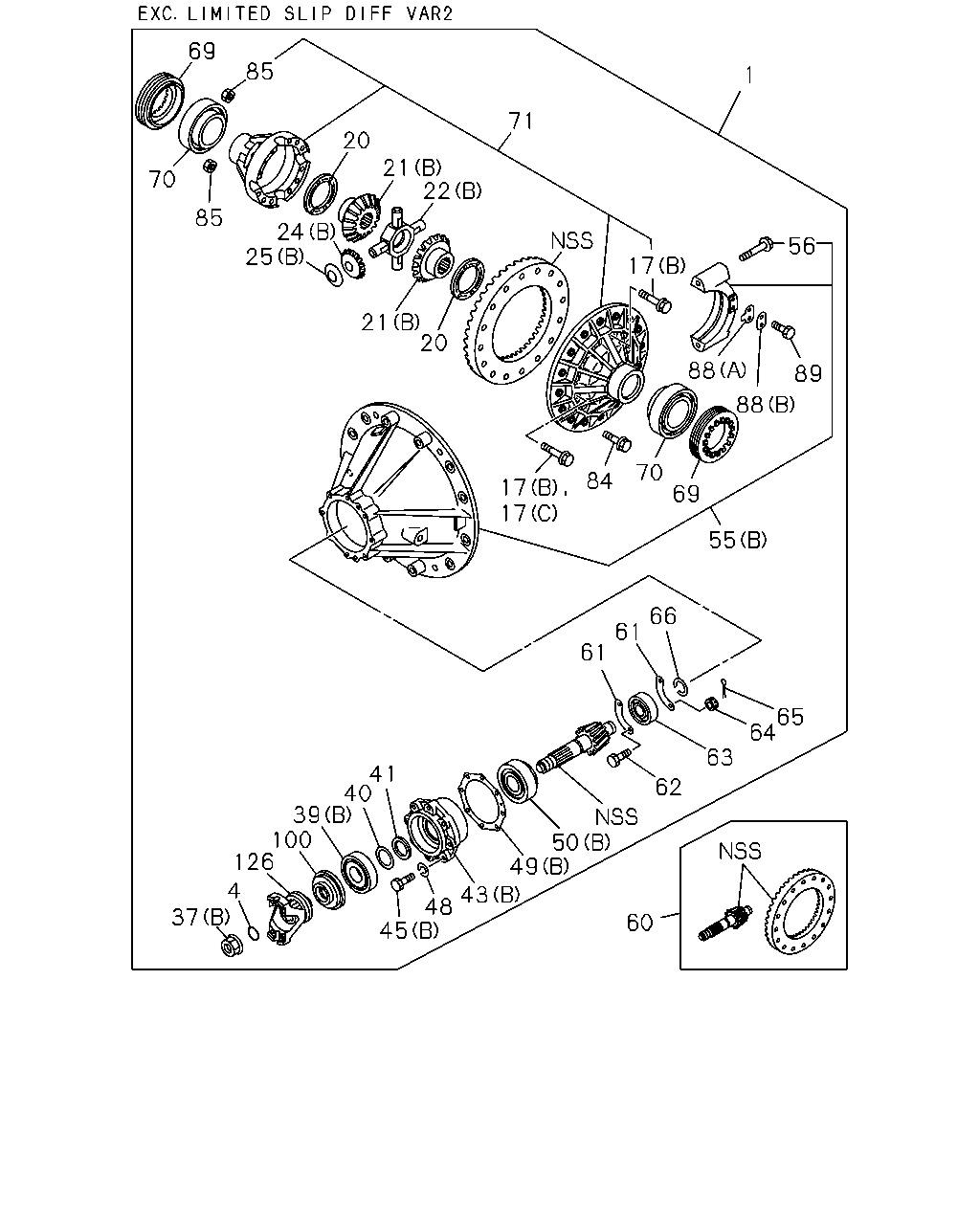

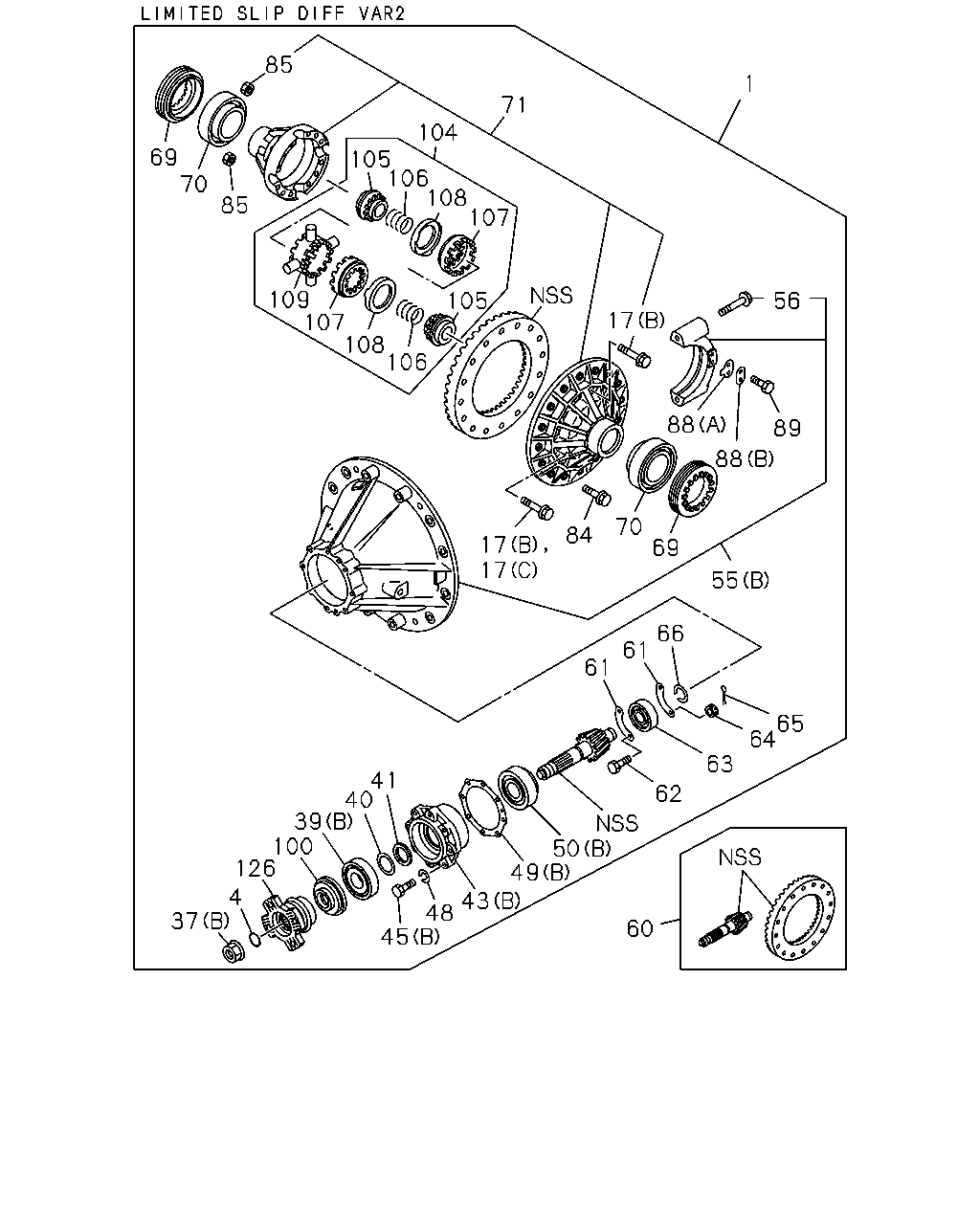

50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1512- ● ● ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1303-1304 ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1305-1511 ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1512- ● ● ● ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1303-1304 ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1305-1511 ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1512- ● ● ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1303-1304 ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1305-1511 ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1512- ● ● ● ● ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 1303-1304 ● ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 1305-1511 ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 1512- ● ● ● ● ●
53 NUT; FINAL DRIVE SET
M16 		0-91110-516-0 01 1 1303-1304 ● ●
53 NUT; FINAL DRIVE SET
M16 		0-91110-516-0 01 1 1305-1511 ●
53 NUT; FINAL DRIVE SET
M16 		0-91110-516-0 01 1 1512- ● ● ● ● ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 1303-1304 ● ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 1305-1511 ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 1512- ● ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 1303-1304 ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 1305-1511 ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 1512- ● ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 1303-1304 ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 1305-1511 ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 1512- ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1303-1304 ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1303-1304 ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1305-1511 ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1305-1511 ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1512- ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1512- ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/7 		1-41210-476-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/7 		1-41210-604-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8 		1-41210-605-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8 		1-41210-546-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8 		1-41210-606-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8 		1-41210-477-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-478-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-607-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/9 		1-41210-626-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9 		1-41210-627-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9 		1-41210-479-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/9 		1-41210-608-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/7 		1-41210-475-0 01 1 1303- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-603-0 01 1 1303- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/7 		1-41210-476-0 01 1 1303-1304 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/7 		1-41210-604-0 01 1 1303-1304 ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1303-1304 ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1303-1304 ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1305-1511 ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1305-1511 ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1512- ● ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1512- ● ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1303-1304 ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1303-1304 ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1305-1511 ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1305-1511 ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1512- ● ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1512- ● ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1303-1304 ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1303-1304 ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1305-1511 ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1305-1511 ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1512- ● ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1512- ● ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1303-1304 ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1303-1304 ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1305-1511 ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1305-1511 ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1512- ● ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1512- ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1303-1304 ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1303-1304 ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1305-1511 ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1305-1511 ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1512- ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1512- ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1303-1304 ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1303-1304 ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1305-1511 ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1305-1511 ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1512- ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1512- ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1303-1304 ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1303-1304 ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1305-1511 ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1305-1511 ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1512- ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1512- ● ● ● ● ●
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 1303-1304 ● ●
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 1305-1511 ●
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 1512- ● ● ● ● ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 1303-1304 ● ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 1305-1511 ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 1512- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1303-1304 ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1303-1304 ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1305-1511 ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1305-1511 ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1512- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1512- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1303-1304 ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1303-1304 ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1305-1511 ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1305-1511 ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1512- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1512- ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1303-1304 ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1303-1304 ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1305-1511 ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1305-1511 ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1512- ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1512- ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1512- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1512- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1303-1304 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1303-1304 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1305-1511 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1305-1511 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1512- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1512- ●
83 CAGE ASM; DIFF 1-41510-224-0 01 1 1303-1304 ● ●
83 CAGE ASM; DIFF 1-41510-224-0 01 1 1305-1511 ●
83 CAGE ASM; DIFF 1-41510-224-0 01 1 1512- ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1303-1304 ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1303-1304 ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1305-1511 ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1305-1511 ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1512- ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1512- ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1303-1304 ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1303-1304 ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1305-1511 ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1305-1511 ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1512- ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1512- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1303-1304 ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1303-1304 ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1305-1511 ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1305-1511 ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1512- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1512- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1303-1304 ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1303-1304 ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1305-1511 ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1305-1511 ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1512- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1512- ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1303-1304 ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1303-1304 ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1305-1511 ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1305-1511 ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1512- ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1512- ● ● ● ● ●
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 1303-1304 ● ●
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 1305-1511 ●
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 1512- ● ● ● ● ●
90 BEARING; OUTPUT SHAFT
JTEKT 		1-09812-069-0 02 1 1303-1304 ● ●
90 BEARING; OUTPUT SHAFT
JTEKT 		1-09812-069-0 02 1 1305-1511 ●
90 BEARING; OUTPUT SHAFT
JTEKT 		1-09812-069-0 02 1 1512- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 1303-1304 ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 1305-1511 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 1512- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 1303-1304 ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 1305-1511 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 1512- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 1303-1304 ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 1305-1511 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 1512- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 1303-1304 ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 1305-1511 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 1512- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 1303-1304 ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 1305-1511 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 1512- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 1303-1304 ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 1305-1511 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 1512- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 1303-1304 ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 1305-1511 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 1512- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 1303-1304 ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 1305-1511 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 1512- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 1303-1304 ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 1305-1511 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 1512- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 1303-1304 ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 1305-1511 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 1512- ● ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
OD=90.5 		9-09180-185-0 01 1 1303-1304 ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
OD=90.5 		9-09180-185-0 01 1 1305-1511 ●
92 RING; SNAP,BRG,OUTPUT SHAFT
OD=90.5 		9-09180-185-0 01 1 1512- ● ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 1303-1304 ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 1305-1511 ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 1512- ● ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 1303-1304 ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 1305-1511 ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 1512- ● ● ● ● ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 1303-1304 ● ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 1305-1511 ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 1512- ● ● ● ● ●
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 1303-1304 ● ●
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 1305-1511 ●
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 1512- ● ● ● ● ●

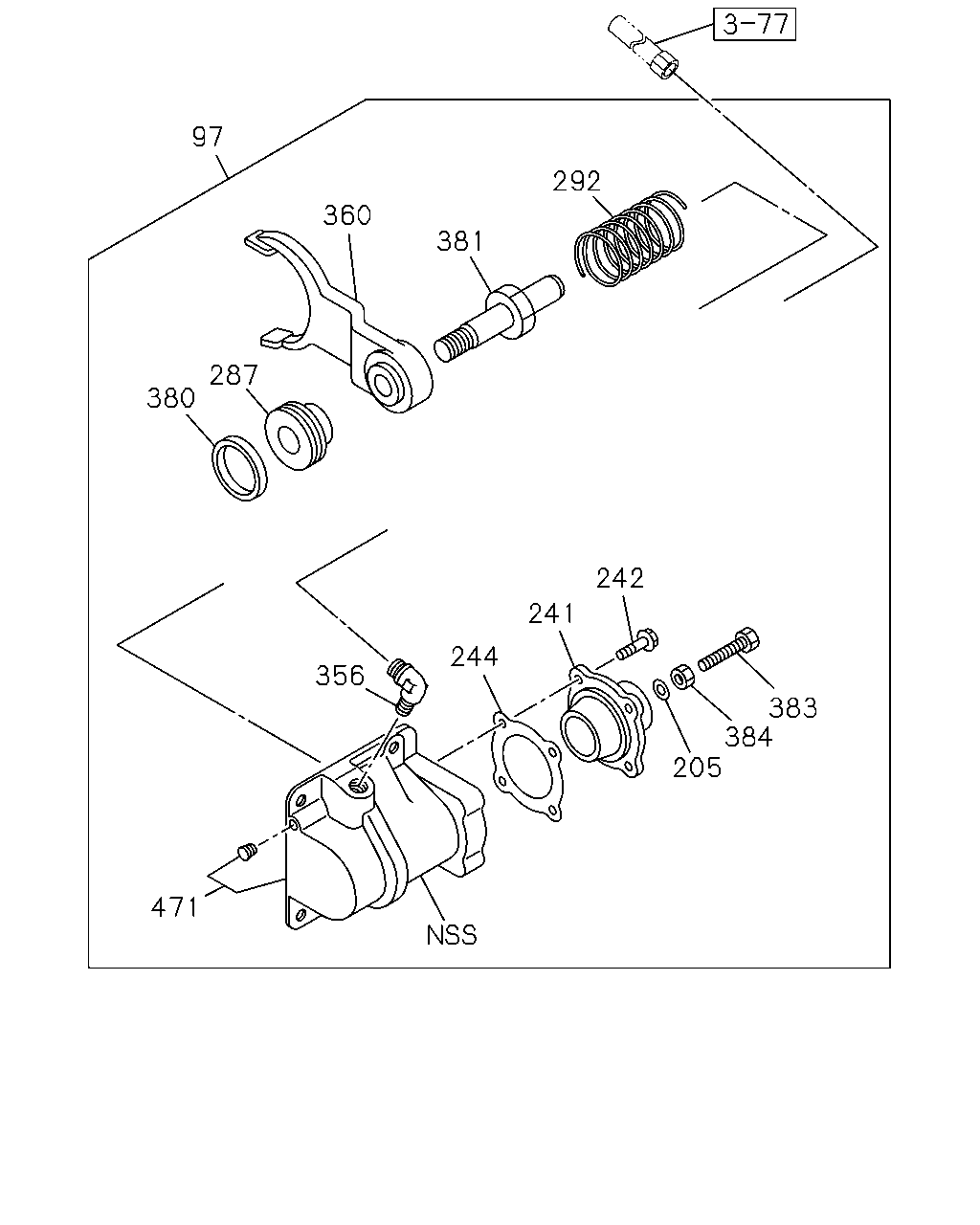

97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1303-1304 ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1305-1511 ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1512- ● ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28151-050-0 01 1 1303-1304 ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28151-050-0 01 1 1305-1511 ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28151-050-0 01 1 1512- ● ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28751-025-0 03 1 1303-1304 ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28751-025-0 03 1 1305-1511 ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28751-025-0 03 1 1512- ● ● ● ● ●
104 DIFF ASM; NO SPIN
LIMITED SLIP DIFF VAR2<G86> 		1-41530-023-0 01 1 1512- ● ● ● ●
104 DIFF ASM; NO SPIN
LIMITED SLIP DIFF VAR2<G86> 		1-41530-023-0 01 1 1512- ● ● ● ●
105 GEAR; SIDE
LIMITED SLIP DIFF VAR2<G86> Z=24 		1-41539-028-0 02 1 1512- ● ● ● ●
105 GEAR; SIDE
LIMITED SLIP DIFF VAR2<G86> Z=24 		1-41539-028-0 02 1 1512- ● ● ● ●
106 SPRING; NO SPIN DIFF
LIMITED SLIP DIFF VAR2<G86> 		1-41535-004-0 02 1 1512- ● ● ● ●
106 SPRING; NO SPIN DIFF
LIMITED SLIP DIFF VAR2<G86> 		1-41535-004-0 02 1 1512- ● ● ● ●
107 CLUTCH; DRIVEN
LIMITED SLIP DIFF VAR2<G86> 		1-41532-006-0 02 1 1512- ● ● ● ●
107 CLUTCH; DRIVEN
LIMITED SLIP DIFF VAR2<G86> 		1-41532-006-0 02 1 1512- ● ● ● ●
108 RING; HOLD OUT
LIMITED SLIP DIFF VAR2<G86> 		1-41539-024-0 02 1 1512- ● ● ● ●
108 RING; HOLD OUT
LIMITED SLIP DIFF VAR2<G86> 		1-41539-024-0 02 1 1512- ● ● ● ●
109 SPIDER; DIFF
LIMITED SLIP DIFF VAR2<G86> 		1-41539-027-0 01 1 1512- ● ● ● ●
109 SPIDER; DIFF
LIMITED SLIP DIFF VAR2<G86> 		1-41539-027-0 01 1 1512- ● ● ● ●
206 BOLT; OIL CATCHER
M8X12 FLANGE 		8-94479-696-1 02 1 1303-1304 ● ●
206 BOLT; OIL CATCHER
M8X12 FLANGE 		8-94479-696-1 02 1 1305-1511 ●
206 BOLT; OIL CATCHER
M8X12 FLANGE 		8-94479-696-1 02 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=5.9 		1-41552-024-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=5.9 		1-41552-024-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=5.9 		1-41552-024-2 AR 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=6.0 		1-41552-025-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=6.0 		1-41552-025-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=6.0 		1-41552-025-2 AR 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=6.1 		1-41552-026-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=6.1 		1-41552-026-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=6.1 		1-41552-026-2 AR 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=6.2 		1-41552-027-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=6.2 		1-41552-027-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=6.2 		1-41552-027-2 AR 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=6.3 		1-41552-028-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=6.3 		1-41552-028-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=6.3 		1-41552-028-2 AR 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=6.4 		1-41552-029-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=6.4 		1-41552-029-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=6.4 		1-41552-029-2 AR 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=6.5 		1-41552-030-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=6.5 		1-41552-030-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=6.5 		1-41552-030-2 AR 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=6.6 		1-41552-031-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=6.6 		1-41552-031-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=6.6 		1-41552-031-2 AR 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=6.7 		1-41552-032-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=6.7 		1-41552-032-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=6.7 		1-41552-032-2 AR 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=6.8 		1-41552-033-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=6.8 		1-41552-033-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=6.8 		1-41552-033-2 AR 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=6.9 		1-41552-034-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=6.9 		1-41552-034-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=6.9 		1-41552-034-2 AR 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=7.0 		1-41552-035-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=7.0 		1-41552-035-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=7.0 		1-41552-035-2 AR 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=7.1 		1-41552-036-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=7.1 		1-41552-036-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=7.1 		1-41552-036-2 AR 1 1512- ● ● ● ● ●
226 WASHER; THRUST 1-41562-267-0 01 1 1303-1304 ● ●
226 WASHER; THRUST 1-41562-267-0 01 1 1305-1511 ●
226 WASHER; THRUST 1-41562-267-0 01 1 1512- ● ● ● ● ●
355 RETAINER; BRG 1-41227-016-0 01 1 1303-1304 ● ●
355 RETAINER; BRG 1-41227-016-0 01 1 1305-1511 ●
355 RETAINER; BRG 1-41227-016-0 01 1 1512- ● ● ● ● ●
365 PUMP ASM; OIL 1-41381-008-1 01 1 1303-1304 ● ●
365 PUMP ASM; OIL 1-41381-008-1 01 1 1305-1511 ●
365 PUMP ASM; OIL 1-41381-008-1 01 1 1512- ● ● ● ● ●
366 BOLT; PUMP
M8X40 		0-10805-840-0 04 1 1303-1304 ● ●
366 BOLT; PUMP
M8X40 		0-10805-840-0 04 1 1305-1511 ●
366 BOLT; PUMP
M8X40 		0-10805-840-0 04 1 1512- ● ● ● ● ●
367 STRAINER; OIL PUMP 1-41383-003-0 01 1 1303-1304 ● ●
367 STRAINER; OIL PUMP 1-41383-003-0 01 1 1305-1511 ●
367 STRAINER; OIL PUMP 1-41383-003-0 01 1 1512- ● ● ● ● ●
368 SPRING; STRAINER 1-09580-504-0 01 1 1303-1304 ● ●
368 SPRING; STRAINER 1-09580-504-0 01 1 1305-1511 ●
368 SPRING; STRAINER 1-09580-504-0 01 1 1512- ● ● ● ● ●
369 PLUG; STRAINER
M24X17 FLANGE 		1-09604-023-0 01 1 1303-1304 ● ●
369 PLUG; STRAINER
M24X17 FLANGE 		1-09604-023-0 01 1 1305-1511 ●
369 PLUG; STRAINER
M24X17 FLANGE 		1-09604-023-0 01 1 1512- ● ● ● ● ●
370 GASKET; STRAINER
ID=26.8 		1-09623-058-0 01 1 1303-1304 ● ●
370 GASKET; STRAINER
ID=26.8 		1-09623-058-0 01 1 1305-1511 ●
370 GASKET; STRAINER
ID=26.8 		1-09623-058-0 01 1 1512- ● ● ● ● ●
371 WASHER; LK,PUMP
ID=8.2 		0-91510-808-0 04 1 1303-1304 ● ●
371 WASHER; LK,PUMP
ID=8.2 		0-91510-808-0 04 1 1305-1511 ●
371 WASHER; LK,PUMP
ID=8.2 		0-91510-808-0 04 1 1512- ● ● ● ● ●
372 BALL; CASE 9-00097-517-0 01 1 1303-1304 ● ●
372 BALL; CASE 9-00097-517-0 01 1 1305-1511 ●
372 BALL; CASE 9-00097-517-0 01 1 1512- ● ● ● ● ●
373 PLUG; CASE
PT1/4 		1-09605-019-0 01 1 1303-1304 ● ●
373 PLUG; CASE
PT1/4 		1-09605-019-0 01 1 1305-1511 ●
373 PLUG; CASE
PT1/4 		1-09605-019-0 01 1 1512- ● ● ● ● ●
374 PLUG; INPUT SHAFT 1-09609-020-1 01 1 1303-1304 ● ●
374 PLUG; INPUT SHAFT 1-09609-020-1 01 1 1305-1511 ●
374 PLUG; INPUT SHAFT 1-09609-020-1 01 1 1512- ● ● ● ● ●
375 BEARING; SIDE GEAR
JTEKT 		1-09811-348-0 01 1 1303-1304 ● ●
375 BEARING; SIDE GEAR
JTEKT 		1-09811-348-0 01 1 1305-1511 ●
375 BEARING; SIDE GEAR
JTEKT 		1-09811-348-0 01 1 1512- ● ● ● ● ●
375 BEARING; SIDE GEAR
NSK 		1-09811-362-0 01 1 1303-1304 ● ●
375 BEARING; SIDE GEAR
NSK 		1-09811-362-0 01 1 1305-1511 ●
375 BEARING; SIDE GEAR
NSK 		1-09811-362-0 01 1 1512- ● ● ● ● ●
376 SPACER; BRG,SIDE GEAR 1-41349-150-0 01 1 1303-1304 ● ●
376 SPACER; BRG,SIDE GEAR 1-41349-150-0 01 1 1305-1511 ●
376 SPACER; BRG,SIDE GEAR 1-41349-150-0 01 1 1512- ● ● ● ● ●
377 RING; SNAP,BRG,SIDE GEAR 1-09587-091-0 01 1 1303-1304 ● ●
377 RING; SNAP,BRG,SIDE GEAR 1-09587-091-0 01 1 1305-1511 ●
377 RING; SNAP,BRG,SIDE GEAR 1-09587-091-0 01 1 1512- ● ● ● ● ●
çizim 336864
1 69 17 70 17 17 71 20 84 21 24 21 25 54 53 67 34 35 22 85 90 90 92 94 91 93 96 95 52 88 20 56 88 17 83 89 68 33 36 85 22 69 70 9 25 24 225 31 10 55 8 10 29 27 6 3 8 16 376 10 15 374 375 206 61 61 50 377 42 21 226 98 97 373 32 8 355 66 65 64 63 62 40 49 45 31 37 60 368 367 370 369 371 372 365 5 366 39 43
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> REARWARD 39/7 		1-41002-547-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> FORWARD 39/7 		1-41002-561-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41003-558-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8 		1-41003-563-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8 		1-41003-555-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8 		1-41003-560-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> FORWARD 39/8 		1-41003-556-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> REARWARD 39/8 		1-41003-561-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9 		1-41003-559-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41003-564-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9 		1-41003-557-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/9 		1-41003-562-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 39/7 		1-41001-393-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 39/7 		1-41002-443-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8 		1-41001-394-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41002-108-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8 		1-41002-119-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41002-761-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 39/8 		1-41001-395-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 39/8 		1-41002-110-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41002-515-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9 		1-41002-514-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41001-396-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9 		1-41002-445-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/7 		1-41001-392-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/7 		1-41002-441-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/7 		1-41001-393-0 01 1 1303-1304 ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/7 		1-41002-443-0 01 1 1303-1304 ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 1303-1304 ● ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 1305-1511 ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 1512- ● ● ● ● ●
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 1303-1304 ● ●
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 1305-1511 ●
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 1512- ● ● ● ● ●
6 FLANGE ASM; INPUT SHAFT 1-37245-343-0 01 1 1303-1304 ● ●
6 FLANGE ASM; INPUT SHAFT 1-37245-343-0 01 1 1305-1511 ●
6 FLANGE ASM; INPUT SHAFT 1-37245-343-0 01 1 1512- ● ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 1303-1304 ● ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 1305-1511 ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 1512- ● ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 1303-1304 ● ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 1305-1511 ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 1512- ● ● ● ● ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 1303-1304 ● ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 1305-1511 ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 1512- ● ● ● ● ●
10 BEARING; INPUT SHAFT
(A) JTEKT 		1-09811-346-0 01 1 1303-1304 ● ●
10 BEARING; INPUT SHAFT
(A) JTEKT 		1-09811-346-0 01 1 1305-1511 ●
10 BEARING; INPUT SHAFT
(A) JTEKT 		1-09811-346-0 01 1 1512- ● ● ● ● ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09811-347-0 01 1 1303-1304 ● ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09811-347-0 01 1 1305-1511 ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09811-347-0 01 1 1512- ● ● ● ● ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 1303-1304 ● ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 1305-1511 ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 1512- ● ● ● ● ●
10 BEARING; INPUT SHAFT
(C) JTEKT 		1-09812-182-0 01 1 1303-1304 ● ●
10 BEARING; INPUT SHAFT
(C) JTEKT 		1-09812-182-0 01 1 1305-1511 ●
10 BEARING; INPUT SHAFT
(C) JTEKT 		1-09812-182-0 01 1 1512- ● ● ● ● ●
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 1303-1304 ● ●
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 1305-1511 ●
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 1512- ● ● ● ● ●
10 BEARING; INPUT SHAFT
(B) JTEKT 		1-09812-198-0 01 1 1303-1304 ● ●
10 BEARING; INPUT SHAFT
(B) JTEKT 		1-09812-198-0 01 1 1305-1511 ●
10 BEARING; INPUT SHAFT
(B) JTEKT 		1-09812-198-0 01 1 1512- ● ● ● ● ●
15 CATCHER; OIL 1-41129-007-0 01 1 1303-1304 ● ●
15 CATCHER; OIL 1-41129-007-0 01 1 1305-1511 ●
15 CATCHER; OIL 1-41129-007-0 01 1 1512- ● ● ● ● ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 1303-1304 ● ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 1305-1511 ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 1512- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M10X55 		1-09070-108-0 08 1 1303-1304 ● ●
17 BOLT; DIFF CAGE SETTING
(A) M10X55 		1-09070-108-0 08 1 1305-1511 ●
17 BOLT; DIFF CAGE SETTING
(A) M10X55 		1-09070-108-0 08 1 1512- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(C) M16X125 		1-09070-007-0 04 1 1303-1304 ● ●
17 BOLT; DIFF CAGE SETTING
(C) M16X125 		1-09070-007-0 04 1 1303-1304 ● ●
17 BOLT; DIFF CAGE SETTING
(C) M16X125 		1-09070-007-0 04 1 1305-1511 ●
17 BOLT; DIFF CAGE SETTING
(C) M16X125 		1-09070-007-0 04 1 1305-1511 ●
17 BOLT; DIFF CAGE SETTING
(C) M16X125 		1-09070-007-0 04 1 1512- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(C) M16X125 		1-09070-007-0 04 1 1512- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1303-1304 ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1303-1304 ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1305-1511 ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1305-1511 ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1512- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1512- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=2.8 		1-41562-112-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=2.8 		1-41562-112-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=2.9 		1-41562-113-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=2.9 		1-41562-113-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.0 		1-41562-114-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.0 		1-41562-114-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.1 		1-41562-115-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.1 		1-41562-115-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.2 		1-41562-116-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.2 		1-41562-116-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.3 		1-41562-117-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.3 		1-41562-117-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.4 		1-41562-118-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.4 		1-41562-118-0 AR 1 1512- ● ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-169-0 01 1 1303-1304 ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-169-0 01 1 1305-1511 ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-169-0 01 1 1512- ● ● ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-151-0 02 1 1303-1304 ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-151-0 02 1 1303-1304 ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-151-0 02 1 1305-1511 ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-151-0 02 1 1305-1511 ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-151-0 02 1 1512- ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-151-0 02 1 1512- ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF VAR2<G86> (B) Z=16 		1-41561-151-0 02 1 1512- ● ● ● ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF VAR2<G86> (B) Z=16 		1-41561-151-0 02 1 1512- ● ● ● ●
22 SPIDER; DIFF PINION
(A) 		1-41521-049-2 01 1 1303-1304 ● ●
22 SPIDER; DIFF PINION
(A) 		1-41521-049-2 01 1 1305-1511 ●
22 SPIDER; DIFF PINION
(A) 		1-41521-049-2 01 1 1512- ● ● ● ● ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 1303-1304 ● ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 1303-1304 ● ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 1305-1511 ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 1305-1511 ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 1512- ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 1512- ●
22 SPIDER; DIFF PINION
EXC. LIMITED SLIP DIFF VAR2<G86> (B) OD=35 		1-41521-037-2 01 1 1512- ● ● ● ●
22 SPIDER; DIFF PINION
EXC. LIMITED SLIP DIFF VAR2<G86> (B) OD=35 		1-41521-037-2 01 1 1512- ● ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-055-0 04 1 1303-1304 ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-055-0 04 1 1305-1511 ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-055-0 04 1 1512- ● ● ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-053-0 04 1 1303-1304 ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-053-0 04 1 1303-1304 ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-053-0 04 1 1305-1511 ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-053-0 04 1 1305-1511 ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-053-0 04 1 1512- ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-053-0 04 1 1512- ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF VAR2<G86> (B) Z=10 		1-41551-053-0 04 1 1512- ● ● ● ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF VAR2<G86> (B) Z=10 		1-41551-053-0 04 1 1512- ● ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-023-0 04 1 1303-1304 ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-023-0 04 1 1305-1511 ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-023-0 04 1 1512- ● ● ● ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 1303-1304 ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 1303-1304 ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 1305-1511 ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 1305-1511 ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 1512- ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 1512- ●
25 WASHER; THRUST,PINION
EXC. LIMITED SLIP DIFF VAR2<G86> (B) T=1.6 		1-41552-017-0 04 1 1512- ● ● ● ●
25 WASHER; THRUST,PINION
EXC. LIMITED SLIP DIFF VAR2<G86> (B) T=1.6 		1-41552-017-0 04 1 1512- ● ● ● ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50551-235-0 08 1 1303-1304 ● ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50551-235-0 08 1 1305-1511 ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50551-235-0 08 1 1512- ● ● ● ● ●
29 SHIM; BRG RET
T=0.30 		1-41349-146-0 AR 1 1303-1304 ● ●
29 SHIM; BRG RET
T=0.30 		1-41349-146-0 AR 1 1305-1511 ●
29 SHIM; BRG RET
T=0.30 		1-41349-146-0 AR 1 1512- ● ● ● ● ●
29 SHIM; BRG RET
T=0.40 		1-41349-147-0 AR 1 1303-1304 ● ●
29 SHIM; BRG RET
T=0.40 		1-41349-147-0 AR 1 1305-1511 ●
29 SHIM; BRG RET
T=0.40 		1-41349-147-0 AR 1 1512- ● ● ● ● ●
29 SHIM; BRG RET
T=0.50 		1-41349-148-0 AR 1 1303-1304 ● ●
29 SHIM; BRG RET
T=0.50 		1-41349-148-0 AR 1 1305-1511 ●
29 SHIM; BRG RET
T=0.50 		1-41349-148-0 AR 1 1512- ● ● ● ● ●
29 SHIM; BRG RET
T=1.000 		1-41349-149-0 AR 1 1303-1304 ● ●
29 SHIM; BRG RET
T=1.000 		1-41349-149-0 AR 1 1305-1511 ●
29 SHIM; BRG RET
T=1.000 		1-41349-149-0 AR 1 1512- ● ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-044-0 01 1 1303-1304 ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-044-0 01 1 1305-1511 ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-044-0 01 1 1512- ● ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(B) Z=31 		1-41352-029-0 01 1 1303-1304 ● ●
31 GEAR; DRIVEN,HELICAL
(B) Z=31 		1-41352-029-0 01 1 1305-1511 ●
31 GEAR; DRIVEN,HELICAL
(B) Z=31 		1-41352-029-0 01 1 1512- ● ● ● ● ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 1303-1304 ● ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 1305-1511 ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 1512- ● ● ● ● ●
33 CASE; POWER DIVIDER 1-41321-024-1 01 1 1303-1304 ● ●
33 CASE; POWER DIVIDER 1-41321-024-1 01 1 1305-1511 ●
33 CASE; POWER DIVIDER 1-41321-024-1 01 1 1512- ● ● ● ● ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23851-440-0 10 1 1303-1304 ● ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23851-440-0 10 1 1305-1511 ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23851-440-0 10 1 1512- ● ● ● ● ●
35 WASHER; CASE TO CARRIER
ID=14.2 		0-91510-814-0 10 1 1303-1304 ● ●
35 WASHER; CASE TO CARRIER
ID=14.2 		0-91510-814-0 10 1 1305-1511 ●
35 WASHER; CASE TO CARRIER
ID=14.2 		0-91510-814-0 10 1 1512- ● ● ● ● ●
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 1303-1304 ● ●
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 1305-1511 ●
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 1512- ● ● ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1303-1304 ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1305-1511 ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1512- ● ● ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1303-1304 ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1305-1511 ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1512- ● ● ● ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 1303-1304 ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 1305-1511 ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 1512- ● ● ● ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-3 01 1 1303-1304 ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-3 01 1 1305-1511 ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-3 01 1 1512- ● ● ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 1303-1304 ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 1305-1511 ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 1512- ● ● ● ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 1303-1304 ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 1305-1511 ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1512- ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-237-0 AR 1 1303-1304 ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-237-0 AR 1 1305-1511 ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-237-0 AR 1 1512- ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-238-0 AR 1 1303-1304 ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-238-0 AR 1 1305-1511 ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-238-0 AR 1 1512- ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-239-0 AR 1 1303-1304 ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-239-0 AR 1 1305-1511 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-239-0 AR 1 1512- ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-240-0 AR 1 1303-1304 ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-240-0 AR 1 1305-1511 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-240-0 AR 1 1512- ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.40 		1-41229-241-0 AR 1 1303-1304 ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.40 		1-41229-241-0 AR 1 1305-1511 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.40 		1-41229-241-0 AR 1 1512- ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.60 		1-41229-242-0 AR 1 1303-1304 ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.60 		1-41229-242-0 AR 1 1305-1511 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.60 		1-41229-242-0 AR 1 1512- ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.80 		1-41229-243-0 AR 1 1303-1304 ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.80 		1-41229-243-0 AR 1 1305-1511 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.80 		1-41229-243-0 AR 1 1512- ● ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=9.00 		1-41229-244-0 AR 1 1303-1304 ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=9.00 		1-41229-244-0 AR 1 1305-1511 ●
42 COLLAR; DIST,COLLAPSIBLE
T=9.00 		1-41229-244-0 AR 1 1512- ● ● ● ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 1303-1304 ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 1305-1511 ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 1512- ● ● ● ● ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 1303-1304 ● ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 1305-1511 ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 1512- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 1303-1304 ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 1305-1511 ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 1512- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 1303-1304 ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 1305-1511 ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 1512- ● ● ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1303-1304 ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1305-1511 ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1512- ● ● ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1303-1304 ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1305-1511 ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1512- ● ● ● ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1303-1304 ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1305-1511 ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1512- ● ● ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1303-1304 ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1305-1511 ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1512- ● ● ● ● ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 1303-1304 ● ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 1305-1511 ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 1512- ● ● ● ● ●
53 NUT; FINAL DRIVE SET
M16 		0-91110-516-0 01 1 1303-1304 ● ●
53 NUT; FINAL DRIVE SET
M16 		0-91110-516-0 01 1 1305-1511 ●
53 NUT; FINAL DRIVE SET
M16 		0-91110-516-0 01 1 1512- ● ● ● ● ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 1303-1304 ● ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 1305-1511 ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 1512- ● ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 1303-1304 ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 1305-1511 ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 1512- ● ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 1303-1304 ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 1305-1511 ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 1512- ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1303-1304 ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1303-1304 ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1305-1511 ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1305-1511 ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1512- ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1512- ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/7 		1-41210-476-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/7 		1-41210-604-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8 		1-41210-605-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8 		1-41210-546-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8 		1-41210-606-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8 		1-41210-477-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-478-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-607-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/9 		1-41210-626-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9 		1-41210-627-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9 		1-41210-479-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/9 		1-41210-608-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/7 		1-41210-475-0 01 1 1303- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-603-0 01 1 1303- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/7 		1-41210-476-0 01 1 1303-1304 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/7 		1-41210-604-0 01 1 1303-1304 ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1303-1304 ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1303-1304 ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1305-1511 ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1305-1511 ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1512- ● ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1512- ● ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1303-1304 ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1303-1304 ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1305-1511 ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1305-1511 ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1512- ● ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1512- ● ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1303-1304 ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1303-1304 ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1305-1511 ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1305-1511 ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1512- ● ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1512- ● ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1303-1304 ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1303-1304 ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1305-1511 ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1305-1511 ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1512- ● ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1512- ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1303-1304 ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1303-1304 ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1305-1511 ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1305-1511 ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1512- ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1512- ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1303-1304 ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1303-1304 ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1305-1511 ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1305-1511 ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1512- ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1512- ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1303-1304 ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1303-1304 ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1305-1511 ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1305-1511 ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1512- ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1512- ● ● ● ● ●
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 1303-1304 ● ●
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 1305-1511 ●
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 1512- ● ● ● ● ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 1303-1304 ● ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 1305-1511 ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 1512- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1303-1304 ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1303-1304 ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1305-1511 ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1305-1511 ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1512- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1512- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1303-1304 ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1303-1304 ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1305-1511 ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1305-1511 ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1512- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1512- ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1303-1304 ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1303-1304 ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1305-1511 ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1305-1511 ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1512- ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1512- ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1512- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1512- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1303-1304 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1303-1304 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1305-1511 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1305-1511 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1512- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1512- ●
83 CAGE ASM; DIFF 1-41510-224-0 01 1 1303-1304 ● ●
83 CAGE ASM; DIFF 1-41510-224-0 01 1 1305-1511 ●
83 CAGE ASM; DIFF 1-41510-224-0 01 1 1512- ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1303-1304 ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1303-1304 ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1305-1511 ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1305-1511 ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1512- ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1512- ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1303-1304 ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1303-1304 ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1305-1511 ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1305-1511 ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1512- ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1512- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1303-1304 ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1303-1304 ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1305-1511 ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1305-1511 ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1512- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1512- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1303-1304 ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1303-1304 ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1305-1511 ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1305-1511 ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1512- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1512- ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1303-1304 ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1303-1304 ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1305-1511 ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1305-1511 ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1512- ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1512- ● ● ● ● ●
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 1303-1304 ● ●
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 1305-1511 ●
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 1512- ● ● ● ● ●
90 BEARING; OUTPUT SHAFT
JTEKT 		1-09812-069-0 02 1 1303-1304 ● ●
90 BEARING; OUTPUT SHAFT
JTEKT 		1-09812-069-0 02 1 1305-1511 ●
90 BEARING; OUTPUT SHAFT
JTEKT 		1-09812-069-0 02 1 1512- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 1303-1304 ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 1305-1511 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 1512- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 1303-1304 ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 1305-1511 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 1512- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 1303-1304 ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 1305-1511 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 1512- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 1303-1304 ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 1305-1511 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 1512- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 1303-1304 ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 1305-1511 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 1512- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 1303-1304 ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 1305-1511 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 1512- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 1303-1304 ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 1305-1511 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 1512- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 1303-1304 ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 1305-1511 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 1512- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 1303-1304 ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 1305-1511 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 1512- ● ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 1303-1304 ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 1305-1511 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 1512- ● ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
OD=90.5 		9-09180-185-0 01 1 1303-1304 ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
OD=90.5 		9-09180-185-0 01 1 1305-1511 ●
92 RING; SNAP,BRG,OUTPUT SHAFT
OD=90.5 		9-09180-185-0 01 1 1512- ● ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 1303-1304 ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 1305-1511 ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 1512- ● ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 1303-1304 ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 1305-1511 ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 1512- ● ● ● ● ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 1303-1304 ● ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 1305-1511 ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 1512- ● ● ● ● ●
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 1303-1304 ● ●
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 1305-1511 ●
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 1512- ● ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1303-1304 ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1305-1511 ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1512- ● ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28151-050-0 01 1 1303-1304 ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28151-050-0 01 1 1305-1511 ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28151-050-0 01 1 1512- ● ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28751-025-0 03 1 1303-1304 ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28751-025-0 03 1 1305-1511 ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28751-025-0 03 1 1512- ● ● ● ● ●
206 BOLT; OIL CATCHER
M8X12 FLANGE 		8-94479-696-1 02 1 1303-1304 ● ●
206 BOLT; OIL CATCHER
M8X12 FLANGE 		8-94479-696-1 02 1 1305-1511 ●
206 BOLT; OIL CATCHER
M8X12 FLANGE 		8-94479-696-1 02 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=5.9 		1-41552-024-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=5.9 		1-41552-024-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=5.9 		1-41552-024-2 AR 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=6.0 		1-41552-025-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=6.0 		1-41552-025-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=6.0 		1-41552-025-2 AR 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=6.1 		1-41552-026-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=6.1 		1-41552-026-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=6.1 		1-41552-026-2 AR 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=6.2 		1-41552-027-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=6.2 		1-41552-027-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=6.2 		1-41552-027-2 AR 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=6.3 		1-41552-028-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=6.3 		1-41552-028-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=6.3 		1-41552-028-2 AR 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=6.4 		1-41552-029-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=6.4 		1-41552-029-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=6.4 		1-41552-029-2 AR 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=6.5 		1-41552-030-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=6.5 		1-41552-030-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=6.5 		1-41552-030-2 AR 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=6.6 		1-41552-031-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=6.6 		1-41552-031-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=6.6 		1-41552-031-2 AR 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=6.7 		1-41552-032-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=6.7 		1-41552-032-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=6.7 		1-41552-032-2 AR 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=6.8 		1-41552-033-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=6.8 		1-41552-033-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=6.8 		1-41552-033-2 AR 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=6.9 		1-41552-034-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=6.9 		1-41552-034-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=6.9 		1-41552-034-2 AR 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=7.0 		1-41552-035-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=7.0 		1-41552-035-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=7.0 		1-41552-035-2 AR 1 1512- ● ● ● ● ●
225 WASHER; THRUST
T=7.1 		1-41552-036-2 AR 1 1303-1304 ● ●
225 WASHER; THRUST
T=7.1 		1-41552-036-2 AR 1 1305-1511 ●
225 WASHER; THRUST
T=7.1 		1-41552-036-2 AR 1 1512- ● ● ● ● ●
226 WASHER; THRUST 1-41562-267-0 01 1 1303-1304 ● ●
226 WASHER; THRUST 1-41562-267-0 01 1 1305-1511 ●
226 WASHER; THRUST 1-41562-267-0 01 1 1512- ● ● ● ● ●
355 RETAINER; BRG 1-41227-016-0 01 1 1303-1304 ● ●
355 RETAINER; BRG 1-41227-016-0 01 1 1305-1511 ●
355 RETAINER; BRG 1-41227-016-0 01 1 1512- ● ● ● ● ●
365 PUMP ASM; OIL 1-41381-008-1 01 1 1303-1304 ● ●
365 PUMP ASM; OIL 1-41381-008-1 01 1 1305-1511 ●
365 PUMP ASM; OIL 1-41381-008-1 01 1 1512- ● ● ● ● ●
366 BOLT; PUMP
M8X40 		0-10805-840-0 04 1 1303-1304 ● ●
366 BOLT; PUMP
M8X40 		0-10805-840-0 04 1 1305-1511 ●
366 BOLT; PUMP
M8X40 		0-10805-840-0 04 1 1512- ● ● ● ● ●
367 STRAINER; OIL PUMP 1-41383-003-0 01 1 1303-1304 ● ●
367 STRAINER; OIL PUMP 1-41383-003-0 01 1 1305-1511 ●
367 STRAINER; OIL PUMP 1-41383-003-0 01 1 1512- ● ● ● ● ●
368 SPRING; STRAINER 1-09580-504-0 01 1 1303-1304 ● ●
368 SPRING; STRAINER 1-09580-504-0 01 1 1305-1511 ●
368 SPRING; STRAINER 1-09580-504-0 01 1 1512- ● ● ● ● ●
369 PLUG; STRAINER
M24X17 FLANGE 		1-09604-023-0 01 1 1303-1304 ● ●
369 PLUG; STRAINER
M24X17 FLANGE 		1-09604-023-0 01 1 1305-1511 ●
369 PLUG; STRAINER
M24X17 FLANGE 		1-09604-023-0 01 1 1512- ● ● ● ● ●
370 GASKET; STRAINER
ID=26.8 		1-09623-058-0 01 1 1303-1304 ● ●
370 GASKET; STRAINER
ID=26.8 		1-09623-058-0 01 1 1305-1511 ●
370 GASKET; STRAINER
ID=26.8 		1-09623-058-0 01 1 1512- ● ● ● ● ●
371 WASHER; LK,PUMP
ID=8.2 		0-91510-808-0 04 1 1303-1304 ● ●
371 WASHER; LK,PUMP
ID=8.2 		0-91510-808-0 04 1 1305-1511 ●
371 WASHER; LK,PUMP
ID=8.2 		0-91510-808-0 04 1 1512- ● ● ● ● ●
372 BALL; CASE 9-00097-517-0 01 1 1303-1304 ● ●
372 BALL; CASE 9-00097-517-0 01 1 1305-1511 ●
372 BALL; CASE 9-00097-517-0 01 1 1512- ● ● ● ● ●
373 PLUG; CASE
PT1/4 		1-09605-019-0 01 1 1303-1304 ● ●
373 PLUG; CASE
PT1/4 		1-09605-019-0 01 1 1305-1511 ●
373 PLUG; CASE
PT1/4 		1-09605-019-0 01 1 1512- ● ● ● ● ●
374 PLUG; INPUT SHAFT 1-09609-020-1 01 1 1303-1304 ● ●
374 PLUG; INPUT SHAFT 1-09609-020-1 01 1 1305-1511 ●
374 PLUG; INPUT SHAFT 1-09609-020-1 01 1 1512- ● ● ● ● ●
375 BEARING; SIDE GEAR
JTEKT 		1-09811-348-0 01 1 1303-1304 ● ●
375 BEARING; SIDE GEAR
JTEKT 		1-09811-348-0 01 1 1305-1511 ●
375 BEARING; SIDE GEAR
JTEKT 		1-09811-348-0 01 1 1512- ● ● ● ● ●
375 BEARING; SIDE GEAR
NSK 		1-09811-362-0 01 1 1303-1304 ● ●
375 BEARING; SIDE GEAR
NSK 		1-09811-362-0 01 1 1305-1511 ●
375 BEARING; SIDE GEAR
NSK 		1-09811-362-0 01 1 1512- ● ● ● ● ●
376 SPACER; BRG,SIDE GEAR 1-41349-150-0 01 1 1303-1304 ● ●
376 SPACER; BRG,SIDE GEAR 1-41349-150-0 01 1 1305-1511 ●
376 SPACER; BRG,SIDE GEAR 1-41349-150-0 01 1 1512- ● ● ● ● ●
377 RING; SNAP,BRG,SIDE GEAR 1-09587-091-0 01 1 1303-1304 ● ●
377 RING; SNAP,BRG,SIDE GEAR 1-09587-091-0 01 1 1305-1511 ●
377 RING; SNAP,BRG,SIDE GEAR 1-09587-091-0 01 1 1512- ● ● ● ● ●
çizim 337064
97 360 381 292 287 380 242 241 244 356 471 205 384 383
BalonParca AdiParca NoAdetTipApplied Date A B C D E
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1303-1304 ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1305-1511 ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1512- ● ● ● ● ●
205 WASHER; PL
ID=10.5 OD=18 		9-09160-510-0 01 1 1303-1304 ● ●
205 WASHER; PL
ID=10.5 OD=18 		9-09160-510-0 01 1 1305-1511 ●
205 WASHER; PL
ID=10.5 OD=18 		9-09160-510-0 01 1 1512- ● ● ● ● ●
241 COVER; SHIFT HSG 1-48266-012-1 01 1 1303-1304 ● ●
241 COVER; SHIFT HSG 1-48266-012-1 01 1 1305-1511 ●
241 COVER; SHIFT HSG 1-48266-012-1 01 1 1512- ● ● ● ● ●
242 BOLT; COVER
M8X20 		0-20800-820-0 04 1 1303-1304 ● ●
242 BOLT; COVER
M8X20 		0-20800-820-0 04 1 1305-1511 ●
242 BOLT; COVER
M8X20 		0-20800-820-0 04 1 1512- ● ● ● ● ●
244 GASKET; COVER 1-48269-062-0 01 1 1303-1304 ● ●
244 GASKET; COVER 1-48269-062-0 01 1 1305-1511 ●
244 GASKET; COVER 1-48269-062-0 01 1 1512- ● ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-012-0 01 1 1303-1304 ● ●
287 PISTON; SHIFT UNIT 1-48262-012-0 01 1 1305-1511 ●
287 PISTON; SHIFT UNIT 1-48262-012-0 01 1 1512- ● ● ● ● ●
292 SPRING; PISTON 1-48265-007-0 01 1 1303-1304 ● ●
292 SPRING; PISTON 1-48265-007-0 01 1 1305-1511 ●
292 SPRING; PISTON 1-48265-007-0 01 1 1512- ● ● ● ● ●
356 NIPPLE; SHIFT UNIT
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1303-1304 ● ●
356 NIPPLE; SHIFT UNIT
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1305-1511 ●
356 NIPPLE; SHIFT UNIT
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1512- ● ● ● ● ●
360 FORK; SHIFT 1-48269-066-0 01 1 1303-1304 ● ●
360 FORK; SHIFT 1-48269-066-0 01 1 1305-1511 ●
360 FORK; SHIFT 1-48269-066-0 01 1 1512- ● ● ● ● ●
380 GASKET; PISTON 1-48269-064-0 01 1 1303-1304 ● ●
380 GASKET; PISTON 1-48269-064-0 01 1 1305-1511 ●
380 GASKET; PISTON 1-48269-064-0 01 1 1512- ● ● ● ● ●
381 ROD; SHIFT 1-48263-005-0 01 1 1303-1304 ● ●
381 ROD; SHIFT 1-48263-005-0 01 1 1305-1511 ●
381 ROD; SHIFT 1-48263-005-0 01 1 1512- ● ● ● ● ●
383 BOLT; SET,SHIFT UNIT
M10X45 		0-20801-045-0 01 1 1303-1304 ● ●
383 BOLT; SET,SHIFT UNIT
M10X45 		0-20801-045-0 01 1 1305-1511 ●
383 BOLT; SET,SHIFT UNIT
M10X45 		0-20801-045-0 01 1 1512- ● ● ● ● ●
384 NUT; LK,SHIFT UNIT
M10 		9-09111-410-0 01 1 1303-1304 ● ●
384 NUT; LK,SHIFT UNIT
M10 		9-09111-410-0 01 1 1305-1511 ●
384 NUT; LK,SHIFT UNIT
M10 		9-09111-410-0 01 1 1512- ● ● ● ● ●
471 CYLINDER ASM; SHIFT UNIT 1-48269-261-0 01 1 1303-1304 ● ●
471 CYLINDER ASM; SHIFT UNIT 1-48269-261-0 01 1 1305-1511 ●
471 CYLINDER ASM; SHIFT UNIT 1-48269-261-0 01 1 1512- ● ● ● ● ●
çizim 513399
69 70 85 20 24 21 71 1 17 56 89 88 88 70 55 17 17 21 20 22 85 37 4 100 126 39 40 41 45 48 43 49 50 60 62 63 64 65 66 61 61 84 69 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> REARWARD 39/7 		1-41002-547-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> FORWARD 39/7 		1-41002-561-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41003-558-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8 		1-41003-563-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8 		1-41003-555-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8 		1-41003-560-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> FORWARD 39/8 		1-41003-556-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> REARWARD 39/8 		1-41003-561-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9 		1-41003-559-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41003-564-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9 		1-41003-557-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/9 		1-41003-562-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 39/7 		1-41001-393-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 39/7 		1-41002-443-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8 		1-41001-394-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41002-108-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8 		1-41002-119-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41002-761-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 39/8 		1-41001-395-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 39/8 		1-41002-110-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41002-515-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9 		1-41002-514-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41001-396-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9 		1-41002-445-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/7 		1-41001-392-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/7 		1-41002-441-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/7 		1-41001-393-0 01 1 1303-1304 ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/7 		1-41002-443-0 01 1 1303-1304 ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 1303-1304 ● ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 1305-1511 ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 1512- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M10X55 		1-09070-108-0 08 1 1303-1304 ● ●
17 BOLT; DIFF CAGE SETTING
(A) M10X55 		1-09070-108-0 08 1 1305-1511 ●
17 BOLT; DIFF CAGE SETTING
(A) M10X55 		1-09070-108-0 08 1 1512- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(C) M16X125 		1-09070-007-0 04 1 1303-1304 ● ●
17 BOLT; DIFF CAGE SETTING
(C) M16X125 		1-09070-007-0 04 1 1303-1304 ● ●
17 BOLT; DIFF CAGE SETTING
(C) M16X125 		1-09070-007-0 04 1 1305-1511 ●
17 BOLT; DIFF CAGE SETTING
(C) M16X125 		1-09070-007-0 04 1 1305-1511 ●
17 BOLT; DIFF CAGE SETTING
(C) M16X125 		1-09070-007-0 04 1 1512- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(C) M16X125 		1-09070-007-0 04 1 1512- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1303-1304 ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1303-1304 ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1305-1511 ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1305-1511 ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1512- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1512- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=2.8 		1-41562-112-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=2.8 		1-41562-112-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=2.9 		1-41562-113-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=2.9 		1-41562-113-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.0 		1-41562-114-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.0 		1-41562-114-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.1 		1-41562-115-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.1 		1-41562-115-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.2 		1-41562-116-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.2 		1-41562-116-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.3 		1-41562-117-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.3 		1-41562-117-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 1303-1304 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 1305-1511 ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 1512- ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.4 		1-41562-118-0 AR 1 1512- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.4 		1-41562-118-0 AR 1 1512- ● ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-169-0 01 1 1303-1304 ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-169-0 01 1 1305-1511 ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-169-0 01 1 1512- ● ● ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-151-0 02 1 1303-1304 ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-151-0 02 1 1303-1304 ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-151-0 02 1 1305-1511 ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-151-0 02 1 1305-1511 ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-151-0 02 1 1512- ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-151-0 02 1 1512- ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF VAR2<G86> (B) Z=16 		1-41561-151-0 02 1 1512- ● ● ● ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF VAR2<G86> (B) Z=16 		1-41561-151-0 02 1 1512- ● ● ● ●
22 SPIDER; DIFF PINION
(A) 		1-41521-049-2 01 1 1303-1304 ● ●
22 SPIDER; DIFF PINION
(A) 		1-41521-049-2 01 1 1305-1511 ●
22 SPIDER; DIFF PINION
(A) 		1-41521-049-2 01 1 1512- ● ● ● ● ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 1303-1304 ● ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 1303-1304 ● ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 1305-1511 ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 1305-1511 ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 1512- ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 1512- ●
22 SPIDER; DIFF PINION
EXC. LIMITED SLIP DIFF VAR2<G86> (B) OD=35 		1-41521-037-2 01 1 1512- ● ● ● ●
22 SPIDER; DIFF PINION
EXC. LIMITED SLIP DIFF VAR2<G86> (B) OD=35 		1-41521-037-2 01 1 1512- ● ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-055-0 04 1 1303-1304 ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-055-0 04 1 1305-1511 ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-055-0 04 1 1512- ● ● ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-053-0 04 1 1303-1304 ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-053-0 04 1 1303-1304 ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-053-0 04 1 1305-1511 ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-053-0 04 1 1305-1511 ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-053-0 04 1 1512- ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-053-0 04 1 1512- ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF VAR2<G86> (B) Z=10 		1-41551-053-0 04 1 1512- ● ● ● ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF VAR2<G86> (B) Z=10 		1-41551-053-0 04 1 1512- ● ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-023-0 04 1 1303-1304 ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-023-0 04 1 1305-1511 ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-023-0 04 1 1512- ● ● ● ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 1303-1304 ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 1303-1304 ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 1305-1511 ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 1305-1511 ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 1512- ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 1512- ●
25 WASHER; THRUST,PINION
EXC. LIMITED SLIP DIFF VAR2<G86> (B) T=1.6 		1-41552-017-0 04 1 1512- ● ● ● ●
25 WASHER; THRUST,PINION
EXC. LIMITED SLIP DIFF VAR2<G86> (B) T=1.6 		1-41552-017-0 04 1 1512- ● ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1303-1304 ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1305-1511 ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1512- ● ● ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1303-1304 ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1305-1511 ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1512- ● ● ● ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 1303-1304 ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 1305-1511 ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 1512- ● ● ● ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-3 01 1 1303-1304 ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-3 01 1 1305-1511 ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-3 01 1 1512- ● ● ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 1303-1304 ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 1305-1511 ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 1512- ● ● ● ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 1303-1304 ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 1305-1511 ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1512- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 1303-1304 ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 1305-1511 ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 1512- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 1303-1304 ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 1305-1511 ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 1512- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 1303-1304 ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 1305-1511 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 1512- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 1303-1304 ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 1305-1511 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 1512- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 1303-1304 ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 1305-1511 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 1512- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 1303-1304 ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 1305-1511 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 1512- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 1303-1304 ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 1305-1511 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 1512- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 1303-1304 ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 1305-1511 ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 1512- ● ● ● ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 1303-1304 ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 1305-1511 ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 1512- ● ● ● ● ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 1303-1304 ● ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 1305-1511 ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 1512- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 1303-1304 ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 1305-1511 ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 1512- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 1303-1304 ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 1305-1511 ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 1512- ● ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 1303-1304 ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 1305-1511 ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 1512- ● ● ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1303-1304 ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1305-1511 ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1512- ● ● ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1303-1304 ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1305-1511 ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1512- ● ● ● ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1303-1304 ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1305-1511 ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1512- ● ● ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1303-1304 ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1305-1511 ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1512- ● ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 1303-1304 ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 1305-1511 ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 1512- ● ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 1303-1304 ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 1305-1511 ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 1512- ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1303-1304 ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1303-1304 ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1305-1511 ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1305-1511 ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1512- ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1512- ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/7 		1-41210-476-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/7 		1-41210-604-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8 		1-41210-605-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8 		1-41210-546-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8 		1-41210-606-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8 		1-41210-477-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-478-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-607-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/9 		1-41210-626-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9 		1-41210-627-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9 		1-41210-479-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/9 		1-41210-608-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/7 		1-41210-475-0 01 1 1303- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-603-0 01 1 1303- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/7 		1-41210-476-0 01 1 1303-1304 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/7 		1-41210-604-0 01 1 1303-1304 ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1303-1304 ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1303-1304 ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1305-1511 ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1305-1511 ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1512- ● ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1512- ● ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1303-1304 ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1303-1304 ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1305-1511 ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1305-1511 ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1512- ● ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1512- ● ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1303-1304 ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1303-1304 ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1305-1511 ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1305-1511 ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1512- ● ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1512- ● ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1303-1304 ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1303-1304 ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1305-1511 ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1305-1511 ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1512- ● ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1512- ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1303-1304 ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1303-1304 ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1305-1511 ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1305-1511 ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1512- ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1512- ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1303-1304 ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1303-1304 ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1305-1511 ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1305-1511 ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1512- ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1512- ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1303-1304 ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1303-1304 ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1305-1511 ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1305-1511 ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1512- ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1512- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1303-1304 ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1303-1304 ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1305-1511 ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1305-1511 ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1512- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1512- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1303-1304 ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1303-1304 ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1305-1511 ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1305-1511 ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1512- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1512- ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1303-1304 ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1303-1304 ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1305-1511 ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1305-1511 ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1512- ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1512- ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1512- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1512- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1303-1304 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1303-1304 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1305-1511 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1305-1511 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1512- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1512- ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1303-1304 ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1303-1304 ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1305-1511 ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1305-1511 ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1512- ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1512- ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1303-1304 ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1303-1304 ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1305-1511 ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1305-1511 ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1512- ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1512- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1303-1304 ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1303-1304 ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1305-1511 ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1305-1511 ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1512- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1512- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1303-1304 ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1303-1304 ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1305-1511 ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1305-1511 ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1512- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1512- ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1303-1304 ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1303-1304 ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1305-1511 ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1305-1511 ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1512- ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1512- ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 1303-1304 ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 1305-1511 ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 1512- ● ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-336-0 01 1 1303-1304 ● ●
126 COUPLING; DRIVING PINION 1-37245-336-0 01 1 1305-1511 ●
126 COUPLING; DRIVING PINION 1-37245-336-0 01 1 1512- ● ● ● ● ●
çizim 513886
85 69 104 105 107 108 106 109 107 108 106 105 17 56 89 88 88 84 69 70 17 17 55 66 61 61 65 64 63 62 50 49 41 40 39 100 126 37 43 48 45 71 70 85 60 1 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> REARWARD 39/7 		1-41002-547-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> FORWARD 39/7 		1-41002-561-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41003-558-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8 		1-41003-563-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8 		1-41003-555-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8 		1-41003-560-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> FORWARD 39/8 		1-41003-556-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> REARWARD 39/8 		1-41003-561-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9 		1-41003-559-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41003-564-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9 		1-41003-557-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/9 		1-41003-562-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 39/7 		1-41001-393-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 39/7 		1-41002-443-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8 		1-41001-394-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41002-108-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8 		1-41002-119-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41002-761-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 39/8 		1-41001-395-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 39/8 		1-41002-110-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41002-515-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9 		1-41002-514-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41001-396-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9 		1-41002-445-0 01 1 1512- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/7 		1-41001-392-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/7 		1-41002-441-0 01 1 1303- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/7 		1-41001-393-0 01 1 1303-1304 ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/7 		1-41002-443-0 01 1 1303-1304 ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 1303-1304 ● ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 1305-1511 ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 1512- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M10X55 		1-09070-108-0 08 1 1303-1304 ● ●
17 BOLT; DIFF CAGE SETTING
(A) M10X55 		1-09070-108-0 08 1 1305-1511 ●
17 BOLT; DIFF CAGE SETTING
(A) M10X55 		1-09070-108-0 08 1 1512- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(C) M16X125 		1-09070-007-0 04 1 1303-1304 ● ●
17 BOLT; DIFF CAGE SETTING
(C) M16X125 		1-09070-007-0 04 1 1303-1304 ● ●
17 BOLT; DIFF CAGE SETTING
(C) M16X125 		1-09070-007-0 04 1 1305-1511 ●
17 BOLT; DIFF CAGE SETTING
(C) M16X125 		1-09070-007-0 04 1 1305-1511 ●
17 BOLT; DIFF CAGE SETTING
(C) M16X125 		1-09070-007-0 04 1 1512- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(C) M16X125 		1-09070-007-0 04 1 1512- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1303-1304 ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1303-1304 ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1305-1511 ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1305-1511 ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1512- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1512- ● ● ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1303-1304 ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1305-1511 ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1512- ● ● ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1303-1304 ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1305-1511 ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1512- ● ● ● ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 1303-1304 ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 1305-1511 ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 1512- ● ● ● ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-3 01 1 1303-1304 ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-3 01 1 1305-1511 ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-3 01 1 1512- ● ● ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 1303-1304 ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 1305-1511 ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 1512- ● ● ● ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 1303-1304 ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 1305-1511 ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1303-1304 ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1305-1511 ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1512- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1512- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 1303-1304 ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 1305-1511 ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 1512- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 1303-1304 ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 1305-1511 ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 1512- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 1303-1304 ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 1305-1511 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 1512- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 1303-1304 ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 1305-1511 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 1512- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 1303-1304 ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 1305-1511 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 1512- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 1303-1304 ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 1305-1511 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 1512- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 1303-1304 ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 1305-1511 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 1512- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 1303-1304 ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 1305-1511 ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 1512- ● ● ● ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 1303-1304 ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 1305-1511 ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 1512- ● ● ● ● ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 1303-1304 ● ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 1305-1511 ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 1512- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 1303-1304 ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 1305-1511 ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 1512- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 1303-1304 ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 1305-1511 ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 1512- ● ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 1303-1304 ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 1305-1511 ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 1512- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 1303-1304 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 1305-1511 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 1512- ● ● ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1303-1304 ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1305-1511 ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1512- ● ● ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1303-1304 ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1305-1511 ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1512- ● ● ● ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1303-1304 ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1305-1511 ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1512- ● ● ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1303-1304 ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1305-1511 ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1512- ● ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 1303-1304 ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 1305-1511 ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 1512- ● ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 1303-1304 ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 1305-1511 ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 1512- ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1303-1304 ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1303-1304 ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1305-1511 ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1305-1511 ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1512- ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1512- ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/7 		1-41210-476-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/7 		1-41210-604-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8 		1-41210-605-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8 		1-41210-546-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8 		1-41210-606-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8 		1-41210-477-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-478-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-607-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/9 		1-41210-626-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9 		1-41210-627-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9 		1-41210-479-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/9 		1-41210-608-0 01 1 1512- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/7 		1-41210-475-0 01 1 1303- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-603-0 01 1 1303- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/7 		1-41210-476-0 01 1 1303-1304 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/7 		1-41210-604-0 01 1 1303-1304 ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1303-1304 ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1303-1304 ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1305-1511 ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1305-1511 ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1512- ● ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1512- ● ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1303-1304 ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1303-1304 ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1305-1511 ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1305-1511 ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1512- ● ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1512- ● ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1303-1304 ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1303-1304 ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1305-1511 ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1305-1511 ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1512- ● ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1512- ● ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1303-1304 ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1303-1304 ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1305-1511 ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1305-1511 ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1512- ● ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1512- ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1303-1304 ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1303-1304 ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1305-1511 ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1305-1511 ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1512- ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1512- ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1303-1304 ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1303-1304 ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1305-1511 ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1305-1511 ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1512- ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1512- ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1303-1304 ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1303-1304 ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1305-1511 ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1305-1511 ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1512- ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1512- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1303-1304 ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1303-1304 ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1305-1511 ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1305-1511 ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1512- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1512- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1303-1304 ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1303-1304 ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1305-1511 ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1305-1511 ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1512- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1512- ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1303-1304 ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1303-1304 ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1305-1511 ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1305-1511 ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1512- ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1512- ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1512- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1512- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1303-1304 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1303-1304 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1305-1511 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1305-1511 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1512- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1512- ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1303-1304 ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1303-1304 ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1305-1511 ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1305-1511 ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1512- ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1512- ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1303-1304 ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1303-1304 ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1305-1511 ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1305-1511 ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1512- ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1512- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1303-1304 ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1303-1304 ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1305-1511 ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1305-1511 ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1512- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1512- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1303-1304 ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1303-1304 ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1305-1511 ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1305-1511 ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1512- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1512- ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1303-1304 ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1303-1304 ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1305-1511 ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1305-1511 ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1512- ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1512- ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 1303-1304 ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 1305-1511 ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 1512- ● ● ● ● ●
104 DIFF ASM; NO SPIN
LIMITED SLIP DIFF VAR2<G86> 		1-41530-023-0 01 1 1512- ● ● ● ●
104 DIFF ASM; NO SPIN
LIMITED SLIP DIFF VAR2<G86> 		1-41530-023-0 01 1 1512- ● ● ● ●
105 GEAR; SIDE
LIMITED SLIP DIFF VAR2<G86> Z=24 		1-41539-028-0 02 1 1512- ● ● ● ●
105 GEAR; SIDE
LIMITED SLIP DIFF VAR2<G86> Z=24 		1-41539-028-0 02 1 1512- ● ● ● ●
106 SPRING; NO SPIN DIFF
LIMITED SLIP DIFF VAR2<G86> 		1-41535-004-0 02 1 1512- ● ● ● ●
106 SPRING; NO SPIN DIFF
LIMITED SLIP DIFF VAR2<G86> 		1-41535-004-0 02 1 1512- ● ● ● ●
107 CLUTCH; DRIVEN
LIMITED SLIP DIFF VAR2<G86> 		1-41532-006-0 02 1 1512- ● ● ● ●
107 CLUTCH; DRIVEN
LIMITED SLIP DIFF VAR2<G86> 		1-41532-006-0 02 1 1512- ● ● ● ●
108 RING; HOLD OUT
LIMITED SLIP DIFF VAR2<G86> 		1-41539-024-0 02 1 1512- ● ● ● ●
108 RING; HOLD OUT
LIMITED SLIP DIFF VAR2<G86> 		1-41539-024-0 02 1 1512- ● ● ● ●
109 SPIDER; DIFF
LIMITED SLIP DIFF VAR2<G86> 		1-41539-027-0 01 1 1512- ● ● ● ●
109 SPIDER; DIFF
LIMITED SLIP DIFF VAR2<G86> 		1-41539-027-0 01 1 1512- ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-336-0 01 1 1303-1304 ● ●
126 COUPLING; DRIVING PINION 1-37245-336-0 01 1 1305-1511 ●
126 COUPLING; DRIVING PINION 1-37245-336-0 01 1 1512- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
