◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11501 - CYZ LHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#115087) — 161 parça

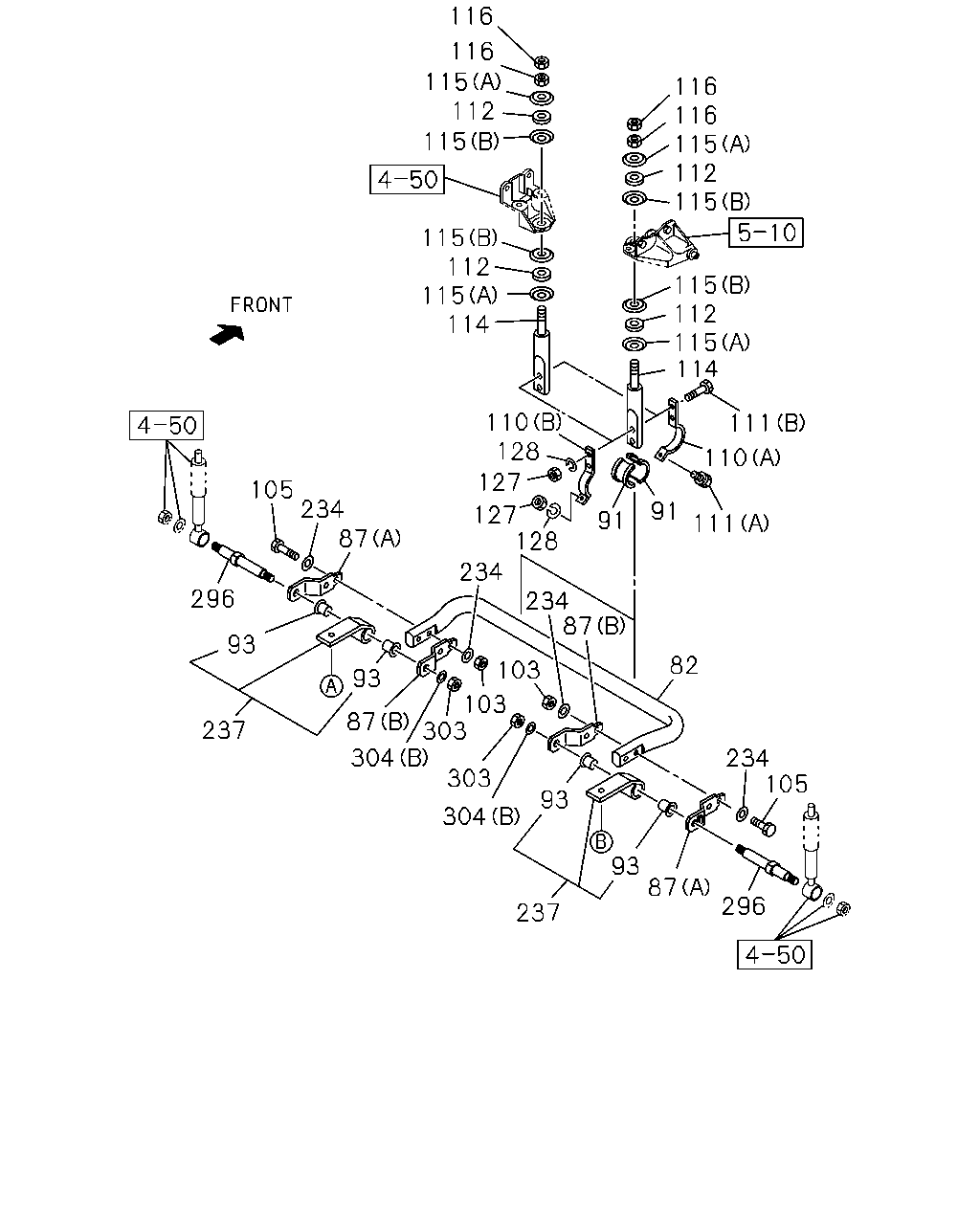

çizim 336407
296 87 93 237 304 303 303 87 304 82 111 110 111 114 115 112 115 115 112 115 116 116 116 116 115 115 112 115 115 112 114 110 128 127 127 234 234 87 103 103 87 234 105 296 93 237 93 234 105 91 91 128 93
BalonParca AdiParca NoAdetTipApplied Date A B
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51771-136-1 01 1 1512- ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (A) 		8-98012-958-0 02 1 1512- ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (B) 		8-98012-959-0 02 1 1512- ●
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-087-1 04 1 1512- ●
93 BUSHING; STABILIZER
FRONT STABILIZER SHAFT<F59> 		1-51689-015-3 04 1 1512- ●
103 NUT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14 		0-91110-514-0 04 1 1512- ●
105 BOLT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14X70 		0-10956-470-0 04 1 1512- ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (A) 		1-51789-027-2 02 1 1512- ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (B) 		1-51789-028-1 02 1 1512- ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (A) M12X30 		0-20851-230-0 02 1 1512- ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (B) M12X50 		0-20851-250-0 04 1 1512- ●
112 BUSHING; ROD
FRONT STABILIZER SHAFT<F59> 		9-51631-039-0 04 1 1512- ●
114 ROD; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51773-072-2 02 1 1512- ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (A) ID=16.5 		9-51631-040-0 04 1 1512- ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (B) ID=20.8 		9-51631-041-0 04 1 1512- ●
116 NUT; LK,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> M14 		0-91111-514-0 04 1 1512- ●
127 NUT; CLAMP
FRONT STABILIZER SHAFT<F59> M12 		0-91110-512-0 06 1 1512- ●
128 WASHER; LK,CLAMP
FRONT STABILIZER SHAFT<F59> ID=12.2 		0-91510-812-0 06 1 1512- ●
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 08 1 1512- ●
237 SUPPORT; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51681-662-0 02 1 1512- ●
296 PIN; STAB
FRONT STABILIZER SHAFT<F59> 		8-98022-874-1 02 1 1512- ●
303 NUT; PIN
FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 1512- ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		0-91614-520-0 02 1 1512- ●
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1303-1511 ●
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1512- ● ●

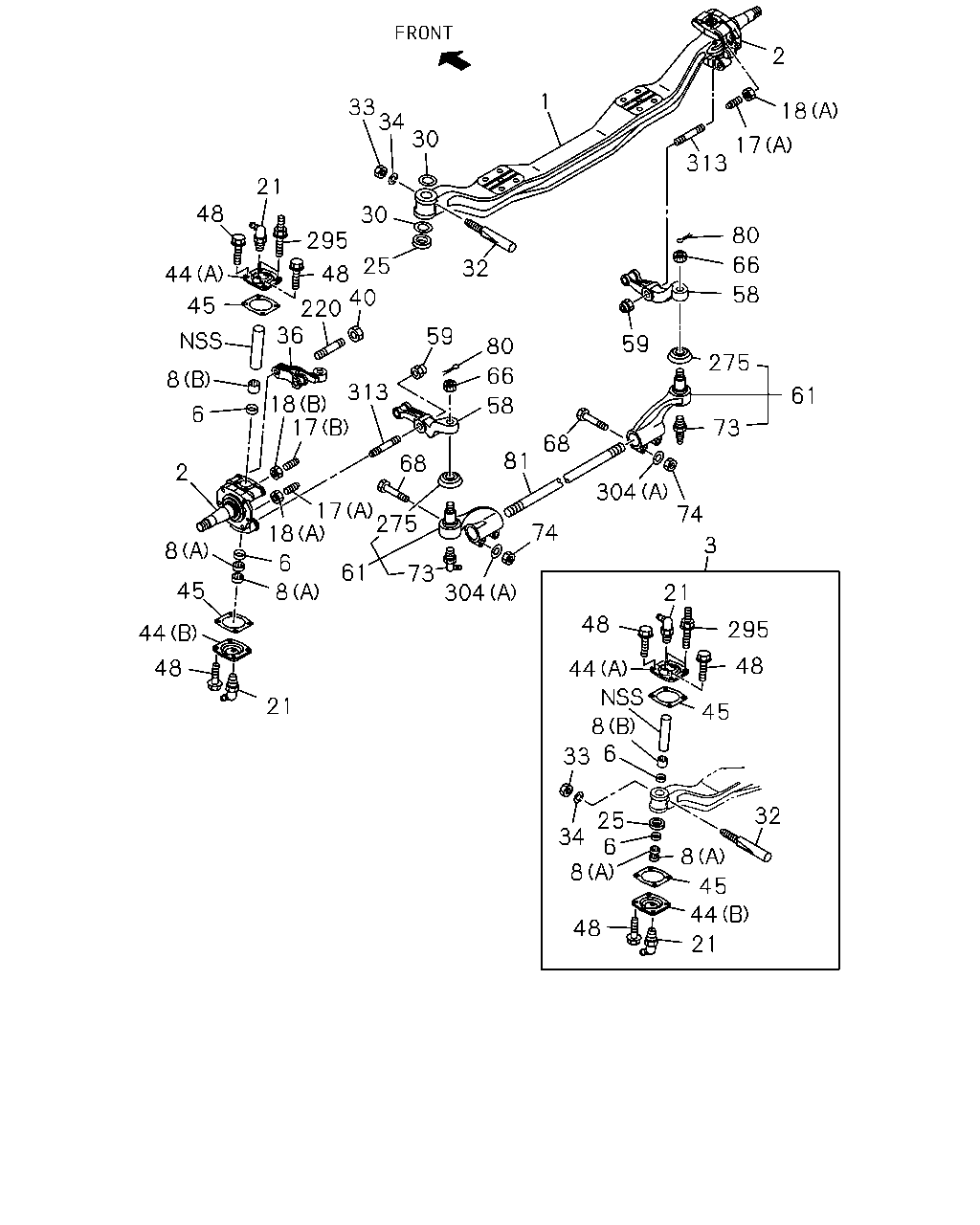

çizim 336877
2 18 17 313 80 66 58 275 61 73 74 304 59 3 295 48 45 32 8 45 44 21 48 8 6 25 34 33 6 8 44 48 21 74 81 68 58 66 80 32 30 1 34 33 30 25 40 220 48 295 21 48 44 45 8 6 2 8 45 44 48 21 8 6 18 17 17 18 36 313 59 68 275 61 73 304
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT 1-43111-178-3 01 1 1303-1511 ●
1 AXLE; FRT 1-43111-178-3 01 1 1512- ● ●
2 KNUCKLE; FRT AXLE 1-43131-120-1 01 1 1303-1511 ●
2 KNUCKLE; FRT AXLE 1-43131-120-1 01 1 1512- ● ●
2 KNUCKLE; FRT AXLE 1-43132-120-1 01 1 1303-1511 ●
2 KNUCKLE; FRT AXLE 1-43132-120-1 01 1 1512- ● ●
3 KING PIN SET 1-87831-349-3 02 1 1303-1511 ●
3 KING PIN SET 1-87831-349-3 02 1 1512- ● ●
6 SEAL; KING PIN 9-09926-024-0 04 1 1303-1511 ●
6 SEAL; KING PIN 9-09926-024-0 04 1 1512- ● ●
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1303-1511 ●
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1512- ● ●
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1303-1511 ●
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1512- ● ●
17 BOLT; STOPPER KNUCKLE
(B) M18X53 		1-09009-066-0 01 1 1303-1511 ●
17 BOLT; STOPPER KNUCKLE
(B) M18X53 		1-09009-066-0 01 1 1512- ● ●
17 BOLT; STOPPER KNUCKLE
(A) M18X43 		1-09009-190-0 02 1 1303-1511 ●
17 BOLT; STOPPER KNUCKLE
(A) M18X43 		1-09009-190-0 02 1 1512- ● ●
18 NUT; STOPPER BOLT,KNUCKLE
(A) M18 		0-91110-518-0 02 1 1303-1511 ●
18 NUT; STOPPER BOLT,KNUCKLE
(A) M18 		0-91110-518-0 02 1 1512- ● ●
18 NUT; STOPPER BOLT,KNUCKLE
(B) OCTAGON M18 		1-09469-011-1 01 1 1303-1511 ●
18 NUT; STOPPER BOLT,KNUCKLE
(B) OCTAGON M18 		1-09469-011-1 01 1 1512- ● ●
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1303-1511 ●
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1512- ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1303-1511 ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1512- ● ●
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1303-1511 ●
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1512- ● ●
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1303-1511 ●
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1512- ● ●
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1303-1511 ●
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1512- ● ●
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1303-1511 ●
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1512- ● ●
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1303-1511 ●
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1512- ● ●
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1303-1511 ●
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1512- ● ●
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1303-1511 ●
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1512- ● ●
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1303-1511 ●
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1512- ● ●
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1303-1511 ●
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1512- ● ●
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1303-1511 ●
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1512- ● ●
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1303-1511 ●
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1512- ● ●
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1303-1511 ●
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1512- ● ●
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1303-1511 ●
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1512- ● ●
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1303-1511 ●
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1512- ● ●
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1303-1511 ●
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1512- ● ●
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1303-1511 ●
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1512- ● ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1303-1511 ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1512- ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1303-1511 ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1512- ● ●
36 ARM; KNUCKLE 1-43133-083-3 01 1 1303-1511 ●
36 ARM; KNUCKLE 1-43133-083-3 01 1 1512- ● ●
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1303-1511 ●
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1512- ● ●
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1303-1511 ●
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1512- ● ●
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1303-1511 ●
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1512- ● ●
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1303-1511 ●
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1512- ● ●
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 12 1 1303-1511 ●
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 12 1 1512- ● ●
58 ARM; TIE ROD
FRT BRK AIR D410 WEDGE-160-24/24<B7R> 		8-98145-592-0 01 1 1512- ● ●
58 ARM; TIE ROD
FRT BRK AIR D410 WEDGE-160-24/24<B7R> 		8-98145-593-0 01 1 1512- ● ●
58 ARM; TIE ROD 1-43134-049-4 01 1 1303-1511 ●
58 ARM; TIE ROD
FRT BRK AIR D410 WEDGE-160-24<B7Q> 		1-43134-049-4 01 1 1512- ● ●
58 ARM; TIE ROD 1-43135-049-4 01 1 1303-1511 ●
58 ARM; TIE ROD
FRT BRK AIR D410 WEDGE-160-24<B7Q> 		1-43135-049-4 01 1 1512- ● ●
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1303-1511 ●
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1512- ● ●
61 ROD END; TIE ROD 8-98096-753-0 01 1 1303-1306 ●
61 ROD END; TIE ROD 8-98228-106-0 01 1 1307-1511 ●
61 ROD END; TIE ROD 8-98228-106-0 01 1 1512- ● ●
61 ROD END; TIE ROD 8-98096-754-0 01 1 1303-1306 ●
61 ROD END; TIE ROD 8-98228-107-0 01 1 1307-1511 ●
61 ROD END; TIE ROD 8-98228-107-0 01 1 1512- ● ●
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1303-1511 ●
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1512- ● ●
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1303-1511 ●
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1512- ● ●
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1303-1511 ●
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1512- ● ●
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1303-1511 ●
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1512- ● ●
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1303-1511 ●
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1512- ● ●
81 ROD; TIE 8-98105-064-0 01 1 1303-1511 ●
81 ROD; TIE 8-98105-064-0 01 1 1512- ● ●
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1303-1511 ●
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1512- ● ●
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1303-1306 ●
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307-1511 ●
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1512- ● ●
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1303-1511 ●
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1512- ● ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		0-91614-520-0 02 1 1512- ●
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1303-1511 ●
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1512- ● ●
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1303-1511 ●
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1512- ● ●

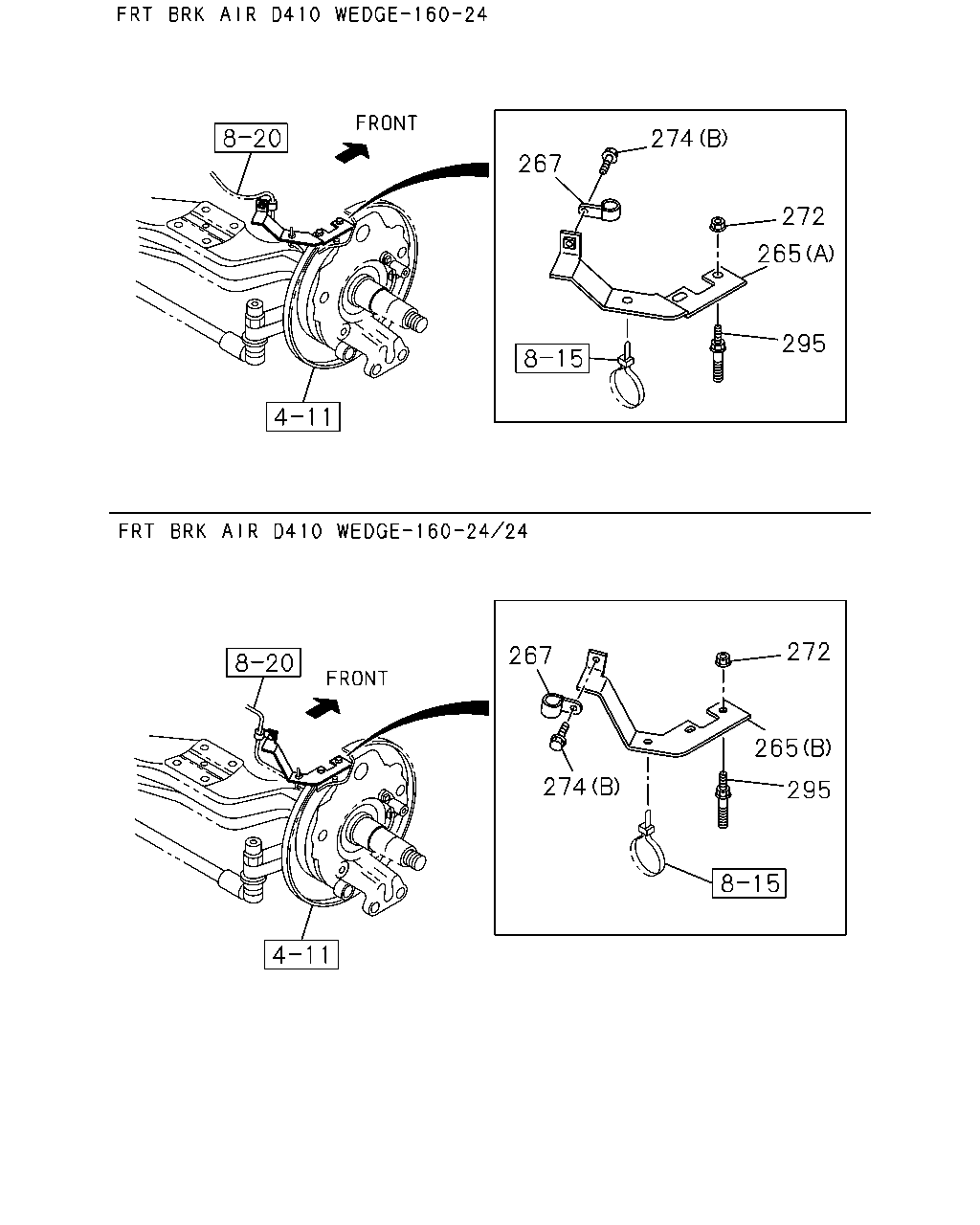

çizim 512826
267 274 272 265 295 267 274 295 265 272
BalonParca AdiParca NoAdetTipApplied Date A B
265 BRACKET; CLIP I BEAM
FRT BRK AIR D410 WEDGE-160-24/24<B7R> (B) 		1-82698-505-0 01 1 1512- ● ●
265 BRACKET; CLIP I BEAM
FRT BRK AIR D410 WEDGE-160-24/24<B7R> (B) 		1-82698-506-0 01 1 1512- ● ●
265 BRACKET; CLIP I BEAM
(A) 		1-82698-426-0 01 1 1303-1511 ●
265 BRACKET; CLIP I BEAM
FRT BRK AIR D410 WEDGE-160-24<B7Q> (A) 		1-82698-426-0 01 1 1512- ● ●
265 BRACKET; CLIP I BEAM
(A) 		1-82698-427-0 01 1 1303-1511 ●
265 BRACKET; CLIP I BEAM
FRT BRK AIR D410 WEDGE-160-24<B7Q> (A) 		1-82698-427-0 01 1 1512- ● ●
267 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 02 1 1303-1511 ●
267 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 02 1 1512- ● ●
272 NUT; CLIP
M10 FLANGE 		0-91180-110-0 04 1 1303-1511 ●
272 NUT; CLIP
M10 FLANGE 		0-91180-110-0 04 1 1512- ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 07 1 1303-1511 ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 07 1 1512- ● ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1303-1511 ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1512- ● ●
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1303-1511 ●
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1512- ● ●

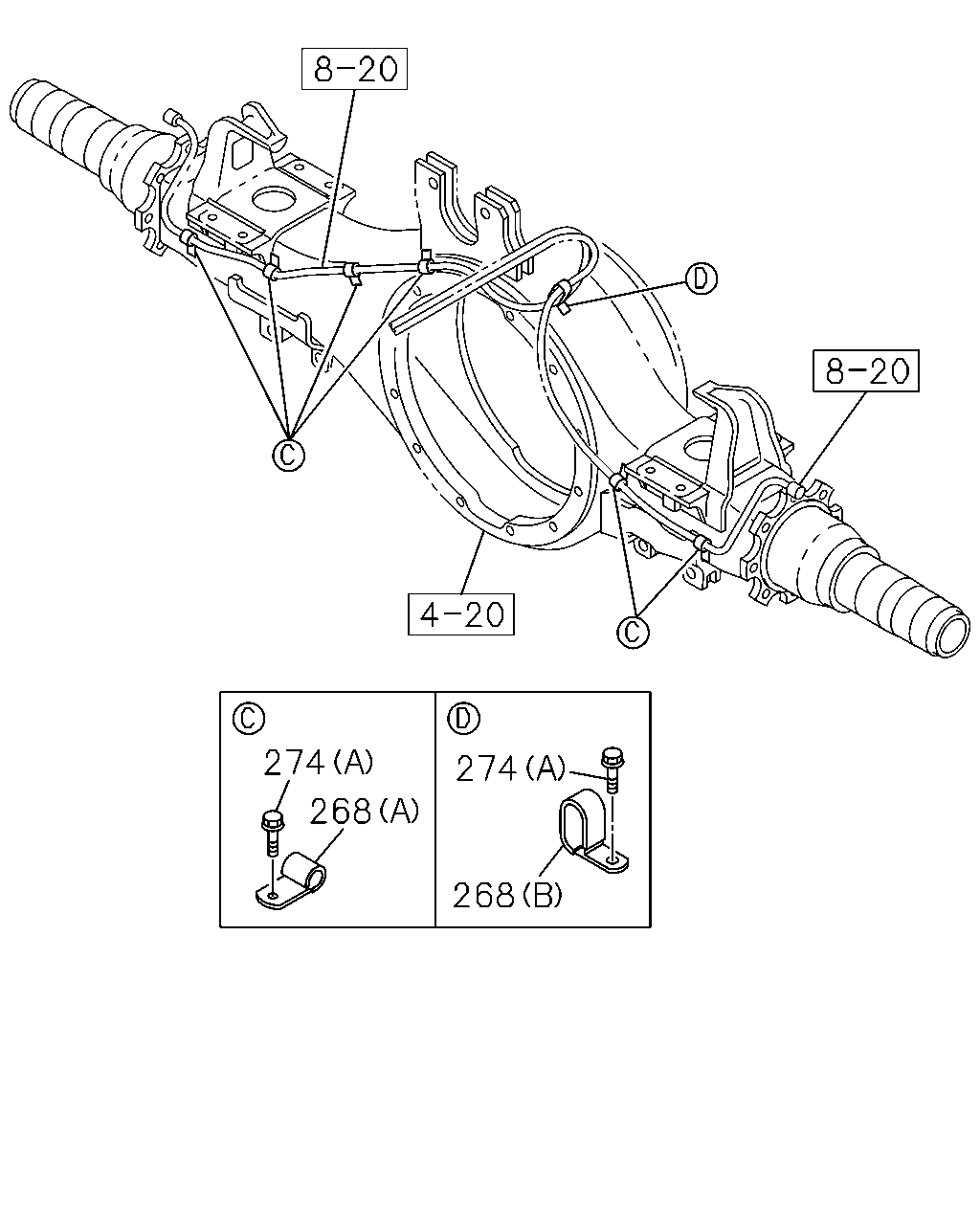

çizim 512852
274 268 274 268
BalonParca AdiParca NoAdetTipApplied Date A B
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 06 1 1303-1511 ●
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 06 1 1512- ● ●
268 CLIP; HARNESS
(B) ID=11X2 L=20 		1-09700-871-0 01 1 1303-1511 ●
268 CLIP; HARNESS
(B) ID=11X2 L=20 		1-09700-871-0 01 1 1512- ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 07 1 1303-1511 ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 07 1 1512- ● ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1303-1511 ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1512- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
