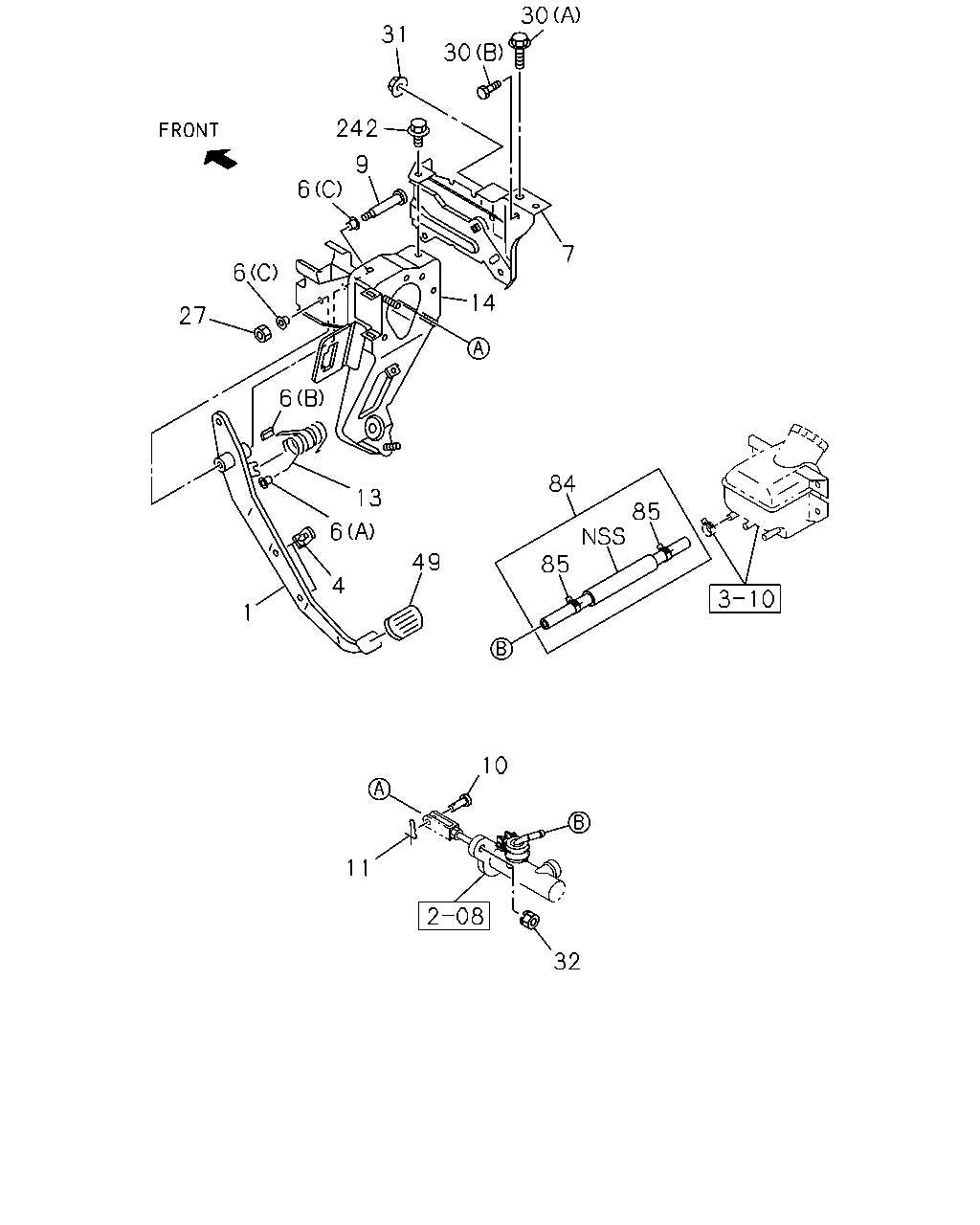

2-03 — CLUTCH PEDAL AND CONTROL
(#115084) — 26 parça
32
11
10
85
84
85
49
4
13
6
1
6
6
6
9
242
31
30
30
7
14
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.830 PEDAL; CLU
8-97853-219-2
01
1
1302-
4
00.829 STOPPER; CLU PEDAL
8-97853-534-1
02
1
1302-
6
00.831 BUSHING; CLU PEDAL
04.792 (C)
8-94238-596-0
02
1
1302-
6
00.831 BUSHING; CLU PEDAL
(A)
8-97853-619-0
02
1
1302-
6
00.831 BUSHING; CLU PEDAL
(B)
8-97853-620-0
01
1
1302-
7
00.829 BRACKET; CLU PEDAL
8-97856-307-3
01
1
1302-
9
00.833 PIN; CLU PEDAL
04.634
8-97866-667-0
01
1
1302-
10
00.833 PIN; CLU PEDAL
8-97359-812-0
01
1
1302-
11
00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.634
8-94279-912-0
01
1
1302-
13
00.844 SPRING; ASSIST,CLU PEDAL
8-97853-221-1
01
1
1302-
14
00.829 BRACKET ASM; CLU PEDAL MTG
8-97892-859-1
01
1
1302-
27
00.833 NUT; FULCRUM PIN
M10 FLANGE
1-09440-022-0
01
1
1302-
30
00.829 BOLT; CLU MTG BRKT
07.833 (A) M10X25 FLANGE
0-28661-025-0
01
1
1302-
30
00.829 BOLT; CLU MTG BRKT
00.833 (B) M10X22 W/PL WASHER
8-97313-188-0
01
1
1302-
31
01.153 NUT; MTG BRKT TO BODY
00.777 M8 W/LK WASHER
8-94279-050-0
02
1
1302-
32
00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER
8-94279-050-0
02
1
1302-
49
00.829 RUBBER; PAD,CLU PEDAL
8-97853-413-2
01
1
1302-
84
00.785 HOSE; RUBBER,CLU LINE
PTO TRANSMISSION SIDE<V66>
8-98252-236-1
01
1
1405-
84
00.785 HOSE; RUBBER,CLU LINE
8-97135-021-0
01
1
1302-1404
84
00.785 HOSE; RUBBER,CLU LINE
EXC. PTO TRANSMISSION SIDE<V66>
8-97135-021-0
01
1
1405-1405
84
00.785 HOSE; RUBBER,CLU LINE
EXC. PTO TRANSMISSION SIDE<V66>
8-98193-588-1
01
1
1406-
85
00.785 CLIP; HOSE TO M/CYL
PTO TRANSMISSION SIDE<V66>
8-98168-080-0
02
1
1405-1405
85
00.785 CLIP; HOSE TO M/CYL
8-98168-080-0
02
1
1406-
85
00.785 CLIP; HOSE TO M/CYL
04.681
8-97130-480-0
02
1
1302-1404
85
00.785 CLIP; HOSE TO M/CYL
EXC. PTO TRANSMISSION SIDE<V66> 04.681
8-97130-480-0
02
1
1405-1405
242
00.785 BOLT; BRKT,CLUTCH
03.604 M8X16 FLANGE
0-28450-816-0
02
1
1302-
