◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51429 - NKR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#115083) — 11 parça

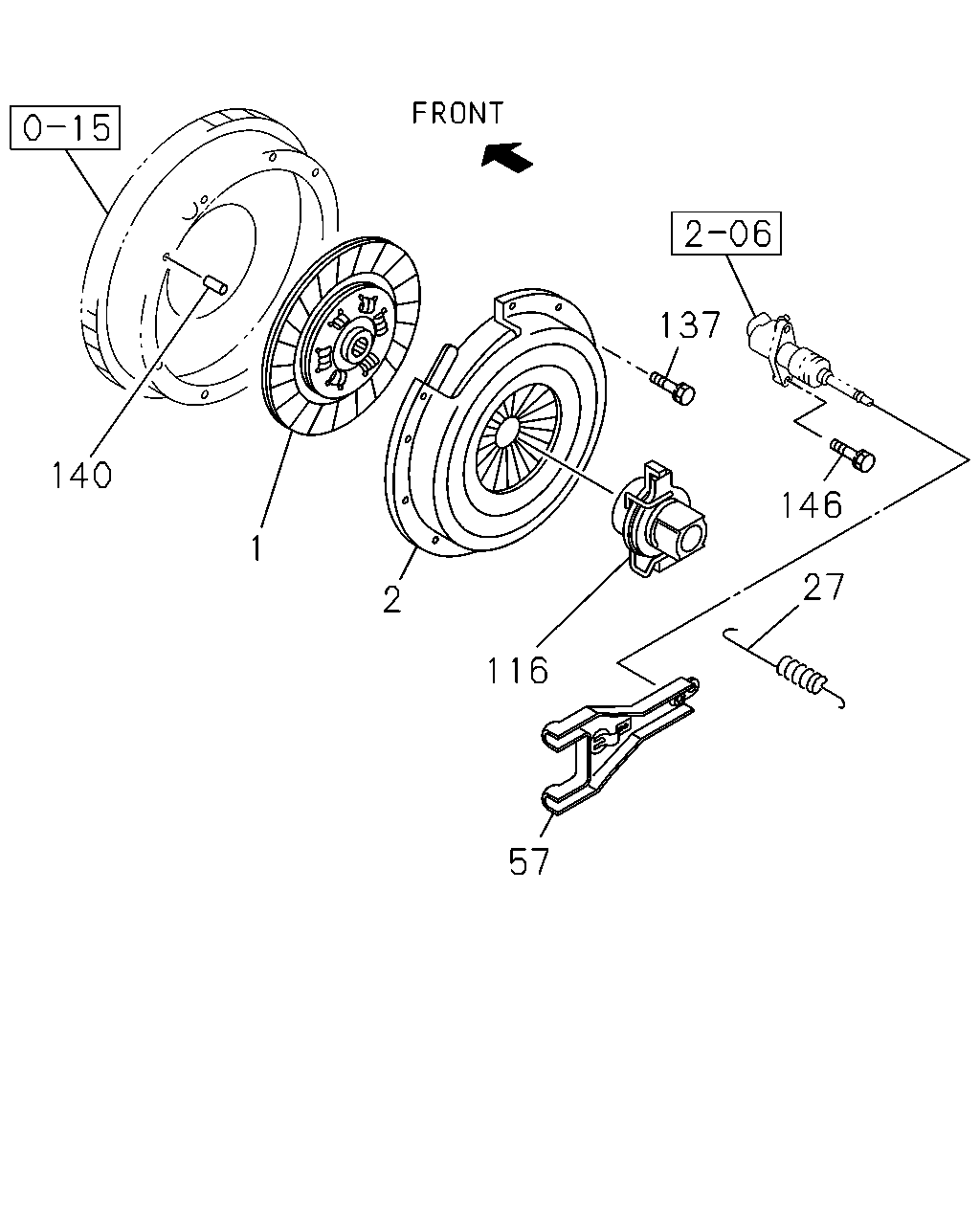

çizim 337211
57 27 146 137 116 2 1 140
BalonParca AdiParca NoAdetTipApplied Date
1 00.886 DISC; CLUTCH
KD PREPARATORY PACK<6HF> 		8-98080-661-0 01 1 1302-
1 00.886 DISC; CLUTCH
KD PREPARATORY PACK<6HF> BEST VALUE PARTS 		5-87610-083-0 01 1 1302-
2 00.859 PLATE ASM; PRESSURE,CLU
KD PREPARATORY PACK<6HF> 		8-97109-246-0 01 1 1302-
2 00.859 PLATE ASM; PRESSURE,CLU
KD PREPARATORY PACK<6HF> BEST VALUE PARTS 		5-87610-082-0 01 1 1302-
27 00.837 SPRING; RETURN,SHIFT FORK 8-98025-314-0 01 1 1302-
57 00.795 FORK; SHIFT,CLU 8-97033-701-0 01 1 1302-
116 00.799 BLOCK; SHIFT,CLU 8-97316-602-0 01 1 1302-
116 00.799 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-116-0 01 1 1302-
137 00.862 BOLT; CLU COVER
KD PREPARATORY PACK<6HF> 02.343 M8X16 FLANGE 		0-28050-816-0 06 1 1302-
140 00.862 PIN; STRAIGHT
KD PREPARATORY PACK<6HF> OD=6 L=24 		9-09878-532-0 02 1 1302-
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
