Isuzu WW
▶
TRUCKS
▶
NKR
▶
51429 - NKR-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶
1-01 — ACCELERATOR PEDAL AND CONTROL
(#115080) — 26 parça
◀

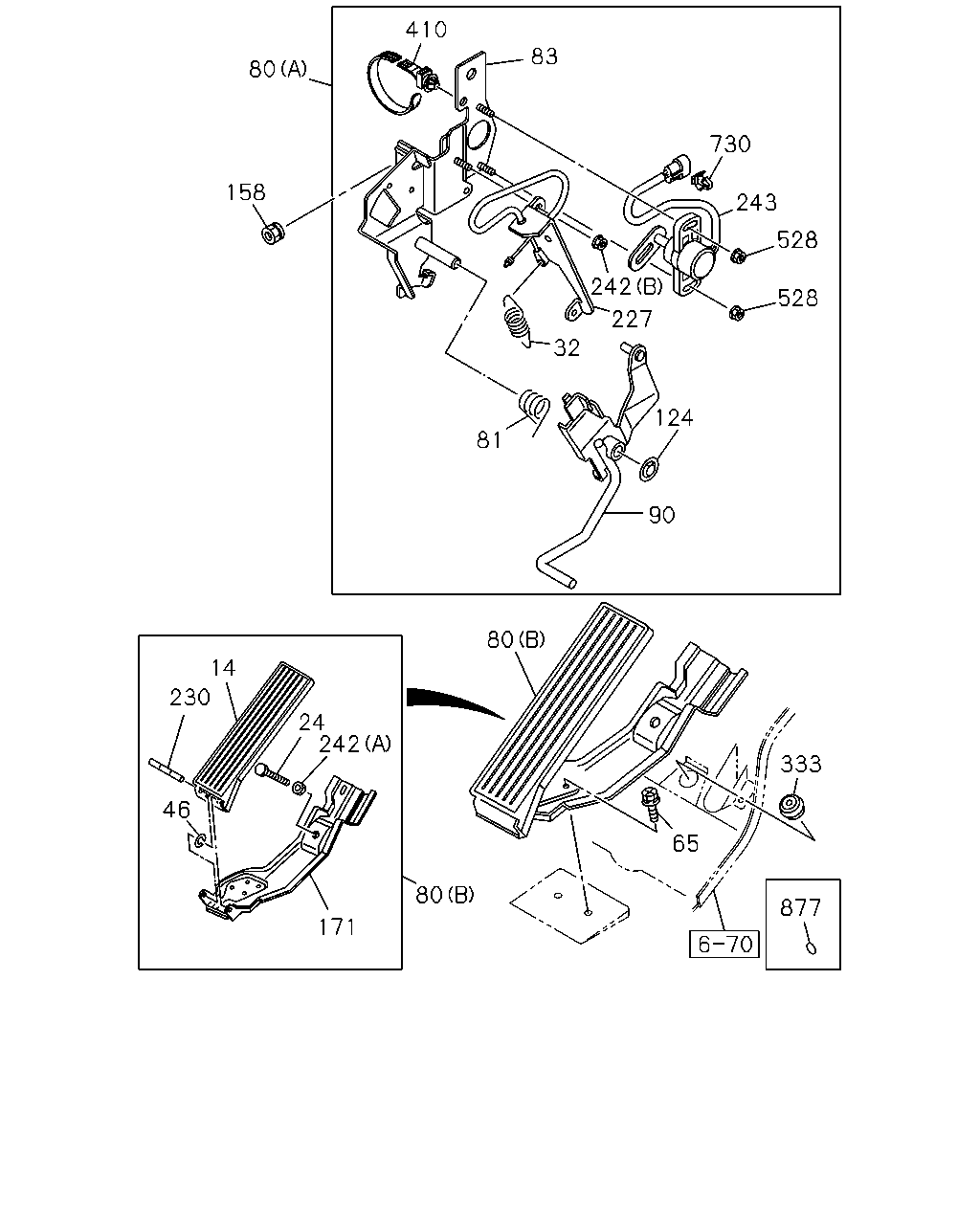

[101A] ACCEL PEDAL (23 parça)

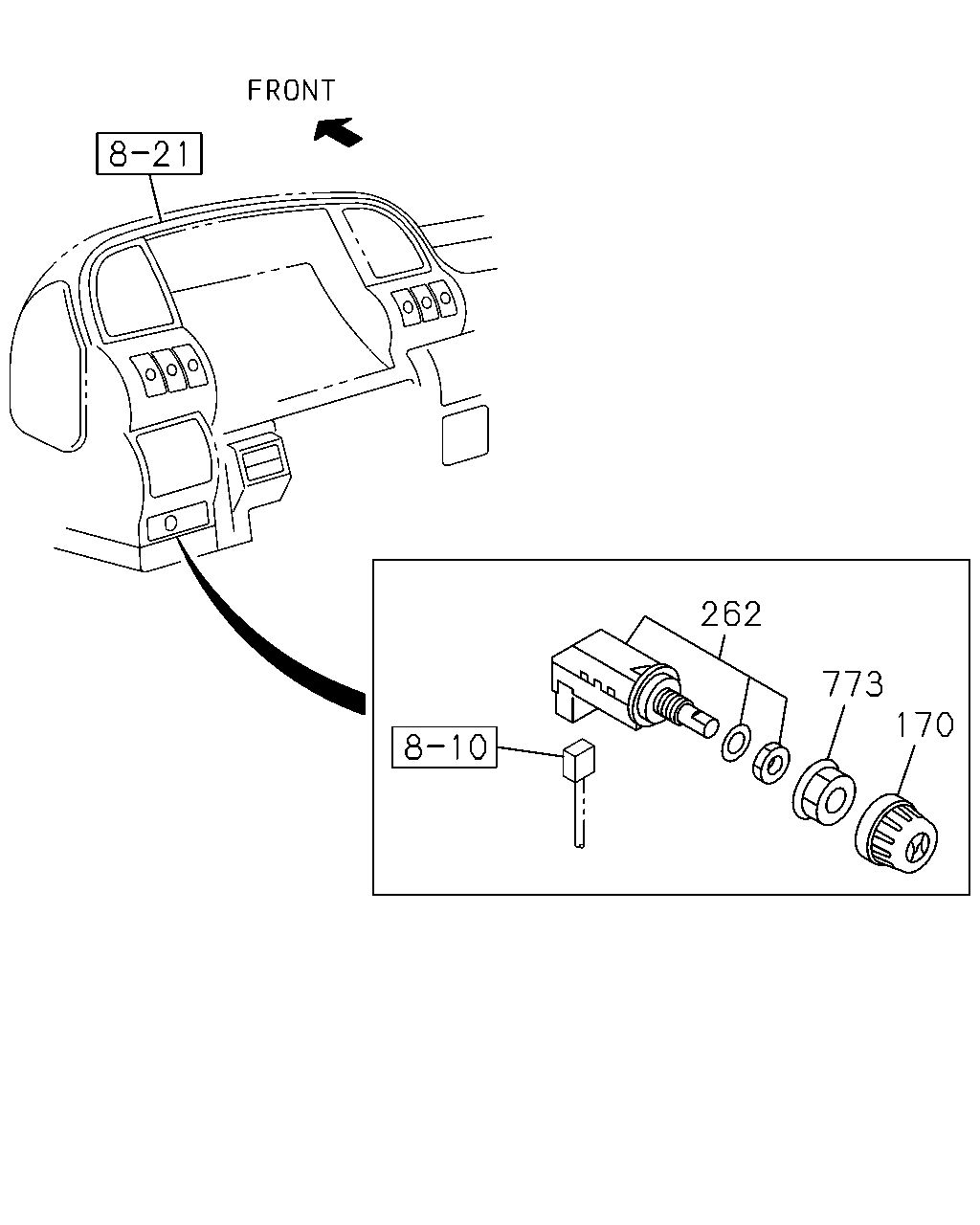

[101A] IDLE ACCEL SWITCH (3 parça)
▶
80
158
410
83
730
243
528
528
242
32
227
81
124
90
80
333
877
65
80
171
242
24
14
230
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
03.451 PAD; PEDAL,ACCEL
8-97859-101-0
01
1
1302-
24
03.483 BOLT; BRKT
03.459
0-20800-840-0
01
1
1302-
32
03.459 SPRING; RETURN,ACCEL PEDAL
8-97997-917-0
01
1
1302-
46
03.485 RING; SNAP,ACCEL CONT PEDAL
ID=4
0-91805-504-0
01
1
1302-
65
03.483 BOLT
16.550 M8X16 W/LK&PL WASHER
8-94310-730-0
03
1
1302-
80
03.452 LINK ASM; ENG CONT
(B)
8-97859-100-0
01
1
1302-
80
03.452 LINK ASM; ENG CONT
(A)
8-98032-148-2
01
1
1302-
81
03.459 SPRING; RETURN,ENG CONT LEVER
8-97853-205-1
01
1
1302-
83
03.452 BRACKET; CONT LINK
8-98032-263-2
01
1
1302-
90
03.454 LEVER; RELAY,ENG CONT
8-97994-590-4
01
1
1302-
124
03.463 NUT; LEVER
09.011 ID=9.9 PUSH NUT
8-97012-098-0
01
1
1302-
158
03.452 NUT; BRKT
08.857 M8 FLANGE
8-94279-060-0
02
1
1302-
171
03.483 BRACKET ASM; ACCEL PEDAL
8-97857-482-1
01
1
1302-
227
03.430 CABLE ASM; RETURN,ACCEL PEDAL
8-97892-203-5
01
1
1302-
230
03.452 PIN; JOINT,ACCEL PEDAL TO BRKT
8-97853-064-0
01
1
1302-
242
03.483 NUT; ACCEL PEDAL
02.334 (A) M8
0-91110-508-0
01
1
1302-
242
03.483 NUT; ACCEL PEDAL
04.115 (B) M6 W/DISHED WASHER
8-98029-921-0
01
1
1302-
243
03.425 SENSOR; ACCEL
8-98200-050-0
01
1
1302-
333
03.671 GROMMET; HOLE,CABLE
16.545 OD=24.5 T=7.5
8-97224-683-0
01
1
1302-
410
03.483 CLIP; BAND
02.559 L=155
8-97173-307-0
01
1
1302-
528
03.463 NUT; ACCEL SENSOR
12.183 M5
8-94169-022-0
02
1
1302-
730
03.880 CLIP
02.559 OD=9 H=6
8-97368-793-0
01
1
1302-
877
03.454 SEAL; HOLE
16.165 OD=20 T=0.05 BLACK
5-76777-036-0
01
1
1302-
262
170
773
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
170
03.480 KNOB
8-98013-420-0
01
1
1302-
262
03.452 SWITCH; ACCEL,IDLE
8-98013-418-0
01
1
1302-
773
03.452 HOLDER; ACCEL PEDAL
8-97352-127-0
01
1
1302-
