Isuzu WW
▶
TRUCKS
▶
NKR
▶
51429 - NKR-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶

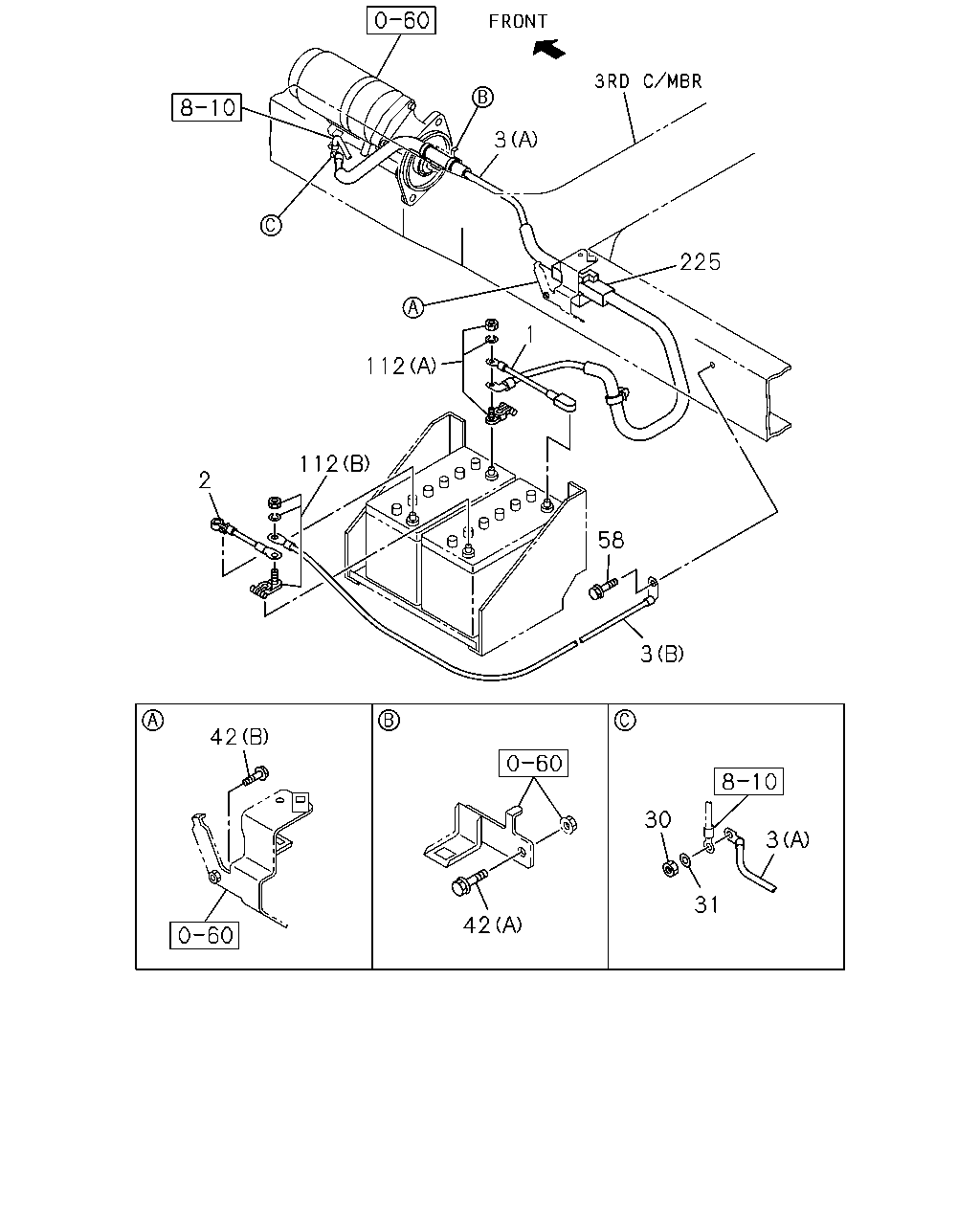

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#115079) — 14 parça
31
30
3
42
42
3
112
2
112
225
3
58
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.341 CABLE; BATTERY
L=180
8-97230-530-2
01
1
1302-
2
02.341 CABLE; BATTERY
L=180
8-97230-538-1
01
1
1302-
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
02.342 (B) L=500
8-97035-845-3
01
1
1302-
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
(A)
8-98214-280-0
01
1
1302-1409
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
(A)
8-98294-687-0
01
1
1410-
30
02.334 NUT; CABLE,STARTER TO BATTERY
M8
0-91110-508-0
01
1
1302-
31
02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2
0-91510-808-0
01
1
1302-
42
02.343 BOLT; BRKT,BATTERY CABLE
(A) M6X16 FLANGE
0-28650-616-0
01
1
1302-
42
02.343 BOLT; BRKT,BATTERY CABLE
00.685 (B) M6X25 FLANGE
0-28650-625-0
01
1
1302-
58
02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER
8-98141-256-1
01
1
1302-
112
02.343 TERMINAL; BATTERY
(B) <->
8-97356-926-1
01
1
1302-
112
02.343 TERMINAL; BATTERY
(A) <+>
8-97365-771-0
01
1
1302-
225
02.343 BLOCK; TERMINAL
8-98029-689-0
01
1
1302-1409
225
02.343 BLOCK; TERMINAL
8-98294-524-0
01
1
1410-
