0-51 — OIL PUMP AND OIL STRAINER (#115077) — 12 parça

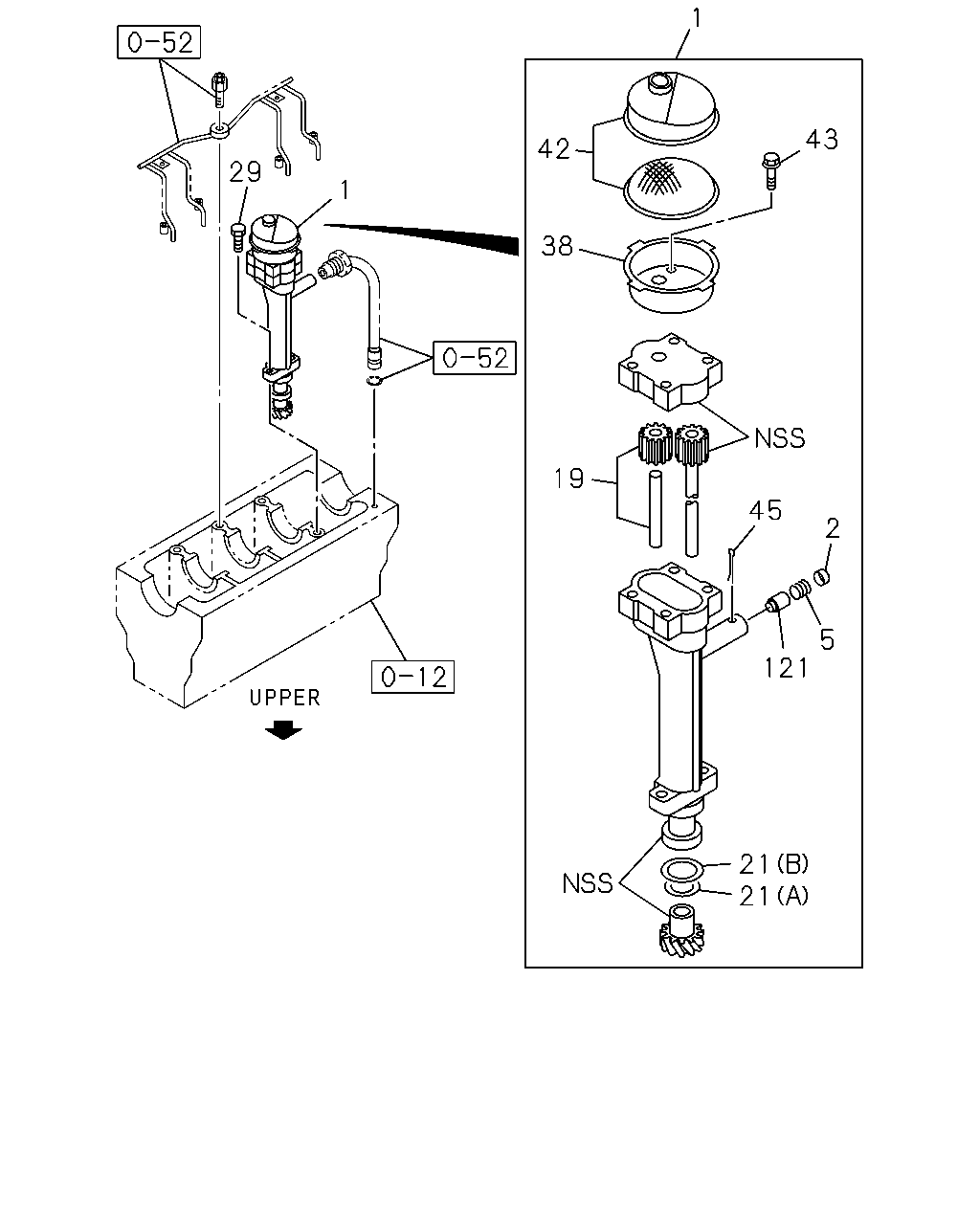

çizim 337177
121 19 45 2 21 21 38 42 1 43 29 1 5
BalonParca AdiParca NoAdetTipApplied Date
1 01.652 PUMP ASM; OIL 8-97385-988-0 01 1 1302-
2 01.609 SEAT; SPR 5-13165-004-0 01 1 1302-
5 01.609 SPRING; COIL 8-97036-834-0 01 1 1302-
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 1302-
21 01.655 GASKET; OIL PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=27.7 		1-09623-170-0 01 1 1302-
21 01.655 GASKET; OIL PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=31.2 		1-09623-220-0 01 1 1302-
29 01.652 BOLT; OIL PUMP
03.275 M8X25 FLANGE 		0-28050-825-0 02 1 1302-
38 01.657 CASE; OIL STRAINER 8-97036-832-0 01 1 1302-
42 01.656 STRAINER; OIL,OIL PUMP 8-97038-379-0 01 1 1302-
43 01.656 BOLT; CASE
03.275 M8X30 FLANGE 		0-28080-830-0 04 1 1302-
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 1302-
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 		8-94235-567-1 01 1 1302-
