Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#115071) — 274 parça

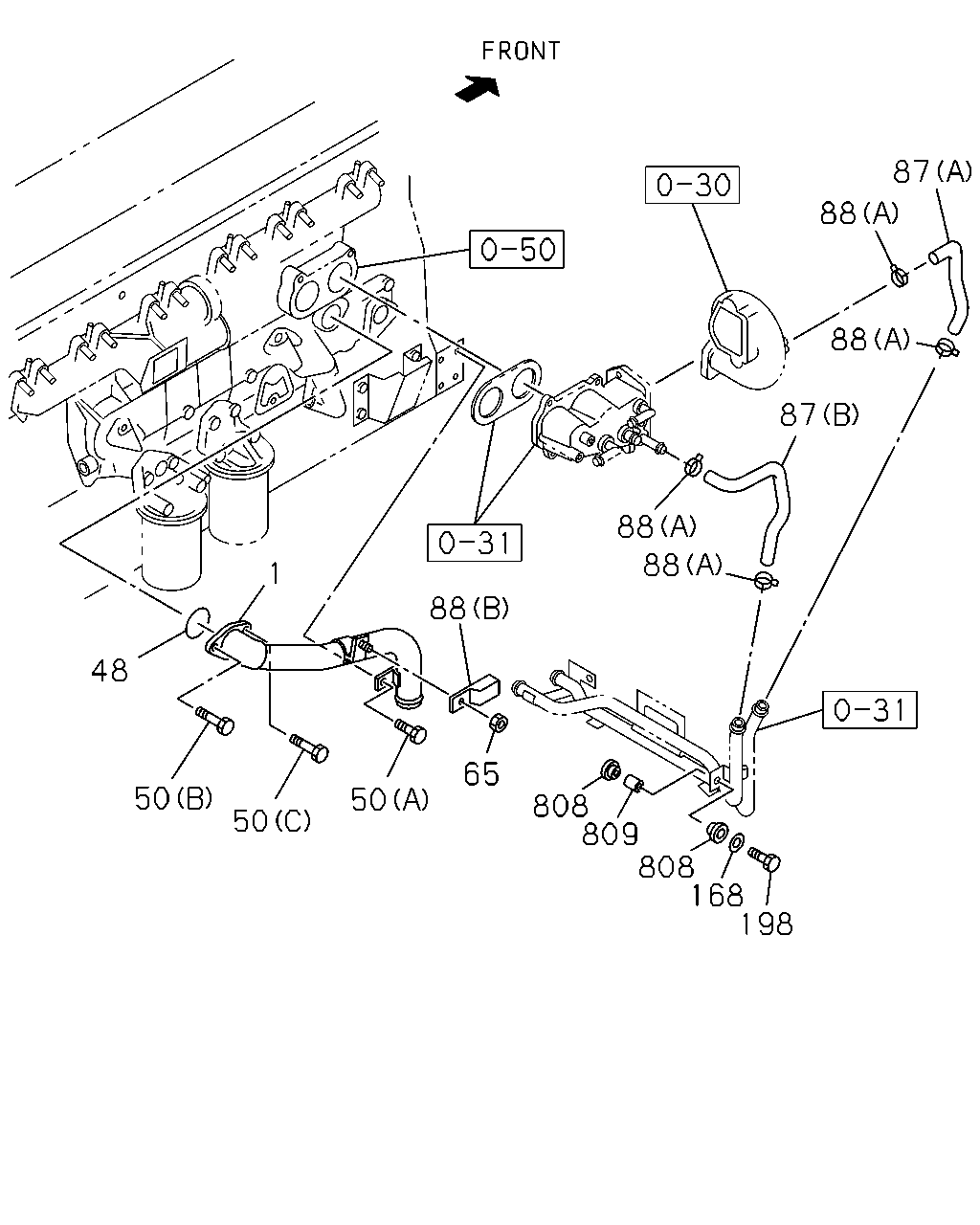

87 88 88 87 88 88 88 48 50 50 65 50 808 809 808 168 198 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; WATER PUMP,INL	8-97606-255-2	01	1	1303-
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	1303-
50	BOLT; WATER PIPE INL (C) M10X90 FLANGE	0-28051-090-0	01	1	1303-1306
50	BOLT; WATER PIPE INL (C) M10X90 FLANGE	0-28151-090-0	01	1	1307-
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	1303-
50	BOLT; WATER PIPE INL (A) M14X25 FLANGE	0-28951-425-0	01	1	1303-
65	NUT M10 FLANGE	0-91180-110-0	01	1	1303-
87	HOSE; RUBBER,HTR (B)	1-83565-572-0	01	1	1303-
87	HOSE; RUBBER,HTR (A)	1-83565-577-0	01	1	1303-
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	1303-
88	CLIP; HOSE,HTR (B)	8-98166-024-0	01	1	1303-
168	WASHER; PL,PIPE ID=10.5 OD=26	0-91614-710-0	02	1	1303-
198	BOLT; PIPE M10X45 FLANGE	0-28051-045-0	02	1	1303-
808	RUBBER; MTG	1-09337-017-0	04	1	1303-
809	TUBE; DIST ID=11.8 L=27	1-21559-149-0	02	1	1303-

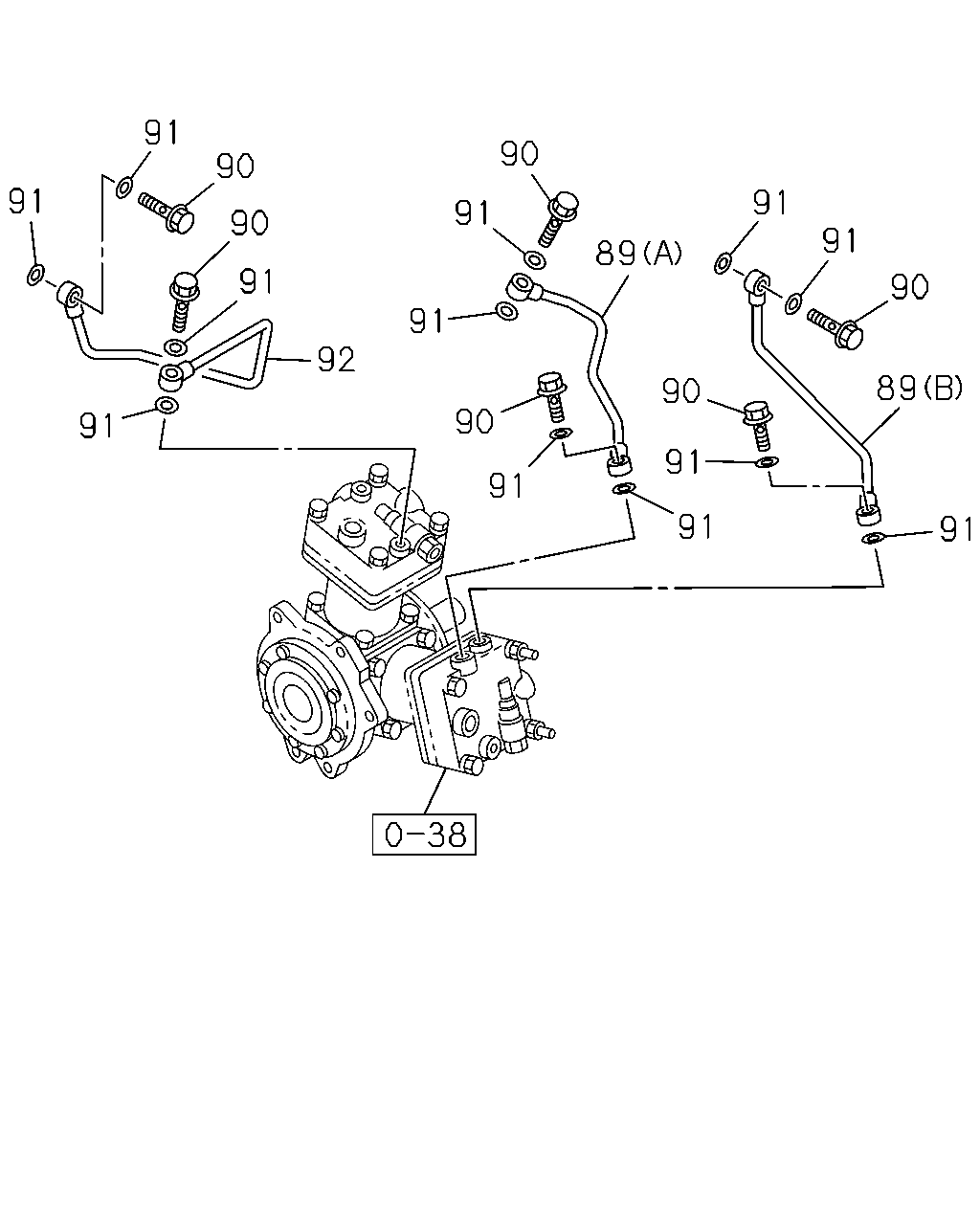

91 91 91 90 90 91 92 90 91 91 91 89 90 91 91 91 90 89 91 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
89	PIPE; WATER,AIR CMPR,IN (B)	1-13722-007-0	01	1	1303-
89	PIPE; WATER,AIR CMPR,IN (A)	1-13722-008-0	01	1	1303-
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	06	1	1303-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	12	1	1303-
92	PIPE; WATER,AIR CMPR,OUT	1-13722-009-0	01	1	1303-

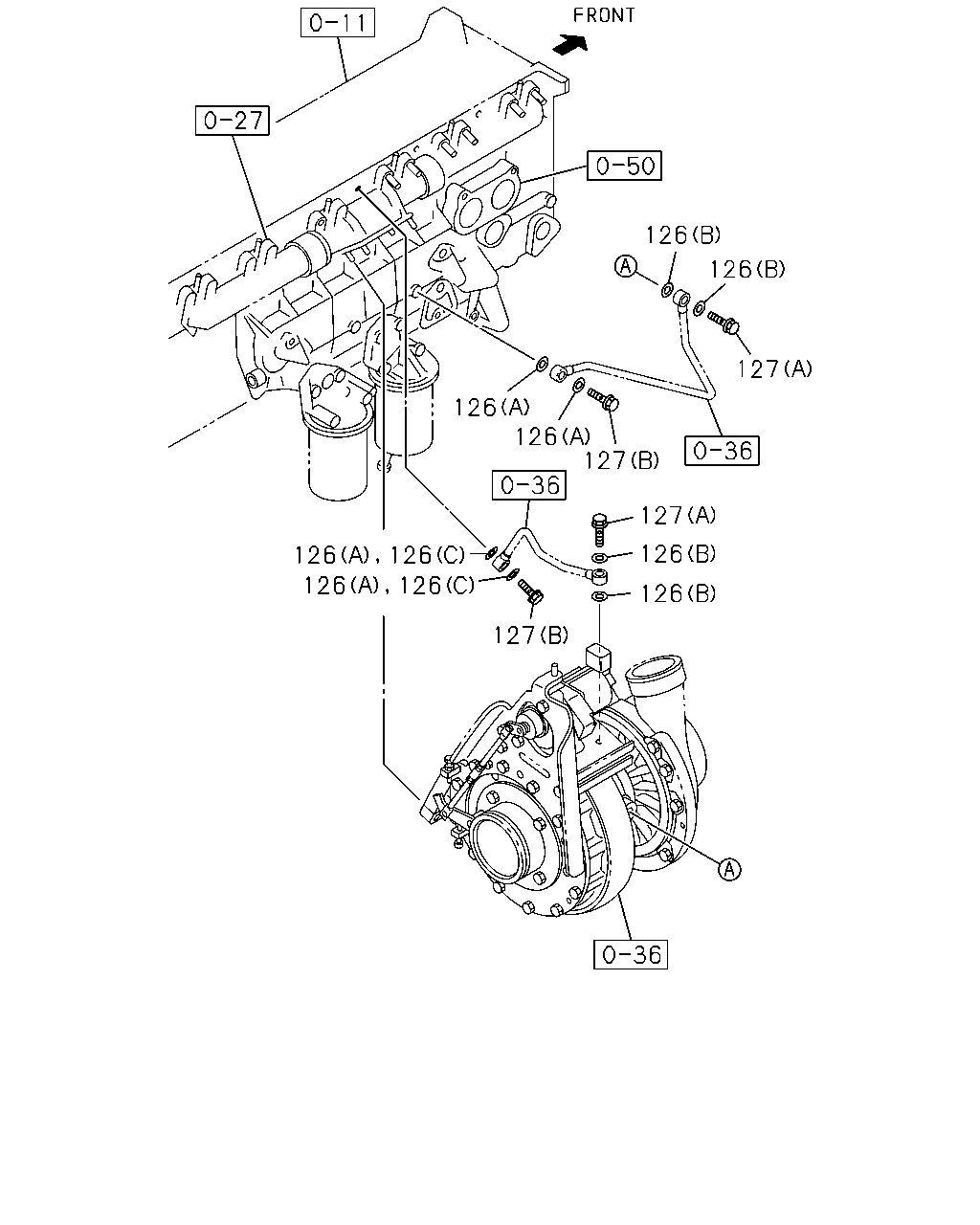

126 127 126 126 127 126 127 126 126 127 126 126 126 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1303-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	1303-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	04	1	1303-
127	BOLT; EYE (A) M16X30 FLANGE	1-09675-095-1	02	1	1303-
127	BOLT; EYE (B) M14X27 EYE-BOLT	1-09675-193-0	02	1	1303-

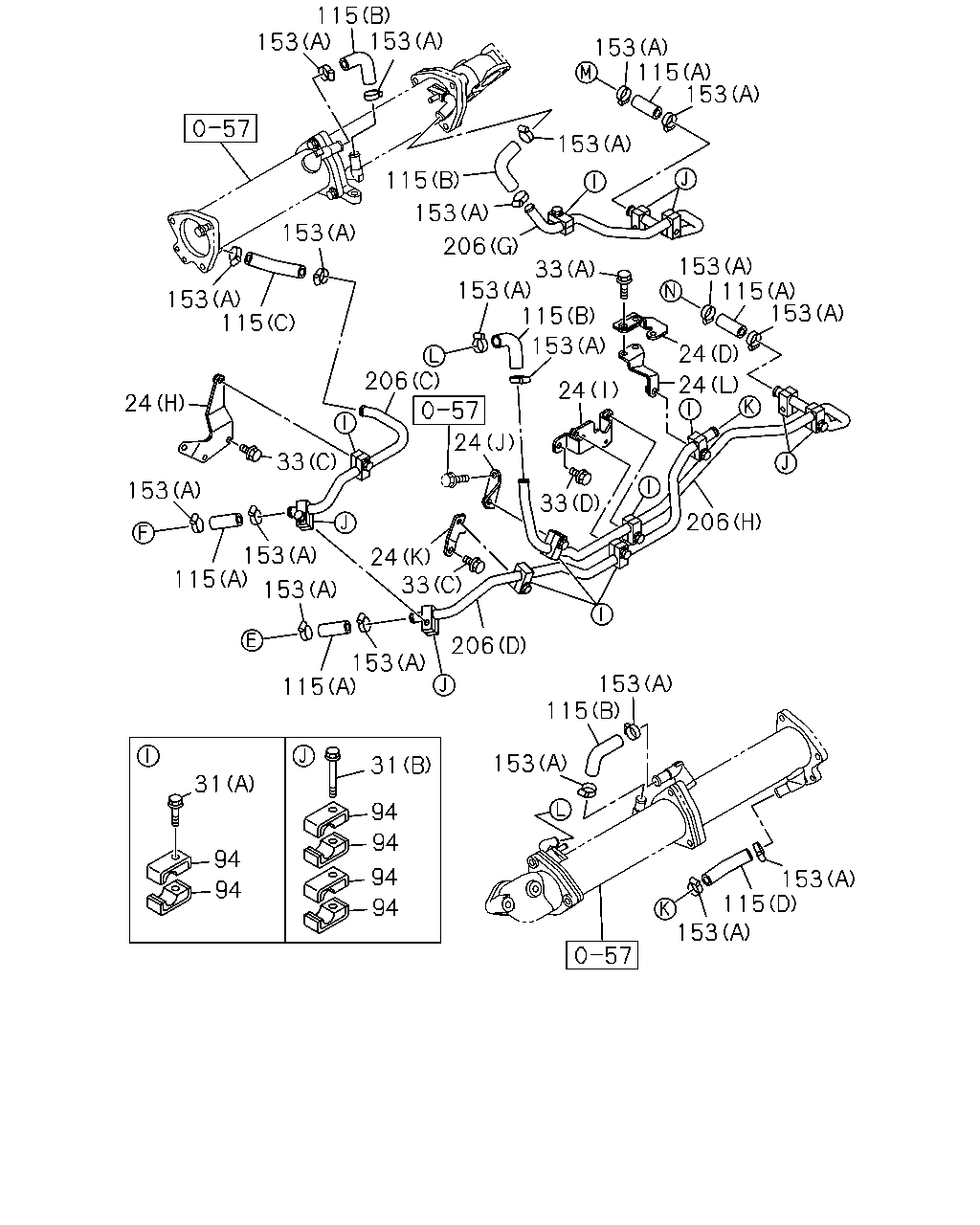

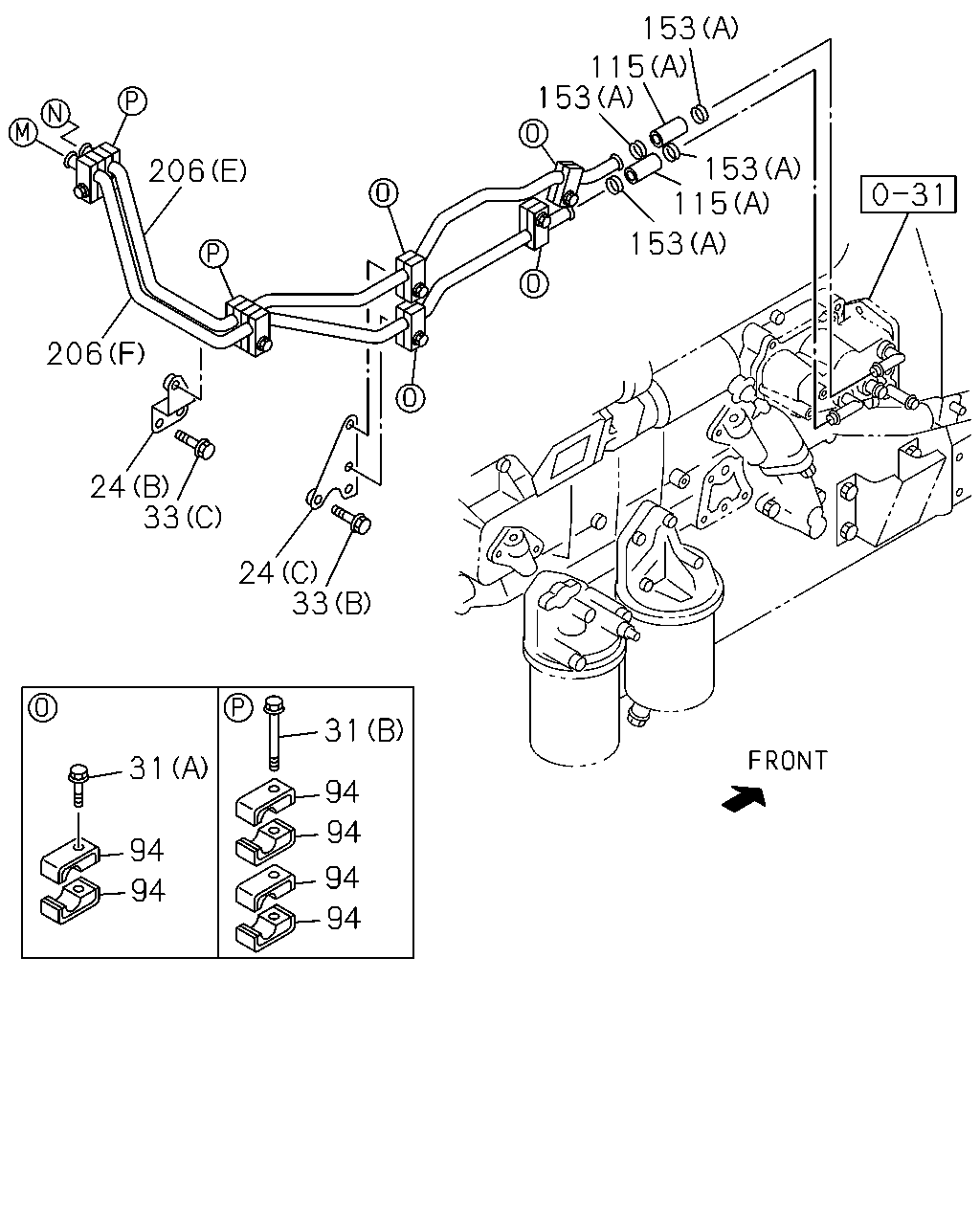

115 153 153 153 153 115 24 153 115 153 153 115 115 153 33 153 206 206 153 33 115 153 24 31 94 94 31 33 24 206 94 94 94 94 153 115 153 153 153 115 153 24 24 24 33 206 153 115 153 153 115 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE RUSSIA EQUIPMENT(B12) (M)	8-98327-621-0	01	1	1512-
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1303-
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1303-
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1303-
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1303-
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1303-
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1303-
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1303-
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1303-
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1303-
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1303-
24	BRACKET; WATER PIPE (D)	8-97628-207-0	01	1	1303-
24	BRACKET; WATER PIPE (L)	8-97628-300-0	01	1	1303-
31	BOLT; CLIP RUSSIA EQUIPMENT(B12) (C) M8X16 FLANGE	0-28050-816-0	01	1	1512-
31	BOLT; CLIP RUSSIA EQUIPMENT(B12) (D) M8X50 FLANGE	0-28050-850-0	01	1	1512-
31	BOLT; CLIP RUSSIA EQUIPMENT(B12) (B) M8X70 FLANGE	0-28050-870-0	06	1	1512-
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	12	1	1303-
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1303-1511
31	BOLT; CLIP EXC. RUSSIA EQUIPMENT(B12) (B) M8X70 FLANGE	0-28050-870-0	07	1	1512-
33	BOLT; BRKT RUSSIA EQUIPMENT(B12) (A) M8X25 FLANGE	0-28050-825-0	03	1	1512-
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	04	1	1303-
33	BOLT; BRKT (A) M8X25 FLANGE	0-28050-825-0	02	1	1303-1511
33	BOLT; BRKT EXC. RUSSIA EQUIPMENT(B12) (A) M8X25 FLANGE	0-28050-825-0	02	1	1512-
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1303-
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1303-
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1303-
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1303-
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1303-
94	CLIP; WATER PIPE RUSSIA EQUIPMENT(B12) ID=17 L=17	1-09701-284-0	54	1	1512-
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	1303-1511
94	CLIP; WATER PIPE EXC. RUSSIA EQUIPMENT(B12) ID=17 L=17	1-09701-284-0	56	1	1512-
115	HOSE; RUBBER RUSSIA EQUIPMENT(B12) (A) L=55 SERVICED BY L=3000	0-03566-300-0	07	1	1512-
115	HOSE; RUBBER RUSSIA EQUIPMENT(B12) (E)	8-98327-617-0	01	1	1512-
115	HOSE; RUBBER RUSSIA EQUIPMENT(B12) (F)	8-98327-618-0	01	1	1512-
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1303-1511
115	HOSE; RUBBER EXC. RUSSIA EQUIPMENT(B12) (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1512-
115	HOSE; RUBBER (B)	8-97604-063-0	04	1	1303-
115	HOSE; RUBBER (C)	8-97628-219-0	01	1	1303-
115	HOSE; RUBBER (D)	8-97628-220-0	01	1	1303-
153	CLIP; RUBBER HOSE RUSSIA EQUIPMENT(B12) (A) ID=25	8-97177-581-0	30	1	1512-
153	CLIP; RUBBER HOSE RUSSIA EQUIPMENT(B12) (B) ID=27 L=26	8-98096-216-0	10	1	1512-
153	CLIP; RUBBER HOSE (A) ID=25	8-97177-581-0	28	1	1303-1511
153	CLIP; RUBBER HOSE EXC. RUSSIA EQUIPMENT(B12) (A) ID=25	8-97177-581-0	28	1	1512-
206	PIPE; WATER,EGR COOLER RUSSIA EQUIPMENT(B12) (I)	8-98327-620-0	01	1	1512-
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1303-
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1303-
206	PIPE; WATER,EGR COOLER (B)	8-97623-511-1	01	1	1303-
206	PIPE; WATER,EGR COOLER (C)	8-97628-203-0	01	1	1303-
206	PIPE; WATER,EGR COOLER (D)	8-97628-204-0	01	1	1303-
206	PIPE; WATER,EGR COOLER (G)	8-97628-205-1	01	1	1303-
206	PIPE; WATER,EGR COOLER (H)	8-97628-206-1	01	1	1303-
206	PIPE; WATER,EGR COOLER (A)	8-97629-442-0	01	1	1303-1511
206	PIPE; WATER,EGR COOLER EXC. RUSSIA EQUIPMENT(B12) (A)	8-97629-442-0	01	1	1512-

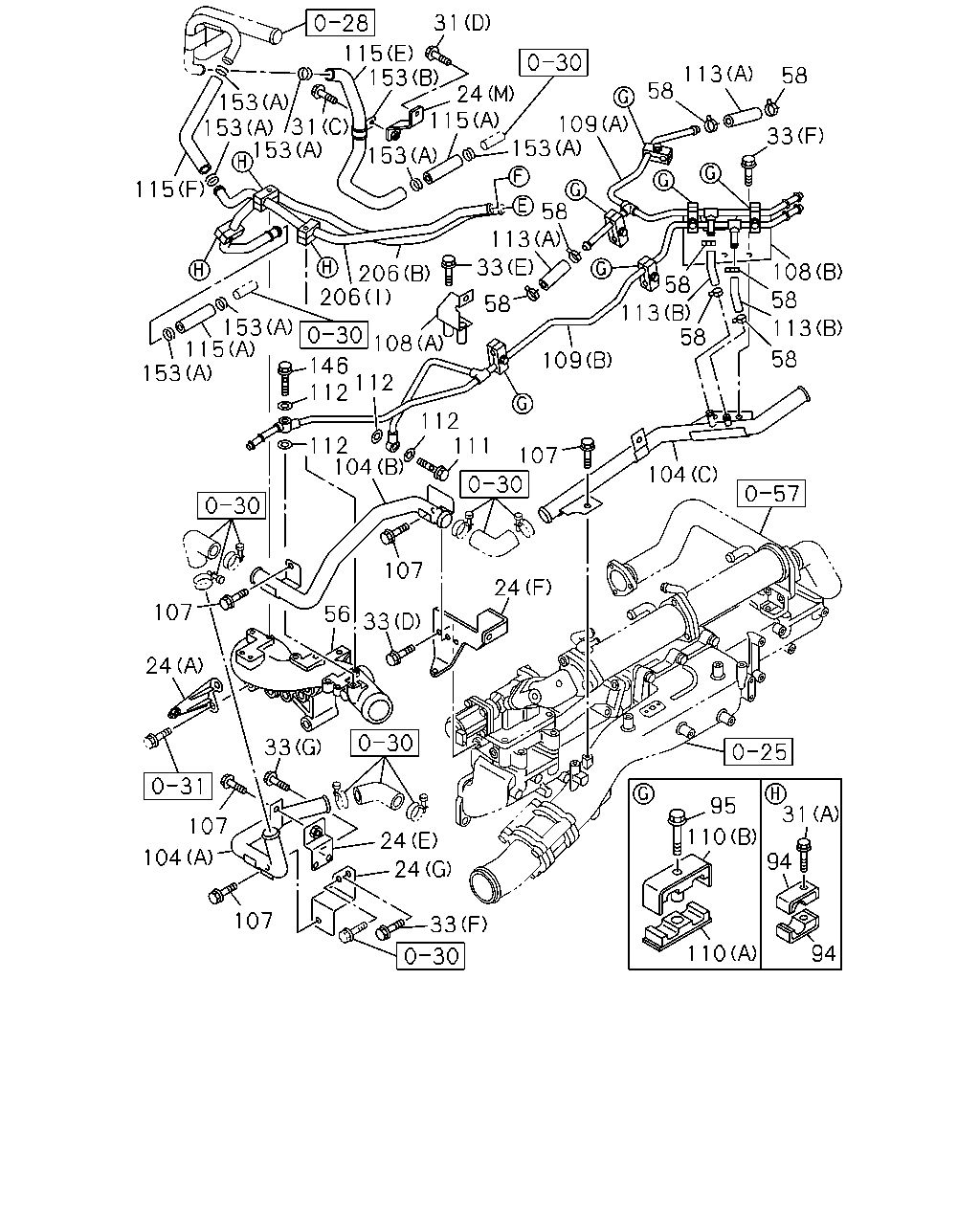

153 153 153 115 31 31 153 115 153 206 206 146 112 112 108 115 153 153 24 115 153 109 58 113 58 33 58 113 33 58 108 58 113 58 109 104 112 111 107 104 112 58 113 58 33 107 24 104 56 107 24 24 24 107 107 33 95 110 31 94 94 110 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE RUSSIA EQUIPMENT(B12) (M)	8-98327-621-0	01	1	1512-
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1303-
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1303-
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1303-
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1303-
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1303-
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1303-
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1303-
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1303-
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1303-
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1303-
24	BRACKET; WATER PIPE (D)	8-97628-207-0	01	1	1303-
24	BRACKET; WATER PIPE (L)	8-97628-300-0	01	1	1303-
31	BOLT; CLIP RUSSIA EQUIPMENT(B12) (C) M8X16 FLANGE	0-28050-816-0	01	1	1512-
31	BOLT; CLIP RUSSIA EQUIPMENT(B12) (D) M8X50 FLANGE	0-28050-850-0	01	1	1512-
31	BOLT; CLIP RUSSIA EQUIPMENT(B12) (B) M8X70 FLANGE	0-28050-870-0	06	1	1512-
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	12	1	1303-
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1303-1511
31	BOLT; CLIP EXC. RUSSIA EQUIPMENT(B12) (B) M8X70 FLANGE	0-28050-870-0	07	1	1512-
33	BOLT; BRKT RUSSIA EQUIPMENT(B12) (A) M8X25 FLANGE	0-28050-825-0	03	1	1512-
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	04	1	1303-
33	BOLT; BRKT (A) M8X25 FLANGE	0-28050-825-0	02	1	1303-1511
33	BOLT; BRKT EXC. RUSSIA EQUIPMENT(B12) (A) M8X25 FLANGE	0-28050-825-0	02	1	1512-
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1303-
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1303-
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1303-
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1303-
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1303-
56	PIPE; WATER OUTLET	8-98038-588-0	01	1	1303-
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	08	1	1303-
94	CLIP; WATER PIPE RUSSIA EQUIPMENT(B12) ID=17 L=17	1-09701-284-0	54	1	1512-
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	1303-1511
94	CLIP; WATER PIPE EXC. RUSSIA EQUIPMENT(B12) ID=17 L=17	1-09701-284-0	56	1	1512-
95	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	06	1	1303-
104	PIPE; WATER CHARGE (B)	8-97613-001-1	01	1	1303-
104	PIPE; WATER CHARGE (A)	8-97617-188-0	01	1	1303-
104	PIPE; WATER CHARGE (C)	8-98191-341-0	01	1	1303-
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	05	1	1303-
108	BRACKET; WATER CHARGE (A)	8-97613-672-0	01	1	1303-
108	BRACKET; WATER CHARGE (B)	8-97615-508-2	01	1	1303-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-98191-343-0	01	1	1303-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-98191-497-0	01	1	1303-
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	06	1	1303-
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	06	1	1303-
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	1303-
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	1303-
113	HOSE; RUBBER,AIR LEAK (A) L=100 SERVICED BY L=3000	0-03559-300-0	02	1	1303-
113	HOSE; RUBBER,AIR LEAK (B)	8-98191-351-0	02	1	1303-
115	HOSE; RUBBER RUSSIA EQUIPMENT(B12) (A) L=55 SERVICED BY L=3000	0-03566-300-0	07	1	1512-
115	HOSE; RUBBER RUSSIA EQUIPMENT(B12) (E)	8-98327-617-0	01	1	1512-
115	HOSE; RUBBER RUSSIA EQUIPMENT(B12) (F)	8-98327-618-0	01	1	1512-
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1303-1511
115	HOSE; RUBBER EXC. RUSSIA EQUIPMENT(B12) (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1512-
115	HOSE; RUBBER (B)	8-97604-063-0	04	1	1303-
115	HOSE; RUBBER (C)	8-97628-219-0	01	1	1303-
115	HOSE; RUBBER (D)	8-97628-220-0	01	1	1303-
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	1303-
153	CLIP; RUBBER HOSE RUSSIA EQUIPMENT(B12) (A) ID=25	8-97177-581-0	30	1	1512-
153	CLIP; RUBBER HOSE RUSSIA EQUIPMENT(B12) (B) ID=27 L=26	8-98096-216-0	10	1	1512-
153	CLIP; RUBBER HOSE (A) ID=25	8-97177-581-0	28	1	1303-1511
153	CLIP; RUBBER HOSE EXC. RUSSIA EQUIPMENT(B12) (A) ID=25	8-97177-581-0	28	1	1512-
206	PIPE; WATER,EGR COOLER RUSSIA EQUIPMENT(B12) (I)	8-98327-620-0	01	1	1512-
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1303-
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1303-
206	PIPE; WATER,EGR COOLER (B)	8-97623-511-1	01	1	1303-
206	PIPE; WATER,EGR COOLER (C)	8-97628-203-0	01	1	1303-
206	PIPE; WATER,EGR COOLER (D)	8-97628-204-0	01	1	1303-
206	PIPE; WATER,EGR COOLER (G)	8-97628-205-1	01	1	1303-
206	PIPE; WATER,EGR COOLER (H)	8-97628-206-1	01	1	1303-
206	PIPE; WATER,EGR COOLER (A)	8-97629-442-0	01	1	1303-1511
206	PIPE; WATER,EGR COOLER EXC. RUSSIA EQUIPMENT(B12) (A)	8-97629-442-0	01	1	1512-

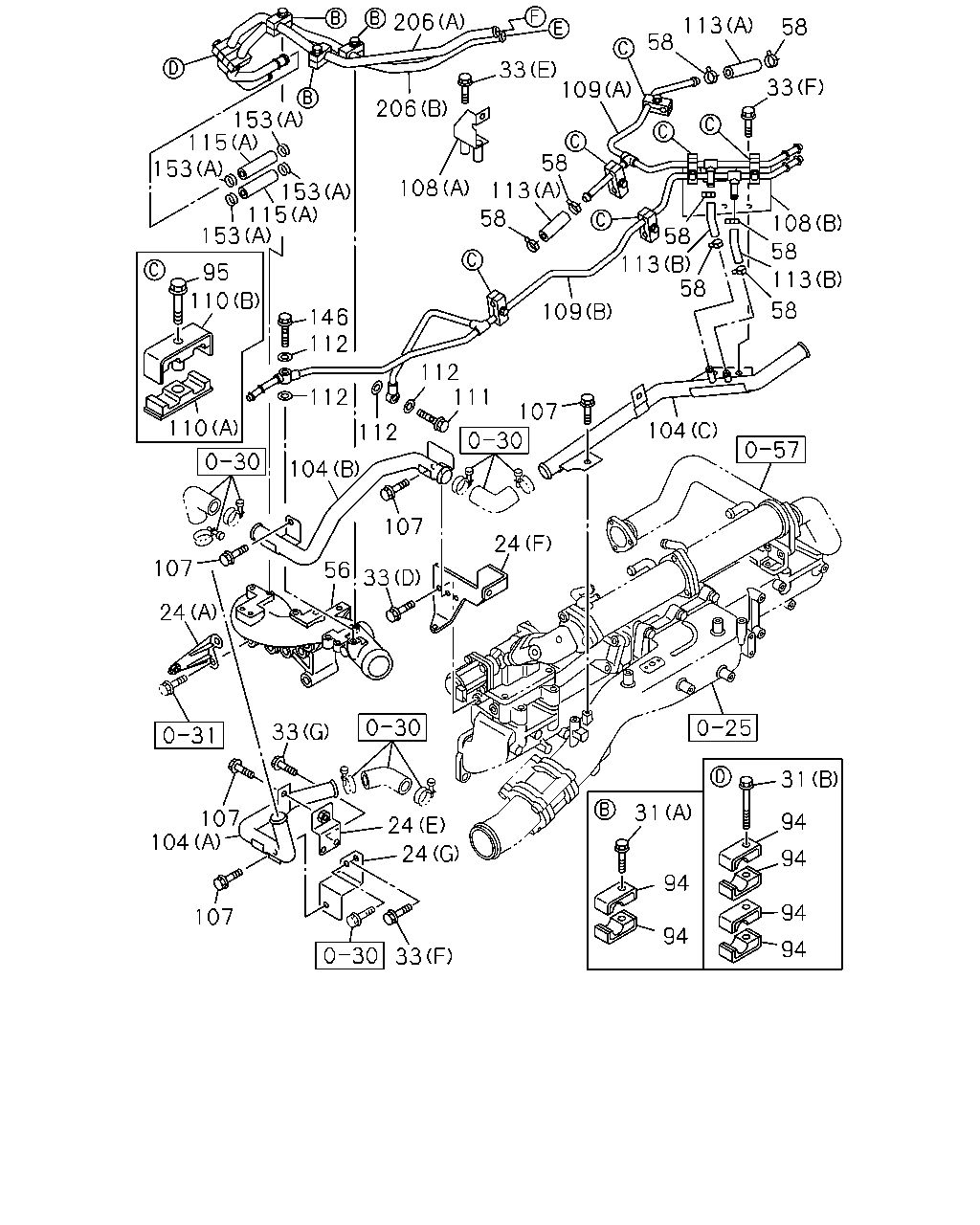

206 153 115 153 153 115 153 206 108 33 146 112 95 110 110 109 58 113 58 58 113 58 33 112 112 109 113 58 58 108 58 113 58 104 112 111 107 107 107 24 56 33 24 104 107 104 107 33 24 24 33 31 94 94 31 94 94 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE RUSSIA EQUIPMENT(B12) (M)	8-98327-621-0	01	1	1512-
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1303-
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1303-
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1303-
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1303-
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1303-
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1303-
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1303-
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1303-
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1303-
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1303-
24	BRACKET; WATER PIPE (D)	8-97628-207-0	01	1	1303-
24	BRACKET; WATER PIPE (L)	8-97628-300-0	01	1	1303-
31	BOLT; CLIP RUSSIA EQUIPMENT(B12) (C) M8X16 FLANGE	0-28050-816-0	01	1	1512-
31	BOLT; CLIP RUSSIA EQUIPMENT(B12) (D) M8X50 FLANGE	0-28050-850-0	01	1	1512-
31	BOLT; CLIP RUSSIA EQUIPMENT(B12) (B) M8X70 FLANGE	0-28050-870-0	06	1	1512-
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	12	1	1303-
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1303-1511
31	BOLT; CLIP EXC. RUSSIA EQUIPMENT(B12) (B) M8X70 FLANGE	0-28050-870-0	07	1	1512-
33	BOLT; BRKT RUSSIA EQUIPMENT(B12) (A) M8X25 FLANGE	0-28050-825-0	03	1	1512-
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	04	1	1303-
33	BOLT; BRKT (A) M8X25 FLANGE	0-28050-825-0	02	1	1303-1511
33	BOLT; BRKT EXC. RUSSIA EQUIPMENT(B12) (A) M8X25 FLANGE	0-28050-825-0	02	1	1512-
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1303-
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1303-
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1303-
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1303-
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1303-
56	PIPE; WATER OUTLET	8-98038-588-0	01	1	1303-
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	08	1	1303-
94	CLIP; WATER PIPE RUSSIA EQUIPMENT(B12) ID=17 L=17	1-09701-284-0	54	1	1512-
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	1303-1511
94	CLIP; WATER PIPE EXC. RUSSIA EQUIPMENT(B12) ID=17 L=17	1-09701-284-0	56	1	1512-
95	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	06	1	1303-
104	PIPE; WATER CHARGE (B)	8-97613-001-1	01	1	1303-
104	PIPE; WATER CHARGE (A)	8-97617-188-0	01	1	1303-
104	PIPE; WATER CHARGE (C)	8-98191-341-0	01	1	1303-
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	05	1	1303-
108	BRACKET; WATER CHARGE (A)	8-97613-672-0	01	1	1303-
108	BRACKET; WATER CHARGE (B)	8-97615-508-2	01	1	1303-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-98191-343-0	01	1	1303-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-98191-497-0	01	1	1303-
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	06	1	1303-
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	06	1	1303-
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	1303-
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	1303-
113	HOSE; RUBBER,AIR LEAK (A) L=100 SERVICED BY L=3000	0-03559-300-0	02	1	1303-
113	HOSE; RUBBER,AIR LEAK (B)	8-98191-351-0	02	1	1303-
115	HOSE; RUBBER RUSSIA EQUIPMENT(B12) (A) L=55 SERVICED BY L=3000	0-03566-300-0	07	1	1512-
115	HOSE; RUBBER RUSSIA EQUIPMENT(B12) (E)	8-98327-617-0	01	1	1512-
115	HOSE; RUBBER RUSSIA EQUIPMENT(B12) (F)	8-98327-618-0	01	1	1512-
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1303-1511
115	HOSE; RUBBER EXC. RUSSIA EQUIPMENT(B12) (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1512-
115	HOSE; RUBBER (B)	8-97604-063-0	04	1	1303-
115	HOSE; RUBBER (C)	8-97628-219-0	01	1	1303-
115	HOSE; RUBBER (D)	8-97628-220-0	01	1	1303-
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	1303-
153	CLIP; RUBBER HOSE RUSSIA EQUIPMENT(B12) (A) ID=25	8-97177-581-0	30	1	1512-
153	CLIP; RUBBER HOSE RUSSIA EQUIPMENT(B12) (B) ID=27 L=26	8-98096-216-0	10	1	1512-
153	CLIP; RUBBER HOSE (A) ID=25	8-97177-581-0	28	1	1303-1511
153	CLIP; RUBBER HOSE EXC. RUSSIA EQUIPMENT(B12) (A) ID=25	8-97177-581-0	28	1	1512-
206	PIPE; WATER,EGR COOLER RUSSIA EQUIPMENT(B12) (I)	8-98327-620-0	01	1	1512-
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1303-
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1303-
206	PIPE; WATER,EGR COOLER (B)	8-97623-511-1	01	1	1303-
206	PIPE; WATER,EGR COOLER (C)	8-97628-203-0	01	1	1303-
206	PIPE; WATER,EGR COOLER (D)	8-97628-204-0	01	1	1303-
206	PIPE; WATER,EGR COOLER (G)	8-97628-205-1	01	1	1303-
206	PIPE; WATER,EGR COOLER (H)	8-97628-206-1	01	1	1303-
206	PIPE; WATER,EGR COOLER (A)	8-97629-442-0	01	1	1303-1511
206	PIPE; WATER,EGR COOLER EXC. RUSSIA EQUIPMENT(B12) (A)	8-97629-442-0	01	1	1512-

206 206 24 33 24 33 31 94 94 31 94 94 94 94 153 115 153 153 115 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE RUSSIA EQUIPMENT(B12) (M)	8-98327-621-0	01	1	1512-
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1303-
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1303-
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1303-
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1303-
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1303-
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1303-
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1303-
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1303-
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1303-
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1303-
24	BRACKET; WATER PIPE (D)	8-97628-207-0	01	1	1303-
24	BRACKET; WATER PIPE (L)	8-97628-300-0	01	1	1303-
31	BOLT; CLIP RUSSIA EQUIPMENT(B12) (C) M8X16 FLANGE	0-28050-816-0	01	1	1512-
31	BOLT; CLIP RUSSIA EQUIPMENT(B12) (D) M8X50 FLANGE	0-28050-850-0	01	1	1512-
31	BOLT; CLIP RUSSIA EQUIPMENT(B12) (B) M8X70 FLANGE	0-28050-870-0	06	1	1512-
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	12	1	1303-
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1303-1511
31	BOLT; CLIP EXC. RUSSIA EQUIPMENT(B12) (B) M8X70 FLANGE	0-28050-870-0	07	1	1512-
33	BOLT; BRKT RUSSIA EQUIPMENT(B12) (A) M8X25 FLANGE	0-28050-825-0	03	1	1512-
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	04	1	1303-
33	BOLT; BRKT (A) M8X25 FLANGE	0-28050-825-0	02	1	1303-1511
33	BOLT; BRKT EXC. RUSSIA EQUIPMENT(B12) (A) M8X25 FLANGE	0-28050-825-0	02	1	1512-
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1303-
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1303-
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1303-
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1303-
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1303-
94	CLIP; WATER PIPE RUSSIA EQUIPMENT(B12) ID=17 L=17	1-09701-284-0	54	1	1512-
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	1303-1511
94	CLIP; WATER PIPE EXC. RUSSIA EQUIPMENT(B12) ID=17 L=17	1-09701-284-0	56	1	1512-
115	HOSE; RUBBER RUSSIA EQUIPMENT(B12) (A) L=55 SERVICED BY L=3000	0-03566-300-0	07	1	1512-
115	HOSE; RUBBER RUSSIA EQUIPMENT(B12) (E)	8-98327-617-0	01	1	1512-
115	HOSE; RUBBER RUSSIA EQUIPMENT(B12) (F)	8-98327-618-0	01	1	1512-
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1303-1511
115	HOSE; RUBBER EXC. RUSSIA EQUIPMENT(B12) (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1512-
115	HOSE; RUBBER (B)	8-97604-063-0	04	1	1303-
115	HOSE; RUBBER (C)	8-97628-219-0	01	1	1303-
115	HOSE; RUBBER (D)	8-97628-220-0	01	1	1303-
153	CLIP; RUBBER HOSE RUSSIA EQUIPMENT(B12) (A) ID=25	8-97177-581-0	30	1	1512-
153	CLIP; RUBBER HOSE RUSSIA EQUIPMENT(B12) (B) ID=27 L=26	8-98096-216-0	10	1	1512-
153	CLIP; RUBBER HOSE (A) ID=25	8-97177-581-0	28	1	1303-1511
153	CLIP; RUBBER HOSE EXC. RUSSIA EQUIPMENT(B12) (A) ID=25	8-97177-581-0	28	1	1512-
206	PIPE; WATER,EGR COOLER RUSSIA EQUIPMENT(B12) (I)	8-98327-620-0	01	1	1512-
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1303-
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1303-
206	PIPE; WATER,EGR COOLER (B)	8-97623-511-1	01	1	1303-
206	PIPE; WATER,EGR COOLER (C)	8-97628-203-0	01	1	1303-
206	PIPE; WATER,EGR COOLER (D)	8-97628-204-0	01	1	1303-
206	PIPE; WATER,EGR COOLER (G)	8-97628-205-1	01	1	1303-
206	PIPE; WATER,EGR COOLER (H)	8-97628-206-1	01	1	1303-
206	PIPE; WATER,EGR COOLER (A)	8-97629-442-0	01	1	1303-1511
206	PIPE; WATER,EGR COOLER EXC. RUSSIA EQUIPMENT(B12) (A)	8-97629-442-0	01	1	1512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
