◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11501 - CYZ LHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#115070) — 63 parça

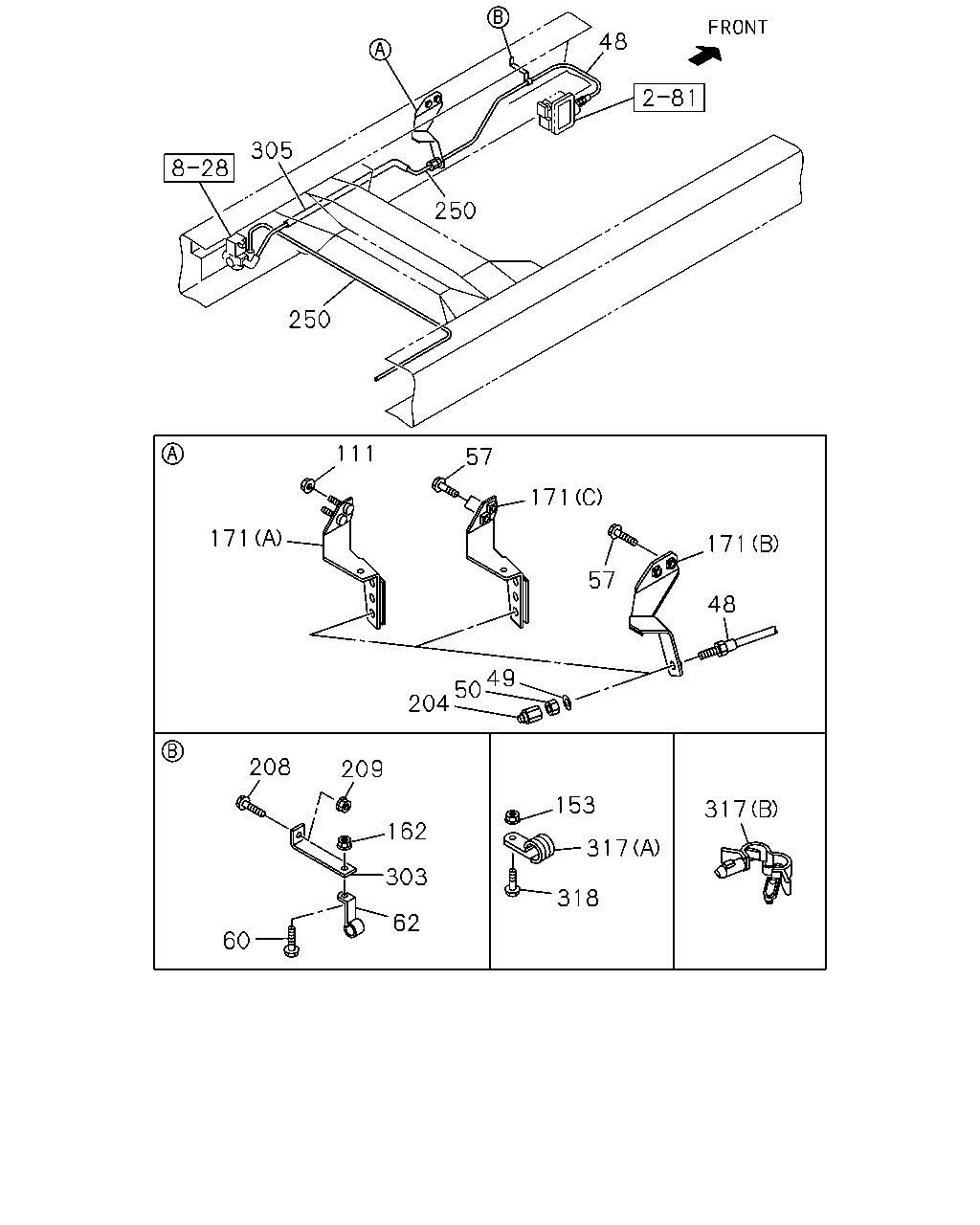

çizim 336271
305 250 250 48 171 111 57 204 50 49 57 171 171 48 317 153 317 318 208 209 162 303 62 60
BalonParca AdiParca NoAdetTipApplied Date A B
48 HOSE; FLEX,PTO
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) L=300 		1-09363-608-0 01 1 1512- ● ●
48 HOSE; FLEX,PTO
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=800 		1-09363-695-0 01 1 1512- ● ●
48 HOSE; FLEX,PTO
MJT7 M/T<Y9E> TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=380 		1-09363-884-0 01 1 1512- ● ●
48 HOSE; FLEX,PTO
MAP6U M/T(Y4B) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=600 		1-09363-665-0 01 1 1303- ●
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		0-91510-512-0 01 1 1303-1511 ●
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) ID=12.2 		0-91510-512-0 01 1 1512- ● ●
50 NUT; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		9-09840-280-0 01 1 1303-1511 ●
50 NUT; FLEX HOSE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) M12 		9-09840-280-0 01 1 1512- ● ●
57 BOLT; BRKT
TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) EXC. TAIWAN EQUIPMENT(WW5) M8X35 FLANGE 		0-28650-835-0 02 1 1512- ●
57 BOLT; BRKT
TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 02 1 1512- ●
60 BOLT; CLIP FIX
MAP6U M/T(Y4B) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 01 1 1303-1511 ●
60 BOLT; CLIP FIX
MJT7S M/T(Y3E),MAP6U M/T(Y4B) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 01 1 1512- ●
60 BOLT; CLIP FIX
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 01 1 1512- ●
62 CLIP; PIPE,AIR
MAP6U M/T(Y4B) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15 L=22 H=30 		1-09701-215-1 01 1 1303-1511 ●
62 CLIP; PIPE,AIR
MJT7S M/T(Y3E),MAP6U M/T(Y4B) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15 L=22 H=30 		1-09701-215-1 01 1 1512- ●
62 CLIP; PIPE,AIR
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15 L=22 H=30 		1-09701-215-1 01 1 1512- ●
111 NUT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 1303-1511 ●
111 NUT; BRKT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) TAIWAN EQUIPMENT(WW5) M8 FLANGE 		0-91180-108-0 02 1 1512- ●
153 NUT; CLIP
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●
162 NUT; CLIP
MAP6U M/T(Y4B) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 1303-1511 ●
162 NUT; CLIP
MJT7S M/T(Y3E),MAP6U M/T(Y4B) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 1512- ●
162 NUT; CLIP
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 1512- ●
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) EXC. TAIWAN EQUIPMENT(WW5) (B) 		8-98233-613-0 01 1 1512- ●
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) (B) 		8-98233-613-0 01 1 1512- ●
171 BRACKET; FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. TAIWAN EQUIPMENT(WW5) (C) 		8-98171-734-0 01 1 1512- ●
171 BRACKET; FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) 		8-98171-734-0 01 1 1512- ●
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-47471-337-0 01 1 1303-1511 ●
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) TAIWAN EQUIPMENT(WW5) (A) 		1-47471-337-0 01 1 1512- ●
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1303-1511 ●
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1512- ● ●
208 BOLT; BRKT,AIR PIPE
MAP6U M/T(Y4B) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 01 1 1303-1511 ●
208 BOLT; BRKT,AIR PIPE
MJT7S M/T(Y3E),MAP6U M/T(Y4B) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 01 1 1512- ●
208 BOLT; BRKT,AIR PIPE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 01 1 1512- ●
209 NUT; BRKT,AIR PIPE
MAP6U M/T(Y4B) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 1303-1511 ●
209 NUT; BRKT,AIR PIPE
MJT7S M/T(Y3E),MAP6U M/T(Y4B) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 1512- ●
209 NUT; BRKT,AIR PIPE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 1512- ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1303-1511 ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) TAIWAN EQUIPMENT(WW5) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1512- ●
250 TUBE; NYLON
MJT7S M/T(Y3E),MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) EXC. TAIWAN EQUIPMENT(WW5) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1512- ●
250 TUBE; NYLON
MJT7S M/T(Y3E),MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1512- ●
303 BRACKET; CLIP
MAP6U M/T(Y4B) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=95 		1-82699-085-0 01 1 1303-1511 ●
303 BRACKET; CLIP
MJT7S M/T(Y3E),MAP6U M/T(Y4B) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=95 		1-82699-085-0 01 1 1512- ●
303 BRACKET; CLIP
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=95 		1-82699-085-0 01 1 1512- ●
305 TUBE; CORRUGATE
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1303-1511 ●
305 TUBE; CORRUGATE
TRANSMISSION SIDE PTO WO/LEVER(SH5) TAIWAN EQUIPMENT(WW5) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1512- ●
305 TUBE; CORRUGATE
MJT7S M/T(Y3E),MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) EXC. TAIWAN EQUIPMENT(WW5) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1512- ●
305 TUBE; CORRUGATE
MJT7S M/T(Y3E),MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1512- ●
317 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) ID=11 L=16 		0-95235-025-0 01 1 1512- ● ●
317 CLIP; NYLON TUBE
MAP6U M/T(Y4B) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) ID=5-12 L=18 		1-09709-287-0 01 1 1303-1511 ●
317 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) ID=5-12 L=18 		1-09709-287-0 01 1 1512- ● ●
317 CLIP; NYLON TUBE
MJT7S M/T(Y3E),MAP6U M/T(Y4B) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (B) ID=5-12 L=18 		1-09709-287-0 01 1 1512- ●
317 CLIP; NYLON TUBE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (B) ID=5-12 L=18 		1-09709-287-0 01 1 1512- ●
318 BOLT; CLIP
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X25 FLANGE 		0-28650-825-0 01 1 1512- ● ●
çizim 337125
3 3 1 246 217 132 1 3 3 139 3 55
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> (A) 		1-79996-244-0 01 1 1512- ● ●
1 LEVER ASM; PTO & DUMP CONT
PTO CONTROL<SV6> (B) 		1-79907-045-1 01 1 1512- ● ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1512- ● ●
3 BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL<SV6> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 1512- ● ●
55 GROMMET; CABLE 1-09983-068-0 01 1 1303-1511 ●
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL<SV6> 		1-09983-068-0 01 1 1512- ● ●
132 COVER; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79997-376-0 01 1 1512- ● ●
139 BRACKET; CONT BOX
PTO CONTROL<SV6> 		1-79907-044-0 01 1 1512- ● ●
217 WASHER; PL
DUMP CONTROL LEVER<RC4> ID=4.3 		9-09160-504-0 02 1 1512- ● ●
246 SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING 		0-71240-408-0 02 1 1512- ● ●
