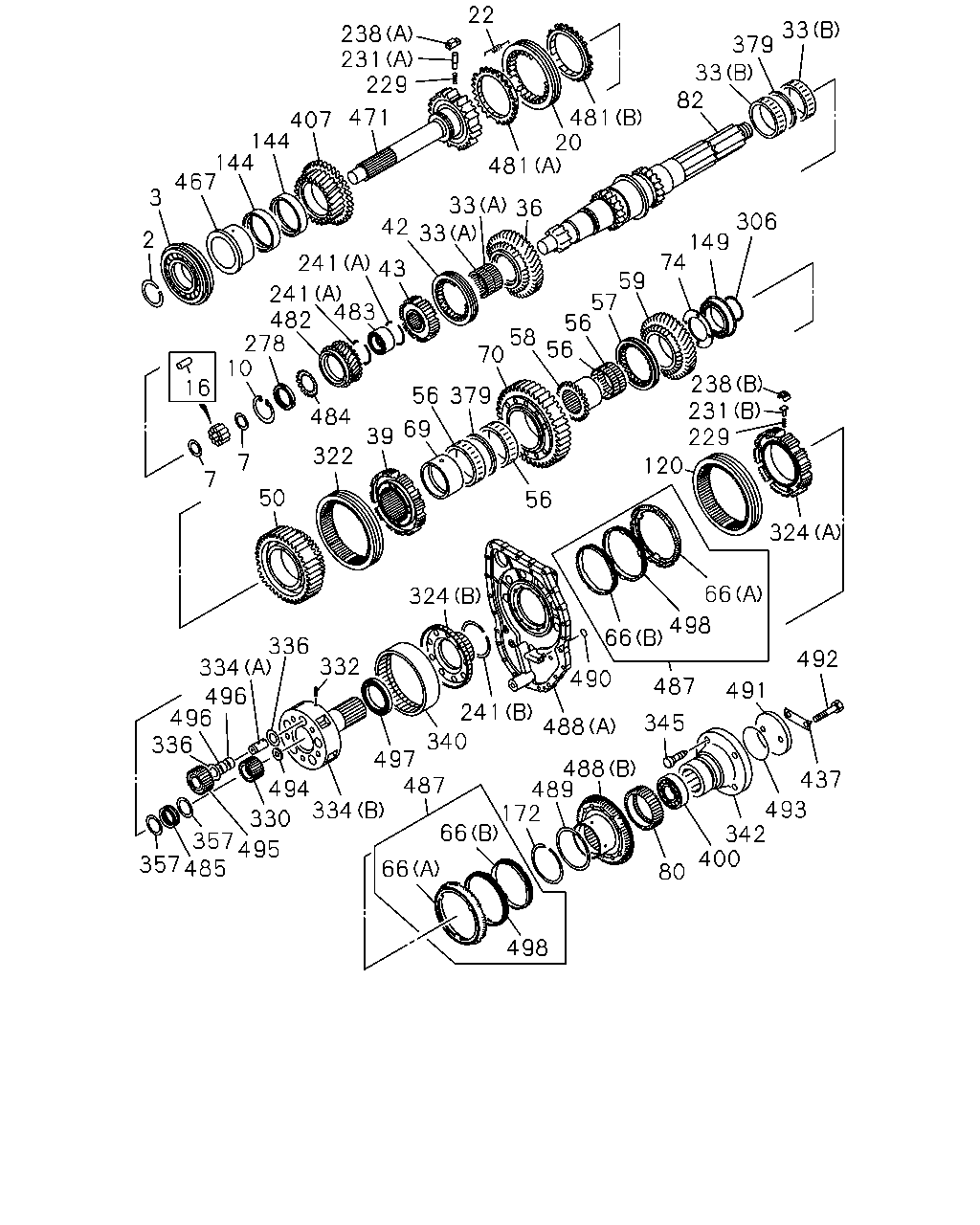

2-26 — MANUAL TRANSMISSION GEAR (#115065) — 235 parça

238 231 407 144 144 467 3 2 471 229 22 33 379 33 82 306 149 74 59 57 238 231 229 120 324 66 498 66 492 491 437 493 342 400 80 498 66 66 172 489 488 345 487 488 490 241 340 497 487 334 612 330 495 357 485 357 336 496 496 334 336 332 324 56 50 322 484 7 7 16 10 278 482 241 241 43 483 42 33 33 36 481 20 481 39 69 56 379 70 58 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	1303-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	1303-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	1303-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	1303-
3	BEARING; TOP GEAR SHAFT NSK	1-09810-278-0	01	1	1303-
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	1303-
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	1303-
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-260-0	16	1	1303-
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-261-0	16	1	1303-
20	SLEEVE	1-33262-216-1	01	1	1303-
22	SPRING; BLOCK,INSERT	1-09583-363-0	03	1	1303-
33	BEARING; NEEDLE,3RD GEAR (A) NSK	1-09811-378-0	02	1	1303-1308
33	BEARING; NEEDLE,3RD GEAR (A) NTN	1-09811-379-0	02	1	1303-
33	BEARING; NEEDLE,3RD GEAR (B) NSK	1-09811-422-0	02	1	1303-1311
33	BEARING; NEEDLE,3RD GEAR (B) NTN	1-09811-423-0	02	1	1303-
36	GEAR; 3RD,MAINSHAFT Z=41	1-33253-680-1	01	1	1303-
39	HUB; CLU,LOW & 2ND	1-33261-279-1	01	1	1303-
42	SLEEVE	1-33262-222-0	01	1	1303-
43	HUB; CLU,3RD & 4TH,MAIN	1-33261-278-1	01	1	1303-
50	GEAR; 2ND,MAINSHAFT Z=43	1-33251-393-1	01	1	1303-
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-422-0	04	1	1303-1311
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-423-0	04	1	1303-
57	SLEEVE; REV	1-33262-209-1	01	1	1303-
58	HUB; CLU,REV	1-33261-286-1	01	1	1303-
59	GEAR; REV MAINSHAFT Z=44	1-33257-081-2	01	1	1303-
66	RING; BLOCK,SYN (A)	1-33265-588-0	02	1	1303-1312
66	RING; BLOCK,SYN (A)	8-98239-909-1	02	1	1401-
66	RING; BLOCK,SYN (B)	1-33265-590-0	02	1	1303-1307
66	RING; BLOCK,SYN (B)	8-98239-294-0	02	1	1308-1312
66	RING; BLOCK,SYN (B)	8-98239-911-1	02	1	1401-
69	COLLAR; 1ST GEAR MAIN	1-33234-099-0	01	1	1303-
70	GEAR; 1ST,MAINSHAFT Z=49	1-33255-071-1	01	1	1303-
74	WASHER; THRUST,REV GEAR	1-33239-308-0	01	1	1303-
80	GEAR; SPD DRIVE Z=11	1-33371-069-0	01	1	1303-
82	SHAFT; MAIN,TRANS Z=37-40-28-19	1-33231-327-2	01	1	1303-
120	SLEEVE	1-33262-229-0	01	1	1303-
144	BEARING; NEEDLE,INPUT GEAR NSK	1-09811-422-0	02	1	1303-1311
144	BEARING; NEEDLE,INPUT GEAR NTN	1-09811-423-0	02	1	1303-
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	1-09810-256-0	01	1	1303-
149	BEARING; NEEDLE,MAINSHAFT,RR NTN	1-09810-257-0	01	1	1303-
172	RING; SNAP,CLU HUB OD=121.2	1-09587-031-0	01	1	1303-
229	SPRING; PLUNGER D=3.8	1-09580-395-0	06	1	1404-
229	SPRING; PLUNGER D=6.2	1-09580-091-1	15	1	1303-1403
229	SPRING; PLUNGER D=6.2	1-09580-091-1	09	1	1404-
231	PLUNGER (A)	1-33263-033-0	06	1	1303-1403
231	PLUNGER (A)	8-98273-831-0	06	1	1404-
231	PLUNGER (B)	1-33263-038-1	09	1	1303-
238	INSERT (A)	1-33263-036-0	06	1	1303-
238	INSERT (B)	1-33263-039-0	09	1	1303-
241	RING; SNAP (A)	1-09587-023-0	02	1	1303-
241	RING; SNAP (B)	1-09587-104-0	01	1	1303-
278	NUT; BRG	1-09449-080-0	01	1	1303-
306	RING; SNAP,MAINSHAFT	1-09588-149-0	01	1	1303-
322	SLEEVE; SYN,LOW & 2ND	1-33262-222-0	01	1	1303-
324	HUB; CLU (A)	1-34231-015-0	01	1	1303-
324	HUB; CLU (B)	1-34371-017-0	01	1	1303-1307
324	HUB; CLU (B)	8-98239-089-0	01	1	1308-
330	GEAR; SUN Z=24	1-34311-010-0	01	1	1303-
332	PIN; LOCK,SHAFT	1-09748-025-0	05	1	1303-
334	SHAFT; PLANETARY GEAR (A)	1-34353-010-1	05	1	1303-
334	SHAFT; PLANETARY GEAR (B)	1-34372-034-0	01	1	1303-1307
334	SHAFT; PLANETARY GEAR (B)	8-98238-294-0	01	1	1308-
336	WASHER; THRUST,PLANETARY GEAR	1-09503-230-0	10	1	1303-
340	GEAR; RING Z=86 OKUBO GEAR	1-34371-014-0	01	1	1303-
340	GEAR; RING Z=86 NIPPON GEAR	1-34371-018-0	01	1	1303-
340	GEAR; RING Z=86 ISUZU	1-34371-019-0	01	1	1303-
342	FLANGE; OUTPUT	1-37243-370-0	01	1	1303-
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	1303-
357	RING	1-31349-044-0	04	1	1303-
379	PIECE; DIST,MAINSHAFT	1-33363-034-0	02	1	1303-
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	8-98153-252-0	01	1	1303-
407	GEAR; PRIMARY MAIN Z=33	1-33253-717-0	01	1	1303-
437	PLATE; LOCK	1-34252-032-0	01	1	1303-
467	COLLAR; SHAFT	1-33234-091-1	01	1	1303-
471	SHAFT; INPUT	8-98174-781-0	01	1	1303-
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	1303-1407
481	RING; BLOCK (A) HIGH	8-98239-518-1	01	1	1408-1410
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	1411-
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	1303-1407
481	RING; BLOCK (B) LOW	8-98239-519-1	01	1	1408-1410
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	1411-
482	GEAR; PRIMARY Z=29	1-33253-720-0	01	1	1303-
483	BEARING; TAPER NTN	8-98174-410-0	01	1	1303-1504
483	BEARING; TAPER NTN	8-98316-126-0	01	1	1505-
484	PLATE; SETTING	1-33313-023-0	01	1	1303-
485	PIECE; GUIDE	1-33363-040-1	01	1	1303-
487	SYNCHRONIZER; RANGE CHANGE	1-33265-616-0	02	1	1303-1307
487	SYNCHRONIZER; RANGE CHANGE	8-98239-293-0	02	1	1308-1312
487	SYNCHRONIZER; RANGE CHANGE	8-98239-908-1	02	1	1401-
488	CLUTCH; DOG,RANGE (A)	8-98060-771-1	01	1	1303-1307
488	CLUTCH; DOG,RANGE (A)	8-98239-163-0	01	1	1308-
488	CLUTCH; DOG,RANGE (B)	8-98218-291-0	01	1	1303-1307
488	CLUTCH; DOG,RANGE (B)	8-98238-509-0	01	1	1308-
489	WASHER; THRUST	1-09503-308-0	01	1	1303-
490	GASKET; SEAL,CASE ID=10	1-09623-369-0	01	1	1303-
491	PLATE; OUTPUT SHAFT	1-34252-026-0	01	1	1303-
492	BOLT; PLATE	1-09000-740-0	02	1	1303-
493	GASKET; OUTPUT SHAFT	9-09561-385-0	01	1	1303-
495	PINION; PLANETARY Z=30	1-34361-023-0	05	1	1303-
496	BEARING; PLANETARY NSK	1-09811-424-0	10	1	1303-
496	BEARING; PLANETARY NTN	1-09811-425-0	10	1	1303-
497	BEARING; RING GEAR NSK	1-09810-276-0	01	1	1303-1307
497	BEARING; RING GEAR NTN	1-09810-277-0	01	1	1303-1307
497	BEARING; RING GEAR NTN	8-98239-433-0	01	1	1308-
498	CONE; SYN	1-33265-617-0	02	1	1303-1312
498	CONE; SYN	8-98239-910-0	02	1	1401-
612	GALLERY; OIL	8-98239-463-0	01	1	1308-

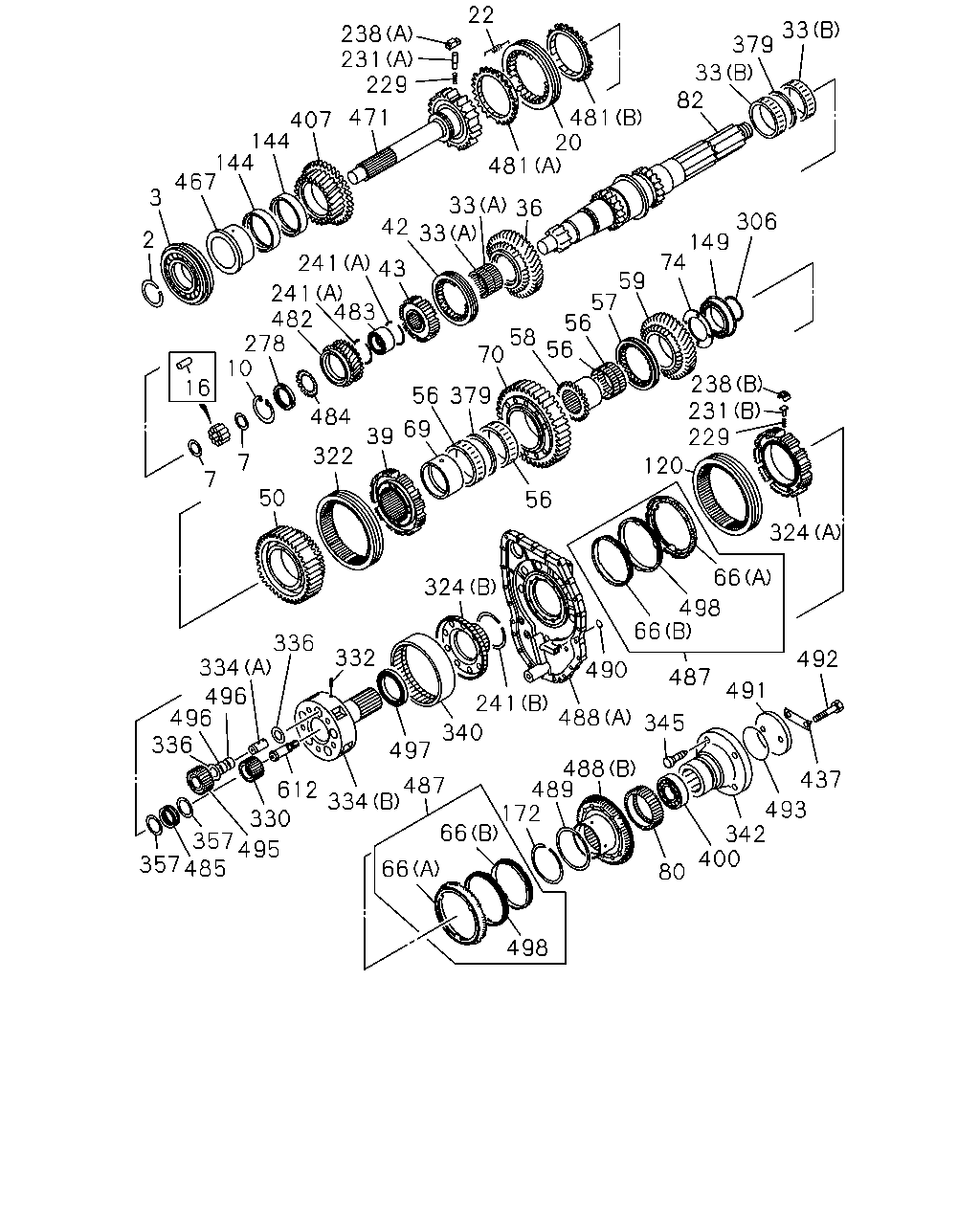

2 3 467 144 144 407 471 229 231 238 22 481 82 33 379 33 20 481 33 33 42 43 241 241 483 482 278 10 16 7 7 50 322 484 39 69 56 379 70 58 56 56 57 59 74 149 306 238 231 229 120 324 66 498 66 56 324 332 336 334 496 496 336 357 485 357 495 330 494 334 497 487 340 241 488 172 66 66 498 82 400 342 493 437 491 492 345 487 490 488 489 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	1303-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	1303-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	1303-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	1303-
3	BEARING; TOP GEAR SHAFT NSK	1-09810-278-0	01	1	1303-
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	1303-
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	1303-
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-260-0	16	1	1303-
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-261-0	16	1	1303-
20	SLEEVE	1-33262-216-1	01	1	1303-
22	SPRING; BLOCK,INSERT	1-09583-363-0	03	1	1303-
33	BEARING; NEEDLE,3RD GEAR (A) NSK	1-09811-378-0	02	1	1303-1308
33	BEARING; NEEDLE,3RD GEAR (A) NTN	1-09811-379-0	02	1	1303-
33	BEARING; NEEDLE,3RD GEAR (B) NSK	1-09811-422-0	02	1	1303-1311
33	BEARING; NEEDLE,3RD GEAR (B) NTN	1-09811-423-0	02	1	1303-
36	GEAR; 3RD,MAINSHAFT Z=41	1-33253-680-1	01	1	1303-
39	HUB; CLU,LOW & 2ND	1-33261-279-1	01	1	1303-
42	SLEEVE	1-33262-222-0	01	1	1303-
43	HUB; CLU,3RD & 4TH,MAIN	1-33261-278-1	01	1	1303-
50	GEAR; 2ND,MAINSHAFT Z=43	1-33251-393-1	01	1	1303-
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-422-0	04	1	1303-1311
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-423-0	04	1	1303-
57	SLEEVE; REV	1-33262-209-1	01	1	1303-
58	HUB; CLU,REV	1-33261-286-1	01	1	1303-
59	GEAR; REV MAINSHAFT Z=44	1-33257-081-2	01	1	1303-
66	RING; BLOCK,SYN (A)	1-33265-588-0	02	1	1303-1312
66	RING; BLOCK,SYN (A)	8-98239-909-1	02	1	1401-
66	RING; BLOCK,SYN (B)	1-33265-590-0	02	1	1303-1307
66	RING; BLOCK,SYN (B)	8-98239-294-0	02	1	1308-1312
66	RING; BLOCK,SYN (B)	8-98239-911-1	02	1	1401-
69	COLLAR; 1ST GEAR MAIN	1-33234-099-0	01	1	1303-
70	GEAR; 1ST,MAINSHAFT Z=49	1-33255-071-1	01	1	1303-
74	WASHER; THRUST,REV GEAR	1-33239-308-0	01	1	1303-
82	SHAFT; MAIN,TRANS Z=37-40-28-19	1-33231-327-2	01	1	1303-
120	SLEEVE	1-33262-229-0	01	1	1303-
144	BEARING; NEEDLE,INPUT GEAR NSK	1-09811-422-0	02	1	1303-1311
144	BEARING; NEEDLE,INPUT GEAR NTN	1-09811-423-0	02	1	1303-
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	1-09810-256-0	01	1	1303-
149	BEARING; NEEDLE,MAINSHAFT,RR NTN	1-09810-257-0	01	1	1303-
172	RING; SNAP,CLU HUB OD=121.2	1-09587-031-0	01	1	1303-
229	SPRING; PLUNGER D=3.8	1-09580-395-0	06	1	1404-
229	SPRING; PLUNGER D=6.2	1-09580-091-1	15	1	1303-1403
229	SPRING; PLUNGER D=6.2	1-09580-091-1	09	1	1404-
231	PLUNGER (A)	1-33263-033-0	06	1	1303-1403
231	PLUNGER (A)	8-98273-831-0	06	1	1404-
231	PLUNGER (B)	1-33263-038-1	09	1	1303-
238	INSERT (A)	1-33263-036-0	06	1	1303-
238	INSERT (B)	1-33263-039-0	09	1	1303-
241	RING; SNAP (A)	1-09587-023-0	02	1	1303-
241	RING; SNAP (B)	1-09587-104-0	01	1	1303-
278	NUT; BRG	1-09449-080-0	01	1	1303-
306	RING; SNAP,MAINSHAFT	1-09588-149-0	01	1	1303-
322	SLEEVE; SYN,LOW & 2ND	1-33262-222-0	01	1	1303-
324	HUB; CLU (A)	1-34231-015-0	01	1	1303-
324	HUB; CLU (B)	1-34371-017-0	01	1	1303-1307
324	HUB; CLU (B)	8-98239-089-0	01	1	1308-
330	GEAR; SUN Z=24	1-34311-010-0	01	1	1303-
332	PIN; LOCK,SHAFT	1-09748-025-0	05	1	1303-
334	SHAFT; PLANETARY GEAR (A)	1-34353-010-1	05	1	1303-
334	SHAFT; PLANETARY GEAR (B)	1-34372-034-0	01	1	1303-1307
334	SHAFT; PLANETARY GEAR (B)	8-98238-294-0	01	1	1308-
336	WASHER; THRUST,PLANETARY GEAR	1-09503-230-0	10	1	1303-
340	GEAR; RING Z=86 OKUBO GEAR	1-34371-014-0	01	1	1303-
340	GEAR; RING Z=86 NIPPON GEAR	1-34371-018-0	01	1	1303-
340	GEAR; RING Z=86 ISUZU	1-34371-019-0	01	1	1303-
342	FLANGE; OUTPUT	1-37243-370-0	01	1	1303-
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	1303-
357	RING	1-31349-044-0	04	1	1303-
379	PIECE; DIST,MAINSHAFT	1-33363-034-0	02	1	1303-
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	8-98153-252-0	01	1	1303-
407	GEAR; PRIMARY MAIN Z=33	1-33253-717-0	01	1	1303-
437	PLATE; LOCK	1-34252-032-0	01	1	1303-
467	COLLAR; SHAFT	1-33234-091-1	01	1	1303-
471	SHAFT; INPUT	8-98174-781-0	01	1	1303-
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	1303-1407
481	RING; BLOCK (A) HIGH	8-98239-518-1	01	1	1408-1410
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	1411-
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	1303-1407
481	RING; BLOCK (B) LOW	8-98239-519-1	01	1	1408-1410
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	1411-
482	GEAR; PRIMARY Z=29	1-33253-720-0	01	1	1303-
483	BEARING; TAPER NTN	8-98174-410-0	01	1	1303-1504
483	BEARING; TAPER NTN	8-98316-126-0	01	1	1505-
484	PLATE; SETTING	1-33313-023-0	01	1	1303-
485	PIECE; GUIDE	1-33363-040-1	01	1	1303-
487	SYNCHRONIZER; RANGE CHANGE	1-33265-616-0	02	1	1303-1307
487	SYNCHRONIZER; RANGE CHANGE	8-98239-293-0	02	1	1308-1312
487	SYNCHRONIZER; RANGE CHANGE	8-98239-908-1	02	1	1401-
488	CLUTCH; DOG,RANGE (A)	8-98060-771-1	01	1	1303-1307
488	CLUTCH; DOG,RANGE (A)	8-98239-163-0	01	1	1308-
488	CLUTCH; DOG,RANGE (B)	8-98218-291-0	01	1	1303-1307
488	CLUTCH; DOG,RANGE (B)	8-98238-509-0	01	1	1308-
489	WASHER; THRUST	1-09503-308-0	01	1	1303-
490	GASKET; SEAL,CASE ID=10	1-09623-369-0	01	1	1303-
491	PLATE; OUTPUT SHAFT	1-34252-026-0	01	1	1303-
492	BOLT; PLATE	1-09000-740-0	02	1	1303-
493	GASKET; OUTPUT SHAFT	9-09561-385-0	01	1	1303-
494	PLATE; OUTPUT SHAFT	1-34379-020-0	01	1	1303-1307
495	PINION; PLANETARY Z=30	1-34361-023-0	05	1	1303-
496	BEARING; PLANETARY NSK	1-09811-424-0	10	1	1303-
496	BEARING; PLANETARY NTN	1-09811-425-0	10	1	1303-
497	BEARING; RING GEAR NSK	1-09810-276-0	01	1	1303-1307
497	BEARING; RING GEAR NTN	1-09810-277-0	01	1	1303-1307
497	BEARING; RING GEAR NTN	8-98239-433-0	01	1	1308-
498	CONE; SYN	1-33265-617-0	02	1	1303-1312
498	CONE; SYN	8-98239-910-0	02	1	1401-

84 93 96 96 105 94 94 103 109 108 357 357 110 486 476 132 128 129 135 128 138 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	1303-
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	1303-
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	1303-
94	KEY; FEATHER,COUNTER SHAFT L=70	1-09735-046-0	02	1	1303-
96	GEAR; COUNTER DRIVE (A) Z=35	1-33331-258-2	01	1	1303-
96	GEAR; COUNTER DRIVE (B) Z=38	1-33338-374-3	01	1	1303-
103	KEY; COUNTER GEAR L=75.3	1-09735-042-0	01	1	1303-
105	GEAR; 3RD,COUNTER Z=36	1-33338-373-1	01	1	1303-
108	SHAFT; COUNTER Z=26-21	1-33311-325-1	01	1	1303-
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-186-0	01	1	1303-
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-207-0	01	1	1303-
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	1303-
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	1303-
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	1303-
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	1303-
132	SHAFT; REV	1-33351-035-1	01	1	1303-
135	GEAR; REV IDLER Z=30	1-33361-081-1	01	1	1303-
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	1303-
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	1303-
357	RING	1-31349-044-0	04	1	1303-
476	ADAPTER; PUMP DRIVE	1-33339-091-1	01	1	1303-
486	NOZZLE; CONT SHAFT	1-33219-254-1	01	1	1303-

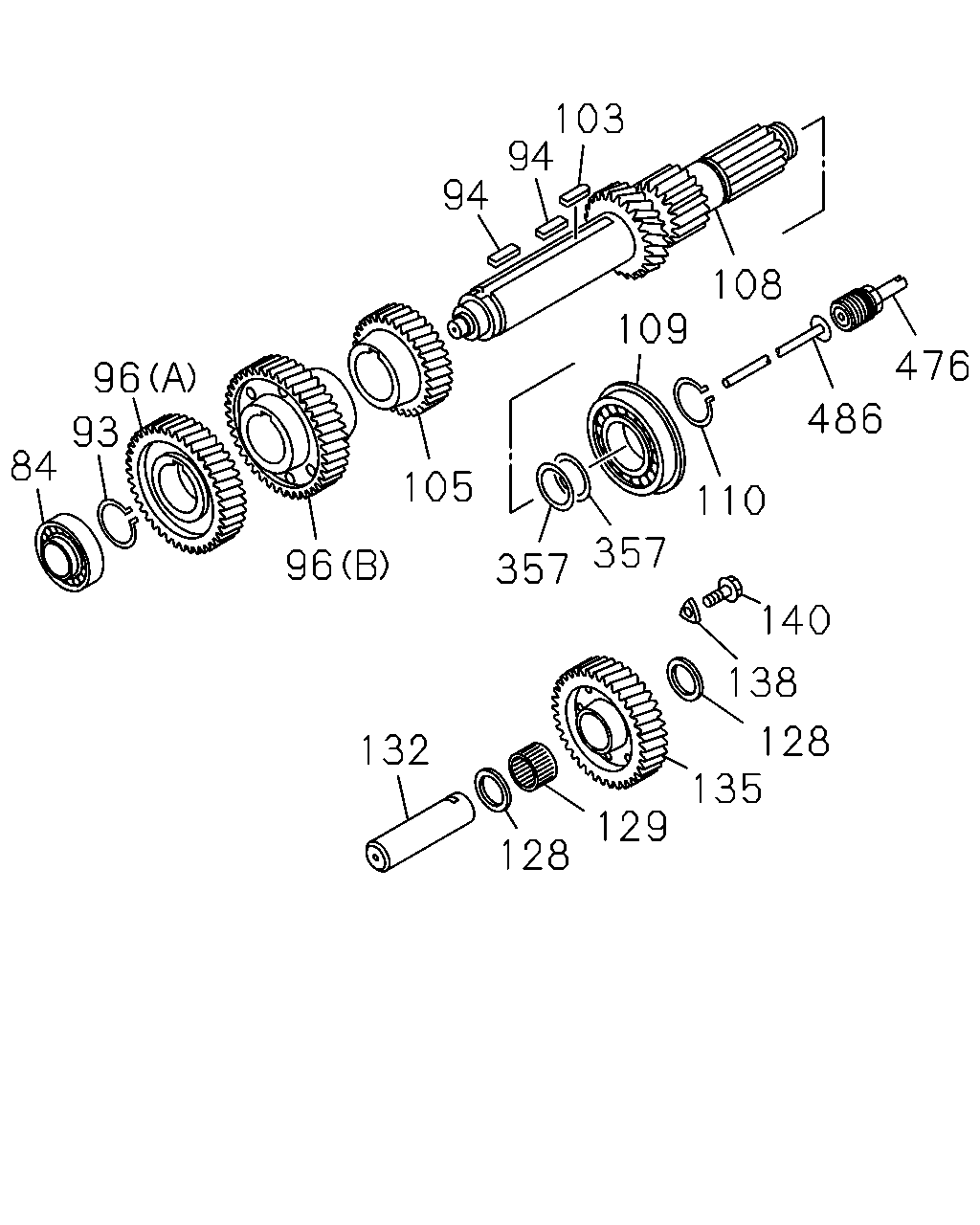

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
