Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#115064) — 575 parça

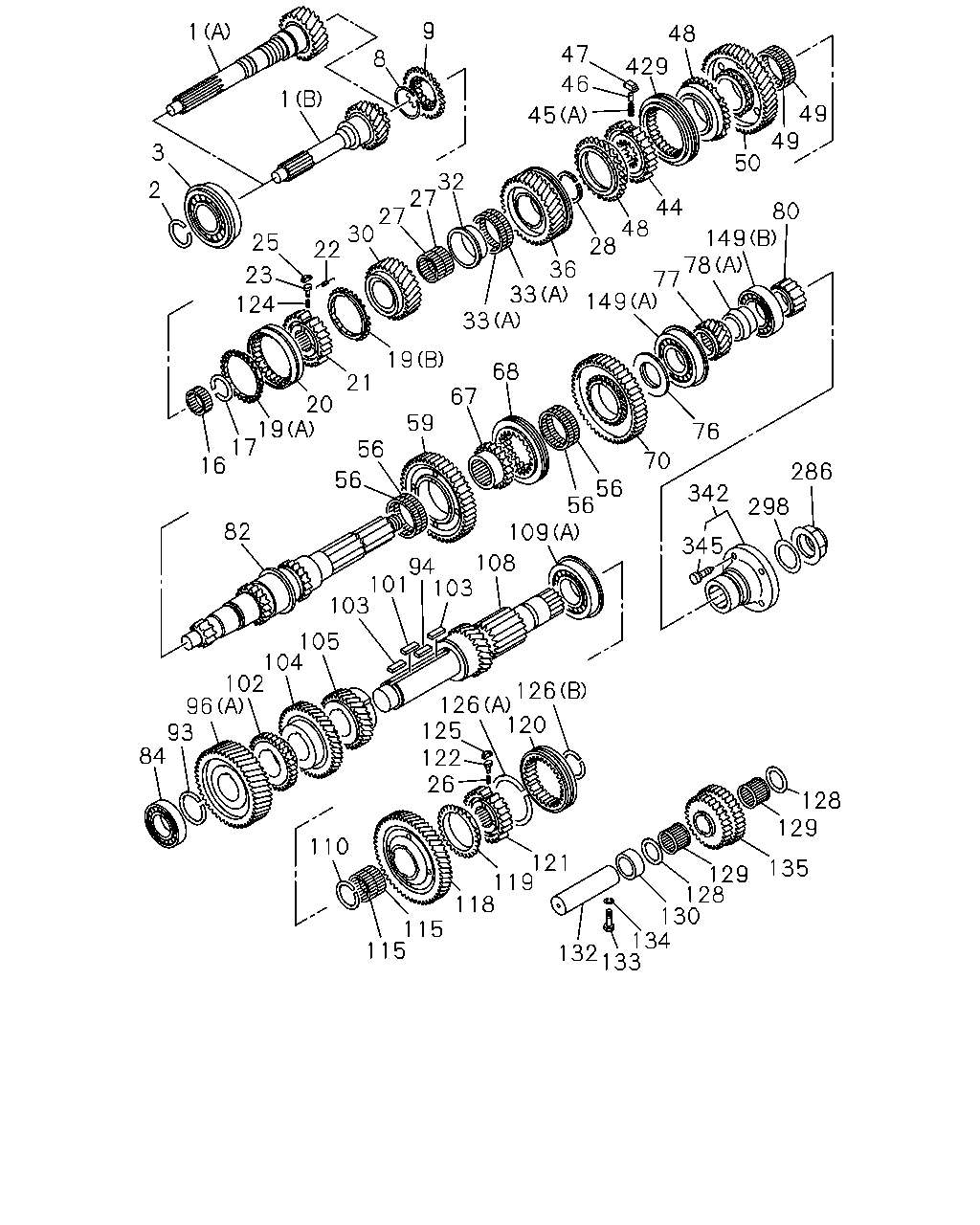

1 1 8 9 3 2 25 124 23 22 30 27 27 32 16 17 19 20 21 19 33 33 36 28 48 44 45 46 47 48 429 50 49 49 80 149 78 77 149 68 67 59 56 56 82 84 96 93 102 103 105 104 101 103 94 109 108 56 70 56 76 126 125 122 26 120 110 126 115 118 115 119 345 121 132 133 135 129 128 130 134 129 298 342 286 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS (C) Z=27	1-33211-992-0	01	1	1512-	●
1	SHAFT; TOP GEAR,TRANS (B) WO/TRANS FRT PTO Z=22	1-33211-974-0	01	1	1303-		●
1	SHAFT; TOP GEAR,TRANS (A) W/TRANS FRT PTO Z=22	1-33215-010-1	01	1	1303-1511		●
1	SHAFT; TOP GEAR,TRANS FIRE TRUCK<RA9> (A) W/TRANS FRT PTO Z=22	1-33215-010-1	01	1	1512-		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	1303-1511		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	1512-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	1303-1511		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	1512-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	1303-1511		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	1512-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	1303-1511		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	1512-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	1512-	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	1512-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-278-0	01	1	1512-			●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-186-0	01	1	1303-		●
8	CLIP; DOG CLU	1-33219-024-0	01	1	1512-	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	1303-		●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	1512-	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	1303-		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	1512-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	1512-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-260-0	16	1	1512-			●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-261-0	16	1	1512-			●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	1303-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	1303-		●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	1303-		●
19	RING; BLOCK,4TH & 5TH (C) Z=66	1-33265-545-1	02	1	1512-	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-8	01	1	1303-		●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-1	01	1	1303-		●
20	SLEEVE	1-33262-222-0	01	1	1512-	●
20	SLEEVE	1-33262-216-1	01	1	1512-			●
20	SLEEVE	1-33262-097-1	01	1	1303-		●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	1512-	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	1303-		●
22	SPRING; BLOCK,INSERT	1-09583-363-0	03	1	1512-			●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	1303-		●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	1303-		●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	1303-		●
26	SPRING; BLOCK,INSERT D=6.2	1-09580-091-1	03	1	1303-		●
27	BEARING; 4TH GEAR NTN	1-09811-401-0	02	1	1512-	●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	1303-1311		●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	1303-		●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	1303-		●
30	GEAR; 4TH,MAINSHAFT Z=42	1-33253-691-0	01	1	1512-	●
30	GEAR; 4TH,MAINSHAFT Z=29	1-33253-657-0	01	1	1303-		●
32	COLLAR; 3RD GEAR	1-33234-075-0	01	1	1303-		●
33	BEARING; NEEDLE,3RD GEAR (A) NTN	1-09811-381-0	02	1	1512-	●
33	BEARING; NEEDLE,3RD GEAR (C) NTN	1-09811-379-0	02	1	1512-			●
33	BEARING; NEEDLE,3RD GEAR (B) NTN	1-09811-423-0	02	1	1512-			●
33	BEARING; NEEDLE,3RD GEAR (A) NTN	1-09811-389-0	02	1	1303-		●
33	BEARING; NEEDLE,3RD GEAR (A) NSK	1-09811-411-0	02	1	1303-		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	1512-	●
36	GEAR; 3RD,MAINSHAFT Z=41	1-33253-704-1	01	1	1512-			●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	1303-		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	1512-	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	1303-		●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	1512-	●		●
45	SPRING; BLOCK INSERT (C)	1-09580-578-0	03	1	1512-			●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	1303-1511		●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	1512-	●	●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	1512-			●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	1303-1511		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	1512-	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	1303-1511		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	1512-	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-612-1	02	1	1512-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-611-1	02	1	1303-		●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	1512-	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	1303-		●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	1303-		●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	1512-	●
50	GEAR; 2ND,MAINSHAFT Z=43	1-33251-411-1	01	1	1512-			●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	1303-		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	1512-	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-423-0	04	1	1512-			●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	1303-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	1303-		●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	1512-	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-081-2	01	1	1512-			●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	1303-		●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	1512-	●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	1303-		●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	1303-1511		●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	1512-	●	●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	1512-	●
70	GEAR; 1ST,MAINSHAFT Z=49	1-33255-074-1	01	1	1512-			●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	1303-		●
76	WASHER; THRUST,MAIN LOW	1-33239-146-0	01	1	1303-		●
77	GEAR; 6TH,MAINSHAFT Z=21	1-33253-684-0	01	1	1303-		●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-098-0	01	1	1512-	●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	1512-	●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-074-0	01	1	1303-		●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	1512-	●
80	GEAR; SPD DRIVE Z=11	1-33371-069-0	01	1	1512-			●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	1303-		●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	8-98304-660-0	01	1	1512-	●
82	SHAFT; MAIN,TRANS Z=37-40-28-19	1-33231-327-2	01	1	1512-			●
82	SHAFT; MAIN,TRANS Z=28-28-37-18	1-33231-306-0	01	1	1303-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	1512-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	1512-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	1512-			●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	1512-			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	1303-1405		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-287-1	01	1	1406-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	1303-1405		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	1512-	●		●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	1303-		●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	1512-	●
94	KEY; FEATHER,COUNTER SHAFT L=70	1-09735-046-0	02	1	1512-			●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	1303-		●
96	GEAR; COUNTER DRIVE (C) Z=41	1-33331-272-0	01	1	1512-	●
96	GEAR; COUNTER DRIVE (A) Z=35	1-33331-258-2	01	1	1512-			●
96	GEAR; COUNTER DRIVE (B) Z=38	1-33338-374-3	01	1	1512-			●
96	GEAR; COUNTER DRIVE (A) Z=39	1-33331-261-0	01	1	1303-		●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	1303-		●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	1303-		●
103	KEY; COUNTER GEAR L=63	1-09735-027-0	01	1	1512-	●
103	KEY; COUNTER GEAR L=67	1-09735-049-0	01	1	1512-	●
103	KEY; COUNTER GEAR L=75.3	1-09735-042-0	01	1	1512-			●
103	KEY; COUNTER GEAR L=50.0	1-09735-010-0	01	1	1303-		●
103	KEY; COUNTER GEAR L=46	1-09735-038-1	01	1	1303-		●
104	GEAR; 4TH,COUNTER Z=35	1-33338-380-0	01	1	1512-	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-366-0	01	1	1303-		●
105	GEAR; 3RD,COUNTER Z=36	1-33338-373-1	01	1	1512-			●
105	GEAR; 3RD,COUNTER Z=28	1-33333-147-1	01	1	1303-		●
108	SHAFT; COUNTER Z=24-17-12	1-33311-331-0	01	1	1512-	●
108	SHAFT; COUNTER Z=26-21	1-33311-325-1	01	1	1512-			●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	1303-		●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	1512-	●		●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	1512-	●		●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	1512-	●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	1512-	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-021-1	01	1	1303-		●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-163-0	01	1	1303-		●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	1512-	●		●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	1303-		●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	1303-1311		●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	1303-		●
118	GEAR; 6TH,COUNTER Z=54	1-33338-306-0	01	1	1303-		●
119	RING; BLOCK,6TH SYN Z=54	1-33265-290-8	01	1	1303-		●
120	SLEEVE	1-33262-229-0	01	1	1512-			●
120	SLEEVE	1-33262-098-2	01	1	1303-		●
121	HUB; CLU,6TH	1-33261-189-2	01	1	1303-		●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	1303-		●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	1303-		●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	1303-		●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	1303-		●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	1303-		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	1303-1511		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	1512-	●	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	1512-	●		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	1512-	●		●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	1303-		●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	1303-		●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	1303-		●
132	SHAFT; REV	1-33351-025-4	01	1	1512-	●
132	SHAFT; REV	1-33351-035-1	01	1	1512-			●
132	SHAFT; REV	1-33351-012-2	01	1	1303-		●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	1303-		●
134	WASHER; LK,REV SHAFT ID=8.2	0-91510-508-0	01	1	1303-		●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	1512-	●
135	GEAR; REV IDLER Z=30	1-33361-081-1	01	1	1512-			●
135	GEAR; REV IDLER Z=27	1-33361-070-1	01	1	1303-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	1512-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	1512-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NSK	1-09810-256-0	01	1	1512-			●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NTN	1-09810-257-0	01	1	1512-			●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	1303-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	1303-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	1303-1511		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	1512-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	1303-1511		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	1512-	●	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	1512-	●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	1303-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	1512-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	1303-		●
342	FLANGE; OUTPUT	8-98210-980-0	01	1	1512-	●
342	FLANGE; OUTPUT	1-37243-370-0	01	1	1512-			●
342	FLANGE; OUTPUT	8-98210-979-0	01	1	1303-		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	1303-1511		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	1512-	●	●	●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	1512-	●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	1303-		●

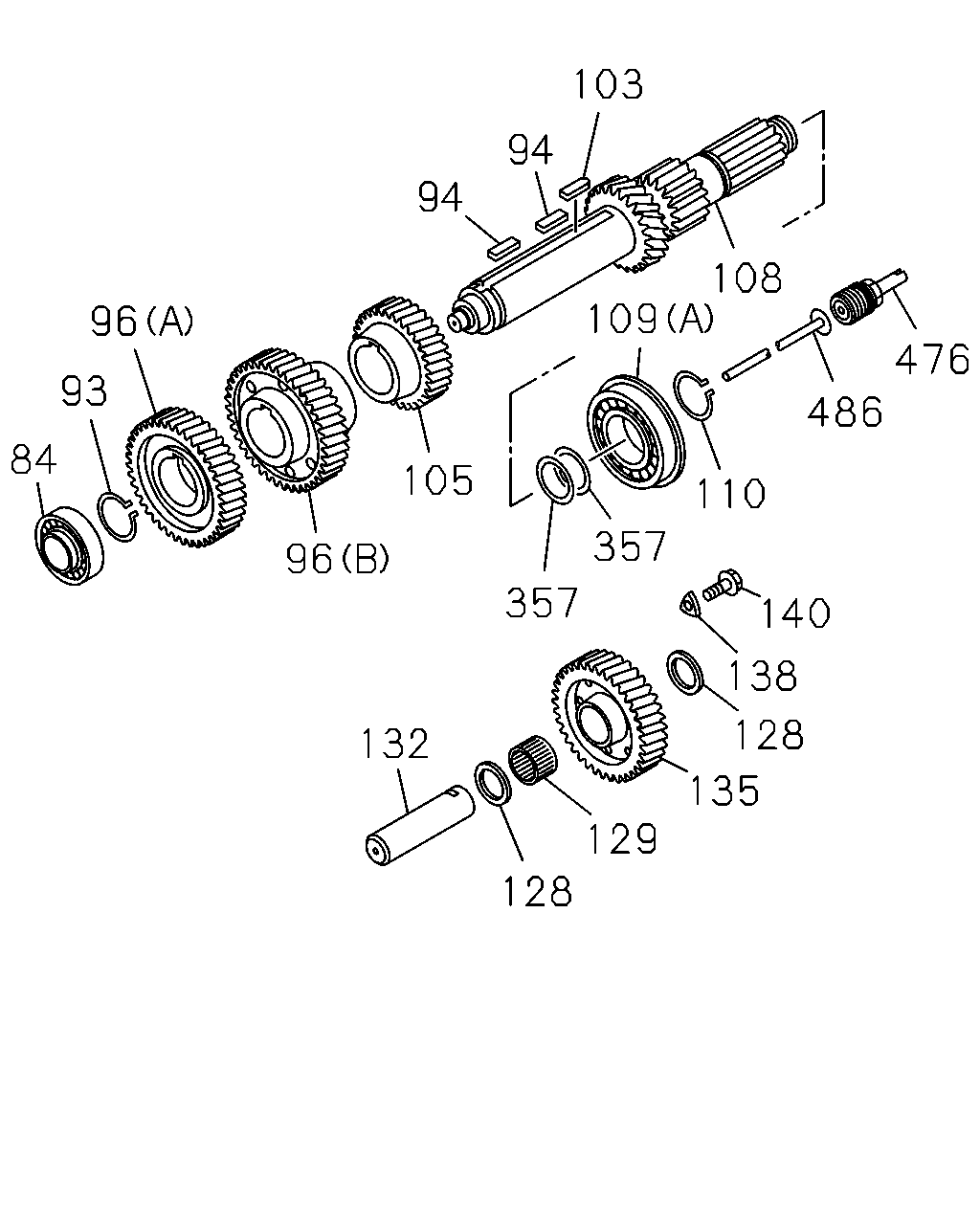

84 93 96 94 94 103 108 109 105 96 132 128 135 138 140 128 486 476 110 357 357 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	1512-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	1512-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	1512-			●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	1512-			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	1303-1405		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-287-1	01	1	1406-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	1303-1405		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	1512-	●		●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	1303-		●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	1512-	●
94	KEY; FEATHER,COUNTER SHAFT L=70	1-09735-046-0	02	1	1512-			●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	1303-		●
96	GEAR; COUNTER DRIVE (C) Z=41	1-33331-272-0	01	1	1512-	●
96	GEAR; COUNTER DRIVE (A) Z=35	1-33331-258-2	01	1	1512-			●
96	GEAR; COUNTER DRIVE (B) Z=38	1-33338-374-3	01	1	1512-			●
96	GEAR; COUNTER DRIVE (A) Z=39	1-33331-261-0	01	1	1303-		●
103	KEY; COUNTER GEAR L=63	1-09735-027-0	01	1	1512-	●
103	KEY; COUNTER GEAR L=67	1-09735-049-0	01	1	1512-	●
103	KEY; COUNTER GEAR L=75.3	1-09735-042-0	01	1	1512-			●
103	KEY; COUNTER GEAR L=50.0	1-09735-010-0	01	1	1303-		●
103	KEY; COUNTER GEAR L=46	1-09735-038-1	01	1	1303-		●
105	GEAR; 3RD,COUNTER Z=36	1-33338-373-1	01	1	1512-			●
105	GEAR; 3RD,COUNTER Z=28	1-33333-147-1	01	1	1303-		●
108	SHAFT; COUNTER Z=24-17-12	1-33311-331-0	01	1	1512-	●
108	SHAFT; COUNTER Z=26-21	1-33311-325-1	01	1	1512-			●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	1303-		●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	1512-	●		●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	1512-	●		●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	1512-	●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	1512-	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-021-1	01	1	1303-		●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-163-0	01	1	1303-		●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	1512-	●		●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	1303-		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	1303-1511		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	1512-	●	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	1512-	●		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	1512-	●		●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	1303-		●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	1303-		●
132	SHAFT; REV	1-33351-025-4	01	1	1512-	●
132	SHAFT; REV	1-33351-035-1	01	1	1512-			●
132	SHAFT; REV	1-33351-012-2	01	1	1303-		●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	1512-	●
135	GEAR; REV IDLER Z=30	1-33361-081-1	01	1	1512-			●
135	GEAR; REV IDLER Z=27	1-33361-070-1	01	1	1303-		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	1512-	●		●
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	1512-	●		●
357	RING	1-31349-015-0	01	1	1512-	●
357	RING	1-31349-044-0	04	1	1512-			●
476	ADAPTER; PUMP DRIVE	1-33339-066-0	01	1	1512-	●
476	ADAPTER; PUMP DRIVE	1-33339-091-1	01	1	1512-			●
486	NOZZLE; CONT SHAFT	1-33219-254-1	01	1	1512-			●

1 3 357 166 2 231 238 229 241 16 7 7 10 20 27 19 27 30 112 324 42 202 408 112 474 8 9 202 241 176 14 14 13 238 228 45 229 21 19 46 81 82 33 33 45 47 48 429 44 48 70 36 78 68 67 59 78 149 74 50 49 49 96 93 111 362 97 74 104 56 94 56 103 60 237 56 103 56 149 80 78 286 298 342 345 138 128 140 135 129 132 476 109 110 108 84 109 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS (C) Z=27	1-33211-992-0	01	1	1512-	●
1	SHAFT; TOP GEAR,TRANS (B) WO/TRANS FRT PTO Z=22	1-33211-974-0	01	1	1303-		●
1	SHAFT; TOP GEAR,TRANS (A) W/TRANS FRT PTO Z=22	1-33215-010-1	01	1	1303-1511		●
1	SHAFT; TOP GEAR,TRANS FIRE TRUCK<RA9> (A) W/TRANS FRT PTO Z=22	1-33215-010-1	01	1	1512-		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	1303-1511		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	1512-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	1303-1511		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	1512-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	1303-1511		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	1512-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	1303-1511		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	1512-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	1512-	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	1512-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-278-0	01	1	1512-			●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-186-0	01	1	1303-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	1512-	●		●
8	CLIP; DOG CLU	1-33219-024-0	01	1	1512-	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	1303-		●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	1512-	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	1303-		●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	1512-	●		●
13	GEAR; 5TH,MAINSHAFT Z=31	1-33253-673-0	01	1	1512-	●
14	BEARING; NEEDLE,5TH NTN	1-09811-401-0	02	1	1512-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	1512-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	1512-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-260-0	16	1	1512-			●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-261-0	16	1	1512-			●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	1303-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	1303-		●
19	RING; BLOCK,4TH & 5TH (C) Z=66	1-33265-545-1	02	1	1512-	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-8	01	1	1303-		●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-1	01	1	1303-		●
20	SLEEVE	1-33262-222-0	01	1	1512-	●
20	SLEEVE	1-33262-216-1	01	1	1512-			●
20	SLEEVE	1-33262-097-1	01	1	1303-		●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	1512-	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	1303-		●
27	BEARING; 4TH GEAR NTN	1-09811-401-0	02	1	1512-	●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	1303-1311		●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	1303-		●
30	GEAR; 4TH,MAINSHAFT Z=42	1-33253-691-0	01	1	1512-	●
30	GEAR; 4TH,MAINSHAFT Z=29	1-33253-657-0	01	1	1303-		●
33	BEARING; NEEDLE,3RD GEAR (A) NTN	1-09811-381-0	02	1	1512-	●
33	BEARING; NEEDLE,3RD GEAR (C) NTN	1-09811-379-0	02	1	1512-			●
33	BEARING; NEEDLE,3RD GEAR (B) NTN	1-09811-423-0	02	1	1512-			●
33	BEARING; NEEDLE,3RD GEAR (A) NTN	1-09811-389-0	02	1	1303-		●
33	BEARING; NEEDLE,3RD GEAR (A) NSK	1-09811-411-0	02	1	1303-		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	1512-	●
36	GEAR; 3RD,MAINSHAFT Z=41	1-33253-704-1	01	1	1512-			●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	1303-		●
42	SLEEVE	1-33262-222-0	01	1	1512-	●		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	1512-	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	1303-		●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	1512-	●		●
45	SPRING; BLOCK INSERT (C)	1-09580-578-0	03	1	1512-			●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	1303-1511		●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	1512-	●	●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	1512-			●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	1303-1511		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	1512-	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	1303-1511		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	1512-	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-612-1	02	1	1512-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-611-1	02	1	1303-		●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	1512-	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	1303-		●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	1303-		●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	1512-	●
50	GEAR; 2ND,MAINSHAFT Z=43	1-33251-411-1	01	1	1512-			●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	1303-		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	1512-	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-423-0	04	1	1512-			●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	1303-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	1303-		●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	1512-	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-081-2	01	1	1512-			●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	1303-		●
60	COLLAR; REV MAIN	1-33234-087-0	01	1	1512-	●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	1512-	●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	1303-		●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	1303-1511		●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	1512-	●	●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	1512-	●
70	GEAR; 1ST,MAINSHAFT Z=49	1-33255-074-1	01	1	1512-			●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	1303-		●
74	WASHER; THRUST,REV GEAR	8-98304-662-0	02	1	1512-	●
74	WASHER; THRUST,REV GEAR	1-33239-308-0	01	1	1512-			●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-098-0	01	1	1512-	●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	1512-	●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-074-0	01	1	1303-		●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	1512-	●
80	GEAR; SPD DRIVE Z=11	1-33371-069-0	01	1	1512-			●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	1303-		●
81	GEAR; 7TH,MAIN Z=24	1-33253-654-0	01	1	1512-	●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	8-98304-660-0	01	1	1512-	●
82	SHAFT; MAIN,TRANS Z=37-40-28-19	1-33231-327-2	01	1	1512-			●
82	SHAFT; MAIN,TRANS Z=28-28-37-18	1-33231-306-0	01	1	1303-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	1512-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	1512-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	1512-			●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	1512-			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	1303-1405		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-287-1	01	1	1406-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	1303-1405		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	1512-	●		●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	1303-		●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	1512-	●
94	KEY; FEATHER,COUNTER SHAFT L=70	1-09735-046-0	02	1	1512-			●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	1303-		●
96	GEAR; COUNTER DRIVE (C) Z=41	1-33331-272-0	01	1	1512-	●
96	GEAR; COUNTER DRIVE (A) Z=35	1-33331-258-2	01	1	1512-			●
96	GEAR; COUNTER DRIVE (B) Z=38	1-33338-374-3	01	1	1512-			●
96	GEAR; COUNTER DRIVE (A) Z=39	1-33331-261-0	01	1	1303-		●
97	GEAR; 5TH,COUNTER Z=36	1-33338-386-0	01	1	1512-	●
103	KEY; COUNTER GEAR L=63	1-09735-027-0	01	1	1512-	●
103	KEY; COUNTER GEAR L=67	1-09735-049-0	01	1	1512-	●
103	KEY; COUNTER GEAR L=75.3	1-09735-042-0	01	1	1512-			●
103	KEY; COUNTER GEAR L=50.0	1-09735-010-0	01	1	1303-		●
103	KEY; COUNTER GEAR L=46	1-09735-038-1	01	1	1303-		●
104	GEAR; 4TH,COUNTER Z=35	1-33338-380-0	01	1	1512-	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-366-0	01	1	1303-		●
108	SHAFT; COUNTER Z=24-17-12	1-33311-331-0	01	1	1512-	●
108	SHAFT; COUNTER Z=26-21	1-33311-325-1	01	1	1512-			●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	1303-		●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	1512-	●		●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	1512-	●		●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	1512-	●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	1512-	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-021-1	01	1	1303-		●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-163-0	01	1	1303-		●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	1512-	●		●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	1303-		●
111	GEAR; 7TH COUNTER SHAFT Z=50	1-33338-388-0	01	1	1512-	●
112	RING; BLOCK,7TH SYN (A) Z=66	1-33265-376-7	01	1	1512-	●
112	RING; BLOCK,7TH SYN (B) Z=66	1-33265-545-1	01	1	1512-	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	1303-1511		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	1512-	●	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	1512-	●		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	1512-	●		●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	1303-		●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	1303-		●
132	SHAFT; REV	1-33351-025-4	01	1	1512-	●
132	SHAFT; REV	1-33351-035-1	01	1	1512-			●
132	SHAFT; REV	1-33351-012-2	01	1	1303-		●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	1512-	●
135	GEAR; REV IDLER Z=30	1-33361-081-1	01	1	1512-			●
135	GEAR; REV IDLER Z=27	1-33361-070-1	01	1	1303-		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	1512-	●		●
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	1512-	●		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	1512-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	1512-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NSK	1-09810-256-0	01	1	1512-			●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NTN	1-09810-257-0	01	1	1512-			●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	1303-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	1303-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	1303-1511		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	1512-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	1303-1511		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	1512-	●	●
166	PIECE; DIST	1-33363-032-1	01	1	1512-	●
176	COLLAR; 5TH GEAR	1-33234-069-1	01	1	1512-	●
202	BEARING; COUNTER GEAR NTN	1-09811-383-0	02	1	1512-	●
228	PLUNGER; SYN	1-33263-020-0	03	1	1512-	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	06	1	1512-	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	09	1	1512-			●
229	SPRING; PLUNGER D=3.8	1-09580-395-0	06	1	1512-			●
231	PLUNGER (A)	1-33263-020-0	03	1	1512-	●
231	PLUNGER (B)	1-33263-038-1	12	1	1512-			●
231	PLUNGER (C)	8-98273-831-0	06	1	1512-			●
237	KEY; 5TH GEAR L=67	1-09735-049-0	01	1	1512-	●
238	INSERT (A)	1-33263-025-2	06	1	1512-	●
238	INSERT (C)	1-33263-036-0	06	1	1512-			●
238	INSERT (B)	1-33263-039-0	09	1	1512-			●
241	RING; SNAP (A)	1-09588-185-0	01	1	1512-	●
241	RING; SNAP (B)	1-09588-189-0	01	1	1512-	●
241	RING; SNAP (C)	1-09587-023-0	02	1	1512-			●
241	RING; SNAP (D)	1-09587-104-0	01	1	1512-			●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	1512-	●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	1303-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	1512-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	1303-		●
324	HUB; CLU (C)	1-33261-238-0	01	1	1512-	●
324	HUB; CLU (A)	1-34231-015-0	01	1	1512-			●
324	HUB; CLU (B)	8-98239-089-0	01	1	1512-			●
342	FLANGE; OUTPUT	8-98210-980-0	01	1	1512-	●
342	FLANGE; OUTPUT	1-37243-370-0	01	1	1512-			●
342	FLANGE; OUTPUT	8-98210-979-0	01	1	1303-		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	1303-1511		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	1512-	●	●	●
357	RING	1-31349-015-0	01	1	1512-	●
357	RING	1-31349-044-0	04	1	1512-			●
362	COLLAR; 2ND GEAR	1-33234-072-0	01	1	1512-	●
408	SPRING	1-09583-171-0	03	1	1512-	●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	1512-	●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	1303-		●
474	NOZZLE; OIL	1-33219-257-1	01	1	1512-	●
476	ADAPTER; PUMP DRIVE	1-33339-066-0	01	1	1512-	●
476	ADAPTER; PUMP DRIVE	1-33339-091-1	01	1	1512-			●

3 467 144 407 144 471 229 231 238 22 481 82 33 379 33 20 481 33 36 33 216 46 31 45 218 241 241 2 278 483 482 7 7 10 484 231 448 323 43 42 31 56 379 70 56 56 58 57 59 419 306 74 238 231 56 448 498 39 322 324 69 66 66 45 498 66 50 66 332 336 334 496 336 496 612 330 495 357 485 357 334 340 497 241 488 488 489 172 66 66 80 400 342 437 492 491 487 345 490 66 120 324 229 498 498 487 66 16 493

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	1303-1511		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	1512-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	1303-1511		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	1512-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	1303-1511		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	1512-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	1303-1511		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	1512-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	1512-	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	1512-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-278-0	01	1	1512-			●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-186-0	01	1	1303-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	1512-	●		●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	1512-	●		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	1512-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	1512-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-260-0	16	1	1512-			●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-261-0	16	1	1512-			●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	1303-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	1303-		●
20	SLEEVE	1-33262-222-0	01	1	1512-	●
20	SLEEVE	1-33262-216-1	01	1	1512-			●
20	SLEEVE	1-33262-097-1	01	1	1303-		●
22	SPRING; BLOCK,INSERT	1-09583-363-0	03	1	1512-			●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	1303-		●
31	RING; BLOCK,3RD & 4TH	8-98212-814-1	02	1	1512-			●
33	BEARING; NEEDLE,3RD GEAR (A) NTN	1-09811-381-0	02	1	1512-	●
33	BEARING; NEEDLE,3RD GEAR (C) NTN	1-09811-379-0	02	1	1512-			●
33	BEARING; NEEDLE,3RD GEAR (B) NTN	1-09811-423-0	02	1	1512-			●
33	BEARING; NEEDLE,3RD GEAR (A) NTN	1-09811-389-0	02	1	1303-		●
33	BEARING; NEEDLE,3RD GEAR (A) NSK	1-09811-411-0	02	1	1303-		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	1512-	●
36	GEAR; 3RD,MAINSHAFT Z=41	1-33253-704-1	01	1	1512-			●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	1303-		●
39	HUB; CLU,LOW & 2ND	1-33261-277-0	01	1	1512-			●
42	SLEEVE	1-33262-222-0	01	1	1512-	●		●
43	HUB; CLU,3RD & 4TH,MAIN	1-33261-278-1	01	1	1512-			●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	1512-	●		●
45	SPRING; BLOCK INSERT (C)	1-09580-578-0	03	1	1512-			●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	1303-1511		●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	1512-	●	●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	1512-			●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	1303-1511		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	1512-	●	●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	1512-	●
50	GEAR; 2ND,MAINSHAFT Z=43	1-33251-411-1	01	1	1512-			●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	1303-		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	1512-	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-423-0	04	1	1512-			●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	1303-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	1303-		●
57	SLEEVE; REV	1-33262-209-1	01	1	1512-			●
58	HUB; CLU,REV	1-33261-286-1	01	1	1512-			●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	1512-	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-081-2	01	1	1512-			●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	1303-		●
66	RING; BLOCK,SYN (A)	8-98239-909-1	04	1	1512-			●
66	RING; BLOCK,SYN (B)	8-98239-911-1	04	1	1512-			●
69	COLLAR; 1ST GEAR MAIN	1-33234-099-0	01	1	1512-			●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	1512-	●
70	GEAR; 1ST,MAINSHAFT Z=49	1-33255-074-1	01	1	1512-			●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	1303-		●
74	WASHER; THRUST,REV GEAR	8-98304-662-0	02	1	1512-	●
74	WASHER; THRUST,REV GEAR	1-33239-308-0	01	1	1512-			●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	1512-	●
80	GEAR; SPD DRIVE Z=11	1-33371-069-0	01	1	1512-			●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	1303-		●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	8-98304-660-0	01	1	1512-	●
82	SHAFT; MAIN,TRANS Z=37-40-28-19	1-33231-327-2	01	1	1512-			●
82	SHAFT; MAIN,TRANS Z=28-28-37-18	1-33231-306-0	01	1	1303-		●
120	SLEEVE	1-33262-229-0	01	1	1512-			●
120	SLEEVE	1-33262-098-2	01	1	1303-		●
144	BEARING; NEEDLE,INPUT GEAR NTN	1-09811-423-0	02	1	1512-			●
172	RING; SNAP,CLU HUB OD=121.2	1-09587-031-0	01	1	1512-			●
216	INSERT; CLU HUB,2ND TO 3RD	1-33263-025-2	03	1	1512-			●
218	SPRING; INSERT,CLU HUB,2ND TO 3RD D=6.2	1-09580-091-1	03	1	1512-			●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	06	1	1512-	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	09	1	1512-			●
229	SPRING; PLUNGER D=3.8	1-09580-395-0	06	1	1512-			●
231	PLUNGER (A)	1-33263-020-0	03	1	1512-	●
231	PLUNGER (B)	1-33263-038-1	12	1	1512-			●
231	PLUNGER (C)	8-98273-831-0	06	1	1512-			●
238	INSERT (A)	1-33263-025-2	06	1	1512-	●
238	INSERT (C)	1-33263-036-0	06	1	1512-			●
238	INSERT (B)	1-33263-039-0	09	1	1512-			●
241	RING; SNAP (A)	1-09588-185-0	01	1	1512-	●
241	RING; SNAP (B)	1-09588-189-0	01	1	1512-	●
241	RING; SNAP (C)	1-09587-023-0	02	1	1512-			●
241	RING; SNAP (D)	1-09587-104-0	01	1	1512-			●
278	NUT; BRG	1-09449-080-0	01	1	1512-			●
306	RING; SNAP,MAINSHAFT	1-09588-149-0	01	1	1512-			●
322	SLEEVE; SYN,LOW & 2ND	1-33262-228-0	01	1	1512-			●
323	INSERT	1-33263-041-0	03	1	1512-			●
324	HUB; CLU (C)	1-33261-238-0	01	1	1512-	●
324	HUB; CLU (A)	1-34231-015-0	01	1	1512-			●
324	HUB; CLU (B)	8-98239-089-0	01	1	1512-			●
330	GEAR; SUN Z=24	1-34311-010-0	01	1	1512-			●
332	PIN; LOCK,SHAFT	1-09748-025-0	05	1	1512-			●
334	SHAFT; PLANETARY GEAR (A)	1-34353-010-1	05	1	1512-			●
334	SHAFT; PLANETARY GEAR (B)	8-98238-294-0	01	1	1512-			●
336	WASHER; THRUST,PLANETARY GEAR	1-09503-230-0	10	1	1512-			●
340	GEAR; RING Z=86 OKUBO GEAR	1-34371-014-0	01	1	1512-			●
340	GEAR; RING Z=86 NIPPON GEAR	1-34371-018-0	01	1	1512-			●
340	GEAR; RING Z=86 ISUZU	1-34371-019-0	01	1	1512-			●
342	FLANGE; OUTPUT	8-98210-980-0	01	1	1512-	●
342	FLANGE; OUTPUT	1-37243-370-0	01	1	1512-			●
342	FLANGE; OUTPUT	8-98210-979-0	01	1	1303-		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	1303-1511		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	1512-	●	●	●
357	RING	1-31349-015-0	01	1	1512-	●
357	RING	1-31349-044-0	04	1	1512-			●
379	PIECE; DIST,MAINSHAFT	1-33363-034-0	02	1	1512-			●
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	8-98153-252-0	01	1	1512-			●
407	GEAR; PRIMARY MAIN Z=33	1-33253-717-0	01	1	1512-			●
437	PLATE; LOCK	1-34252-032-0	01	1	1512-			●
448	SYNCHRONIZER ASM; 1ST & 2ND	8-98239-908-1	02	1	1512-			●
467	COLLAR; SHAFT	1-33234-091-1	01	1	1512-			●
471	SHAFT; INPUT	8-98174-781-0	01	1	1512-			●
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	1512-			●
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	1512-			●
482	GEAR; PRIMARY Z=29	1-33253-718-0	01	1	1512-			●
483	BEARING; TAPER NTN	8-98316-126-0	01	1	1512-			●
484	PLATE; SETTING	1-33313-023-0	01	1	1512-			●
485	PIECE; GUIDE	1-33363-040-1	01	1	1512-			●
487	SYNCHRONIZER; RANGE CHANGE	8-98239-908-1	02	1	1512-			●
488	CLUTCH; DOG,RANGE (B)	8-98238-509-0	01	1	1512-			●
488	CLUTCH; DOG,RANGE (A)	8-98239-163-0	01	1	1512-			●
489	WASHER; THRUST	1-09503-308-0	01	1	1512-			●
490	GASKET; SEAL,CASE ID=10	1-09623-369-0	01	1	1512-			●
491	PLATE; OUTPUT SHAFT	1-34252-026-0	01	1	1512-			●
492	BOLT; PLATE	1-09000-740-0	02	1	1512-			●
493	GASKET; OUTPUT SHAFT	9-09561-385-0	01	1	1512-			●
495	PINION; PLANETARY Z=30	1-34361-023-0	05	1	1512-			●
496	BEARING; PLANETARY NSK	1-09811-424-0	10	1	1512-			●
496	BEARING; PLANETARY NTN	1-09811-425-0	10	1	1512-			●
497	BEARING; RING GEAR NTN	8-98239-433-0	01	1	1512-			●
498	CONE; SYN	8-98239-910-0	04	1	1512-			●
612	GALLERY; OIL	8-98239-463-0	01	1	1512-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
