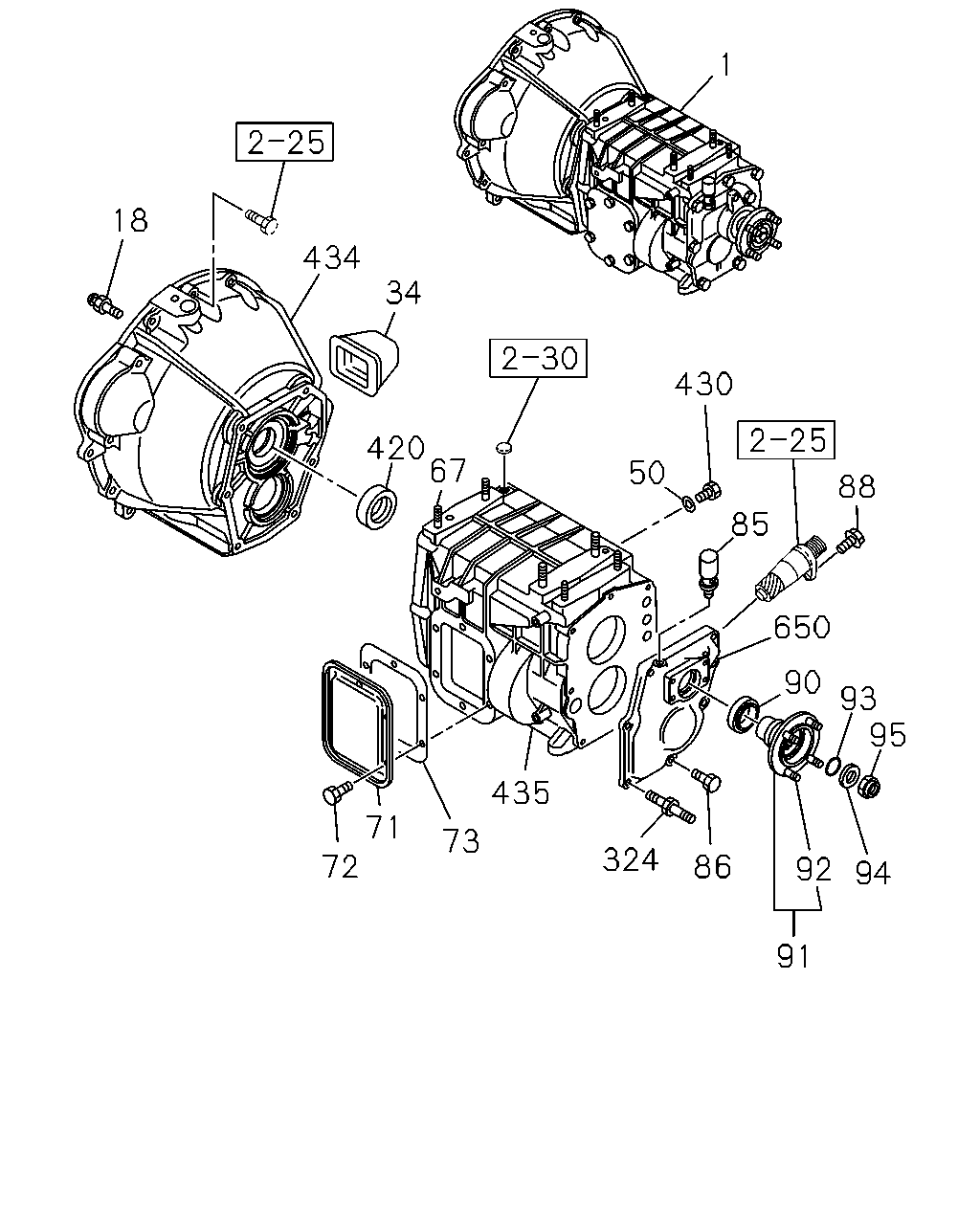

2-20 — MANUAL TRANSMISSION ASM AND CASE (#115063) — 23 parça

1 18 434 34 420 67 50 430 85 88 650 90 93 95 94 92 91 86 324 435 73 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.003 TRANSMISSION ASM; MANUAL	8-98214-130-0	01	1	1302-
18	00.683 SUPPORT; DRAW LEVER L=47.5	8-98189-389-0	01	1	1302-
34	00.686 COVER; DUST,SHIFT FORK	8-98190-416-0	01	1	1302-
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=15.5	8-98189-969-0	01	1	1302-
67	04.105 STUD; CASE TRANS	8-98189-390-0	06	1	1302-
71	04.439 COVER; SIDE,TRANS CASE	8-98189-244-0	01	1	1302-
72	04.439 BOLT; SIDE COVER 06.225 M10X12 FLANGE	0-28051-012-0	06	1	1302-
73	04.109 GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-98189-272-0	01	1	1302-
85	04.104 BREATHER; RR COVER	8-98189-454-0	01	1	1302-
86	04.317 BOLT; RR COVER 03.275 M8X25 FLANGE	0-28050-825-0	04	1	1302-
88	04.338 SCREW; SPEEDOMETER BUSHING 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1302-
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-98189-443-0	01	1	1302-
91	05.605 DRIVER; COUPLING	8-98190-298-0	01	1	1302-
92	05.605 BOLT; COUPLING DRIVER M10X33	8-98189-989-0	04	1	1302-
93	05.595 GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T).	8-98189-967-0	01	1	1302-
94	05.595 WASHER; COUPLING DRIVER	8-98189-951-0	01	1	1302-
95	05.595 NUT; MAINSHAFT M24 FLANGE	8-98189-932-0	01	1	1302-
324	04.319 STUD; RR COVER	8-98189-391-0	03	1	1302-
420	04.354 SEAL; OIL,FRT COVER,T/M NOK	8-98189-424-0	01	1	1302-
430	04.105 PLUG; OIL DRAIN	8-98190-430-0	01	1	1302-
434	00.683 HOUSING; CLU	8-98188-568-0	01	1	1302-
435	04.103 CASE; TRANS	8-97373-564-0	01	1	1302-
650	04.317 COVER; RR	8-97174-087-0	01	1	1302-
