8-40 — HEATER SYSTEM (#11506) — 96 parça

77 26 57 57 71 375 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

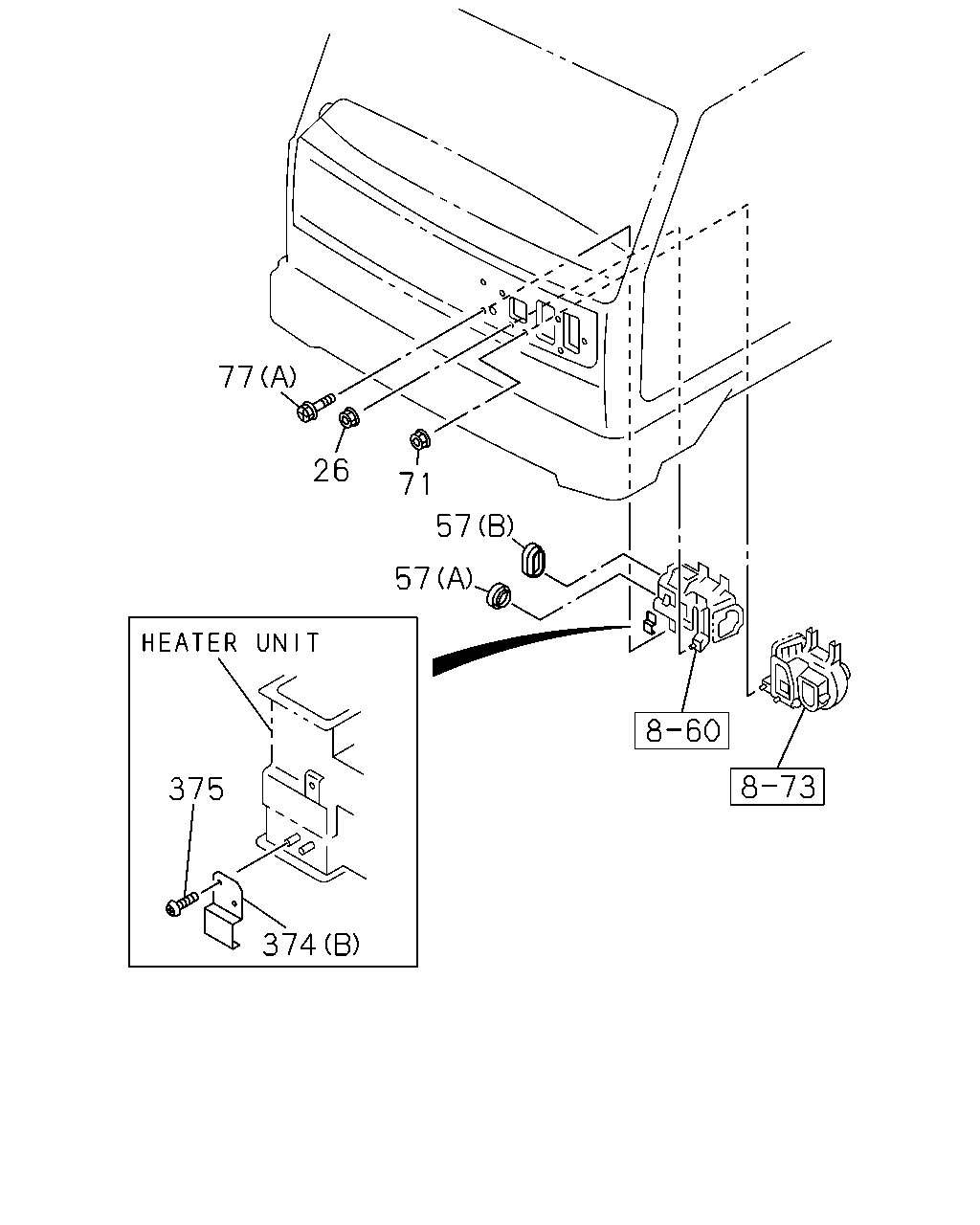

26	NUT; HTR EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0106-
57	COVER; INL DUCT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-617-0	01	1	0205-0411
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. CENTER SEAT DELETE(SP9) (A)	1-83579-617-0	02	1	0106-0204
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A)	1-83579-617-0	02	1	0205-0411
57	COVER; INL DUCT EXC. COOL & HOT BOX<TMU> (A)	1-83579-617-0	02	1	0412-
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. CENTER SEAT DELETE(SP9) (B)	1-83579-618-0	01	1	0106-0204
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B)	1-83579-618-0	01	1	0205-0411
57	COVER; INL DUCT EXC. COOL & HOT BOX<TMU> (B)	1-83579-618-0	01	1	0412-
71	NUT; BLOWER UNIT TO DASH EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0106-
77	BOLT; HTR UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) M6X16	1-09980-598-1	02	1	0106-
77	BOLT; HTR UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-
374	HOLDER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-76398-012-1	01	1	0106-
374	HOLDER; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A)	1-76377-189-3	01	1	0106-
375	SCREW; HOLDER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0106-

135 12 223 223 123 123 12 186 186 223 223 123 123 303 379 135 380 303 378 379 379 377 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

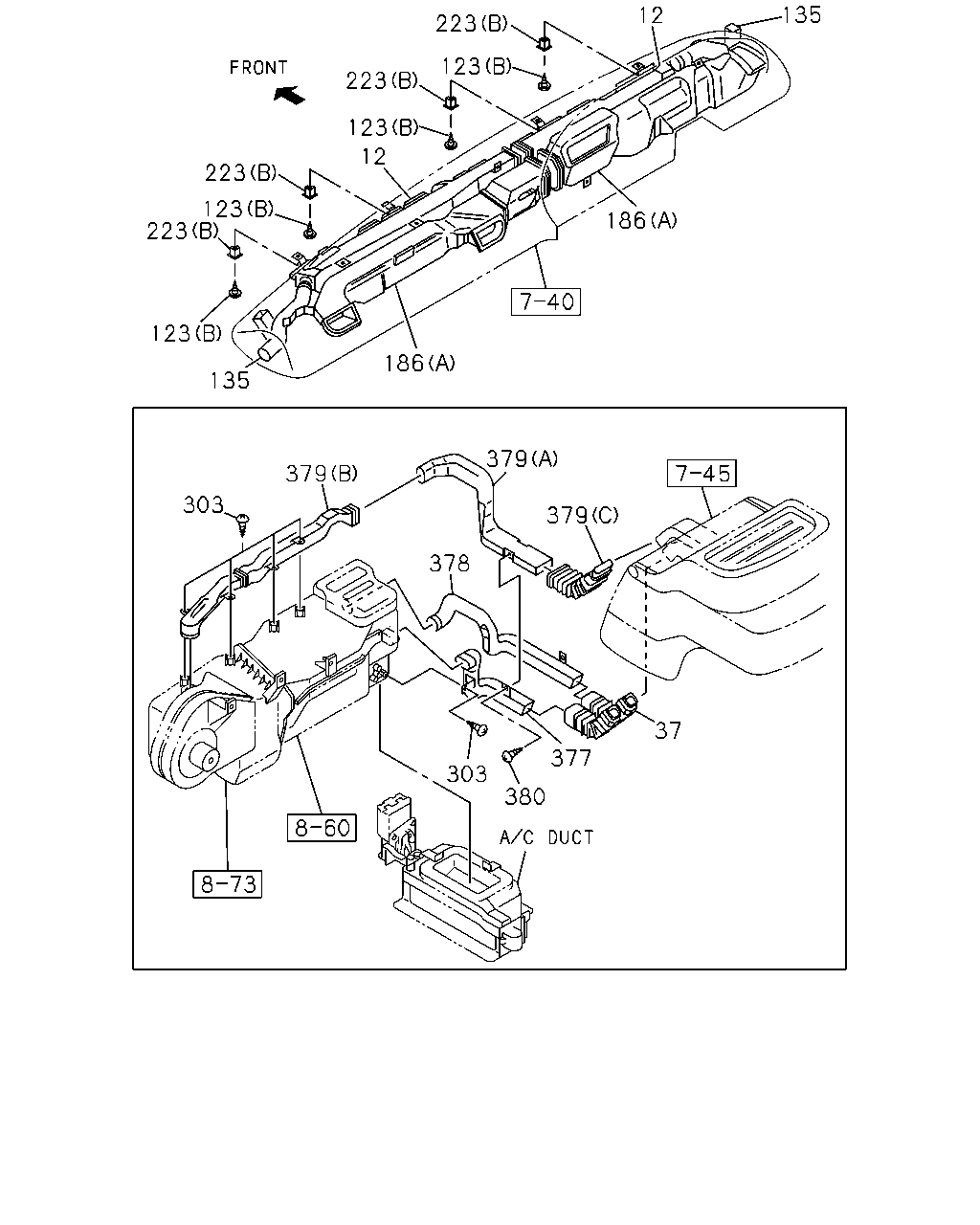

12	NOZZLE; DEFROSTER EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76377-153-5	01	1	0106-
12	NOZZLE; DEFROSTER EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76377-172-6	01	1	0106-
37	HOSE; AIR,HTR COOL & HOT BOX<TMU>	1-76377-193-3	01	1	0106-
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X14	8-94279-325-0	04	1	0106-
123	SCREW; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) M5X16 W/PL WASHER TAPPING	8-94279-123-0	05	1	0106-0206
123	SCREW; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) M5X16 TAPPING W/PL WASHER	0-74115-516-0	05	1	0207-0604
123	SCREW; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) M5X16 TAPPING W/PL WASHER	0-74165-516-0	05	1	0605-
123	SCREW; DUCT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) M5X14	8-94279-325-0	08	1	0106-
135	HOSE; DEFROSTER EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76378-252-7	01	1	0106-
135	HOSE; DEFROSTER EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76378-253-4	01	1	0106-
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B)	1-83542-107-3	01	1	0106-
186	DUCT; VENTILATOR EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A)	1-76377-155-9	01	1	0106-
186	DUCT; VENTILATOR EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A)	1-76377-173-6	01	1	0106-
223	GROMMET; SCREW CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0106-
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0106-
223	GROMMET; SCREW EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B)	8-94279-084-2	04	1	0106-
303	SCREW; HOSE COOL & HOT BOX<TMU> M5X14	8-94279-325-0	05	1	0106-
377	HOSE; BOX,INLET,COOL COOL & HOT BOX<TMU>	1-76377-159-5	01	1	0106-
378	HOSE; BOX,INLET,HOT COOL & HOT BOX<TMU>	1-76377-161-6	01	1	0106-
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (A)	1-76377-163-5	01	1	0106-
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (B)	1-76377-164-3	01	1	0106-
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (C)	1-76377-192-4	01	1	0106-
380	FASTENER; HOSE COOL & HOT BOX<TMU> D4.6X14.7 BLACK	1-09983-104-0	03	1	0106-

373 222 8 223 9 123 9 123 123 123 83 85 10 321 72 77 373

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

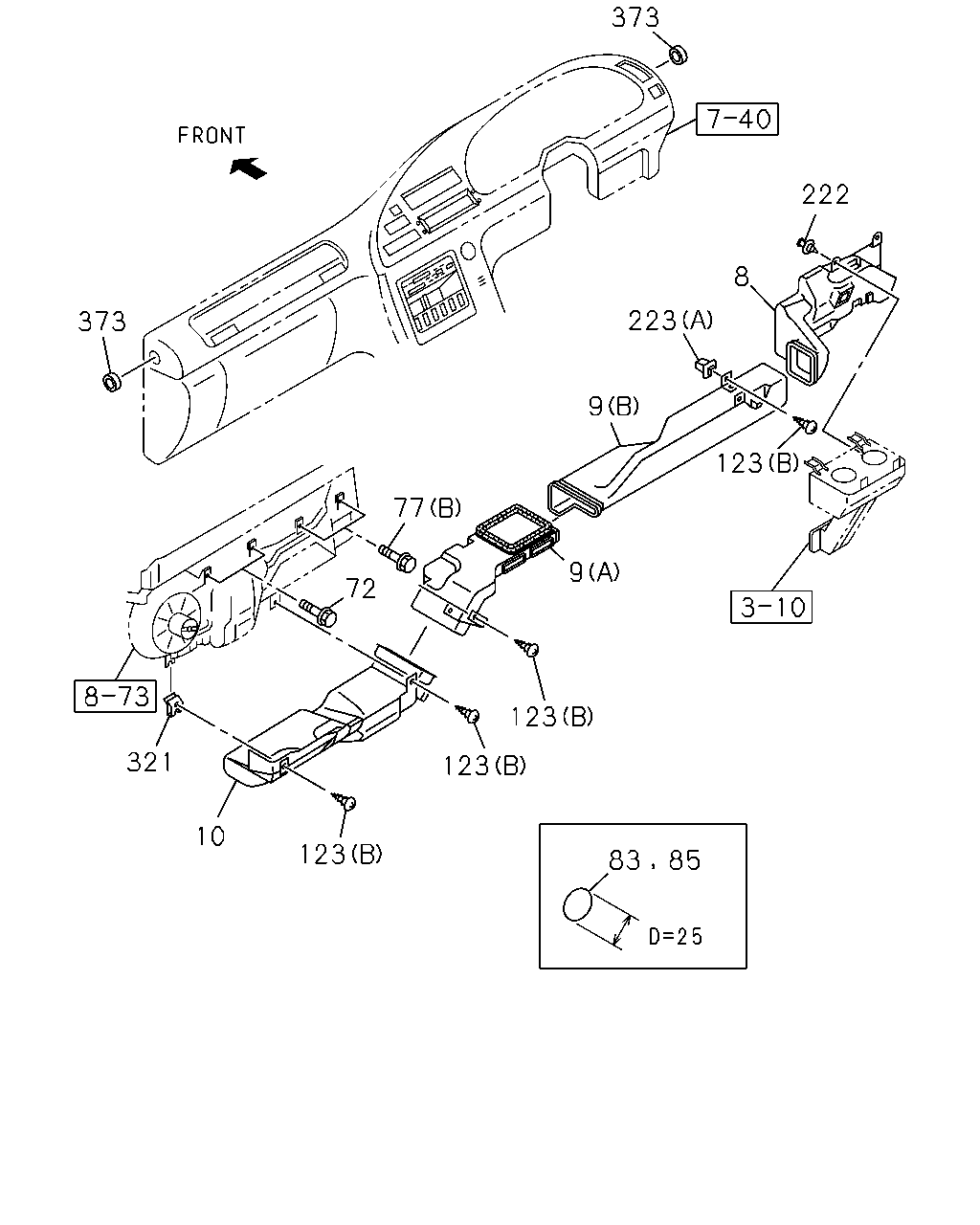

8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76377-208-0	01	1	0106-
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-76377-210-1	01	1	0106-
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A)	1-76377-227-2	01	1	0106-
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A)	1-76377-226-2	01	1	0106-
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (A)	1-76377-226-2	01	1	0106-
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76377-204-2	01	1	0106-
72	BOLT; BLOWER UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-
77	BOLT; HTR UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) M6X16	1-09980-598-1	02	1	0106-
77	BOLT; HTR UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-
83	SEAL; COVER,HTR HOLE HEATER VENTILATION AIR CONDITIONING DELETE(TFA) OD=25 BLACK	1-76798-019-0	04	1	0106-
85	SEAL; HTR UNIT HEATER VENTILATION AIR CONDITIONING DELETE(TFA) OD=25 BLACK	1-76798-019-0	04	1	0106-
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X14	8-94279-325-0	04	1	0106-
123	SCREW; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) M5X16 W/PL WASHER TAPPING	8-94279-123-0	05	1	0106-0206
123	SCREW; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) M5X16 TAPPING W/PL WASHER	0-74115-516-0	05	1	0207-0604
123	SCREW; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) M5X16 TAPPING W/PL WASHER	0-74165-516-0	05	1	0605-
123	SCREW; DUCT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) M5X14	8-94279-325-0	08	1	0106-
222	FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) D6X12.5	8-94146-425-0	02	1	0106-
223	GROMMET; SCREW CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0106-
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0106-
223	GROMMET; SCREW EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B)	8-94279-084-2	04	1	0106-
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5	1-09984-150-0	01	1	0106-0409
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5	1-09984-196-0	01	1	0410-
373	RUBBER; JOINT	1-76378-291-0	02	1	0106-

250 460 459 250 460 459 459 265 461 302 157 265 461 461

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
157	SCREW HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0106-0604
157	SCREW HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0605-

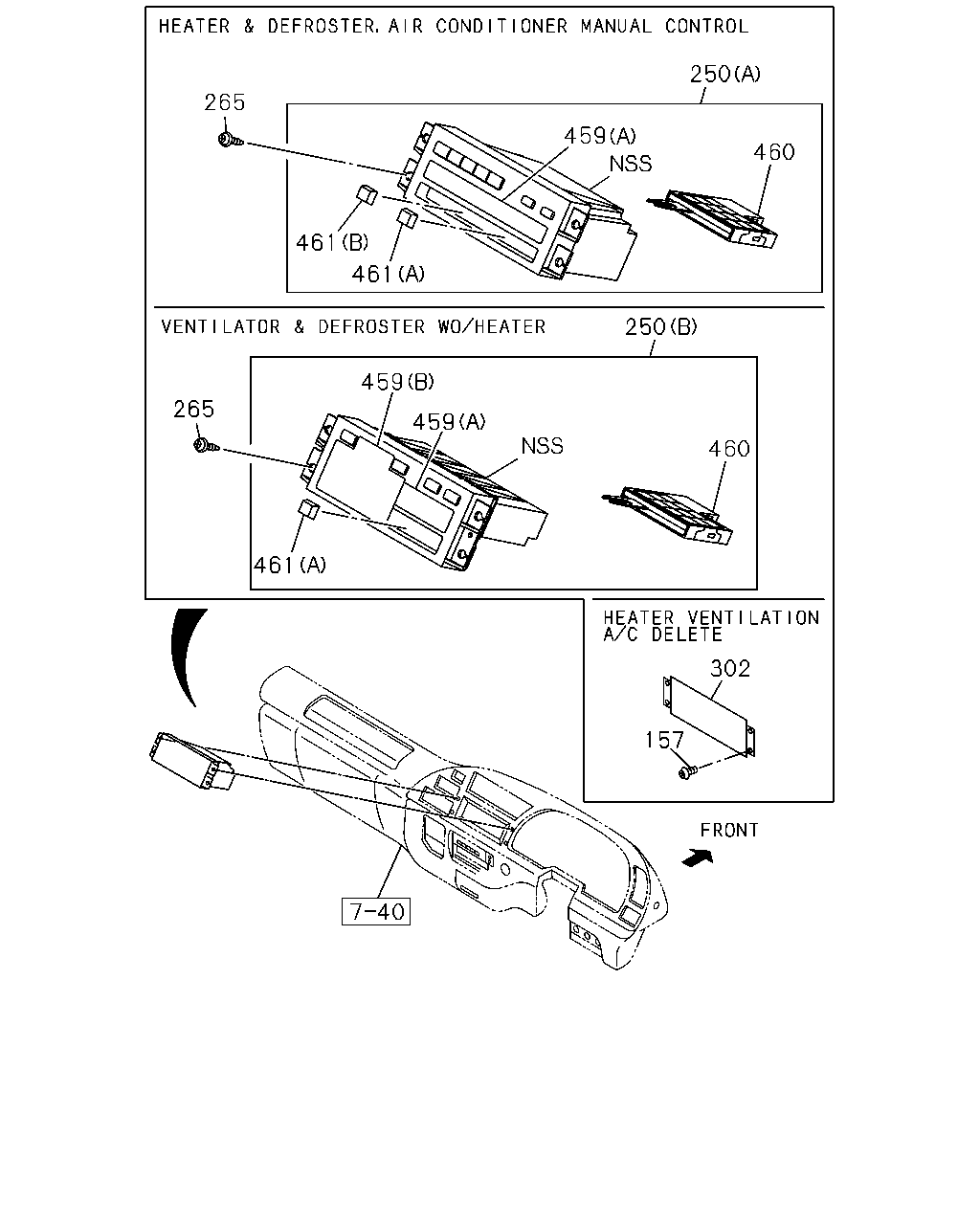

250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83543-050-0	01	1	0106-
250	CONTROL ASM; A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83543-034-1	01	1	0106-
265	SCREW; A/C CONT UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0106-0604
265	SCREW; A/C CONT UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0605-
302	COVER; AIR HOLE HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-72438-140-1	01	1	0106-
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83549-013-0	01	1	0106-
459	PANEL; CONTROL ASM,A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83549-017-0	01	1	0106-
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82489-006-0	01	1	0106-
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83549-015-0	01	1	0106-
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83549-016-0	01	1	0106-

117 198 374 198 223 253 123 28 127 362 28 123 223 28 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

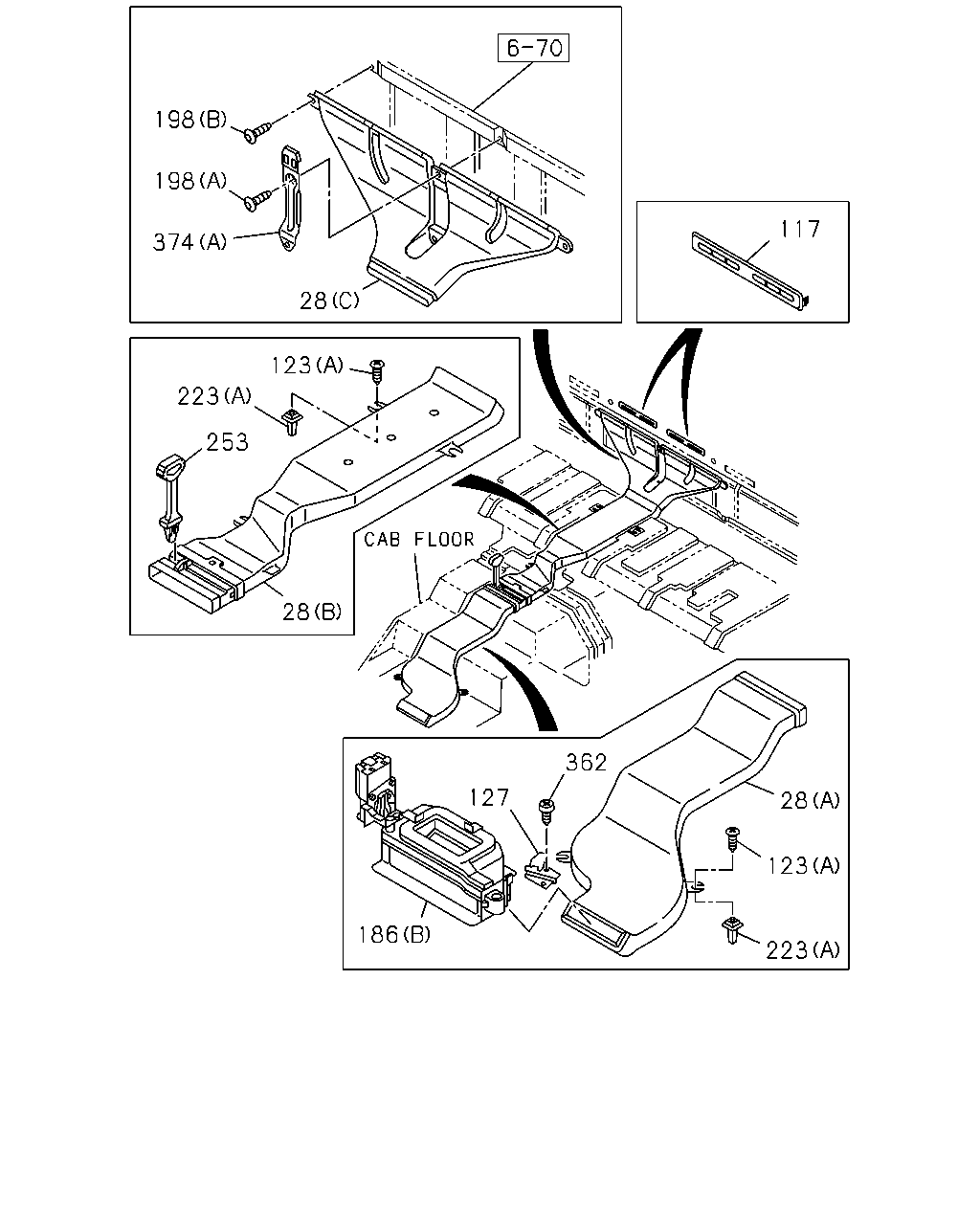

28	DUCT; AIR,VENTILATOR CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B)	1-76377-180-2	01	1	0106-
28	DUCT; AIR,VENTILATOR CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (C)	1-76377-186-1	01	1	0106-
28	DUCT; AIR,VENTILATOR CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A)	1-76377-203-0	01	1	0106-
117	GRILLE; VENTILATOR CENTER SEAT DELETE(SP9) DELUXE CAB(W14)	1-76377-187-5	01	1	0106-
117	GRILLE; VENTILATOR CENTER SEAT DELETE(SP9) DELUXE CAB(W14)	1-76377-188-5	01	1	0106-
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X14	8-94279-325-0	04	1	0106-
123	SCREW; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) M5X16 W/PL WASHER TAPPING	8-94279-123-0	05	1	0106-0206
123	SCREW; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) M5X16 TAPPING W/PL WASHER	0-74115-516-0	05	1	0207-0604
123	SCREW; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) M5X16 TAPPING W/PL WASHER	0-74165-516-0	05	1	0605-
123	SCREW; DUCT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) M5X14	8-94279-325-0	08	1	0106-
127	BRACKET; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14)	1-76397-019-0	01	1	0106-
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B)	1-83542-107-3	01	1	0106-
186	DUCT; VENTILATOR EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A)	1-76377-155-9	01	1	0106-
186	DUCT; VENTILATOR EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A)	1-76377-173-6	01	1	0106-
198	CLIP; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) D6X23 DARK GRAY	1-09987-238-0	02	1	0106-0210
198	CLIP; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) D6X23 BLACK	1-09987-114-0	02	1	0211-
198	CLIP; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	0106-
223	GROMMET; SCREW CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0106-
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0106-
223	GROMMET; SCREW EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B)	8-94279-084-2	04	1	0106-
253	KNOB; CONT LEVER CENTER SEAT DELETE(SP9) DELUXE CAB(W14)	1-76377-185-1	01	1	0106-
362	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) M5X14	8-94279-325-0	02	1	0106-
374	HOLDER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-76398-012-1	01	1	0106-
374	HOLDER; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A)	1-76377-189-3	01	1	0106-
