1-40 — FUEL TANK (#115056) — 22 parça

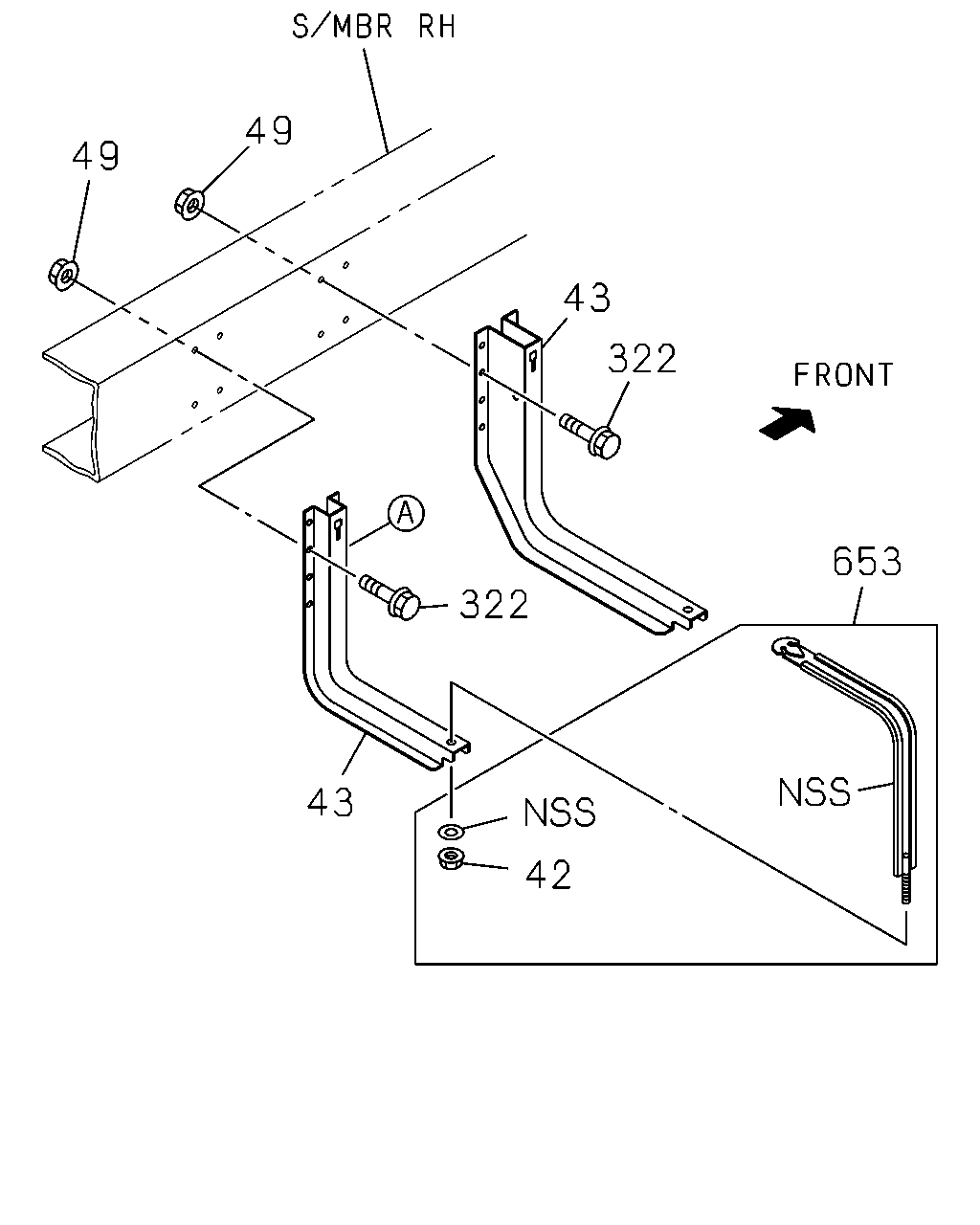

49 49 43 322 322 653 43 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	1302-
43	03.015 BRACKET; FUEL TANK FRONT	8-97035-517-0	01	1	1302-
43	03.015 BRACKET; FUEL TANK REAR	8-97181-220-0	01	1	1302-
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	1302-
322	03.895 BOLT; BRKT FIX 07.068 M10X30 FLANGE	0-28661-030-0	07	1	1302-
653	03.022 BAND KIT; FUEL TANK	5-87411-970-0	02	1	1302-1312
653	03.022 BAND KIT; FUEL TANK	5-87411-970-0	02	1	1401-
653	03.022 BAND KIT; FUEL TANK	5-87411-970-0	02	1	1401-

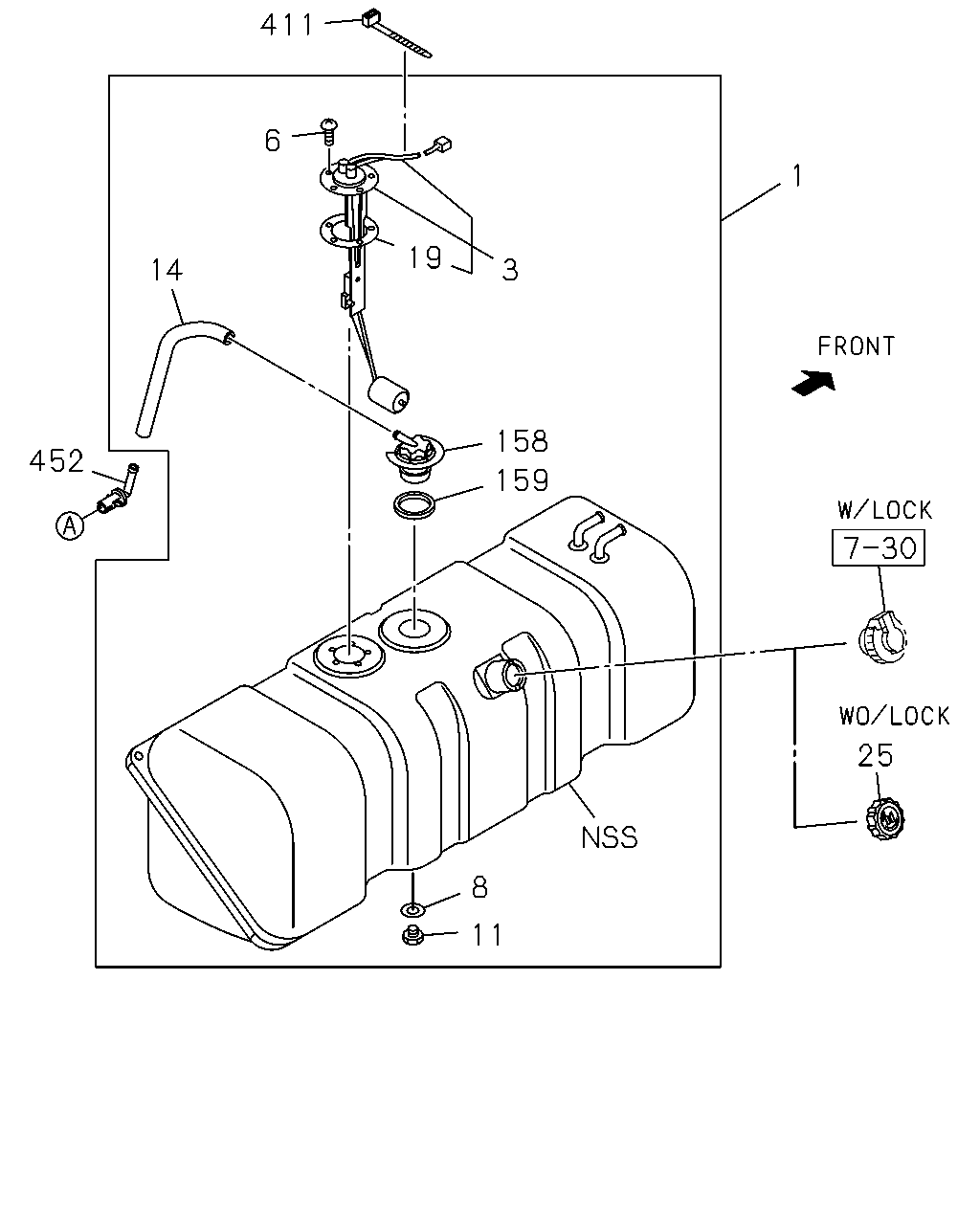

411 6 14 452 19 3 158 159 1 25 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.001 TANK; FUEL 732X375X375 75L	8-98215-287-1	01	1	1302-1410
1	03.001 TANK; FUEL 732X375X375 75L	8-98280-480-0	01	1	1411-
3	03.107 UNIT; FUEL TANK,SUB	8-98195-752-0	01	1	1302-1410
3	03.107 UNIT; FUEL TANK,SUB	8-98278-778-0	01	1	1411-
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	1302-
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	1302-
11	03.890 PLUG; DRAIN,FUEL TANK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1302-
14	03.163 HOSE; BREATHER,OUTLET L=320	8-98157-805-0	01	1	1302-
19	03.112 GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	1302-
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	1302-
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	1302-
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	1302-
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 L=140	5-09707-031-1	02	1	1302-
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	1302-
