Isuzu WW
▶
TRUCKS
▶
NKR
▶
51429 - NKR-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#115053) — 47 parça
◀

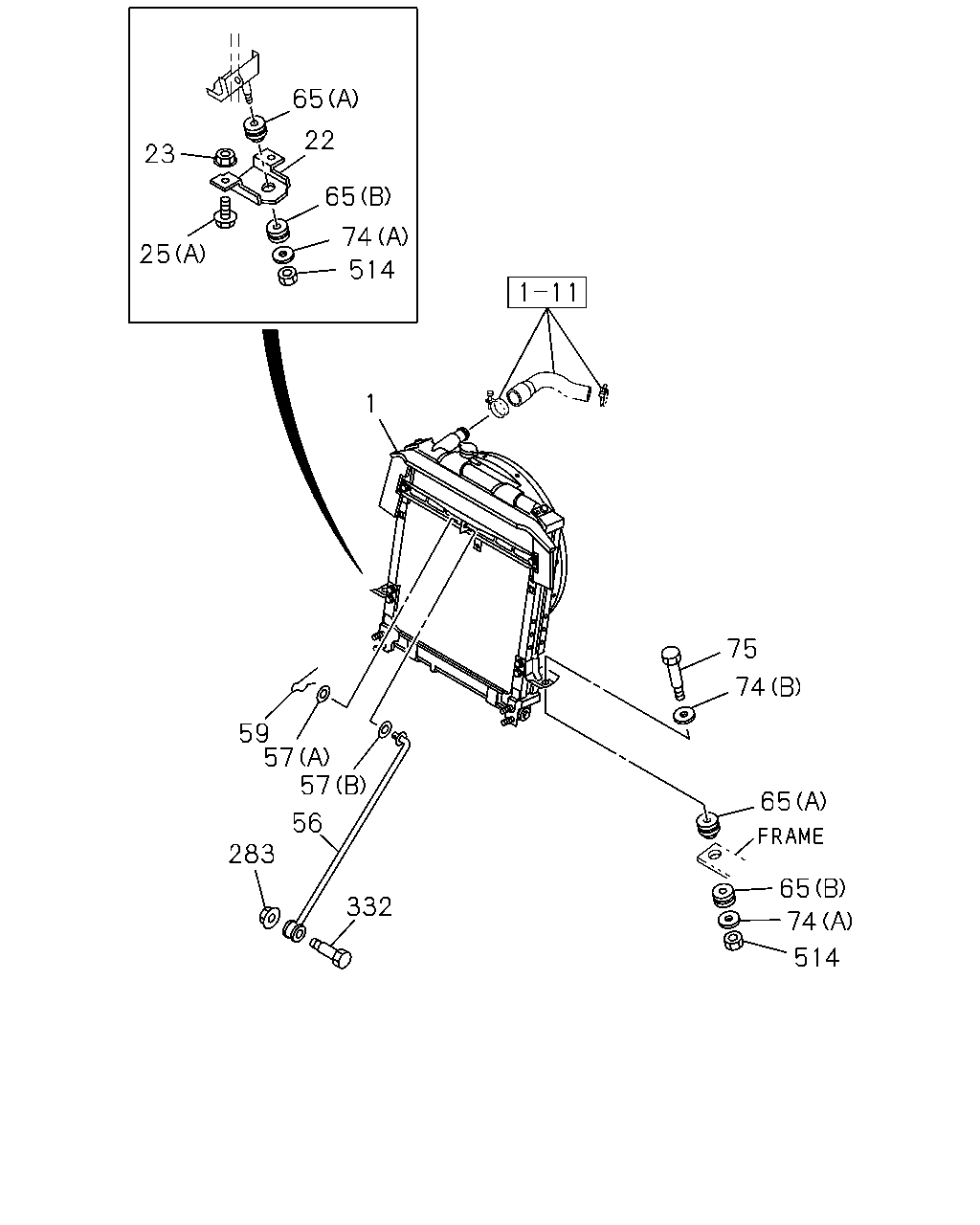

[110A] FIXING (22 parça)

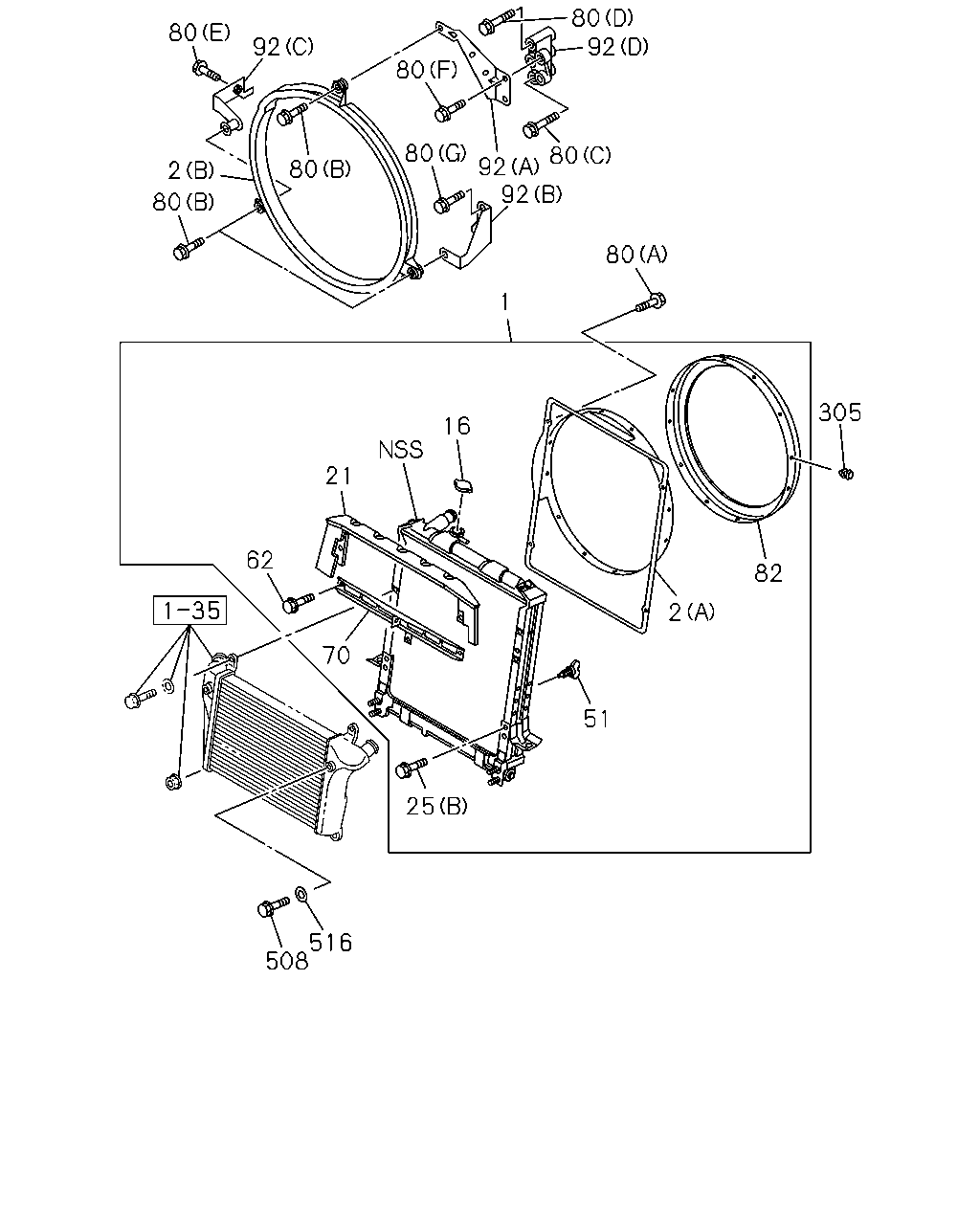

[110A] COMPONENT AND FAN GUIDE (25 parça)
▶
23
25
65
22
65
74
514
1
75
74
65
65
74
514
59
57
57
56
283
332
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.219 RADIATOR ASM
8-98213-779-1
01
1
1302-
22
01.270 BRACKET; RAD MTG
8-94257-949-1
01
1
1302-
23
01.271 NUT; RAD MTG
07.874 M10 FLANGE
5-09440-006-0
02
1
1302-1302
23
01.271 NUT; RAD MTG
03.162 M10 FLANGE
0-91180-110-0
02
1
1302-
25
01.271 BOLT; BRKT
03.162 (B) M6X12 FLANGE
0-28050-612-0
04
1
1302-
25
01.271 BOLT; BRKT
00.029 (A) M10X30 FLANGE
0-28651-030-0
02
1
1302-
56
01.270 STAY; RAD
8-97351-495-0
01
1
1302-
57
01.271 WASHER; PL,STAY
17.198 (A) ID=10.5
0-91610-510-0
01
1
1302-
57
01.271 WASHER; PL,STAY
(B) ID=12
8-97011-676-0
01
1
1302-
59
01.271 PIN; SNAP,STAY
03.452 L=32.6
8-94202-777-0
01
1
1302-1302
59
01.271 PIN; SNAP,STAY
L=32.6
8-97359-052-0
01
1
1302-
65
01.271 INSULATOR; RAD
01.270 (B)
8-94249-346-0
02
1
1302-
65
01.271 INSULATOR; RAD
01.270 (A)
8-94249-347-0
02
1
1302-
74
01.270 WASHER; PL,CUSHION RUBBER
(B) ID=10.5
0-91610-710-0
01
1
1302-
74
01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36
8-94221-082-0
02
1
1302-1302
74
01.270 WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36
8-97359-049-1
02
1
1302-
75
01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63
8-94249-446-0
01
1
1302-
283
01.277 NUT; BRKT
01.271 M8 FLANGE
8-94178-701-0
01
1
1302-1302
283
01.277 NUT; BRKT
04.634 M8 FLANGE
8-97581-233-0
01
1
1302-
332
01.276 BOLT; BRKT,RAD STAY
01.271 M8X45
8-94401-350-0
01
1
1302-
514
01.276 NUT; RAD
04.634 M8 FLANGE
8-97581-233-0
02
1
1302-1302
514
01.276 NUT; RAD
01.062 M8 FLANGE
0-91180-108-0
02
1
1302-
80
92
2
80
80
80
80
80
92
80
92
92
80
1
305
82
2
51
25
516
508
70
62
21
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.219 RADIATOR ASM
8-98213-779-1
01
1
1302-
2
01.277 GUIDE; FAN
(B)
8-97287-037-2
01
1
1302-
2
01.277 GUIDE; FAN
(A)
8-97350-179-0
01
1
1302-
16
01.203 CAP; RAD
8-98096-226-0
01
1
1302-
21
01.276 SEAL; RAD
8-98227-081-0
01
1
1302-
25
01.271 BOLT; BRKT
03.162 (B) M6X12 FLANGE
0-28050-612-0
04
1
1302-
25
01.271 BOLT; BRKT
00.029 (A) M10X30 FLANGE
0-28651-030-0
02
1
1302-
51
08.951 PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1302-
62
01.271 BOLT; STAY
02.343 M8X12 FLANGE
0-28050-812-0
02
1
1302-
70
01.271 STAY; RAD
8-98018-940-0
01
1
1302-
80
01.277 BOLT; FAN GUIDE
04.686 (C) M8X60 FLANGE
0-28050-860-0
01
1
1302-
80
01.277 BOLT; FAN GUIDE
01.252 (G) M8X80 FLANGE
0-28050-880-0
02
1
1302-
80
01.277 BOLT; FAN GUIDE
00.685 (D) M10X60 FLANGE
0-28051-060-0
01
1
1302-
80
01.277 BOLT; FAN GUIDE
01.531 (E) M8X20 FLANGE
0-28650-820-0
01
1
1302-
80
01.277 BOLT; FAN GUIDE
00.029 (F) M10X25 FLANGE
0-28651-025-0
02
1
1302-
80
01.277 BOLT; FAN GUIDE
01.540 (B) M8X41 W/PL WASHER
8-97264-622-0
03
1
1302-
80
01.277 BOLT; FAN GUIDE
(A) M6X12
8-98039-672-0
04
1
1302-
82
01.277 COVER; FAN,RAD
8-97260-451-1
01
1
1302-
92
01.277 BRACKET; FAN GUIDE
(D)
8-94478-881-1
01
1
1302-
92
01.277 BRACKET; FAN GUIDE
(B)
8-97240-139-3
01
1
1302-
92
01.277 BRACKET; FAN GUIDE
(A)
8-97253-495-1
01
1
1302-
92
01.277 BRACKET; FAN GUIDE
(C)
8-97289-749-1
01
1
1302-
305
01.277 CLIP; FAN COVER TO FAN GUIDE
1-09470-009-0
12
1
1302-
508
01.271 PLUG
01.519 M10X10
1-09604-074-0
01
1
1302-
516
08.951 GASKET; PLUG
08.955 ID=10.2 OD=16.0
9-09571-410-0
01
1
1302-
