Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11501 - CYZ LHD EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#115052) — 39 parça
◀

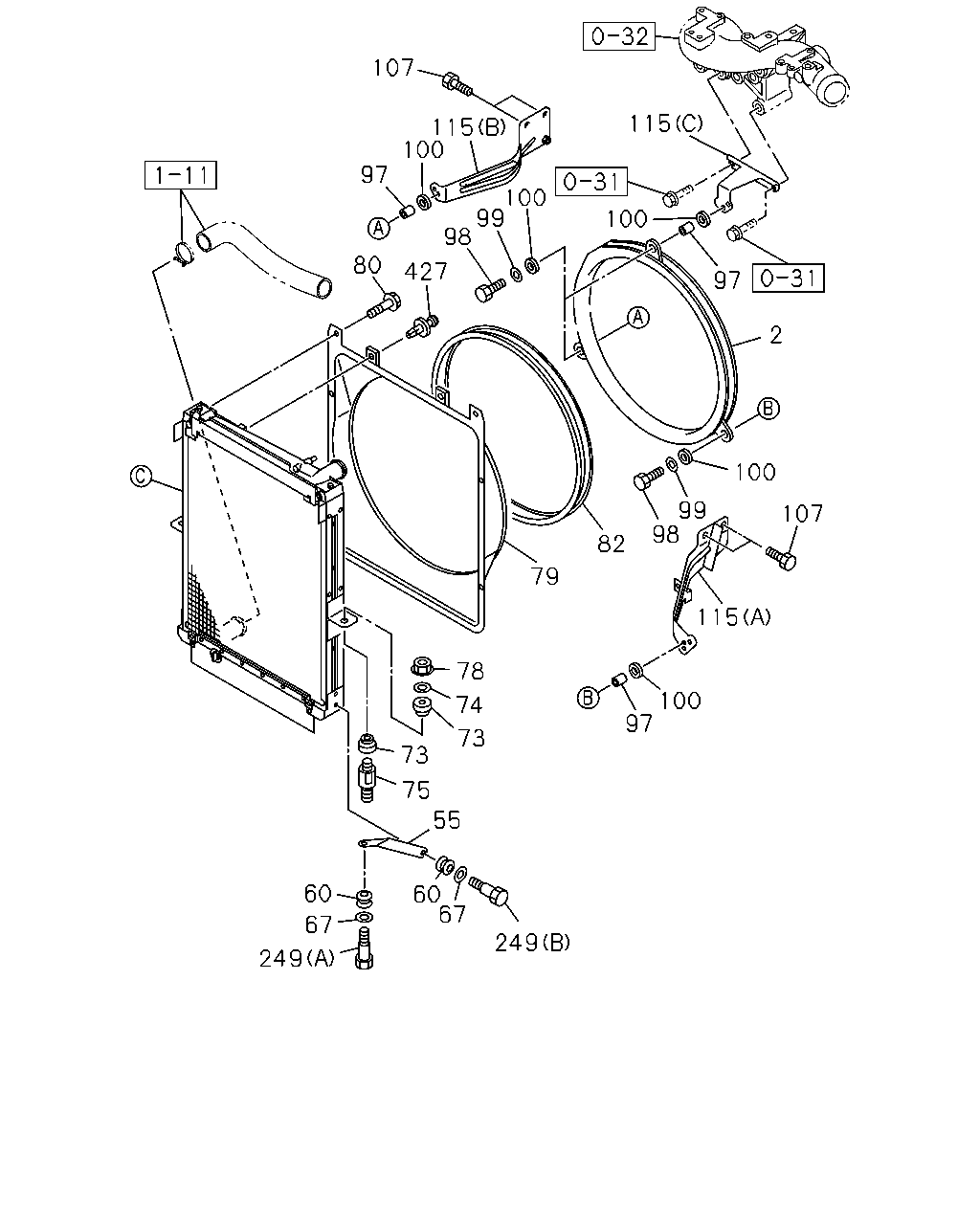

[110A] FIXING (24 parça)
[110A] COMPONENT (15 parça)
▶
107
97
80
100
115
427
98
99
100
115
100
97
2
100
99
98
82
79
107
115
100
97
78
74
73
73
75
55
60
60
67
67
249
249
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GUIDE; FAN
8-98212-401-0
01
1
1303-
55
STAY; RAD TO UPR MBR
1-21464-803-0
01
1
1303-
55
STAY; RAD TO UPR MBR
1-21464-804-0
01
1
1303-
60
GROMMET
1-09332-117-0
04
1
1303-
67
WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26
0-91610-612-0
04
1
1303-
73
RUBBER; CUSHION,RAD MTG
T=14
1-21467-004-0
04
1
1303-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
1303-
75
BOLT; CUSHION RUBBER,RAD MTG
1-21466-005-0
02
1
1303-
78
NUT; CUSHION RUBBER
M10 FLANGE
0-91180-210-0
02
1
1303-
79
GUIDE; FAN,RAD
1-21551-556-0
01
1
1303-
80
BOLT; FAN GUIDE
M8X16 FLANGE
0-28050-816-0
06
1
1303-
82
COVER; FAN,RAD
8-98221-560-0
01
1
1303-
97
TUBE; DIST,FAN GUIDE
ID=11.8 L=27
1-21559-149-0
03
1
1303-
98
BOLT; RAD FAN GUIDE
M10X40 FLANGE
0-28051-040-0
02
1
1303-
98
BOLT; RAD FAN GUIDE
M10X45 FLANGE
0-28051-045-0
01
1
1303-
99
WASHER; PL
ID=10.5 OD=26
0-91614-710-0
03
1
1303-
100
RUBBER; MTG
1-09337-017-0
06
1
1303-
107
BOLT; BRKT TO STAY
M14X25 FLANGE
0-28951-425-0
04
1
1303-
115
BRACKET; FAN GUIDE
(B)
1-21559-421-1
01
1
1303-
115
BRACKET; FAN GUIDE
(C)
8-97643-211-0
01
1
1303-
115
BRACKET; FAN GUIDE
(A)
8-97643-212-0
01
1
1303-
249
BOLT; STAY,RAD MBR
(A) M8X30
1-09009-020-1
02
1
1303-
249
BOLT; STAY,RAD MBR
(B) M8X26
1-09009-175-0
02
1
1303-
427
CLIP; FAN GUIDE
1-09470-009-0
02
1
1303-
1
21
528
529
527
232
267
528
89
267
235
89
529
526
21
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98221-567-2
01
1
1303-
21
SEAL; RAD
(B)
8-98228-089-0
01
1
1303-
21
SEAL; RAD
(A)
8-98219-021-1
01
1
1303-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1303-
89
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
1303-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
04
1
1303-
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
1303-
235
WASHER; CUSHION RUBBER
1-21469-133-0
02
1
1303-
267
RUBBER; CUSHION
(A)
1-21469-130-0
04
1
1303-
267
RUBBER; CUSHION
(B)
1-21469-131-0
02
1
1303-
526
TANK; UPR,RADIATOR CORE
1-21414-041-2
01
1
1303-
527
TANK; LWR,RADIATOR CORE
1-21415-042-2
01
1
1303-
528
PLATE; SIDE,RADIATOR CORE
8-98231-330-0
01
1
1303-
528
PLATE; SIDE,RADIATOR CORE
8-98231-331-0
01
1
1303-
529
GASKET; CORE,RADIATOR
1-21439-142-0
02
1
1303-
