Sayfa 8-28 - Isuzu EPC

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0106-0604
	94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> METRO	1-83460-088-1	01	1	0106-

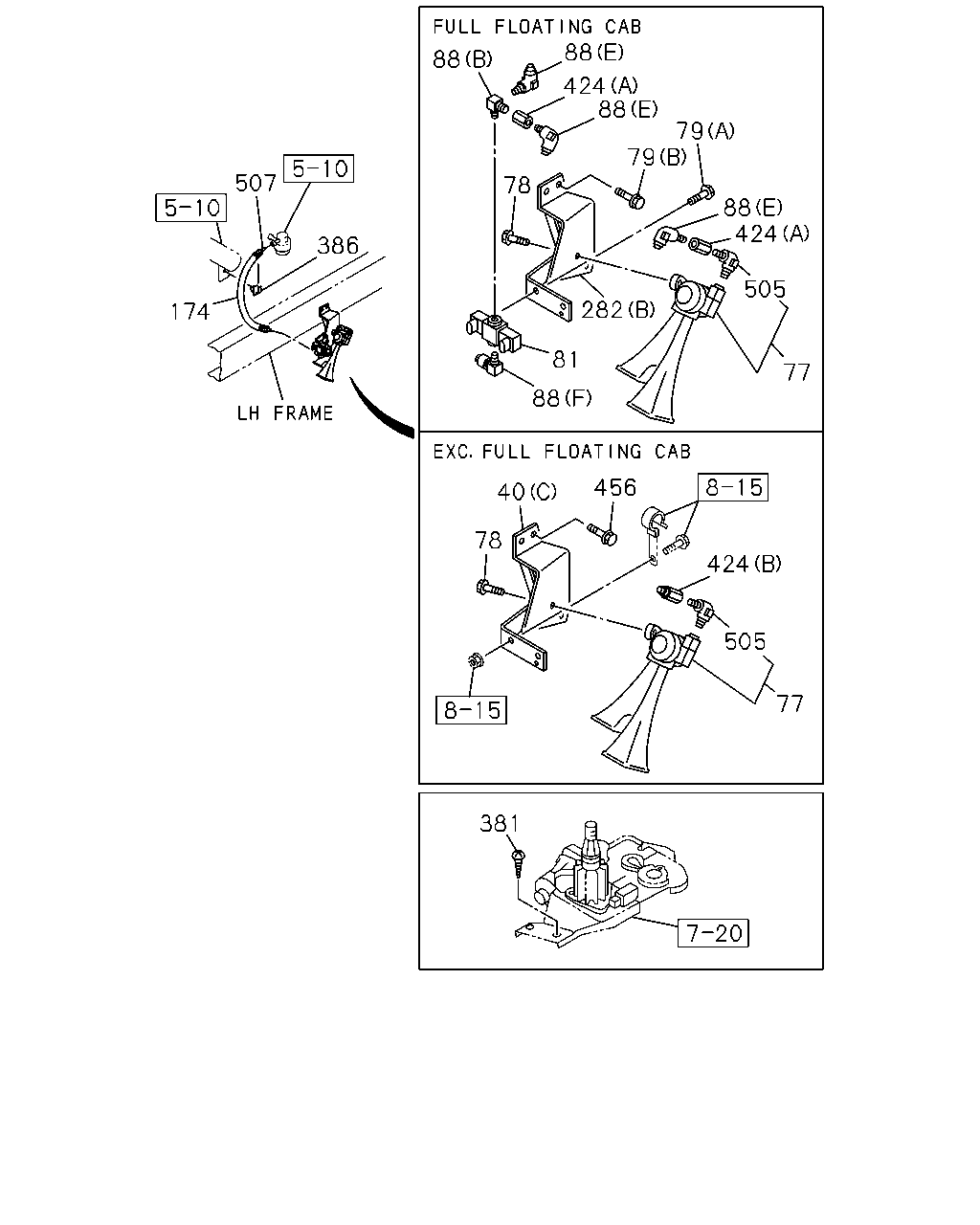

88 88 424 79 88 88 424 505 77 282 81 88 78 456 40 78 424 505 77 174 386 507 381 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0106-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-741-1	01	1	0106-0110
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (A)	1-82569-278-0	01	1	0106-
77	HORN ASM	1-83430-041-2	01	1	0106-
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0601-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28080-812-0	01	1	0106-0512
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28681-035-0	02	1	0106-0512
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-
81	VALVE; MAG,HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0106-
174	COVER FULL FLOATING CAB(W16)	1-83129-031-1	01	1	0106-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-741-2	01	1	0106-
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	0106-
381	SCREW; RELAY MIR STAY O/S W/REMOTE<TBA> M5X14	8-94279-325-0	02	1	0106-0210
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	0106-
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0106-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0106-
456	BOLT; BRKT EXC. FULL FLOATING CAB(W16) M10X35 FLANGE	0-28681-035-0	02	1	0106-0110
505	JOINT; AIR HORN	1-83439-006-0	01	1	0106-
507	TUBE; NYLON FULL FLOATING CAB(W16) L=800 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0106-0212
507	TUBE; NYLON FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0301-

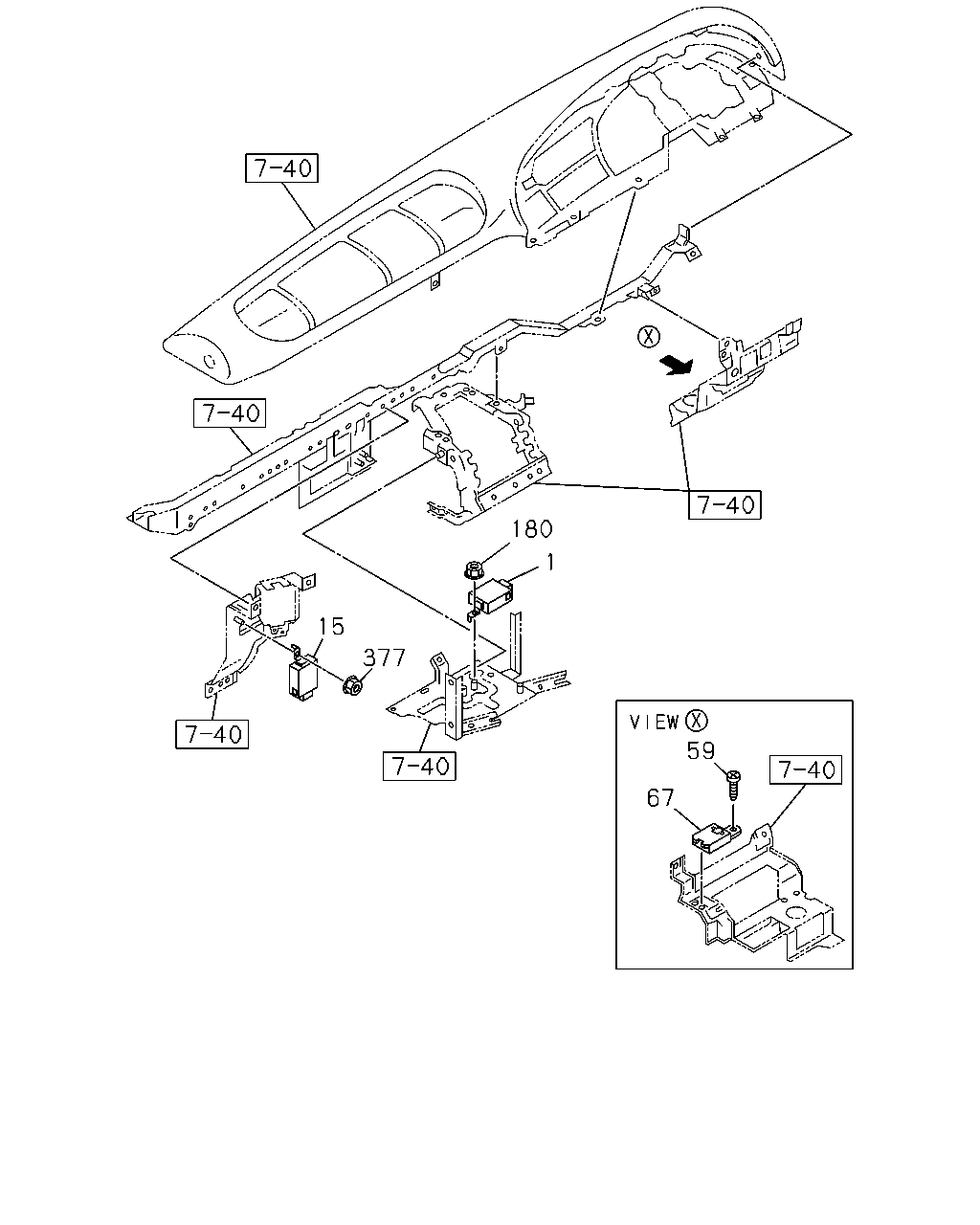

67 59 1 180 377 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-062-1	01	1	0106-
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	0106-
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0106-
67	BUZZER; ENG OVERRUN	1-83460-051-1	01	1	0106-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0106-0602
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	0106-0602
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0603-

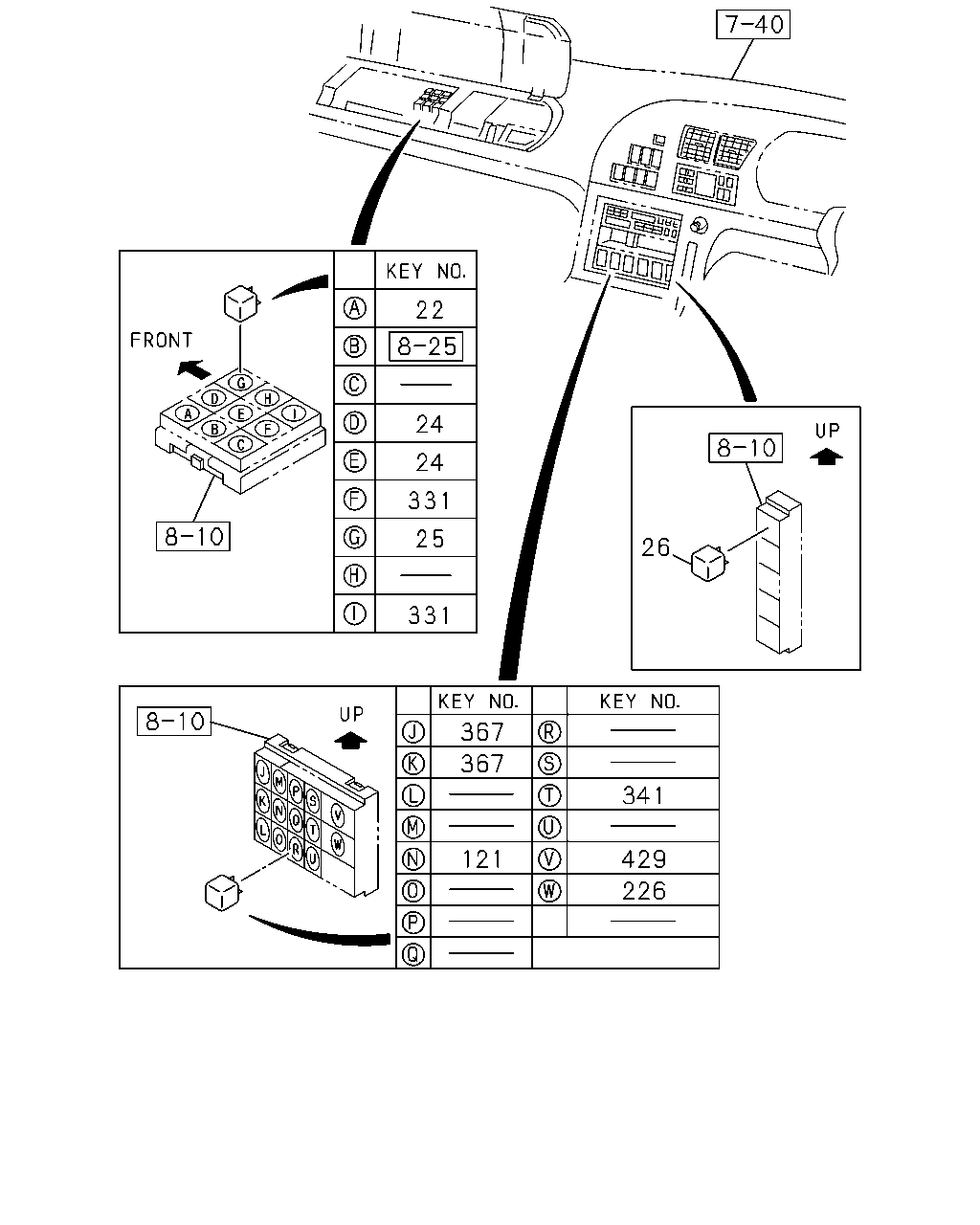

22 24 24 331 25 331 367 367 121 341 429 226 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
22	RELAY; STOP LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
24	RELAY; LIGHTING 24V 12.5A JIDECO	8-97062-815-1	02	1	0106-0111
24	RELAY; LIGHTING 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-
25	RELAY; TAIL LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
25	RELAY; TAIL LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
26	RELAY; CONSENT 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
26	RELAY; CONSENT 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
121	RELAY; PARKING BRK 24V 10A MATSUSHITA	8-97173-035-1	01	1	0106-
226	RELAY; EXH BRK 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
226	RELAY; EXH BRK 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A JIDECO	8-97062-815-1	02	1	0106-0111
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-
341	RELAY FULL FLOATING CAB(W16) 24V 10A MATSUSHITA	8-97173-035-1	01	1	0106-
367	RELAY; NEUTRAL 24V 10A MATSUSHITA	8-97173-035-1	01	1	0106-
367	RELAY; NEUTRAL AUTO CAB TILT<WV2> 24V 10A MATSUSHITA	8-97173-035-1	01	1	0106-
429	RELAY; POWER CUT 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
429	RELAY; POWER CUT 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-

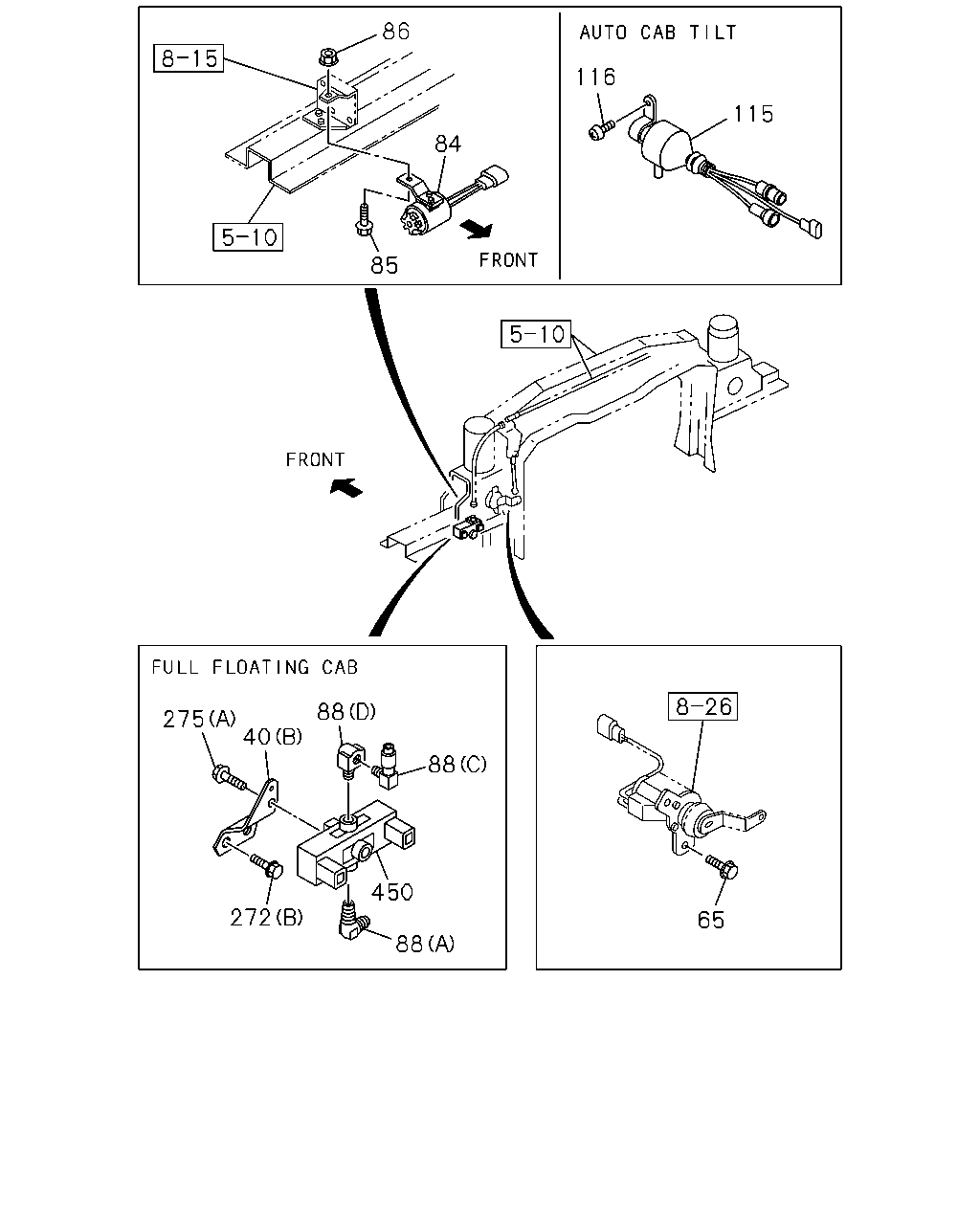

115 116 86 84 85 88 40 88 450 88 272 275 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0106-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-741-1	01	1	0106-0110
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (A)	1-82569-278-0	01	1	0106-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) M6X16 FLANGE	0-28080-616-0	02	1	0106-0512
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) M6X16 FLANGE	0-28050-616-0	02	1	0601-
84	BUZZER; POWER CAB TILT METRO	1-83460-096-2	01	1	0106-
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	0106-0201
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28080-816-0	01	1	0202-0512
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28050-816-0	01	1	0601-
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	0106-0602
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0106-
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> HITACHI	1-81171-087-0	01	1	0106-0210
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> NIKKO	1-81171-075-1	01	1	0211-
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X16 FLANGE	0-28080-816-0	02	1	0106-0512
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X16 FLANGE	0-28050-816-0	02	1	0601-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	0106-0201
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28681-020-0	02	1	0202-0512
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28651-020-0	02	1	0601-
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X25 FLANGE	0-28680-825-0	02	1	0106-0108
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0106-
275	BOLT; BRKT (B) M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
275	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
275	BOLT; BRKT (B) M10X25 FLANGE	0-28681-025-0	01	1	0106-0512
275	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0106-

714 272 261 34 34 41 40 33 34 34 261 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM)	1-82563-871-2	01	1	0106-0108
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0106-0108
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0106-0108
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0106-0108
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM) (A) M8X20 FLANGE	0-28680-820-0	02	1	0106-0108
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM) (B) M8X30 FLANGE	0-28680-830-0	02	1	0106-0108
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0106-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-741-1	01	1	0106-0110
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (A)	1-82569-278-0	01	1	0106-
41	NUT; BRKT,MAG VLV PTO ZF TRANS RR(BDM) M8 FLANGE	0-91150-108-0	02	1	0106-0108
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	0106-0108
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0106-0108
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	0106-0201
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28681-020-0	02	1	0202-0512
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28651-020-0	02	1	0601-
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X25 FLANGE	0-28680-825-0	02	1	0106-0108
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S151 OD(Y2N)	1-82563-871-2	01	1	0106-0108

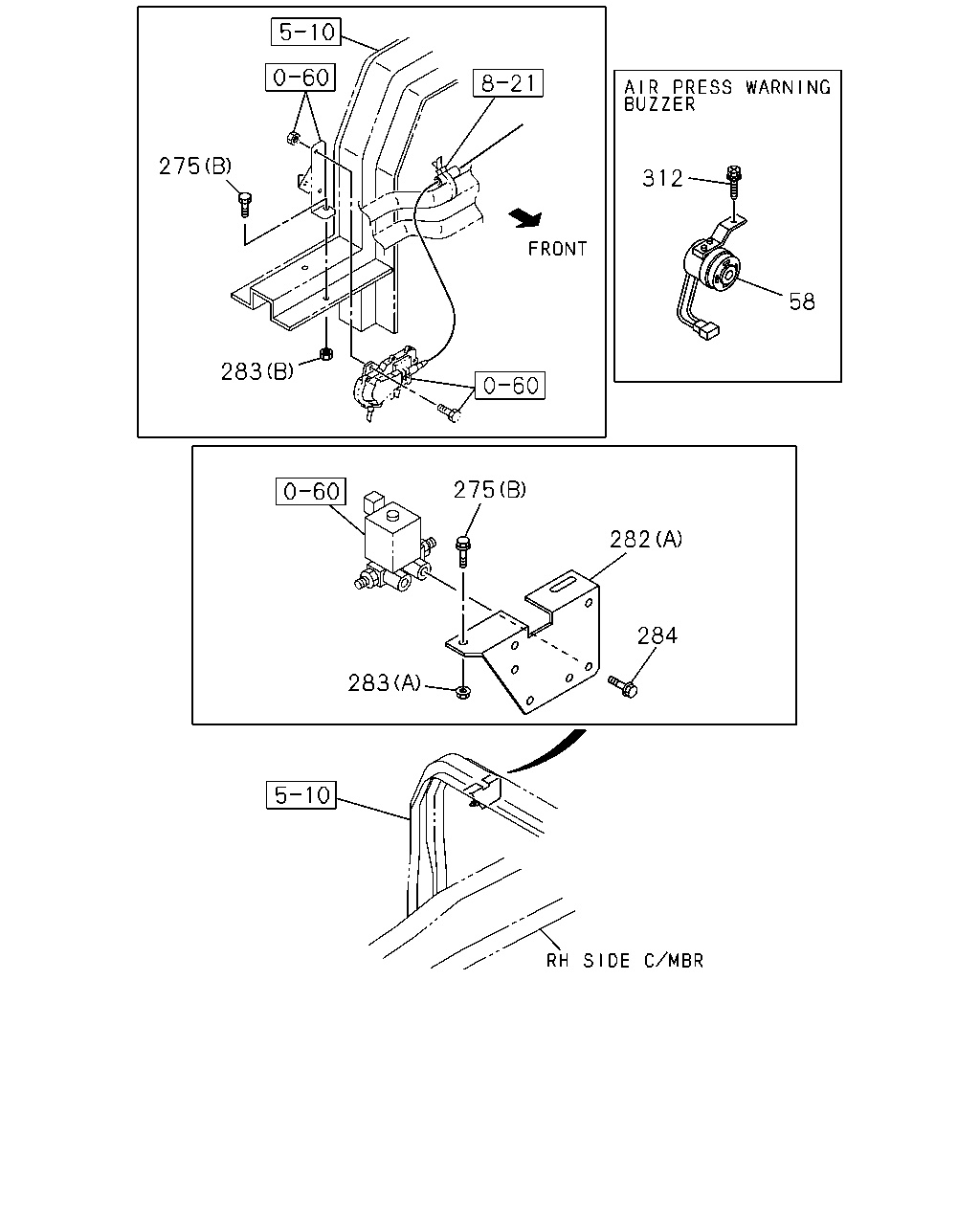

283 284 282 275 283 275 312 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	BUZZER; AIR PRESSURE WARNING METRO	1-83460-074-1	01	1	0106-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0106-
275	BOLT; BRKT (B) M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
275	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
275	BOLT; BRKT (B) M10X25 FLANGE	0-28681-025-0	01	1	0106-0512
275	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-741-2	01	1	0106-
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	0106-
283	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	01	1	0106-0602
283	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0603-
283	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0106-0602
283	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	0603-
284	BOLT; MAG VLV M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
284	BOLT; MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0601-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0106-0305
