◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11534 - CYJ RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#115045) — 161 parça
çizim 336571
130 281 185 249 130 185 249 185 281 130 249 281 185 130
BalonParca AdiParca NoAdetTipApplied Date
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 1303-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-919-3 01 1 1303-1303
130 PANEL; SHUTTER NOISE
(C) 		8-98125-820-0 01 1 1304-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 1303-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1303-
130 PANEL; SHUTTER NOISE
(D) 		1-79947-082-0 01 1 1303-1303
130 PANEL; SHUTTER NOISE
(D) 		8-98167-256-0 01 1 1304-
130 PANEL; SHUTTER NOISE
(A) 		8-98240-672-0 01 1 1303-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 1303-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1303-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 1303-1303
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 25 1 1304-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 14 1 1303-1303
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1303-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 1303-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1303-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 1303-1303
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1304-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1303-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1303-
281 INSULATOR; NOISE
(D) 		1-71907-742-0 01 1 1304-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 1303-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 1303-
281 INSULATOR; NOISE
(B) 		1-73237-445-4 01 1 1303-
281 INSULATOR; NOISE
(C) 		8-98227-396-0 01 1 1303-
çizim 336572
74 194 145 104 194 74 195 104 104 74 94 145 194 104 74 195
BalonParca AdiParca NoAdetTipApplied Date
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 1303-
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 06 1 1303-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 1303-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 02 1 1303-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X20 FLANGE 		0-28650-820-0 04 1 1303-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) M8X25 FLANGE 		0-28650-825-0 02 1 1303-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 1303-
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 1303-
145 NUT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 04 1 1303-
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-22159-373-0 02 1 1303-
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-22159-374-0 01 1 1303-
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-22159-375-0 01 1 1303-
195 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-22119-543-1 01 1 1303-
195 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-22119-545-0 01 1 1303-

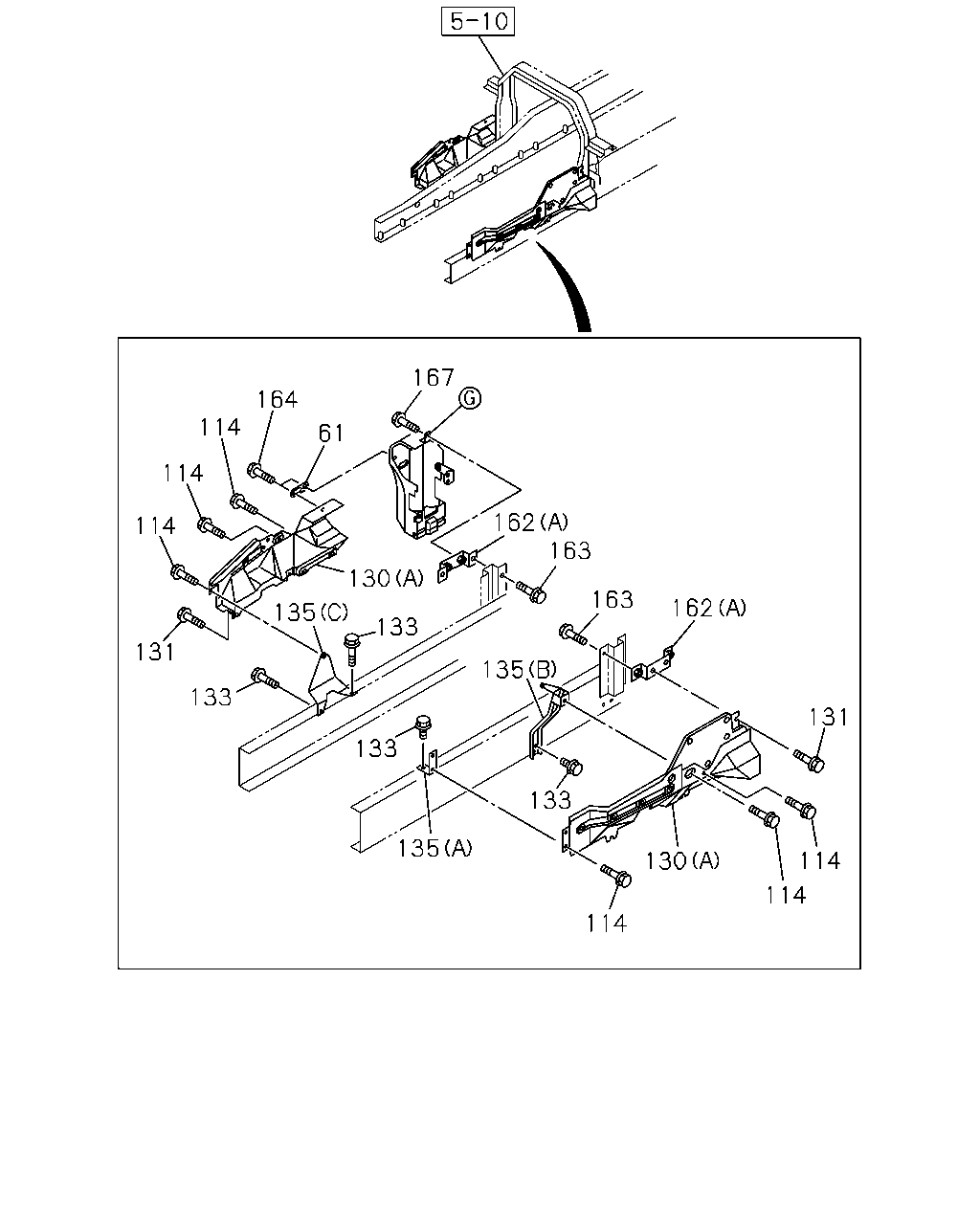

çizim 336578
114 114 131 130 114 162 163 135 133 163 162 135 133 133 130 167 61 164 114 114 114 131 133 135
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER 8-98039-501-1 01 1 1303-
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 1303-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 1303-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 1303-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-919-3 01 1 1303-1303
130 PANEL; SHUTTER NOISE
(C) 		8-98125-820-0 01 1 1304-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 1303-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1303-
130 PANEL; SHUTTER NOISE
(D) 		1-79947-082-0 01 1 1303-1303
130 PANEL; SHUTTER NOISE
(D) 		8-98167-256-0 01 1 1304-
130 PANEL; SHUTTER NOISE
(A) 		8-98240-672-0 01 1 1303-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 1303-
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 1303-
133 BOLT; FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 1303-
133 BOLT; FRAME
M10X35 FLANGE 		0-28651-035-0 01 1 1303-
133 BOLT; FRAME
M14X45 FLANGE 		0-28851-445-0 01 1 1303-
135 BRACKET; SIDE PANEL
(B) 		8-98127-905-0 01 1 1303-
135 BRACKET; SIDE PANEL
(C) 		8-98216-394-1 01 1 1303-
135 BRACKET; SIDE PANEL
(A) 		8-98225-728-0 01 1 1303-
162 BRACKET
(A) 		1-53441-520-0 02 1 1303-
162 BRACKET
(B) 		1-53441-552-1 01 1 1303-
162 BRACKET
(C) 		1-71907-815-0 01 1 1303-
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1303-
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28650-820-0 02 1 1303-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 04 1 1303-
çizim 336580
130 130 73 162 160 122 167 167 160 122
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1303-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1303-
122 BOLT
M8X30 FLANGE 		0-28650-830-0 04 1 1303-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 1303-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-919-3 01 1 1303-1303
130 PANEL; SHUTTER NOISE
(C) 		8-98125-820-0 01 1 1304-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 1303-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1303-
130 PANEL; SHUTTER NOISE
(D) 		1-79947-082-0 01 1 1303-1303
130 PANEL; SHUTTER NOISE
(D) 		8-98167-256-0 01 1 1304-
130 PANEL; SHUTTER NOISE
(A) 		8-98240-672-0 01 1 1303-
160 COVER ASM; EXH
(A) 		1-79931-418-1 01 1 1303-
160 COVER ASM; EXH
(B) 		8-98046-699-0 01 1 1303-
162 BRACKET
(A) 		1-53441-520-0 02 1 1303-
162 BRACKET
(B) 		1-53441-552-1 01 1 1303-
162 BRACKET
(C) 		1-71907-815-0 01 1 1303-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 04 1 1303-

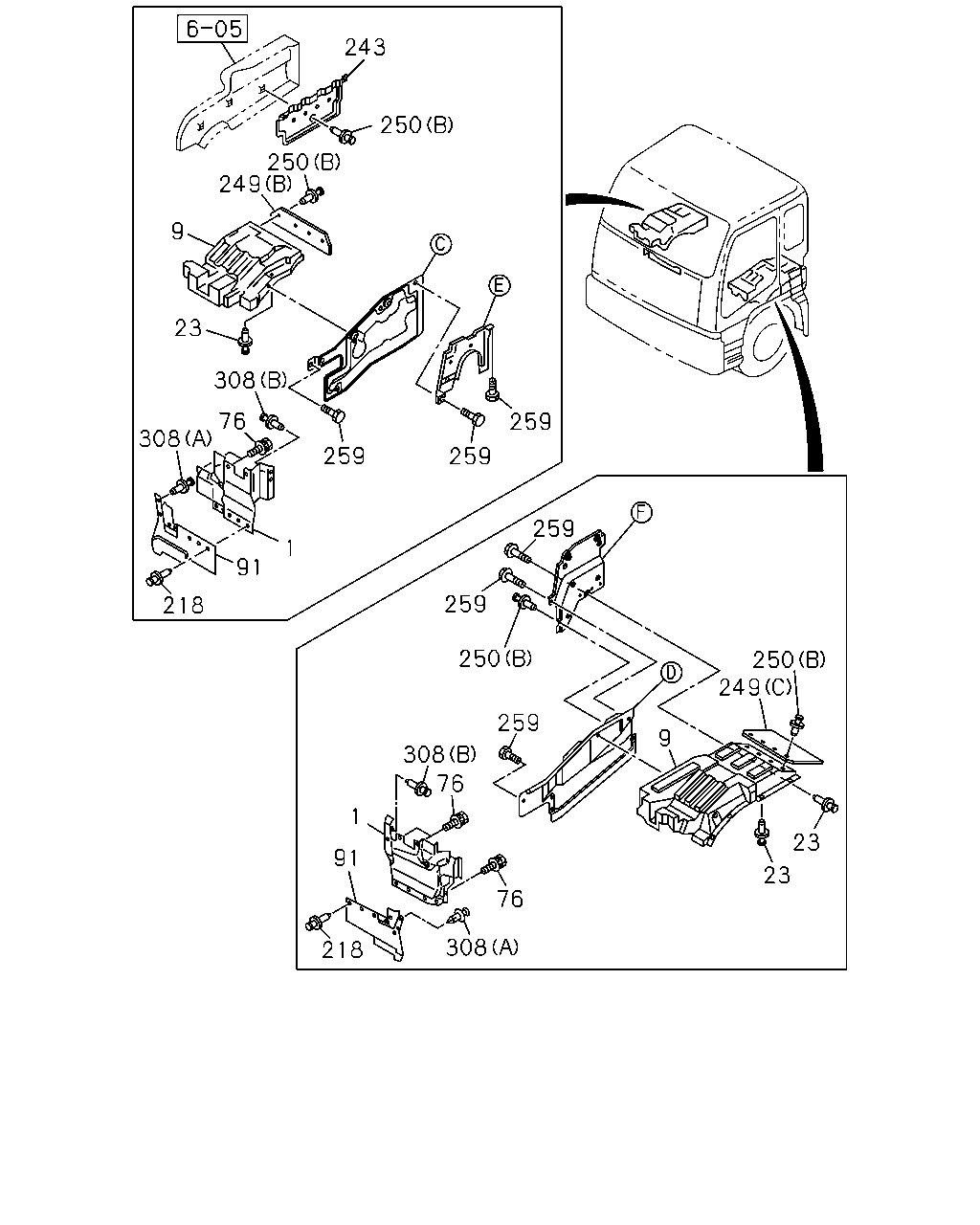

çizim 336653
250 249 250 243 23 9 308 259 259 259 259 259 250 249 23 23 9 259 250 308 1 76 91 218 308 76 91 218 1 308 76
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-894-6 01 1 1303-
1 GUARD; MUD,FRT 1-79937-895-5 01 1 1303-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 1303-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 1303-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 1303-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1303-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1303-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1303-
91 COVER; MUD,FRT 8-98134-825-2 01 1 1303-
91 COVER; MUD,FRT 8-98134-826-2 01 1 1303-
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1303-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 1303-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1303-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 1303-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1303-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 1303-1303
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1304-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1303-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1303-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1303-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1303-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 1303-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 1303-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 1303-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 1303-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 1303-

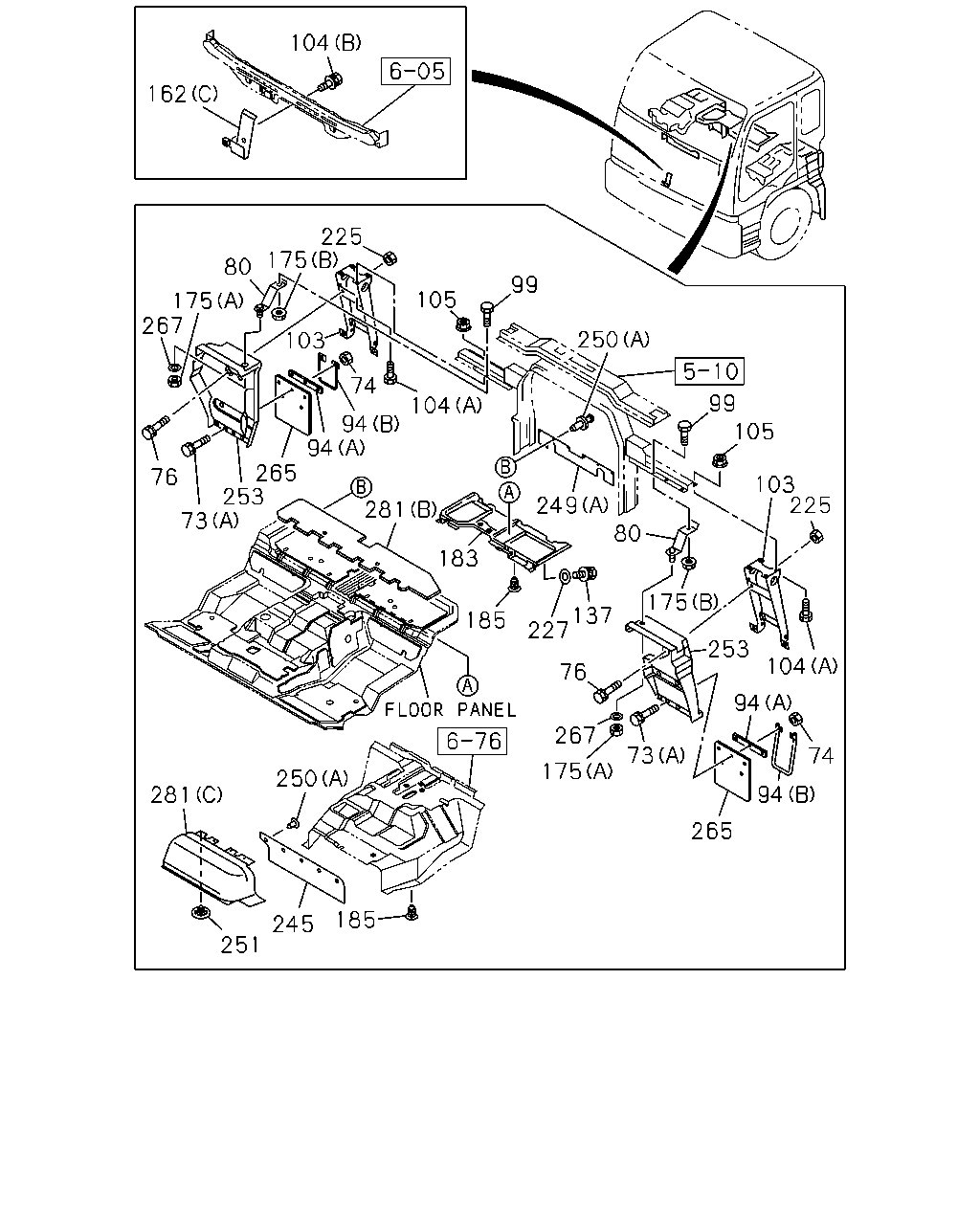

çizim 336875
162 104 225 175 80 175 267 103 105 99 250 99 105 103 225 104 74 94 253 94 175 265 73 175 267 76 80 137 227 249 185 185 245 251 281 250 183 281 94 74 94 265 253 73 76 104
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1303-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1303-
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 1303-
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 06 1 1303-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1303-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1303-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1303-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 1303-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 1303-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 02 1 1303-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 1303-
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 02 1 1303-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-892-0 02 1 1503-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X20 FLANGE 		0-28650-820-0 04 1 1303-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) M8X25 FLANGE 		0-28650-825-0 02 1 1303-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 1303-
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 1303-
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 1303-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1303-
162 BRACKET
(A) 		1-53441-520-0 02 1 1303-
162 BRACKET
(B) 		1-53441-552-1 01 1 1303-
162 BRACKET
(C) 		1-71907-815-0 01 1 1303-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 1303-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 1303-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 1303-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 1303-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1303-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 1303-1303
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 25 1 1304-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 14 1 1303-1303
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 1303-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 1303-
245 RUBBER; SHUTTER,RAD 8-98227-395-0 01 1 1303-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1303-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 1303-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1303-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 1303-1303
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1304-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1303-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1303-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1303-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1303-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 1303-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 1303-
251 CLIP; NOISE INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 04 1 1303-
253 GUARD; MUD 8-98134-759-0 01 1 1303-
253 GUARD; MUD 8-98134-766-1 01 1 1303-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 1303-
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 1303-
281 INSULATOR; NOISE
(D) 		1-71907-742-0 01 1 1304-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 1303-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 1303-
281 INSULATOR; NOISE
(B) 		1-73237-445-4 01 1 1303-
281 INSULATOR; NOISE
(C) 		8-98227-396-0 01 1 1303-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
