Isuzu WW
▶
TRUCKS
▶
EXR
▶
10863 - EXR RHD FUEL TANK 200L+200L
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#11504) — 57 parça
◀
[826A] INST PANEL SIDE (15 parça)
[826A] SEAT SIDE (6 parça)
[826A] OTHER PARTS (9 parça)
[826A] FRAME SIDE NO.1 (16 parça)
[826A] FRAME SIDE NO.2 (11 parça)
▶

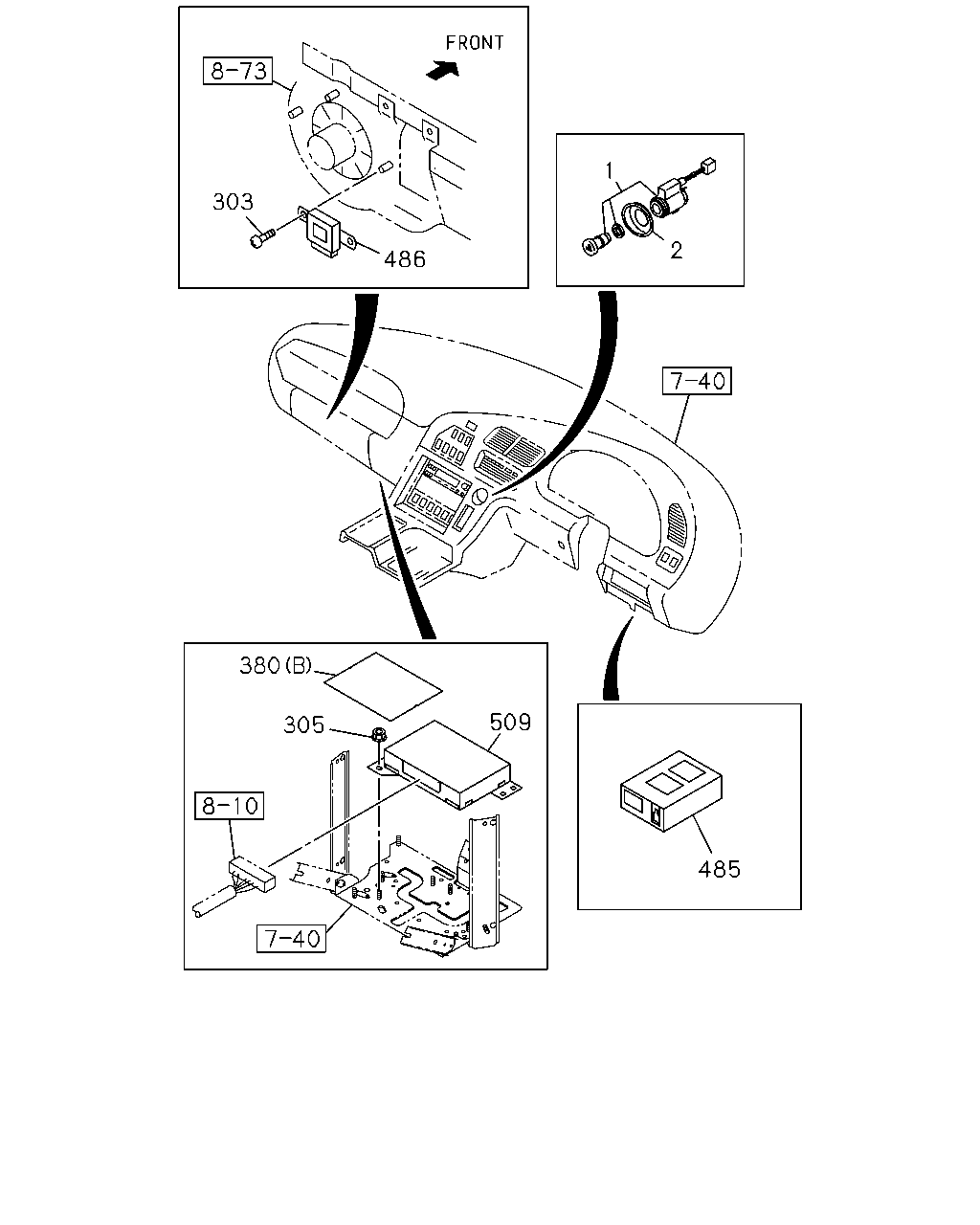

1
2
486
303
305
380
509
485
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
8-97064-970-1
01
1
0106-0108
1
LIGHTER; CIGAR
8-97320-325-0
01
1
0109-
2
BEZEL; CIGAR LIGHTER
1-73998-883-2
01
1
0106-
303
SCREW; CONT UNIT
MIR STAY O/S W/REMOTE<TBA> M5X14
8-94279-325-0
01
1
0106-
305
NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE
0-91150-106-0
02
1
0106-0602
305
NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE
0-91180-106-0
02
1
0603-
380
SEAL
FULL FLOATING CAB(W16) (B) 450X350
1-76770-008-0
01
1
0212-
380
SEAL
(A) OD=25 BLACK
1-76798-019-0
02
1
0106-
380
SEAL
EXC. CENTER SEAT DELETE(SP9) (A) OD=25 BLACK
1-76798-019-0
04
1
0106-
380
SEAL
EXC. DELUXE CAB(W14) (A) OD=25 BLACK
1-76798-019-0
01
1
0106-
485
CONTROL UNIT; SPEED SENSOR
1-80190-038-1
01
1
0106-0402
485
CONTROL UNIT; SPEED SENSOR
1-80190-149-0
01
1
0403-0410
485
CONTROL UNIT; SPEED SENSOR
1-80190-158-0
01
1
0411-
486
CONTROL UNIT; MIRROR
MIR STAY O/S W/REMOTE<TBA>
1-82540-046-0
01
1
0106-
509
CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16)
1-80150-042-1
01
1
0106-

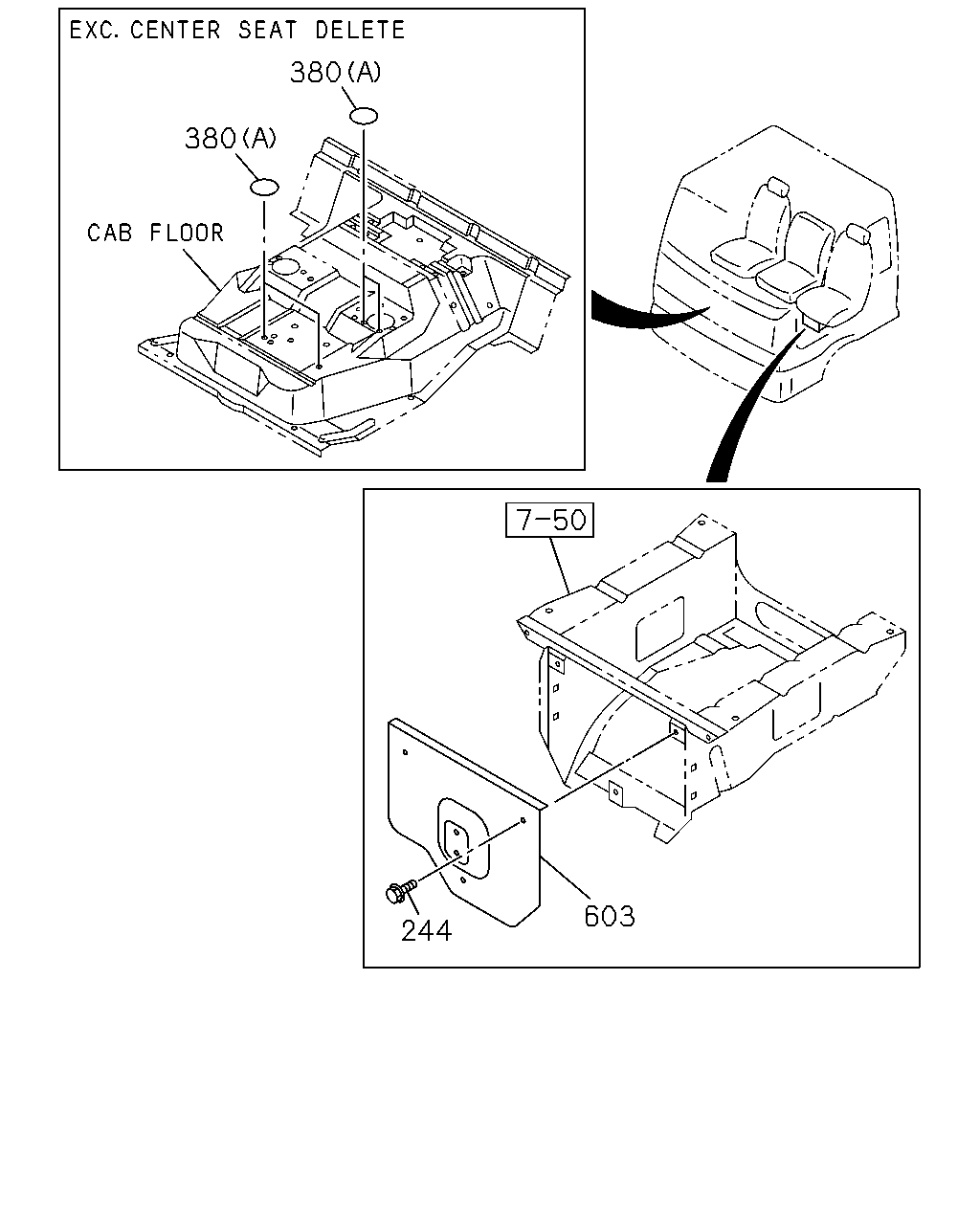

380
380
244
603
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
244
BOLT; COVER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
0106-
380
SEAL
FULL FLOATING CAB(W16) (B) 450X350
1-76770-008-0
01
1
0212-
380
SEAL
(A) OD=25 BLACK
1-76798-019-0
02
1
0106-
380
SEAL
EXC. CENTER SEAT DELETE(SP9) (A) OD=25 BLACK
1-76798-019-0
04
1
0106-
380
SEAL
EXC. DELUXE CAB(W14) (A) OD=25 BLACK
1-76798-019-0
01
1
0106-
603
COVER; CONT UNIT,SEAT STAND
1-75557-489-1
01
1
0106-

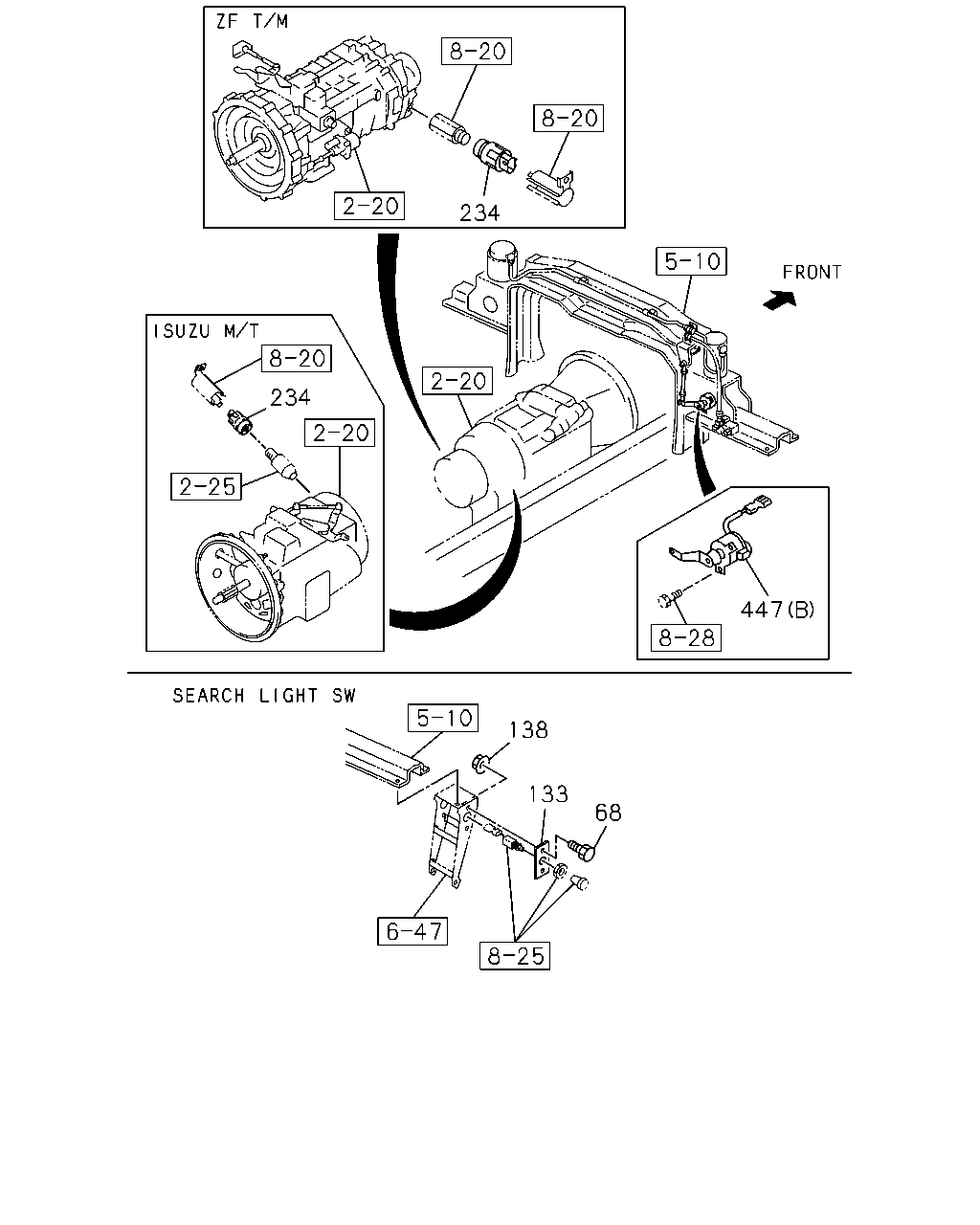

234
234
447
138
133
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
68
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
02
1
0106-0512
68
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
02
1
0601-
133
BRACKET; SWITCH
1-82699-874-0
01
1
0106-
138
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0106-0602
138
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
234
SENSOR; VEHICLE SPD
1-80240-001-1
01
1
0106-0202
234
SENSOR; VEHICLE SPD
25 PULSE ALUMINUM
8-97328-058-0
01
1
0203-
447
SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A)
1-80250-010-1
01
1
0106-
447
SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B)
1-80250-011-1
01
1
0106-

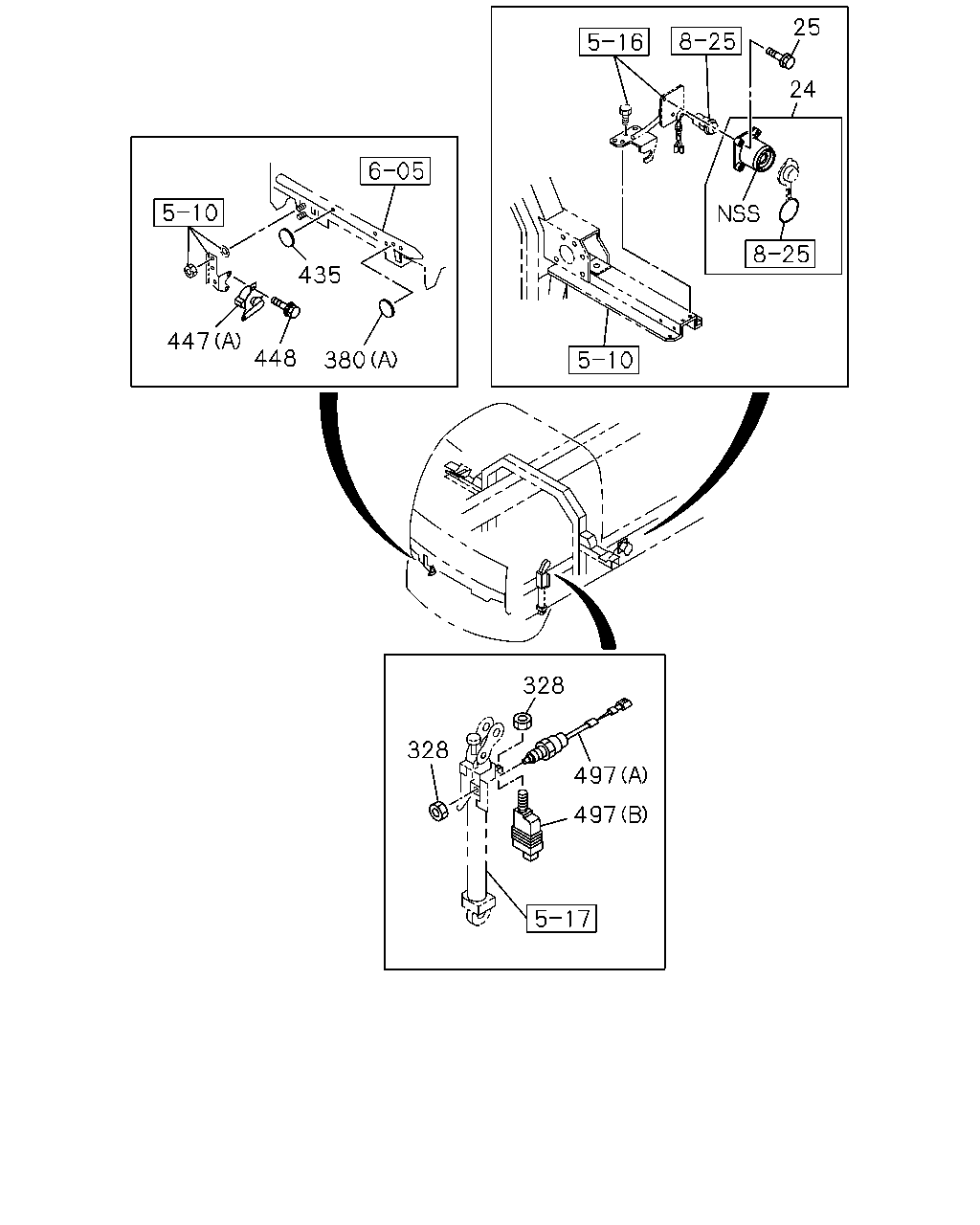

447
448
435
25
24
328
497
497
328
380
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BOX; SW,CAB TILT
AUTO CAB TILT<WV2>
1-82389-007-1
01
1
0106-
25
BOLT; SW BOX
AUTO CAB TILT<WV2> M6X16 FLANGE
0-28080-616-0
02
1
0106-0512
25
BOLT; SW BOX
AUTO CAB TILT<WV2> M6X16 FLANGE
0-28050-616-0
02
1
0601-
328
NUT
M16
9-99111-416-0
02
1
0106-0512
328
NUT
M16
0-91111-516-0
02
1
0601-
380
SEAL
FULL FLOATING CAB(W16) (B) 450X350
1-76770-008-0
01
1
0212-
380
SEAL
(A) OD=25 BLACK
1-76798-019-0
02
1
0106-
380
SEAL
EXC. CENTER SEAT DELETE(SP9) (A) OD=25 BLACK
1-76798-019-0
04
1
0106-
380
SEAL
EXC. DELUXE CAB(W14) (A) OD=25 BLACK
1-76798-019-0
01
1
0106-
435
GROMMET
OD=25 BLACK
1-76798-019-0
03
1
0106-
447
SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A)
1-80250-010-1
01
1
0106-
447
SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B)
1-80250-011-1
01
1
0106-
448
BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
0106-0407
448
BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0408-
497
SWITCH; CAB TILT
(A) STAMP NC
1-82380-125-1
01
1
0106-
497
SWITCH; CAB TILT
(B)
1-82380-128-1
01
1
0106-
40
38
39
491
483
380
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
38
BRACKET; SW,STARTER SUB
1-82699-741-0
01
1
0106-
39
BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE
0-28680-820-0
02
1
0106-0512
39
BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE
0-28650-820-0
02
1
0601-
40
NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE
0-91150-108-0
02
1
0106-0602
40
NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE
0-91180-108-0
02
1
0603-
380
SEAL
FULL FLOATING CAB(W16) (B) 450X350
1-76770-008-0
01
1
0212-
380
SEAL
(A) OD=25 BLACK
1-76798-019-0
02
1
0106-
380
SEAL
EXC. CENTER SEAT DELETE(SP9) (A) OD=25 BLACK
1-76798-019-0
04
1
0106-
380
SEAL
EXC. DELUXE CAB(W14) (A) OD=25 BLACK
1-76798-019-0
01
1
0106-
483
SWITCH
DELUXE CAB(W14)
1-82440-118-0
01
1
0106-
491
PLUG; HOLE,CONT UNIT
OD=54.5
1-73907-309-0
01
1
0106-
