7-10 — CAUTION PLATE AND LABEL (#115030) — 31 parça

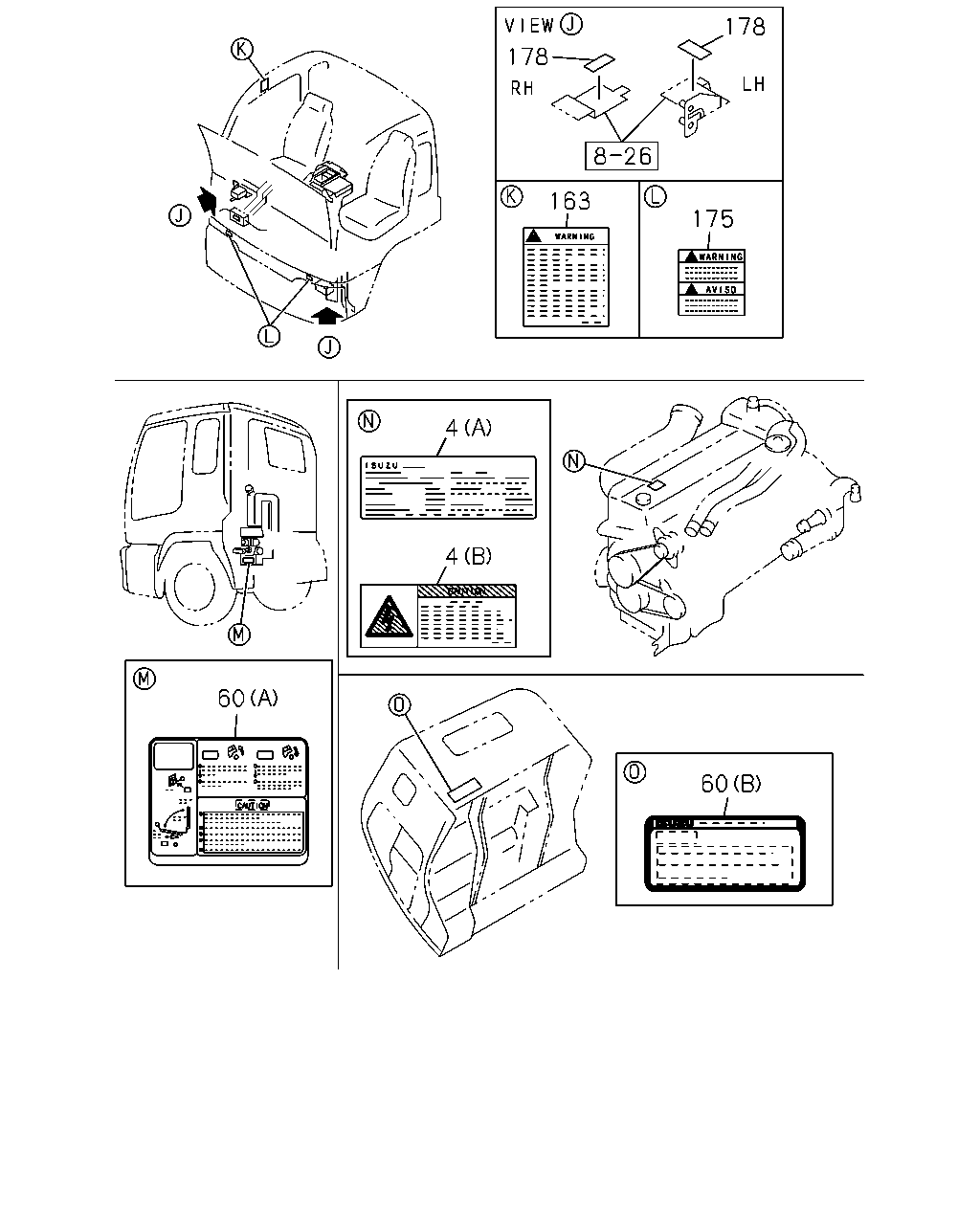

çizim 336633
178 178 163 175 4 4 60 60
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
(A) 		1-85875-350-2 01 1 1303-
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 1303-
60 PLATE; CAUTION,CAB TILT
(A) 		8-98174-581-0 01 1 1303-
60 PLATE; CAUTION,CAB TILT
(B) 		8-98174-582-0 01 1 1303-
163 PLATE; NAME,AIR BAG 1-85878-485-0 01 1 1303-
175 LABEL; STRG,AIR BAG 1-85878-116-0 02 1 1303-
178 LABEL; SAFETY,DISCHARGE HEAD LAMP 1-85878-497-0 04 1 1303-1303

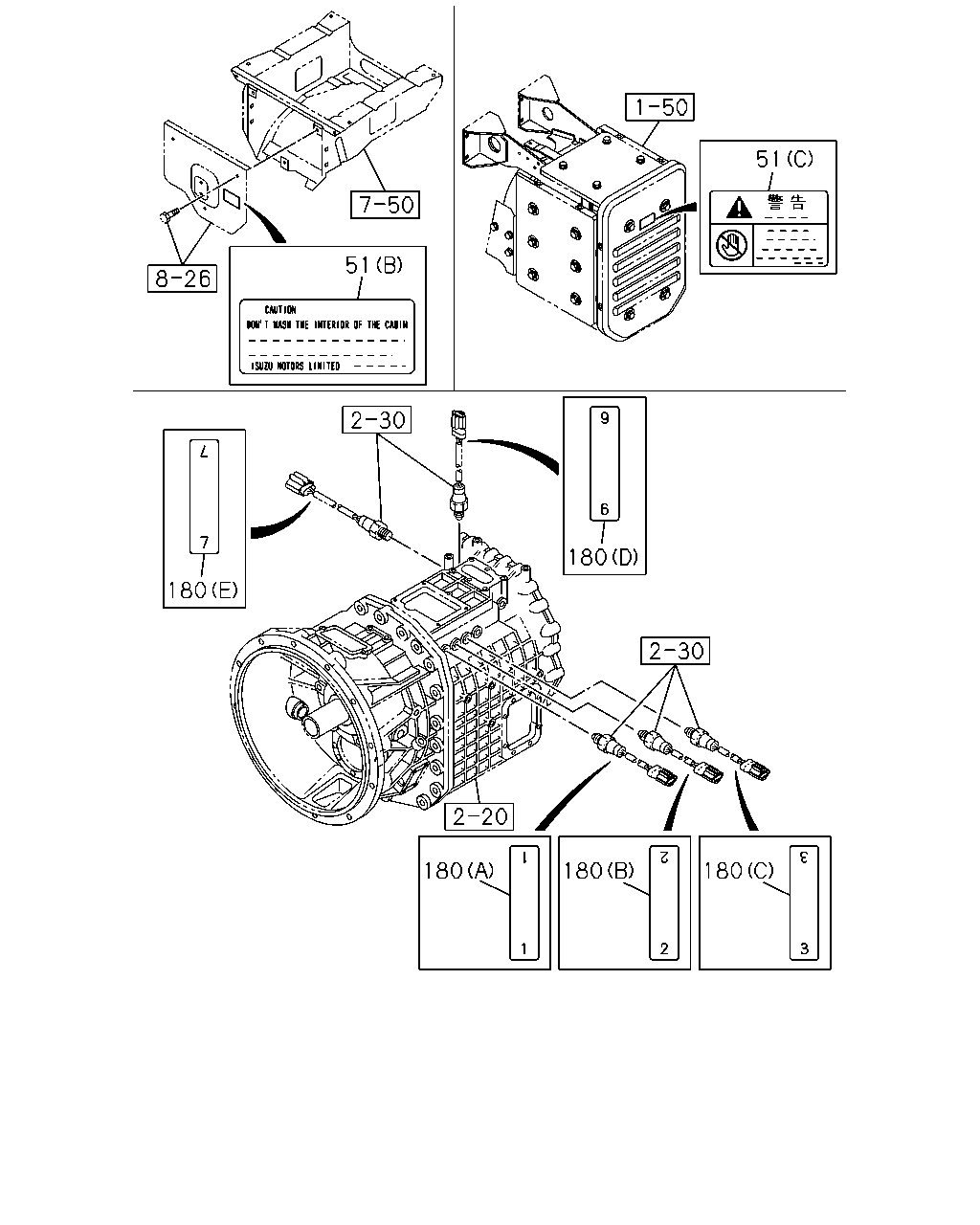

çizim 336645
51 180 180 180 180 180 51
BalonParca AdiParca NoAdetTipApplied Date
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 1303-
51 PLATE; CAUTION,WARNING
(C) 		1-85878-571-0 01 1 1303-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 1303-
180 PLATE; CAUTION,SWITCH
(A) 		1-85881-871-0 01 1 1303-
180 PLATE; CAUTION,SWITCH
(B) 		1-85881-872-0 01 1 1303-
180 PLATE; CAUTION,SWITCH
(C) 		1-85881-873-0 01 1 1303-
180 PLATE; CAUTION,SWITCH
(D) 		1-85881-880-0 01 1 1303-
180 PLATE; CAUTION,SWITCH
(E) 		1-85881-881-0 01 1 1303-

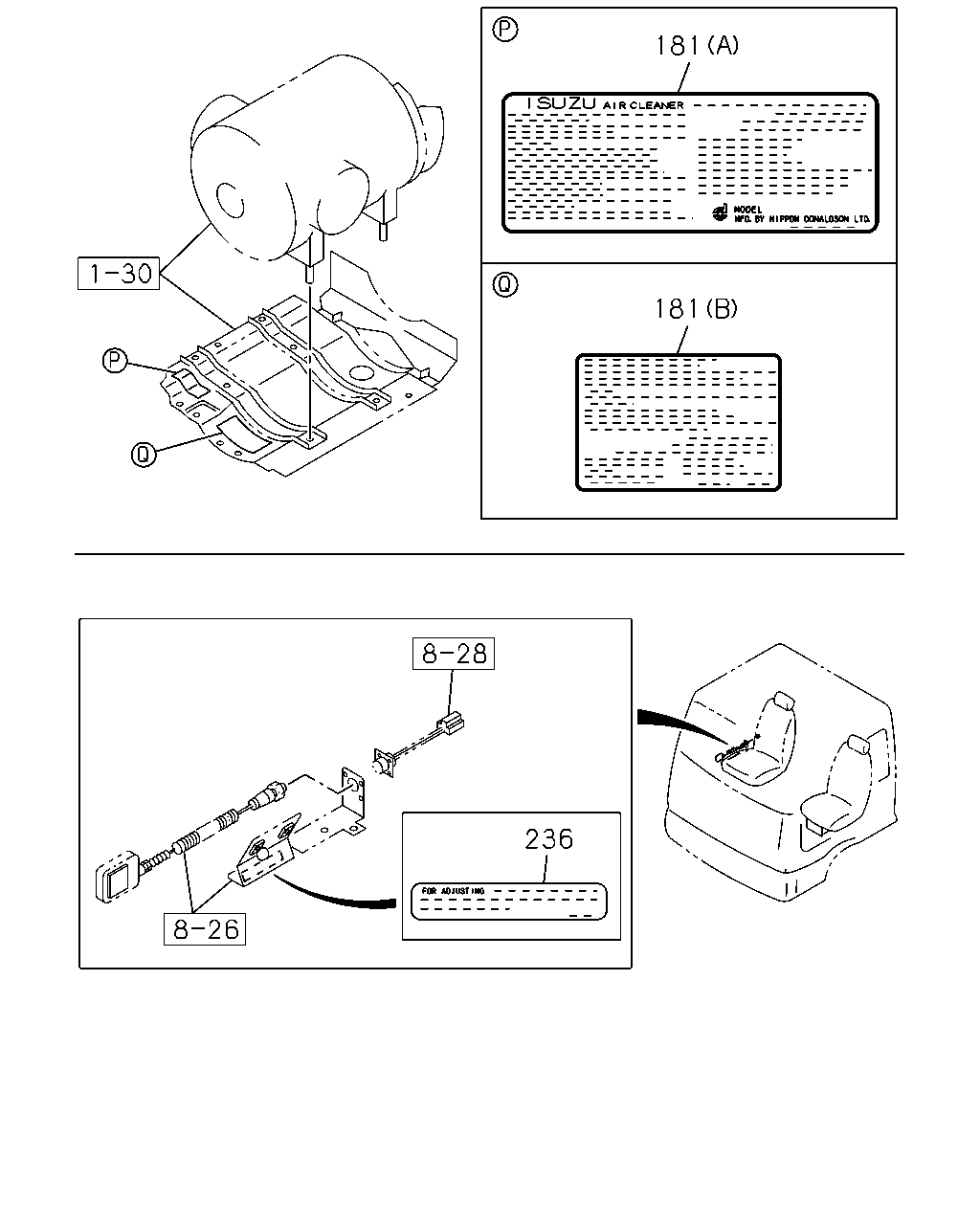

çizim 336656
181 181 236
BalonParca AdiParca NoAdetTipApplied Date
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 1303-
181 PLATE; CAUTION,AIR CLEANER
(B) 		1-85886-813-1 01 1 1303-
236 PLATE; CAUTION,AIR SUS 1-85881-823-0 01 1 1303-

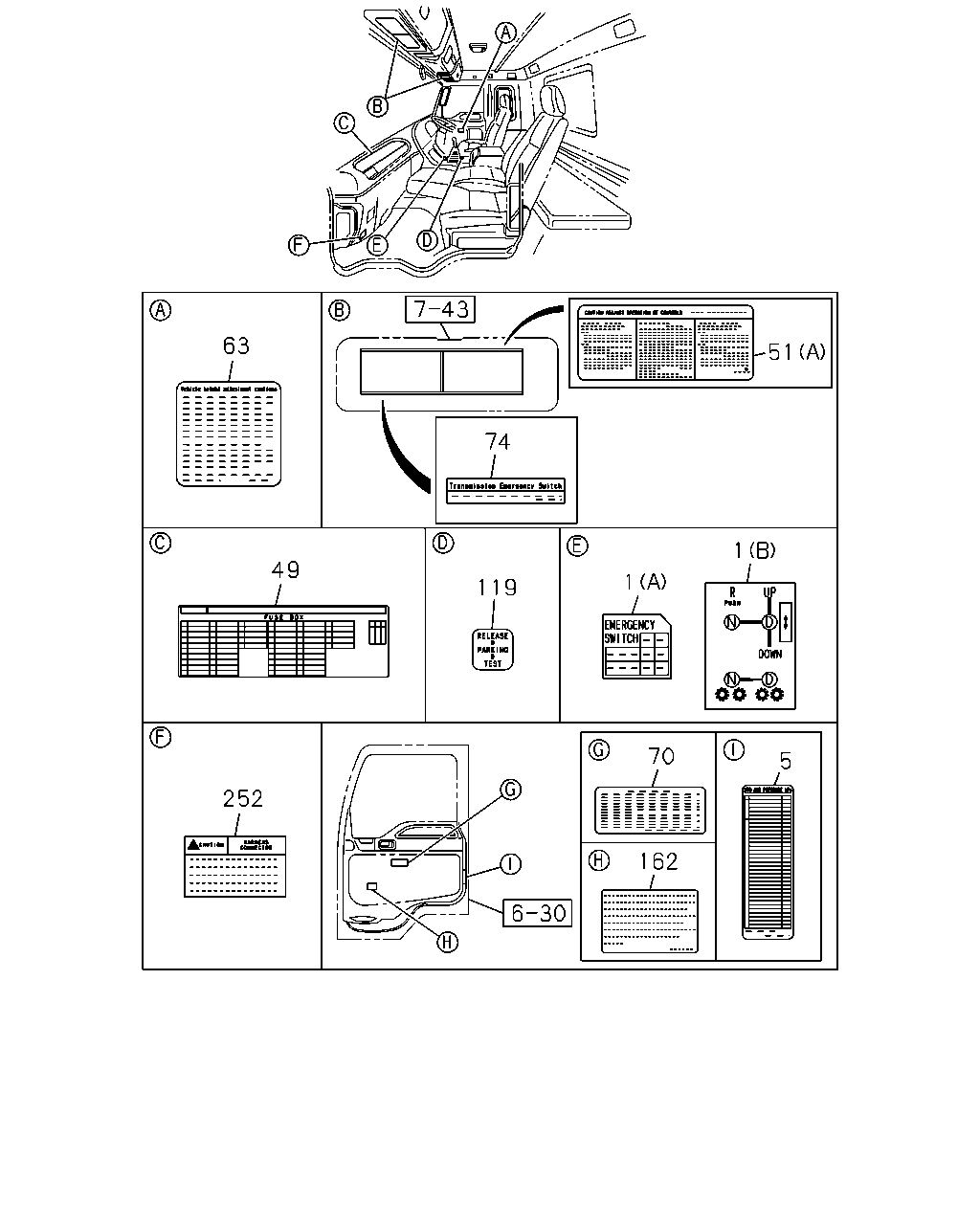

çizim 337038
51 74 63 49 119 1 1 5 70 162 252
BalonParca AdiParca NoAdetTipApplied Date
1 PLATE; CAUTION,SHIFT PATTERN
(B) 		1-85881-798-0 01 1 1303-
1 PLATE; CAUTION,SHIFT PATTERN
(A) 		1-85881-879-1 01 1 1303-
5 LABEL; TIRE AIR PRESSURE 1-85880-778-0 01 1 1303-
49 PLATE; CAUTION,FUSE BOX 8-97631-090-1 01 1 1303-
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 1303-
51 PLATE; CAUTION,WARNING
(C) 		1-85878-571-0 01 1 1303-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 1303-
63 PLATE; CAUTION,SEAT AIR 1-85881-861-0 01 1 1303-
70 PLATE; CAUTION,ACT 1-85878-484-0 01 1 1303-
74 PLATE; CAUTION,CHANGE LEV 1-85881-869-0 01 1 1303-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-791-0 01 1 1303-
162 PLATE; CAUTION,FUEL 8-97623-712-0 01 1 1303-
252 PLATE; CAUTION,HARNESS 1-85878-488-1 01 1 1303-
