5-17 — CYLINDER; CAB TILT (#115018) — 26 parça

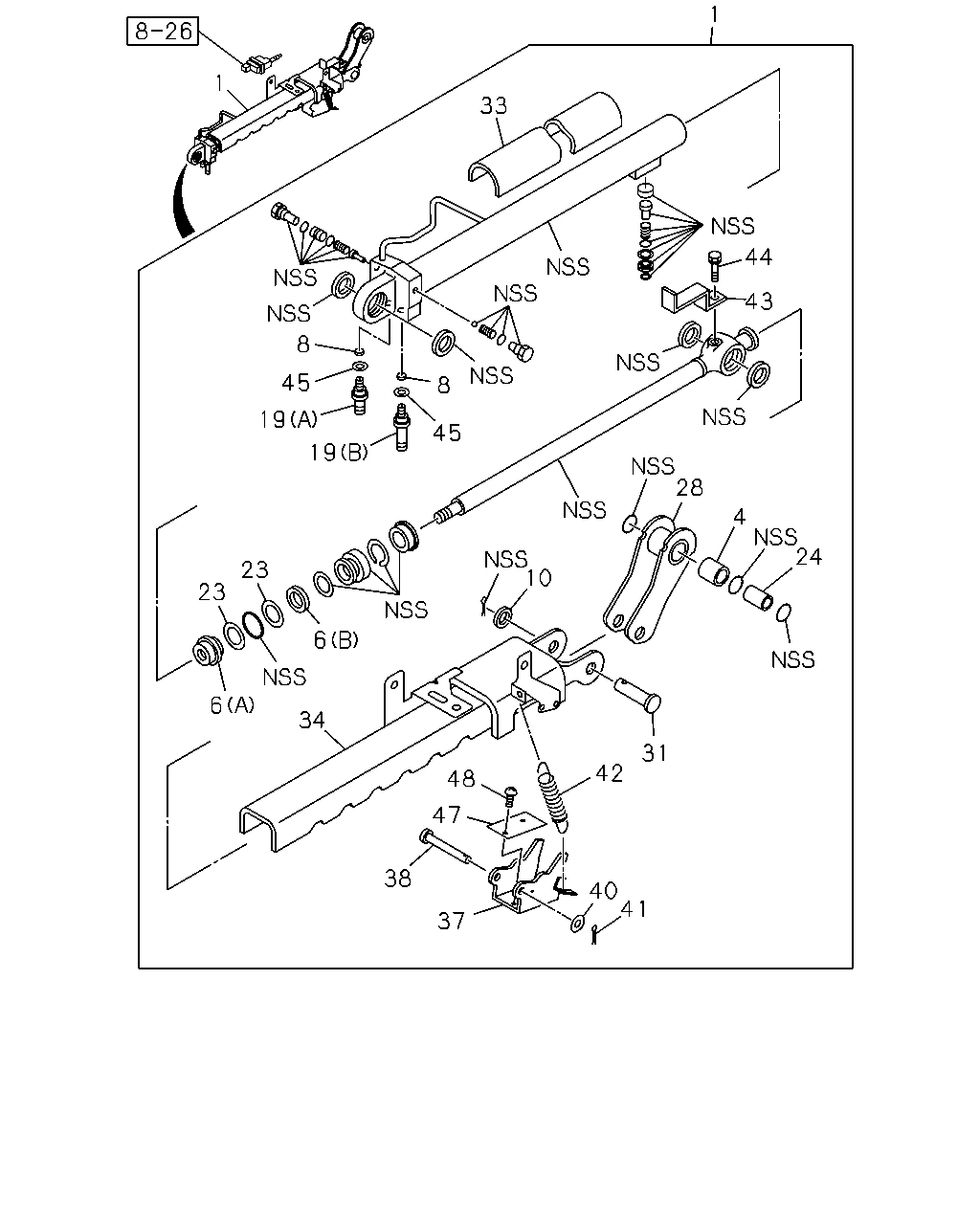

33 8 45 19 19 45 8 23 23 6 6 34 38 37 40 41 47 48 42 31 24 4 28 10 43 44 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CYLINDER; OIL,CAB TILT	1-53457-151-1	01	1	1303-
4	BUSHING; OIL CYL	1-53458-405-0	01	1	1303-
6	PISTON; OIL CYL (A)	8-98134-365-0	01	1	1303-
6	PISTON; OIL CYL (B)	8-98134-367-0	01	1	1303-
8	FILTER; OIL CYL	1-53458-102-0	02	1	1303-
10	WASHER; OIL CYL	1-53458-401-0	01	1	1303-
19	NIPPLE; OIL CYL (A)	1-53457-044-0	01	1	1303-
19	NIPPLE; OIL CYL (B)	1-53457-045-0	01	1	1303-
23	RING; SNAP	1-53457-048-0	02	1	1303-
24	COLLAR; LEVER	1-53458-398-0	01	1	1303-
28	LEVER; OIL CYL	1-53458-557-1	01	1	1303-
31	PIN; OIL CYL	1-53457-172-0	01	1	1303-
33	COVER; CYL	1-53458-556-0	01	1	1303-
34	STOPPER; OIL CYL	1-53458-555-0	01	1	1303-
37	LEVER; STOPPER	1-53457-170-0	01	1	1303-
38	PIN; STOPPER	1-53458-550-0	01	1	1303-
40	WASHER; STOPPER PIN	1-53458-045-0	01	1	1303-
41	PIN; SPLIT	1-53458-545-0	01	1	1303-
42	SPRING; LOCK LEVER	1-53457-168-0	01	1	1303-
43	PLATE; SW	1-53457-167-0	01	1	1303-
44	BOLT; SW PLATE M6X12	1-53458-542-0	01	1	1303-
45	GASKET; OIL CYL	1-53458-073-0	02	1	1303-
47	PLATE; THRUST,OIL CYL	1-53457-169-0	01	1	1303-
48	SCREW; OIL CYL M5X8	1-53458-005-0	02	1	1303-

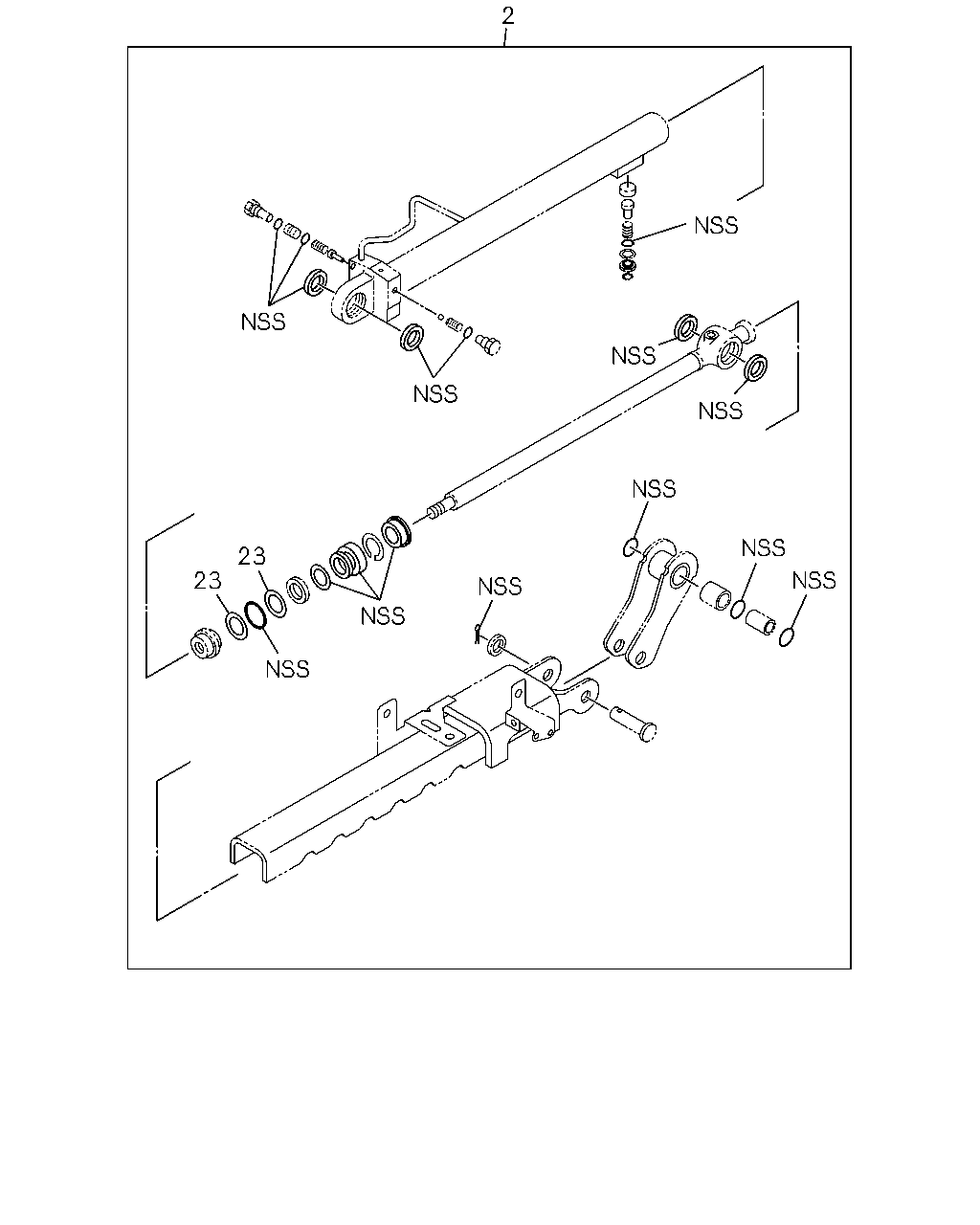

2 23 23

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	2	REPAIR KIT; OIL CYL	1-85579-068-0	01	1	1303-
	23	RING; SNAP	1-53457-048-0	02	1	1303-
