◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11501 - CYZ LHD EURO5 ▶ 5 - Frame, Cab Mounting ▶ 5-16 - OIL PUMP; CAB TILT ▶
5-16 — OIL PUMP; CAB TILT (#115017) — 148 parça

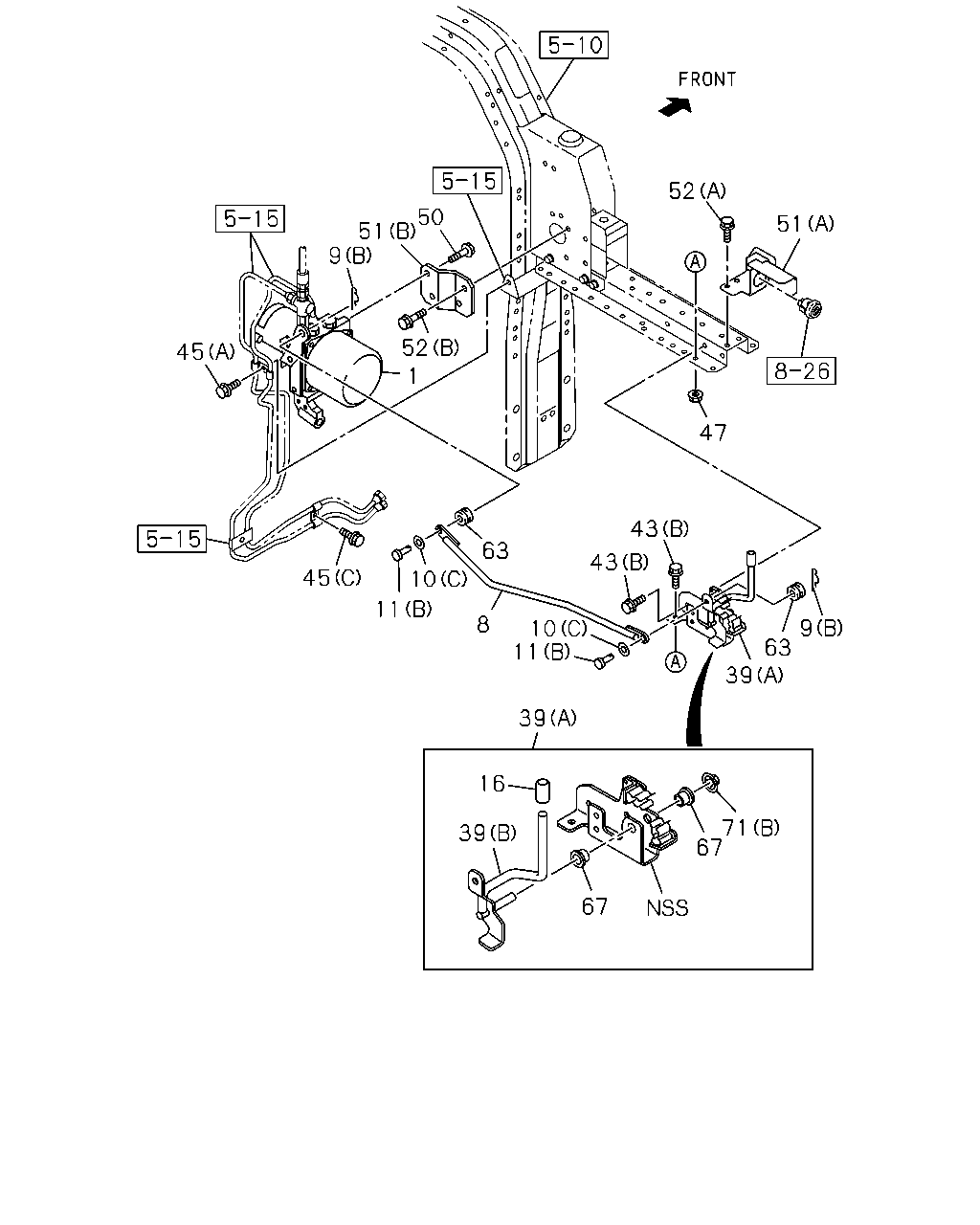

çizim 336509
51 9 50 52 45 1 11 8 10 11 63 10 43 39 9 47 43 39 16 39 67 67 52 71 51 45 63
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP; OIL,CAB TILT 8-98172-037-0 01 1 1303-1511 ●
1 PUMP; OIL,CAB TILT 8-98172-037-0 01 1 1512- ● ●
8 LINK; OIL PUMP 8-98198-747-2 01 1 1303-1511 ●
8 LINK; OIL PUMP 8-98198-747-2 01 1 1512- ● ●
9 PIN; OIL PUMP
(B) L=27.7 		1-09987-141-0 02 1 1303-1511 ●
9 PIN; OIL PUMP
(B) L=27.7 		1-09987-141-0 02 1 1512- ● ●
9 PIN; OIL PUMP
(C) 		1-53458-057-0 01 1 1303-1511 ●
9 PIN; OIL PUMP
(C) 		1-53458-057-0 01 1 1512- ● ●
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 1303-1511 ●
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 1512- ● ●
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		0-91610-708-0 02 1 1303-1511 ●
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		0-91610-708-0 02 1 1512- ● ●
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 1303-1511 ●
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 1512- ● ●
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 1303-1511 ●
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 1512- ● ●
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		0-82253-817-0 02 1 1303-1511 ●
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		0-82253-817-0 02 1 1512- ● ●
11 PIN; SPLIT,OIL PUMP
(A) 		1-53457-209-0 01 1 1303-1511 ●
11 PIN; SPLIT,OIL PUMP
(A) 		1-53457-209-0 01 1 1512- ● ●
16 CAP
ID=9.0 		8-94207-303-0 01 1 1303-1511 ●
16 CAP
ID=9.0 		8-94207-303-0 01 1 1512- ● ●
39 LEVER; OIL PUMP
(C) 		1-53458-723-0 01 1 1303-1511 ●
39 LEVER; OIL PUMP
(C) 		1-53458-723-0 01 1 1512- ● ●
39 LEVER; OIL PUMP
(A) 		8-98198-734-0 01 1 1303-1511 ●
39 LEVER; OIL PUMP
(A) 		8-98198-734-0 01 1 1512- ● ●
39 LEVER; OIL PUMP
(B) 		8-98210-574-0 01 1 1303-1511 ●
39 LEVER; OIL PUMP
(B) 		8-98210-574-0 01 1 1512- ● ●
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28050-820-0 02 1 1303-1511 ●
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28050-820-0 02 1 1512- ● ●
43 BOLT; LEVER
(A) M5X16 		1-53457-206-0 03 1 1303-1511 ●
43 BOLT; LEVER
(A) M5X16 		1-53457-206-0 03 1 1512- ● ●
45 BOLT; COVER
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1303-1511 ●
45 BOLT; COVER
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1512- ● ●
45 BOLT; COVER
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1303-1511 ●
45 BOLT; COVER
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1512- ● ●
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 1303-1511 ●
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 1512- ● ●
47 NUT; LEVER
M8 FLANGE 		0-91180-108-0 01 1 1303-1511 ●
47 NUT; LEVER
M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●
50 BOLT; OIL PUMP
M10X16 FLANGE 		0-28051-016-0 02 1 1303-1511 ●
50 BOLT; OIL PUMP
M10X16 FLANGE 		0-28051-016-0 02 1 1512- ● ●
51 BRACKET; OIL PUMP
(B) 		1-53458-666-0 01 1 1303-1511 ●
51 BRACKET; OIL PUMP
(B) 		1-53458-666-0 01 1 1512- ● ●
51 BRACKET; OIL PUMP
(A) 		8-98198-737-0 01 1 1303-1511 ●
51 BRACKET; OIL PUMP
(A) 		8-98198-737-0 01 1 1512- ● ●
52 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 1303-1511 ●
52 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 1512- ● ●
52 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 02 1 1303-1511 ●
52 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 02 1 1512- ● ●
63 GROMMET
ID=10 OD=23 T=8 		1-09983-010-0 02 1 1303-1511 ●
63 GROMMET
ID=10 OD=23 T=8 		1-09983-010-0 02 1 1512- ● ●
67 BUSHING
T=6 OD=17.5 		9-33659-249-0 02 1 1303-1511 ●
67 BUSHING
T=6 OD=17.5 		9-33659-249-0 02 1 1512- ● ●
71 NUT; PUSH
(A) 		1-53457-208-0 01 1 1303-1511 ●
71 NUT; PUSH
(A) 		1-53457-208-0 01 1 1512- ● ●
71 NUT; PUSH
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 1303-1511 ●
71 NUT; PUSH
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 1512- ● ●

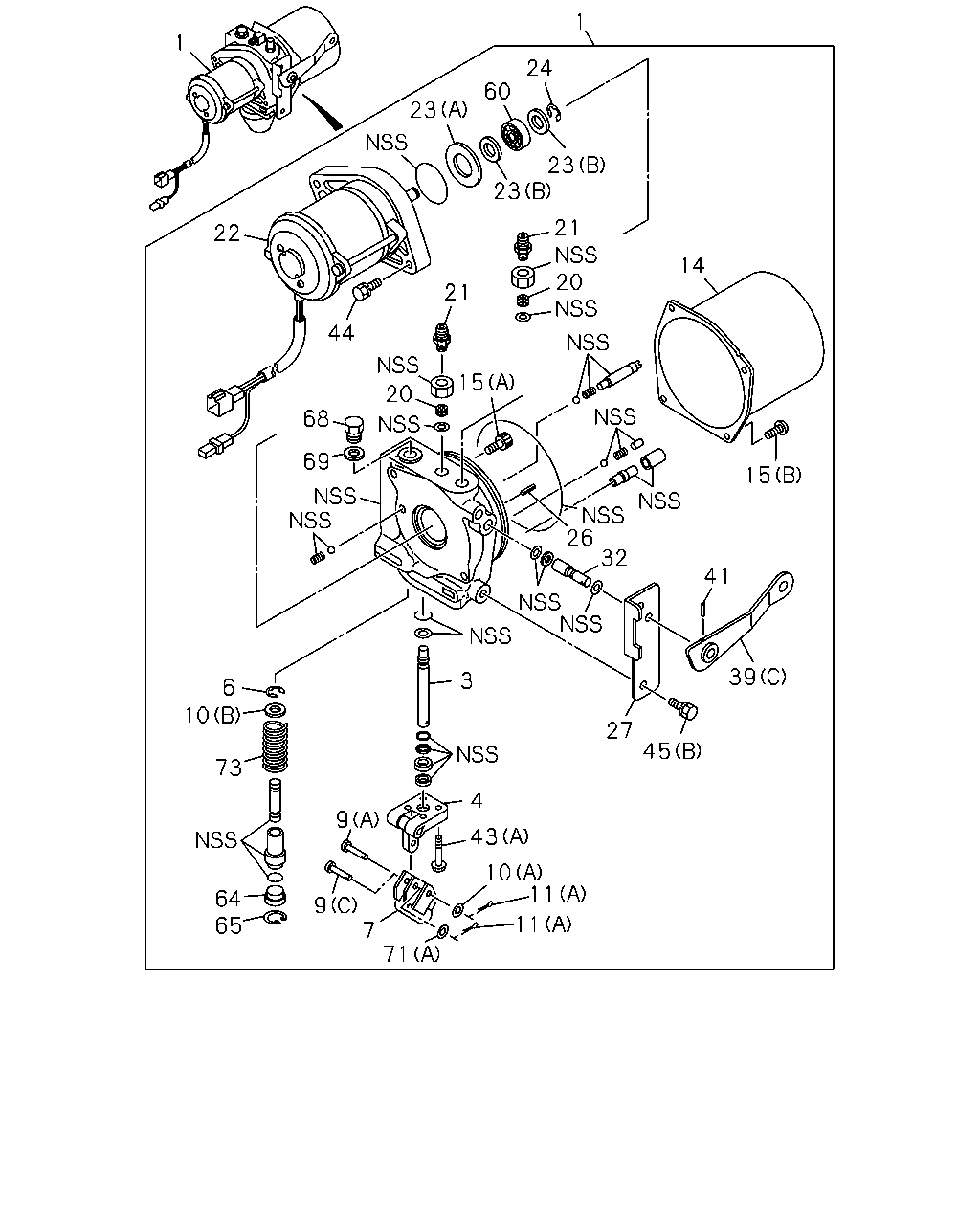

çizim 336912
1 24 60 23 1 22 44 21 23 23 14 15 41 39 45 27 3 4 43 10 11 7 11 9 9 65 73 64 6 10 69 68 20 15 20 21 26 32 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP; OIL,CAB TILT 8-98172-037-0 01 1 1303-1511 ●
1 PUMP; OIL,CAB TILT 8-98172-037-0 01 1 1512- ● ●
3 PISTON; MANUAL 1-53457-204-0 01 1 1303-1511 ●
3 PISTON; MANUAL 1-53457-204-0 01 1 1512- ● ●
4 BRACKET; OIL PUMP 1-53457-205-0 01 1 1303-1511 ●
4 BRACKET; OIL PUMP 1-53457-205-0 01 1 1512- ● ●
6 RING; SNAP 1-53458-411-0 01 1 1303-1511 ●
6 RING; SNAP 1-53458-411-0 01 1 1512- ● ●
7 SOCKET; OIL PUMP 1-53457-207-0 01 1 1303-1511 ●
7 SOCKET; OIL PUMP 1-53457-207-0 01 1 1512- ● ●
9 PIN; OIL PUMP
(B) L=27.7 		1-09987-141-0 02 1 1303-1511 ●
9 PIN; OIL PUMP
(B) L=27.7 		1-09987-141-0 02 1 1512- ● ●
9 PIN; OIL PUMP
(C) 		1-53458-057-0 01 1 1303-1511 ●
9 PIN; OIL PUMP
(C) 		1-53458-057-0 01 1 1512- ● ●
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 1303-1511 ●
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 1512- ● ●
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		0-91610-708-0 02 1 1303-1511 ●
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		0-91610-708-0 02 1 1512- ● ●
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 1303-1511 ●
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 1512- ● ●
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 1303-1511 ●
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 1512- ● ●
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		0-82253-817-0 02 1 1303-1511 ●
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		0-82253-817-0 02 1 1512- ● ●
11 PIN; SPLIT,OIL PUMP
(A) 		1-53457-209-0 01 1 1303-1511 ●
11 PIN; SPLIT,OIL PUMP
(A) 		1-53457-209-0 01 1 1512- ● ●
14 RESERVOIR; OIL PUMP 1-53458-432-0 01 1 1303-1511 ●
14 RESERVOIR; OIL PUMP 1-53458-432-0 01 1 1512- ● ●
15 BOLT; RESERVOIR
(B) M5X8 		1-53458-005-0 04 1 1303-1511 ●
15 BOLT; RESERVOIR
(B) M5X8 		1-53458-005-0 04 1 1512- ● ●
15 BOLT; RESERVOIR
(A) M5X8 		1-53458-433-0 02 1 1303-1511 ●
15 BOLT; RESERVOIR
(A) M5X8 		1-53458-433-0 02 1 1512- ● ●
20 FILTER; OIL PUMP 1-53457-081-0 02 1 1303-1511 ●
20 FILTER; OIL PUMP 1-53457-081-0 02 1 1512- ● ●
21 CONNECTOR; OIL PUMP
M12 		1-53458-941-0 02 1 1303-1511 ●
21 CONNECTOR; OIL PUMP
M12 		1-53458-941-0 02 1 1512- ● ●
22 MOTOR; OIL PUMP 1-53457-080-0 01 1 1303-1511 ●
22 MOTOR; OIL PUMP 1-53457-080-0 01 1 1512- ● ●
23 WASHER; MOTOR
(A) 		1-53458-018-0 01 1 1303-1511 ●
23 WASHER; MOTOR
(A) 		1-53458-018-0 01 1 1512- ● ●
23 WASHER; MOTOR
(B) 		1-53458-045-0 02 1 1303-1511 ●
23 WASHER; MOTOR
(B) 		1-53458-045-0 02 1 1512- ● ●
24 RING; SNAP,MOTOR 1-53458-044-0 01 1 1303-1511 ●
24 RING; SNAP,MOTOR 1-53458-044-0 01 1 1512- ● ●
26 PIN; SPR,OIL PUMP 1-53458-038-0 01 1 1303-1511 ●
26 PIN; SPR,OIL PUMP 1-53458-038-0 01 1 1512- ● ●
27 COVER; OIL PUMP 1-53458-725-0 01 1 1303-1511 ●
27 COVER; OIL PUMP 1-53458-725-0 01 1 1512- ● ●
32 VALVE; OIL PUMP 1-53458-569-0 01 1 1303-1511 ●
32 VALVE; OIL PUMP 1-53458-569-0 01 1 1512- ● ●
39 LEVER; OIL PUMP
(C) 		1-53458-723-0 01 1 1303-1511 ●
39 LEVER; OIL PUMP
(C) 		1-53458-723-0 01 1 1512- ● ●
39 LEVER; OIL PUMP
(A) 		8-98198-734-0 01 1 1303-1511 ●
39 LEVER; OIL PUMP
(A) 		8-98198-734-0 01 1 1512- ● ●
39 LEVER; OIL PUMP
(B) 		8-98210-574-0 01 1 1303-1511 ●
39 LEVER; OIL PUMP
(B) 		8-98210-574-0 01 1 1512- ● ●
41 PIN; SPR,LEVER 1-53458-019-0 01 1 1303-1511 ●
41 PIN; SPR,LEVER 1-53458-019-0 01 1 1512- ● ●
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28050-820-0 02 1 1303-1511 ●
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28050-820-0 02 1 1512- ● ●
43 BOLT; LEVER
(A) M5X16 		1-53457-206-0 03 1 1303-1511 ●
43 BOLT; LEVER
(A) M5X16 		1-53457-206-0 03 1 1512- ● ●
44 BOLT; MOTOR
M6X20 		1-53458-007-0 02 1 1303-1511 ●
44 BOLT; MOTOR
M6X20 		1-53458-007-0 02 1 1512- ● ●
45 BOLT; COVER
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1303-1511 ●
45 BOLT; COVER
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1512- ● ●
45 BOLT; COVER
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1303-1511 ●
45 BOLT; COVER
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1512- ● ●
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 1303-1511 ●
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 1512- ● ●
60 BEARING; OIL PUMP 1-53458-423-0 01 1 1303-1511 ●
60 BEARING; OIL PUMP 1-53458-423-0 01 1 1512- ● ●
64 SLEEVE; OIL PUMP 1-53458-572-0 01 1 1303-1511 ●
64 SLEEVE; OIL PUMP 1-53458-572-0 01 1 1512- ● ●
65 RING; SNAP,SLEEVE 1-53458-570-0 01 1 1303-1511 ●
65 RING; SNAP,SLEEVE 1-53458-570-0 01 1 1512- ● ●
68 PLUG; FILLER 1-53458-428-0 01 1 1303-1511 ●
68 PLUG; FILLER 1-53458-428-0 01 1 1512- ● ●
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 1303-1511 ●
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 1512- ● ●
71 NUT; PUSH
(A) 		1-53457-208-0 01 1 1303-1511 ●
71 NUT; PUSH
(A) 		1-53457-208-0 01 1 1512- ● ●
71 NUT; PUSH
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 1303-1511 ●
71 NUT; PUSH
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 1512- ● ●
73 SPRING; PISTON 1-53458-040-0 01 1 1303-1511 ●
73 SPRING; PISTON 1-53458-040-0 01 1 1512- ● ●

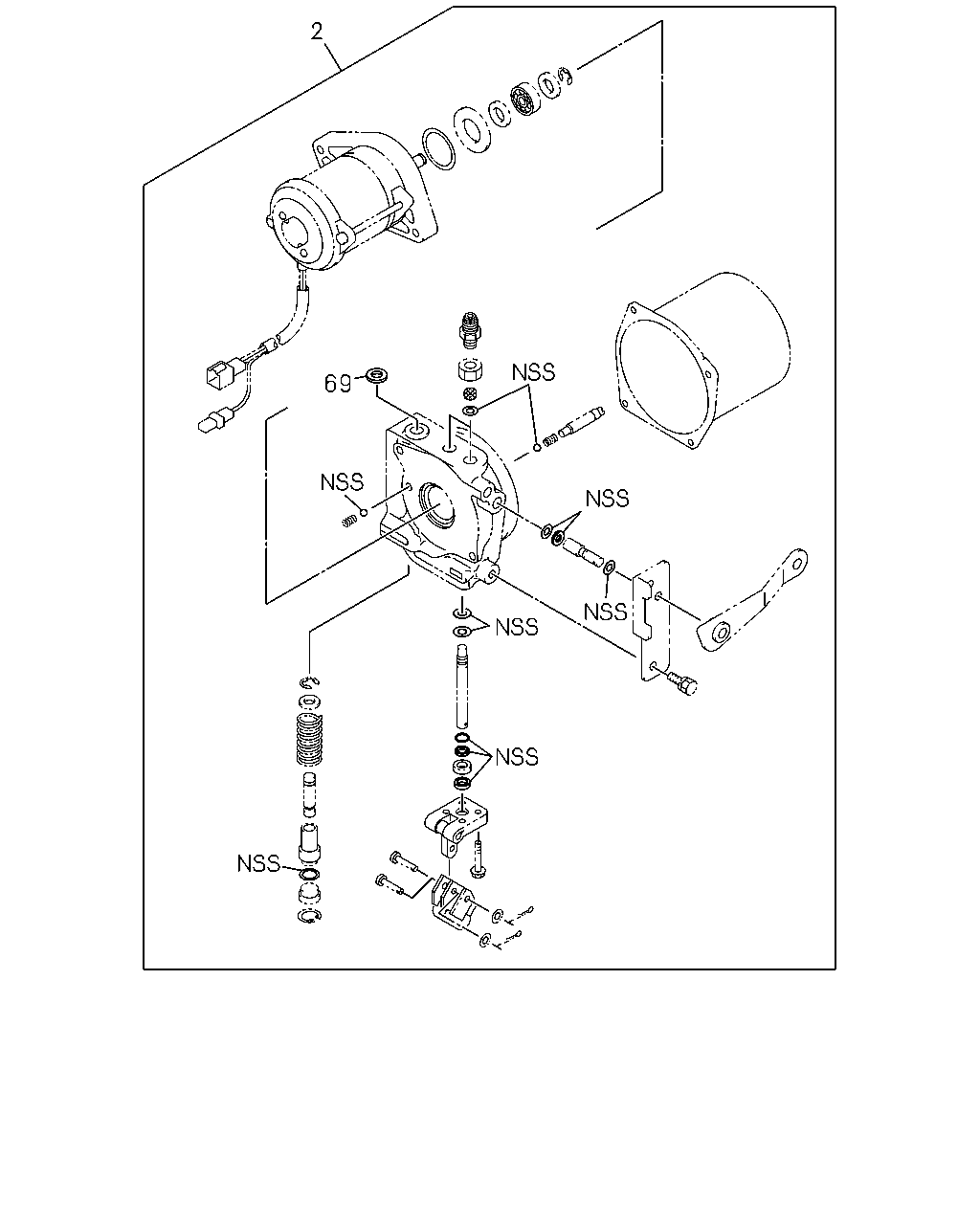

çizim 336957
69 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; OIL PUMP 1-85579-069-0 01 1 1303-1511 ●
2 REPAIR KIT; OIL PUMP 1-85579-069-0 01 1 1512- ● ●
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 1303-1511 ●
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 1512- ● ●
