4-55 — FRONT LEAF SPRING (#115014) — 39 parça

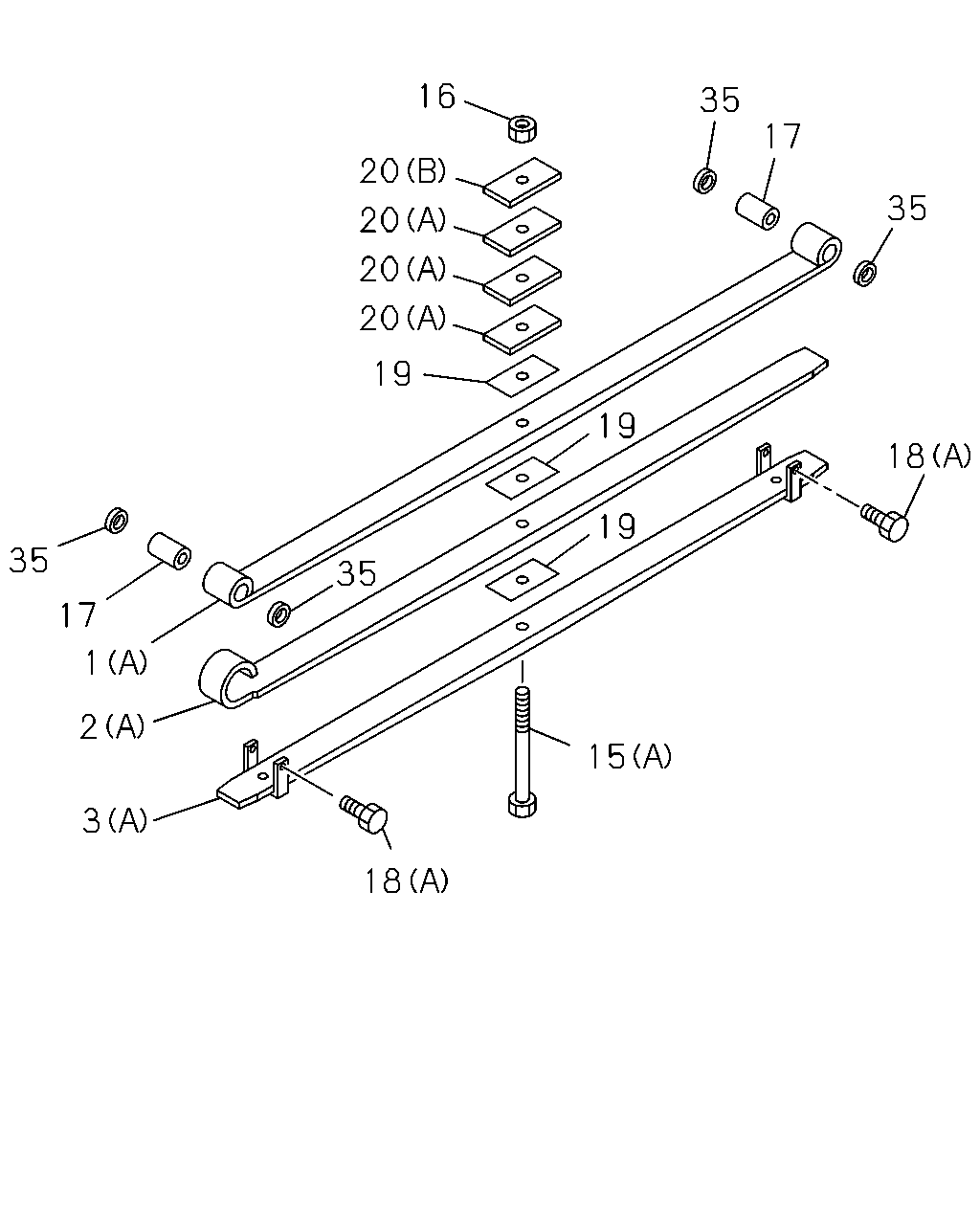

16 20 20 20 20 35 35 17 19 19 18 35 35 1 17 2 3 18 15 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-98118-964-0	1-51131-922-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: B = 8-98202-920-0	8-98140-021-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-98118-964-0	1-51132-922-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: B = 8-98202-920-0	8-98140-022-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-98118-964-0	1-51133-922-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: B = 8-98202-920-0	8-98140-023-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=140 ASM PART: A = 8-98118-964-0	1-51156-304-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=155 ASM PART: B = 8-98202-920-0	1-51156-336-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 8-98118-964-0, B = 8-98202-920-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 8-98118-964-0, B = 8-98202-920-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: B = 8-98202-920-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X103 ASM PART: A = 8-98118-964-0	1-09000-536-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98118-964-0, B = 8-98202-920-0	1-51177-071-0	03	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: A = 8-98118-964-0	1-51177-069-0	03	1	-
20	SEAT; LEAF SPR,FRT (D), T=7 ASM PART: B = 8-98202-920-0	1-51177-074-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: B = 8-98202-920-0	1-51177-078-0	03	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: A = 8-98118-964-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=14 ASM PART: B = 8-98202-920-0	1-51177-097-0	01	1	-
35	SEAL; DUST ASM PART: A = 8-98118-964-0, B = 8-98202-920-0	1-51177-321-0	04	1	-

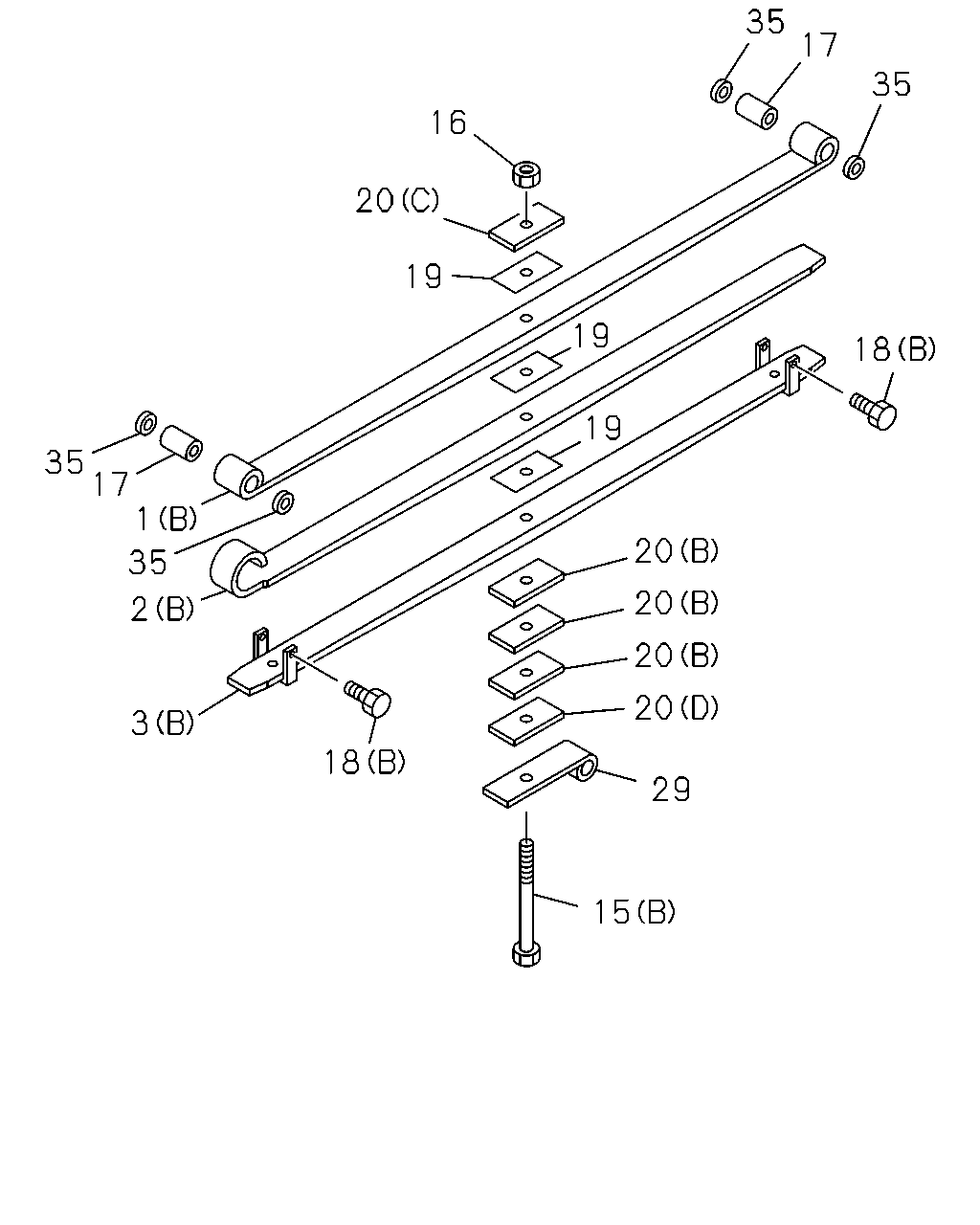

16 35 35 18 19 19 20 19 20 20 20 29 20 15 18 3 2 1 17 35 35 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-98118-964-0	1-51131-922-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: B = 8-98202-920-0	8-98140-021-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-98118-964-0	1-51132-922-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: B = 8-98202-920-0	8-98140-022-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-98118-964-0	1-51133-922-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: B = 8-98202-920-0	8-98140-023-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=140 ASM PART: A = 8-98118-964-0	1-51156-304-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=155 ASM PART: B = 8-98202-920-0	1-51156-336-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 8-98118-964-0, B = 8-98202-920-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 8-98118-964-0, B = 8-98202-920-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: B = 8-98202-920-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X103 ASM PART: A = 8-98118-964-0	1-09000-536-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98118-964-0, B = 8-98202-920-0	1-51177-071-0	03	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: A = 8-98118-964-0	1-51177-069-0	03	1	-
20	SEAT; LEAF SPR,FRT (D), T=7 ASM PART: B = 8-98202-920-0	1-51177-074-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: B = 8-98202-920-0	1-51177-078-0	03	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: A = 8-98118-964-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=14 ASM PART: B = 8-98202-920-0	1-51177-097-0	01	1	-
29	SUPPORTER; LEAF SPR,FRT ASM PART: B = 8-98202-920-0	1-51681-650-0	01	1	-
35	SEAL; DUST ASM PART: A = 8-98118-964-0, B = 8-98202-920-0	1-51177-321-0	04	1	-
