Isuzu WW
▶
TRUCKS
▶
NKR
▶
51429 - NKR-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-36 - POWER STEERING CONTROL; ENGINE SIDE
▶

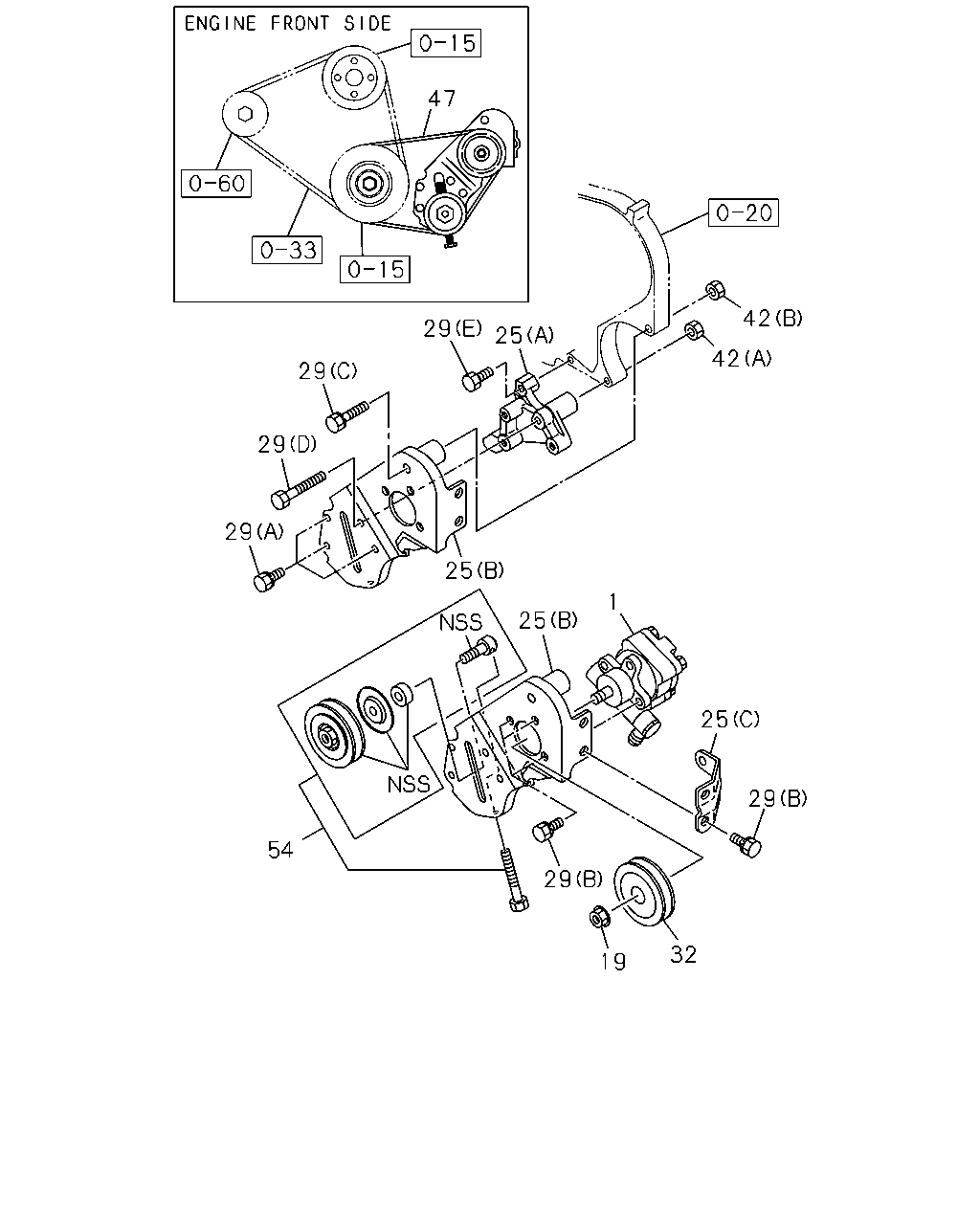

4-36 — POWER STEERING CONTROL; ENGINE SIDE
(#115012) — 16 parça
47
29
29
29
29
25
25
1
25
29
32
19
29
54
42
42
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
8-98217-772-0
01
1
1302-
19
07.874 NUT; PULLEY,OIL PUMP
07.395 M12
8-97360-126-0
01
1
1302-
25
06.606 BRACKET; P/S PUMP
(B)
8-97065-974-0
01
1
1302-
25
06.606 BRACKET; P/S PUMP
(A)
8-97107-869-0
01
1
1302-
25
06.606 BRACKET; P/S PUMP
(C)
8-97107-872-0
01
1
1302-
29
09.171 BOLT; BRKT,POWER STRG
00.386 (D) M8X100 FLANGE
0-28050-800-0
01
1
1302-
29
09.171 BOLT; BRKT,POWER STRG
02.343 (A) M8X16 FLANGE
0-28050-816-0
03
1
1302-
29
09.171 BOLT; BRKT,POWER STRG
04.686 (E) M8X60 FLANGE
0-28050-860-0
01
1
1302-
29
09.171 BOLT; BRKT,POWER STRG
09.181 (C) M10X100 FLANGE
0-28051-000-0
01
1
1302-
29
09.171 BOLT; BRKT,POWER STRG
02.343 (B) M10X20 FLANGE
0-28651-020-0
05
1
1302-
32
06.665 PULLEY; IDLER,P/S
8-98217-771-0
01
1
1302-
42
06.672 NUT; ADJ PLATE
01.062 (A) M8 FLANGE
0-91180-108-0
01
1
1302-
42
06.672 NUT; ADJ PLATE
03.162 (B) M10 FLANGE
0-91180-110-0
01
1
1302-
47
01.066 BELT; P/S PUMP
8-97085-131-0
01
1
1302-
47
01.066 BELT; P/S PUMP
BEST VALUE PARTS
5-87610-096-0
01
1
1302-
54
06.655 IDLER ASM; P/S OIL PUMP
8-94128-866-0
01
1
1302-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
