◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51429 - NKR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#115011) — 83 parça

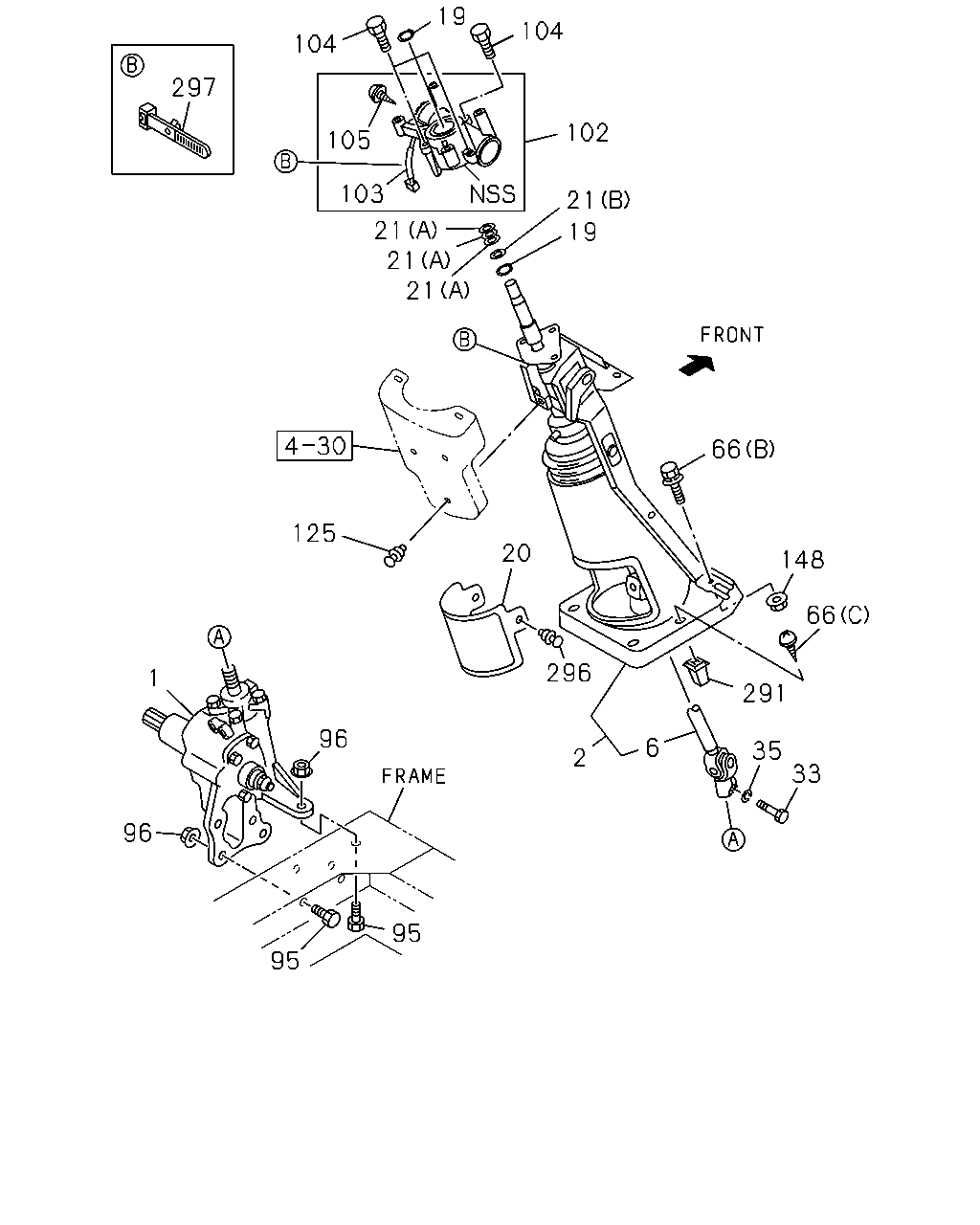

çizim 336419
297 104 19 105 103 102 104 21 21 21 21 20 19 66 148 66 291 35 33 6 2 296 125 96 1 96 95 95
BalonParca AdiParca NoAdetTipApplied Date
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97356-105-8 01 1 1302-1308
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-98251-947-0 01 1 1309-
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-058-1 01 1 1302-
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-057-1 01 1 1302-
2 06.518 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> BLACK 		8-97402-345-1 01 1 1302-
6 06.524 SHAFT; STRG LWR
MANUAL TILT CAB<RWZ> 		8-97378-632-0 01 1 1302-
19 06.515 RING; SNAP,STRG SHAFT
MANUAL TILT CAB<RWZ> 00.349 ID=17.5 		9-09180-019-0 02 1 1302-
20 06.525 COVER; STRG SHAFT
TILT STEERING<N33> 06.518 BLACK 		8-97291-634-1 01 1 1302-
21 06.500 WASHER; WAVE,STRG LOCK TO SHAFT
MANUAL TILT CAB<RWZ> (B) ID=19 		8-94146-919-0 01 1 1302-
21 06.500 WASHER; WAVE,STRG LOCK TO SHAFT
MANUAL TILT CAB<RWZ> (A) 		8-94174-865-0 03 1 1302-
33 06.525 BOLT; STRG SHAFT TO UNIT
M8X30 		8-97359-615-0 01 1 1302-
35 06.525 WASHER; LK,STRG SHAFT
02.559 ID=8.2 		0-91510-808-0 01 1 1302-
66 06.514 BOLT; STRG COLUMN
TILT STEERING<N33> MANUAL TILT CAB<RWZ> (A) 		8-97076-831-0 01 1 1302-
66 06.514 BOLT; STRG COLUMN
MANUAL TILT CAB<RWZ> 01.531 (B) M8X20 FLANGE 		0-28650-820-0 03 1 1302-
66 06.514 BOLT; STRG COLUMN
MANUAL TILT CAB<RWZ> (C) M5X18 TAPPING 		0-72180-518-0 06 1 1302-
66 06.514 BOLT; STRG COLUMN
MANUAL TILT CAB<RWZ> (B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 02 1 1302-
95 06.509 BOLT; STRG UNIT
M12X45 		8-97212-810-1 05 1 1302-
96 06.509 NUT; STRG UNIT
M12 FLANGE 		8-97359-618-0 05 1 1302-
102 06.500 LOCK ASM; STRG 8-97170-364-0 01 1 1302-
103 02.188 SWITCH; IGNITION 8-97088-268-0 01 1 1302-
104 06.500 BOLT; STRG LOCK TO COLUMN
M6X21 TORQUE BOLT 		8-94331-124-0 01 1 1302-
104 06.500 BOLT; STRG LOCK TO COLUMN
M6X30 W/LK&PL WASHER 		8-97189-885-0 02 1 1302-
105 06.500 SCREW; IGN SW
M4X12 W/LK WASHER 		9-03910-412-0 01 1 1302-
125 06.521 CLIP; STRG SHAFT
DARK GRAY 		8-97582-246-0 01 1 1302-
148 06.514 NUT; COLUMN TO BRKT
MANUAL TILT CAB<RWZ> 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1302-
291 06.518 GROMMET; STRG SHAFT COVER
MANUAL TILT CAB<RWZ> 04.931 H=15 		8-94463-268-1 06 1 1302-
296 06.525 CLIP; COVER
TILT STEERING<N33> BLACK 		8-97868-409-0 01 1 1302-
296 06.525 CLIP; COVER
TILT STEERING<N33> MANUAL TILT CAB<RWZ> BLACK 		8-97868-409-0 01 1 1302-
297 06.525 CLIP; BAND
02.559 L=145 		8-94257-575-1 03 1 1302-

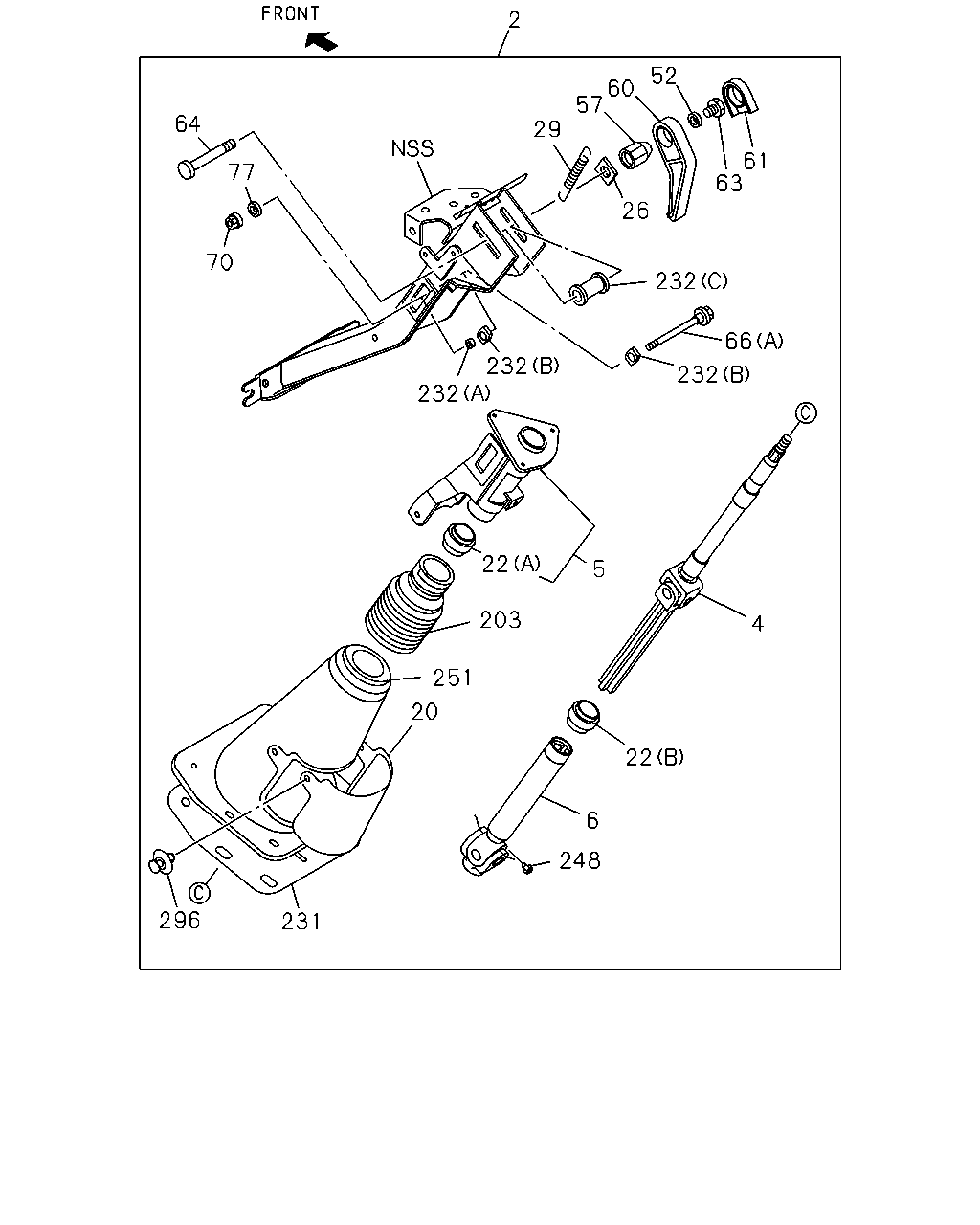

çizim 336422
2 52 60 57 29 61 63 26 232 66 232 232 232 22 203 5 4 22 6 248 251 20 231 296 64 77 70
BalonParca AdiParca NoAdetTipApplied Date
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-058-1 01 1 1302-
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-057-1 01 1 1302-
2 06.518 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> BLACK 		8-97402-345-1 01 1 1302-
4 06.524 SHAFT; STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97378-634-0 01 1 1302-
4 06.524 SHAFT; STRG
MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> 		8-97378-634-0 01 1 1302-
4 06.524 SHAFT; STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97378-638-0 01 1 1302-
5 06.518 COLUMN; STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 1302-
5 06.518 COLUMN; STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97093-792-2 01 1 1302-
5 06.518 COLUMN; STRG
MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> 		8-97146-719-0 01 1 1302-
6 06.524 SHAFT; STRG LWR
MANUAL TILT CAB<RWZ> 		8-97378-632-0 01 1 1302-
20 06.525 COVER; STRG SHAFT
TILT STEERING<N33> 06.518 BLACK 		8-97291-634-1 01 1 1302-
22 06.525 BUSHING; STRG COLUMN
MANUAL TILT CAB<RWZ> (A) 		8-97076-821-0 01 1 1302-
22 06.525 BUSHING; STRG COLUMN
MANUAL TILT CAB<RWZ> (B) 		8-97378-617-0 01 1 1302-
26 06.514 PLATE; ADJ
TILT STEERING<N33> MANUAL TILT CAB<RWZ> 		8-97222-989-0 01 1 1302-
29 06.514 SPRING; COLUMN
TILT STEERING<N33> MANUAL TILT CAB<RWZ> 		8-97076-811-0 01 1 1302-
52 06.514 WASHER; PL,ADJ LEVER
TILT STEERING<N33> MANUAL TILT CAB<RWZ> 		8-97076-813-0 01 1 1302-
57 06.518 NUT; ADJ BOLT
TILT STEERING<N33> MANUAL TILT CAB<RWZ> 		8-97222-988-0 01 1 1302-
60 06.518 LEVER; ADJ,STRG COLUMN
TILT STEERING<N33> MANUAL TILT CAB<RWZ> 		8-97076-830-0 01 1 1302-
61 06.514 CAP; ADJ LEVER,TILT STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> 		8-97076-814-0 01 1 1302-
63 06.514 BOLT; ADJ LEVER,TILT STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> 		8-97222-986-0 01 1 1302-
64 06.518 BOLT; ADJ,PROTECTOR
TILT STEERING<N33> MANUAL TILT CAB<RWZ> 		8-97222-987-0 01 1 1302-
66 06.514 BOLT; STRG COLUMN
TILT STEERING<N33> MANUAL TILT CAB<RWZ> (A) 		8-97076-831-0 01 1 1302-
66 06.514 BOLT; STRG COLUMN
MANUAL TILT CAB<RWZ> 01.531 (B) M8X20 FLANGE 		0-28650-820-0 03 1 1302-
66 06.514 BOLT; STRG COLUMN
MANUAL TILT CAB<RWZ> (C) M5X18 TAPPING 		0-72180-518-0 06 1 1302-
66 06.514 BOLT; STRG COLUMN
MANUAL TILT CAB<RWZ> (B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 02 1 1302-
70 06.514 NUT; STRG COLUMN
TILT STEERING<N33> MANUAL TILT CAB<RWZ> 		8-97076-807-0 01 1 1302-
77 06.760 WASHER; PL,COLUMN
TILT STEERING<N33> MANUAL TILT CAB<RWZ> 		8-97076-804-0 01 1 1302-
203 06.525 BOOT; STRG COLUMN LWR
MANUAL TILT CAB<RWZ> 06.518 		8-97076-822-0 01 1 1302-
231 06.525 SEAL; RUBBER,STRG COLUMN
MANUAL TILT CAB<RWZ> 		8-97076-808-1 01 1 1302-
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> MANUAL TILT CAB<RWZ> (B) 		8-97076-805-0 02 1 1302-
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> MANUAL TILT CAB<RWZ> (A) 		8-97076-806-0 01 1 1302-
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> MANUAL TILT CAB<RWZ> (C) 		8-97148-277-0 01 1 1302-
248 06.518 SCREW; YOKE
MANUAL TILT CAB<RWZ> 		8-97222-984-0 01 1 1302-
251 06.518 COVER; LWR
TILT STEERING<N33> MANUAL TILT CAB<RWZ> 06.578 BLACK 		8-97159-168-2 01 1 1302-
251 06.518 COVER; LWR
MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> BLACK 		8-97398-450-1 01 1 1302-
296 06.525 CLIP; COVER
TILT STEERING<N33> BLACK 		8-97868-409-0 01 1 1302-
296 06.525 CLIP; COVER
TILT STEERING<N33> MANUAL TILT CAB<RWZ> BLACK 		8-97868-409-0 01 1 1302-

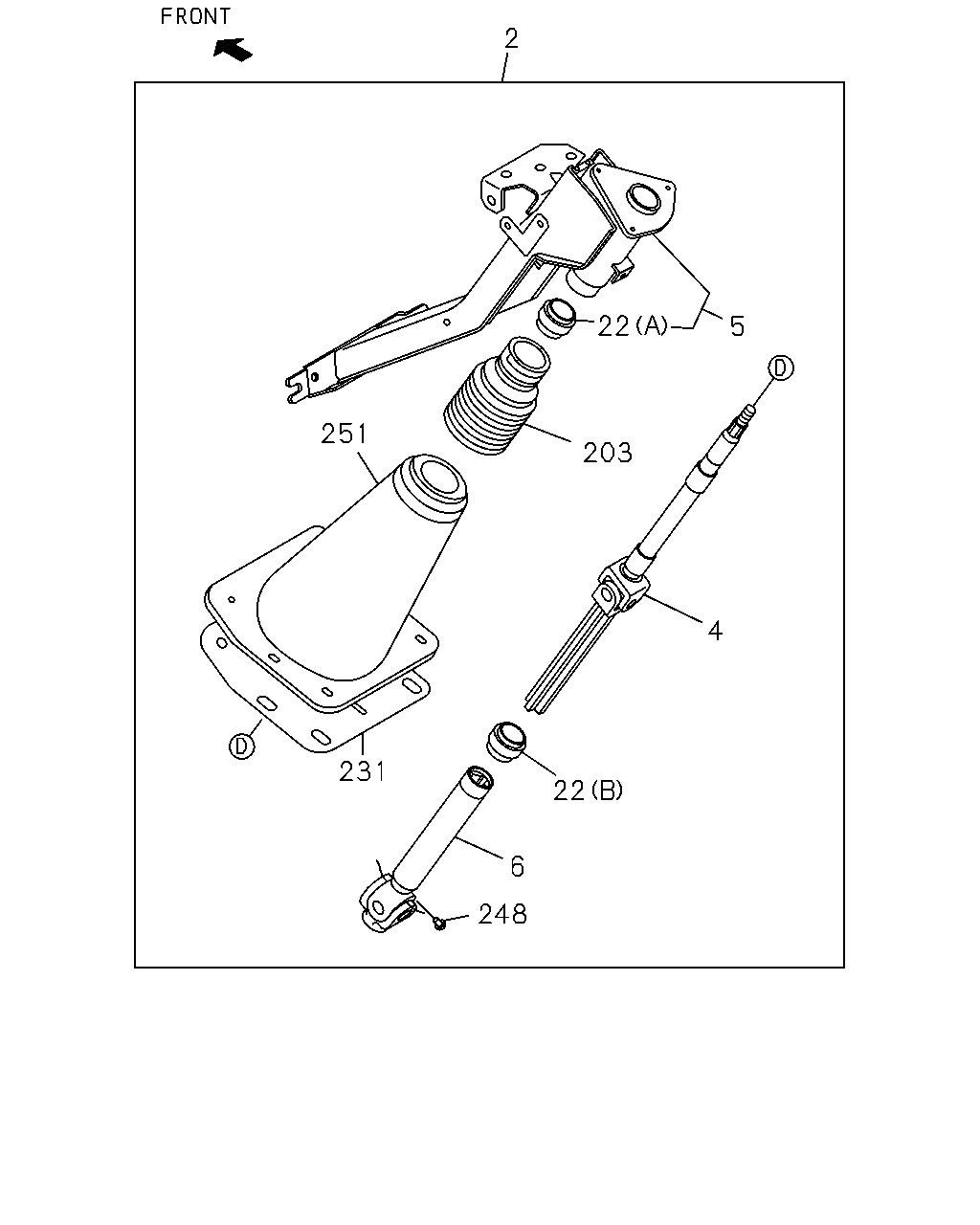

çizim 336423
2 5 203 4 22 251 231 6 248 22
BalonParca AdiParca NoAdetTipApplied Date
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-058-1 01 1 1302-
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-057-1 01 1 1302-
2 06.518 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> BLACK 		8-97402-345-1 01 1 1302-
4 06.524 SHAFT; STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97378-634-0 01 1 1302-
4 06.524 SHAFT; STRG
MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> 		8-97378-634-0 01 1 1302-
4 06.524 SHAFT; STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97378-638-0 01 1 1302-
5 06.518 COLUMN; STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 1302-
5 06.518 COLUMN; STRG
TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97093-792-2 01 1 1302-
5 06.518 COLUMN; STRG
MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> 		8-97146-719-0 01 1 1302-
6 06.524 SHAFT; STRG LWR
MANUAL TILT CAB<RWZ> 		8-97378-632-0 01 1 1302-
22 06.525 BUSHING; STRG COLUMN
MANUAL TILT CAB<RWZ> (A) 		8-97076-821-0 01 1 1302-
22 06.525 BUSHING; STRG COLUMN
MANUAL TILT CAB<RWZ> (B) 		8-97378-617-0 01 1 1302-
203 06.525 BOOT; STRG COLUMN LWR
MANUAL TILT CAB<RWZ> 06.518 		8-97076-822-0 01 1 1302-
231 06.525 SEAL; RUBBER,STRG COLUMN
MANUAL TILT CAB<RWZ> 		8-97076-808-1 01 1 1302-
248 06.518 SCREW; YOKE
MANUAL TILT CAB<RWZ> 		8-97222-984-0 01 1 1302-
251 06.518 COVER; LWR
TILT STEERING<N33> MANUAL TILT CAB<RWZ> 06.578 BLACK 		8-97159-168-2 01 1 1302-
251 06.518 COVER; LWR
MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> BLACK 		8-97398-450-1 01 1 1302-
