◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 3 - Brakes, Brake System ▶ 3-80 - BRAKE PIPING; TRAILER ▶
3-80 — BRAKE PIPING; TRAILER (#115009) — 44 parça

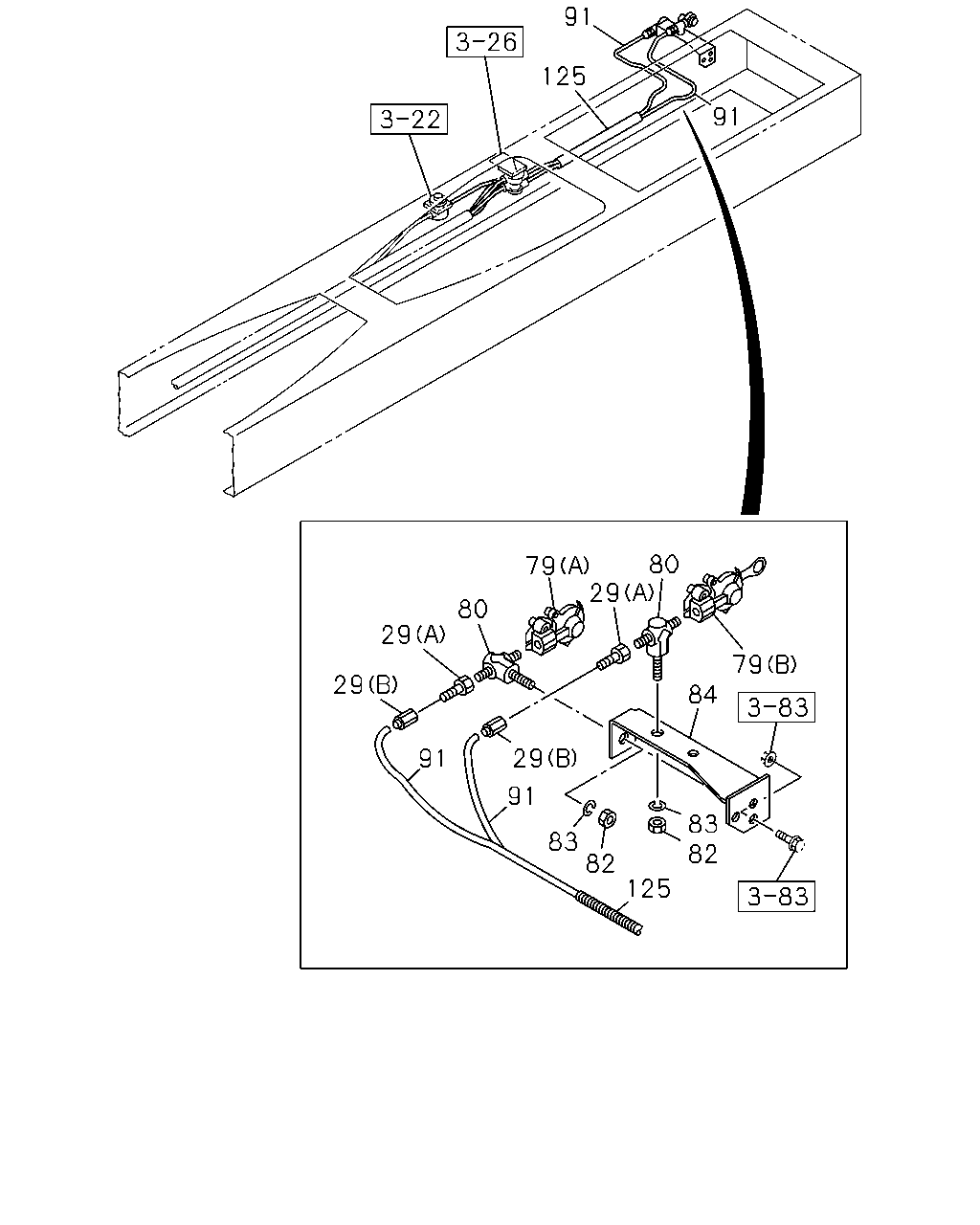

çizim 336394
125 91 91 79 80 29 29 29 80 84 79 29 91 91 83 82 125 83 82
BalonParca AdiParca NoAdetTipApplied Date A B
29 CONNECTOR; COCK
(A) M16 & PT1/2 STRAIGHT 		1-09650-222-1 02 1 1303- ●
29 CONNECTOR; COCK
FULL TRAILER PIPING<Z25> (A) M16 & PT1/2 STRAIGHT 		1-09650-222-1 02 1 1303- ●
29 CONNECTOR; COCK
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 1303- ●
29 CONNECTOR; COCK
FULL TRAILER PIPING<Z25> (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 1303- ●
79 COUPLING; AIR,TRAILER
(A) RED 		1-47478-466-1 01 1 1303- ●
79 COUPLING; AIR,TRAILER
FULL TRAILER PIPING<Z25> (A) RED 		1-47478-466-1 01 1 1303- ●
79 COUPLING; AIR,TRAILER
(B) YELLOW 		1-47478-467-1 01 1 1303- ●
79 COUPLING; AIR,TRAILER
FULL TRAILER PIPING<Z25> (B) YELLOW 		1-47478-467-1 01 1 1303- ●
80 NIPPLE; AIR COUPLING 1-09656-377-1 02 1 1303- ●
80 NIPPLE; AIR COUPLING
FULL TRAILER PIPING<Z25> 		1-09656-377-1 02 1 1303- ●
82 NUT; LK,CONNECTOR
M16 		0-91111-516-0 02 1 1303- ●
82 NUT; LK,CONNECTOR
FULL TRAILER PIPING<Z25> M16 		0-91111-516-0 02 1 1303- ●
83 WASHER; LK,CONNECTOR
ID=16.2 		0-91510-516-0 02 1 1303- ●
83 WASHER; LK,CONNECTOR
FULL TRAILER PIPING<Z25> ID=16.2 		0-91510-516-0 02 1 1303- ●
84 BRACKET; COUPLER 1-47465-883-1 01 1 1303- ●
84 BRACKET; COUPLER
FULL TRAILER PIPING<Z25> 		1-47465-883-1 01 1 1303- ●
91 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1302- ● ●
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1303- ● ●
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 1303- ●

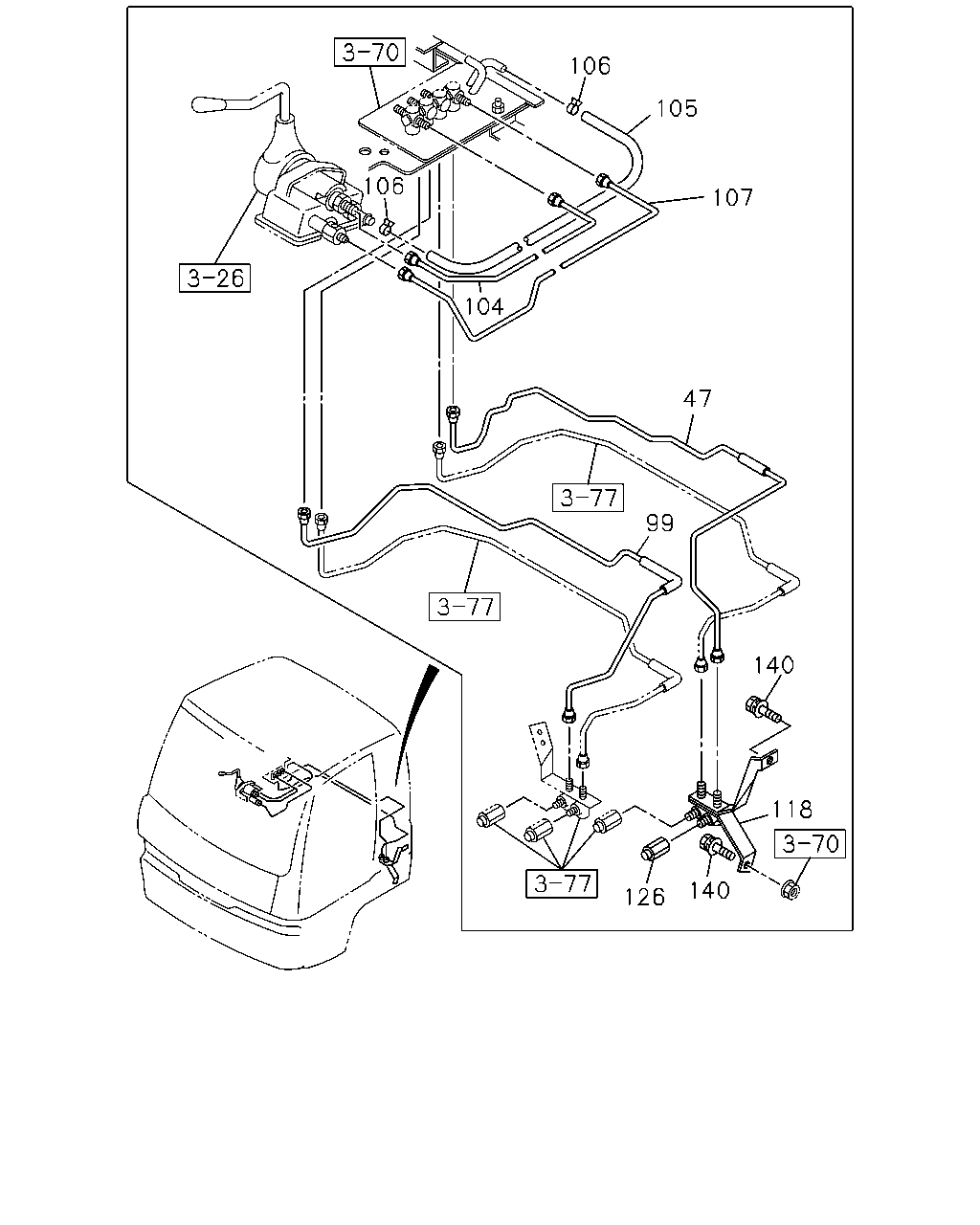

çizim 336396
106 105 107 47 99 140 118 140 126 104 106
BalonParca AdiParca NoAdetTipApplied Date A B
47 PIPE; AIR,UNION TO UNION
FULL TRAILER PIPING<Z25> L=1910 SERVICED BY L=1950 		1-47428-854-0 01 1 1305- ●
47 PIPE; AIR,UNION TO UNION 1-49121-763-2 01 1 1303- ●
99 PIPE; AIR,JOINT TO JOINT
FULL TRAILER PIPING<Z25> 		1-49122-057-1 01 1 1305- ●
99 PIPE; AIR,JOINT TO JOINT 1-49122-058-1 01 1 1303- ●
104 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49121-477-0 01 1 1303-1304 ●
104 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49121-477-0 01 1 1305- ●
104 PIPE; AIR,JOINT TO PARKING BRK VLV
FULL TRAILER PIPING<Z25> 		1-49121-477-0 01 1 1305- ●
105 PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 1303-1304 ●
105 PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 1305- ●
105 PIPE; VINYL,EXH,PARKING BRK VLV
FULL TRAILER PIPING<Z25> L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 1305- ●
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 1303-1304 ●
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 1305- ●
106 CLIP; PIPE
FULL TRAILER PIPING<Z25> ID=14 		8-94238-572-0 02 1 1305- ●
107 PIPE; AIR,JOINT TO PARKING BRK VLV 1-47495-160-0 01 1 1303-1304 ●
107 PIPE; AIR,JOINT TO PARKING BRK VLV 1-47495-160-0 01 1 1305- ●
107 PIPE; AIR,JOINT TO PARKING BRK VLV
FULL TRAILER PIPING<Z25> 		1-47495-160-0 01 1 1305- ●
118 JOINT; AIR PIPE 1-47470-608-1 01 1 1303-1304 ●
118 JOINT; AIR PIPE 1-47470-608-1 01 1 1305- ●
118 JOINT; AIR PIPE
FULL TRAILER PIPING<Z25> 		1-47470-608-1 01 1 1305- ●
126 CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 1303-1304 ●
126 CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 1305- ●
126 CONNECTOR; NYLON TUBE
FULL TRAILER PIPING<Z25> DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 1305- ●
140 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1303-1304 ●
140 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1305- ●
140 BOLT; UNION
FULL TRAILER PIPING<Z25> M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1305- ●
