Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#115004) — 271 parça

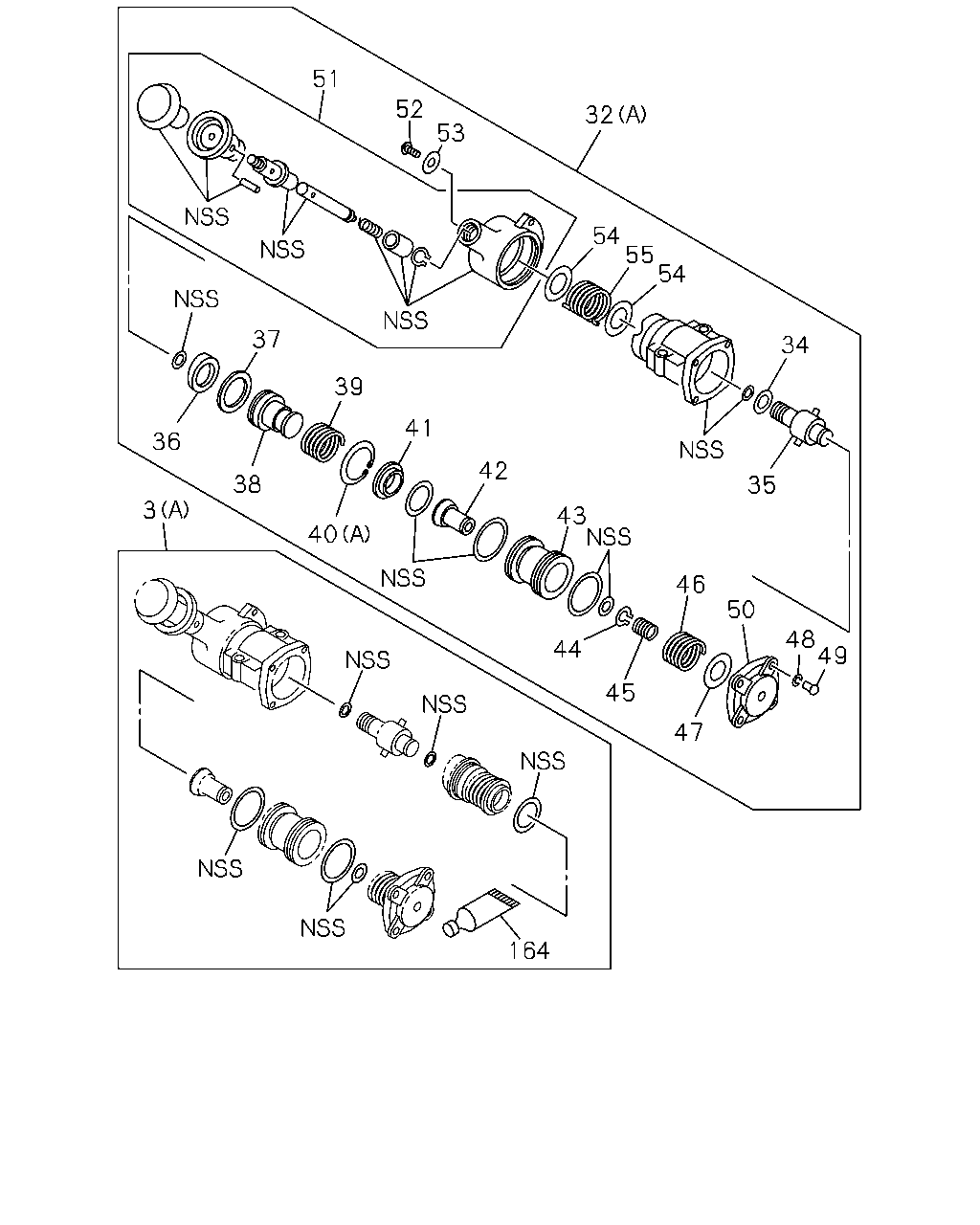

51 52 53 32 54 34 54 55 37 39 42 41 43 46 50 48 49 47 45 44 40 38 36 3 164 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; HAND BRK VLV (A) W/GREASE	1-48469-096-0	01	1	1303-1511	●
3	REPAIR KIT; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25> (A) W/GREASE	1-48469-096-0	01	1	1512-	●
3	REPAIR KIT; HAND BRK VLV (A) W/GREASE	1-48469-096-0	01	1	1512-		●

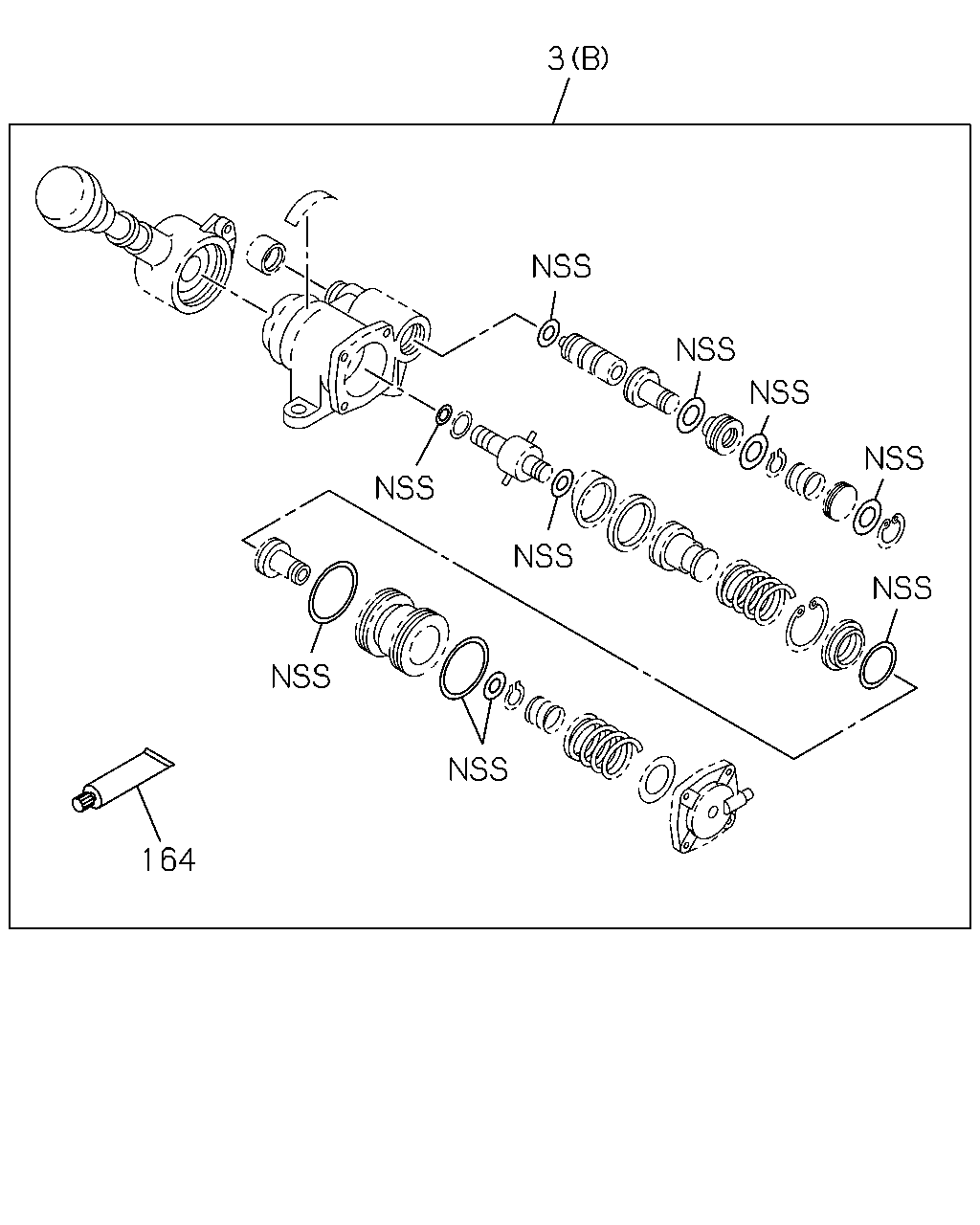

3	REPAIR KIT; HAND BRK VLV FULL TRAILER PIPING<Z25> (B) W/GREASE	1-48469-083-0	01	1	1512-	●
32	VALVE; BRK,HAND CONT RR BRK AIR D410 WEDGE-220-30/30<B9V> EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-356-0	01	1	1512-	●
32	VALVE; BRK,HAND CONT RR BRK AIR D410 WEDGE-220-30/30<B9V> (A)	1-48460-356-0	01	1	1512-		●

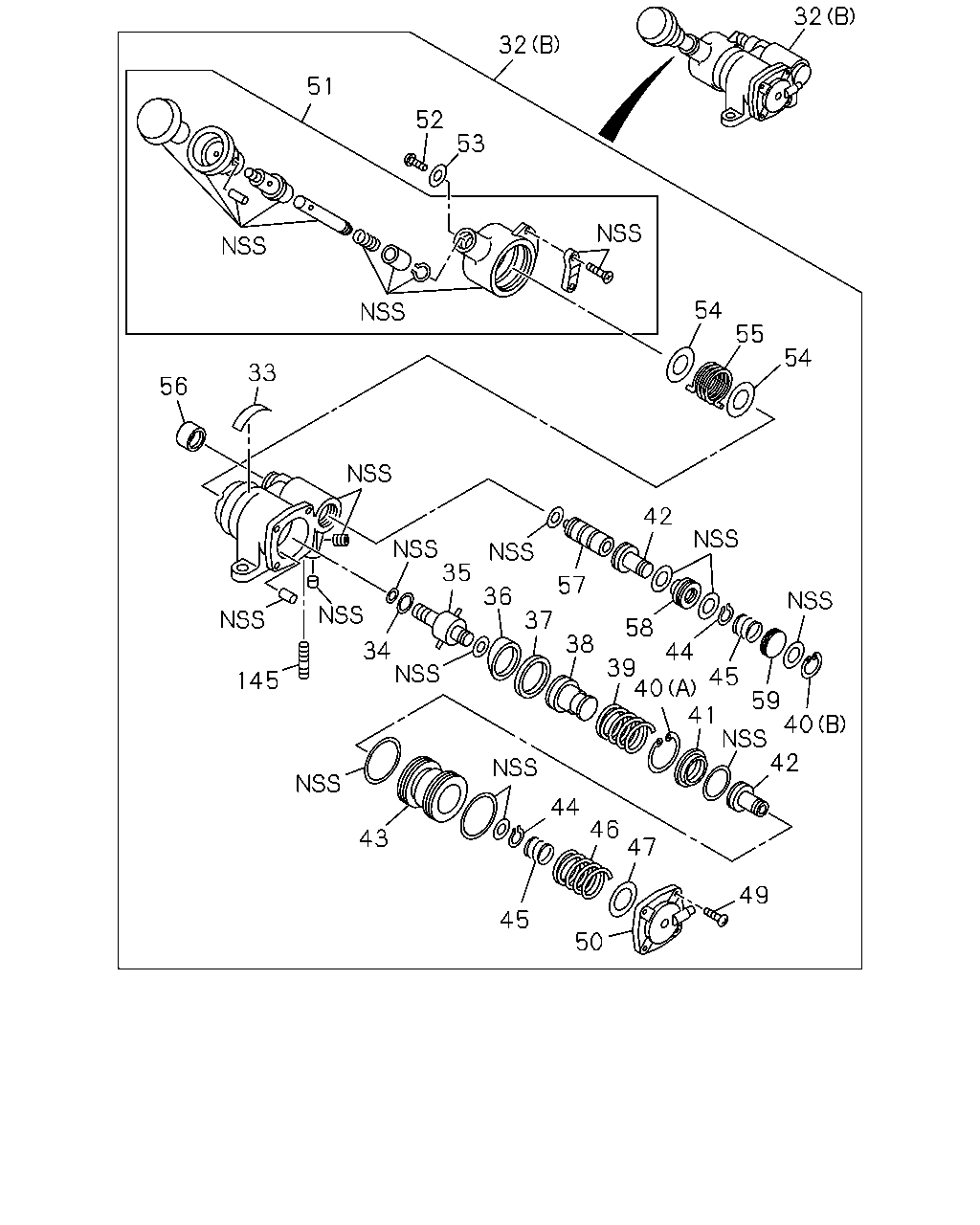

32	VALVE; BRK,HAND CONT FULL TRAILER PIPING<Z25> (B)	1-48460-316-0	01	1	1512-	●
32	VALVE; BRK,HAND CONT (A)	1-48460-306-0	01	1	1303-1511	●
32	VALVE; BRK,HAND CONT EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>,FULL TRAILER PIPING<Z25> (A)	1-48460-306-0	01	1	1512-	●
32	VALVE; BRK,HAND CONT EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V> (A)	1-48460-306-0	01	1	1512-		●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1303-1511	●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1512-	●	●
35	HOLDER; CAM	1-48469-054-0	01	1	1303-1511	●
35	HOLDER; CAM	1-48469-054-0	01	1	1512-	●	●
36	RING; CAM	1-48469-056-0	01	1	1303-1511	●
36	RING; CAM	1-48469-056-0	01	1	1512-	●	●
37	GUIDE; CAM RING	1-48469-058-0	01	1	1303-1511	●
37	GUIDE; CAM RING	1-48469-058-0	01	1	1512-	●	●
38	SEAT; EXH VLV	1-48469-057-0	01	1	1303-1511	●
38	SEAT; EXH VLV	1-48469-057-0	01	1	1512-	●	●
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	1303-1511	●
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	1512-	●	●
40	RING; SNAP (A)	1-48469-067-0	01	1	1512-	●	●
40	RING; SNAP (A)	1-48469-067-0	01	1	1303-1511	●
40	RING; SNAP FULL TRAILER PIPING<Z25> (B)	1-48469-079-0	01	1	1512-	●
41	SEAT; FEED VLV	1-48469-066-0	01	1	1303-1511	●
41	SEAT; FEED VLV	1-48469-066-0	01	1	1512-	●	●
42	VALVE; FEED EXC. FULL TRAILER PIPING<Z25>	1-48469-065-0	01	1	1512-	●
42	VALVE; FEED	1-48469-065-0	01	1	1512-		●
42	VALVE; FEED	1-48469-065-0	01	1	1303-1511	●
42	VALVE; FEED FULL TRAILER PIPING<Z25>	1-48469-065-0	02	1	1512-	●
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	1303-1511	●
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	1512-	●	●
44	RING; SNAP,FEED VLV EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>,FULL TRAILER PIPING<Z25>	1-48469-068-0	02	1	1512-	●
44	RING; SNAP,FEED VLV FULL TRAILER PIPING<Z25>	1-48469-068-0	02	1	1512-	●
44	RING; SNAP,FEED VLV EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>	1-48469-068-0	02	1	1512-		●
44	RING; SNAP,FEED VLV	1-48469-068-0	02	1	1303-1511	●
44	RING; SNAP,FEED VLV RR BRK AIR D410 WEDGE-220-30/30<B9V> EXC. FULL TRAILER PIPING<Z25>	1-48469-068-0	01	1	1512-	●
44	RING; SNAP,FEED VLV RR BRK AIR D410 WEDGE-220-30/30<B9V>	1-48469-068-0	01	1	1512-		●
45	SPRING; FEED VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-070-0	01	1	1512-	●
45	SPRING; FEED VLV	1-48469-070-0	01	1	1512-		●
45	SPRING; FEED VLV	1-48469-070-0	01	1	1303-1511	●
45	SPRING; FEED VLV FULL TRAILER PIPING<Z25>	1-48469-070-0	02	1	1512-	●
46	SPRING; MAIN,PISTON EXC. FULL TRAILER PIPING<Z25>	1-48469-089-0	01	1	1512-	●
46	SPRING; MAIN,PISTON	1-48469-089-0	01	1	1512-		●
46	SPRING; MAIN,PISTON	1-48469-089-0	01	1	1303-1511	●
46	SPRING; MAIN,PISTON FULL TRAILER PIPING<Z25>	1-48469-119-0	01	1	1512-	●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1303-1511	●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1512-	●	●
48	WASHER; COVER	1-48469-091-0	04	1	1303-1511	●
48	WASHER; COVER EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>,FULL TRAILER PIPING<Z25>	1-48469-091-0	04	1	1512-	●
48	WASHER; COVER EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>	1-48469-091-0	04	1	1512-		●
49	SCREW; COVER RR BRK AIR D410 WEDGE-220-30/30<B9V> EXC. FULL TRAILER PIPING<Z25>	1-48469-118-0	04	1	1512-	●
49	SCREW; COVER RR BRK AIR D410 WEDGE-220-30/30<B9V>	1-48469-118-0	04	1	1512-		●
49	SCREW; COVER FULL TRAILER PIPING<Z25>	1-48469-120-0	04	1	1512-	●
49	SCREW; COVER	1-48469-092-0	04	1	1303-1511	●
49	SCREW; COVER EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>,FULL TRAILER PIPING<Z25>	1-48469-092-0	04	1	1512-	●
49	SCREW; COVER EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>	1-48469-092-0	04	1	1512-		●
50	COVER; HAND BRK VLV RR BRK AIR D410 WEDGE-220-30/30<B9V> EXC. FULL TRAILER PIPING<Z25>	1-48469-222-0	01	1	1512-	●
50	COVER; HAND BRK VLV RR BRK AIR D410 WEDGE-220-30/30<B9V>	1-48469-222-0	01	1	1512-		●
50	COVER; HAND BRK VLV FULL TRAILER PIPING<Z25>	1-48469-073-0	01	1	1512-	●
50	COVER; HAND BRK VLV	1-48469-090-0	01	1	1303-1511	●
50	COVER; HAND BRK VLV EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>,FULL TRAILER PIPING<Z25>	1-48469-090-0	01	1	1512-	●
50	COVER; HAND BRK VLV EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>	1-48469-090-0	01	1	1512-		●
51	HANDLE ASM; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-122-0	01	1	1512-	●
51	HANDLE ASM; HAND BRK VLV	1-48469-122-0	01	1	1512-		●
51	HANDLE ASM; HAND BRK VLV	1-48469-122-0	01	1	1303-1511	●
51	HANDLE ASM; HAND BRK VLV FULL TRAILER PIPING<Z25>	1-48469-060-0	01	1	1512-	●
52	SCREW; HANDLE	1-48469-062-0	01	1	1303-1511	●
52	SCREW; HANDLE	1-48469-062-0	01	1	1512-	●	●
53	WASHER; HANDLE	1-48469-061-0	01	1	1303-1511	●
53	WASHER; HANDLE	1-48469-061-0	01	1	1512-	●	●
54	SEAT; SPRING	1-48469-082-0	02	1	1303-1511	●
54	SEAT; SPRING	1-48469-082-0	02	1	1512-	●	●
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	1303-1511	●
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	1512-	●	●
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	1303-1511	●
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	1512-	●	●

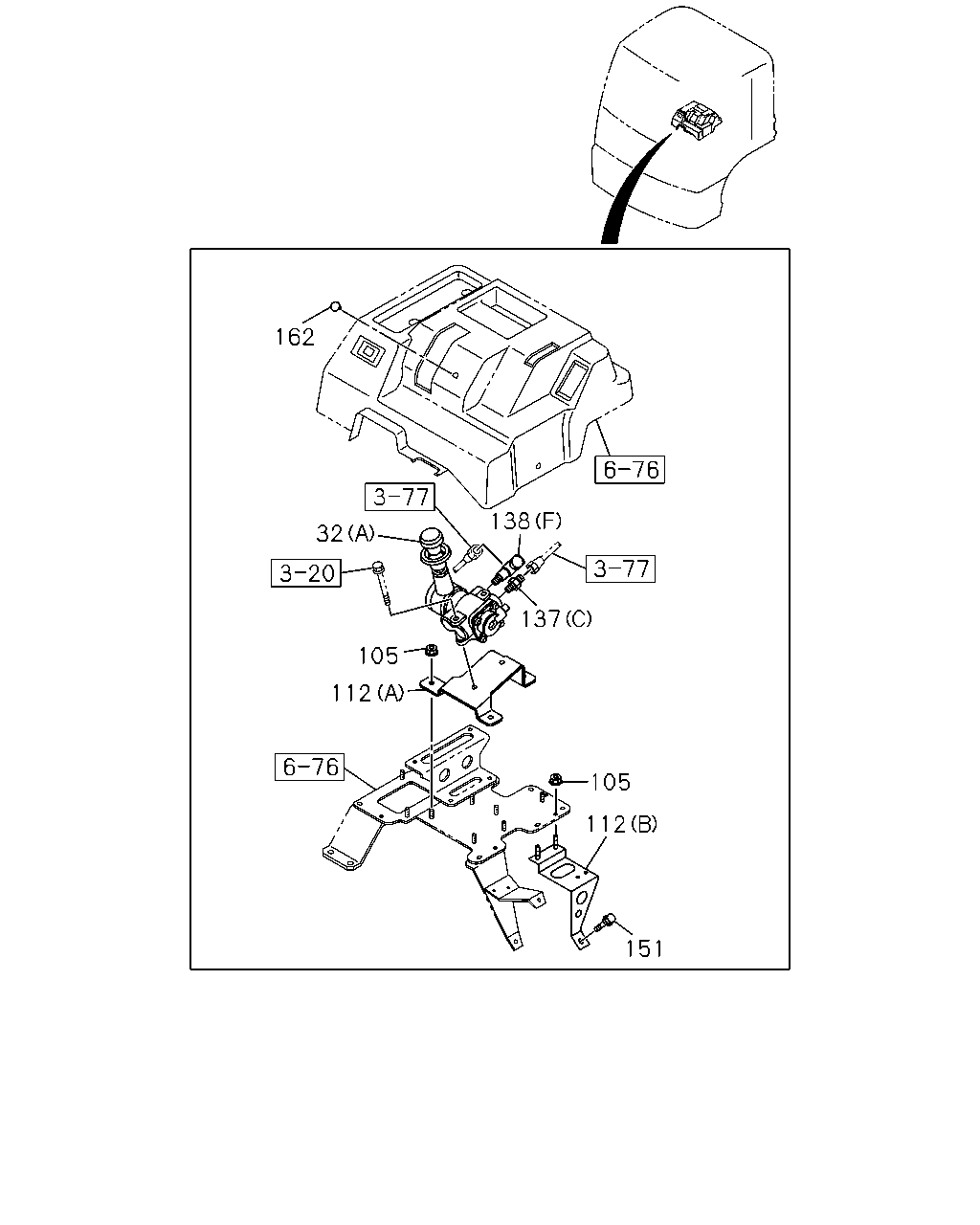

162 32 105 112 137 138 105 112 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT RR BRK AIR D410 WEDGE-220-30/30<B9V> EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-356-0	01	1	1512-	●
32	VALVE; BRK,HAND CONT RR BRK AIR D410 WEDGE-220-30/30<B9V> (A)	1-48460-356-0	01	1	1512-		●
32	VALVE; BRK,HAND CONT FULL TRAILER PIPING<Z25> (B)	1-48460-316-0	01	1	1512-	●
32	VALVE; BRK,HAND CONT (A)	1-48460-306-0	01	1	1303-1511	●
32	VALVE; BRK,HAND CONT EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>,FULL TRAILER PIPING<Z25> (A)	1-48460-306-0	01	1	1512-	●
32	VALVE; BRK,HAND CONT EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V> (A)	1-48460-306-0	01	1	1512-		●
105	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1512-	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1303-1511	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1512-	●	●
112	BRACKET; CONT VLV FULL TRAILER PIPING<Z25> (A)	1-79996-112-2	01	1	1512-	●
112	BRACKET; CONT VLV (B)	1-79996-113-2	01	1	1303-1511	●
112	BRACKET; CONT VLV (B)	1-79996-113-2	01	1	1512-	●	●
112	BRACKET; CONT VLV (A)	1-79996-378-1	01	1	1303-1511	●
112	BRACKET; CONT VLV EXC. FULL TRAILER PIPING<Z25> (A)	1-79996-378-1	01	1	1512-	●
112	BRACKET; CONT VLV (A)	1-79996-378-1	01	1	1512-		●
137	CONNECTOR; SUPPLY FULL TRAILER PIPING<Z25> (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1512-	●
137	CONNECTOR; SUPPLY FULL TRAILER PIPING<Z25> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1512-	●
137	CONNECTOR; SUPPLY (C) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1303-1511	●
137	CONNECTOR; SUPPLY EXC. FULL TRAILER PIPING<Z25> (C) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1512-	●
137	CONNECTOR; SUPPLY (C) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1512-		●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (E) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	1512-	●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (A) M14	1-09656-391-2	01	1	1512-	●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1512-	●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (D) M20 & RC1/4 STRAIGHT	1-09660-880-0	01	1	1512-	●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1512-	●
138	CONNECTOR; DELIVERY (F) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	1303-1511	●
138	CONNECTOR; DELIVERY EXC. FULL TRAILER PIPING<Z25> (F) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	1512-	●
138	CONNECTOR; DELIVERY (F) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	1512-		●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1303-1511	●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1512-	●	●
162	SWITCH; PARKING BRK VLV	1-72447-390-0	01	1	1303-1511	●
162	SWITCH; PARKING BRK VLV	1-72447-390-0	01	1	1512-	●	●

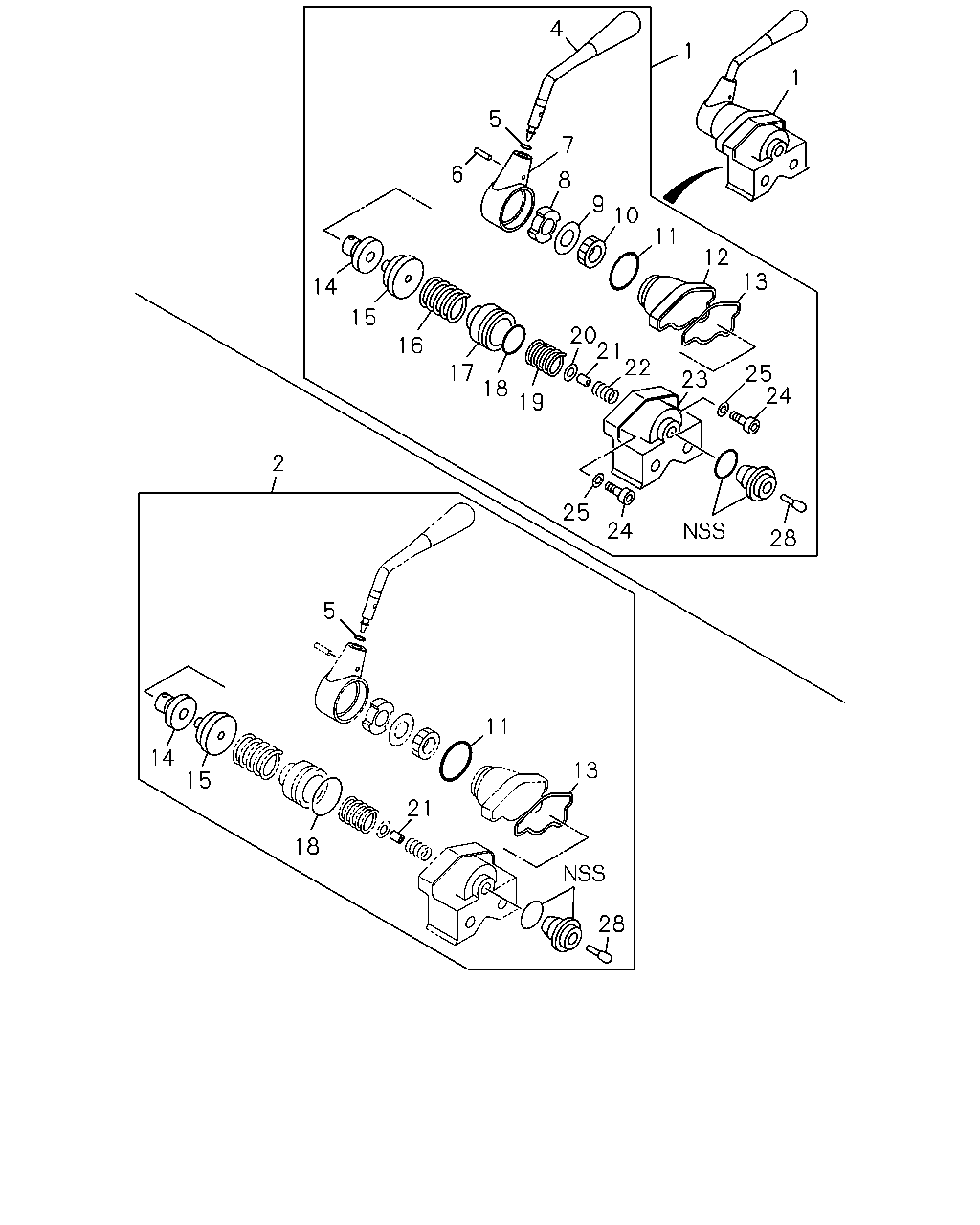

1 1 13 12 11 10 9 8 7 4 5 6 24 25 23 22 21 20 19 18 17 16 15 14 25 24 28 13 11 2 5 21 28 18 15 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	VALVE ASM; HAND BRK TRAILER BRAKE HAND CONTROL(NLG)	1-48100-849-0	01	1	1512-	●
2	REPAIR KIT; HAND BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-85576-180-0	01	1	1512-	●
4	HANDLE ASM; BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48119-517-0	01	1	1512-	●
5	GASKET; HANDLE TRAILER BRAKE HAND CONTROL(NLG)	1-48119-128-0	01	1	1512-	●
6	PIN; SPR TRAILER BRAKE HAND CONTROL(NLG)	1-48119-143-0	01	1	1512-	●
7	HEAD; BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48119-131-1	01	1	1512-	●
8	STOPPER; BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48119-136-0	01	1	1512-	●
9	WASHER; LK,ADJ TRAILER BRAKE HAND CONTROL(NLG)	1-48119-123-0	01	1	1512-	●
10	RING; ADJ TRAILER BRAKE HAND CONTROL(NLG)	1-48119-122-0	01	1	1512-	●
11	GASKET; HD TO COVER TRAILER BRAKE HAND CONTROL(NLG)	1-48119-130-0	01	1	1512-	●
12	COVER; BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-097-1	01	1	1512-	●
13	GASKET; BODY TO COVER TRAILER BRAKE HAND CONTROL(NLG)	1-48119-120-0	01	1	1512-	●
14	FOLLOWER; CAM TRAILER BRAKE HAND CONTROL(NLG)	1-48129-109-0	01	1	1512-	●
15	CAM; FOLLOWER TRAILER BRAKE HAND CONTROL(NLG)	1-48129-110-0	01	1	1512-	●
16	SPRING; GRUDUATING TRAILER BRAKE HAND CONTROL(NLG)	1-48129-101-0	01	1	1512-	●
17	PISTON; SPR TRAILER BRAKE HAND CONTROL(NLG)	1-48129-095-0	01	1	1512-	●
18	GASKET; BODY TRAILER BRAKE HAND CONTROL(NLG)	1-48129-096-0	01	1	1512-	●
19	SPRING; PISTON TRAILER BRAKE HAND CONTROL(NLG)	1-48129-094-0	01	1	1512-	●
20	GUIDE; VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-090-0	01	1	1512-	●
21	VALVE; IN & EXH TRAILER BRAKE HAND CONTROL(NLG)	1-48121-017-0	01	1	1512-	●
22	SPRING; VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48123-024-0	01	1	1512-	●
23	BODY; BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48111-060-1	01	1	1512-	●
24	BOLT; EXH VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-092-0	02	1	1512-	●
25	WASHER; LK,EXH VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-093-0	02	1	1512-	●
28	STEM ASM; BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-089-0	01	1	1512-	●

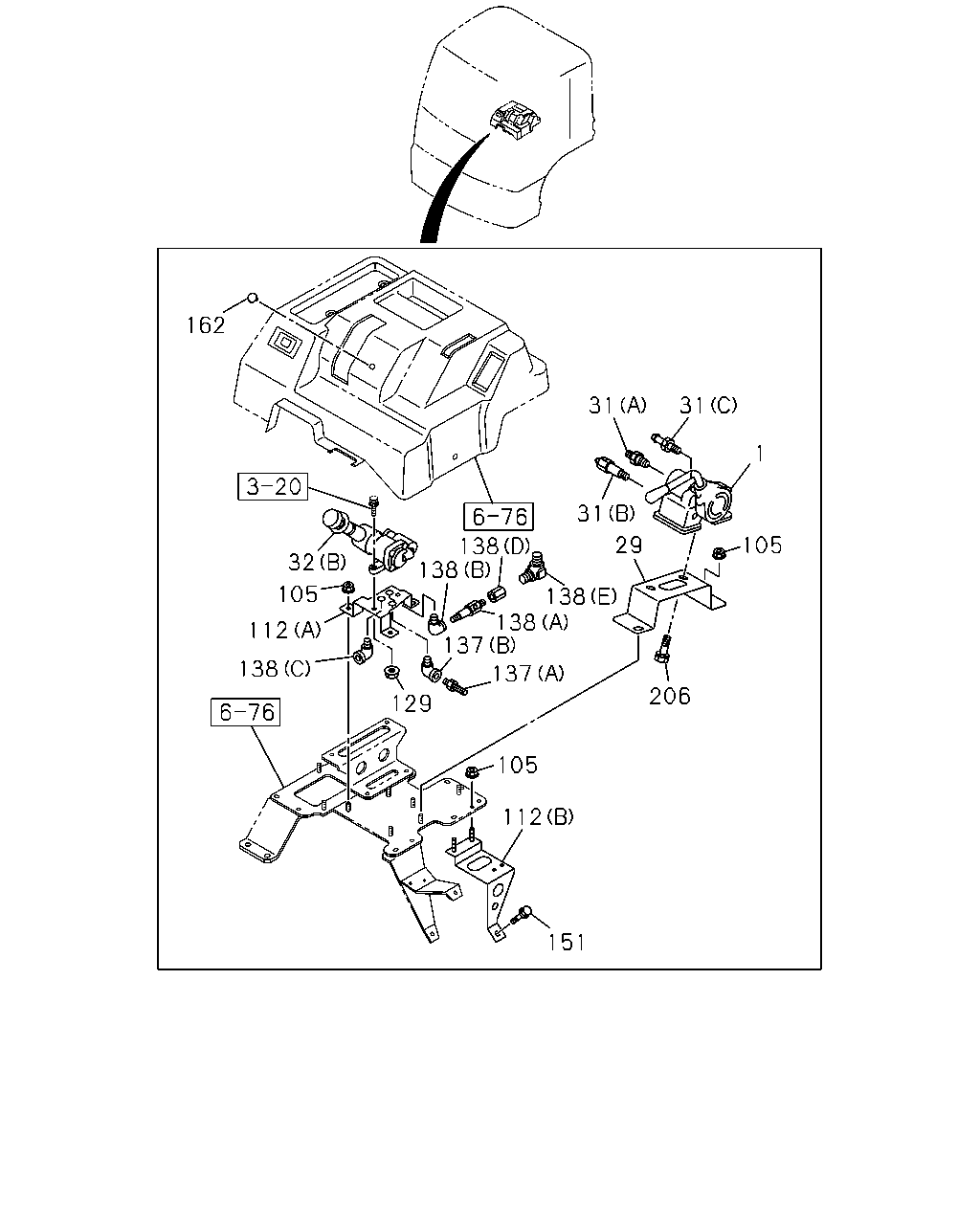

162 31 31 31 1 105 206 105 112 151 129 138 137 137 138 29 138 138 32 105 112 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; HAND BRK TRAILER BRAKE HAND CONTROL(NLG)	1-48100-849-0	01	1	1512-	●
29	BRACKET; HAND BRK FULL TRAILER PIPING<Z25>	1-79996-131-2	01	1	1512-	●
31	CONNECTOR; HAND BRK VLV FULL TRAILER PIPING<Z25> (A) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1512-	●
31	CONNECTOR; HAND BRK VLV FULL TRAILER PIPING<Z25> (B) M14	1-09656-391-2	01	1	1512-	●
31	CONNECTOR; HAND BRK VLV FULL TRAILER PIPING<Z25> (C) L=45	8-94338-874-0	01	1	1512-	●
32	VALVE; BRK,HAND CONT RR BRK AIR D410 WEDGE-220-30/30<B9V> EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-356-0	01	1	1512-	●
32	VALVE; BRK,HAND CONT RR BRK AIR D410 WEDGE-220-30/30<B9V> (A)	1-48460-356-0	01	1	1512-		●
32	VALVE; BRK,HAND CONT FULL TRAILER PIPING<Z25> (B)	1-48460-316-0	01	1	1512-	●
32	VALVE; BRK,HAND CONT (A)	1-48460-306-0	01	1	1303-1511	●
32	VALVE; BRK,HAND CONT EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>,FULL TRAILER PIPING<Z25> (A)	1-48460-306-0	01	1	1512-	●
32	VALVE; BRK,HAND CONT EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V> (A)	1-48460-306-0	01	1	1512-		●
105	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1512-	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1303-1511	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1512-	●	●
112	BRACKET; CONT VLV FULL TRAILER PIPING<Z25> (A)	1-79996-112-2	01	1	1512-	●
112	BRACKET; CONT VLV (B)	1-79996-113-2	01	1	1303-1511	●
112	BRACKET; CONT VLV (B)	1-79996-113-2	01	1	1512-	●	●
112	BRACKET; CONT VLV (A)	1-79996-378-1	01	1	1303-1511	●
112	BRACKET; CONT VLV EXC. FULL TRAILER PIPING<Z25> (A)	1-79996-378-1	01	1	1512-	●
112	BRACKET; CONT VLV (A)	1-79996-378-1	01	1	1512-		●
129	NUT; VLV FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1512-	●
129	NUT; VLV FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	05	1	1512-	●
137	CONNECTOR; SUPPLY FULL TRAILER PIPING<Z25> (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1512-	●
137	CONNECTOR; SUPPLY FULL TRAILER PIPING<Z25> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1512-	●
137	CONNECTOR; SUPPLY (C) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1303-1511	●
137	CONNECTOR; SUPPLY EXC. FULL TRAILER PIPING<Z25> (C) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1512-	●
137	CONNECTOR; SUPPLY (C) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1512-		●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (E) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	1512-	●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (A) M14	1-09656-391-2	01	1	1512-	●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1512-	●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (D) M20 & RC1/4 STRAIGHT	1-09660-880-0	01	1	1512-	●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1512-	●
138	CONNECTOR; DELIVERY (F) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	1303-1511	●
138	CONNECTOR; DELIVERY EXC. FULL TRAILER PIPING<Z25> (F) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	1512-	●
138	CONNECTOR; DELIVERY (F) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	1512-		●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1303-1511	●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1512-	●	●
162	SWITCH; PARKING BRK VLV	1-72447-390-0	01	1	1303-1511	●
162	SWITCH; PARKING BRK VLV	1-72447-390-0	01	1	1512-	●	●
206	BOLT; HAND BRK VALVE TRAILER BRAKE HAND CONTROL(NLG) M10X20 W/LK WASHER	0-50541-020-0	02	1	1512-	●

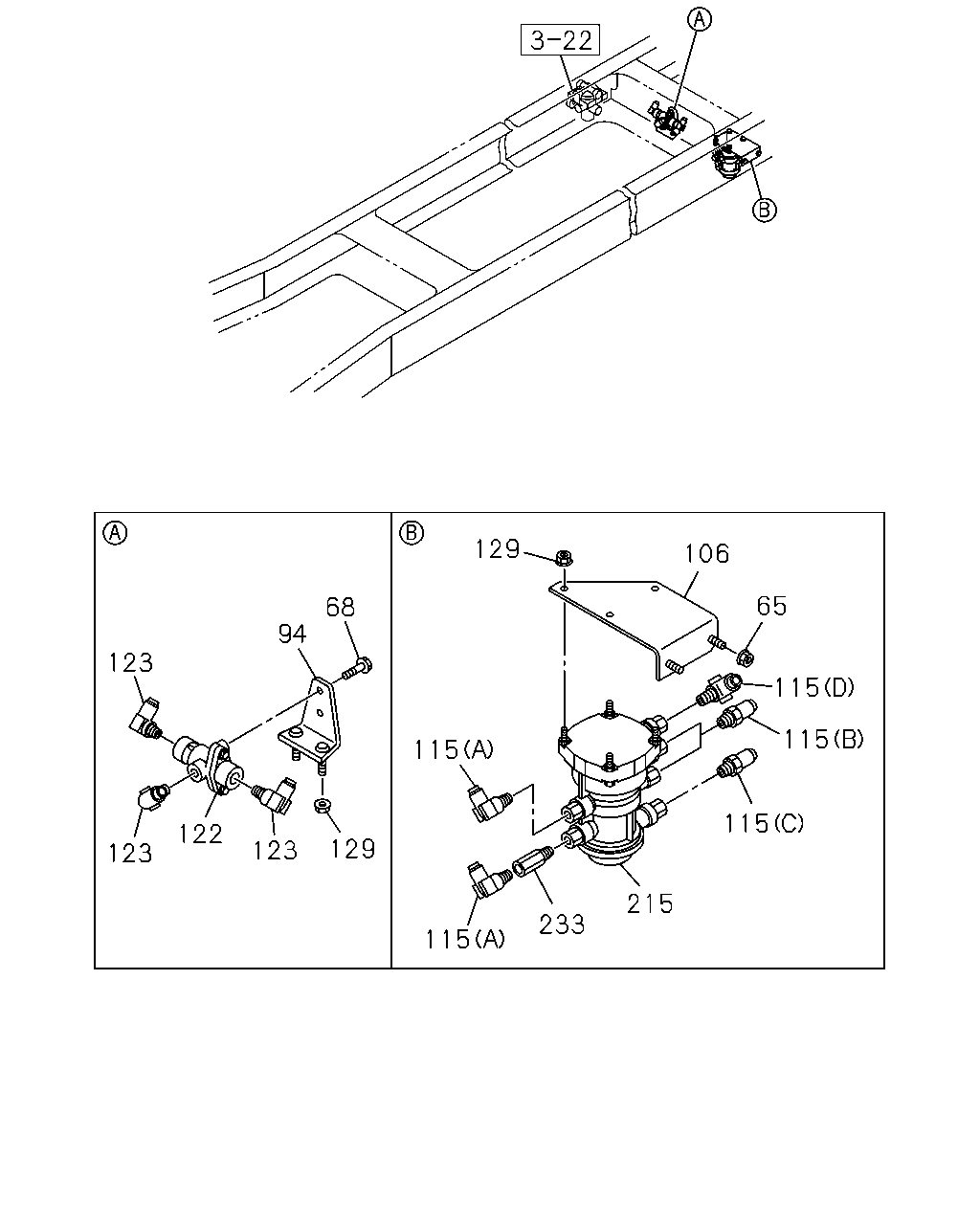

65 115 115 115 215 233 115 115 106 129 68 129 123 122 123 123 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
65	NUT; RELAY VLV FULL TRAILER PIPING<Z25> M10 FLANGE	0-91180-210-0	02	1	1512-	●
68	BOLT; DOUBLE CHECK VLV FULL TRAILER PIPING<Z25> M8X14 FLANGE	0-28080-814-0	02	1	1512-	●
94	BRACKET; CHECK VLV FULL TRAILER PIPING<Z25>	8-98153-162-0	01	1	1512-	●
106	BRACKET; VLV FULL TRAILER PIPING<Z25>	8-98142-101-1	01	1	1512-	●
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1512-	●
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1512-	●
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	1512-	●
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1512-	●
122	VALVE ASM; DOUBLE CHECK FULL TRAILER PIPING<Z25>	1-48410-531-1	01	1	1512-	●
123	CONNECTOR; DBL CHECK VLV FULL TRAILER PIPING<Z25> DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	1512-	●
129	NUT; VLV FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1512-	●
129	NUT; VLV FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	05	1	1512-	●
215	VALVE; TRAILER CONT FULL TRAILER PIPING<Z25>	8-98091-694-0	01	1	1512-	●
233	ADAPTER; VLV FULL TRAILER PIPING<Z25> PT3/8	1-48319-058-0	01	1	1512-	●

32 49 50 45 47 46 44 43 42 59 45 44 58 39 40 41 40 37 38 35 36 34 57 145 42 33 56 54 55 54 53 52 51 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT RR BRK AIR D410 WEDGE-220-30/30<B9V> EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-356-0	01	1	1512-	●
32	VALVE; BRK,HAND CONT RR BRK AIR D410 WEDGE-220-30/30<B9V> (A)	1-48460-356-0	01	1	1512-		●
32	VALVE; BRK,HAND CONT FULL TRAILER PIPING<Z25> (B)	1-48460-316-0	01	1	1512-	●
32	VALVE; BRK,HAND CONT (A)	1-48460-306-0	01	1	1303-1511	●
32	VALVE; BRK,HAND CONT EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>,FULL TRAILER PIPING<Z25> (A)	1-48460-306-0	01	1	1512-	●
32	VALVE; BRK,HAND CONT EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V> (A)	1-48460-306-0	01	1	1512-		●
33	PLATE; CAUTION FULL TRAILER PIPING<Z25>	1-48469-121-0	01	1	1512-	●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1303-1511	●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1512-	●	●
35	HOLDER; CAM	1-48469-054-0	01	1	1303-1511	●
35	HOLDER; CAM	1-48469-054-0	01	1	1512-	●	●
36	RING; CAM	1-48469-056-0	01	1	1303-1511	●
36	RING; CAM	1-48469-056-0	01	1	1512-	●	●
37	GUIDE; CAM RING	1-48469-058-0	01	1	1303-1511	●
37	GUIDE; CAM RING	1-48469-058-0	01	1	1512-	●	●
38	SEAT; EXH VLV	1-48469-057-0	01	1	1303-1511	●
38	SEAT; EXH VLV	1-48469-057-0	01	1	1512-	●	●
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	1303-1511	●
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	1512-	●	●
40	RING; SNAP (A)	1-48469-067-0	01	1	1512-	●	●
40	RING; SNAP (A)	1-48469-067-0	01	1	1303-1511	●
40	RING; SNAP FULL TRAILER PIPING<Z25> (B)	1-48469-079-0	01	1	1512-	●
41	SEAT; FEED VLV	1-48469-066-0	01	1	1303-1511	●
41	SEAT; FEED VLV	1-48469-066-0	01	1	1512-	●	●
42	VALVE; FEED EXC. FULL TRAILER PIPING<Z25>	1-48469-065-0	01	1	1512-	●
42	VALVE; FEED	1-48469-065-0	01	1	1512-		●
42	VALVE; FEED	1-48469-065-0	01	1	1303-1511	●
42	VALVE; FEED FULL TRAILER PIPING<Z25>	1-48469-065-0	02	1	1512-	●
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	1303-1511	●
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	1512-	●	●
44	RING; SNAP,FEED VLV EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>,FULL TRAILER PIPING<Z25>	1-48469-068-0	02	1	1512-	●
44	RING; SNAP,FEED VLV FULL TRAILER PIPING<Z25>	1-48469-068-0	02	1	1512-	●
44	RING; SNAP,FEED VLV EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>	1-48469-068-0	02	1	1512-		●
44	RING; SNAP,FEED VLV	1-48469-068-0	02	1	1303-1511	●
44	RING; SNAP,FEED VLV RR BRK AIR D410 WEDGE-220-30/30<B9V> EXC. FULL TRAILER PIPING<Z25>	1-48469-068-0	01	1	1512-	●
44	RING; SNAP,FEED VLV RR BRK AIR D410 WEDGE-220-30/30<B9V>	1-48469-068-0	01	1	1512-		●
45	SPRING; FEED VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-070-0	01	1	1512-	●
45	SPRING; FEED VLV	1-48469-070-0	01	1	1512-		●
45	SPRING; FEED VLV	1-48469-070-0	01	1	1303-1511	●
45	SPRING; FEED VLV FULL TRAILER PIPING<Z25>	1-48469-070-0	02	1	1512-	●
46	SPRING; MAIN,PISTON EXC. FULL TRAILER PIPING<Z25>	1-48469-089-0	01	1	1512-	●
46	SPRING; MAIN,PISTON	1-48469-089-0	01	1	1512-		●
46	SPRING; MAIN,PISTON	1-48469-089-0	01	1	1303-1511	●
46	SPRING; MAIN,PISTON FULL TRAILER PIPING<Z25>	1-48469-119-0	01	1	1512-	●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1303-1511	●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1512-	●	●
49	SCREW; COVER RR BRK AIR D410 WEDGE-220-30/30<B9V> EXC. FULL TRAILER PIPING<Z25>	1-48469-118-0	04	1	1512-	●
49	SCREW; COVER RR BRK AIR D410 WEDGE-220-30/30<B9V>	1-48469-118-0	04	1	1512-		●
49	SCREW; COVER FULL TRAILER PIPING<Z25>	1-48469-120-0	04	1	1512-	●
49	SCREW; COVER	1-48469-092-0	04	1	1303-1511	●
49	SCREW; COVER EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>,FULL TRAILER PIPING<Z25>	1-48469-092-0	04	1	1512-	●
49	SCREW; COVER EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>	1-48469-092-0	04	1	1512-		●
50	COVER; HAND BRK VLV RR BRK AIR D410 WEDGE-220-30/30<B9V> EXC. FULL TRAILER PIPING<Z25>	1-48469-222-0	01	1	1512-	●
50	COVER; HAND BRK VLV RR BRK AIR D410 WEDGE-220-30/30<B9V>	1-48469-222-0	01	1	1512-		●
50	COVER; HAND BRK VLV FULL TRAILER PIPING<Z25>	1-48469-073-0	01	1	1512-	●
50	COVER; HAND BRK VLV	1-48469-090-0	01	1	1303-1511	●
50	COVER; HAND BRK VLV EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>,FULL TRAILER PIPING<Z25>	1-48469-090-0	01	1	1512-	●
50	COVER; HAND BRK VLV EXC. RR BRK AIR D410 WEDGE-220-30/30<B9V>	1-48469-090-0	01	1	1512-		●
51	HANDLE ASM; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-122-0	01	1	1512-	●
51	HANDLE ASM; HAND BRK VLV	1-48469-122-0	01	1	1512-		●
51	HANDLE ASM; HAND BRK VLV	1-48469-122-0	01	1	1303-1511	●
51	HANDLE ASM; HAND BRK VLV FULL TRAILER PIPING<Z25>	1-48469-060-0	01	1	1512-	●
52	SCREW; HANDLE	1-48469-062-0	01	1	1303-1511	●
52	SCREW; HANDLE	1-48469-062-0	01	1	1512-	●	●
53	WASHER; HANDLE	1-48469-061-0	01	1	1303-1511	●
53	WASHER; HANDLE	1-48469-061-0	01	1	1512-	●	●
54	SEAT; SPRING	1-48469-082-0	02	1	1303-1511	●
54	SEAT; SPRING	1-48469-082-0	02	1	1512-	●	●
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	1303-1511	●
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	1512-	●	●
56	BOOT; PLUNGER FULL TRAILER PIPING<Z25>	1-48469-080-0	01	1	1512-	●
57	PLUNGER; HAND BRK VLV FULL TRAILER PIPING<Z25>	1-48469-076-0	01	1	1512-	●
58	HOLDER; FEED VLV FULL TRAILER PIPING<Z25>	1-48469-077-0	01	1	1512-	●
59	HOLDER; SPRING FULL TRAILER PIPING<Z25>	1-48469-078-0	01	1	1512-	●
145	STUD; HAND BRK VLV FULL TRAILER PIPING<Z25>	1-48469-069-0	01	1	1512-	●

3 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; HAND BRK VLV (A) W/GREASE	1-48469-096-0	01	1	1303-1511	●
3	REPAIR KIT; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25> (A) W/GREASE	1-48469-096-0	01	1	1512-	●
3	REPAIR KIT; HAND BRK VLV (A) W/GREASE	1-48469-096-0	01	1	1512-		●
3	REPAIR KIT; HAND BRK VLV FULL TRAILER PIPING<Z25> (B) W/GREASE	1-48469-083-0	01	1	1512-	●
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	1303-1511	●
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	1512-	●	●

180

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

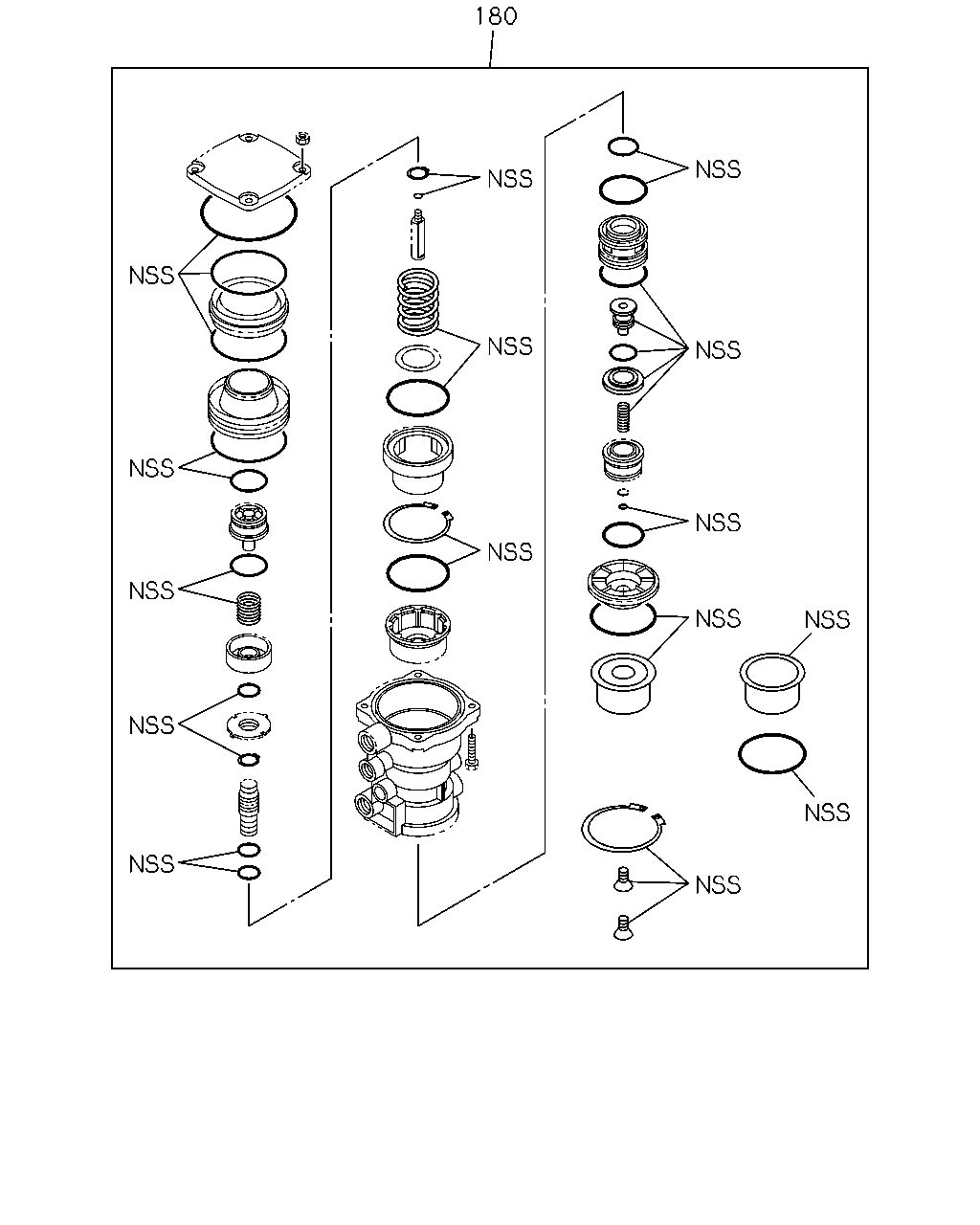

	180	REPAIR KIT; RELAY VLV FULL TRAILER PIPING<Z25>	1-85576-449-0	01	1	1512-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
