◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10863 - EXR RHD FUEL TANK 200L+200L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#11500) — 411 parça
çizim 18866
38 239 38 88 38 242 242 38 242 313 38 313 38 38 242 313 38 313 242 133 516 358 133 423 219 294 294 219 515 64 133 255 119 340
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(H) M8X25 FLANGE 		0-28080-825-0 01 1 0212-0512
38 BOLT; CLIP,HARNESS
(H) M8X25 FLANGE 		0-28050-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(E) M6X8 		0-20800-608-0 01 1 0106-
38 BOLT; CLIP,HARNESS
(F) M8X12 FLANGE 		0-28080-812-0 01 1 0106-0512
38 BOLT; CLIP,HARNESS
(F) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(G) M8X30 FLANGE 		0-28680-830-0 02 1 0106-0211
38 BOLT; CLIP,HARNESS
(G) M8X30 FLANGE 		0-28680-830-0 01 1 0212-0403
38 BOLT; CLIP,HARNESS
(G) M8X30 FLANGE 		0-28680-830-0 09 1 0106-0512
38 BOLT; CLIP,HARNESS
(G) M8X30 FLANGE 		0-28650-830-0 09 1 0601-
38 BOLT; CLIP,HARNESS
(C) M12X16 FLANGE 		1-09044-079-0 01 1 0106-
38 BOLT; CLIP,HARNESS
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0106-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28080-820-0 01 1 0106-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28080-820-0 01 1 0106-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0106
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0106
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0108
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0108
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0108
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0109-0403
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0109-0403
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0106-0106
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0107-0112
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0201-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0201-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0106-
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0106-
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0106-
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0106-0106
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 09 1 0106-0106
219 NUT
EXC. ZF M/T<X9E> (B) M10X1.25 FLANGE 		0-91150-210-0 01 1 0106-0108
219 NUT
MJD7 M/T<X9J> (B) M10X1.25 FLANGE 		0-91150-210-0 01 1 0106-0108
219 NUT
MJD7 M/T<X9J> (B) M10X1.25 FLANGE 		0-91150-210-0 01 1 0106-0108
219 NUT
(B) M10 FLANGE 		0-91150-210-0 01 1 0109-0205
219 NUT
(B) M10 FLANGE 		0-91150-210-0 01 1 0109-0205
219 NUT
(B) M10 FLANGE 		0-91150-210-0 01 1 0109-0205
219 NUT
(B) M10 FLANGE 		0-91150-210-0 01 1 0206-0602
219 NUT
(B) M10 FLANGE 		0-91150-210-0 01 1 0206-0602
219 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 0603-
219 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 0603-
219 NUT
(B) M10X1.5 FLANGE 		0-91250-210-0 01 1 0106-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0106-0602
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0106-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
219 NUT
ZF M/T<X9E> (A) M8 FLANGE 		0-91150-108-0 02 1 0106-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0107-0108
219 NUT
ZF M/T<X9E> (A) M8 FLANGE 		0-91150-108-0 02 1 0107-0108
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0109-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0111-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 10 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0106-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 10 1 0107-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0603-
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0106-
242 BOLT; BRKT,HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X18 FLANGE 		0-28080-818-0 02 1 0106-
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0106-0512
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
242 BOLT; BRKT,HARNESS
(C) M8X18 FLANGE 		0-28080-818-0 04 1 0106-
242 BOLT; BRKT,HARNESS
(D) M8X20 FLANGE 		0-28080-820-0 01 1 0106-0512
242 BOLT; BRKT,HARNESS
(D) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
242 BOLT; BRKT,HARNESS
(E) M10X20 FLANGE 		0-28681-020-0 02 1 0106-0512
242 BOLT; BRKT,HARNESS
(E) M10X20 FLANGE 		0-28651-020-0 02 1 0601-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0106-0512
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0106-0512
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0106-0604
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74365-620-0 02 1 0605-
294 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0206-0602
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
294 NUT
ISUZU M/T<X9A> (B) M10 FLANGE 		0-91150-210-0 01 1 0107-0108
294 NUT
(B) M10 FLANGE 		0-91150-210-0 01 1 0109-0602
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 0603-
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0106-0108
294 NUT
ISUZU M/T<X9A> (A) M8 FLANGE 		0-91150-108-0 01 1 0106-0108
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0106-0108
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0109-0205
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0109-0205
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0109-0205
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0206-0602
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
313 BOLT; BRKT
(D) M8X20 FLANGE 		0-28080-820-0 02 1 0212-0512
313 BOLT; BRKT
(D) M8X20 FLANGE 		0-28050-820-0 02 1 0601-
313 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N) (C) M12X16 		0-28181-216-0 01 1 0107-0108
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0106-0108
313 BOLT; BRKT
ISUZU M/T<X9A> (A) M8X30 FLANGE 		0-28680-830-0 01 1 0106-0108
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0109-0205
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0109-0205
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0206-0211
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0206-0211
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0212-0512
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0106-0205
313 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0107
313 BOLT; BRKT
ZF M/T<X9E> (B) M8X20 FLANGE 		0-28680-820-0 01 1 0108-0108
313 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE 		0-28680-820-0 01 1 0108-0108
313 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE 		0-28680-820-0 01 1 0109-0512
313 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0106-0602
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0603-
358 BOLT; EARTH
AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0106-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 0106-
515 NUT; BRKT
M10 		9-09110-510-0 02 1 0106-0512
515 NUT; BRKT
M10 		0-91110-510-0 02 1 0601-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0106-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-

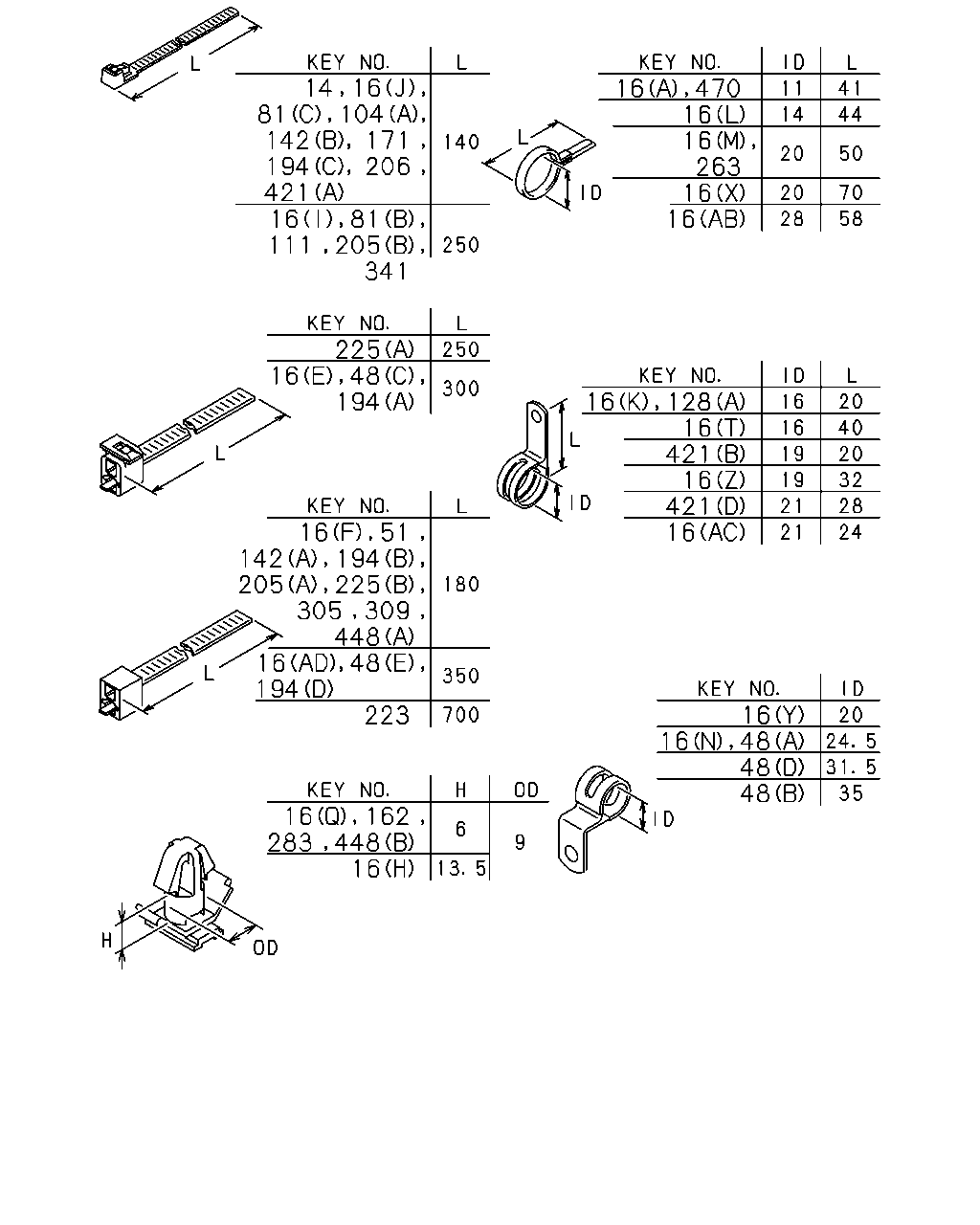

çizim 20444
14 16 81 104 142 171 206 194 421 16 81 111 205 341 16 48 194 225 16 51 142 194 205 225 305 309 448 16 48 194 223 16 162 283 448 16 48 48 16 48 16 16 421 16 421 16 128 16 16 16 263 16 16 470 16
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
L=140 		5-09707-031-1 01 1 0405-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-
16 CLIP; HARNESS
(AB) ID=28 L=58 		1-09700-400-0 01 1 0111-
16 CLIP; HARNESS
ZF M/T<X9E> (AA) ID=19 L=28 		9-09525-856-0 01 1 0108-0108
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (W) L=20 		1-09987-246-2 04 1 0106-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0106-0108
16 CLIP; HARNESS
ISUZU M/T<X9A> (J) L=140 		5-09707-031-1 01 1 0106-0108
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0106-0108
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0109-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0109-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0109-
16 CLIP; HARNESS
ZF M/T<X9E> (R) ID=15 H=30 L=30 		1-09700-832-0 01 1 0106-0107
16 CLIP; HARNESS
ZF M/T<X9E> (R) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0108-0108
16 CLIP; HARNESS
ZF M/T<X9E> (I) L=250 		5-09707-030-1 03 1 0106-0108
16 CLIP; HARNESS
ZF M/T<X9E> (A) ID=11 L=41 		1-09700-403-0 01 1 0106-0108
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0106-0108
16 CLIP; HARNESS
ZF M/T<X9E> (Q) OD=9 H=6 		1-09709-178-0 03 1 0106-0108
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 03 1 0106-0108
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 03 1 0109-
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0106-0107
16 CLIP; HARNESS
ZF M/T<X9E> (K) ID=16 L=20 		9-09525-535-0 01 1 0106-0107
16 CLIP; HARNESS
ISUZU M/T<X9A>,ZF M/T<X9E> (K) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0109-0606
16 CLIP; HARNESS
(K) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 0106-0108
16 CLIP; HARNESS
MJD7 M/T<X9J> (Q) OD=9 H=6 		1-09709-178-0 01 1 0106-0108
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 0109-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 0109-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (F) L=180 		1-09707-162-1 01 1 0106-
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 01 1 0106-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0106-
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 0106-
16 CLIP; HARNESS
(X) ID=20 L=70 		1-09700-485-0 03 1 0106-
16 CLIP; HARNESS
(C) ID=15 L=35 		1-09700-507-0 01 1 0106-
16 CLIP; HARNESS
(V) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0106-0402
16 CLIP; HARNESS
(V) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0106-0109
16 CLIP; HARNESS
(AC) ID=21 L=24 		8-94176-807-1 01 1 0110-
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0106-0108
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0109-0112
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0201-
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0201-
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0106-0108
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0109-
16 CLIP; HARNESS
(D) ID=14.5 L=28 		1-09701-013-0 01 1 0106-
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 01 1 0106-0109
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 03 1 0106-0504
16 CLIP; HARNESS
(AD) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 02 1 0106-
16 CLIP; HARNESS
(G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0106-
16 CLIP; HARNESS
(G) W/SPONGE RUBBER 		1-09709-150-0 01 1 0106-
16 CLIP; HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0106-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 02 1 0106-
16 CLIP; HARNESS
(O) 		8-94403-348-0 01 1 0106-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0106-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 0106-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 04 1 0106-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0106-0109
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 0110-0211
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0212-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 08 1 0106-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0106-0303
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0106-0303
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0304-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0304-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0304-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0106-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0106-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0106-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (S) L=36 		8-94224-891-1 01 1 0106-0108
16 CLIP; HARNESS
(S) L=36 		8-94224-891-1 01 1 0109-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (T) ID=16 L=40 		9-09525-576-0 01 1 0106-0107
16 CLIP; HARNESS
ISUZU M/T<X9A> (T) ID=16 L=40 		9-09525-576-0 01 1 0108-0108
16 CLIP; HARNESS
(T) ID=16 L=40 		9-09525-576-0 01 1 0109-0606
16 CLIP; HARNESS
(T) ID=16 L=40 		0-95235-576-0 01 1 0607-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 0106-0106
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(U) ID=4.8 		1-09701-218-0 01 1 0106-0106
16 CLIP; HARNESS
(AA) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 02 1 0106-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (U) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 0106-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (Q) OD=9 H=6 		1-09709-178-0 02 1 0107-
16 CLIP; HARNESS
(P) ID=14-20 		8-97061-603-0 01 1 0106-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (Q) OD=9 H=6 		1-09709-178-0 04 1 0107-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0106-
48 CLIP; FRAME HARNESS
(B) ID=35 H=45 L=33 		1-09700-947-0 02 1 0106-
48 CLIP; FRAME HARNESS
(D) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0106-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 01 1 0106-0504
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 0505-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 06 1 0106-0504
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 06 1 0505-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 0106-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=7-10 		8-94472-578-0 02 1 0106-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) ID=7-10 		8-94472-578-0 06 1 0106-
81 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0106-
81 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 0106-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0106-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 0106-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=21 L=47.5 		8-94178-108-0 02 1 0106-
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 0106-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0106-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0106-
142 CLIP; HARNESS,ENG
(B) L=140 		5-09707-031-1 01 1 0111-
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 01 1 0106-
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0106-
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 05 1 0106-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0106-0504
194 CLIP; BAND
(D) L=350 		1-09707-183-0 01 1 0505-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0106-0305
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0306-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0306-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 02 1 0106-0106
194 CLIP; BAND
(B) L=180 		1-09707-162-1 01 1 0107-0305
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0107-0305
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0306-
205 CLIP; BACK LAMP HARNESS
SINGAPORE EQUIPMENT(WQ3) (B) L=250 		5-09707-030-1 05 1 0106-
205 CLIP; BACK LAMP HARNESS
(A) L=180 		1-09707-162-1 01 1 0106-
205 CLIP; BACK LAMP HARNESS
SINGAPORE EQUIPMENT(WQ3) (A) L=180 		1-09707-162-1 01 1 0106-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0106-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> L=700 		1-09707-190-0 01 1 0106-
225 CLIP; AIR TANK HARNESS
(A) L=250 		1-09707-126-0 01 1 0106-
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 03 1 0106-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 01 1 0106-0305
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0106-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 0106-
309 CLIP; HARNESS,HAND BRAKE CABLE
L=180 		1-09707-162-1 01 1 0106-
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 03 1 0106-
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) L=140 		5-09707-031-1 01 1 0106-
421 CLIP; FLOOR HARNESS
(C) L=20 		1-09987-246-2 01 1 0106-0207
421 CLIP; FLOOR HARNESS
(B) ID=19 L=20 		9-09525-832-0 02 1 0106-0106
421 CLIP; FLOOR HARNESS
(D) ID=21 L=28 		1-09700-673-1 02 1 0106-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (B) OD=9 H=6 		1-09709-178-0 01 1 0106-0106
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (A) L=180 		1-09707-162-1 01 1 0106-
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 0106-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0106-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-

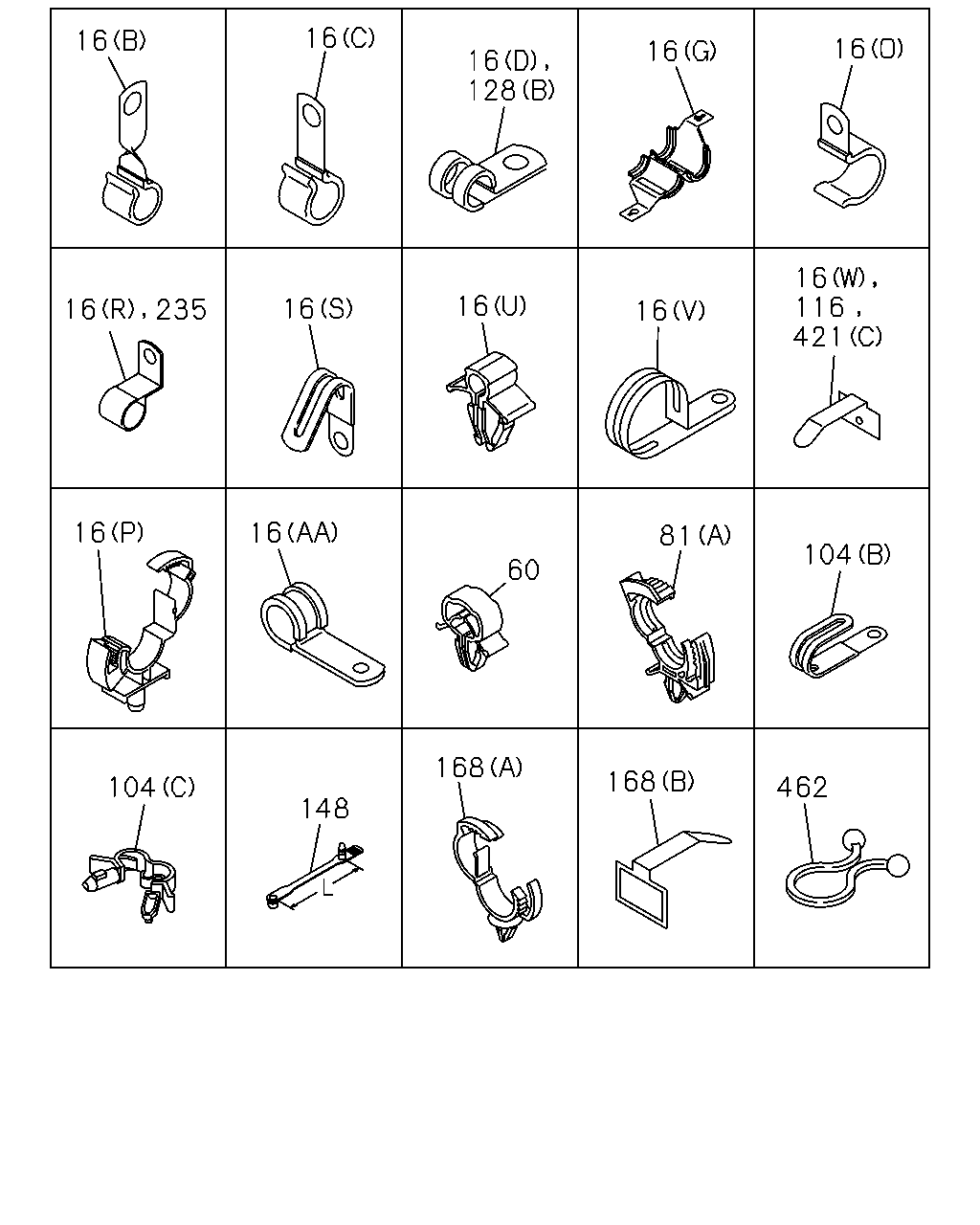

çizim 73103
16 16 16 128 16 16 16 116 421 16 16 16 235 16 16 16 60 81 104 462 168 168 148 104
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-
16 CLIP; HARNESS
(AB) ID=28 L=58 		1-09700-400-0 01 1 0111-
16 CLIP; HARNESS
ZF M/T<X9E> (AA) ID=19 L=28 		9-09525-856-0 01 1 0108-0108
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (W) L=20 		1-09987-246-2 04 1 0106-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0106-0108
16 CLIP; HARNESS
ISUZU M/T<X9A> (J) L=140 		5-09707-031-1 01 1 0106-0108
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0106-0108
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0109-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0109-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0109-
16 CLIP; HARNESS
ZF M/T<X9E> (R) ID=15 H=30 L=30 		1-09700-832-0 01 1 0106-0107
16 CLIP; HARNESS
ZF M/T<X9E> (R) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0108-0108
16 CLIP; HARNESS
ZF M/T<X9E> (I) L=250 		5-09707-030-1 03 1 0106-0108
16 CLIP; HARNESS
ZF M/T<X9E> (A) ID=11 L=41 		1-09700-403-0 01 1 0106-0108
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0106-0108
16 CLIP; HARNESS
ZF M/T<X9E> (Q) OD=9 H=6 		1-09709-178-0 03 1 0106-0108
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 03 1 0106-0108
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 03 1 0109-
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0106-0107
16 CLIP; HARNESS
ZF M/T<X9E> (K) ID=16 L=20 		9-09525-535-0 01 1 0106-0107
16 CLIP; HARNESS
ISUZU M/T<X9A>,ZF M/T<X9E> (K) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0109-0606
16 CLIP; HARNESS
(K) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 0106-0108
16 CLIP; HARNESS
MJD7 M/T<X9J> (Q) OD=9 H=6 		1-09709-178-0 01 1 0106-0108
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 0109-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 0109-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (F) L=180 		1-09707-162-1 01 1 0106-
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 01 1 0106-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0106-
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 0106-
16 CLIP; HARNESS
(X) ID=20 L=70 		1-09700-485-0 03 1 0106-
16 CLIP; HARNESS
(C) ID=15 L=35 		1-09700-507-0 01 1 0106-
16 CLIP; HARNESS
(V) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0106-0402
16 CLIP; HARNESS
(V) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0106-0109
16 CLIP; HARNESS
(AC) ID=21 L=24 		8-94176-807-1 01 1 0110-
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0106-0108
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0109-0112
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0201-
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0201-
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0106-0108
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0109-
16 CLIP; HARNESS
(D) ID=14.5 L=28 		1-09701-013-0 01 1 0106-
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 01 1 0106-0109
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 03 1 0106-0504
16 CLIP; HARNESS
(AD) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 02 1 0106-
16 CLIP; HARNESS
(G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0106-
16 CLIP; HARNESS
(G) W/SPONGE RUBBER 		1-09709-150-0 01 1 0106-
16 CLIP; HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0106-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 02 1 0106-
16 CLIP; HARNESS
(O) 		8-94403-348-0 01 1 0106-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0106-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 0106-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 04 1 0106-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0106-0109
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 0110-0211
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0212-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 08 1 0106-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0106-0303
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0106-0303
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0304-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0304-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0304-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0106-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0106-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0106-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (S) L=36 		8-94224-891-1 01 1 0106-0108
16 CLIP; HARNESS
(S) L=36 		8-94224-891-1 01 1 0109-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (T) ID=16 L=40 		9-09525-576-0 01 1 0106-0107
16 CLIP; HARNESS
ISUZU M/T<X9A> (T) ID=16 L=40 		9-09525-576-0 01 1 0108-0108
16 CLIP; HARNESS
(T) ID=16 L=40 		9-09525-576-0 01 1 0109-0606
16 CLIP; HARNESS
(T) ID=16 L=40 		0-95235-576-0 01 1 0607-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 0106-0106
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(U) ID=4.8 		1-09701-218-0 01 1 0106-0106
16 CLIP; HARNESS
(AA) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 02 1 0106-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (U) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 0106-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (Q) OD=9 H=6 		1-09709-178-0 02 1 0107-
16 CLIP; HARNESS
(P) ID=14-20 		8-97061-603-0 01 1 0106-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (Q) OD=9 H=6 		1-09709-178-0 04 1 0107-
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP CONTROL LEVER<RC4> ID=10 		8-94450-392-0 01 1 0306-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=7-10 		8-94472-578-0 02 1 0106-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) ID=7-10 		8-94472-578-0 06 1 0106-
81 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0106-
81 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 0106-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0106-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 0106-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=21 L=47.5 		8-94178-108-0 02 1 0106-
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 		1-09987-246-2 05 1 0202-
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 05 1 0106-0201
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 		1-09987-246-2 06 1 0202-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0106-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0106-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0106-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 06 1 0106-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 		1-09987-265-0 01 1 0106-
235 CLIP; HARNESS,SPD SENSOR,SSPS
EXC. ZF M/T<X9E> ID=13 H=29 L=30 		1-09700-001-0 01 1 0106-0106
235 CLIP; HARNESS,SPD SENSOR,SSPS
EXC. ZF M/T<X9E> ID=10 H=25 L=20 		1-09700-519-0 01 1 0107-0108
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=10 H=25 L=20 		1-09700-519-0 01 1 0109-
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) L=140 		5-09707-031-1 01 1 0106-
421 CLIP; FLOOR HARNESS
(C) L=20 		1-09987-246-2 01 1 0106-0207
421 CLIP; FLOOR HARNESS
(B) ID=19 L=20 		9-09525-832-0 02 1 0106-0106
421 CLIP; FLOOR HARNESS
(D) ID=21 L=28 		1-09700-673-1 02 1 0106-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		1-09709-068-0 02 1 0301-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0106-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-

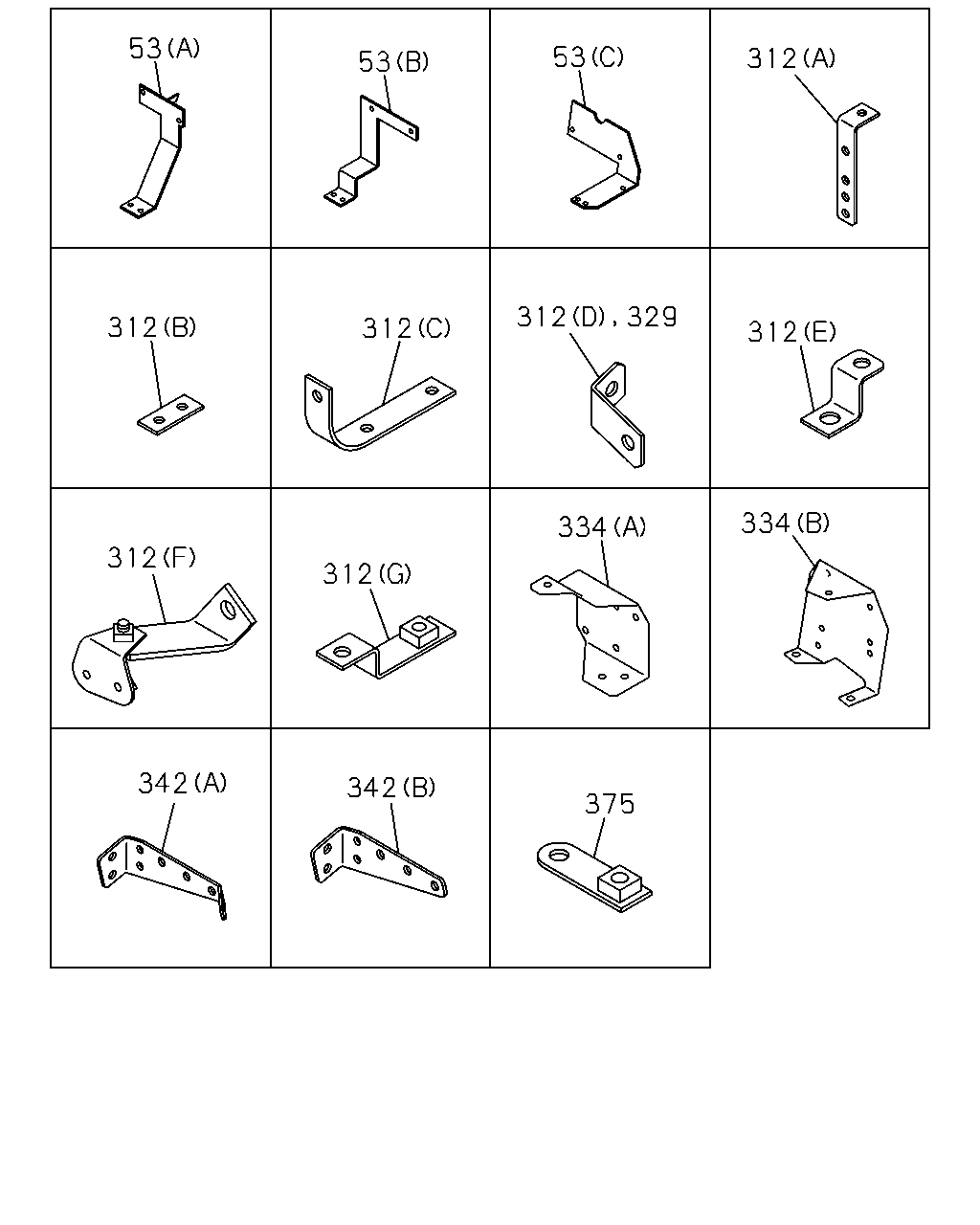

çizim 76287
312 53 53 53 312 312 312 312 334 334 312 312 342 342 375 329
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82699-916-0 01 1 0106-
53 BRACKET; HARNESS
(A) 		1-82699-592-2 01 1 0106-
53 BRACKET; HARNESS
(C) 		1-82699-826-0 01 1 0106-
312 BRACKET; CLIP HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (F) 		1-47477-902-0 01 1 0107-0108
312 BRACKET; CLIP HARNESS
ZF M/T<X9E> (G) 		1-82699-304-0 01 1 0108-0108
312 BRACKET; CLIP HARNESS
ISUZU M/T<X9A> (E) 		1-82699-425-0 01 1 0107-0108
312 BRACKET; CLIP HARNESS
(E) 		1-82699-425-0 01 1 0109-
312 BRACKET; CLIP HARNESS
(A) 		1-82698-358-0 01 1 0106-0108
312 BRACKET; CLIP HARNESS
ISUZU M/T<X9A> (A) 		1-82698-358-0 01 1 0106-0108
312 BRACKET; CLIP HARNESS
(A) 		1-82698-358-0 01 1 0109-0205
312 BRACKET; CLIP HARNESS
(A) 		1-82698-358-0 01 1 0109-0205
312 BRACKET; CLIP HARNESS
(A) 		1-82698-358-0 02 1 0206-
312 BRACKET; CLIP HARNESS
(C) 		1-47477-156-2 01 1 0106-0109
312 BRACKET; CLIP HARNESS
(C) 		1-47479-342-0 01 1 0110-
312 BRACKET; CLIP HARNESS
(D) 		1-82699-199-0 01 1 0106-
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82699-239-0 01 1 0106-
329 BRACKET; CLIP,CABLE 1-82699-199-0 01 1 0106-
334 BRACKET
(A) 		1-53458-362-0 01 1 0106-
334 BRACKET
(B) 		1-53458-709-1 01 1 0106-
342 BRACKET; HARNESS CAB MTG
ZF M/T<X9E> (A) 		1-82698-224-0 01 1 0106-0108
342 BRACKET; HARNESS CAB MTG
EXC. ZF M/T<X9E> (B) 		1-82699-625-0 01 1 0106-0108
342 BRACKET; HARNESS CAB MTG
(B) 		1-82699-625-0 01 1 0109-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0106-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0106-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-
çizim 76753
5 185 1 178 178 178 178 178 503 510 530
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) ID=38.1 L=50 		5-09360-835-0 01 1 0212-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0106-
178 GROMMET; HARNESS
(C) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0106-
178 GROMMET; HARNESS
SINGAPORE EQUIPMENT(WQ3) (C) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0106-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 03 1 0106-
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0106-
178 GROMMET; HARNESS
(D) ID=32 OD=40 T=18 		1-09891-003-0 03 1 0106-
178 GROMMET; HARNESS
(E) 		1-82699-891-0 01 1 0106-
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0106-
503 CONNECTOR
EXC. AUTO CAB TILT<WV2> 2P MALE LIGHT GRAY 		1-82691-078-0 01 1 0106-
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 02 1 0106-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0106-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-
530 SEAL; HARNESS
180X40 		1-72498-019-0 04 1 0106-
530 SEAL; HARNESS
180X40 		1-72498-019-0 07 1 0106-0207
530 SEAL; HARNESS
180X40 		1-72498-019-0 08 1 0208-
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> 100X40 		1-72498-022-0 01 1 0106-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
