Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#1150) — 304 parça

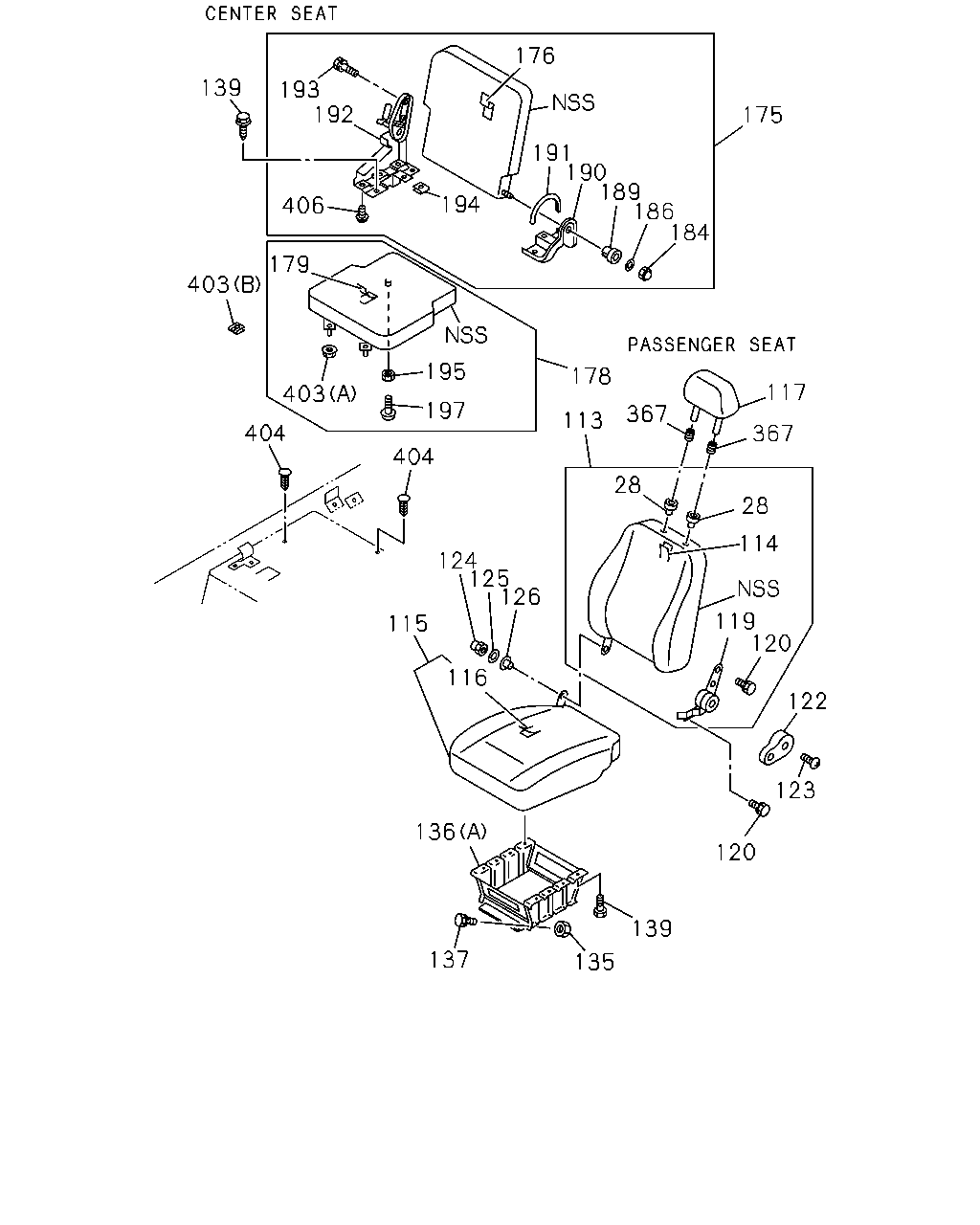

176 139 193 192 175 191 190 189 186 184 194 406 179 403 195 178 117 403 197 367 113 404 367 404 28 28 114 124 125 126 119 120 115 116 122 123 136 120 139 137 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-441-0	02	1	9202-	●	●
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-444-0	02	1	9202-	●	●
113	BACK ASM; SEAT EXC. PASSENGER SEAT MULTI<WX9>	1-75028-319-0	01	1	9202-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. PASSENGER SEAT MULTI<WX9>	1-75116-115-0	01	1	9202-	●	●
115	CUSHION ASM; PASSENGER SEAT EXC. PASSENGER SEAT MULTI<WX9>	1-75028-327-0	01	1	9202-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. PASSENGER SEAT MULTI<WX9>	1-75116-113-0	01	1	9202-	●	●
117	REST; HD	1-75657-020-0	01	1	9202-	●	●
119	ADJ; SEAT RECLINING,ASSIST SIDE EXC. PASSENGER SEAT MULTI<WX9>	1-75418-015-2	01	1	9202-	●	●
120	BOLT; RECLINING ADJ EXC. PASSENGER SEAT MULTI<WX9> M8X20	1-09980-438-0	04	1	9202-	●	●
122	COVER; ADJ,RECLINING EXC. PASSENGER SEAT MULTI<WX9>	1-75417-061-0	01	1	9202-	●	●
123	SCREW; COVER,RECLINING EXC. PASSENGER SEAT MULTI<WX9> M6X6	1-09981-499-0	01	1	9202-	●	●
124	NUT; CAP,RECLINING EXC. PASSENGER SEAT MULTI<WX9> M8	1-09984-109-0	01	1	9202-	●	●
125	WASHER; PL,RECLINING EXC. PASSENGER SEAT MULTI<WX9> ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9202-	●	●
126	BUSHING; HINGE,RECLINING EXC. PASSENGER SEAT MULTI<WX9>	1-75508-004-0	01	1	9202-	●	●
135	NUT; SEAT STAND M8 FLANGE	8-94279-504-1	02	1	9202-	●	●
135	NUT; SEAT STAND PASSENGER SEAT MULTI<WX9> M8 FLANGE	8-94279-504-1	01	1	9202-	●	●
136	STAND; PASSENGER SEAT PASSENGER SEAT MULTI<WX9> (B)	1-75557-391-8	01	1	9202-	●	●
136	STAND; PASSENGER SEAT EXC. PASSENGER SEAT MULTI<WX9> (A)	1-75558-294-4	01	1	9202-	●	●
137	BOLT; STAND	1-09980-566-0	02	1	9202-	●	●
137	BOLT; STAND PASSENGER SEAT MULTI<WX9>	1-09980-566-0	04	1	9505-	●	●
139	BOLT; PASSENGER SEAT	1-09980-566-0	04	1	9202-9504	●	●
139	BOLT; PASSENGER SEAT	1-09980-566-0	04	1	9202-9504	●	●
139	BOLT; PASSENGER SEAT	1-09980-566-0	04	1	9202-9504	●
139	BOLT; PASSENGER SEAT EXC. PASSENGER SEAT MULTI<WX9>	1-09980-566-0	04	1	9202-9504		●
139	BOLT; PASSENGER SEAT	1-09980-566-0	04	1	9505-	●	●
139	BOLT; PASSENGER SEAT EXC. PASSENGER SEAT MULTI<WX9>	1-09980-566-0	04	1	9505-	●	●
175	BACK ASM; PASSENGER CENTER SEAT EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTI<WX9>,DELUXE CAB(W14)	1-75028-307-0	01	1	9202-	●	●
175	BACK ASM; PASSENGER CENTER SEAT DELUXE CENTER SEAT<WP2> EXC. PASSENGER SEAT MULTI<WX9>	1-75028-303-0	01	1	9202-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTI<WX9>,DELUXE CAB(W14)	1-75118-990-0	01	1	9202-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE CENTER SEAT<WP2> EXC. PASSENGER SEAT MULTI<WX9>	1-75118-989-0	01	1	9202-	●	●
178	CUSHION ASM; PASSENGER CENTER SEAT EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTI<WX9>,DELUXE CAB(W14)	1-75028-313-0	01	1	9202-	●	●
178	CUSHION ASM; PASSENGER CENTER SEAT DELUXE CAB(W14) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-75028-302-0	01	1	9202-	●	●
178	CUSHION ASM; PASSENGER CENTER SEAT DELUXE CAB(W14) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTI<WX9>	1-75028-304-0	01	1	9202-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTI<WX9>,DELUXE CAB(W14)	1-75118-988-0	01	1	9202-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE CAB(W14) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-75118-985-0	01	1	9202-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE CAB(W14) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTI<WX9>	1-75118-987-0	01	1	9202-	●	●
184	NUT; CAP,CENTER SEAT EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTI<WX9>,DELUXE CAB(W14) M8	1-09984-109-0	01	1	9202-	●	●
184	NUT; CAP,CENTER SEAT DELUXE CENTER SEAT<WP2> EXC. PASSENGER SEAT MULTI<WX9> M8	1-09984-109-0	01	1	9202-	●	●
186	WASHER; PL,HINGE,CENTER SEAT BACK EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTI<WX9>,DELUXE CAB(W14) ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9202-	●	●
186	WASHER; PL,HINGE,CENTER SEAT BACK DELUXE CENTER SEAT<WP2> EXC. PASSENGER SEAT MULTI<WX9> ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9202-	●	●
189	BUSHING; HINGE,CENTER SEAT BACK EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTI<WX9>,DELUXE CAB(W14)	1-75508-004-0	01	1	9202-	●	●
189	BUSHING; HINGE,CENTER SEAT BACK DELUXE CENTER SEAT<WP2> EXC. PASSENGER SEAT MULTI<WX9>	1-75508-004-0	01	1	9202-	●	●
190	BRACKET ASM; HINGE,CENTER SEAT EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTI<WX9>,DELUXE CAB(W14)	1-75418-019-2	01	1	9202-	●	●
190	BRACKET ASM; HINGE,CENTER SEAT DELUXE CENTER SEAT<WP2> EXC. PASSENGER SEAT MULTI<WX9>	1-75418-022-0	01	1	9202-	●	●
191	FINISHER; HINGE,CENTER SEAT BACK EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTI<WX9>,DELUXE CAB(W14) L=190	1-71998-300-0	01	1	9202-	●	●
191	FINISHER; HINGE,CENTER SEAT BACK DELUXE CENTER SEAT<WP2> EXC. PASSENGER SEAT MULTI<WX9> L=190	1-71998-300-0	01	1	9202-	●	●
192	ADJUSTER ASM; RECLINING,CENTER SEAT BA EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTI<WX9>,DELUXE CAB(W14)	1-75418-016-3	01	1	9202-	●	●
192	ADJUSTER ASM; RECLINING,CENTER SEAT BA DELUXE CENTER SEAT<WP2> EXC. PASSENGER SEAT MULTI<WX9>	1-75418-021-2	01	1	9202-	●	●
193	BOLT; RECLINING ADJ,CENTER SEAT BACK EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTI<WX9>,DELUXE CAB(W14) M10X16 FLANGE	1-75198-053-0	02	1	9202-	●	●
193	BOLT; RECLINING ADJ,CENTER SEAT BACK DELUXE CENTER SEAT<WP2> EXC. PASSENGER SEAT MULTI<WX9> M10X16 FLANGE	1-75198-053-0	02	1	9202-	●	●
194	RUBBER; BUFFER,CENTER SEAT BACK EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTI<WX9>,DELUXE CAB(W14)	1-75198-054-0	01	1	9202-	●	●
195	SPACER; CUSHION,CENTER SEAT EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTI<WX9>,DELUXE CAB(W14) M8	9-09110-408-0	01	1	9202-	●	●
197	SCREW; TAPPING,SPACER FIX,CENTER SEAT EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTI<WX9>,DELUXE CAB(W14) M6X16 TAPPING W/PL WASHER	0-74110-616-0	01	1	9202-	●	●
367	BOOT; HD REST	8-94412-828-0	04	1	9202-	●	●
403	NUT; CENTER SEAT DELUXE CENTER SEAT<WP2> (B)	5-09466-004-1	02	1	9202-	●	●
403	NUT; CENTER SEAT EXC. PASSENGER SEAT MULTI<WX9> (A) M8 FLANGE	8-94279-504-1	02	1	9202-	●	●
404	PLUG; SEAT PASSENGER SEAT MULTI<WX9> OD=15 L=14.5	1-76378-157-0	02	1	9202-	●	●
404	PLUG; SEAT EXC. PASSENGER SEAT MULTI<WX9> OD=15 L=14.5	1-76378-157-0	04	1	9202-	●	●
406	SCREW; CENTER SEAT DELUXE CENTER SEAT<WP2> M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	9202-	●	●

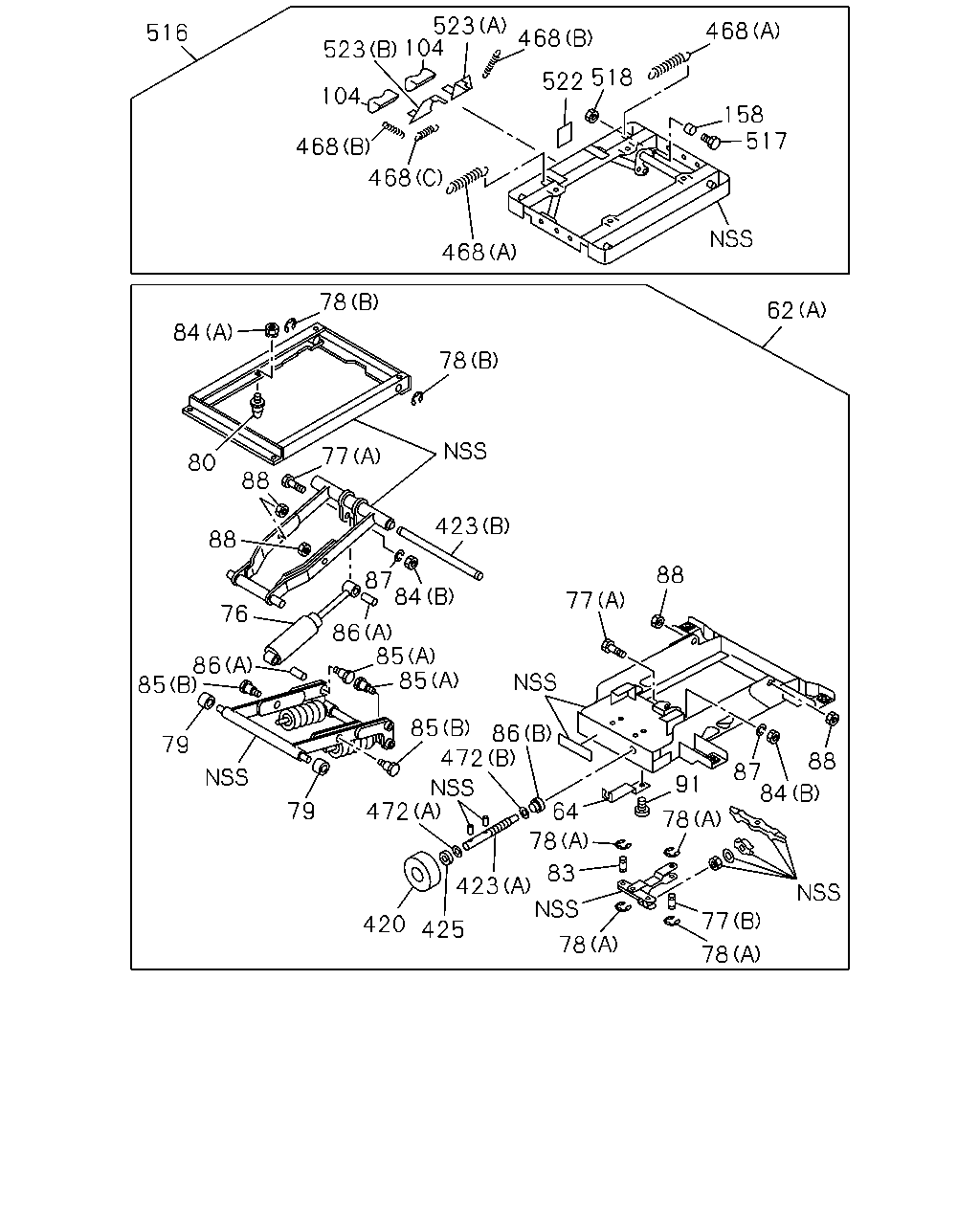

523 468 516 468 522 518 104 158 517 468 468 468 78 62 84 78 77 80 88 423 88 87 84 88 77 76 86 85 85 86 85 85 86 472 79 88 87 84 91 79 472 64 78 78 83 423 77 420 425 78 78 523 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

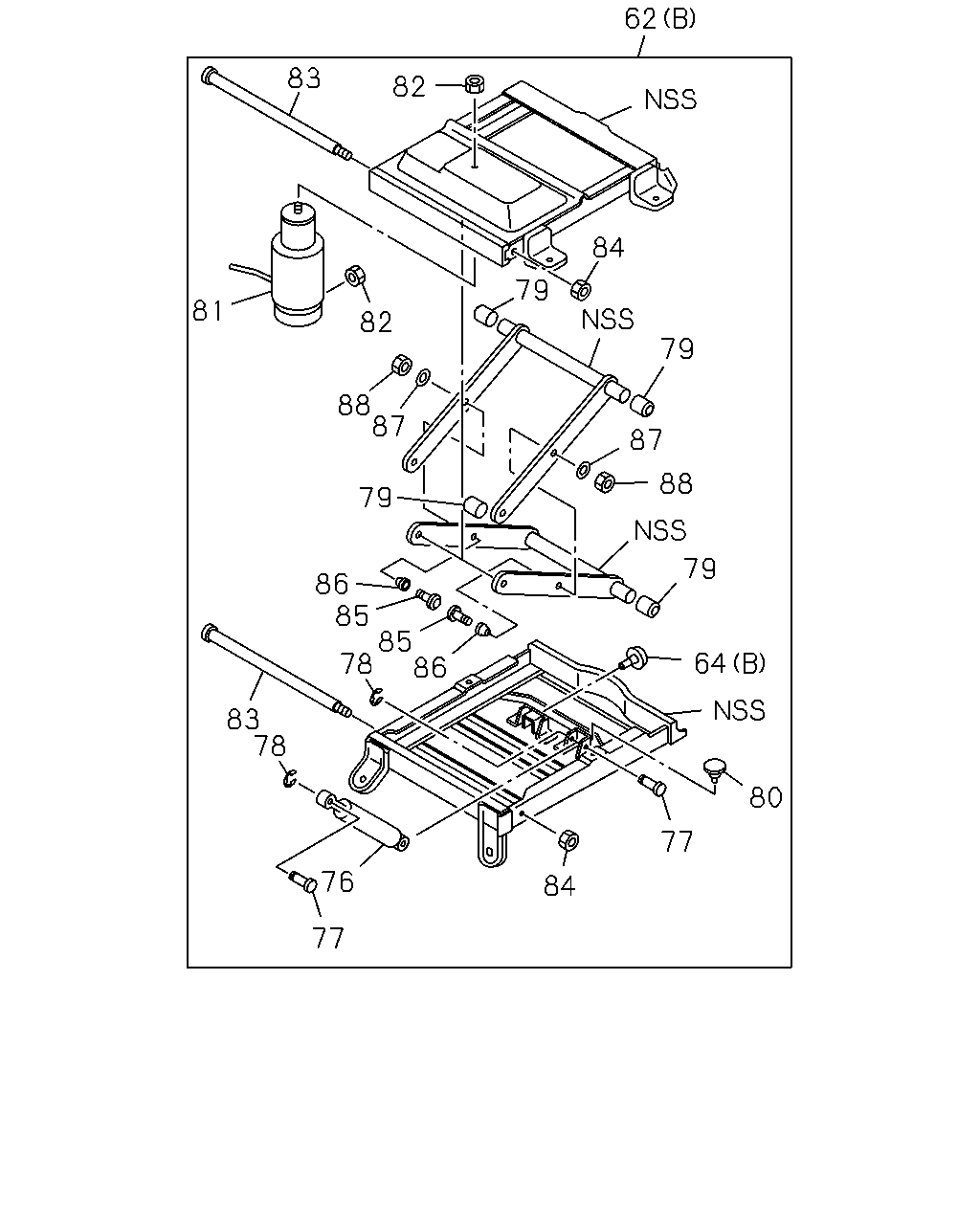

62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75538-113-7	01	1	9202-	●	●
62	DAMPER ASM; SEAT SUSP SUSPENSION SEAT<SA3> (A)	1-75530-028-2	01	1	9401-		●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-09987-123-0	01	1	9202-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75537-194-0	01	1	9202-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSPENSION SEAT<SA3>	1-75530-080-0	01	1	9401-		●
76	DAMPER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75537-197-0	01	1	9202-	●	●
76	DAMPER; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-073-0	01	1	9401-		●
77	PIN; DAMPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	9-08201-035-0	02	1	9202-	●	●
77	PIN; DAMPER SUSPENSION SEAT<SA3> (A)	1-75530-040-0	02	1	9401-		●
77	PIN; DAMPER SUSPENSION SEAT<SA3> (B)	1-75530-065-0	01	1	9401-		●
78	RING; SNAP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> ID=8	9-09185-008-0	02	1	9202-	●	●
78	RING; SNAP SUSPENSION SEAT<SA3> (A)	1-75530-066-0	04	1	9401-		●
78	RING; SNAP SUSPENSION SEAT<SA3> (B)	1-75530-069-0	02	1	9401-		●
79	ROLLER ASM; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-119-0	04	1	9202-	●	●
79	ROLLER ASM; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-043-0	04	1	9401-		●
80	RUBBER; STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	9-61468-039-0	02	1	9202-	●	●
80	RUBBER; STOPPER SUSPENSION SEAT<SA3>	1-75530-062-0	02	1	9401-		●
83	PIN; LOW & UPR SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-016-0	02	1	9202-	●	●
83	PIN; LOW & UPR SUSPENSION SEAT<SA3>	1-75530-070-0	01	1	9401-		●
84	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-014-0	02	1	9202-	●	●
84	NUT; AIR SUSP SUSPENSION SEAT<SA3> (B)	1-75530-042-0	02	1	9401-		●
84	NUT; AIR SUSP SUSPENSION SEAT<SA3> (A)	1-75530-063-0	02	1	9401-		●
85	BOLT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-118-0	02	1	9202-	●	●
85	BOLT; AIR SUSP SUSPENSION SEAT<SA3> (A)	1-75530-048-0	02	1	9401-		●
85	BOLT; AIR SUSP SUSPENSION SEAT<SA3> (B)	1-75530-068-0	02	1	9401-		●
86	BUSHING; GUIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75148-153-0	02	1	9202-	●	●
86	BUSHING; GUIDE SUSPENSION SEAT<SA3> (A)	1-75530-041-0	02	1	9401-		●
86	BUSHING; GUIDE SUSPENSION SEAT<SA3> (B)	1-75530-071-0	01	1	9401-		●
87	WASHER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> ID=10.5 OD=26	9-09160-710-0	02	1	9202-	●	●
87	WASHER; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-036-0	02	1	9401-		●
88	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M10	8-94279-519-0	02	1	9202-	●	●
88	NUT; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-039-0	04	1	9401-		●
91	SCREW; SEAT ADJ COVER SUSPENSION SEAT<SA3>	1-75530-081-0	01	1	9401-		●
104	KNOB; TILT SUSPENSION SEAT<SA3>	1-75517-875-0	02	1	9401-		●
158	BUSHING; LINK ARM SUSPENSION SEAT<SA3>	1-09983-171-0	04	1	9401-		●
420	KNOB; ADJ,SEAT SUSP SUSPENSION SEAT<SA3>	1-75530-067-0	01	1	9401-		●
423	SHAFT; SEAT DAMPER SUSPENSION SEAT<SA3> (A)	1-75530-064-0	01	1	9401-		●
423	SHAFT; SEAT DAMPER SUSPENSION SEAT<SA3> (B)	1-75530-082-0	01	1	9401-		●
425	BEARING; THRUST,KNOB SUSPENSION SEAT<SA3>	1-75530-074-0	01	1	9401-		●
468	SPRING; RETURN SUSPENSION SEAT<SA3> (A)	1-75517-878-0	02	1	9401-		●
468	SPRING; RETURN SUSPENSION SEAT<SA3> (B)	1-75517-879-0	02	1	9401-		●
468	SPRING; RETURN SUSPENSION SEAT<SA3> (C)	1-75517-880-0	01	1	9401-		●
468	SPRING; RETURN SUSPENSION SEAT<SA3> (D)	1-75518-059-0	01	1	9401-		●
472	PIN; SPRING SUSPENSION SEAT<SA3> (A)	1-75530-072-0	01	1	9401-		●
472	PIN; SPRING SUSPENSION SEAT<SA3> (B)	1-75530-075-0	01	1	9401-		●
516	ADJUSTER; TILT SUSPENSION SEAT<SA3>	1-75518-055-2	01	1	9401-		●
517	BOLT; TILT ADJ SUSPENSION SEAT<SA3>	1-09980-590-0	04	1	9401-		●
518	NUT; TILT ADJ SUSPENSION SEAT<SA3>	8-94279-521-0	04	1	9401-		●
522	BUSHING; LEVER SUSPENSION SEAT<SA3>	1-75517-876-0	01	1	9401-		●
523	PLATE; LEVER SUSPENSION SEAT<SA3> (A)	1-75517-881-0	01	1	9401-		●
523	PLATE; LEVER SUSPENSION SEAT<SA3> (B)	1-75517-882-0	01	1	9401-		●

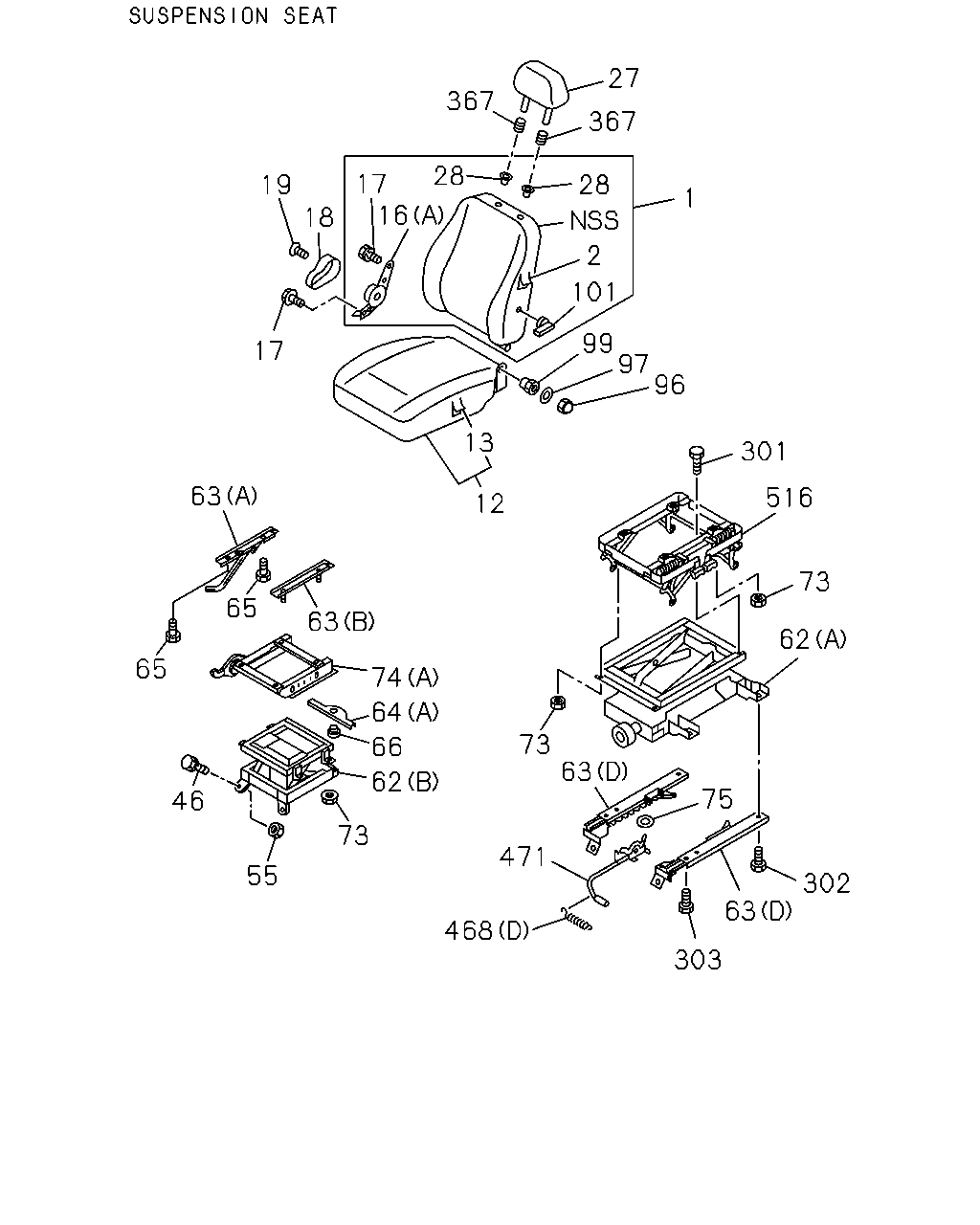

27 367 367 28 17 16 28 19 1 18 2 101 99 97 96 17 13 301 63 516 12 73 65 63 62 65 74 64 73 63 66 62 46 75 73 471 55 302 63 468 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT DELUXE CAB(W14)	1-75028-314-0	01	1	9202-	●	●
1	BACK ASM; SEAT EXC. DELUXE CAB(W14)	1-75028-315-0	01	1	9202-	●	●
2	COVER; TRIM,FRT SEAT,BACK DELUXE CAB(W14)	1-75116-119-0	01	1	9202-	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. DELUXE CAB(W14)	1-75116-118-0	01	1	9202-	●	●
12	CUSHION; SEAT,FRT	1-75028-322-0	01	1	9202-	●
12	CUSHION; SEAT,FRT EXC. SUSPENSION SEAT<SA3>	1-75028-322-0	01	1	9202-		●
12	CUSHION; SEAT,FRT SUSPENSION SEAT<SA3>	1-75028-513-0	01	1	9401-		●
13	COVER; TRIM,FRT SEAT,CUSHION SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75116-119-0	01	1	9202-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75116-111-0	01	1	9202-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SUSPENSION SEAT<SA3>	1-75116-189-0	01	1	9401-		●
16	ADJUSTER ASM; RECLINING (A) DRIVER SEAT	1-75418-014-2	01	1	9202-	●	●
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI<WX9> (B)	1-75417-042-4	01	1	9202-	●	●
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI<WX9> (B)	1-75417-064-0	01	1	9202-	●	●
17	BOLT; RECLINING M8X20	1-09980-438-0	04	1	9202-	●	●
18	COVER; RECLINING	1-75417-060-0	01	1	9202-	●	●
19	SCREW; COVER M6X6	1-09981-499-0	01	1	9202-	●	●
27	REST; HD,FRT SEAT	1-75657-020-0	01	1	9202-	●	●
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-441-0	02	1	9202-	●	●
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-444-0	02	1	9202-	●	●
46	BOLT; STAND TO FLOOR	1-09980-566-0	02	1	9202-	●	●
46	BOLT; STAND TO FLOOR DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14)	1-09980-566-0	04	1	9202-9504	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M8 FLANGE	8-94279-504-1	02	1	9202-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL DELUXE CAB(W14) EXC. CENTER SEAT 3 CREWS<SA1>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	8-94279-504-1	04	1	9202-9504	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) M8 FLANGE	8-94279-504-1	04	1	9202-9504	●	●
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75538-113-7	01	1	9202-	●	●
62	DAMPER ASM; SEAT SUSP SUSPENSION SEAT<SA3> (A)	1-75530-028-2	01	1	9401-		●
63	ADJUSTER; SEAT SLIDE DRIVING POSITION WIDE LEG SPACE<PR2> (C)	1-75518-034-2	01	1	9202-	●	●
63	ADJUSTER; SEAT SLIDE EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3> (B)	1-75518-020-1	01	1	9202-	●	●
63	ADJUSTER; SEAT SLIDE EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3> (A)	1-75518-019-1	01	1	9202-	●	●
63	ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> (D)	1-75518-056-2	01	1	9401-		●
63	ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> (D)	1-75518-057-1	01	1	9401-		●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-09987-123-0	01	1	9202-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75537-194-0	01	1	9202-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSPENSION SEAT<SA3>	1-75530-080-0	01	1	9401-		●
65	SCREW; ADJ TO SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DELUXE CAB(W14) M8X23 W/LK WASHER	8-94254-743-0	01	1	9202-	●	●
65	SCREW; ADJ TO SEAT EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X23 W/LK WASHER	8-94254-743-0	04	1	9202-	●	●
65	SCREW; ADJ TO SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3> M8X23 W/LK WASHER	8-94254-743-0	04	1	9202-	●	●
66	RUBBER; LWR STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75537-130-0	01	1	9202-	●	●
73	NUT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	5-09440-005-0	04	1	9202-	●	●
73	NUT; ADJ,HEIGHT CONT DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	5-09440-005-0	04	1	9202-	●	●
73	NUT; ADJ,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) M8 FLANGE	8-94279-518-0	04	1	9505-	●	●
73	NUT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	8-94279-518-0	04	1	9505-	●	●
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE	5-09440-005-0	08	1	9202-	●	●
73	NUT; ADJ,HEIGHT CONT SUSPENSION SEAT<SA3> M8 FLANGE	5-09440-005-0	06	1	9401-		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> (B)	1-75518-045-5	01	1	9202-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75517-013-7	01	1	9202-	●	●
75	WASHER; SEAT ADJ SUSPENSION SEAT<SA3> ID=4.3 OD=10	9-09160-604-0	04	1	9401-		●
96	NUT; LK,HINGE M8	1-09984-109-0	01	1	9202-	●	●
97	WASHER; PL,RECLINING ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9202-	●	●
99	BUSHING; SEAT BACK	1-75508-004-0	01	1	9202-	●	●
101	LEVER ASM; LUMBAR DELUXE CAB(W14)	1-75508-002-0	01	1	9202-	●	●
301	BOLT; ADJ CONT SUSPENSION SEAT<SA3>	1-09980-585-0	02	1	9401-		●
302	BOLT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> M8X18	8-94279-109-1	04	1	9202-	●	●
302	BOLT; ADJ,HEIGHT CONT SUSPENSION SEAT<SA3> M8X18	8-94279-109-1	04	1	9202-	●	●
303	BOLT; HINGE,DRIVER SEAT SUSPENSION SEAT<SA3>	1-09980-590-0	01	1	9401-		●
367	BOOT; HD REST	8-94412-828-0	04	1	9202-	●	●
468	SPRING; RETURN SUSPENSION SEAT<SA3> (A)	1-75517-878-0	02	1	9401-		●
468	SPRING; RETURN SUSPENSION SEAT<SA3> (B)	1-75517-879-0	02	1	9401-		●
468	SPRING; RETURN SUSPENSION SEAT<SA3> (C)	1-75517-880-0	01	1	9401-		●
468	SPRING; RETURN SUSPENSION SEAT<SA3> (D)	1-75518-059-0	01	1	9401-		●
471	LEVER; SEAT ADJ SUSPENSION SEAT<SA3>	1-75518-058-2	01	1	9401-		●
516	ADJUSTER; TILT SUSPENSION SEAT<SA3>	1-75518-055-2	01	1	9401-		●

27 1 367 367 28 17 16 28 19 18 63 63 2 101 65 65 99 97 96 17 13 48 46 55 61 42 12 63 63 55 65 74 63 74 65 302 55 65 42 73 42 73 42 46 46 46 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT DELUXE CAB(W14)	1-75028-314-0	01	1	9202-	●	●
1	BACK ASM; SEAT EXC. DELUXE CAB(W14)	1-75028-315-0	01	1	9202-	●	●
2	COVER; TRIM,FRT SEAT,BACK DELUXE CAB(W14)	1-75116-119-0	01	1	9202-	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. DELUXE CAB(W14)	1-75116-118-0	01	1	9202-	●	●
12	CUSHION; SEAT,FRT	1-75028-322-0	01	1	9202-	●
12	CUSHION; SEAT,FRT EXC. SUSPENSION SEAT<SA3>	1-75028-322-0	01	1	9202-		●
12	CUSHION; SEAT,FRT SUSPENSION SEAT<SA3>	1-75028-513-0	01	1	9401-		●
13	COVER; TRIM,FRT SEAT,CUSHION SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75116-119-0	01	1	9202-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75116-111-0	01	1	9202-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SUSPENSION SEAT<SA3>	1-75116-189-0	01	1	9401-		●
16	ADJUSTER ASM; RECLINING (A) DRIVER SEAT	1-75418-014-2	01	1	9202-	●	●
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI<WX9> (B)	1-75417-042-4	01	1	9202-	●	●
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI<WX9> (B)	1-75417-064-0	01	1	9202-	●	●
17	BOLT; RECLINING M8X20	1-09980-438-0	04	1	9202-	●	●
18	COVER; RECLINING	1-75417-060-0	01	1	9202-	●	●
19	SCREW; COVER M6X6	1-09981-499-0	01	1	9202-	●	●
27	REST; HD,FRT SEAT	1-75657-020-0	01	1	9202-	●	●
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-441-0	02	1	9202-	●	●
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-444-0	02	1	9202-	●	●
42	STAND; DRIVER SEAT DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75557-405-0	01	1	9202-	●	●
42	STAND; DRIVER SEAT DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14)	1-75558-294-4	01	1	9202-	●	●
42	STAND; DRIVER SEAT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14)	1-75557-391-8	01	1	9202-	●	●
46	BOLT; STAND TO FLOOR	1-09980-566-0	02	1	9202-	●	●
46	BOLT; STAND TO FLOOR DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14)	1-09980-566-0	04	1	9202-9504	●	●
48	PROTECTOR; SEAT STAND EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) SERVICED BY L=500	1-79937-746-0	01	1	9202-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M8 FLANGE	8-94279-504-1	02	1	9202-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL DELUXE CAB(W14) EXC. CENTER SEAT 3 CREWS<SA1>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	8-94279-504-1	04	1	9202-9504	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) M8 FLANGE	8-94279-504-1	04	1	9202-9504	●	●
61	BOLT; SEAT TO STAND DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14)	1-09980-566-0	04	1	9505-	●	●
61	BOLT; SEAT TO STAND	1-09980-566-0	04	1	9505-	●
61	BOLT; SEAT TO STAND EXC. PASSENGER SEAT MULTI<WX9>	1-09980-566-0	04	1	9505-		●
63	ADJUSTER; SEAT SLIDE DRIVING POSITION WIDE LEG SPACE<PR2> (C)	1-75518-034-2	01	1	9202-	●	●
63	ADJUSTER; SEAT SLIDE EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3> (B)	1-75518-020-1	01	1	9202-	●	●
63	ADJUSTER; SEAT SLIDE EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3> (A)	1-75518-019-1	01	1	9202-	●	●
63	ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> (D)	1-75518-056-2	01	1	9401-		●
63	ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> (D)	1-75518-057-1	01	1	9401-		●
65	SCREW; ADJ TO SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DELUXE CAB(W14) M8X23 W/LK WASHER	8-94254-743-0	01	1	9202-	●	●
65	SCREW; ADJ TO SEAT EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X23 W/LK WASHER	8-94254-743-0	04	1	9202-	●	●
65	SCREW; ADJ TO SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3> M8X23 W/LK WASHER	8-94254-743-0	04	1	9202-	●	●
73	NUT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	5-09440-005-0	04	1	9202-	●	●
73	NUT; ADJ,HEIGHT CONT DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	5-09440-005-0	04	1	9202-	●	●
73	NUT; ADJ,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) M8 FLANGE	8-94279-518-0	04	1	9505-	●	●
73	NUT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	8-94279-518-0	04	1	9505-	●	●
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE	5-09440-005-0	08	1	9202-	●	●
73	NUT; ADJ,HEIGHT CONT SUSPENSION SEAT<SA3> M8 FLANGE	5-09440-005-0	06	1	9401-		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> (B)	1-75518-045-5	01	1	9202-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75517-013-7	01	1	9202-	●	●
96	NUT; LK,HINGE M8	1-09984-109-0	01	1	9202-	●	●
97	WASHER; PL,RECLINING ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9202-	●	●
99	BUSHING; SEAT BACK	1-75508-004-0	01	1	9202-	●	●
101	LEVER ASM; LUMBAR DELUXE CAB(W14)	1-75508-002-0	01	1	9202-	●	●
302	BOLT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> M8X18	8-94279-109-1	04	1	9202-	●	●
302	BOLT; ADJ,HEIGHT CONT SUSPENSION SEAT<SA3> M8X18	8-94279-109-1	04	1	9202-	●	●
367	BOOT; HD REST	8-94412-828-0	04	1	9202-	●	●

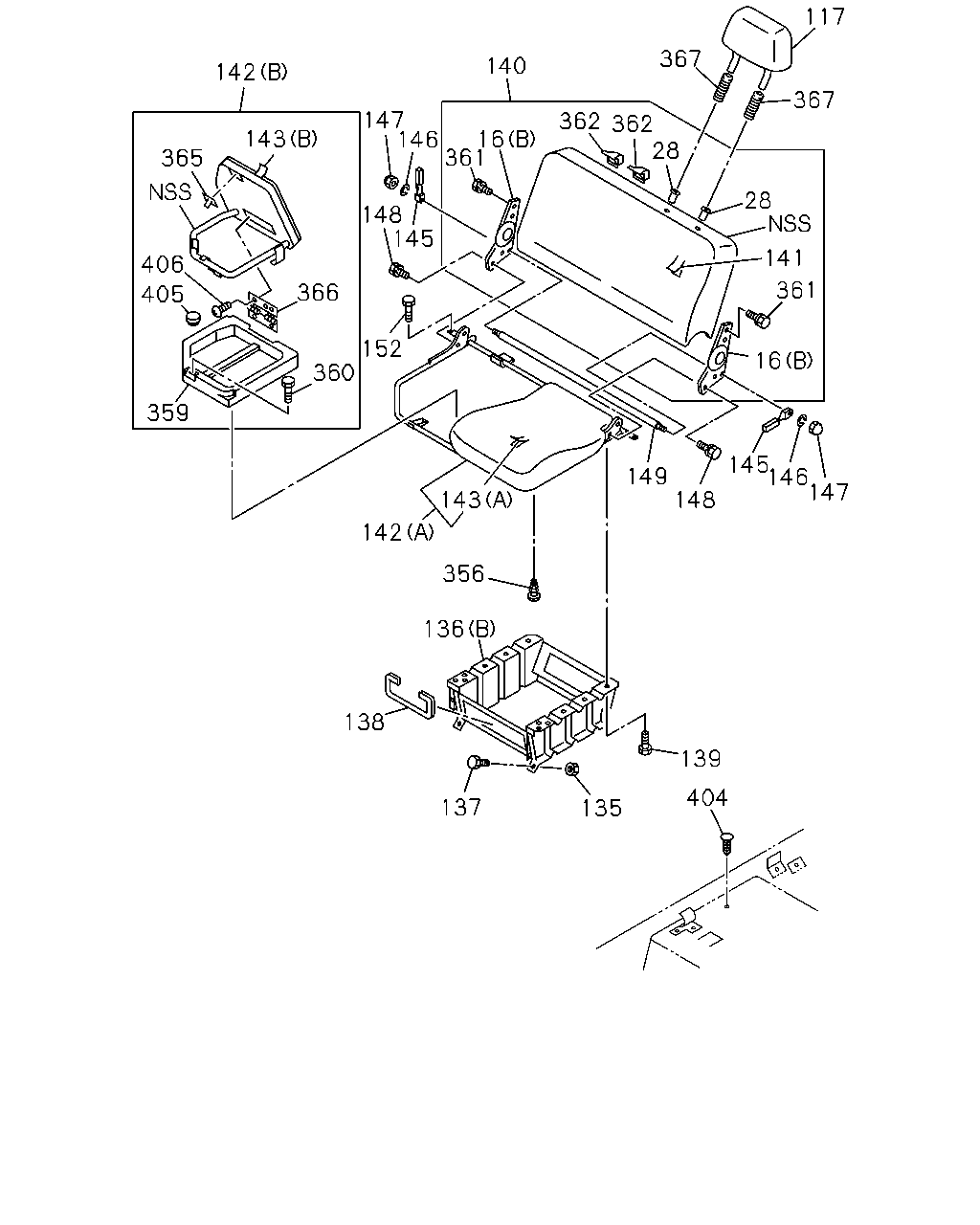

117 367 140 142 367 147 146 16 361 362 362 28 143 365 28 148 145 141 406 361 366 405 152 360 16 359 145 146 147 149 148 143 142 356 136 138 139 404 137 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING (A) DRIVER SEAT	1-75418-014-2	01	1	9202-	●	●
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI<WX9> (B)	1-75417-042-4	01	1	9202-	●	●
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI<WX9> (B)	1-75417-064-0	01	1	9202-	●	●
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-441-0	02	1	9202-	●	●
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-444-0	02	1	9202-	●	●
117	REST; HD	1-75657-020-0	01	1	9202-	●	●
135	NUT; SEAT STAND M8 FLANGE	8-94279-504-1	02	1	9202-	●	●
135	NUT; SEAT STAND PASSENGER SEAT MULTI<WX9> M8 FLANGE	8-94279-504-1	01	1	9202-	●	●
136	STAND; PASSENGER SEAT PASSENGER SEAT MULTI<WX9> (B)	1-75557-391-8	01	1	9202-	●	●
136	STAND; PASSENGER SEAT EXC. PASSENGER SEAT MULTI<WX9> (A)	1-75558-294-4	01	1	9202-	●	●
137	BOLT; STAND	1-09980-566-0	02	1	9202-	●	●
137	BOLT; STAND PASSENGER SEAT MULTI<WX9>	1-09980-566-0	04	1	9505-	●	●
138	PROTECTOR; SEAT STAND PASSENGER SEAT MULTI<WX9> SERVICED BY L=500	1-79937-746-0	01	1	9202-	●	●
139	BOLT; PASSENGER SEAT	1-09980-566-0	04	1	9202-9504	●	●
139	BOLT; PASSENGER SEAT	1-09980-566-0	04	1	9202-9504	●	●
139	BOLT; PASSENGER SEAT	1-09980-566-0	04	1	9202-9504	●
139	BOLT; PASSENGER SEAT EXC. PASSENGER SEAT MULTI<WX9>	1-09980-566-0	04	1	9202-9504		●
139	BOLT; PASSENGER SEAT	1-09980-566-0	04	1	9505-	●	●
139	BOLT; PASSENGER SEAT EXC. PASSENGER SEAT MULTI<WX9>	1-09980-566-0	04	1	9505-	●	●
140	SEAT ASM; BACK,BENCH SEAT PASSENGER SEAT MULTI<WX9>	1-75028-334-0	01	1	9202-	●	●
141	COVER; TRIM,BENCH SEAT,BACK PASSENGER SEAT MULTI<WX9>	1-75116-120-0	01	1	9202-	●	●
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI<WX9> (A)	1-75028-336-1	01	1	9202-	●	●
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI<WX9> (B)	1-75028-379-0	01	1	9202-	●	●
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI<WX9> (A)	1-75116-122-0	01	1	9202-	●	●
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI<WX9> (B)	1-75116-124-0	01	1	9202-	●	●
145	LEVER; SHAFT PASSENGER SEAT MULTI<WX9>	1-75418-024-0	01	1	9202-	●	●
145	LEVER; SHAFT PASSENGER SEAT MULTI<WX9>	1-75418-030-0	01	1	9202-	●	●
146	WASHER; LK,SHAFT PASSENGER SEAT MULTI<WX9>	5-09985-015-0	02	1	9202-	●	●
147	NUT; CAP,SHAFT PASSENGER SEAT MULTI<WX9> M6	1-09984-031-0	02	1	9202-	●	●
148	BOLT; LEVER PASSENGER SEAT MULTI<WX9> M10X16 FLANGE	1-75198-053-0	04	1	9202-	●	●
149	SHAFT; CUSHION TO BACK PASSENGER SEAT MULTI<WX9>	1-75418-025-0	01	1	9202-	●	●
152	BOLT; BENCH SEAT PASSENGER SEAT MULTI<WX9>	1-09980-566-0	01	1	9202-	●	●
356	SCREW; CUSHION PASSENGER SEAT MULTI<WX9>	9-93290-416-0	06	1	9202-	●	●
359	BOX; PARCEL PASSENGER SEAT MULTI<WX9>	1-72538-068-0	01	1	9202-	●	●
360	SCREW; PARCEL PASSENGER SEAT MULTI<WX9> M4X8 TAPPING	9-07066-408-1	04	1	9202-	●	●
361	BOLT; ADJ,RECLINING PASSENGER SEAT MULTI<WX9> M10X16 FLANGE	1-75198-053-0	04	1	9202-	●	●
362	CAP; HD REST PASSENGER SEAT MULTI<WX9>	1-75658-036-1	04	1	9202-	●	●
365	LOCK ASM; SEAT PASSENGER SEAT MULTI<WX9>	8-94273-271-0	01	1	9202-	●	●
366	HINGE; CENTER SEAT CUSHION PASSENGER SEAT MULTI<WX9>	1-72447-391-0	02	1	9202-	●	●
367	BOOT; HD REST	8-94412-828-0	04	1	9202-	●	●
404	PLUG; SEAT PASSENGER SEAT MULTI<WX9> OD=15 L=14.5	1-76378-157-0	02	1	9202-	●	●
404	PLUG; SEAT EXC. PASSENGER SEAT MULTI<WX9> OD=15 L=14.5	1-76378-157-0	04	1	9202-	●	●
405	GROMMET; CENTER SEAT PASSENGER SEAT MULTI<WX9>	1-09983-049-0	01	1	9202-	●	●
406	SCREW; CENTER SEAT DELUXE CENTER SEAT<WP2> M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	9202-	●	●

62 83 82 84 79 81 82 79 88 87 87 88 79 79 86 85 85 78 86 64 83 78 80 77 76 84 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75538-113-7	01	1	9202-	●	●
62	DAMPER ASM; SEAT SUSP SUSPENSION SEAT<SA3> (A)	1-75530-028-2	01	1	9401-		●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-09987-123-0	01	1	9202-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75537-194-0	01	1	9202-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSPENSION SEAT<SA3>	1-75530-080-0	01	1	9401-		●
76	DAMPER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75537-197-0	01	1	9202-	●	●
76	DAMPER; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-073-0	01	1	9401-		●
77	PIN; DAMPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	9-08201-035-0	02	1	9202-	●	●
77	PIN; DAMPER SUSPENSION SEAT<SA3> (A)	1-75530-040-0	02	1	9401-		●
77	PIN; DAMPER SUSPENSION SEAT<SA3> (B)	1-75530-065-0	01	1	9401-		●
78	RING; SNAP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> ID=8	9-09185-008-0	02	1	9202-	●	●
78	RING; SNAP SUSPENSION SEAT<SA3> (A)	1-75530-066-0	04	1	9401-		●
78	RING; SNAP SUSPENSION SEAT<SA3> (B)	1-75530-069-0	02	1	9401-		●
79	ROLLER ASM; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-119-0	04	1	9202-	●	●
79	ROLLER ASM; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-043-0	04	1	9401-		●
80	RUBBER; STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	9-61468-039-0	02	1	9202-	●	●
80	RUBBER; STOPPER SUSPENSION SEAT<SA3>	1-75530-062-0	02	1	9401-		●
81	SPRING; AIR SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75537-192-0	01	1	9202-	●	●
82	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-09984-096-0	02	1	9202-	●	●
83	PIN; LOW & UPR SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-016-0	02	1	9202-	●	●
83	PIN; LOW & UPR SUSPENSION SEAT<SA3>	1-75530-070-0	01	1	9401-		●
84	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-014-0	02	1	9202-	●	●
84	NUT; AIR SUSP SUSPENSION SEAT<SA3> (B)	1-75530-042-0	02	1	9401-		●
84	NUT; AIR SUSP SUSPENSION SEAT<SA3> (A)	1-75530-063-0	02	1	9401-		●
85	BOLT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-118-0	02	1	9202-	●	●
85	BOLT; AIR SUSP SUSPENSION SEAT<SA3> (A)	1-75530-048-0	02	1	9401-		●
85	BOLT; AIR SUSP SUSPENSION SEAT<SA3> (B)	1-75530-068-0	02	1	9401-		●
86	BUSHING; GUIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75148-153-0	02	1	9202-	●	●
86	BUSHING; GUIDE SUSPENSION SEAT<SA3> (A)	1-75530-041-0	02	1	9401-		●
86	BUSHING; GUIDE SUSPENSION SEAT<SA3> (B)	1-75530-071-0	01	1	9401-		●
87	WASHER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> ID=10.5 OD=26	9-09160-710-0	02	1	9202-	●	●
87	WASHER; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-036-0	02	1	9401-		●
88	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M10	8-94279-519-0	02	1	9202-	●	●
88	NUT; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-039-0	04	1	9401-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
