◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10624 - FSR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#115) — 48 parça
çizim 29009
1 3 353 375 307 373
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) 		1-82360-314-1 01 1 9202-9409 ● ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) 		1-82360-383-0 01 1 9410- ● ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-301-3 01 1 9202-9409 ● ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-338-0 01 1 9410- ● ●
1 SWITCH; COMB
EXC. EXHAUST BRAKE<NF8>,NEW ZEALAND EQUIPMENT(PK5) 		1-82360-325-1 01 1 9202-9409 ● ●
1 SWITCH; COMB
EXC. EXHAUST BRAKE<NF8>,NEW ZEALAND EQUIPMENT(PK5) 		1-82360-386-0 01 1 9410- ● ●
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) EXC. EXHAUST BRAKE<NF8> 		1-82360-329-1 01 1 9202-9409 ● ●
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) EXC. EXHAUST BRAKE<NF8> 		1-82360-389-0 01 1 9410- ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 03 1 9202-9409 ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9410- ● ●
307 BULB ASM; SW
AIR CON MANUAL CONTROL(C60) 28V 1.4W 		1-82194-082-0 01 1 9202- ●
353 SWITCH ASM; PARKING BRAKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82410-138-0 01 1 9202-9502 ● ●
353 SWITCH ASM; PARKING BRAKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82410-163-0 01 1 9503- ● ●
373 SWITCH; A/C
AIR CON MANUAL CONTROL(C60) 		1-82340-197-0 01 1 9202- ●
375 SCREW; A/C SW
AIR CON MANUAL CONTROL(C60) M5X14 W/PL WASHER 		5-09981-050-0 02 1 9202- ●
çizim 92608
65 67 64 60 24 21 26 29
BalonParca AdiParca NoAdetTipApplied Date A B
21 SWITCH; CLU
ISUZU M/T<X9A> 		1-82380-009-3 01 1 9202- ● ●
24 CLIP; CLU SW,EXH BRK 1-09987-161-0 01 1 9202- ● ●
26 SWITCH; ACCEL
EXHAUST BRAKE<NF8> 		1-82380-089-0 01 1 9202- ● ●
29 SWITCH; DOOR 1-82440-091-0 01 1 9202- ● ●
60 SWITCH; IGNITION SUB 1-82380-065-0 01 1 9202- ● ●
64 SWITCH; CAB TILT MAIN 1-82380-085-0 01 1 9202- ●
65 SWITCH; CAB TILT LK 1-82380-074-0 01 1 9202- ●
67 NUT; SW,CAB TILT
M16 		9-99111-416-0 01 1 9202- ●
çizim 92644
9 9 9 99 318 16 11 12
BalonParca AdiParca NoAdetTipApplied Date A B
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> (A) DRIVER 		1-82380-123-0 02 1 9206- ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> (B) PASSENGER 		1-82380-124-0 01 1 9206- ●
11 BOLT; POWER WINDOW
POWER WINDOW<A30> M6X16 W/PL WASHER 		1-09981-438-0 02 1 9206-9209 ●
12 RELAY; POWER WINDOW
POWER WINDOW<A30> 		1-82550-264-0 01 1 9206- ●
16 SCREW; RELAY,POWER WINDOW
POWER WINDOW<A30> M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9210- ●
99 RELAY; FOG LAMP
NEW ZEALAND EQUIPMENT(PK5) 24V 12.5A JIDECO 		1-82550-197-0 01 1 9202- ● ●
318 SCREW; RELAY
NEW ZEALAND EQUIPMENT(PK5) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9202- ● ●

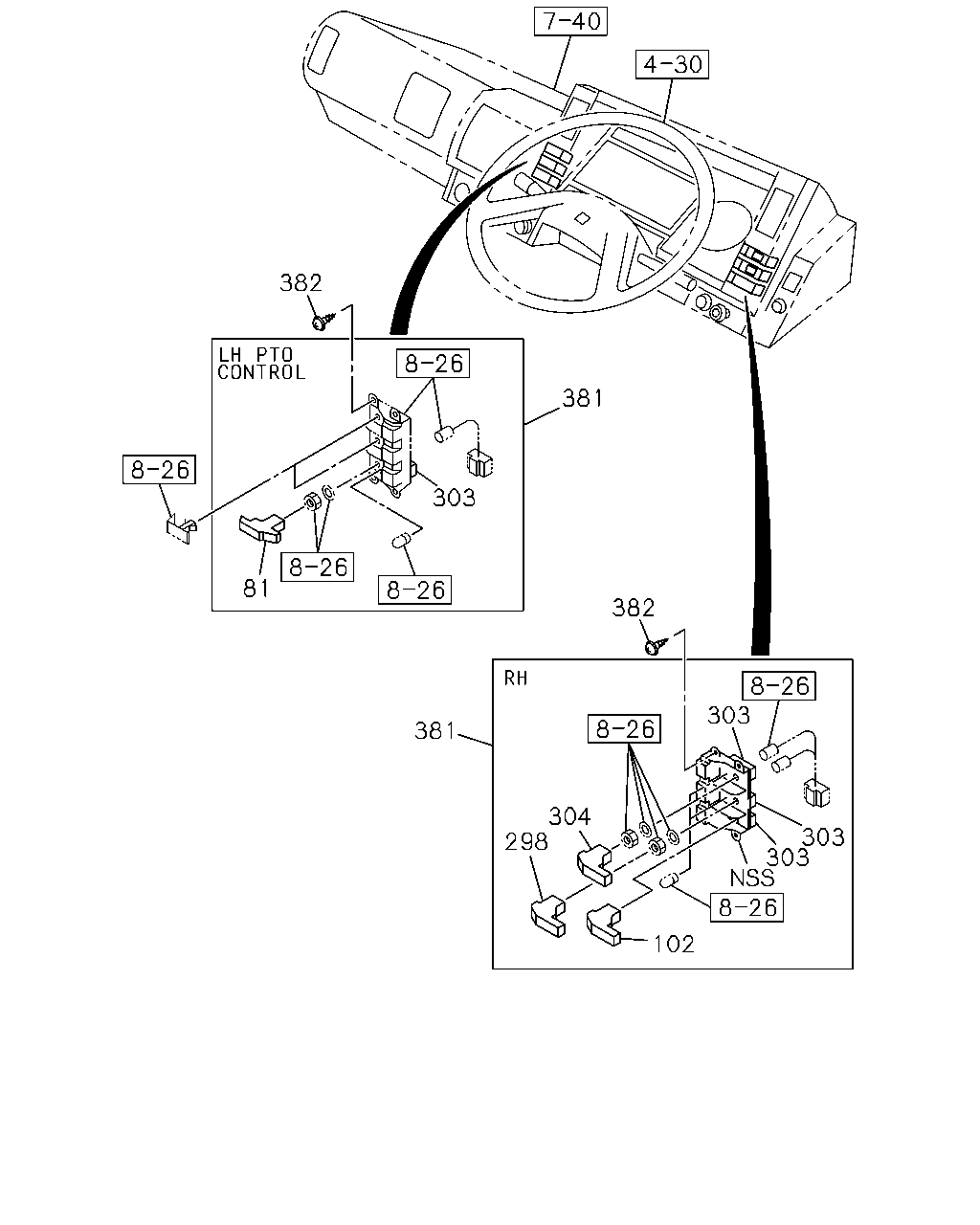

çizim 93086
382 381 303 81 382 303 381 304 298 303 303 102
BalonParca AdiParca NoAdetTipApplied Date A B
81 KNOB ASM; PTO
PTO CONTROL<SV6> 		1-82356-073-0 01 1 9202- ● ●
102 KNOB ASM; FOG LAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-82356-031-0 01 1 9202-9404 ● ●
102 KNOB ASM; FOG LAMP
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82356-031-0 01 1 9405- ● ●
298 KNOB ASM; PARKING LAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-82356-028-0 01 1 9202-9404 ● ●
298 KNOB ASM; PARKING LAMP
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82356-028-0 01 1 9405- ● ●
303 SWITCH; MICRO
HAZARD 		1-82350-181-0 01 1 9202- ● ●
303 SWITCH; MICRO
EXC. BUMPER W/HEADLAMPS<SLB> FOG 		1-82350-091-0 01 1 9202-9404 ● ●
303 SWITCH; MICRO
EXC. LIGHTING SYSTEM ECE<SLC> FOG 		1-82350-091-0 01 1 9405- ● ●
303 SWITCH; MICRO
EXC. BUMPER W/HEADLAMPS<SLB> PARKING 		1-82350-127-0 01 1 9202-9404 ● ●
303 SWITCH; MICRO
EXC. LIGHTING SYSTEM ECE<SLC> PARKING 		1-82350-127-0 01 1 9405- ● ●
303 SWITCH; MICRO
PTO CONTROL<SV6> PTO 		1-82350-128-0 01 1 9202- ● ●
304 KNOB ASM; HAZARD 1-82356-068-0 01 1 9202- ● ●
381 SWITCH ASM; METER CLUSTER SIDE
BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> 		1-82350-206-0 01 1 9202-9404 ● ●
381 SWITCH ASM; METER CLUSTER SIDE
LIGHTING SYSTEM ECE<SLC> 		1-82350-206-0 01 1 9405- ● ●
381 SWITCH ASM; METER CLUSTER SIDE
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 		1-82350-171-0 01 1 9202-9404 ● ●
381 SWITCH ASM; METER CLUSTER SIDE
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82350-171-0 01 1 9405- ● ●
381 SWITCH ASM; METER CLUSTER SIDE
PTO CONTROL<SV6> 		1-82350-138-0 01 1 9202- ● ●
382 SCREW; SW,METER CLUSTER SIDE
M5X14 W/PL WASHER 		5-09981-050-0 08 1 9202- ● ●
