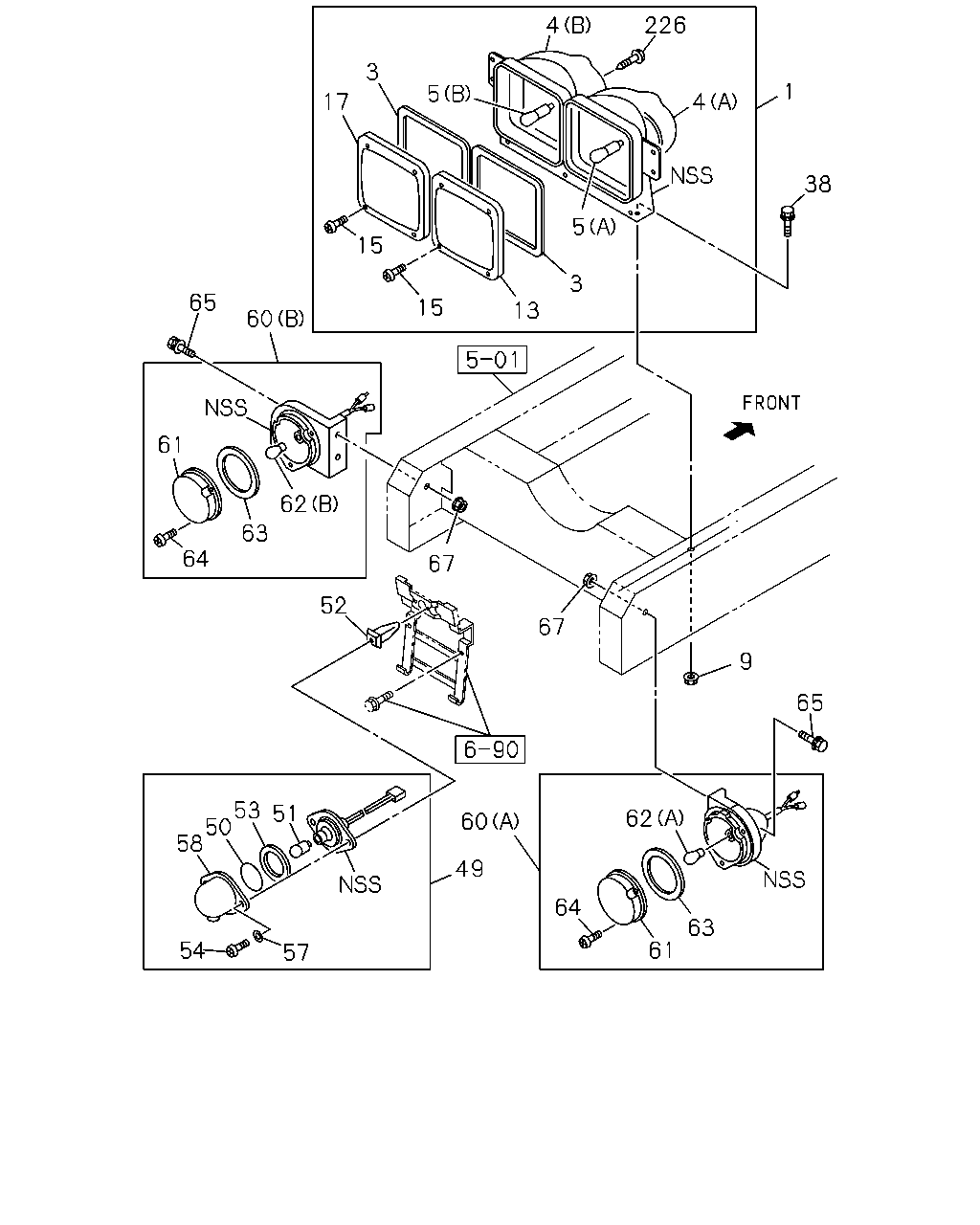

1 |
LAMP ASM; RR COMB
|
1-82230-159-2 |
01 |
1 |
0106- |
| |
1 |
LAMP ASM; RR COMB
|
1-82230-160-2 |
01 |
1 |
0106- |
| |
3 |
GASKET; RR COMB LAMP
|
1-82236-003-0 |
04 |
1 |
0106- |
| |
4 |
COVER; RR,RR COMB LAMP
(A)
|
1-82239-033-0 |
02 |
1 |
0106- |
| |
4 |
COVER; RR,RR COMB LAMP
(B)
|
1-82239-034-0 |
02 |
1 |
0106- |
| |
5 |
BULB; RR COMB LAMP
(A)
24V 21W
|
1-82194-036-0 |
02 |
1 |
0106- |
| |
5 |
BULB; RR COMB LAMP
(B)
24V 21/5W
|
1-82194-038-0 |
02 |
1 |
0106- |
| |
9 |
NUT; LAMP,RR COMB
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0106-0602 |
| |
9 |
NUT; LAMP,RR COMB
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
| |
13 |
LENS; TURN SIGNAL
|
1-82235-016-0 |
02 |
1 |
0106- |
| |
15 |
SCREW; RR COMB LAMP
|
1-82239-019-0 |
16 |
1 |
0106- |
| |
17 |
LENS; STOP,RR COMB LAMP
|
1-82235-002-0 |
02 |
1 |
0106- |
| |
38 |
BOLT; LAMP,RR COMB
M8X40 W/LK&PL WASHER
|
0-50140-840-0 |
02 |
1 |
0106-0512 |
| |
38 |
BOLT; LAMP,RR COMB
M8X40 W/LK&PL WASHER
|
0-50640-840-0 |
02 |
1 |
0601- |
| |
49 |
LAMP; LICENSE PLATE
24V 10W
|
1-82120-024-1 |
01 |
1 |
0106- |
| |
50 |
LENS; LICENSE PLATE LAMP
|
1-82235-006-0 |
01 |
1 |
0106- |
| |
51 |
BULB; LICENSE PLATE LAMP
24V 10W
|
1-82194-037-0 |
01 |
1 |
0106- |
| |
52 |
GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK
|
8-94275-946-0 |
02 |
1 |
0106- |
| |
53 |
GASKET; LICENSE LAMP
|
1-82126-005-0 |
01 |
1 |
0106- |
| |
54 |
SCREW; LICENSE PLATE LAMP
M5X20
|
1-82129-007-0 |
02 |
1 |
0106- |
| |
57 |
WASHER; PL,LICENSE PLATE LAMP
|
1-82129-008-0 |
02 |
1 |
0106- |
| |
58 |
COVER; LICENSE PLATE LAMP
|
1-82129-005-0 |
01 |
1 |
0106- |
| |
60 |
LAMP; BACKUP
SINGAPORE EQUIPMENT(WQ3)
(B)
|
1-82130-023-1 |
01 |
1 |
0106- |
| |
60 |
LAMP; BACKUP
(A)
|
1-82130-016-1 |
01 |
1 |
0106- |
| |
61 |
LENS; BACKUP LAMP
SINGAPORE EQUIPMENT(WQ3)
|
1-82135-003-0 |
01 |
1 |
0106- |
| |
61 |
LENS; BACKUP LAMP
|
1-82135-003-0 |
01 |
1 |
0106- |
| |
62 |
BULB; BACKUP LAMP
SINGAPORE EQUIPMENT(WQ3)
(B)
24V 21W
|
1-82194-036-0 |
01 |
1 |
0106- |
| |
62 |
BULB; BACKUP LAMP
(A)
24V 25W
|
9-82691-347-0 |
01 |
1 |
0106- |
| |
63 |
GASKET; BACKUP LAMP
SINGAPORE EQUIPMENT(WQ3)
|
1-82136-002-0 |
01 |
1 |
0106- |
| |
63 |
GASKET; BACKUP LAMP
|
1-82136-002-0 |
01 |
1 |
0106- |
| |
64 |
SCREW; BACKUP LAMP
SINGAPORE EQUIPMENT(WQ3)
|
1-82139-002-0 |
03 |
1 |
0106- |
| |
64 |
SCREW; BACKUP LAMP
|
1-82139-002-0 |
03 |
1 |
0106- |
| |
65 |
BOLT; LAMP,BACKUP
M10X35 W/LK&PL WASHER
|
0-50141-035-0 |
02 |
1 |
0106-0512 |
| |
65 |
BOLT; LAMP,BACKUP
SINGAPORE EQUIPMENT(WQ3)
M10X35 W/LK&PL WASHER
|
0-50141-035-0 |
02 |
1 |
0106-0512 |
| |
65 |
BOLT; LAMP,BACKUP
M10X35 W/LK&PL WASHER
|
0-50641-035-0 |
02 |
1 |
0601- |
| |
65 |
BOLT; LAMP,BACKUP
SINGAPORE EQUIPMENT(WQ3)
M10X35 W/LK&PL WASHER
|
0-50641-035-0 |
02 |
1 |
0601- |
| |
67 |
NUT; FLANGE
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0106-0602 |
| |
67 |
NUT; FLANGE
SINGAPORE EQUIPMENT(WQ3)
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0106-0602 |
| |
67 |
NUT; FLANGE
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603- |
| |
67 |
NUT; FLANGE
SINGAPORE EQUIPMENT(WQ3)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603- |
| |
226 |
SCREW; PROTECTOR
|
1-82239-032-0 |
08 |
1 |
0106- |
