7-70 — SEPARATER AND BED (#11495) — 129 parça

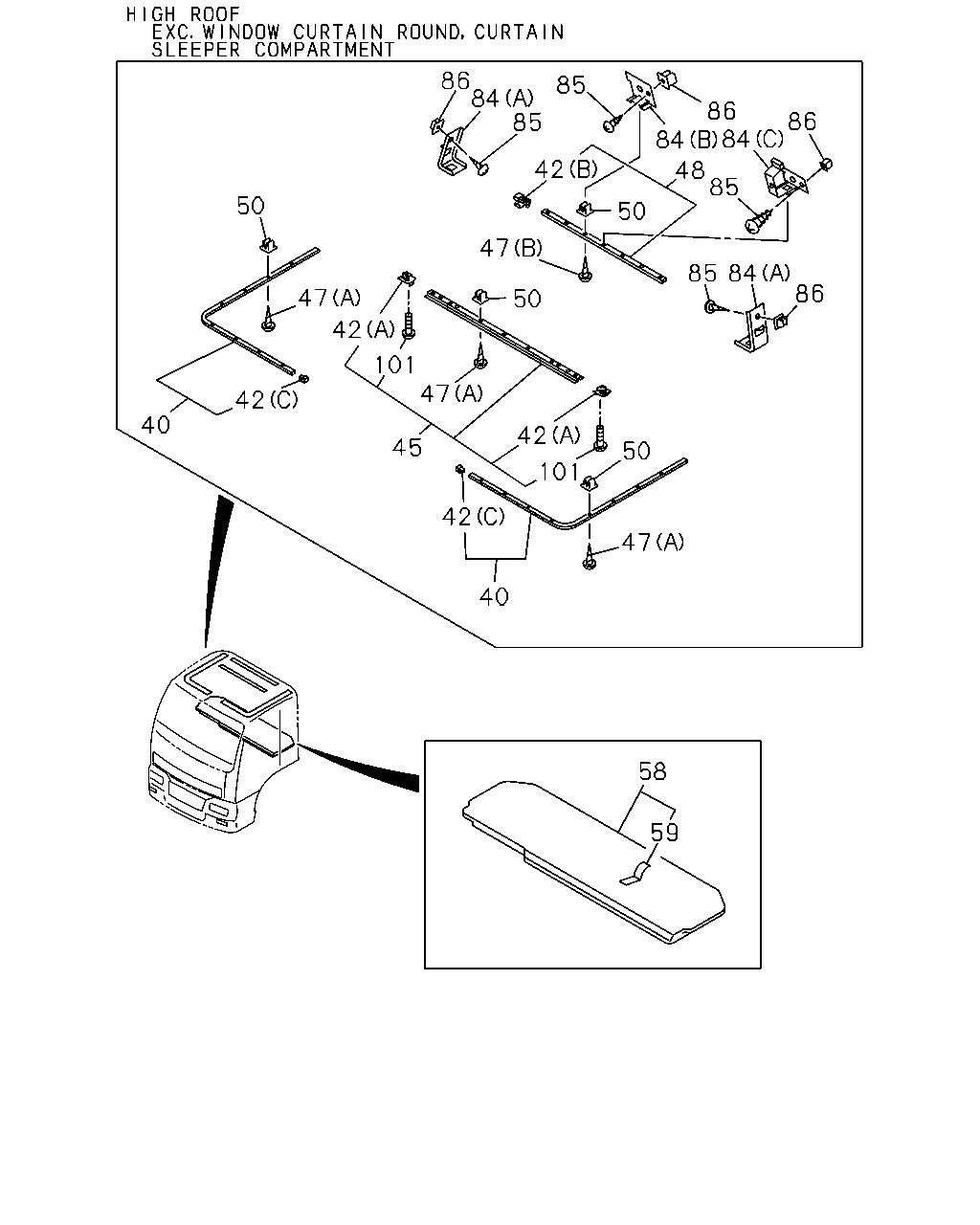

86 84 85 42 41 85 86 84 86 84 50 42 85 85 84 86 42 41 50 40 47 47 50 42 47 101 45 41 42 50 101 41 42 40 47 42 58 59 42 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-0	01	1	0106-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-0	01	1	0106-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-0	01	1	0106-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-0	01	1	0106-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	42	1	0106-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	14	1	0106-0107
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0108-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	16	1	0106-0107
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	04	1	0106-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0106-
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (A)	1-73907-657-0	02	1	0106-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	02	1	0106-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0106-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-592-2	01	1	0106-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F>	1-73907-546-3	01	1	0106-
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-591-2	01	1	0106-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>	1-73907-545-2	01	1	0106-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0106-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0106-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0106-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0106-
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=13 M5	1-09983-159-0	07	1	0206-
50	GROMMET; SCREW,CURTAIN RAIL D=8.5X8.5 L=7.5	8-94279-078-0	27	1	0106-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-112-2	01	1	0106-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-130-1	01	1	0106-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0106-
84	BRACKET; CURTAIN RAIL EXC. HIGH ROOF<S2F> (B)	1-73998-987-4	07	1	0106-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (B)	1-73998-987-4	06	1	0106-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-661-0	01	1	0106-
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0106-
86	GROMMET; SCREW,BRKT D=8.5X8.5 L=7.5	8-94279-078-0	09	1	0106-
101	SCREW; STOPPER HIGH ROOF<S2F>	1-73907-400-0	02	1	0106-

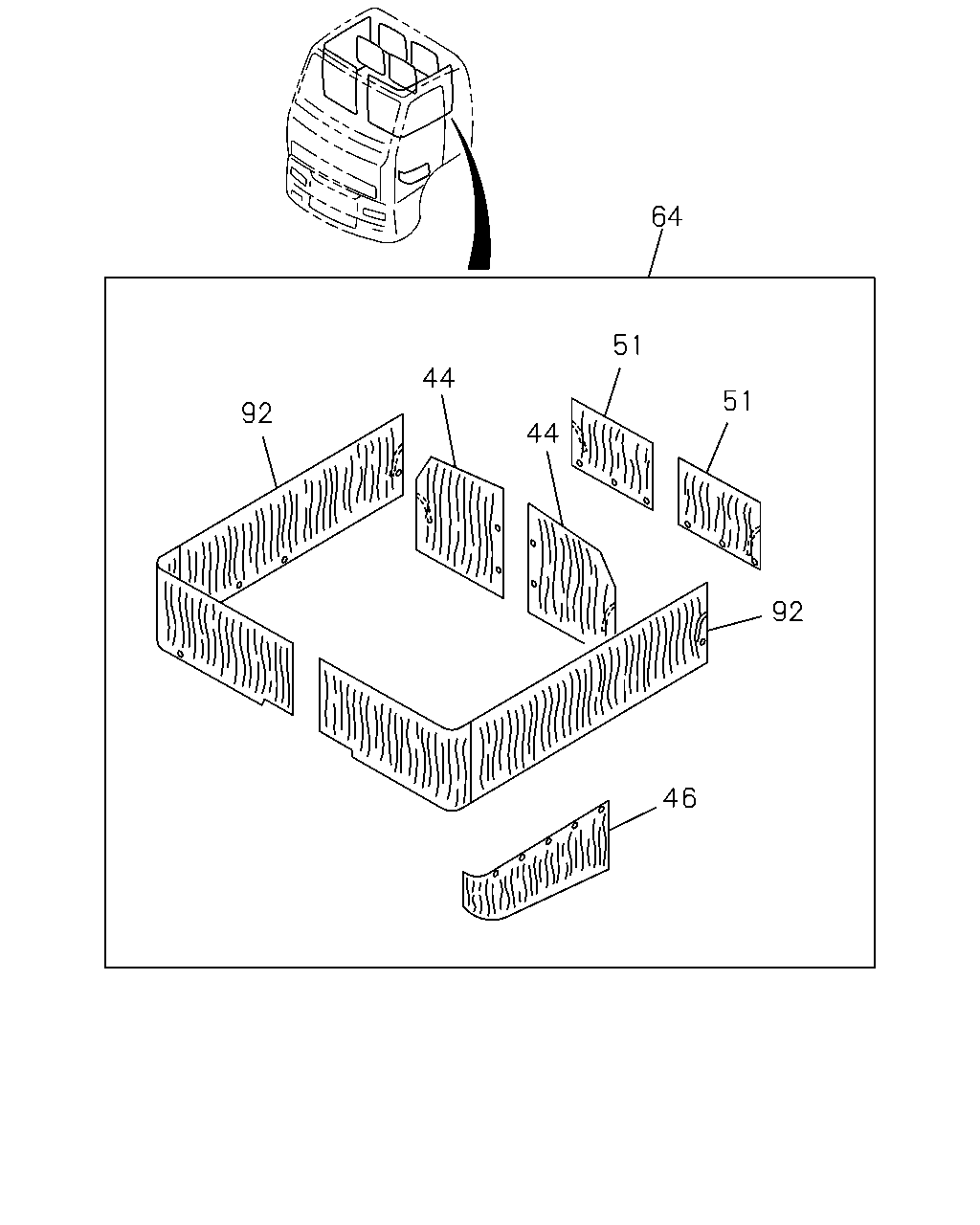

51 51 64 44 44 92 46 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-504-1	01	1	0106-
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-505-1	01	1	0106-
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F>	1-73907-480-1	01	1	0106-
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F>	1-73907-481-1	01	1	0106-
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F>	1-73907-426-0	01	1	0106-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-482-1	01	1	0106-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-483-1	01	1	0106-
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F>	1-73907-578-1	01	1	0106-
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F>	1-73907-479-1	01	1	0106-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-484-1	01	1	0106-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-485-1	01	1	0106-

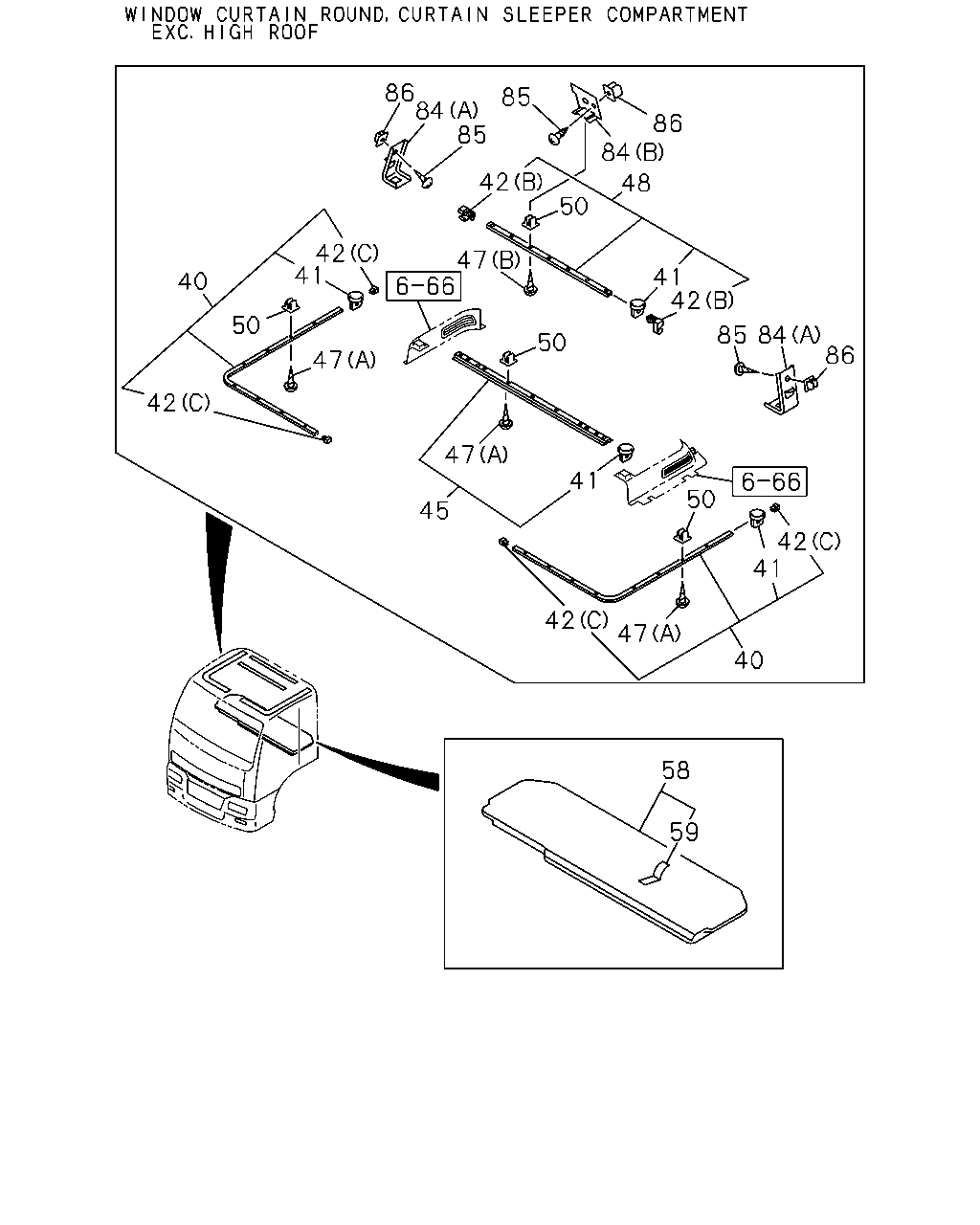

86 84 85 42 41 50 48 84 86 85 85 84 86 47 42 50 41 47 45 47 41 42 40 50 42 42 47 40 41 42 50 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-0	01	1	0106-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-0	01	1	0106-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-0	01	1	0106-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-0	01	1	0106-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	42	1	0106-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	14	1	0106-0107
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0108-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	16	1	0106-0107
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	04	1	0106-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0106-
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (A)	1-73907-657-0	02	1	0106-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	02	1	0106-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0106-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-592-2	01	1	0106-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F>	1-73907-546-3	01	1	0106-
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-591-2	01	1	0106-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>	1-73907-545-2	01	1	0106-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0106-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0106-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0106-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0106-
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=13 M5	1-09983-159-0	07	1	0206-
50	GROMMET; SCREW,CURTAIN RAIL D=8.5X8.5 L=7.5	8-94279-078-0	27	1	0106-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-112-2	01	1	0106-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-130-1	01	1	0106-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0106-
84	BRACKET; CURTAIN RAIL EXC. HIGH ROOF<S2F> (B)	1-73998-987-4	07	1	0106-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (B)	1-73998-987-4	06	1	0106-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-661-0	01	1	0106-
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0106-
86	GROMMET; SCREW,BRKT D=8.5X8.5 L=7.5	8-94279-078-0	09	1	0106-

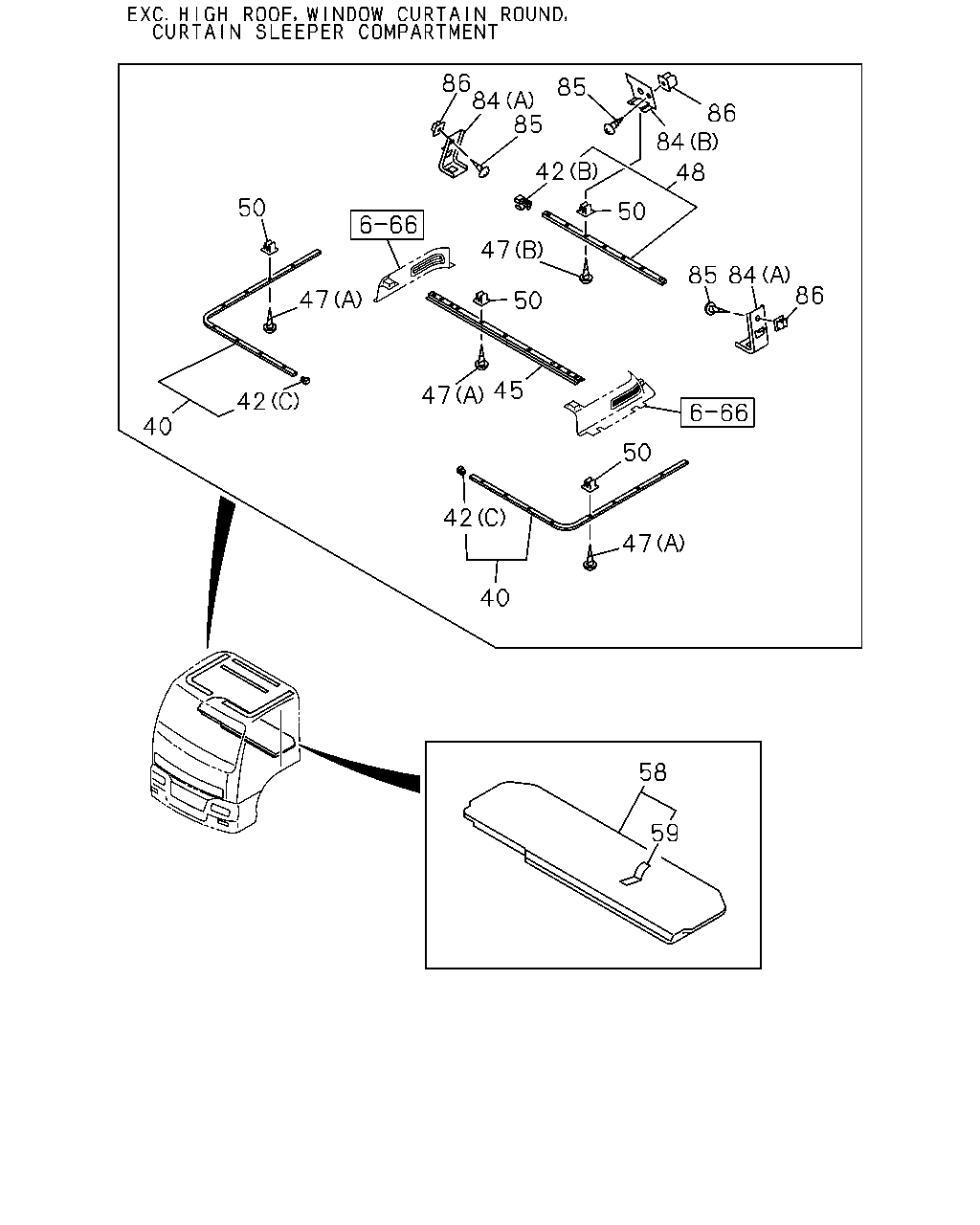

86 84 85 50 48 84 86 85 85 84 86 42 47 50 47 50 47 42 40 58 59 40 42 47 50 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-0	01	1	0106-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-0	01	1	0106-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-0	01	1	0106-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-0	01	1	0106-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	04	1	0106-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0106-
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (A)	1-73907-657-0	02	1	0106-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	02	1	0106-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0106-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-592-2	01	1	0106-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F>	1-73907-546-3	01	1	0106-
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-591-2	01	1	0106-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>	1-73907-545-2	01	1	0106-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0106-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0106-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0106-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0106-
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=13 M5	1-09983-159-0	07	1	0206-
50	GROMMET; SCREW,CURTAIN RAIL D=8.5X8.5 L=7.5	8-94279-078-0	27	1	0106-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-112-2	01	1	0106-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-130-1	01	1	0106-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0106-
84	BRACKET; CURTAIN RAIL EXC. HIGH ROOF<S2F> (B)	1-73998-987-4	07	1	0106-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (B)	1-73998-987-4	06	1	0106-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-661-0	01	1	0106-
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0106-
86	GROMMET; SCREW,BRKT D=8.5X8.5 L=7.5	8-94279-078-0	09	1	0106-

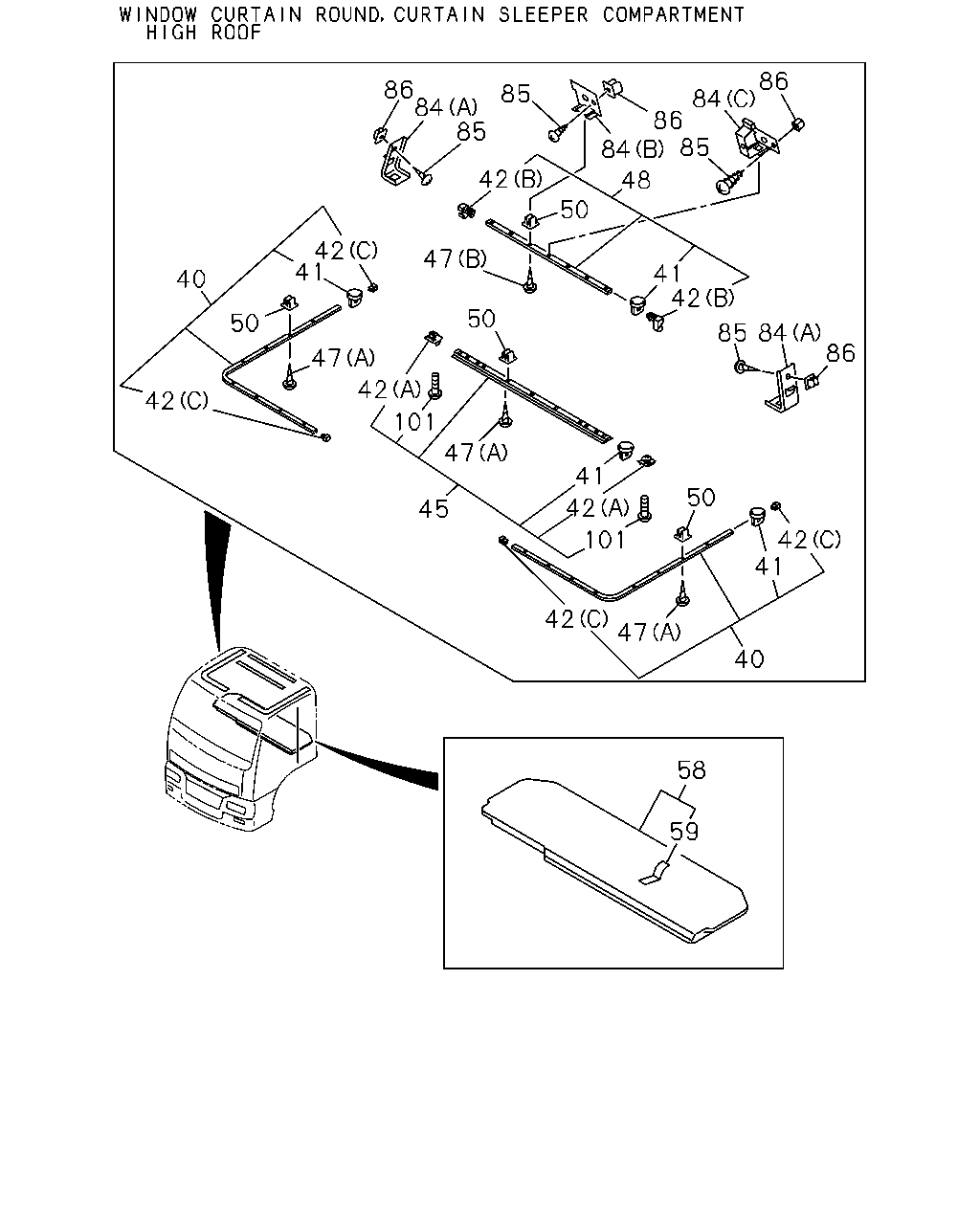

86 84 85 85 48 84 86 86 84 85 85 84 86 42 47 50 50 50 47 101 42 47 101 42 47 50 42 45 40 40 42 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-0	01	1	0106-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-0	01	1	0106-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-0	01	1	0106-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-0	01	1	0106-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	04	1	0106-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0106-
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (A)	1-73907-657-0	02	1	0106-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	02	1	0106-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0106-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-592-2	01	1	0106-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F>	1-73907-546-3	01	1	0106-
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-591-2	01	1	0106-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>	1-73907-545-2	01	1	0106-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0106-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0106-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0106-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0106-
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=13 M5	1-09983-159-0	07	1	0206-
50	GROMMET; SCREW,CURTAIN RAIL D=8.5X8.5 L=7.5	8-94279-078-0	27	1	0106-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-112-2	01	1	0106-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-130-1	01	1	0106-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0106-
84	BRACKET; CURTAIN RAIL EXC. HIGH ROOF<S2F> (B)	1-73998-987-4	07	1	0106-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (B)	1-73998-987-4	06	1	0106-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-661-0	01	1	0106-
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0106-
86	GROMMET; SCREW,BRKT D=8.5X8.5 L=7.5	8-94279-078-0	09	1	0106-
101	SCREW; STOPPER HIGH ROOF<S2F>	1-73907-400-0	02	1	0106-
