Isuzu WW
▶
TRUCKS
▶
EXR
▶
10863 - EXR RHD FUEL TANK 200L+200L
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-60 - SEAT BELT
▶
7-60 — SEAT BELT
(#11494) — 19 parça
◀

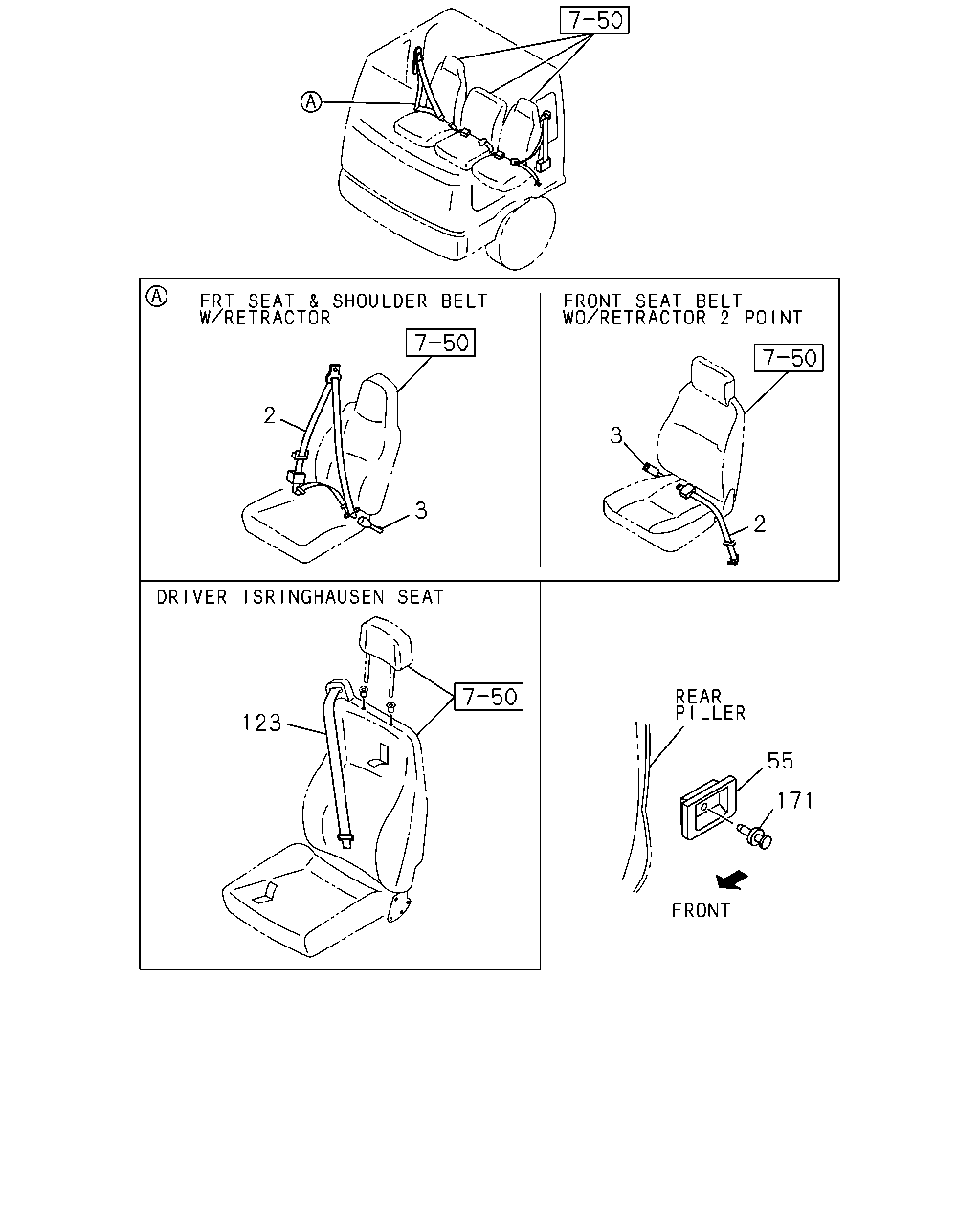

[760A] DRIVER SEAT (6 parça)
[760A] PASSENGER SEAT AND CENTER SEAT (9 parça)

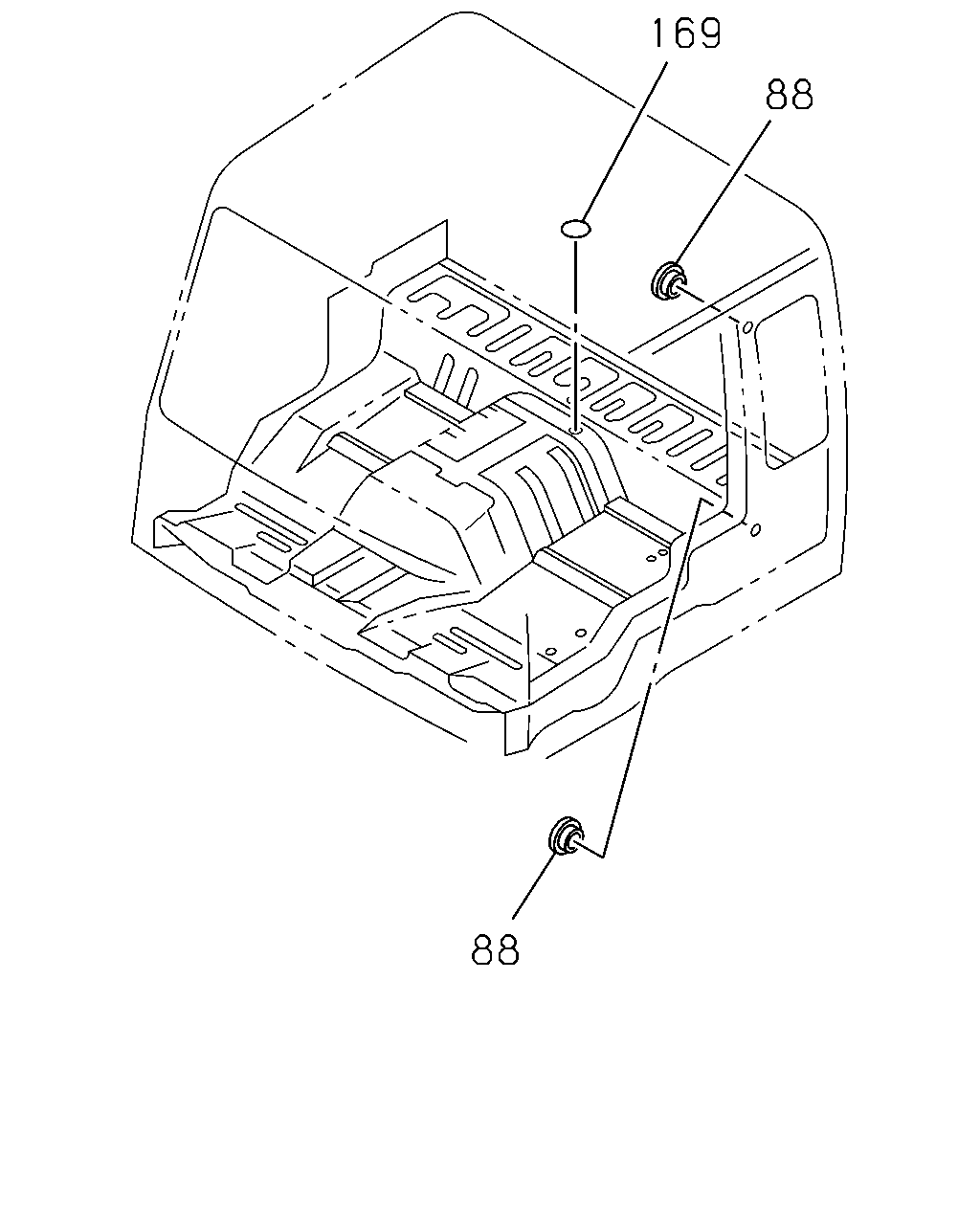

[760A] HOLE PLUG AND SEAL (4 parça)
▶
2
3
3
2
171
55
123
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)
1-75618-938-3
01
1
0106-
3
BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)
1-75618-914-0
01
1
0106-
55
GUIDE; SEAT BELT
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)
1-75617-556-0
01
1
0106-
55
GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3)
1-75617-556-0
02
1
0106-
123
BELT ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)
1-75617-570-0
01
1
0106-
171
CLIP; SEAT BELT GUIDE
1-09987-239-0
02
1
0106-
5
6
170
4
170
171
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BELT; PASSENGER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CENTER SEAT DELETE(SP9)
1-75617-546-1
01
1
0106-
5
BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. CENTER SEAT DELETE(SP9)
1-75617-553-1
01
1
0106-
6
BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) EXC. CENTER SEAT DELETE(SP9)
1-75618-926-1
01
1
0106-
6
BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA), CENTERSEAT DELETE(SP9)
1-75617-547-4
01
1
0106-
55
GUIDE; SEAT BELT
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)
1-75617-556-0
01
1
0106-
55
GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3)
1-75617-556-0
02
1
0106-
170
BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)
1-75618-924-2
01
1
0106-
170
BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA)
1-75617-550-4
01
1
0106-
171
CLIP; SEAT BELT GUIDE
1-09987-239-0
02
1
0106-
88
169
88
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
88
PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=31.6
8-94198-177-0
02
1
0106-
169
SEAL
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA) OD=25 BLACK
1-76798-019-0
02
1
0106-
169
SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK
1-76798-019-0
01
1
0106-
169
SEAL
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=25 BLACK
1-76798-019-0
04
1
0106-
