◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10863 - EXR RHD FUEL TANK 200L+200L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#11492) — 71 parça

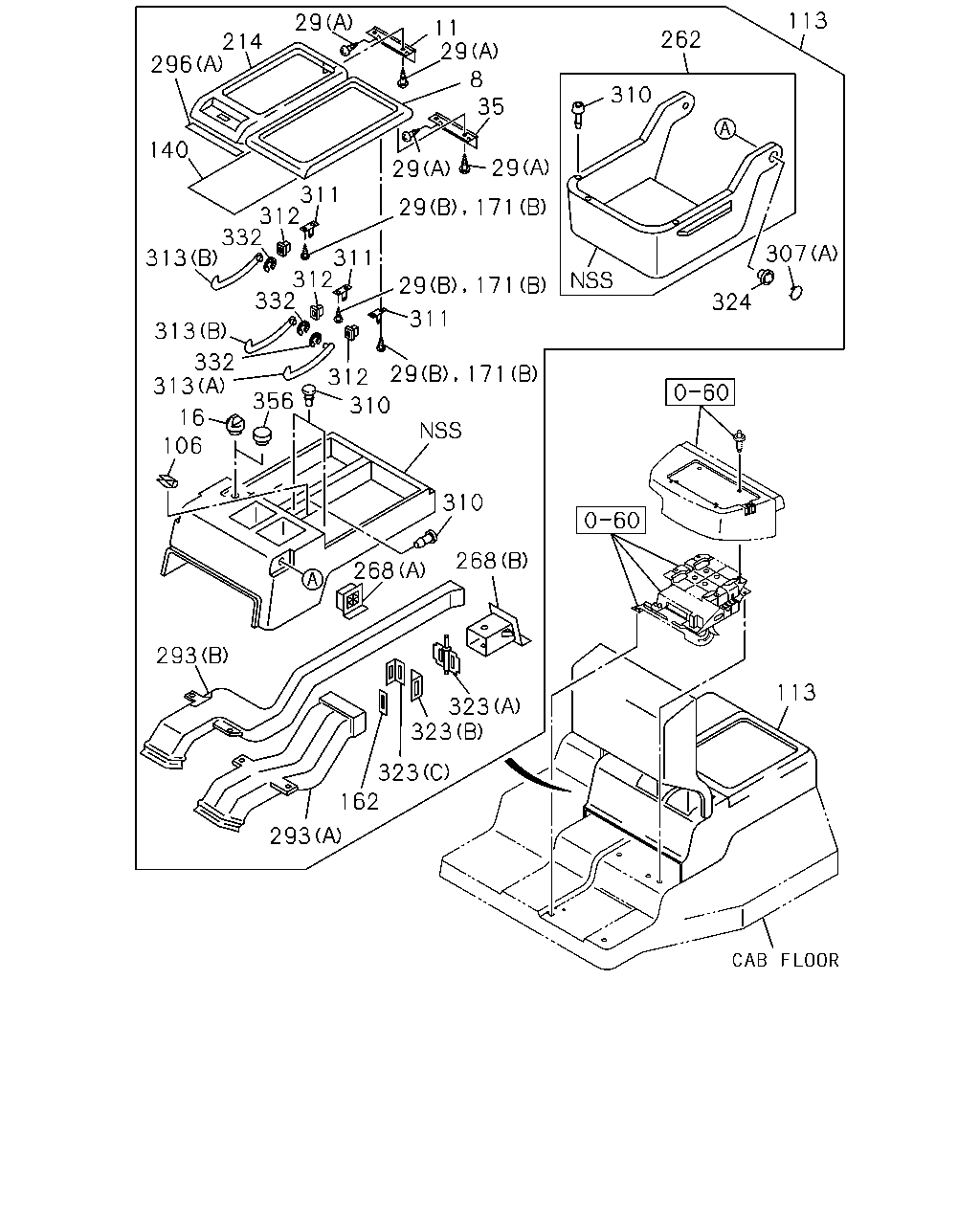

çizim 19353
113 262 310 307 324 29 11 8 35 29 171 29 29 311 312 312 311 332 313 313 332 311 312 29 171 16 356 310 310 268 268 323 323 323 162 293 113 293 106 313 332 140 296 214 29 171 29
BalonParca AdiParca NoAdetTipApplied Date
8 LID; CENTER CONSOLE
TABLE CONSOLE BOX<TDL> 		1-72537-185-0 01 1 0106-
11 HINGE; CONSOLE LID
TABLE CONSOLE BOX<TDL> 		1-72537-070-2 01 1 0106-
16 KNOB ASM
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-189-0 01 1 0106-
29 SCREW; HINGE
TABLE CONSOLE BOX<TDL> (A) M5X14 BINDING HEAD 		1-72537-168-0 08 1 0106-
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0106-
35 HINGE; CENTER CONSOLE
TABLE CONSOLE BOX<TDL> 		1-72538-182-1 01 1 0106-
106 LOCK; CONSOLE LID
TABLE CONSOLE BOX<TDL> 		1-72537-079-0 02 1 0106-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-180-0 01 1 0106-0404
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-240-3 01 1 0405-0507
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-285-3 01 1 0508-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-220-0 01 1 0106-0404
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-252-2 01 1 0405-0507
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-291-3 01 1 0508-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-181-0 01 1 0106-0404
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-251-2 01 1 0405-0507
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-294-2 01 1 0508-
140 SHEET
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-093-1 01 1 0106-
162 CUSHION; PARCEL BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-128-0 03 1 0106-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0106-
171 SCREW; CONSOLE BOX
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0106-
214 LID; CONSOLE
TABLE CONSOLE BOX<TDL> 		1-72537-186-0 01 1 0106-
262 TABLE ASM
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-187-1 01 1 0106-
268 COVER; DUCT
TABLE CONSOLE BOX<TDL> (B) 		1-72537-183-0 01 1 0106-
268 COVER; DUCT
TABLE CONSOLE BOX<TDL> (A) 		1-72537-184-0 01 1 0106-
293 DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-081-3 01 1 0106-
293 DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-083-2 01 1 0106-
296 SEAL
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 0106-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 0106-0303
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0304-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 0106-
307 COVER; HOLE,CTR CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 0106-
310 CUSHION; CTR CONSOLE
TABLE CONSOLE BOX<TDL> 		1-72538-187-0 02 1 0106-
311 HOLDER; CONSOLE
TABLE CONSOLE BOX<TDL> 		1-72538-188-2 03 1 0106-
312 STOPPER; CONSOLE
TABLE CONSOLE BOX<TDL> 		1-72538-186-1 03 1 0106-
313 ARM; CTR CONSOLE
TABLE CONSOLE BOX<TDL> (A) 		1-72538-184-3 01 1 0106-
313 ARM; CTR CONSOLE
TABLE CONSOLE BOX<TDL> (B) 		1-72538-185-3 02 1 0106-
323 SHUTTER
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-126-0 01 1 0106-
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-084-1 01 1 0106-
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (C) 		1-72537-127-0 01 1 0106-
324 BUSHING
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-116-0 02 1 0106-
332 RING; SNAP,CONSOLE BOX
TABLE CONSOLE BOX<TDL> 		1-72537-170-0 03 1 0106-
356 COVER; KNOB
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-155-0 01 1 0106-

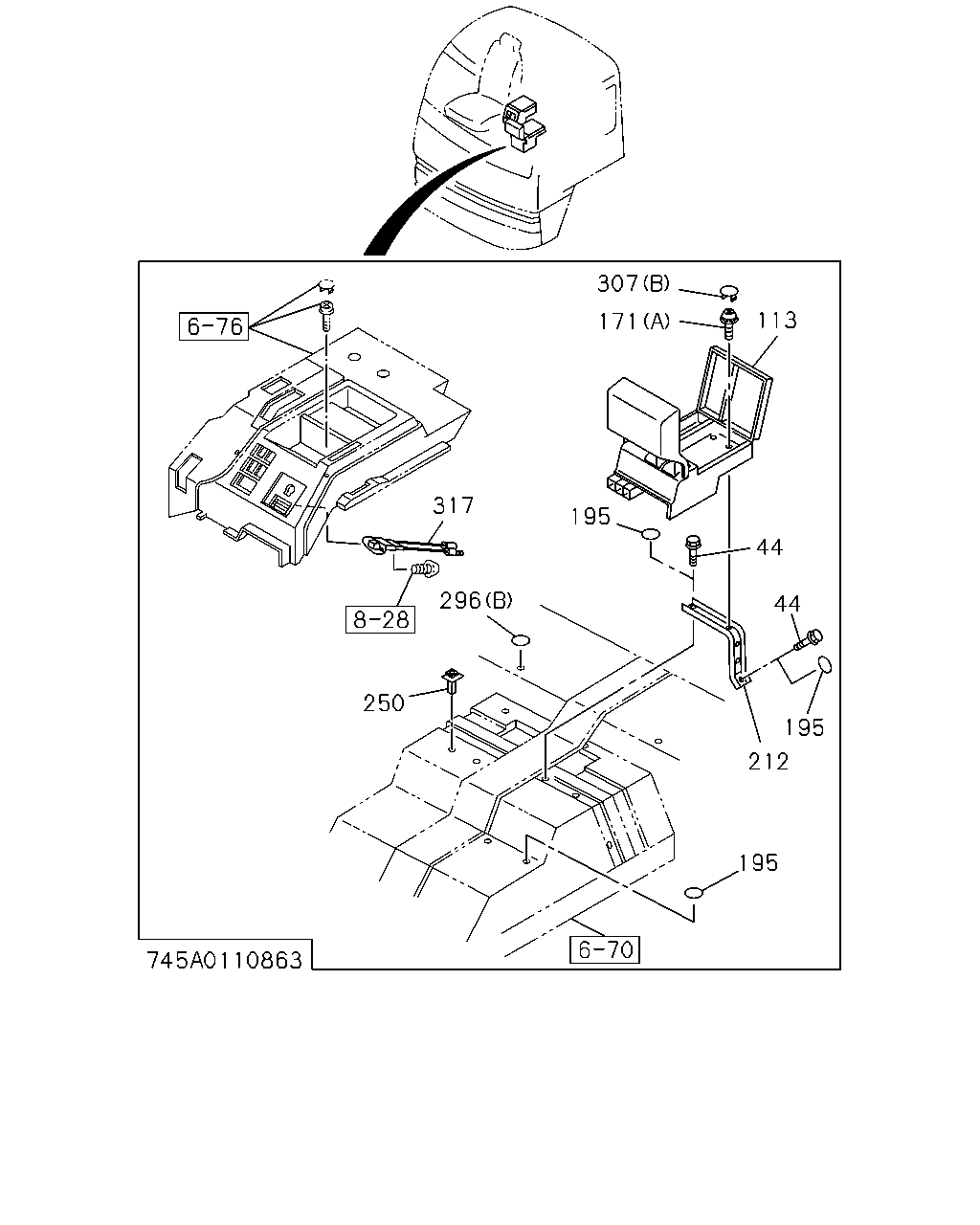

çizim 73191
113 171 307 317 195 44 44 195 212 195 250 296
BalonParca AdiParca NoAdetTipApplied Date
44 BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0106-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-180-0 01 1 0106-0404
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-240-3 01 1 0405-0507
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-285-3 01 1 0508-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-220-0 01 1 0106-0404
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-252-2 01 1 0405-0507
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-291-3 01 1 0508-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-181-0 01 1 0106-0404
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-251-2 01 1 0405-0507
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-294-2 01 1 0508-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0106-
171 SCREW; CONSOLE BOX
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0106-
195 SEAL; CENTER CONSOLE
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 05 1 0106-
212 SUPPORT; CONSOLE TO COMPT
CENTER SEAT DELETE(SP9) 		1-72537-095-1 01 1 0106-
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0106-
296 SEAL
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 0106-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 0106-0303
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0304-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 0106-
307 COVER; HOLE,CTR CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 0106-
317 CONSENT 1-82523-020-2 01 1 0106-

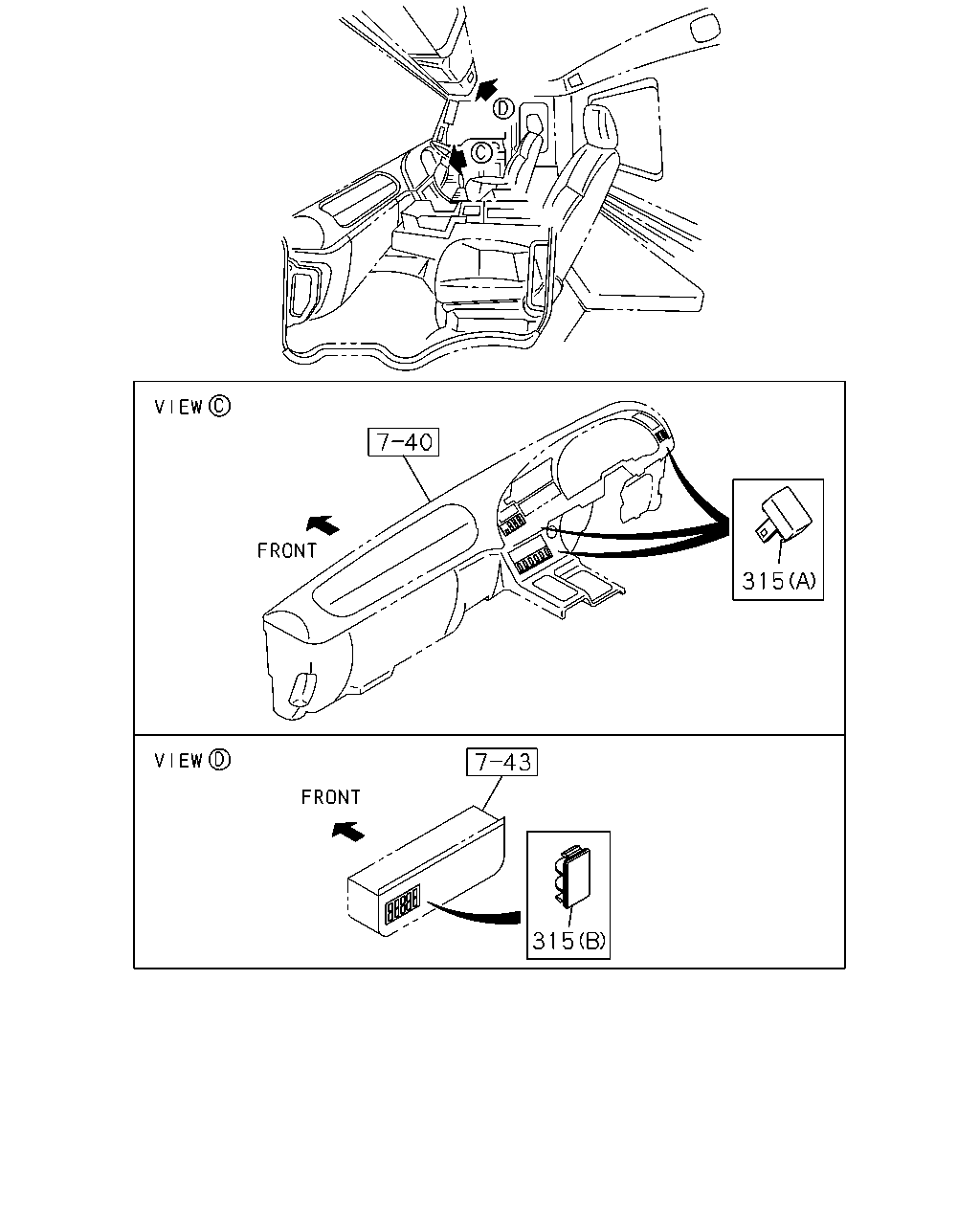

çizim 75115
315 315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW
(A) 		1-82359-069-2 22 1 0106-
315 COVER; HOLE,SW
(B) 		8-97043-732-1 04 1 0106-
315 COVER; HOLE,SW
EXC. MIR STAY O/S W/REMOTE<TBA> (A) 		1-82359-069-2 01 1 0106-0108
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0106-0108
315 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (A) 		1-82359-069-2 01 1 0106-0108
315 COVER; HOLE,SW
EXC. MIR STAY O/S W/REMOTE<TBA> (A) 		1-82359-069-2 01 1 0109-
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0109-
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0109-
