◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10863 - EXR RHD FUEL TANK 200L+200L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#11489) — 122 parça

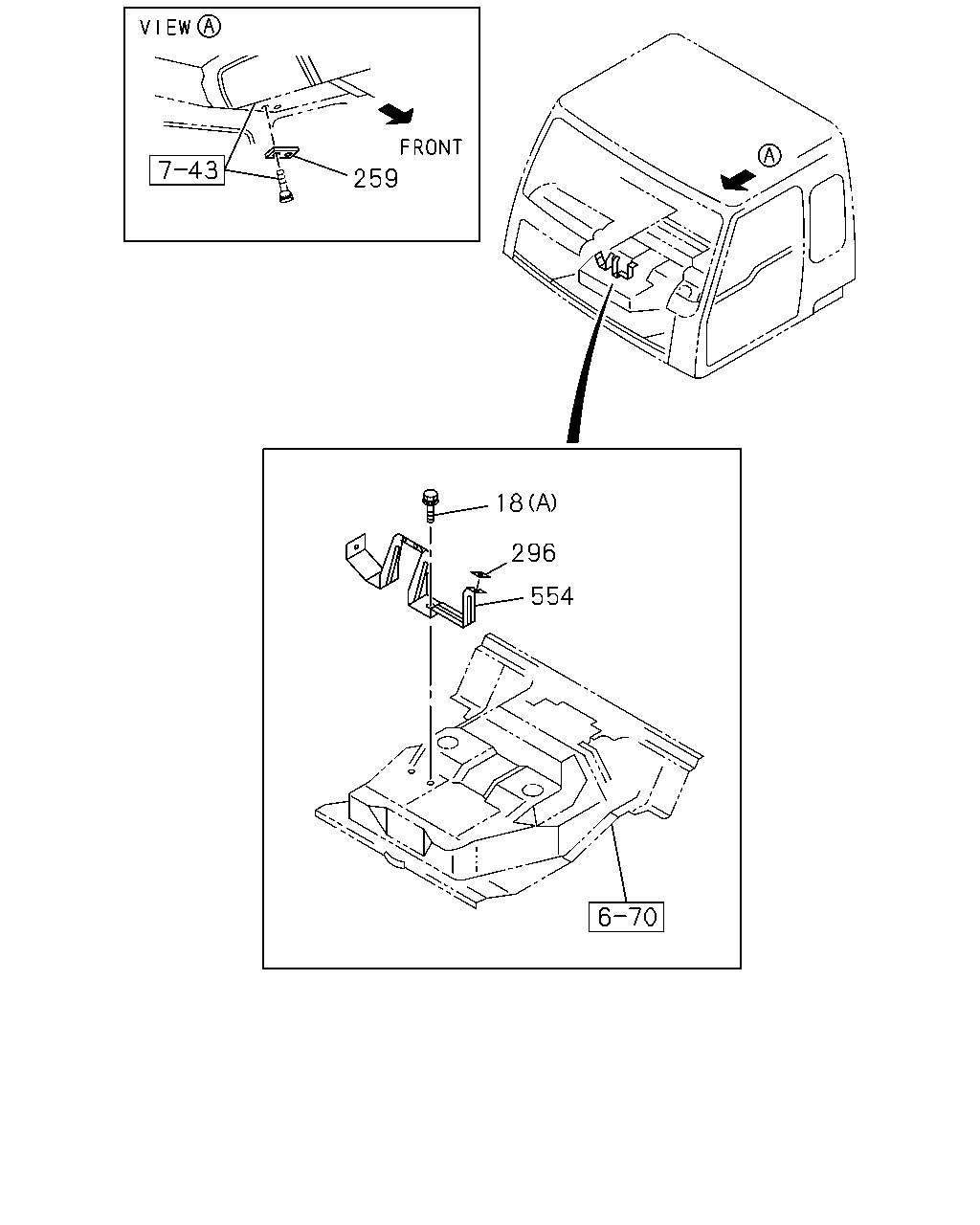

çizim 20552
554 296 18 259
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
ZF M/T<X9E> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-0108
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0106-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0106-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0106-
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0106-
296 SEAL; INST CENTER BEZEL
EXC. CENTER SEAT DELETE(SP9) 		8-97856-616-0 01 1 0106-
554 BRACKET; CENTER BEZEL 1-65671-535-2 01 1 0106-

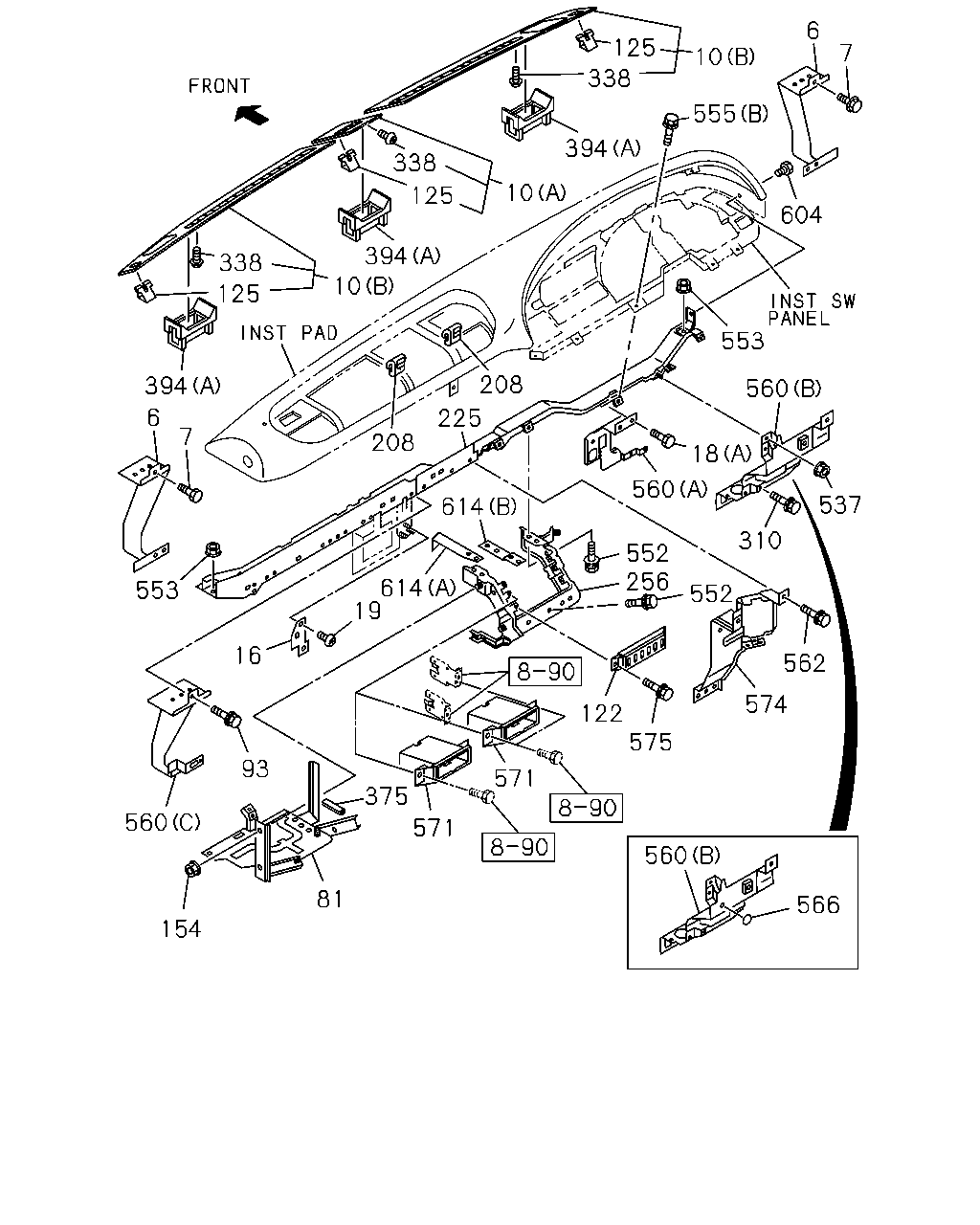

çizim 20553
560 537 310 562 574 575 122 552 256 552 560 18 553 604 555 10 7 6 125 338 394 10 125 338 394 338 125 10 208 225 208 614 614 19 16 553 6 7 394 571 560 566 571 375 81 154 560 93
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-063-3 01 1 0106-
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-064-2 01 1 0106-
7 BOLT; SUPPORT,INST PNL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0106-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) CENTER 		1-72437-592-1 01 1 0106-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-157-1 01 1 0106-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-158-1 01 1 0106-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) CENTER 		1-72437-540-6 01 1 0106-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-600-6 01 1 0106-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-601-6 01 1 0106-
16 BRACKET; INST PNL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-73908-023-2 01 1 0106-
18 BOLT; BRKT
ZF M/T<X9E> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-0108
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0106-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0106-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0106-
19 SCREW; BRKT
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 02 1 0106-
81 BRACKET; ELEC CONT UNIT 1-73907-649-2 01 1 0106-0110
81 BRACKET; ELEC CONT UNIT 1-73907-548-7 01 1 0111-
93 BOLT; PANEL BRKT
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0106-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 0106-
125 CLIP; INST PANEL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 18 1 0310-0405
125 CLIP; INST PANEL 8-97217-066-0 01 1 0106-
125 CLIP; INST PANEL 8-97217-066-0 10 1 0106-0309
125 CLIP; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 10 1 0310-0405
125 CLIP; INST PANEL 8-97217-066-0 10 1 0406-
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 0106-0602
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 0603-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0106-
225 FRAME; FACIA 1-65671-725-8 01 1 0106-
256 BEZEL ASM; CENTER
COOL & HOT BOX<TMU> 		1-65671-523-8 01 1 0106-0210
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 0211-
256 BEZEL ASM; CENTER
EXC. COOL & HOT BOX<TMU> 		1-65671-765-1 01 1 0106-0210
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0106-
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 0106-0208
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94148-576-1 12 1 0209-0309
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 22 1 0310-0405
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 0406-
375 FINISHER; BRKT,CONT UNIT
L=80 		5-71997-133-0 01 1 0403-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0106-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0106-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0106-0602
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0106-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0106-0602
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0106-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0106-
560 BRACKET
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (C) 		1-65671-751-0 01 1 0106-
560 BRACKET
(B) 		1-65671-717-8 01 1 0106-0302
560 BRACKET
(B) 		1-65671-786-2 01 1 0303-
560 BRACKET
(A) 		1-65680-976-3 01 1 0106-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0106-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0106-
571 BEZEL; POCKET 1-72438-151-3 01 1 0106-
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-3 01 1 0106-
574 PANEL; RELAY BOX 1-73907-365-9 01 1 0106-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-
604 CLIP; INST PAD 1-09983-123-0 01 1 0106-
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 0106-
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 0106-

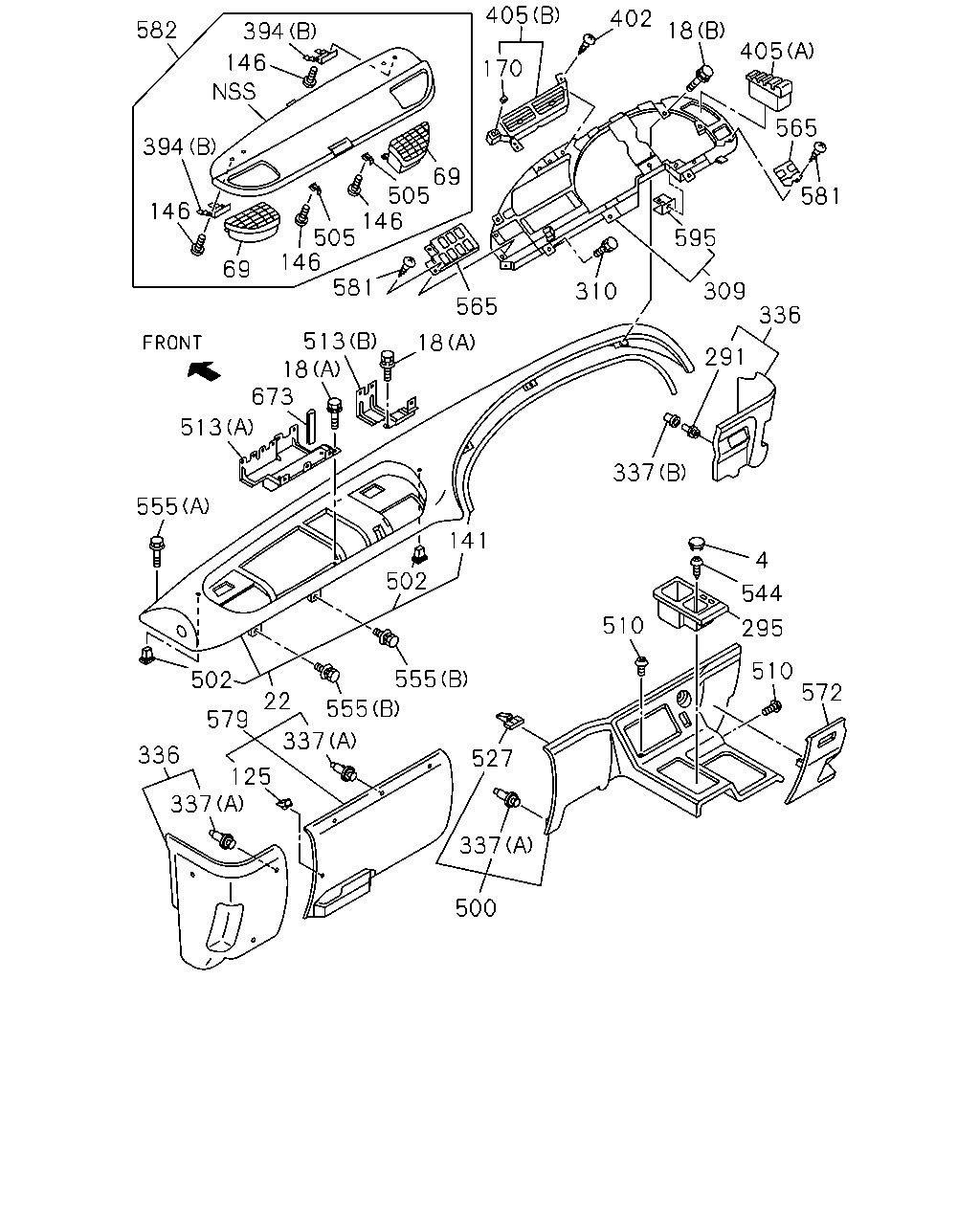

çizim 20606
336 309 291 337 4 544 295 510 572 510 502 141 555 555 337 22 579 502 336 337 500 337 527 69 146 505 146 505 69 170 405 402 405 18 565 581 595 394 582 394 146 513 18 673 513 555 565 581 18 310 146 125
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 0106-
18 BOLT; BRKT
ZF M/T<X9E> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-0108
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0106-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0106-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0106-
22 PAD; INST 1-72317-347-2 01 1 0106-
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0106-
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0106-
125 CLIP; INST PANEL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 18 1 0310-0405
125 CLIP; INST PANEL 8-97217-066-0 01 1 0106-
125 CLIP; INST PANEL 8-97217-066-0 10 1 0106-0309
125 CLIP; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 10 1 0310-0405
125 CLIP; INST PANEL 8-97217-066-0 10 1 0406-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0106-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0106-
170 COVER; HOLE 1-76367-068-0 01 1 0106-
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 0106-
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 0106-
309 PANEL; SW,INST 1-72418-009-6 01 1 0106-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0106-
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0106-
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0106-
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 0106-
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 0106-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0106-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0106-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0106-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0106-0604
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
405 GRILLE ASM; METER VENT
(A) 		1-76367-059-3 01 1 0106-
405 GRILLE ASM; METER VENT
(B) 		1-76367-062-2 01 1 0106-
500 CLUSTER; INST CENTER
CENTER SEAT DELETE(SP9) 		1-72437-619-0 01 1 0106-
500 CLUSTER; INST CENTER
EXC. CENTER SEAT DELETE(SP9) 		1-72437-648-0 01 1 0106-
502 GROMMET; SCREW,CENTER,CLUSTER 8-94279-084-2 04 1 0106-
505 LOCK; LID 1-72558-024-2 02 1 0106-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0106-
513 BRACKET; RELAY
ZF M/T<X9E> (B) 		1-73907-327-3 01 1 0106-0108
513 BRACKET; RELAY
(A) 		1-73908-009-9 01 1 0106-0205
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0206-
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0106-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0106-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0106-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0106-
565 BEZEL; SW PANEL 1-72418-010-2 01 1 0106-
565 BEZEL; SW PANEL 1-72418-011-3 01 1 0106-
572 COVER; INSPECTION 1-72437-634-0 01 1 0106-
579 COVER; INST PNL 1-72437-626-0 01 1 0106-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0106-0604
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
582 LID; FUSE & RELAY 1-72547-124-0 01 1 0106-
595 NUT; HOOK 1-72418-013-0 11 1 0106-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0106-
