Sayfa 7-10 - Isuzu EPC

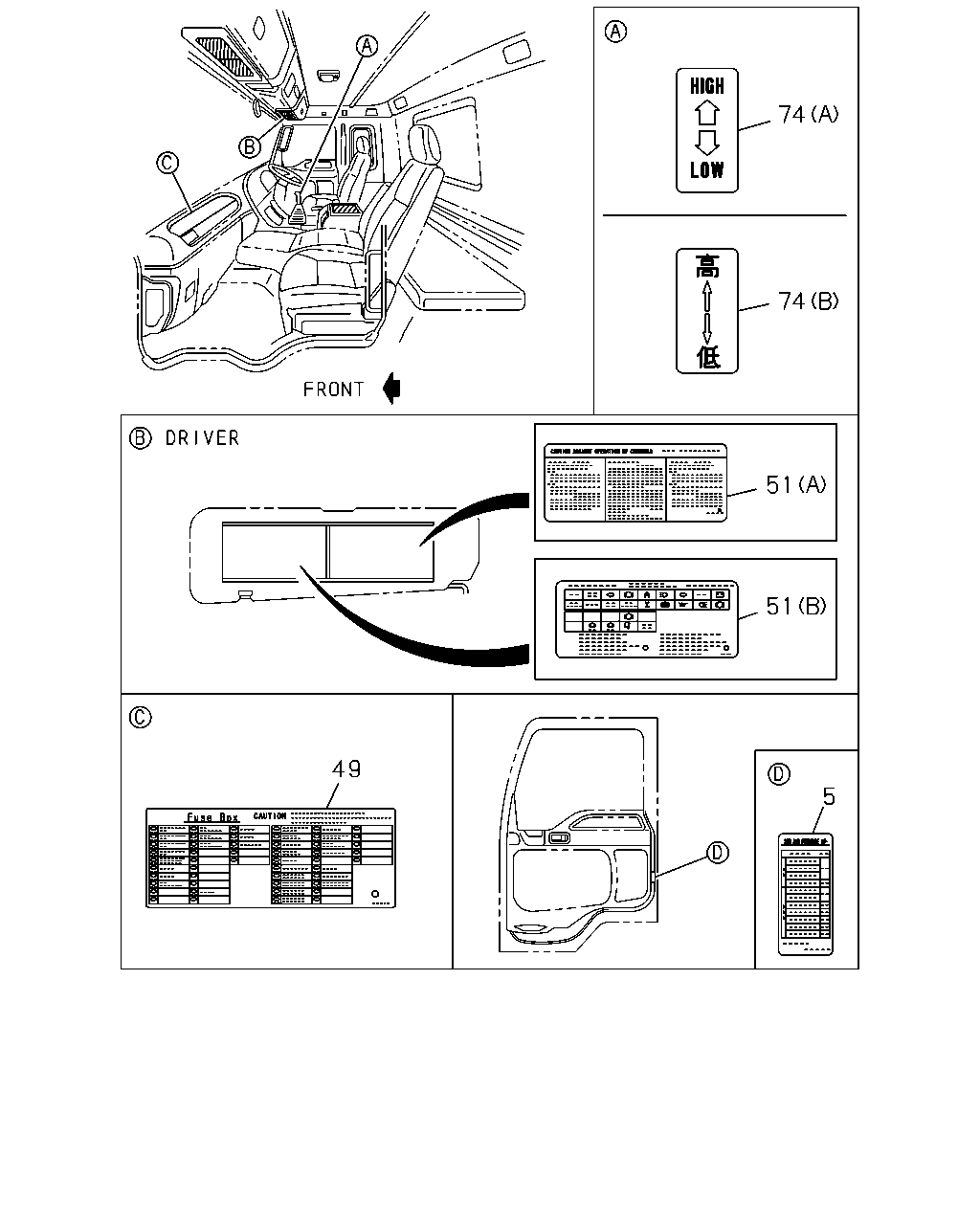

7-10 — CAUTION PLATE AND LABEL (#11486) — 63 parça

74 74 51 51 5 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	LABEL; TIRE AIR PRESSURE	1-85880-764-0	01	1	0106-0405
5	LABEL; TIRE AIR PRESSURE	1-85880-780-0	01	1	0406-0410
5	LABEL; TIRE AIR PRESSURE	1-85880-778-0	01	1	0411-
49	PLATE; CAUTION,FUSE BOX CAUTIONS CHINESE<SL7>	1-85878-329-0	01	1	0106-0106
49	PLATE; CAUTION,FUSE BOX CAUTIONS CHINESE<SL7>	1-85878-359-0	01	1	0106-0204
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	1-85878-331-0	01	1	0106-
49	PLATE; CAUTION,FUSE BOX CAUTIONS FRENCH<WJ8>	1-85878-330-0	01	1	0106-0112
49	PLATE; CAUTION,FUSE BOX CAUTIONS SPANISH<YN1>	1-85878-328-0	01	1	0106-
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85878-327-0	01	1	0106-0112
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS SPANISH<YN1>	1-85878-327-0	01	1	0201-0204
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>	1-85878-327-0	01	1	0205-
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7> (A)	1-85880-727-0	01	1	0106-0204
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> (B)	1-85878-334-1	01	1	0106-0112
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7> (B)	1-85878-334-1	01	1	0201-0204
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (B)	1-85878-335-1	01	1	0106-
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-758-0	01	1	0106-
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	1-85880-726-0	01	1	0106-0112
51	PLATE; CAUTION,WARNING EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> (B)	1-85878-333-1	01	1	0106-0112
51	PLATE; CAUTION,WARNING EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7> (B)	1-85878-333-1	01	1	0201-0204
51	PLATE; CAUTION,WARNING EXC. CAUTIONS ARABIAN<WJ7> (B)	1-85878-333-1	01	1	0205-
51	PLATE; CAUTION,WARNING EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> (A)	1-85880-725-0	01	1	0106-0112
51	PLATE; CAUTION,WARNING EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7> (A)	1-85880-725-0	01	1	0201-0204
51	PLATE; CAUTION,WARNING EXC. CAUTIONS ARABIAN<WJ7> (A)	1-85880-725-0	01	1	0205-
74	PLATE; CAUTION,CHANGE LEV TRANSMISSION-ZF 16S151 OD(Y2N) CAUTIONS CHINESE<SL7> (B)	1-85881-666-2	01	1	0106-0108
74	PLATE; CAUTION,CHANGE LEV TRANSMISSION-ZF 16S151 OD(Y2N) EXC. CAUTIONS CHINESE<SL7> (A)	1-85881-736-1	01	1	0106-0108

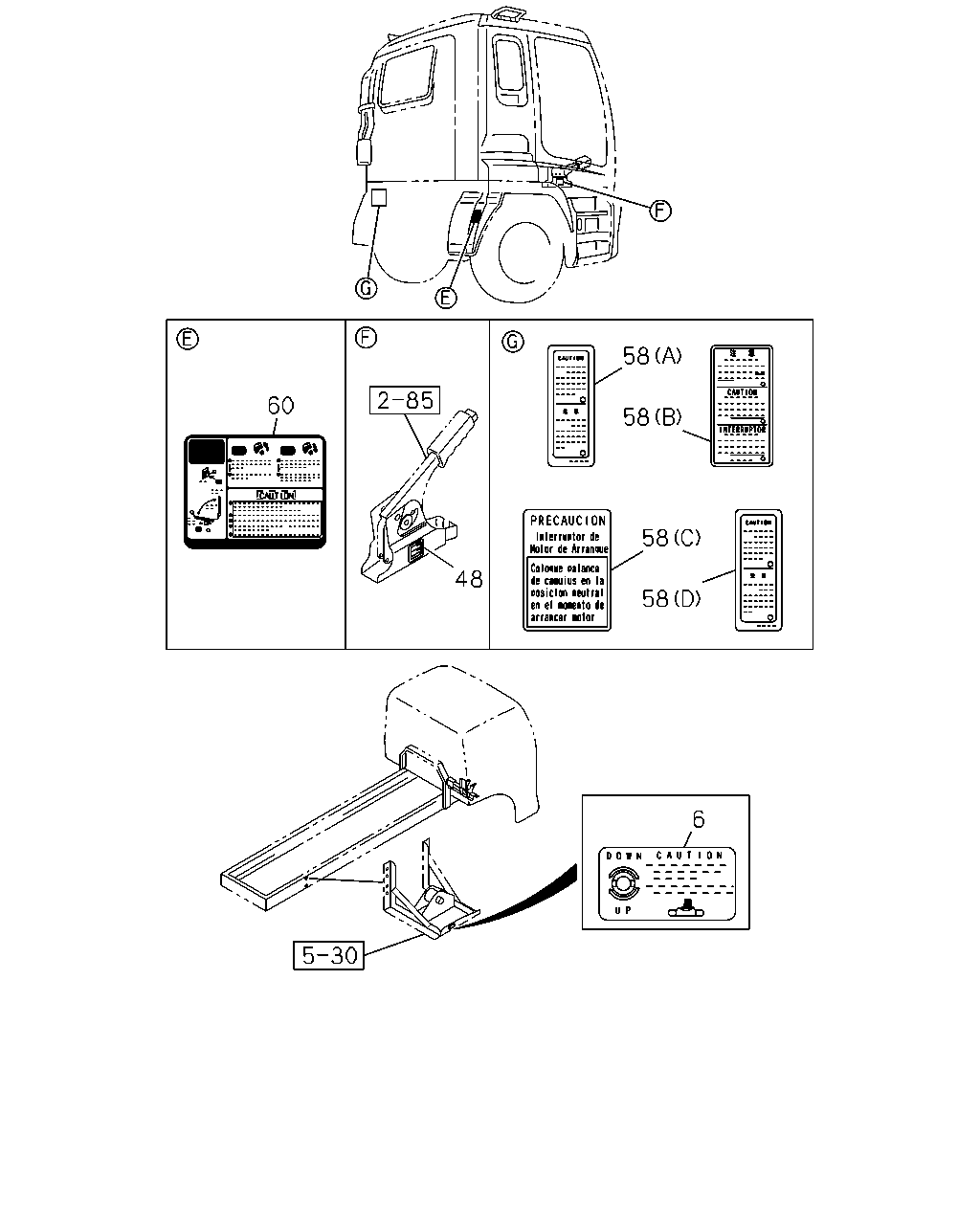

58 58 6 48 60 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7>	1-85883-113-0	01	1	0106-0204
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7>	1-85883-114-0	01	1	0106-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8>	1-85883-108-0	01	1	0106-0112
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-53639-004-0	01	1	0106-0112
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS SPANISH<YN1>	1-53639-004-0	01	1	0201-0204
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>	1-53639-004-0	01	1	0205-
48	PLATE; CAUTION,PTO DUMP CONTROL LEVER<RC4>	1-85881-254-0	01	1	0106-0404
58	PLATE; CAUTION,ENG START CAUTIONS CHINESE<SL7> (D)	1-85887-536-0	01	1	0106-0204
58	PLATE; CAUTION,ENG START CAUTIONS ARABIAN<WJ7> (A)	1-85887-537-0	01	1	0106-
58	PLATE; CAUTION,ENG START CAUTIONS FRENCH<WJ8> (A)	1-85887-535-0	01	1	0106-0112
58	PLATE; CAUTION,ENG START CAUTIONS SPANISH<YN1> (C)	9-83999-419-0	01	1	0106-
58	PLATE; CAUTION,ENG START EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (B)	1-85887-457-0	01	1	0106-0112
58	PLATE; CAUTION,ENG START EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS SPANISH<YN1> (B)	1-85887-457-0	01	1	0201-0204
58	PLATE; CAUTION,ENG START EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (B)	1-85887-457-0	01	1	0205-
60	PLATE; CAUTION,CAB TILT CAUTIONS CHINESE<SL7>	1-85883-175-0	01	1	0106-0204
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7>	1-85883-181-0	01	1	0106-
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8>	1-85883-176-0	01	1	0106-0112
60	PLATE; CAUTION,CAB TILT CAUTIONS SPANISH<YN1>	1-85883-177-0	01	1	0106-
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85883-174-0	01	1	0106-0112
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS SPANISH<YN1>	1-85883-174-0	01	1	0201-0204
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>	1-85883-174-0	01	1	0205-

4 144 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	LABEL; ENG MAINTENANCE	1-85886-840-0	01	1	0106-
144	PLATE; CAUTION,CLU TRANSMISSION-ZF 16S151 OD(Y2N)	1-85888-690-0	01	1	0106-0108
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> CAUTIONS CHINESE<SL7>	1-85887-934-0	01	1	0106-0204
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> CAUTIONS ARABIAN<WJ7>	1-85877-948-0	01	1	0106-
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> CAUTIONS FRENCH<WJ8>	1-85887-936-0	01	1	0106-0112
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>	1-85887-935-0	01	1	0106-0112
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>	1-85887-935-0	01	1	0201-0204
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> EXC. CAUTIONS ARABIAN<WJ7>	1-85887-935-0	01	1	0205-

181 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
181	PLATE; CAUTION,AIR CLEANER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (B)	1-85886-884-0	01	1	0106-0112
181	PLATE; CAUTION,AIR CLEANER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS SPANISH<YN1> (B)	1-85886-884-0	01	1	0201-0204
181	PLATE; CAUTION,AIR CLEANER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (B)	1-85886-884-0	01	1	0205-
181	PLATE; CAUTION,AIR CLEANER CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (A)	1-85886-796-1	01	1	0106-0112
181	PLATE; CAUTION,AIR CLEANER EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (A)	1-85886-796-1	01	1	0106-0112
181	PLATE; CAUTION,AIR CLEANER CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS SPANISH<YN1> (A)	1-85886-796-1	01	1	0201-0204
181	PLATE; CAUTION,AIR CLEANER EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	1-85886-796-1	01	1	0201-0204
181	PLATE; CAUTION,AIR CLEANER CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	1-85886-796-1	01	1	0205-
181	PLATE; CAUTION,AIR CLEANER EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	1-85886-796-1	01	1	0205-
