◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10863 - EXR RHD FUEL TANK 200L+200L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#11476) — 42 parça

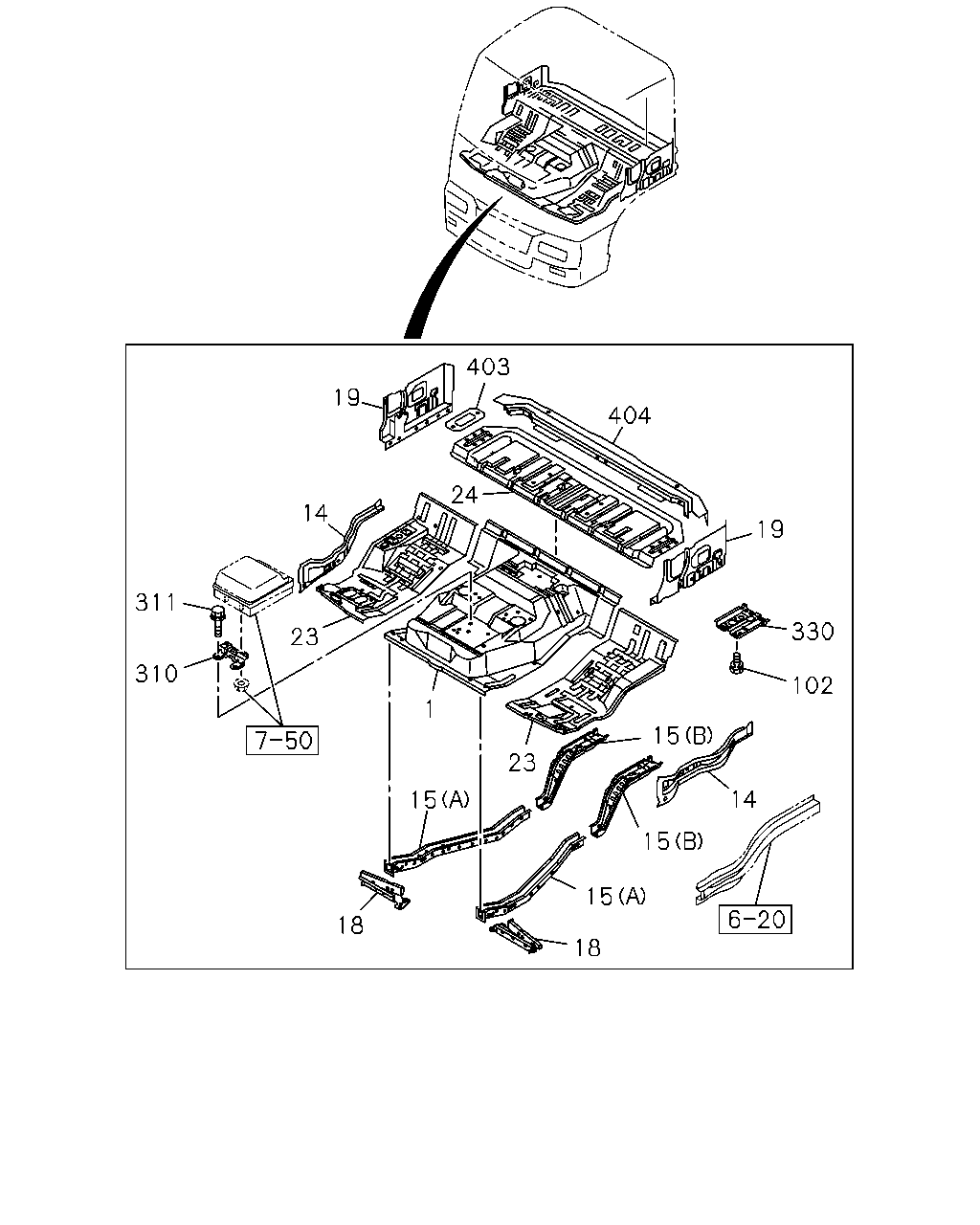

çizim 74323
404 19 330 102 14 15 15 15 18 18 15 23 1 310 311 23 14 24 19 403
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR
ISUZU M/T<X9A> 		1-62172-610-1 01 1 0106-0108
1 PANEL; FLOOR 1-62172-610-4 01 1 0109-
1 PANEL; FLOOR
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62172-603-1 01 1 0106-0108
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0106-0108
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0109-
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0106-0108
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0109-
15 FRAME; UNDER
(B) 		1-62472-598-6 01 1 0106-0108
15 FRAME; UNDER
(B) 		1-62472-598-6 01 1 0109-
15 FRAME; UNDER
(A) 		1-62472-603-8 01 1 0106-0108
15 FRAME; UNDER
(A) 		1-62472-603-9 01 1 0109-
15 FRAME; UNDER
(B) 		1-62472-680-1 01 1 0106-0108
15 FRAME; UNDER
(B) 		1-62472-680-1 01 1 0109-
15 FRAME; UNDER
(A) 		1-62472-766-0 01 1 0106-0108
15 FRAME; UNDER
(A) 		1-62472-766-1 01 1 0109-
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-5 01 1 0106-0108
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-6 01 1 0109-
18 FRAME; FLOOR,CENTER SIDE 1-62483-168-2 01 1 0106-0108
18 FRAME; FLOOR,CENTER SIDE 1-62483-168-3 01 1 0109-
19 PANEL; FLOOR SIDE,REAR
BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-615-4 01 1 0106-0108
19 PANEL; FLOOR SIDE,REAR
BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-615-4 01 1 0109-
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 0106-0108
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 0109-
19 PANEL; FLOOR SIDE,REAR
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-660-2 01 1 0106-0108
19 PANEL; FLOOR SIDE,REAR
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-660-2 01 1 0109-
23 PANEL; FLOOR,SIDE 1-62172-798-0 01 1 0106-0108
23 PANEL; FLOOR,SIDE 1-62172-798-0 01 1 0109-
23 PANEL; FLOOR,SIDE 1-62172-799-0 01 1 0106-0106
23 PANEL; FLOOR,SIDE
EXC. RLD GOVERNOR(SD7) 		1-62172-799-0 01 1 0106-0108
23 PANEL; FLOOR,SIDE
RLD GOVERNOR(SD7) 		1-62172-791-0 01 1 0106-0108
23 PANEL; FLOOR,SIDE 1-62172-791-0 01 1 0109-
24 PANEL; BED PAN 1-62172-540-7 01 1 0106-0108
24 PANEL; BED PAN 1-62172-540-9 01 1 0109-
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0106-
310 BRACKET; SEAT STAND
EXC. CENTER SEAT DELETE(SP9) 		1-76397-015-0 01 1 0106-
311 BOLT; BRKT
EXC. CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0106-
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 0106-0108
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 0109-
403 PATCH; FIRE EXTINGUSHER 1-62172-569-0 01 1 0106-0108
403 PATCH; FIRE EXTINGUSHER 1-62172-569-0 01 1 0109-
404 RAIL ASM; MTG,RR 1-62472-596-7 01 1 0106-0108
404 RAIL ASM; MTG,RR 1-62472-596-8 01 1 0109-
