Isuzu WW
▶
TRUCKS
▶
FTR
▶
11513 - FTR-RHD EURO2
▶
2 - Clutch, Transmission, Trans Axle
▶
2-25 - SPEEDOMETER DRIVEN GEAR
▶
2-25 — SPEEDOMETER DRIVEN GEAR
(#114741) — 21 parça
◀

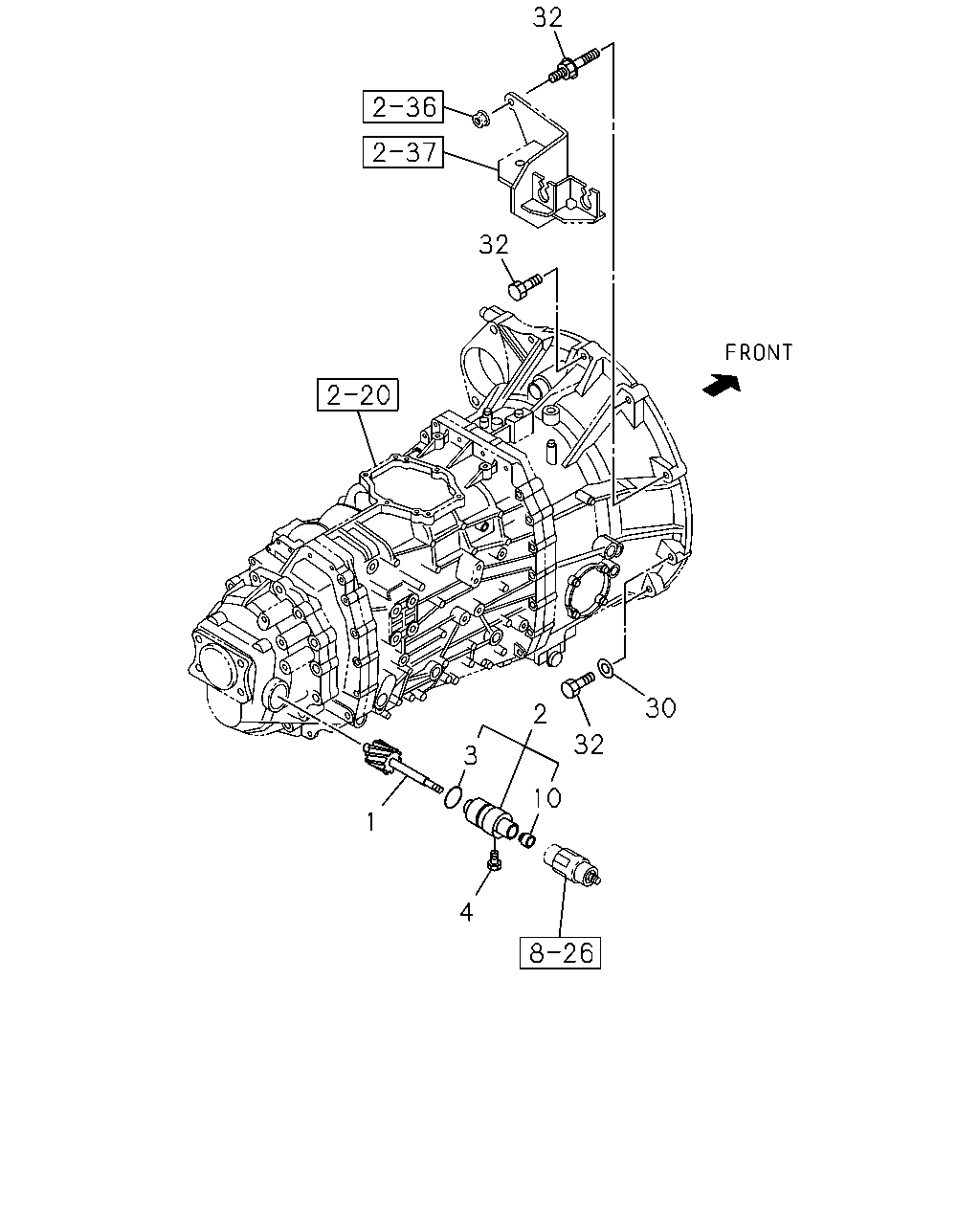

[225A] 4HK1 (11 parça)

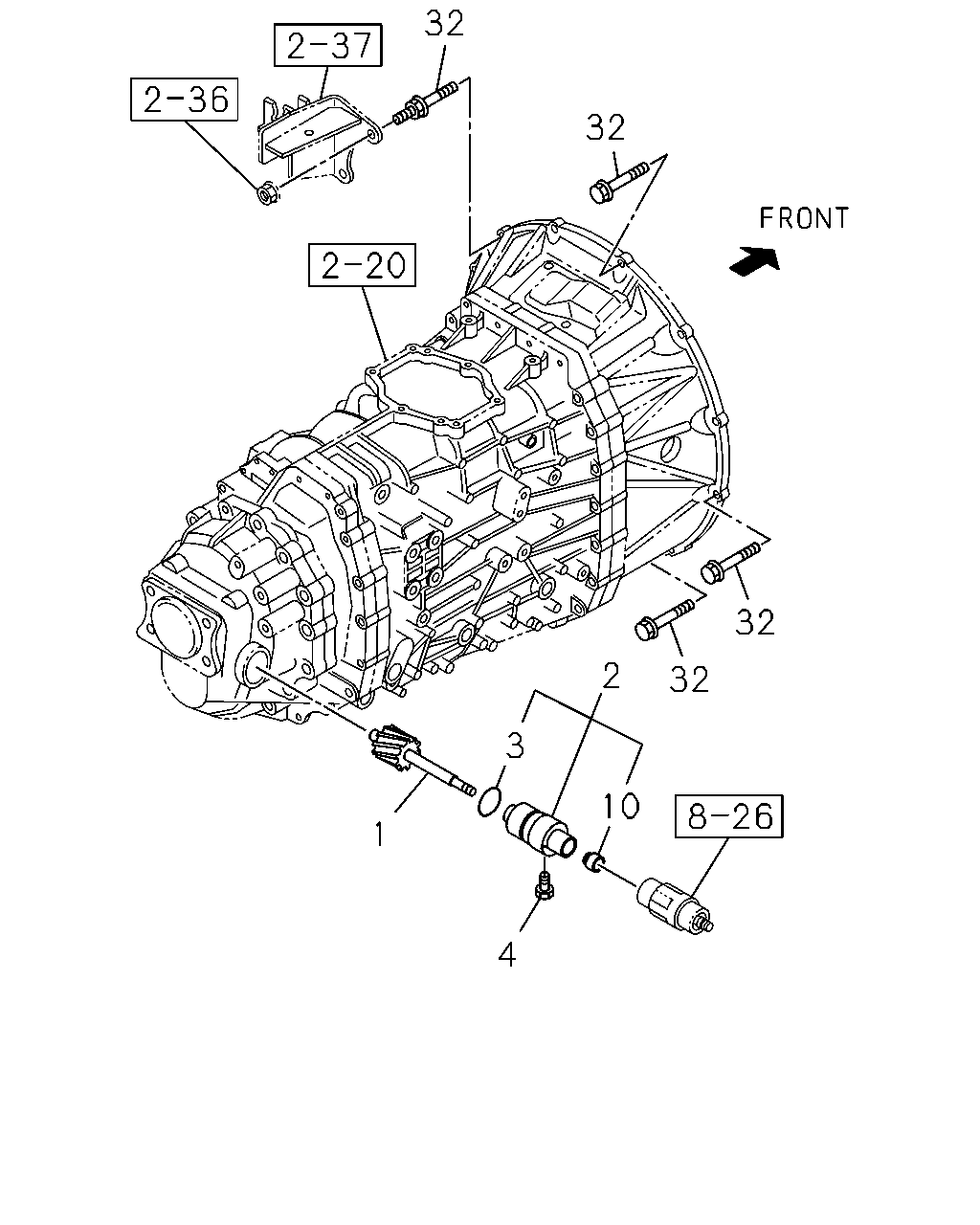

[225A] 6HK1 (10 parça)
▶
30
32
2
10
3
4
1
32
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GEAR; DRIVEN,SPD
Z=15
1-33372-133-5
01
1
1302-
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
8-98000-271-0
01
1
1302-
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-246-0
01
1
1302-
4
BOLT; RET,DRIVEN GEAR
M6X12.5 FLANGE
8-98014-141-0
01
1
1302-
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
1302-
30
WASHER; PL,TRANS
4HK1-TCS ENG(RJS) ID=11 OD=24
8-94152-902-0
02
1
1305-
32
BOLT; CLU HSG TO FLYWHEEL HSG
6HK1-TCN ENG(82L) M10X30 FLANGE
0-28151-030-0
10
1
1302-
32
BOLT; CLU HSG TO FLYWHEEL HSG
6HK1-TCN ENG(82L) M10X20,M10X26 L=56
8-98010-334-0
02
1
1302-
32
BOLT; CLU HSG TO FLYWHEEL HSG
4HK1-TCS ENG(RJS) M10X45 FLANGE
0-28151-045-0
06
1
1305-
32
BOLT; CLU HSG TO FLYWHEEL HSG
4HK1-TCS ENG(RJS) M10X55 FLANGE
8-97365-449-0
02
1
1305-
32
BOLT; CLU HSG TO FLYWHEEL HSG
4HK1-TCS ENG(RJS) M10X20,M10X45 L=75
8-98010-335-0
02
1
1305-
32
32
32
32
2
3
4
1
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GEAR; DRIVEN,SPD
Z=15
1-33372-133-5
01
1
1302-
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
8-98000-271-0
01
1
1302-
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-246-0
01
1
1302-
4
BOLT; RET,DRIVEN GEAR
M6X12.5 FLANGE
8-98014-141-0
01
1
1302-
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
1302-
32
BOLT; CLU HSG TO FLYWHEEL HSG
6HK1-TCN ENG(82L) M10X30 FLANGE
0-28151-030-0
10
1
1302-
32
BOLT; CLU HSG TO FLYWHEEL HSG
6HK1-TCN ENG(82L) M10X20,M10X26 L=56
8-98010-334-0
02
1
1302-
32
BOLT; CLU HSG TO FLYWHEEL HSG
4HK1-TCS ENG(RJS) M10X45 FLANGE
0-28151-045-0
06
1
1305-
32
BOLT; CLU HSG TO FLYWHEEL HSG
4HK1-TCS ENG(RJS) M10X55 FLANGE
8-97365-449-0
02
1
1305-
32
BOLT; CLU HSG TO FLYWHEEL HSG
4HK1-TCS ENG(RJS) M10X20,M10X45 L=75
8-98010-335-0
02
1
1305-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
