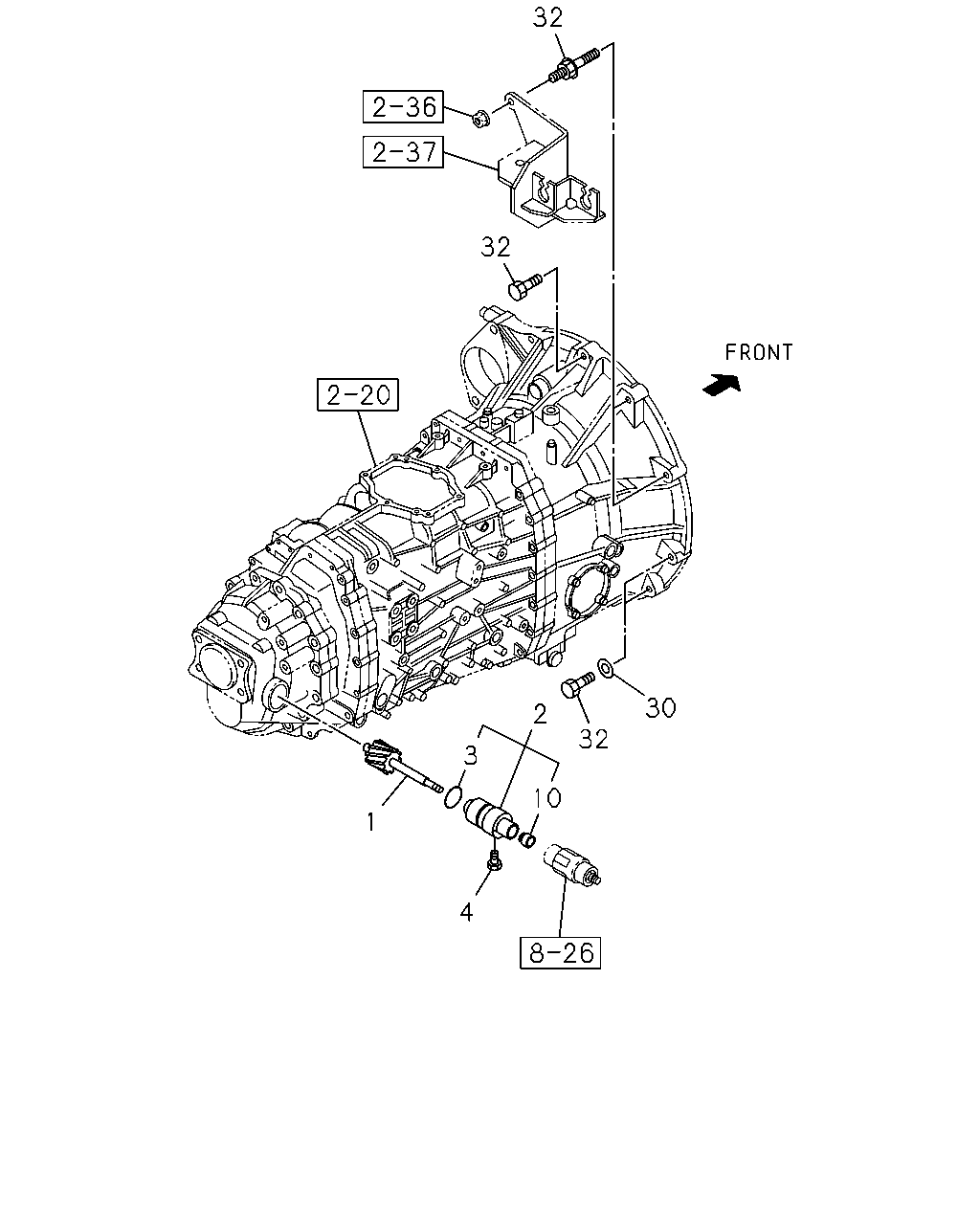

2-25A — SPEEDOMETER DRIVEN GEAR (#114740) — 43 parça

32 32 32 2 10 3 1 4 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	1302-
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-98000-271-0	01	1	1302-
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	1302-
4	BOLT; RET,DRIVEN GEAR M6X12.5 FLANGE	8-98014-141-0	01	1	1302-
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	1302-
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M10X45 FLANGE	0-28151-045-0	04	1	1307-1308
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M10X20,M10X45 L=75	8-98010-335-0	04	1	1307-1308
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X45 FLANGE	0-28151-045-0	06	1	1305-1306
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M10X45 FLANGE	0-28151-045-0	06	1	1307-1308
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X45 FLANGE	0-28151-045-0	06	1	1309-
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X55 FLANGE	8-97365-449-0	02	1	1305-
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X20,M10X45 L=75	8-98010-335-0	02	1	1305-1306
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M10X20,M10X45 L=75	8-98010-335-0	02	1	1307-1308
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X20,M10X45 L=75	8-98010-335-0	02	1	1309-
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCN ENG(82L) M10X20,M10X26 L=56	8-98010-334-0	02	1	1302-1510
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M10X20,M10X26 L=56	8-98010-334-0	02	1	1511-
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M10X30 FLANGE	0-28151-030-0	10	1	1302-1510
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M10X30 FLANGE	0-28151-030-0	10	1	1511-
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10X30 FLANGE	0-28151-030-0	08	1	1302-1510
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10X30 FLANGE	0-28151-030-0	08	1	1511-
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10X45 FLANGE	8-98234-150-0	02	1	1302-

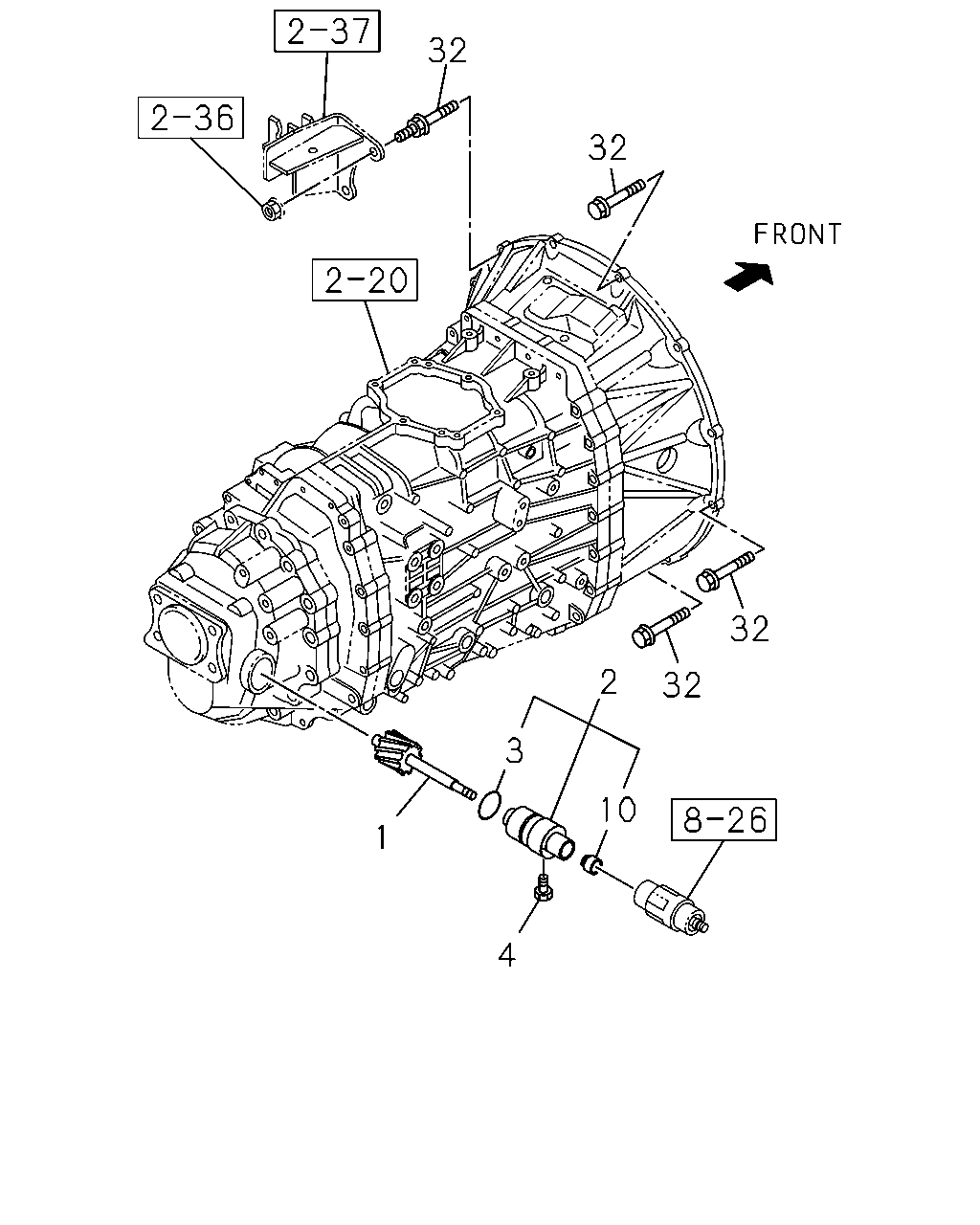

32 32 30 32 2 3 10 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	1302-
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-98000-271-0	01	1	1302-
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	1302-
4	BOLT; RET,DRIVEN GEAR M6X12.5 FLANGE	8-98014-141-0	01	1	1302-
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	1302-
30	WASHER; PL,TRANS 4HK1-TCS ENG(RJS) ID=11 OD=24	8-94152-902-0	02	1	1305-
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M10X45 FLANGE	0-28151-045-0	04	1	1307-1308
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M10X20,M10X45 L=75	8-98010-335-0	04	1	1307-1308
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X45 FLANGE	0-28151-045-0	06	1	1305-1306
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M10X45 FLANGE	0-28151-045-0	06	1	1307-1308
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X45 FLANGE	0-28151-045-0	06	1	1309-
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X55 FLANGE	8-97365-449-0	02	1	1305-
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X20,M10X45 L=75	8-98010-335-0	02	1	1305-1306
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M10X20,M10X45 L=75	8-98010-335-0	02	1	1307-1308
32	BOLT; CLU HSG TO FLYWHEEL HSG 4HK1-TCS ENG(RJS) M10X20,M10X45 L=75	8-98010-335-0	02	1	1309-
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCN ENG(82L) M10X20,M10X26 L=56	8-98010-334-0	02	1	1302-1510
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M10X20,M10X26 L=56	8-98010-334-0	02	1	1511-
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M10X30 FLANGE	0-28151-030-0	10	1	1302-1510
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M10X30 FLANGE	0-28151-030-0	10	1	1511-
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10X30 FLANGE	0-28151-030-0	08	1	1302-1510
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10X30 FLANGE	0-28151-030-0	08	1	1511-
32	BOLT; CLU HSG TO FLYWHEEL HSG 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10X45 FLANGE	8-98234-150-0	02	1	1302-
