0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#114734) — 82 parça

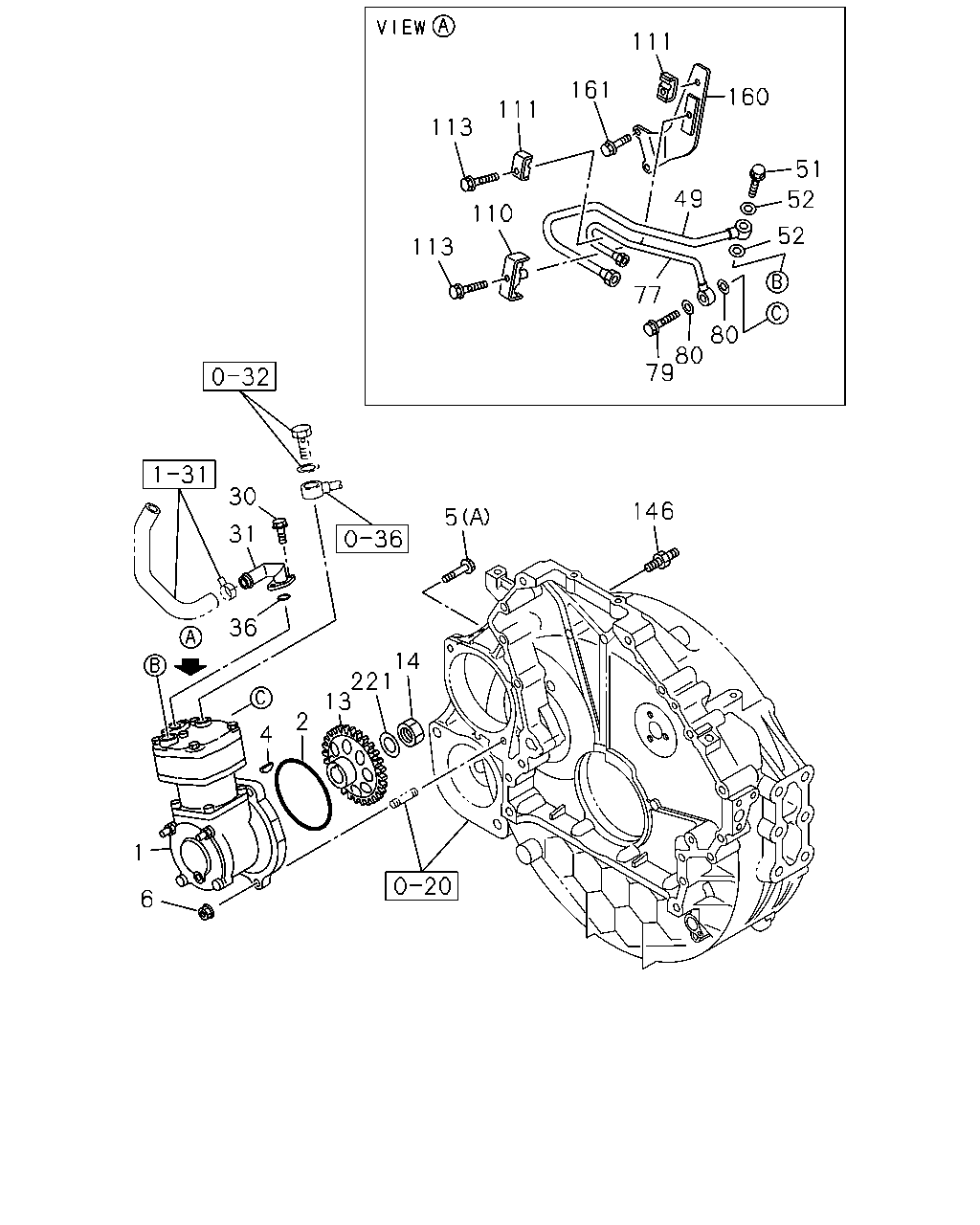

111 161 160 51 52 52 49 77 79 80 80 110 113 113 111 146 5 14 221 13 2 4 1 6 36 31 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98187-299-0	01	1	1302-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98187-301-1	01	1	1302-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1305-1405		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1302-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1305-		●
4	KEY; INJ PUMP GEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-08055-516-0	01	1	1302-	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1305-		●
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE	0-28151-270-0	02	1	1302-	●
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE	0-28151-270-0	01	1	1305-		●
5	BOLT; AIR CMPR FIX (B) M12X95 FLANGE	8-94396-485-1	01	1	1305-		●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1302-	●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	1305-		●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1302-	●
14	NUT; GEAR M20	0-91110-520-0	01	1	1302-	●
14	NUT; GEAR M18	8-97141-154-0	01	1	1305-		●
30	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	02	1	1302-	●
31	PIPE; AIR,AIR CMPR SUCTION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97620-948-0	01	1	1302-	●
31	PIPE; AIR,AIR CMPR SUCTION	8-98067-830-1	01	1	1305-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=24.4	1-09623-057-0	01	1	1302-	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1305-		●
49	PIPE; AIR,CHARGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-97618-722-0	01	1	1302-	●
49	PIPE; AIR,CHARGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97618-723-0	01	1	1302-	●
49	PIPE; AIR,CHARGE	8-98069-425-0	01	1	1305-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1302-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1305-1404		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1302-1304	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1305-	●	●
77	PIPE; AIR,GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-97618-724-0	01	1	1302-	●
77	PIPE; AIR,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97618-725-0	01	1	1302-	●
79	BOLT; EYE,AIR PIPE TO CMPR M10X23	8-98037-824-0	01	1	1302-	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	02	1	1302-	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	1302-	●
111	CLIP; AIR PIPE ID=5.5 L=10.5	8-98029-953-1	02	1	1302-	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28650-640-0	02	1	1302-	●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1302-	●
160	BRACKET; AIR PIPE	8-98074-255-0	01	1	1302-	●
160	BRACKET; AIR PIPE	8-98076-098-0	01	1	1305-		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1302-	●

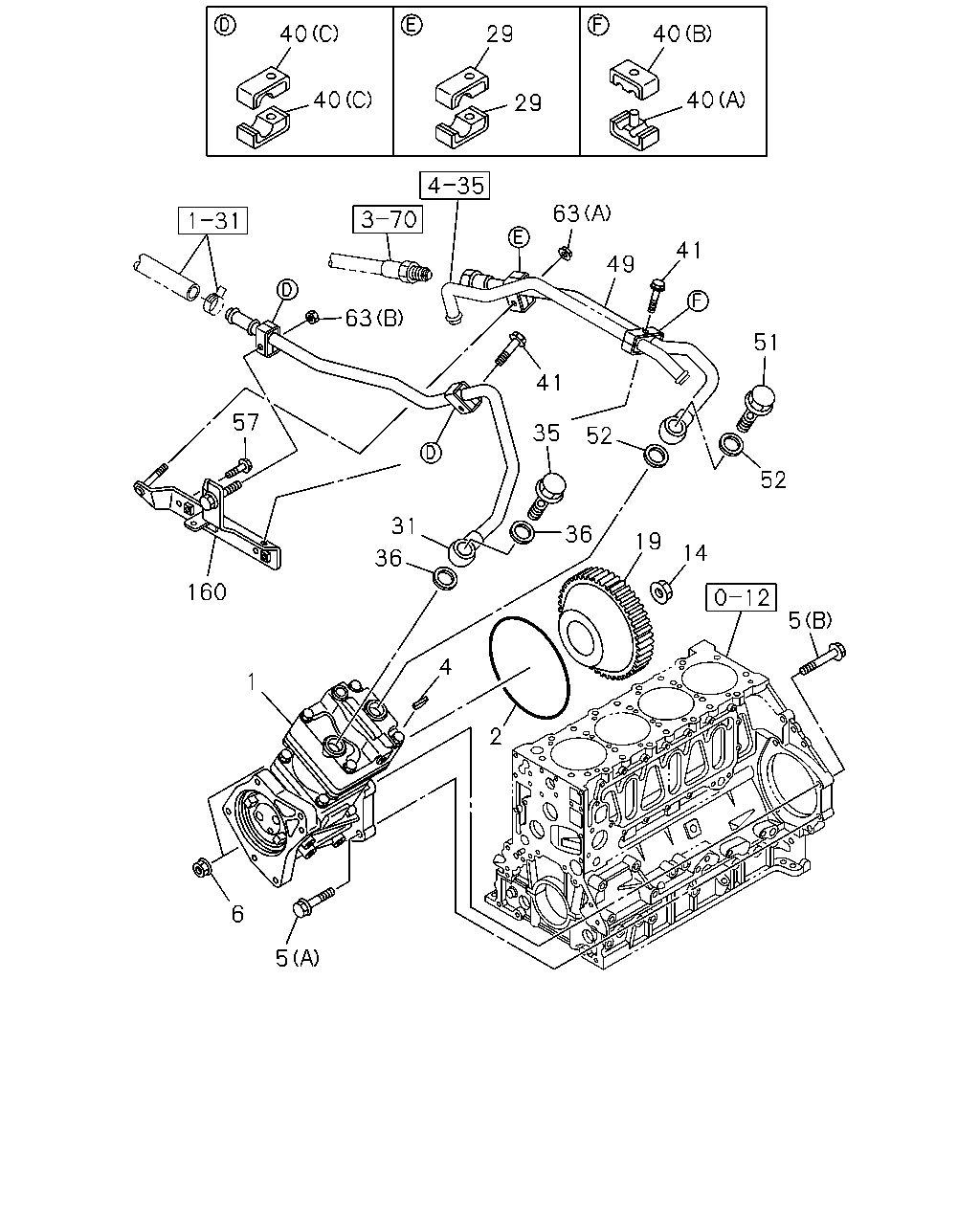

40 40 29 29 40 40 63 49 41 51 52 19 14 5 2 4 1 160 36 31 57 63 41 35 52 36 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98187-299-0	01	1	1302-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98187-301-1	01	1	1302-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1305-1405		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1302-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1305-		●
4	KEY; INJ PUMP GEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-08055-516-0	01	1	1302-	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1305-		●
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE	0-28151-270-0	02	1	1302-	●
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE	0-28151-270-0	01	1	1305-		●
5	BOLT; AIR CMPR FIX (B) M12X95 FLANGE	8-94396-485-1	01	1	1305-		●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1302-	●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	1305-		●
14	NUT; GEAR M20	0-91110-520-0	01	1	1302-	●
14	NUT; GEAR M18	8-97141-154-0	01	1	1305-		●
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	1305-		●
29	CLIP; AIR PIPE	1-09701-282-0	02	1	1305-		●
31	PIPE; AIR,AIR CMPR SUCTION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97620-948-0	01	1	1302-	●
31	PIPE; AIR,AIR CMPR SUCTION	8-98067-830-1	01	1	1305-		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	1305-1404		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=24.4	1-09623-057-0	01	1	1302-	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1305-		●
40	CLIP; AIR PIPE (C) ID=17 L=17	1-09701-284-0	04	1	1305-		●
40	CLIP; AIR PIPE (A) ID=14&17 L=32.5	8-97619-417-0	01	1	1305-		●
40	CLIP; AIR PIPE (B) ID=14&17 L=32.5	8-97619-418-0	01	1	1305-		●
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	1305-		●
49	PIPE; AIR,CHARGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-97618-722-0	01	1	1302-	●
49	PIPE; AIR,CHARGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97618-723-0	01	1	1302-	●
49	PIPE; AIR,CHARGE	8-98069-425-0	01	1	1305-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1302-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1305-1404		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1302-1304	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1305-	●	●
57	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1305-		●
57	BOLT; BRKT,AIR PIPE M8X20 FLANGE	0-28050-820-0	01	1	1305-		●
63	NUT; CLIP (A) M6 FLANGE	0-91180-106-0	01	1	1305-		●
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	1305-		●
160	BRACKET; AIR PIPE	8-98074-255-0	01	1	1302-	●
160	BRACKET; AIR PIPE	8-98076-098-0	01	1	1305-		●
