Sayfa 2-26C - Isuzu EPC

2-26C — MANUAL TRANSMISSION GEAR (#114730) — 481 parça

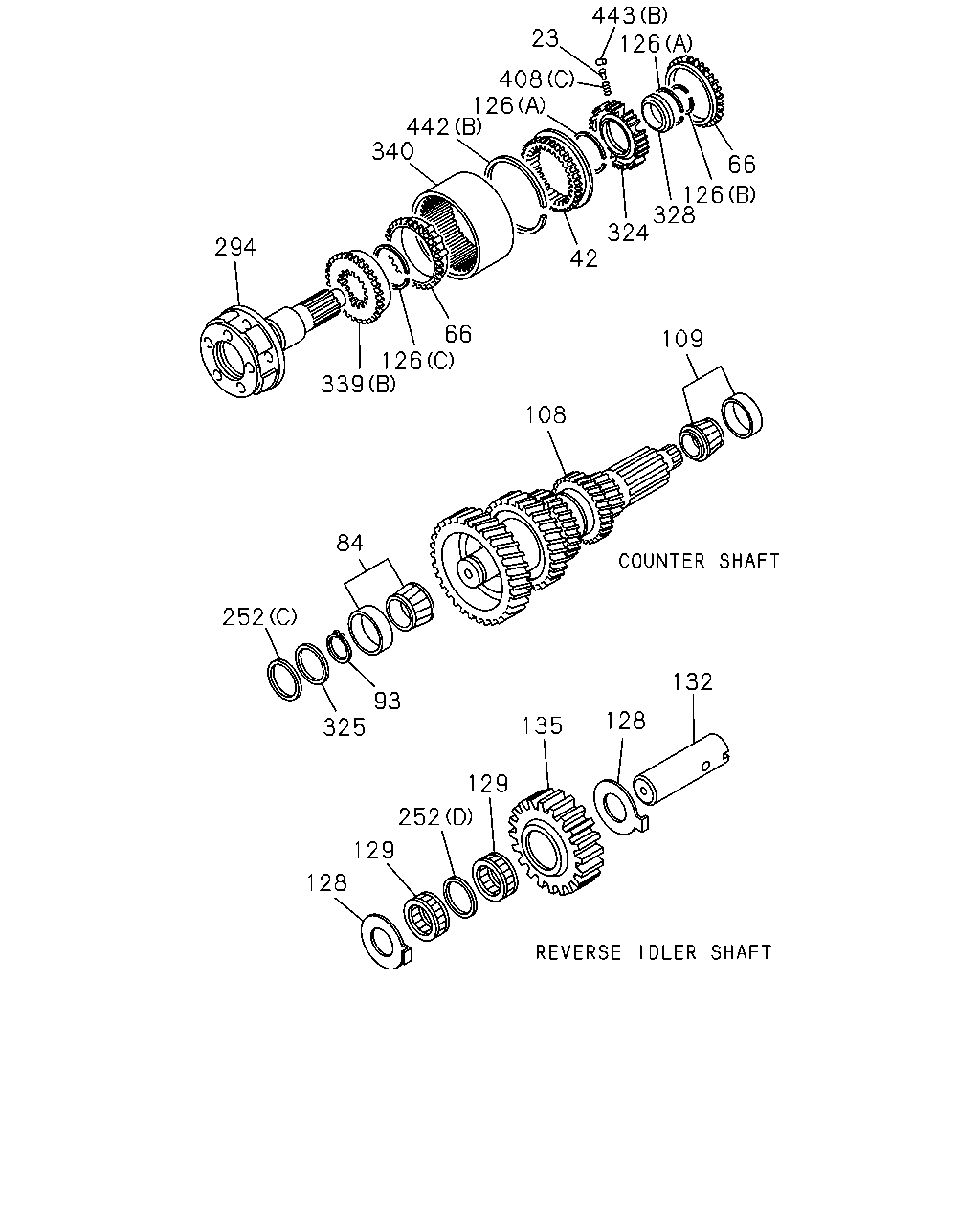

132 128 135 129 252 129 128 93 325 109 108 84 252 66 126 328 324 42 126 443 23 408 126 442 340 294 66 126 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	PLUNGER; DETENT,SYN	1-33265-458-0	18	1	1302-	●	●
23	PLUNGER; DETENT,SYN	1-33265-600-0	06	1	1302-			●
42	SLEEVE	1-33262-196-0	01	1	1302-	●
42	SLEEVE	1-33262-246-0	01	1	1302-		●
66	RING; BLOCK,SYN	1-33265-557-0	02	1	1302-	●	●
84	BEARING; COUNTER SHAFT,FRT	1-33319-145-0	01	1	1302-	●
84	BEARING; COUNTER SHAFT,FRT	1-33319-221-0	01	1	1302-			●
84	BEARING; COUNTER SHAFT,FRT	1-33319-262-0	01	1	1302-		●
93	RING; SNAP,COUNTER FRT BRG T=1.97	1-33319-146-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=1.92	1-33319-147-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=1.87	1-33319-148-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=1.82	1-33319-149-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=1.77	1-33319-150-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=2.12	1-33239-238-0	02	1	1302-	●	●
93	RING; SNAP,COUNTER FRT BRG T=2.07	1-33239-239-0	02	1	1302-	●	●
93	RING; SNAP,COUNTER FRT BRG T=2.02	1-33239-240-0	02	1	1302-	●	●
93	RING; SNAP,COUNTER FRT BRG T=2.12	1-33239-238-0	01	1	1302-			●
93	RING; SNAP,COUNTER FRT BRG T=2.07	1-33239-239-0	01	1	1302-			●
93	RING; SNAP,COUNTER FRT BRG T=2.02	1-33239-240-0	01	1	1302-			●
108	SHAFT; COUNTER	1-33311-348-0	01	1	1302-	●
108	SHAFT; COUNTER	1-33311-334-0	01	1	1302-			●
108	SHAFT; COUNTER	1-33311-354-0	01	1	1302-		●
109	BEARING; COUNTER SHAFT,RR	1-33319-145-0	01	1	1302-	●
109	BEARING; COUNTER SHAFT,RR	1-33319-221-0	01	1	1302-			●
109	BEARING; COUNTER SHAFT,RR	1-33319-262-0	01	1	1302-		●
126	RING; SNAP,CLU HUB (D)	1-33269-058-0	02	1	1302-	●	●
126	RING; SNAP,CLU HUB (B)	1-33269-061-0	01	1	1302-	●	●
126	RING; SNAP,CLU HUB (C)	1-33269-062-0	01	1	1302-	●	●
126	RING; SNAP,CLU HUB (A)	1-33269-065-0	02	1	1302-	●	●
126	RING; SNAP,CLU HUB (E) T=2.10	1-33269-066-0	01	1	1302-	●	●
126	RING; SNAP,CLU HUB (E) T=2.05	1-33269-067-0	01	1	1302-	●	●
126	RING; SNAP,CLU HUB (E) T=2.00	1-33269-068-0	01	1	1302-	●	●
128	WASHER; THRUST,REV SHAFT	1-33359-004-0	02	1	1302-	●	●
128	WASHER; THRUST,REV SHAFT	1-33359-016-0	02	1	1302-			●
129	BEARING; NEEDLE,IDLER	1-33359-005-0	02	1	1302-	●	●	●
132	SHAFT; REV	1-33351-037-0	01	1	1302-	●
132	SHAFT; REV	1-33351-044-0	01	1	1302-		●	●
135	GEAR; REV IDLER	1-33361-078-0	01	1	1302-	●
135	GEAR; REV IDLER	1-33361-090-0	01	1	1302-			●
135	GEAR; REV IDLER	1-33361-097-0	01	1	1302-		●
252	SPACER (C)	1-33319-151-0	01	1	1302-	●	●
252	SPACER (D)	1-33359-006-0	01	1	1302-	●	●
252	SPACER (A)	1-33319-223-0	01	1	1302-			●
252	SPACER (B)	1-33359-017-0	01	1	1302-			●
294	SHAFT; OUTPUT	1-33231-293-0	01	1	1302-	●
294	SHAFT; OUTPUT	1-33231-348-0	01	1	1302-		●
324	HUB; CLU	1-33261-234-0	01	1	1302-	●	●
325	SHIM; COUNTER SHAFT BRG T=0.051	1-33319-152-0	01	1	1302-	●	●	●
325	SHIM; COUNTER SHAFT BRG T=0.127	1-33319-153-0	01	1	1302-	●	●	●
325	SHIM; COUNTER SHAFT BRG T=0.254	1-33319-154-0	01	1	1302-	●	●	●
325	SHIM; COUNTER SHAFT BRG T=0.510	1-33319-155-0	01	1	1302-	●	●	●
328	BEARING; CARRIER	1-33269-060-0	01	1	1302-	●	●
339	CLUTCH; PLANETARY GEAR (A)	1-33265-558-0	01	1	1302-	●	●
339	CLUTCH; PLANETARY GEAR (B)	1-33265-559-0	01	1	1302-	●	●
340	GEAR; RING	1-33339-052-0	01	1	1302-	●	●
408	SPRING (C)	1-33264-039-0	18	1	1302-	●	●
408	SPRING (A)	1-33264-042-0	06	1	1302-			●
408	SPRING (B)	1-33264-043-0	03	1	1302-			●
442	RING; SNAP,CARRIER (A)	1-33269-055-0	01	1	1302-	●	●
442	RING; SNAP,CARRIER (B)	1-33339-053-0	01	1	1302-	●	●
443	ROLLER; SYNCHRONIZER (B)	1-33269-059-0	09	1	1302-	●	●
443	ROLLER; SYNCHRONIZER (A)	1-33269-063-0	09	1	1302-	●	●
443	ROLLER; SYNCHRONIZER (A)	1-33269-063-0	06	1	1302-			●

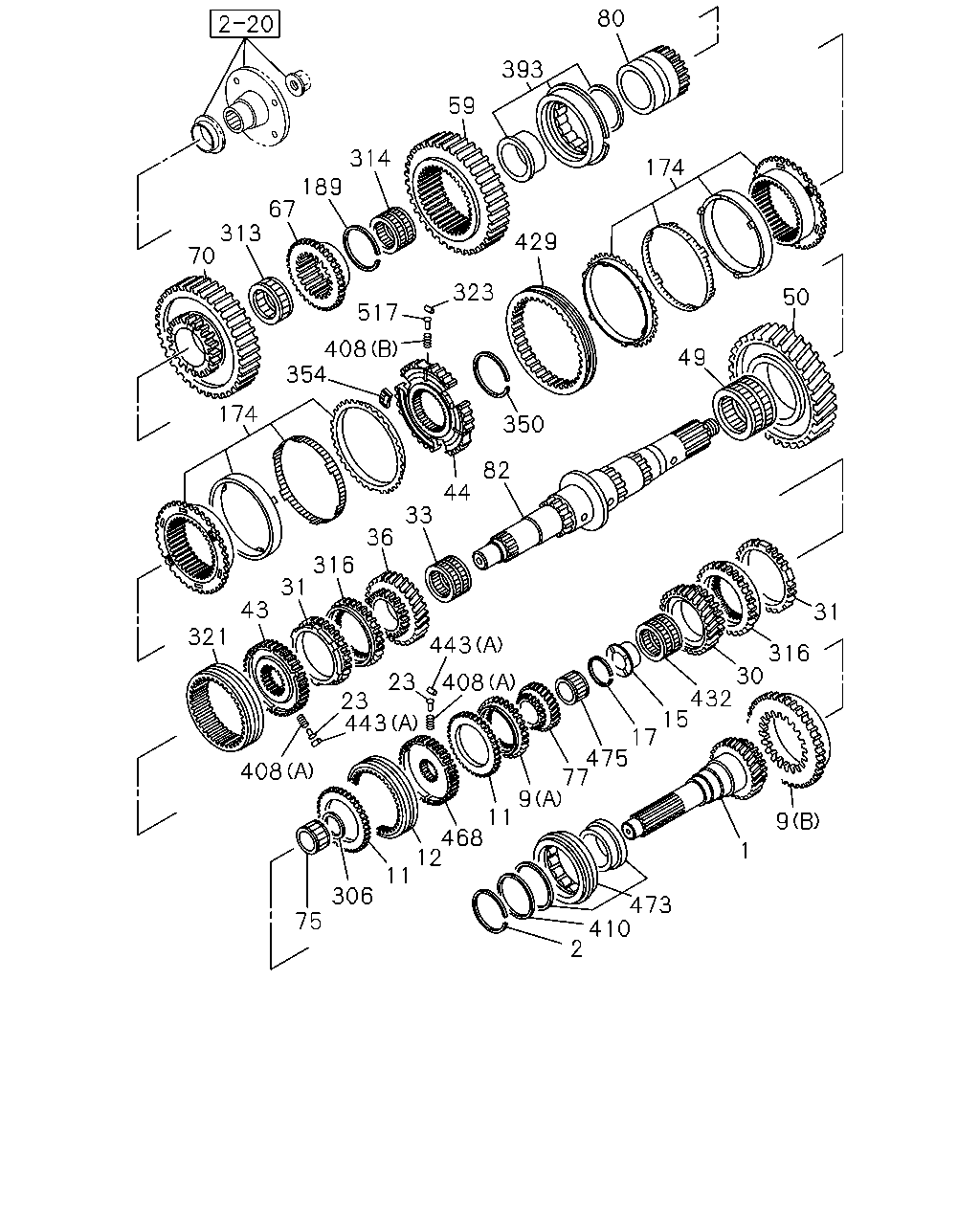

9 1 473 410 2 31 316 30 432 15 17 475 77 9 11 468 12 11 306 75 408 443 23 23 443 408 50 49 350 82 44 33 36 316 31 43 321 174 429 323 517 408 354 174 80 393 59 314 189 67 313 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS	1-33211-983-0	01	1	1302-	●
1	SHAFT; TOP GEAR,TRANS	1-33215-012-0	01	1	1302-			●
1	SHAFT; TOP GEAR,TRANS	1-33215-039-0	01	1	1302-		●
2	RING; SNAP,TOP GEAR SHAFT	1-33219-268-0	01	1	1302-			●
9	CLUTCH; DOG,TOP GEAR (A)	1-33265-601-0	01	1	1302-			●
9	CLUTCH; DOG,TOP GEAR (B)	1-33265-604-0	01	1	1302-			●
11	RING; BLOCK,5TH & 6TH	1-33265-602-0	02	1	1302-			●
12	SLEEVE; 5TH & 6TH	1-33262-234-0	01	1	1302-			●
15	COLLAR; 4TH GEAR	1-33259-123-0	01	1	1302-			●
17	RING; SNAP,4TH GEAR T=2.00	1-33269-064-0	01	1	1302-		●	●
17	RING; SNAP,4TH GEAR T=2.10	1-33269-100-0	01	1	1302-		●	●
17	RING; SNAP,4TH GEAR T=2.05	1-33269-101-0	01	1	1302-		●	●
23	PLUNGER; DETENT,SYN	1-33265-458-0	18	1	1302-	●	●
23	PLUNGER; DETENT,SYN	1-33265-600-0	06	1	1302-			●
30	GEAR; 4TH,MAINSHAFT	1-33252-472-0	01	1	1302-	●	●
30	GEAR; 4TH,MAINSHAFT	1-33252-474-0	01	1	1302-			●
31	RING; BLOCK,3RD & 4TH	1-33265-599-0	02	1	1302-			●
31	RING; BLOCK,3RD & 4TH	1-33265-599-0	01	1	1302-		●
33	BEARING; NEEDLE,3RD GEAR	1-33259-078-0	01	1	1302-	●	●
33	BEARING; NEEDLE,3RD GEAR	1-33259-089-0	01	1	1302-			●
36	GEAR; 3RD,MAINSHAFT	1-33252-458-0	01	1	1302-	●	●
36	GEAR; 3RD,MAINSHAFT	1-33252-473-0	01	1	1302-			●
43	HUB; CLU,3RD & 4TH,MAIN	1-33261-288-0	01	1	1302-			●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-235-0	01	1	1302-	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-301-0	01	1	1302-			●
49	BEARING; NEEDLE,2ND GEAR	1-33259-078-0	01	1	1302-	●	●
49	BEARING; NEEDLE,2ND GEAR	1-33259-089-0	01	1	1302-			●
50	GEAR; 2ND,MAINSHAFT	1-33251-382-0	01	1	1302-	●	●
50	GEAR; 2ND,MAINSHAFT	1-33251-446-0	01	1	1302-			●
59	GEAR; REV MAINSHAFT	1-33257-078-0	01	1	1302-	●	●
59	GEAR; REV MAINSHAFT	1-33257-092-0	01	1	1302-			●
67	HUB; CLU,1ST TO REV	1-33261-237-0	01	1	1302-	●	●
67	HUB; CLU,1ST TO REV	1-33261-290-0	01	1	1302-			●
70	GEAR; 1ST,MAINSHAFT	1-33251-376-0	01	1	1302-	●	●
70	GEAR; 1ST,MAINSHAFT	1-33251-447-0	01	1	1302-			●
75	BEARING; MAINSHAFT	1-33239-241-0	01	1	1302-	●	●	●
77	GEAR; 6TH,MAINSHAFT	1-33253-719-0	01	1	1302-			●
80	GEAR; SPD DRIVE	1-33371-068-0	01	1	1302-	●	●
80	GEAR; SPD DRIVE	1-33371-072-0	01	1	1302-			●
82	SHAFT; MAIN,TRANS	1-33231-294-0	01	1	1302-	●
82	SHAFT; MAIN,TRANS	1-33231-333-0	01	1	1302-			●
82	SHAFT; MAIN,TRANS	1-33231-347-0	01	1	1302-		●
174	SYNCHRONIZER ASM; 2ND-3RD	1-33265-639-0	02	1	1302-			●
189	RING; SNAP,REV,GEAR T=2.10	1-33269-066-0	01	1	1302-			●
189	RING; SNAP,REV,GEAR T=2.05	1-33269-067-0	01	1	1302-			●
189	RING; SNAP,REV,GEAR T=2.00	1-33269-068-0	01	1	1302-			●
306	RING; SNAP,MAINSHAFT T=2.12	1-33239-238-0	01	1	1302-			●
306	RING; SNAP,MAINSHAFT T=2.07	1-33239-239-0	01	1	1302-			●
306	RING; SNAP,MAINSHAFT T=2.02	1-33239-240-0	01	1	1302-			●
306	RING; SNAP,MAINSHAFT SET	1-33239-314-0	01	1	1302-			●
313	BEARING; NEEDLE,LOW GEAR	1-33259-078-0	01	1	1302-	●	●	●
314	BEARING; NEEDLE,REV GEAR	1-33259-073-0	01	1	1302-	●	●	●
316	CLUTCH; DOG,3RD GEAR	1-33265-598-0	02	1	1302-			●
321	SLEEVE; SYN,4TH & 3RD	1-33262-233-0	01	1	1302-			●
323	INSERT	1-33269-103-0	03	1	1302-			●
350	RING; RET,2ND GEAR	1-33269-095-0	01	1	1302-			●
354	RETAINER; SYN	1-33269-102-0	03	1	1302-			●
393	BEARING; MAINSHAFT END	1-33239-316-0	01	1	1302-	●	●
393	BEARING; MAINSHAFT END	1-33239-347-0	01	1	1302-			●
408	SPRING (C)	1-33264-039-0	18	1	1302-	●	●
408	SPRING (A)	1-33264-042-0	06	1	1302-			●
408	SPRING (B)	1-33264-043-0	03	1	1302-			●
410	SPACER; TOP GEAR SHAFT T=3.10	1-33219-298-0	01	1	1302-			●
410	SPACER; TOP GEAR SHAFT T=3.15	1-33219-299-0	01	1	1302-			●
410	SPACER; TOP GEAR SHAFT T=3.20	1-33219-300-0	01	1	1302-			●
410	SPACER; TOP GEAR SHAFT T=3.25	1-33219-301-0	01	1	1302-			●
410	SPACER; TOP GEAR SHAFT T=3.30	1-33219-302-0	01	1	1302-			●
410	SPACER; TOP GEAR SHAFT T=3.35	1-33219-303-0	01	1	1302-			●
410	SPACER; TOP GEAR SHAFT T=3.40	1-33219-304-0	01	1	1302-			●
410	SPACER; TOP GEAR SHAFT T=3.45	1-33219-305-0	01	1	1302-			●
410	SPACER; TOP GEAR SHAFT T=3.50	1-33219-306-0	01	1	1302-			●
429	SLEEVE; 2ND & 3RD	1-33262-197-0	01	1	1302-	●
429	SLEEVE; 2ND & 3RD	1-33262-243-0	01	1	1302-			●
429	SLEEVE; 2ND & 3RD	1-33262-245-0	01	1	1302-		●
432	BEARING; NEEDLE,4TH	1-33259-069-0	01	1	1302-			●
443	ROLLER; SYNCHRONIZER (B)	1-33269-059-0	09	1	1302-	●	●
443	ROLLER; SYNCHRONIZER (A)	1-33269-063-0	09	1	1302-	●	●
443	ROLLER; SYNCHRONIZER (A)	1-33269-063-0	06	1	1302-			●
468	HUB; CLU,5TH & 6TH	1-33261-289-0	01	1	1302-			●
473	BEARING; INPUT SHAFT	1-33219-186-0	01	1	1302-			●
475	BEARING; 6TH	1-33259-071-0	01	1	1302-			●
517	BALL; SYNCHRO,INDEX	1-33269-104-0	03	1	1302-			●

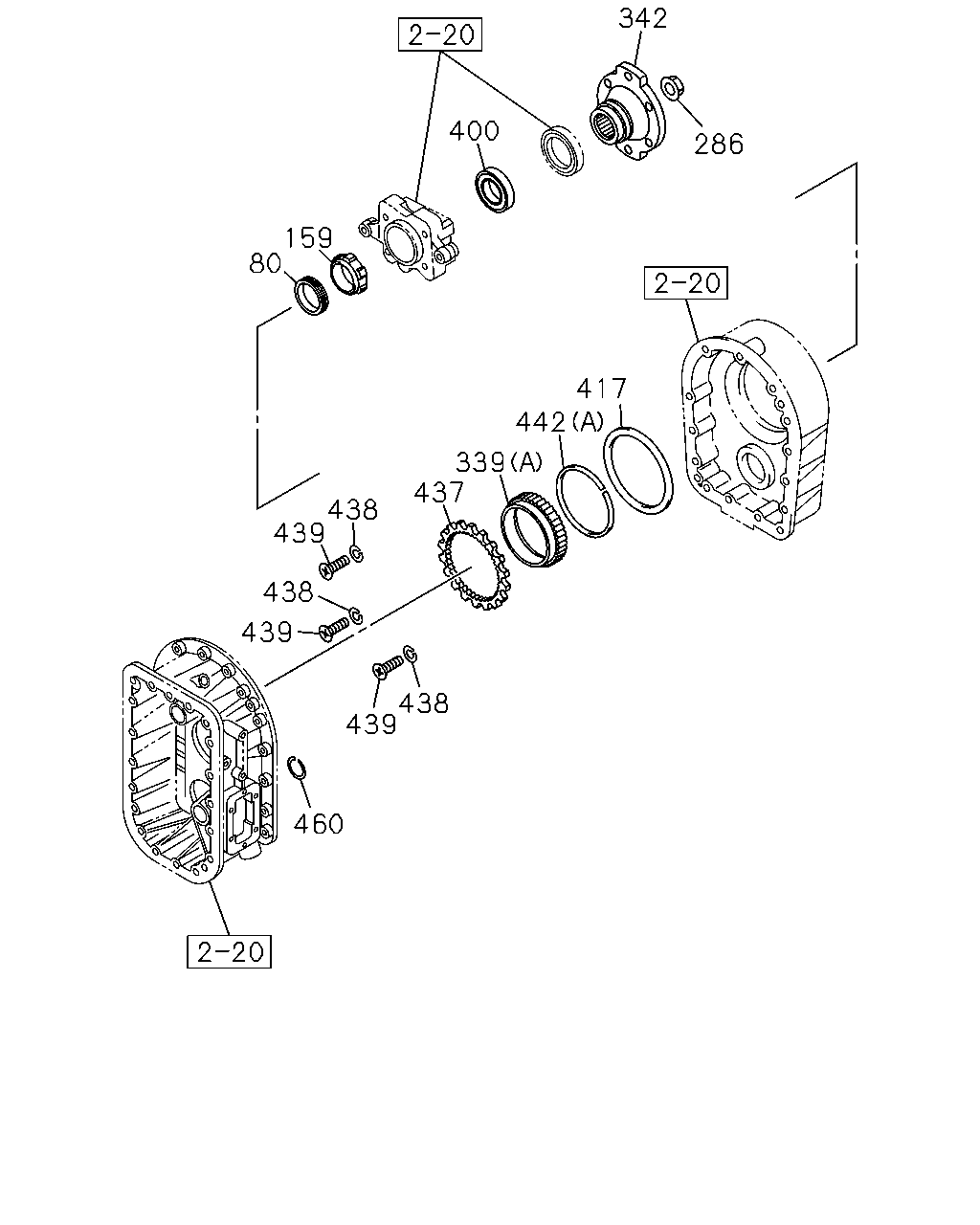

438 439 460 417 442 339 437 438 439 438 439 286 342 400 159 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
80	GEAR; SPD DRIVE	1-33371-068-0	01	1	1302-	●	●
80	GEAR; SPD DRIVE	1-33371-072-0	01	1	1302-			●
159	SPACER; SPD DRIVE GEAR	1-33159-068-0	01	1	1302-	●	●
286	NUT; LK,MAINSHAFT	1-33239-356-0	01	1	1302-	●	●
339	CLUTCH; PLANETARY GEAR (A)	1-33265-558-0	01	1	1302-	●	●
339	CLUTCH; PLANETARY GEAR (B)	1-33265-559-0	01	1	1302-	●	●
342	FLANGE; OUTPUT	1-37243-430-0	01	1	1302-	●	●
400	BEARING; OUTPUT SHAFT RR	1-33139-075-0	01	1	1302-	●	●
417	SPACER; OUTPUT SHAFT	1-33269-053-0	01	1	1302-	●	●
437	PLATE; LOCK	1-33269-054-0	01	1	1302-	●	●
438	WASHER; LOCK PLATE	1-33269-056-0	03	1	1302-	●	●
439	SCREW; LOCK PLATE	1-33269-057-0	03	1	1302-	●	●
442	RING; SNAP,CARRIER (A)	1-33269-055-0	01	1	1302-	●	●
442	RING; SNAP,CARRIER (B)	1-33339-053-0	01	1	1302-	●	●
460	RING; SNAP,REV SHAFT	1-33219-297-0	01	1	1302-	●	●	●

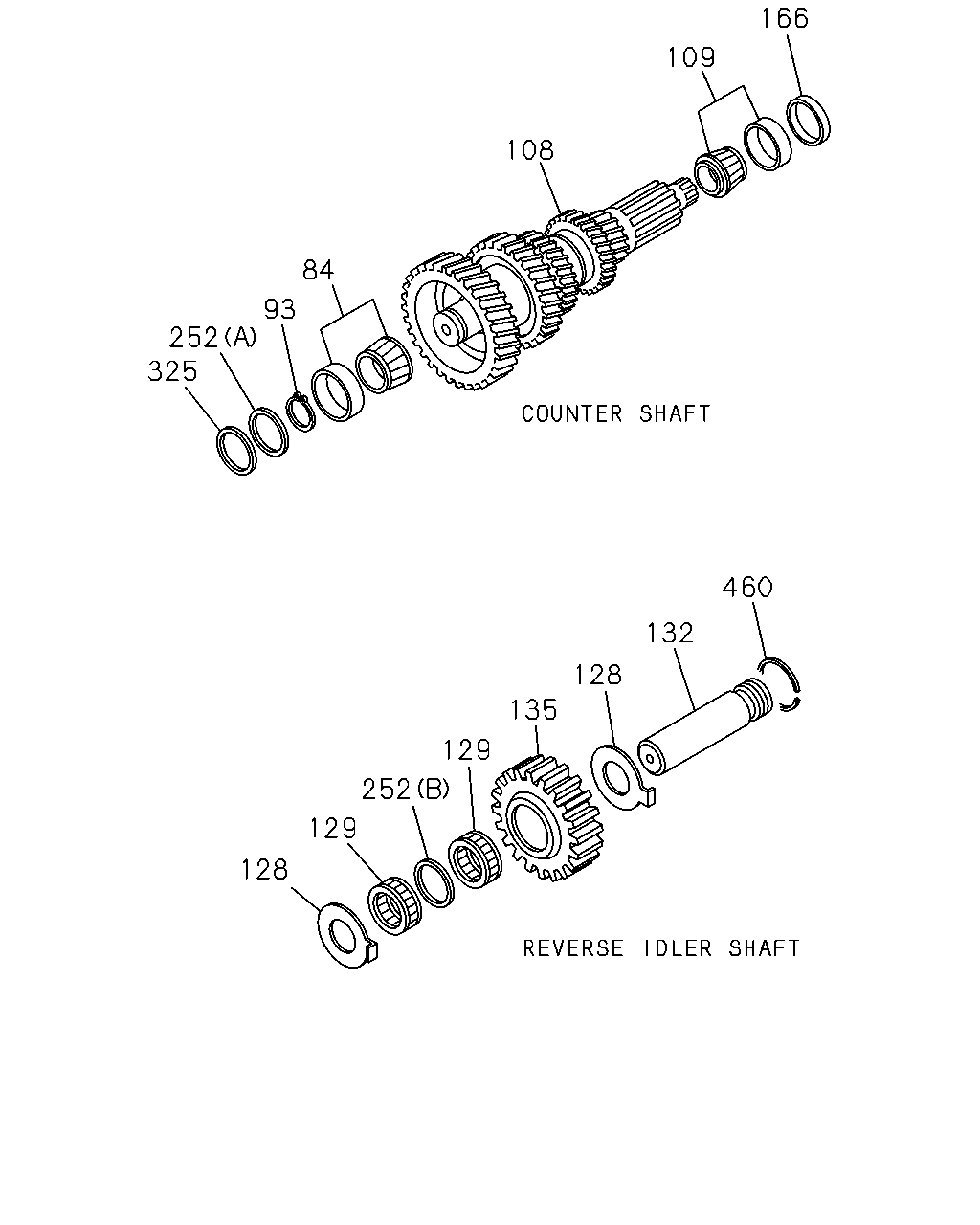

460 132 128 135 129 252 129 128 166 109 108 84 93 252 325

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
84	BEARING; COUNTER SHAFT,FRT	1-33319-145-0	01	1	1302-	●
84	BEARING; COUNTER SHAFT,FRT	1-33319-221-0	01	1	1302-			●
84	BEARING; COUNTER SHAFT,FRT	1-33319-262-0	01	1	1302-		●
93	RING; SNAP,COUNTER FRT BRG T=1.97	1-33319-146-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=1.92	1-33319-147-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=1.87	1-33319-148-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=1.82	1-33319-149-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=1.77	1-33319-150-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=2.12	1-33239-238-0	02	1	1302-	●	●
93	RING; SNAP,COUNTER FRT BRG T=2.07	1-33239-239-0	02	1	1302-	●	●
93	RING; SNAP,COUNTER FRT BRG T=2.02	1-33239-240-0	02	1	1302-	●	●
93	RING; SNAP,COUNTER FRT BRG T=2.12	1-33239-238-0	01	1	1302-			●
93	RING; SNAP,COUNTER FRT BRG T=2.07	1-33239-239-0	01	1	1302-			●
93	RING; SNAP,COUNTER FRT BRG T=2.02	1-33239-240-0	01	1	1302-			●
108	SHAFT; COUNTER	1-33311-348-0	01	1	1302-	●
108	SHAFT; COUNTER	1-33311-334-0	01	1	1302-			●
108	SHAFT; COUNTER	1-33311-354-0	01	1	1302-		●
109	BEARING; COUNTER SHAFT,RR	1-33319-145-0	01	1	1302-	●
109	BEARING; COUNTER SHAFT,RR	1-33319-221-0	01	1	1302-			●
109	BEARING; COUNTER SHAFT,RR	1-33319-262-0	01	1	1302-		●
128	WASHER; THRUST,REV SHAFT	1-33359-004-0	02	1	1302-	●	●
128	WASHER; THRUST,REV SHAFT	1-33359-016-0	02	1	1302-			●
129	BEARING; NEEDLE,IDLER	1-33359-005-0	02	1	1302-	●	●	●
132	SHAFT; REV	1-33351-037-0	01	1	1302-	●
132	SHAFT; REV	1-33351-044-0	01	1	1302-		●	●
135	GEAR; REV IDLER	1-33361-078-0	01	1	1302-	●
135	GEAR; REV IDLER	1-33361-090-0	01	1	1302-			●
135	GEAR; REV IDLER	1-33361-097-0	01	1	1302-		●
166	PIECE; DIST	1-33319-222-0	01	1	1302-			●
252	SPACER (C)	1-33319-151-0	01	1	1302-	●	●
252	SPACER (D)	1-33359-006-0	01	1	1302-	●	●
252	SPACER (A)	1-33319-223-0	01	1	1302-			●
252	SPACER (B)	1-33359-017-0	01	1	1302-			●
325	SHIM; COUNTER SHAFT BRG T=0.051	1-33319-152-0	01	1	1302-	●	●	●
325	SHIM; COUNTER SHAFT BRG T=0.127	1-33319-153-0	01	1	1302-	●	●	●
325	SHIM; COUNTER SHAFT BRG T=0.254	1-33319-154-0	01	1	1302-	●	●	●
325	SHIM; COUNTER SHAFT BRG T=0.510	1-33319-155-0	01	1	1302-	●	●	●
460	RING; SNAP,REV SHAFT	1-33219-297-0	01	1	1302-	●	●	●

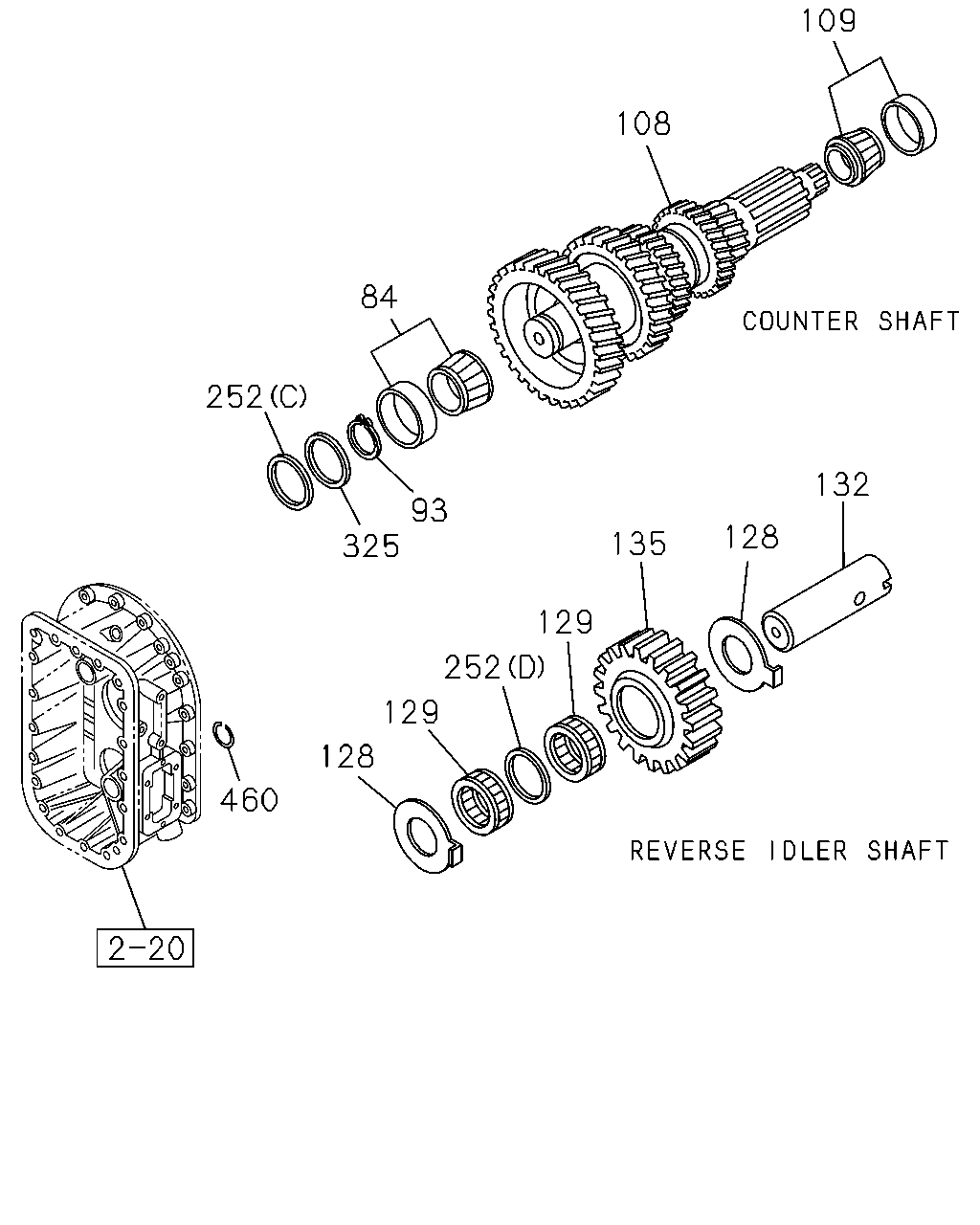

132 128 135 129 252 129 128 460 93 325 109 108 84 252

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
84	BEARING; COUNTER SHAFT,FRT	1-33319-145-0	01	1	1302-	●
84	BEARING; COUNTER SHAFT,FRT	1-33319-221-0	01	1	1302-			●
84	BEARING; COUNTER SHAFT,FRT	1-33319-262-0	01	1	1302-		●
93	RING; SNAP,COUNTER FRT BRG T=1.97	1-33319-146-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=1.92	1-33319-147-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=1.87	1-33319-148-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=1.82	1-33319-149-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=1.77	1-33319-150-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=2.12	1-33239-238-0	02	1	1302-	●	●
93	RING; SNAP,COUNTER FRT BRG T=2.07	1-33239-239-0	02	1	1302-	●	●
93	RING; SNAP,COUNTER FRT BRG T=2.02	1-33239-240-0	02	1	1302-	●	●
93	RING; SNAP,COUNTER FRT BRG T=2.12	1-33239-238-0	01	1	1302-			●
93	RING; SNAP,COUNTER FRT BRG T=2.07	1-33239-239-0	01	1	1302-			●
93	RING; SNAP,COUNTER FRT BRG T=2.02	1-33239-240-0	01	1	1302-			●
108	SHAFT; COUNTER	1-33311-348-0	01	1	1302-	●
108	SHAFT; COUNTER	1-33311-334-0	01	1	1302-			●
108	SHAFT; COUNTER	1-33311-354-0	01	1	1302-		●
109	BEARING; COUNTER SHAFT,RR	1-33319-145-0	01	1	1302-	●
109	BEARING; COUNTER SHAFT,RR	1-33319-221-0	01	1	1302-			●
109	BEARING; COUNTER SHAFT,RR	1-33319-262-0	01	1	1302-		●
128	WASHER; THRUST,REV SHAFT	1-33359-004-0	02	1	1302-	●	●
128	WASHER; THRUST,REV SHAFT	1-33359-016-0	02	1	1302-			●
129	BEARING; NEEDLE,IDLER	1-33359-005-0	02	1	1302-	●	●	●
132	SHAFT; REV	1-33351-037-0	01	1	1302-	●
132	SHAFT; REV	1-33351-044-0	01	1	1302-		●	●
135	GEAR; REV IDLER	1-33361-078-0	01	1	1302-	●
135	GEAR; REV IDLER	1-33361-090-0	01	1	1302-			●
135	GEAR; REV IDLER	1-33361-097-0	01	1	1302-		●
252	SPACER (C)	1-33319-151-0	01	1	1302-	●	●
252	SPACER (D)	1-33359-006-0	01	1	1302-	●	●
252	SPACER (A)	1-33319-223-0	01	1	1302-			●
252	SPACER (B)	1-33359-017-0	01	1	1302-			●
325	SHIM; COUNTER SHAFT BRG T=0.051	1-33319-152-0	01	1	1302-	●	●	●
325	SHIM; COUNTER SHAFT BRG T=0.127	1-33319-153-0	01	1	1302-	●	●	●
325	SHIM; COUNTER SHAFT BRG T=0.254	1-33319-154-0	01	1	1302-	●	●	●
325	SHIM; COUNTER SHAFT BRG T=0.510	1-33319-155-0	01	1	1302-	●	●	●
460	RING; SNAP,REV SHAFT	1-33219-297-0	01	1	1302-	●	●	●

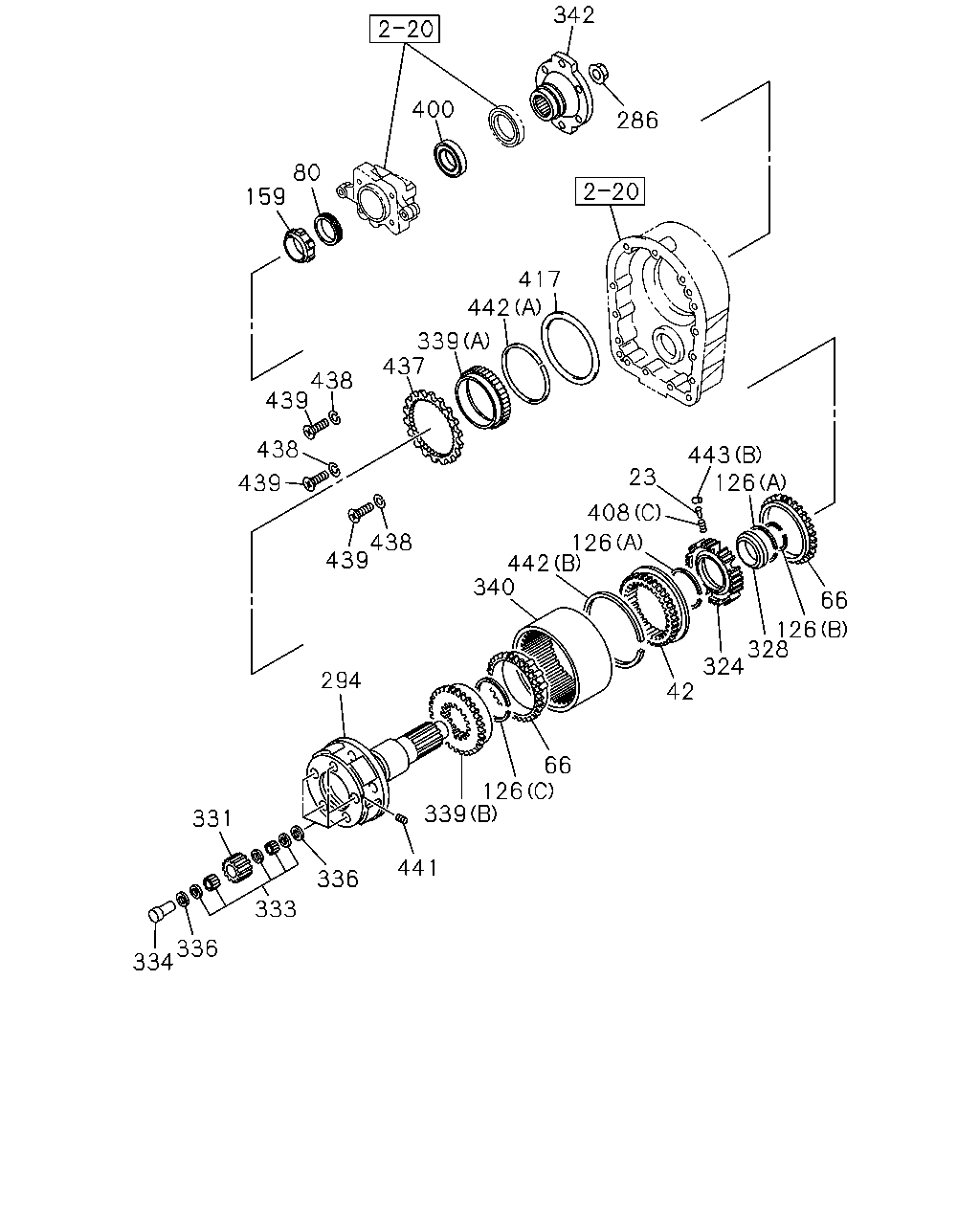

66 126 328 324 42 66 126 339 441 336 333 336 334 331 294 126 443 23 408 126 442 340 438 439 417 442 339 437 438 439 438 439 286 342 400 80 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	PLUNGER; DETENT,SYN	1-33265-458-0	18	1	1302-	●	●
23	PLUNGER; DETENT,SYN	1-33265-600-0	06	1	1302-			●
42	SLEEVE	1-33262-196-0	01	1	1302-	●
42	SLEEVE	1-33262-246-0	01	1	1302-		●
66	RING; BLOCK,SYN	1-33265-557-0	02	1	1302-	●	●
80	GEAR; SPD DRIVE	1-33371-068-0	01	1	1302-	●	●
80	GEAR; SPD DRIVE	1-33371-072-0	01	1	1302-			●
126	RING; SNAP,CLU HUB (D)	1-33269-058-0	02	1	1302-	●	●
126	RING; SNAP,CLU HUB (B)	1-33269-061-0	01	1	1302-	●	●
126	RING; SNAP,CLU HUB (C)	1-33269-062-0	01	1	1302-	●	●
126	RING; SNAP,CLU HUB (A)	1-33269-065-0	02	1	1302-	●	●
126	RING; SNAP,CLU HUB (E) T=2.10	1-33269-066-0	01	1	1302-	●	●
126	RING; SNAP,CLU HUB (E) T=2.05	1-33269-067-0	01	1	1302-	●	●
126	RING; SNAP,CLU HUB (E) T=2.00	1-33269-068-0	01	1	1302-	●	●
159	SPACER; SPD DRIVE GEAR	1-33159-068-0	01	1	1302-	●	●
286	NUT; LK,MAINSHAFT	1-33239-356-0	01	1	1302-	●	●
294	SHAFT; OUTPUT	1-33231-293-0	01	1	1302-	●
294	SHAFT; OUTPUT	1-33231-348-0	01	1	1302-		●
324	HUB; CLU	1-33261-234-0	01	1	1302-	●	●
328	BEARING; CARRIER	1-33269-060-0	01	1	1302-	●	●
331	GEAR SET; PLANETARY	1-33239-379-0	05	1	1302-		●
333	ROLLER; PLANETARY GEAR	1-33239-250-0	05	1	1302-		●
334	SHAFT; PLANETARY GEAR	1-33239-378-0	01	1	1302-		●
336	WASHER; THRUST,PLANETARY GEAR	1-33239-276-0	10	1	1302-		●
339	CLUTCH; PLANETARY GEAR (A)	1-33265-558-0	01	1	1302-	●	●
339	CLUTCH; PLANETARY GEAR (B)	1-33265-559-0	01	1	1302-	●	●
340	GEAR; RING	1-33339-052-0	01	1	1302-	●	●
342	FLANGE; OUTPUT	1-37243-430-0	01	1	1302-	●	●
400	BEARING; OUTPUT SHAFT RR	1-33139-075-0	01	1	1302-	●	●
408	SPRING (C)	1-33264-039-0	18	1	1302-	●	●
408	SPRING (A)	1-33264-042-0	06	1	1302-			●
408	SPRING (B)	1-33264-043-0	03	1	1302-			●
417	SPACER; OUTPUT SHAFT	1-33269-053-0	01	1	1302-	●	●
437	PLATE; LOCK	1-33269-054-0	01	1	1302-	●	●
438	WASHER; LOCK PLATE	1-33269-056-0	03	1	1302-	●	●
439	SCREW; LOCK PLATE	1-33269-057-0	03	1	1302-	●	●
441	SCREW; STOPPER,PIN	1-33239-251-0	05	1	1302-		●
442	RING; SNAP,CARRIER (A)	1-33269-055-0	01	1	1302-	●	●
442	RING; SNAP,CARRIER (B)	1-33339-053-0	01	1	1302-	●	●
443	ROLLER; SYNCHRONIZER (B)	1-33269-059-0	09	1	1302-	●	●
443	ROLLER; SYNCHRONIZER (A)	1-33269-063-0	09	1	1302-	●	●
443	ROLLER; SYNCHRONIZER (A)	1-33269-063-0	06	1	1302-			●

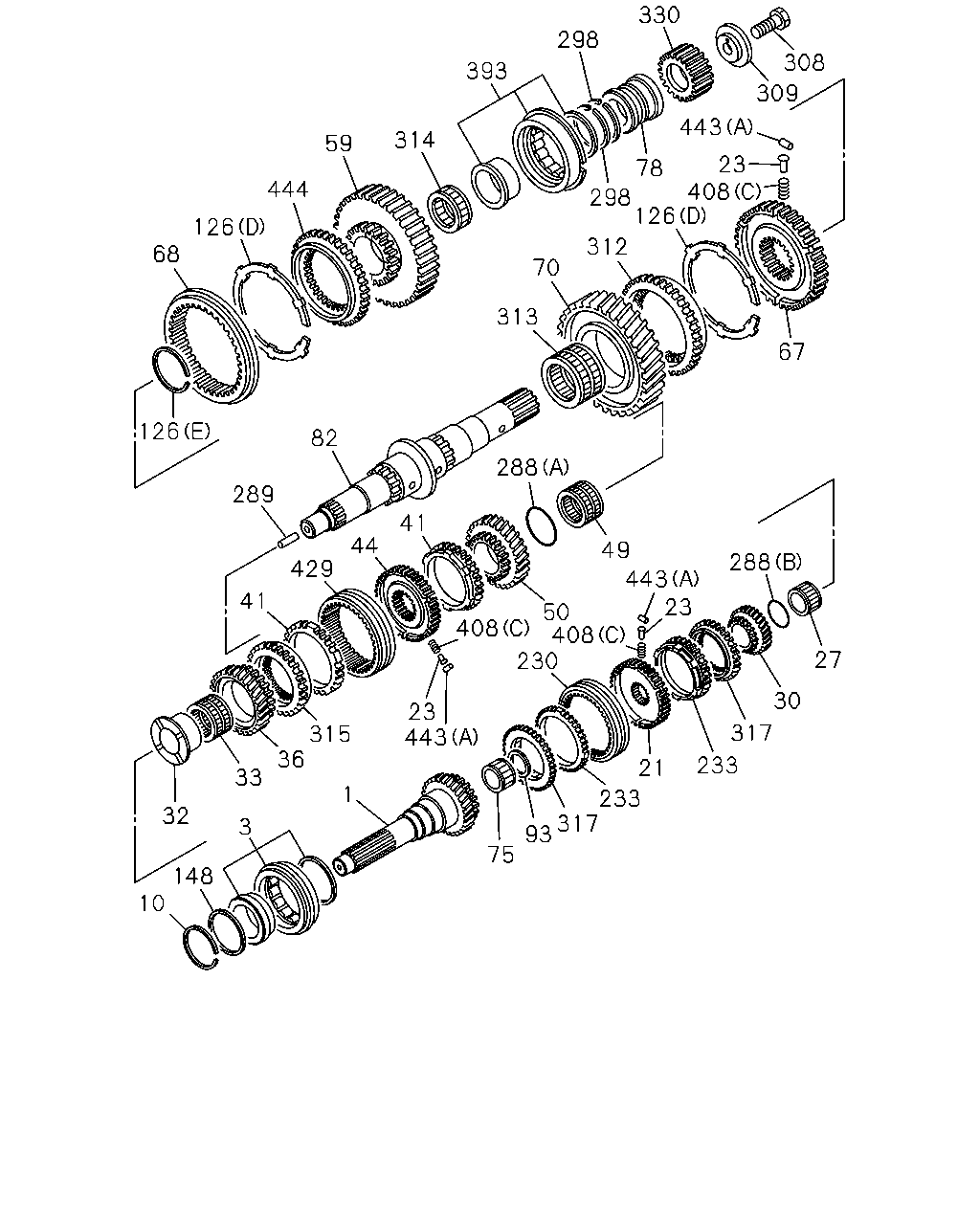

27 30 317 233 21 233 317 93 75 288 23 443 408 230 443 49 288 408 23 1 315 36 33 32 17 3 148 10 50 315 41 44 429 41 308 309 443 23 408 126 31 78 298 312 70 313 82 289 451 126 330 298 393 314 59 444 126 68 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS	1-33211-983-0	01	1	1302-	●
1	SHAFT; TOP GEAR,TRANS	1-33215-012-0	01	1	1302-			●
1	SHAFT; TOP GEAR,TRANS	1-33215-039-0	01	1	1302-		●
3	BEARING; TOP GEAR SHAFT	1-33219-186-0	01	1	1302-	●	●
10	RING; SNAP,PILOT BRG	1-33219-268-0	01	1	1302-	●	●
17	RING; SNAP,4TH GEAR T=2.00	1-33269-064-0	01	1	1302-		●	●
17	RING; SNAP,4TH GEAR T=2.10	1-33269-100-0	01	1	1302-		●	●
17	RING; SNAP,4TH GEAR T=2.05	1-33269-101-0	01	1	1302-		●	●
21	HUB; CLU,4TH & 5TH	1-33261-236-0	01	1	1302-	●	●
23	PLUNGER; DETENT,SYN	1-33265-458-0	18	1	1302-	●	●
23	PLUNGER; DETENT,SYN	1-33265-600-0	06	1	1302-			●
27	BEARING; 4TH GEAR	1-33259-079-0	01	1	1302-	●	●
30	GEAR; 4TH,MAINSHAFT	1-33252-472-0	01	1	1302-	●	●
30	GEAR; 4TH,MAINSHAFT	1-33252-474-0	01	1	1302-			●
31	RING; BLOCK,3RD & 4TH	1-33265-599-0	02	1	1302-			●
31	RING; BLOCK,3RD & 4TH	1-33265-599-0	01	1	1302-		●
32	COLLAR; 3RD GEAR	1-33259-070-0	01	1	1302-	●
32	COLLAR; 3RD GEAR	1-33259-123-0	01	1	1302-		●
33	BEARING; NEEDLE,3RD GEAR	1-33259-078-0	01	1	1302-	●	●
33	BEARING; NEEDLE,3RD GEAR	1-33259-089-0	01	1	1302-			●
36	GEAR; 3RD,MAINSHAFT	1-33252-458-0	01	1	1302-	●	●
36	GEAR; 3RD,MAINSHAFT	1-33252-473-0	01	1	1302-			●
41	RING; BLOCK,2ND & 3RD	1-33265-560-0	02	1	1302-	●
41	RING; BLOCK,2ND & 3RD	1-33265-647-0	02	1	1302-		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-235-0	01	1	1302-	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-301-0	01	1	1302-			●
49	BEARING; NEEDLE,2ND GEAR	1-33259-078-0	01	1	1302-	●	●
49	BEARING; NEEDLE,2ND GEAR	1-33259-089-0	01	1	1302-			●
50	GEAR; 2ND,MAINSHAFT	1-33251-382-0	01	1	1302-	●	●
50	GEAR; 2ND,MAINSHAFT	1-33251-446-0	01	1	1302-			●
59	GEAR; REV MAINSHAFT	1-33257-078-0	01	1	1302-	●	●
59	GEAR; REV MAINSHAFT	1-33257-092-0	01	1	1302-			●
67	HUB; CLU,1ST TO REV	1-33261-237-0	01	1	1302-	●	●
67	HUB; CLU,1ST TO REV	1-33261-290-0	01	1	1302-			●
68	SLEEVE; 1ST TO REV	1-33262-198-0	01	1	1302-	●
68	SLEEVE; 1ST TO REV	1-33265-645-0	01	1	1302-		●
70	GEAR; 1ST,MAINSHAFT	1-33251-376-0	01	1	1302-	●	●
70	GEAR; 1ST,MAINSHAFT	1-33251-447-0	01	1	1302-			●
75	BEARING; MAINSHAFT	1-33239-241-0	01	1	1302-	●	●	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33239-279-0	01	1	1302-	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33239-377-0	01	1	1302-		●
82	SHAFT; MAIN,TRANS	1-33231-294-0	01	1	1302-	●
82	SHAFT; MAIN,TRANS	1-33231-333-0	01	1	1302-			●
82	SHAFT; MAIN,TRANS	1-33231-347-0	01	1	1302-		●
93	RING; SNAP,COUNTER FRT BRG T=1.97	1-33319-146-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=1.92	1-33319-147-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=1.87	1-33319-148-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=1.82	1-33319-149-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=1.77	1-33319-150-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=2.12	1-33239-238-0	02	1	1302-	●	●
93	RING; SNAP,COUNTER FRT BRG T=2.07	1-33239-239-0	02	1	1302-	●	●
93	RING; SNAP,COUNTER FRT BRG T=2.02	1-33239-240-0	02	1	1302-	●	●
93	RING; SNAP,COUNTER FRT BRG T=2.12	1-33239-238-0	01	1	1302-			●
93	RING; SNAP,COUNTER FRT BRG T=2.07	1-33239-239-0	01	1	1302-			●
93	RING; SNAP,COUNTER FRT BRG T=2.02	1-33239-240-0	01	1	1302-			●
126	RING; SNAP,CLU HUB (D)	1-33269-058-0	02	1	1302-	●	●
126	RING; SNAP,CLU HUB (B)	1-33269-061-0	01	1	1302-	●	●
126	RING; SNAP,CLU HUB (C)	1-33269-062-0	01	1	1302-	●	●
126	RING; SNAP,CLU HUB (A)	1-33269-065-0	02	1	1302-	●	●
126	RING; SNAP,CLU HUB (E) T=2.10	1-33269-066-0	01	1	1302-	●	●
126	RING; SNAP,CLU HUB (E) T=2.05	1-33269-067-0	01	1	1302-	●	●
126	RING; SNAP,CLU HUB (E) T=2.00	1-33269-068-0	01	1	1302-	●	●
148	SPACER; PILOT BRG,MAINSHAFT,RR T=3.10	1-33219-259-0	01	1	1302-	●	●
148	SPACER; PILOT BRG,MAINSHAFT,RR T=3.15	1-33219-260-0	01	1	1302-	●	●
148	SPACER; PILOT BRG,MAINSHAFT,RR T=3.20	1-33219-261-0	01	1	1302-	●	●
148	SPACER; PILOT BRG,MAINSHAFT,RR T=3.25	1-33219-262-0	01	1	1302-	●	●
148	SPACER; PILOT BRG,MAINSHAFT,RR T=3.30	1-33219-263-0	01	1	1302-	●	●
148	SPACER; PILOT BRG,MAINSHAFT,RR T=3.35	1-33219-264-0	01	1	1302-	●	●
148	SPACER; PILOT BRG,MAINSHAFT,RR T=3.40	1-33219-265-0	01	1	1302-	●	●
148	SPACER; PILOT BRG,MAINSHAFT,RR T=3.45	1-33219-266-0	01	1	1302-	●	●
148	SPACER; PILOT BRG,MAINSHAFT,RR T=3.50	1-33219-267-0	01	1	1302-	●	●
230	SLEEVE; 4TH TO 5TH	1-33262-197-0	01	1	1302-	●
230	SLEEVE; 4TH TO 5TH	1-33262-245-0	01	1	1302-		●
233	RING; BLOCK 4TH TO 5TH	1-33265-560-0	02	1	1302-	●
233	RING; BLOCK 4TH TO 5TH	1-33265-647-0	02	1	1302-		●
288	SPACER; BRG,MAINSHAFT (A)	1-33259-068-0	01	1	1302-	●	●
288	SPACER; BRG,MAINSHAFT (B)	1-33259-072-0	01	1	1302-	●	●
289	PIN; MAINSHAFT	1-33239-242-0	01	1	1302-	●	●
298	GASKET; MAINSHAFT	1-33239-245-0	02	1	1302-	●	●
308	BOLT; MAINSHAFT	1-33239-355-0	01	1	1302-	●
308	BOLT; MAINSHAFT	1-33239-366-0	01	1	1302-		●
309	PLATE; MAINSHAFT	1-33239-317-0	01	1	1302-	●	●
312	CLUTCH; DOG,1ST GEAR	1-33265-562-0	01	1	1302-	●
312	CLUTCH; DOG,1ST GEAR	1-33265-596-0	01	1	1302-		●
313	BEARING; NEEDLE,LOW GEAR	1-33259-078-0	01	1	1302-	●	●	●
314	BEARING; NEEDLE,REV GEAR	1-33259-073-0	01	1	1302-	●	●	●
315	CLUTCH; DOG,2ND GEAR	1-33265-561-0	02	1	1302-	●
315	CLUTCH; DOG,2ND GEAR	1-33265-646-0	02	1	1302-		●
317	CLUTCH; DOG,4TH GEAR	1-33265-561-0	02	1	1302-	●
317	CLUTCH; DOG,4TH GEAR	1-33265-646-0	02	1	1302-		●
330	GEAR; SUN	1-34311-004-0	01	1	1302-	●
330	GEAR; SUN	1-34311-012-0	01	1	1302-		●
393	BEARING; MAINSHAFT END	1-33239-316-0	01	1	1302-	●	●
393	BEARING; MAINSHAFT END	1-33239-347-0	01	1	1302-			●
408	SPRING (C)	1-33264-039-0	18	1	1302-	●	●
408	SPRING (A)	1-33264-042-0	06	1	1302-			●
408	SPRING (B)	1-33264-043-0	03	1	1302-			●
429	SLEEVE; 2ND & 3RD	1-33262-197-0	01	1	1302-	●
429	SLEEVE; 2ND & 3RD	1-33262-243-0	01	1	1302-			●
429	SLEEVE; 2ND & 3RD	1-33262-245-0	01	1	1302-		●
443	ROLLER; SYNCHRONIZER (B)	1-33269-059-0	09	1	1302-	●	●
443	ROLLER; SYNCHRONIZER (A)	1-33269-063-0	09	1	1302-	●	●
443	ROLLER; SYNCHRONIZER (A)	1-33269-063-0	06	1	1302-			●
444	CLUTCH; DOG,REV GEAR	1-33265-462-0	01	1	1302-	●	●
451	RESTRICTOR; MAIN SHAFT	1-33239-275-0	01	1	1302-		●

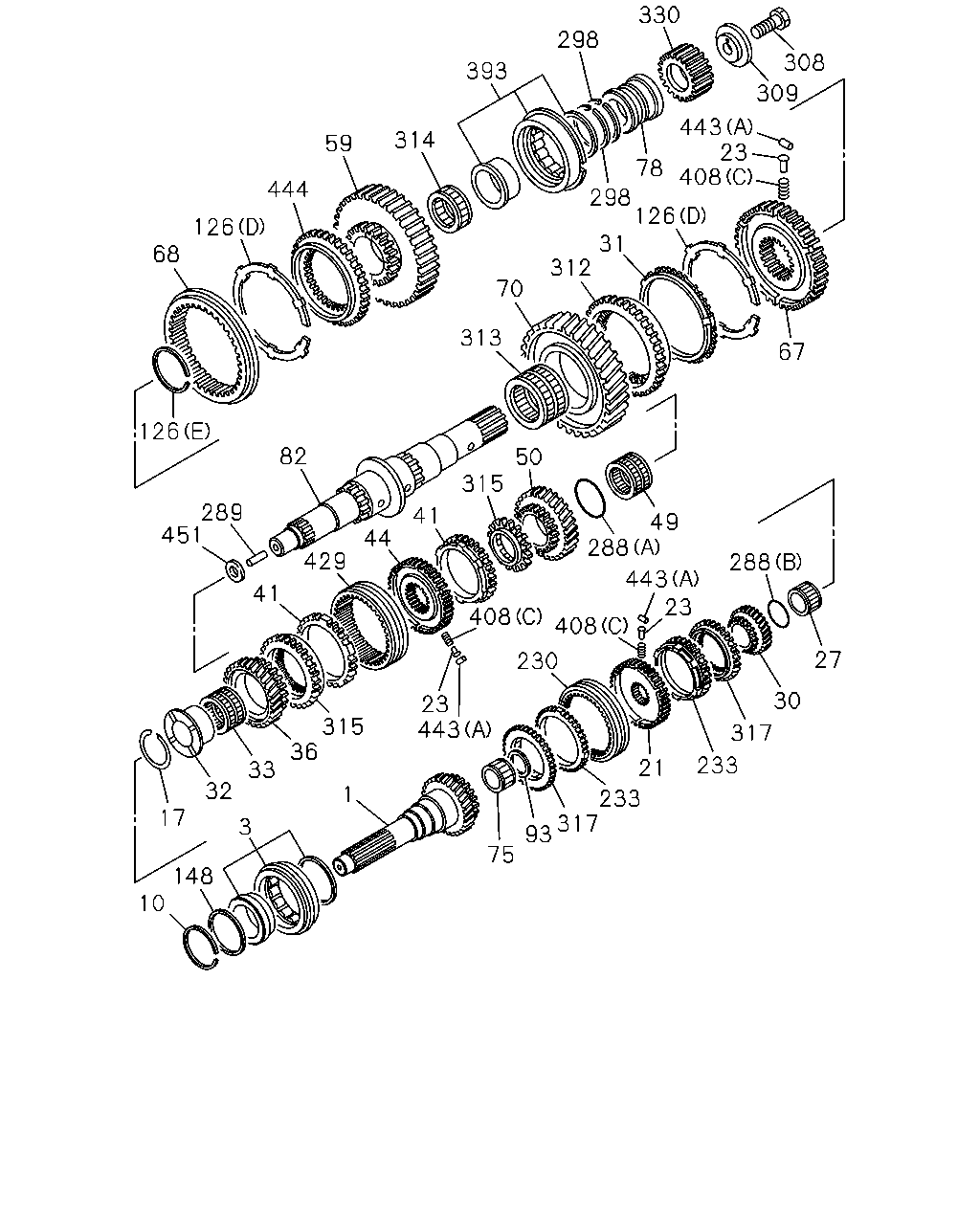

27 30 317 233 21 233 317 93 75 288 23 443 49 288 408 50 230 408 23 443 315 1 36 33 3 148 10 32 41 41 44 429 82 289 67 308 309 443 408 23 126 312 70 313 78 298 330 298 393 314 59 444 126 68 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS	1-33211-983-0	01	1	1302-	●
1	SHAFT; TOP GEAR,TRANS	1-33215-012-0	01	1	1302-			●
1	SHAFT; TOP GEAR,TRANS	1-33215-039-0	01	1	1302-		●
3	BEARING; TOP GEAR SHAFT	1-33219-186-0	01	1	1302-	●	●
10	RING; SNAP,PILOT BRG	1-33219-268-0	01	1	1302-	●	●
21	HUB; CLU,4TH & 5TH	1-33261-236-0	01	1	1302-	●	●
23	PLUNGER; DETENT,SYN	1-33265-458-0	18	1	1302-	●	●
23	PLUNGER; DETENT,SYN	1-33265-600-0	06	1	1302-			●
27	BEARING; 4TH GEAR	1-33259-079-0	01	1	1302-	●	●
30	GEAR; 4TH,MAINSHAFT	1-33252-472-0	01	1	1302-	●	●
30	GEAR; 4TH,MAINSHAFT	1-33252-474-0	01	1	1302-			●
32	COLLAR; 3RD GEAR	1-33259-070-0	01	1	1302-	●
32	COLLAR; 3RD GEAR	1-33259-123-0	01	1	1302-		●
33	BEARING; NEEDLE,3RD GEAR	1-33259-078-0	01	1	1302-	●	●
33	BEARING; NEEDLE,3RD GEAR	1-33259-089-0	01	1	1302-			●
36	GEAR; 3RD,MAINSHAFT	1-33252-458-0	01	1	1302-	●	●
36	GEAR; 3RD,MAINSHAFT	1-33252-473-0	01	1	1302-			●
41	RING; BLOCK,2ND & 3RD	1-33265-560-0	02	1	1302-	●
41	RING; BLOCK,2ND & 3RD	1-33265-647-0	02	1	1302-		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-235-0	01	1	1302-	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-301-0	01	1	1302-			●
49	BEARING; NEEDLE,2ND GEAR	1-33259-078-0	01	1	1302-	●	●
49	BEARING; NEEDLE,2ND GEAR	1-33259-089-0	01	1	1302-			●
50	GEAR; 2ND,MAINSHAFT	1-33251-382-0	01	1	1302-	●	●
50	GEAR; 2ND,MAINSHAFT	1-33251-446-0	01	1	1302-			●
59	GEAR; REV MAINSHAFT	1-33257-078-0	01	1	1302-	●	●
59	GEAR; REV MAINSHAFT	1-33257-092-0	01	1	1302-			●
67	HUB; CLU,1ST TO REV	1-33261-237-0	01	1	1302-	●	●
67	HUB; CLU,1ST TO REV	1-33261-290-0	01	1	1302-			●
68	SLEEVE; 1ST TO REV	1-33262-198-0	01	1	1302-	●
68	SLEEVE; 1ST TO REV	1-33265-645-0	01	1	1302-		●
70	GEAR; 1ST,MAINSHAFT	1-33251-376-0	01	1	1302-	●	●
70	GEAR; 1ST,MAINSHAFT	1-33251-447-0	01	1	1302-			●
75	BEARING; MAINSHAFT	1-33239-241-0	01	1	1302-	●	●	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33239-279-0	01	1	1302-	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33239-377-0	01	1	1302-		●
82	SHAFT; MAIN,TRANS	1-33231-294-0	01	1	1302-	●
82	SHAFT; MAIN,TRANS	1-33231-333-0	01	1	1302-			●
82	SHAFT; MAIN,TRANS	1-33231-347-0	01	1	1302-		●
93	RING; SNAP,COUNTER FRT BRG T=1.97	1-33319-146-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=1.92	1-33319-147-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=1.87	1-33319-148-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=1.82	1-33319-149-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=1.77	1-33319-150-0	01	1	1302-	●	●	●
93	RING; SNAP,COUNTER FRT BRG T=2.12	1-33239-238-0	02	1	1302-	●	●
93	RING; SNAP,COUNTER FRT BRG T=2.07	1-33239-239-0	02	1	1302-	●	●
93	RING; SNAP,COUNTER FRT BRG T=2.02	1-33239-240-0	02	1	1302-	●	●
93	RING; SNAP,COUNTER FRT BRG T=2.12	1-33239-238-0	01	1	1302-			●
93	RING; SNAP,COUNTER FRT BRG T=2.07	1-33239-239-0	01	1	1302-			●
93	RING; SNAP,COUNTER FRT BRG T=2.02	1-33239-240-0	01	1	1302-			●
126	RING; SNAP,CLU HUB (D)	1-33269-058-0	02	1	1302-	●	●
126	RING; SNAP,CLU HUB (B)	1-33269-061-0	01	1	1302-	●	●
126	RING; SNAP,CLU HUB (C)	1-33269-062-0	01	1	1302-	●	●
126	RING; SNAP,CLU HUB (A)	1-33269-065-0	02	1	1302-	●	●
126	RING; SNAP,CLU HUB (E) T=2.10	1-33269-066-0	01	1	1302-	●	●
126	RING; SNAP,CLU HUB (E) T=2.05	1-33269-067-0	01	1	1302-	●	●
126	RING; SNAP,CLU HUB (E) T=2.00	1-33269-068-0	01	1	1302-	●	●
148	SPACER; PILOT BRG,MAINSHAFT,RR T=3.10	1-33219-259-0	01	1	1302-	●	●
148	SPACER; PILOT BRG,MAINSHAFT,RR T=3.15	1-33219-260-0	01	1	1302-	●	●
148	SPACER; PILOT BRG,MAINSHAFT,RR T=3.20	1-33219-261-0	01	1	1302-	●	●
148	SPACER; PILOT BRG,MAINSHAFT,RR T=3.25	1-33219-262-0	01	1	1302-	●	●
148	SPACER; PILOT BRG,MAINSHAFT,RR T=3.30	1-33219-263-0	01	1	1302-	●	●
148	SPACER; PILOT BRG,MAINSHAFT,RR T=3.35	1-33219-264-0	01	1	1302-	●	●
148	SPACER; PILOT BRG,MAINSHAFT,RR T=3.40	1-33219-265-0	01	1	1302-	●	●
148	SPACER; PILOT BRG,MAINSHAFT,RR T=3.45	1-33219-266-0	01	1	1302-	●	●
148	SPACER; PILOT BRG,MAINSHAFT,RR T=3.50	1-33219-267-0	01	1	1302-	●	●
230	SLEEVE; 4TH TO 5TH	1-33262-197-0	01	1	1302-	●
230	SLEEVE; 4TH TO 5TH	1-33262-245-0	01	1	1302-		●
233	RING; BLOCK 4TH TO 5TH	1-33265-560-0	02	1	1302-	●
233	RING; BLOCK 4TH TO 5TH	1-33265-647-0	02	1	1302-		●
288	SPACER; BRG,MAINSHAFT (A)	1-33259-068-0	01	1	1302-	●	●
288	SPACER; BRG,MAINSHAFT (B)	1-33259-072-0	01	1	1302-	●	●
289	PIN; MAINSHAFT	1-33239-242-0	01	1	1302-	●	●
298	GASKET; MAINSHAFT	1-33239-245-0	02	1	1302-	●	●
308	BOLT; MAINSHAFT	1-33239-355-0	01	1	1302-	●
308	BOLT; MAINSHAFT	1-33239-366-0	01	1	1302-		●
309	PLATE; MAINSHAFT	1-33239-317-0	01	1	1302-	●	●
312	CLUTCH; DOG,1ST GEAR	1-33265-562-0	01	1	1302-	●
312	CLUTCH; DOG,1ST GEAR	1-33265-596-0	01	1	1302-		●
313	BEARING; NEEDLE,LOW GEAR	1-33259-078-0	01	1	1302-	●	●	●
314	BEARING; NEEDLE,REV GEAR	1-33259-073-0	01	1	1302-	●	●	●
315	CLUTCH; DOG,2ND GEAR	1-33265-561-0	02	1	1302-	●
315	CLUTCH; DOG,2ND GEAR	1-33265-646-0	02	1	1302-		●
317	CLUTCH; DOG,4TH GEAR	1-33265-561-0	02	1	1302-	●
317	CLUTCH; DOG,4TH GEAR	1-33265-646-0	02	1	1302-		●
330	GEAR; SUN	1-34311-004-0	01	1	1302-	●
330	GEAR; SUN	1-34311-012-0	01	1	1302-		●
393	BEARING; MAINSHAFT END	1-33239-316-0	01	1	1302-	●	●
393	BEARING; MAINSHAFT END	1-33239-347-0	01	1	1302-			●
408	SPRING (C)	1-33264-039-0	18	1	1302-	●	●
408	SPRING (A)	1-33264-042-0	06	1	1302-			●
408	SPRING (B)	1-33264-043-0	03	1	1302-			●
429	SLEEVE; 2ND & 3RD	1-33262-197-0	01	1	1302-	●
429	SLEEVE; 2ND & 3RD	1-33262-243-0	01	1	1302-			●
429	SLEEVE; 2ND & 3RD	1-33262-245-0	01	1	1302-		●
443	ROLLER; SYNCHRONIZER (B)	1-33269-059-0	09	1	1302-	●	●
443	ROLLER; SYNCHRONIZER (A)	1-33269-063-0	09	1	1302-	●	●
443	ROLLER; SYNCHRONIZER (A)	1-33269-063-0	06	1	1302-			●
444	CLUTCH; DOG,REV GEAR	1-33265-462-0	01	1	1302-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
