◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10863 - EXR RHD FUEL TANK 200L+200L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#11473) — 137 parça

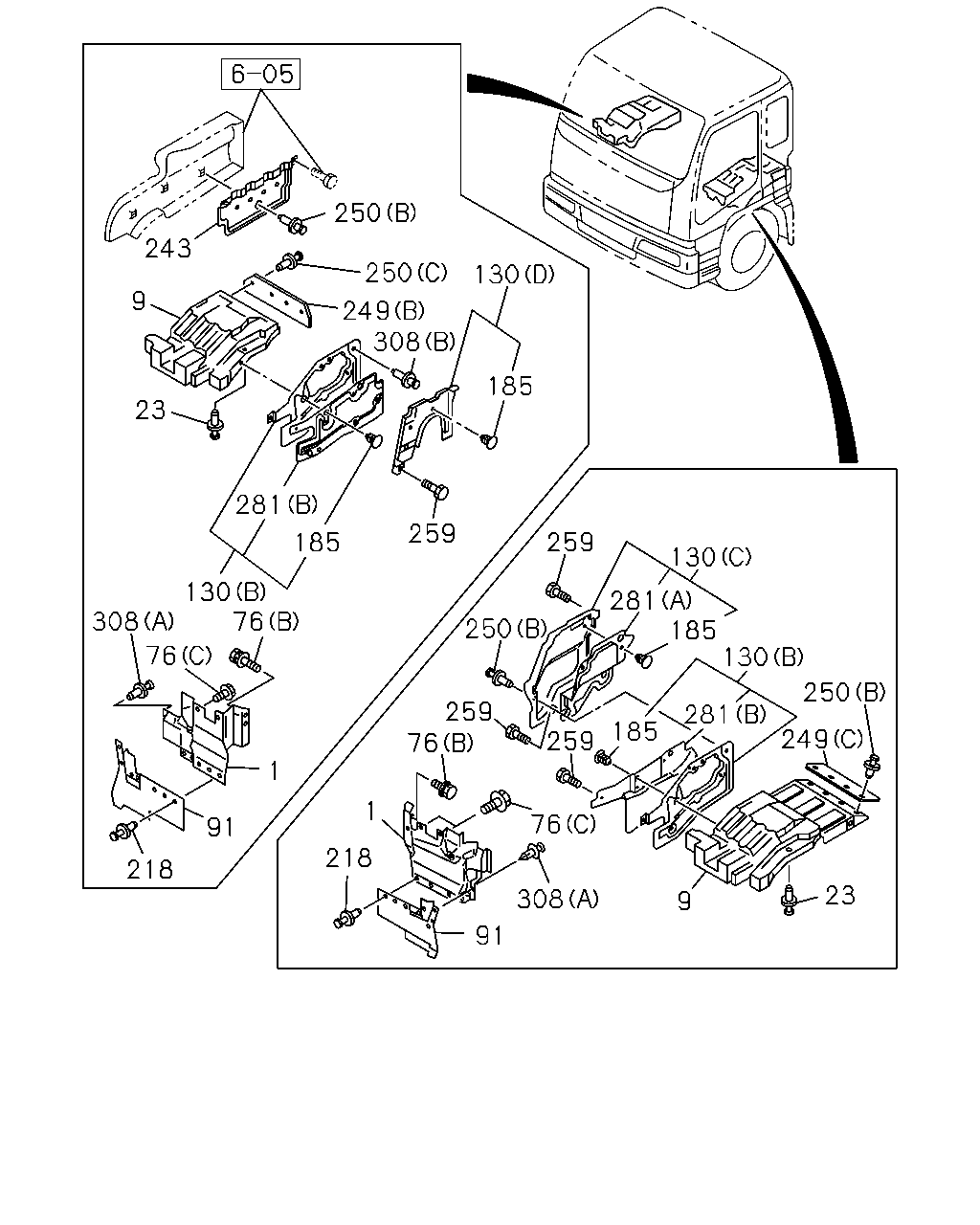

çizim 18981
23 9 249 250 130 185 281 130 259 259 250 259 76 259 185 281 76 308 91 218 91 1 1 218 76 308 76 130 185 281 23 9 243 250 250 130 249 185 308
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0106-
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0106-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0106-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0106-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0106-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0106-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0106-
76 BOLT; MUD GUARD
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0106-
91 COVER; MUD,FRT 1-79931-199-1 01 1 0106-
91 COVER; MUD,FRT 1-79931-200-1 01 1 0106-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-782-7 01 1 0106-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-790-5 01 1 0106-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-915-3 01 1 0106-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-4 01 1 0106-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-2 01 1 0106-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-928-3 01 1 0106-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-1 01 1 0106-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 0106-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0203-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0106-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0106-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0106-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 12 1 0203-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0401-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0401-
218 FASTENER; RUBBER
ID=6X6 OD=8 		1-09987-194-0 08 1 0106-0511
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0512-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0106-
249 RUBBER; SHUTTER
(B) 		1-79937-902-3 01 1 0106-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0106-
249 RUBBER; SHUTTER
(C) 		1-79937-975-1 01 1 0106-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0106-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 07 1 0106-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 0106-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0106-
250 FASTENER; SHUTTER
(C) D6X20 		8-94361-318-0 04 1 0106-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0106-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0106-
281 INSULATOR; NOISE
(B) 		1-71907-170-1 01 1 0106-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 0106-
281 INSULATOR; NOISE
(A) 		1-71907-307-0 01 1 0106-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (D) 		1-73237-541-3 01 1 0106-0408
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-895-2 01 1 0409-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0106-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0106-

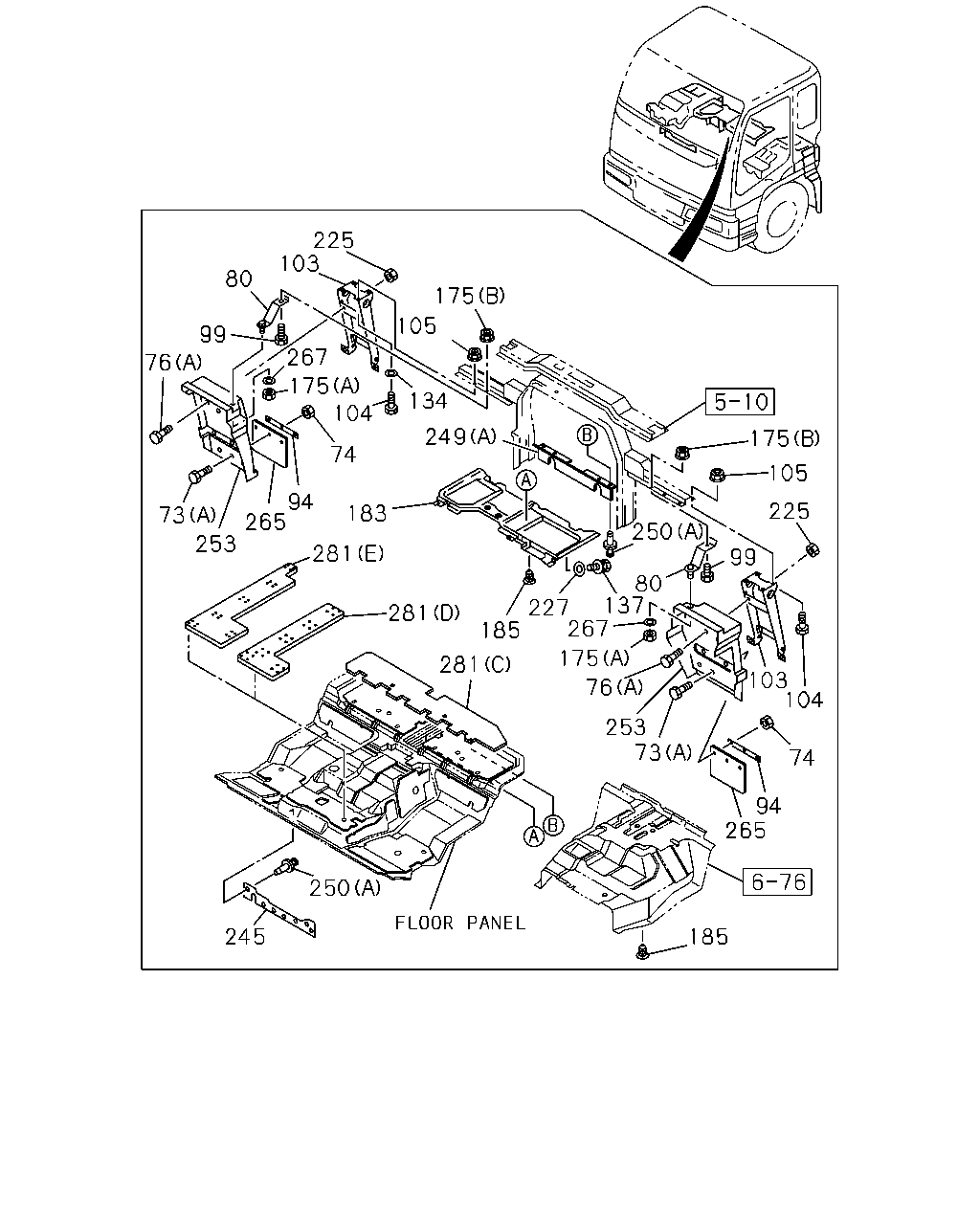

çizim 20922
175 225 99 80 104 103 74 94 265 185 73 253 76 175 267 227 185 281 281 281 183 94 265 253 73 76 99 80 103 225 175 105 134 104 175 267 74 249 105 250 137 245 250
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 08 1 0106-0512
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 08 1 0601-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0106-
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 0106-0602
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 02 1 0603-
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0106-0602
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 0603-
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 0106-0602
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 03 1 0603-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0106-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0106-
76 BOLT; MUD GUARD
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0106-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0106-
94 RETAINER; FLAP RUBBER 1-79931-091-2 02 1 0106-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 0106-0512
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 0601-
103 BRACKET ASM; RR MUD FLAP 1-79931-307-1 02 1 0106-
104 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 06 1 0106-0512
104 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 06 1 0601-
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 06 1 0106-0602
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 0603-
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 0106-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0106-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 0106-0602
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 0106-0602
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0603-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 0106-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0203-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0106-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0106-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0106-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 12 1 0203-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0401-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0401-
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 0106-0602
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 0603-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0106-
245 RUBBER; SHUTTER,RAD 1-79937-982-1 01 1 0106-
249 RUBBER; SHUTTER
(B) 		1-79937-902-3 01 1 0106-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0106-
249 RUBBER; SHUTTER
(C) 		1-79937-975-1 01 1 0106-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0106-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 07 1 0106-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 0106-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0106-
250 FASTENER; SHUTTER
(C) D6X20 		8-94361-318-0 04 1 0106-
253 GUARD; MUD 1-79931-065-7 01 1 0106-
253 GUARD; MUD 1-79931-067-7 01 1 0106-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 0106-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 0106-0605
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 0606-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0106-
281 INSULATOR; NOISE
(B) 		1-71907-170-1 01 1 0106-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 0106-
281 INSULATOR; NOISE
(A) 		1-71907-307-0 01 1 0106-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (D) 		1-73237-541-3 01 1 0106-0408
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-895-2 01 1 0409-

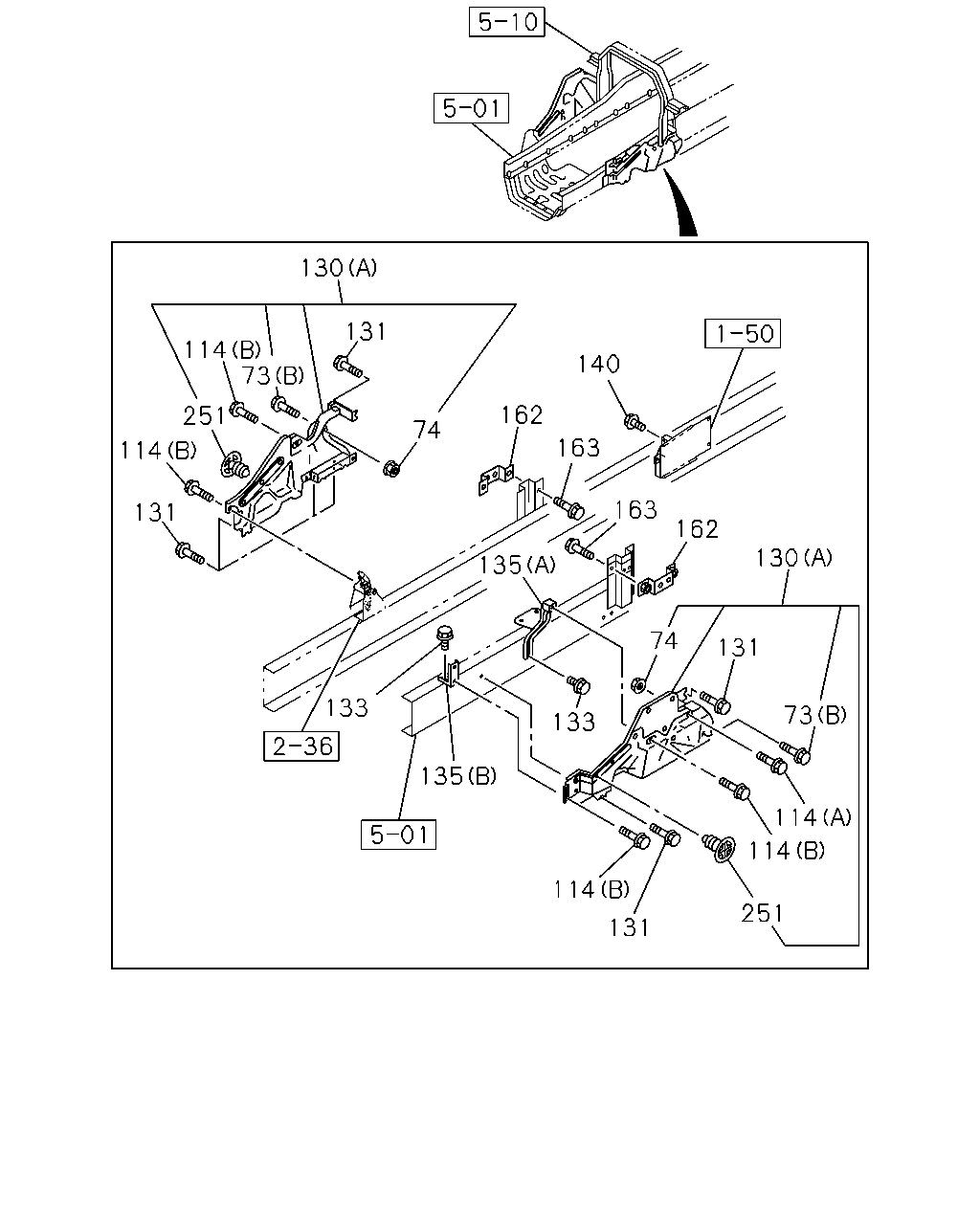

çizim 72662
140 162 163 162 130 131 73 74 133 135 133 131 114 251 73 114 131 74 130 163 135 114 114 251 131 114
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 08 1 0106-0512
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 08 1 0601-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0106-
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 0106-0602
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 02 1 0603-
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0106-0602
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 0603-
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 0106-0602
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 03 1 0603-
114 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0106-0512
114 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
114 BOLT
(B) M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 0106-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-782-7 01 1 0106-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-790-5 01 1 0106-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-915-3 01 1 0106-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-4 01 1 0106-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-2 01 1 0106-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-928-3 01 1 0106-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-1 01 1 0106-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 0106-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0106-
133 BOLT; FRAME
M8X25 FLANGE 		0-28680-825-0 04 1 0106-0512
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 0601-
135 BRACKET; SIDE PANEL
(B) 		1-53441-507-0 01 1 0106-
135 BRACKET; SIDE PANEL
(A) 		1-53441-508-0 01 1 0106-0106
135 BRACKET; SIDE PANEL
(A) 		1-53441-598-1 01 1 0107-
140 BOLT; SIDE PANEL
M8X20 FLANGE 		0-28680-820-0 01 1 0106-0512
140 BOLT; SIDE PANEL
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
140 BOLT; SIDE PANEL
M8X30 FLANGE 		0-28680-830-0 02 1 0106-0512
140 BOLT; SIDE PANEL
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
162 BRACKET 1-53441-520-0 02 1 0106-
163 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0106-0512
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 14 1 0106-
