Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#114721) — 276 parça

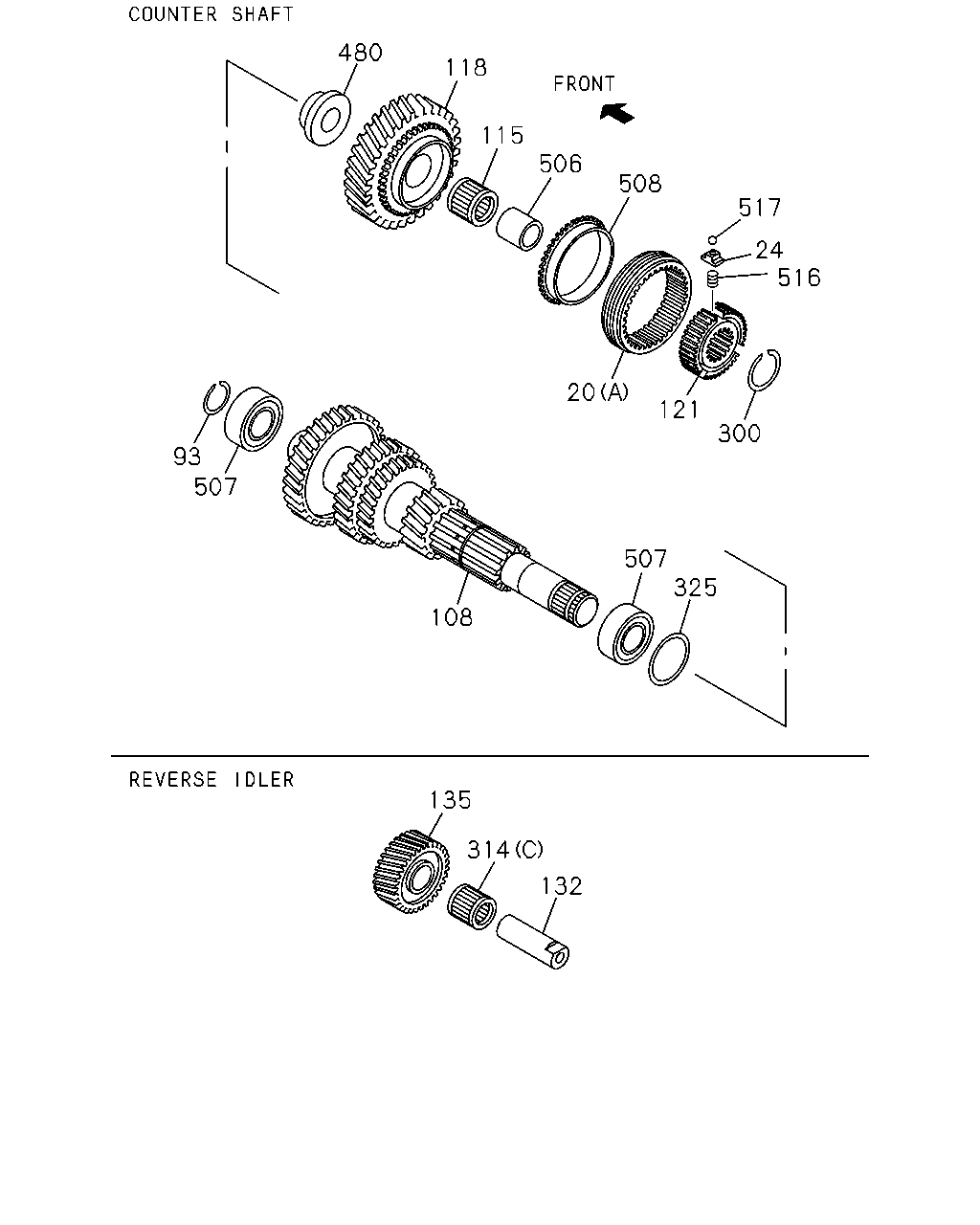

480 118 115 508 517 516 24 121 300 20 507 108 325 93 507 135 314 132 506

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	SLEEVE (C) Z=45	8-97241-296-1	03	1	1302-1308	●
20	SLEEVE (A) Z=45	8-98034-769-0	01	1	1309-1508	●
20	SLEEVE (C) Z=45	8-98258-279-0	03	1	1509-	●
20	SLEEVE (B) Z=54	8-97241-295-2	01	1	1302-		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1302-1308		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311	●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508	●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1509-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1302-	●	●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	1302-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	1302-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	1302-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	1302-		●
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1302-1501	●
108	SHAFT; COUNTER Z=27-42-26	8-98303-643-0	01	1	1502-	●
108	SHAFT; COUNTER Z=46-37-27-21	8-98168-526-0	01	1	1302-1308		●
108	SHAFT; COUNTER Z=46-37-27-21	8-98249-483-0	01	1	1309-		●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1411-		●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	1302-		●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	1302-	●
118	GEAR; 6TH,COUNTER Z=46	8-97241-245-0	01	1	1302-		●
121	HUB; CLU,6TH	8-97241-301-2	01	1	1302-		●
132	SHAFT; REV	8-98009-372-0	01	1	1302-	●
132	SHAFT; REV	8-97252-655-0	01	1	1302-		●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	1302-	●
135	GEAR; REV IDLER Z=26	8-97241-292-2	01	1	1302-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7	8-97288-618-0	01	1	1302-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8	8-97288-619-0	01	1	1302-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9	8-97288-620-0	01	1	1302-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6	8-97365-616-0	01	1	1302-		●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	1302-	●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1302-	●
314	BEARING; NEEDLE,REV GEAR (C) NSK	8-97253-114-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG T=1.56	8-97377-994-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.62	8-97377-995-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.68	8-97377-996-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.74	8-97377-997-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.80	8-97377-998-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.26	8-98009-373-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.32	8-98009-374-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.38	8-98009-375-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.44	8-98009-376-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98009-377-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.14	8-98022-218-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.20	8-98022-219-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	1302-		●
480	WASHER; THRUST,6TH	8-97253-122-1	01	1	1302-		●
506	COLLAR; 6TH,COUNTER	8-97377-965-0	01	1	1302-	●
506	COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	1302-		●
507	BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	1302-		●
508	RING; BLOCK,6TH Z=45	8-97241-306-1	01	1	1302-		●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1302-	●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1302-		●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1302-	●	●

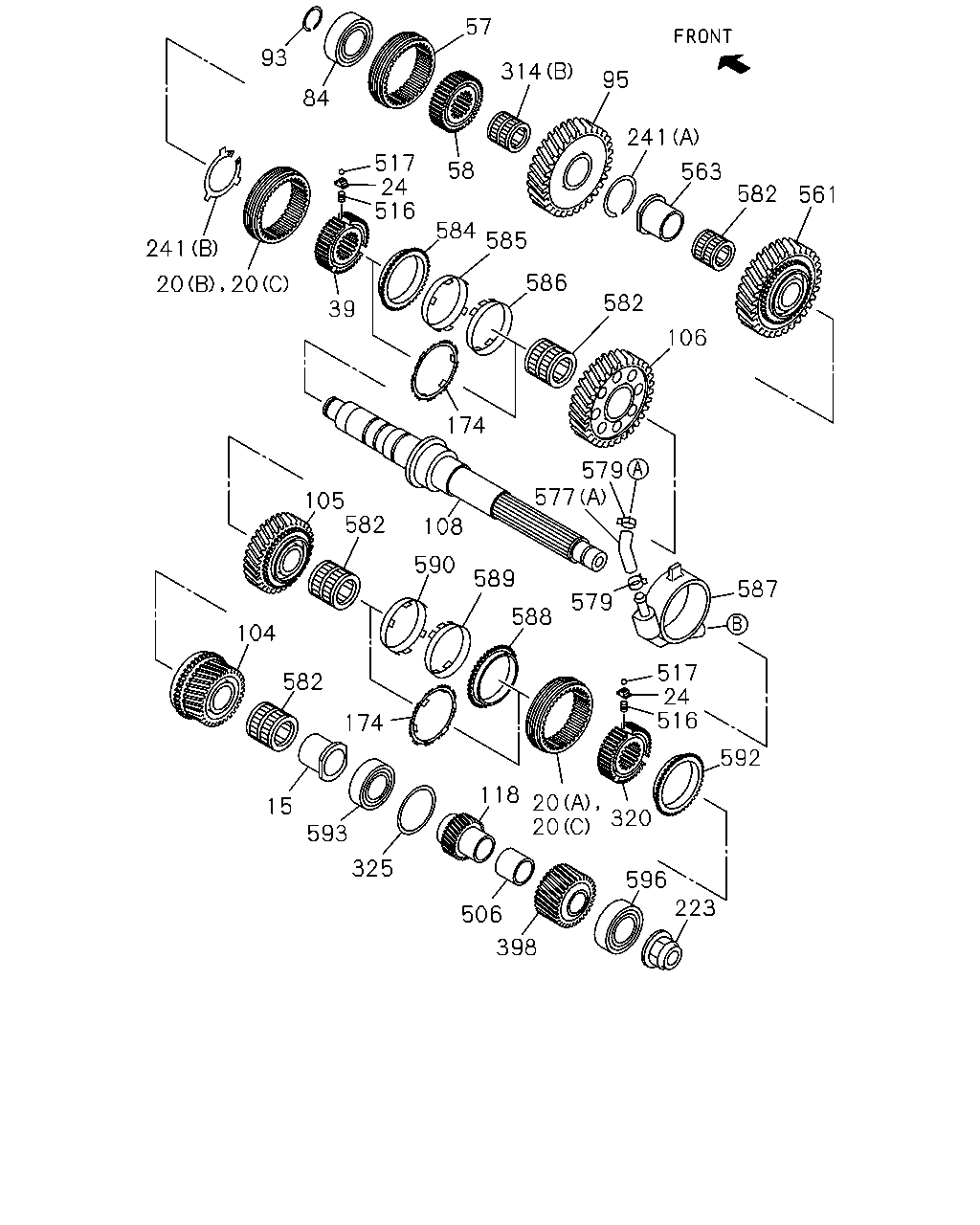

57 314 95 241 563 582 561 106 582 586 585 584 58 516 24 517 84 93 241 20 20 39 174 579 577 587 579 588 589 590 582 105 108 517 24 516 592 320 20 20 118 174 582 104 15 593 325 506 398 596 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	COLLAR; 4TH GEAR	8-98146-345-0	01	1	1302-	●
20	SLEEVE (C) Z=45	8-97241-296-1	03	1	1302-1308	●
20	SLEEVE (A) Z=45	8-98034-769-0	01	1	1309-1508	●
20	SLEEVE (C) Z=45	8-98258-279-0	03	1	1509-	●
20	SLEEVE (B) Z=54	8-97241-295-2	01	1	1302-		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1302-1308		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311	●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508	●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1509-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1302-	●	●
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	1302-1501	●
39	HUB; CLU,LOW & 2ND Z=45	8-98303-646-0	01	1	1502-1507	●
39	HUB; CLU,LOW & 2ND Z=45	8-98309-852-0	01	1	1508-	●
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	1302-	●
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	1302-	●
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-1	01	1	1302-	●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	1302-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	1302-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	1302-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	1302-		●
95	GEAR; REV,COUNTER Z=44	8-98005-229-0	01	1	1302-	●
104	GEAR; 4TH,COUNTER Z=29	8-98198-297-0	01	1	1302-	●
105	GEAR; 3RD,COUNTER Z=35	8-98168-501-0	01	1	1302-	●
106	GEAR; 2ND,COUNTER Z=44	8-98140-884-0	01	1	1302-	●
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1302-1501	●
108	SHAFT; COUNTER Z=27-42-26	8-98303-643-0	01	1	1502-	●
108	SHAFT; COUNTER Z=46-37-27-21	8-98168-526-0	01	1	1302-1308		●
108	SHAFT; COUNTER Z=46-37-27-21	8-98249-483-0	01	1	1309-		●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	1302-	●
118	GEAR; 6TH,COUNTER Z=46	8-97241-245-0	01	1	1302-		●
174	SYNCHRONIZER ASM; 2ND-3RD	8-98315-823-2	02	1	1509-	●
223	NUT; COUNTER SHAFT END M34 FLANGE	8-98005-894-0	01	1	1302-	●
241	RING; SNAP (A) ID=46.5 T=1.8	8-97254-743-0	01	1	1302-	●
241	RING; SNAP (B) ID=96 T=2.5	8-98009-391-0	01	1	1302-	●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	1302-	●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1302-	●
314	BEARING; NEEDLE,REV GEAR (C) NSK	8-97253-114-0	01	1	1302-		●
320	HUB; CLU,4TH & 3RD Z=45	8-98075-733-0	01	1	1302-1501	●
320	HUB; CLU,4TH & 3RD Z=45	8-98303-649-0	01	1	1502-1507	●
320	HUB; CLU,4TH & 3RD Z=45	8-98309-859-0	01	1	1508-	●
325	SHIM; COUNTER SHAFT BRG T=1.56	8-97377-994-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.62	8-97377-995-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.68	8-97377-996-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.74	8-97377-997-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.80	8-97377-998-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.26	8-98009-373-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.32	8-98009-374-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.38	8-98009-375-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.44	8-98009-376-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98009-377-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.14	8-98022-218-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG T=1.20	8-98022-219-0	01	1	1302-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	1302-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	1302-		●
398	GEAR; COUNTER Z=22	8-97380-568-0	01	1	1302-	●
506	COLLAR; 6TH,COUNTER	8-97377-965-0	01	1	1302-	●
506	COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	1302-		●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1302-	●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1302-		●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1302-	●	●
561	GEAR; LOW,COUNTER Z=44	8-98000-330-0	01	1	1302-	●
563	COLLAR; 1ST GEAR	8-98146-345-0	01	1	1302-	●
577	HOSE; OIL PUMP (A)	8-98033-981-0	01	1	1302-	●
577	HOSE; OIL PUMP (B)	8-98033-982-0	01	1	1302-	●
579	CLAMP; HOSE ID=16	8-97329-628-0	06	1	1302-	●
582	BEARING; NEEDLE,COUNTER GEAR	8-97253-110-0	04	1	1302-	●
584	RING; BLOCK,2ND Z=45	8-98223-605-1	01	1	1302-1308	●
584	RING; BLOCK,2ND Z=45	8-98034-770-0	01	1	1309-1508	●
585	RING; OUTSIDE,2ND	8-97241-309-1	01	1	1302-1508	●
586	RING; INSIDE,2ND	8-98223-606-1	01	1	1302-1308	●
586	RING; INSIDE,2ND	8-97241-312-1	01	1	1309-1508	●
587	CASE; PUMP,COUNTER	8-98212-196-0	01	1	1302-1501	●
587	CASE; PUMP,COUNTER	8-98303-650-0	01	1	1502-	●
588	RING; BLOCK,3RD Z=45	8-98223-605-1	01	1	1302-1308	●
588	RING; BLOCK,3RD Z=45	8-97241-306-1	01	1	1309-1508	●
589	RING; OUTSIDE,3RD	8-97241-309-1	01	1	1302-1508	●
590	RING; INSIDE,3RD	8-98223-606-1	01	1	1302-1308	●
590	RING; INSIDE,3RD	8-97241-312-1	01	1	1309-1508	●
592	RING; BLOCK,4TH Z=45	8-97241-306-1	01	1	1302-	●
593	BEARING; COUNTER MIDDLE	8-97377-976-0	01	1	1302-	●
596	BEARING; ROOLER,COUNTER END	8-97377-968-0	01	1	1302-	●

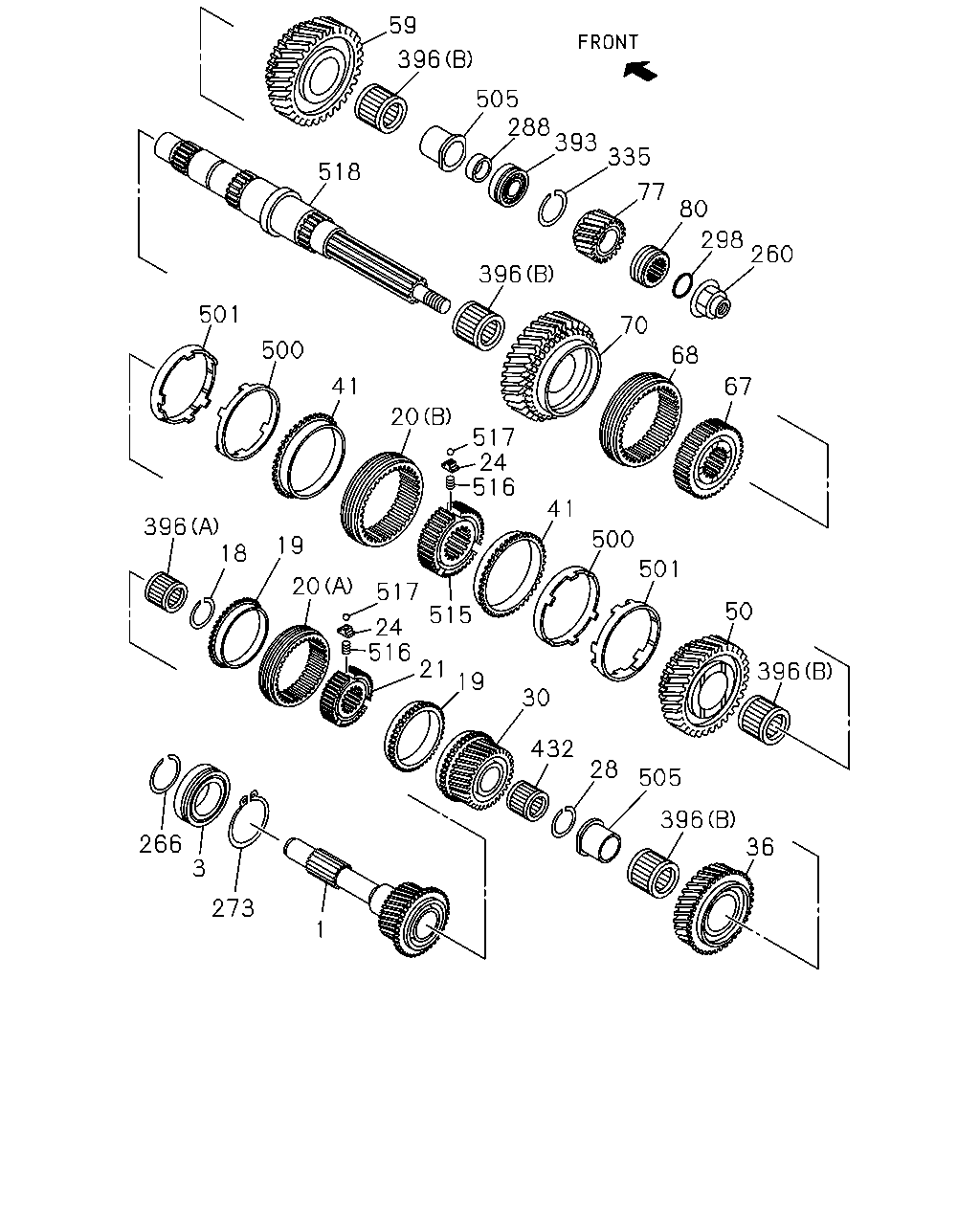

59 505 396 288 77 335 393 298 80 67 260 68 70 396 518 501 41 500 517 20 516 501 500 41 50 505 28 432 30 19 21 516 515 517 396 24 396 20 18 19 396 36 24 273 3 266 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=25	8-97371-089-0	01	1	1302-		●
3	BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	1302-		●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1302-	●	●
19	RING; BLOCK,4TH & 5TH Z=45	8-97241-306-1	02	1	1302-		●
20	SLEEVE (C) Z=45	8-97241-296-1	03	1	1302-1308	●
20	SLEEVE (A) Z=45	8-98034-769-0	01	1	1309-1508	●
20	SLEEVE (C) Z=45	8-98258-279-0	03	1	1509-	●
20	SLEEVE (B) Z=54	8-97241-295-2	01	1	1302-		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1302-1308		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311	●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508	●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1509-		●
21	HUB; CLU,4TH & 5TH	8-97241-299-3	01	1	1302-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1302-	●	●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1302-		●
30	GEAR; 4TH,MAINSHAFT Z=29	8-97241-228-0	01	1	1302-		●
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1302-	●
36	GEAR; 3RD,MAINSHAFT Z=35	8-98168-524-0	01	1	1302-		●
41	RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	1302-		●
50	GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	1302-		●
59	GEAR; REV MAINSHAFT Z=45	8-97254-182-0	01	1	1302-		●
67	HUB; CLU,1ST TO REV	8-97255-184-1	01	1	1302-		●
68	SLEEVE; 1ST TO REV	1-33262-175-1	01	1	1302-		●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97254-889-0	01	1	1302-		●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1302-	●
77	GEAR; 6TH,MAINSHAFT Z=18	8-97241-264-0	01	1	1302-		●
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	1302-	●
80	GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	1302-		●
260	NUT; MAINSHAFT END M36 FLANGE	8-98014-140-0	01	1	1302-	●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	1302-		●
266	RING; SNAP,BRG INNER	8-97286-915-0	01	1	1302-		●
273	RING; SNAP,BRG OUTER	8-97254-609-0	01	1	1302-		●
288	SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	1302-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	1302-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	1302-		●
335	RING; SNAP,BEARING	8-97254-720-0	01	1	1302-		●
393	BEARING; MAINSHAFT END	8-97253-104-0	01	1	1302-		●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-97253-099-1	01	1	1302-		●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1302-		●
432	BEARING; NEEDLE,4TH NSK	8-97253-111-0	01	1	1302-		●
500	RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	1302-		●
501	RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	1302-		●
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	1302-		●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	1302-		●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1302-	●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1302-		●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1302-	●	●
518	SHAFT; MAIN,5TH & 6TH SPEED Z=26-42-23	8-97253-115-3	01	1	1302-		●

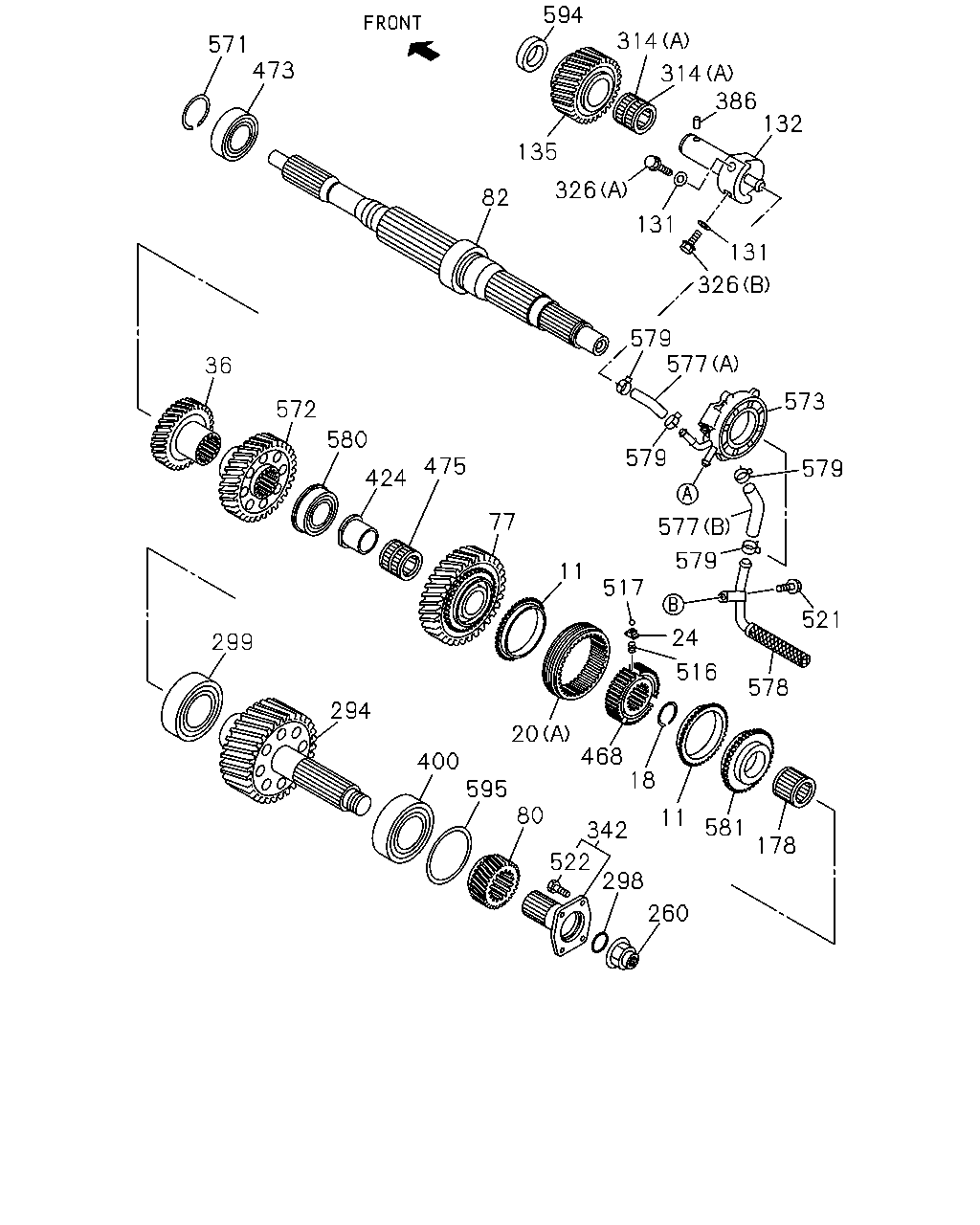

571 594 473 35 82 314 386 314 132 326 131 326 131 579 577 573 579 36 580 572 424 77 475 11 517 24 516 578 178 581 11 18 468 20 299 294 400 595 80 522 298 260 342 521 579 577 579

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	1302-	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1302-	●	●
20	SLEEVE (C) Z=45	8-97241-296-1	03	1	1302-1308	●
20	SLEEVE (A) Z=45	8-98034-769-0	01	1	1309-1508	●
20	SLEEVE (C) Z=45	8-98258-279-0	03	1	1509-	●
20	SLEEVE (B) Z=54	8-97241-295-2	01	1	1302-		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1302-1308		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311	●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508	●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1509-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1302-	●	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1302-	●
36	GEAR; 3RD,MAINSHAFT Z=35	8-98168-524-0	01	1	1302-		●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1302-	●
77	GEAR; 6TH,MAINSHAFT Z=18	8-97241-264-0	01	1	1302-		●
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	1302-	●
80	GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	1302-		●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98140-880-0	01	1	1302-1308	●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98245-057-0	01	1	1309-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0	9-09571-410-0	02	1	1302-	●
132	SHAFT; REV	8-98009-372-0	01	1	1302-	●
132	SHAFT; REV	8-97252-655-0	01	1	1302-		●
178	BEARING; NEEDLE,MAINSHAFT	8-97253-099-1	01	1	1302-	●
260	NUT; MAINSHAFT END M36 FLANGE	8-98014-140-0	01	1	1302-	●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	1302-		●
294	SHAFT; OUTPUT Z=43	8-97380-571-0	01	1	1302-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	1302-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	1302-		●
299	BEARING; OUTPUT SHAFT FRT	8-97377-970-0	01	1	1302-	●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	1302-	●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1302-	●
314	BEARING; NEEDLE,REV GEAR (C) NSK	8-97253-114-0	01	1	1302-		●
326	BOLT; REV SHAFT (A) M10X50 FLANGE	0-29261-050-0	01	1	1302-	●
326	BOLT; REV SHAFT (B) M10X50	8-98014-738-0	01	1	1302-	●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98155-334-0	01	1	1302-	●
386	PIN; REV SHAFT OD=4 L=8	9-08150-408-0	01	1	1302-	●
400	BEARING; OUTPUT SHAFT RR	8-97377-977-0	01	1	1302-	●
424	COLLAR; 6TH GEAR	8-98125-318-0	01	1	1302-	●
468	HUB; CLU,5TH & 6TH Z=45	8-98075-734-0	01	1	1302-	●
473	BEARING; INPUT SHAFT	8-97377-950-0	01	1	1302-	●
475	BEARING; 6TH COLLAR OD=-49.999	8-98101-505-0	01	1	1302-	●
475	BEARING; 6TH COLLAR OD=50.000-	8-98142-265-0	01	1	1302-	●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1302-	●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1302-		●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1302-	●	●
521	BOLT M8X12 FLANGE	0-28050-812-0	01	1	1302-	●
522	BOLT; FLANGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	8-98014-003-0	04	1	1302-	●
571	RING; SNAP,BRG	8-97377-951-0	01	1	1302-	●
572	GEAR; 4TH,INPUT Z=37	8-98168-500-0	01	1	1302-	●
573	PUMP ASM; OIL	8-98212-241-0	01	1	1302-	●
577	HOSE; OIL PUMP (A)	8-98033-981-0	01	1	1302-	●
577	HOSE; OIL PUMP (B)	8-98033-982-0	01	1	1302-	●
578	SCREEN; OIL PUMP	8-98009-345-0	01	1	1302-	●
579	CLAMP; HOSE ID=16	8-97329-628-0	06	1	1302-	●
580	BEARING; MAINSHAFT RR	8-97377-953-0	01	1	1302-	●
581	CLUTCH; DOG,5TH GEAR	8-97377-956-0	01	1	1302-	●
594	WASHER; THRUST,REV IDLE	8-98005-633-0	01	1	1302-	●
595	SHIM; OUTPUT SHAFT T=1.44	8-97377-984-0	01	1	1302-	●
595	SHIM; OUTPUT SHAFT T=1.50	8-97377-985-0	01	1	1302-	●
595	SHIM; OUTPUT SHAFT T=1.56	8-97377-986-0	01	1	1302-	●
595	SHIM; OUTPUT SHAFT T=1.62	8-97377-987-0	01	1	1302-	●
595	SHIM; OUTPUT SHAFT T=1.68	8-97377-988-0	01	1	1302-	●
595	SHIM; OUTPUT SHAFT T=1.74	8-97377-989-0	01	1	1302-	●
595	SHIM; OUTPUT SHAFT T=1.80	8-97377-990-0	01	1	1302-	●
595	SHIM; OUTPUT SHAFT T=1.86	8-97377-991-0	01	1	1302-	●
595	SHIM; OUTPUT SHAFT T=1.38	8-98009-379-0	01	1	1302-	●
595	SHIM; OUTPUT SHAFT T=1.26	8-98022-221-0	01	1	1302-	●
595	SHIM; OUTPUT SHAFT T=1.32	8-98022-222-0	01	1	1302-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
