2-30 — GEAR SHIFTER AND QUADRANT BOX (#114714) — 133 parça

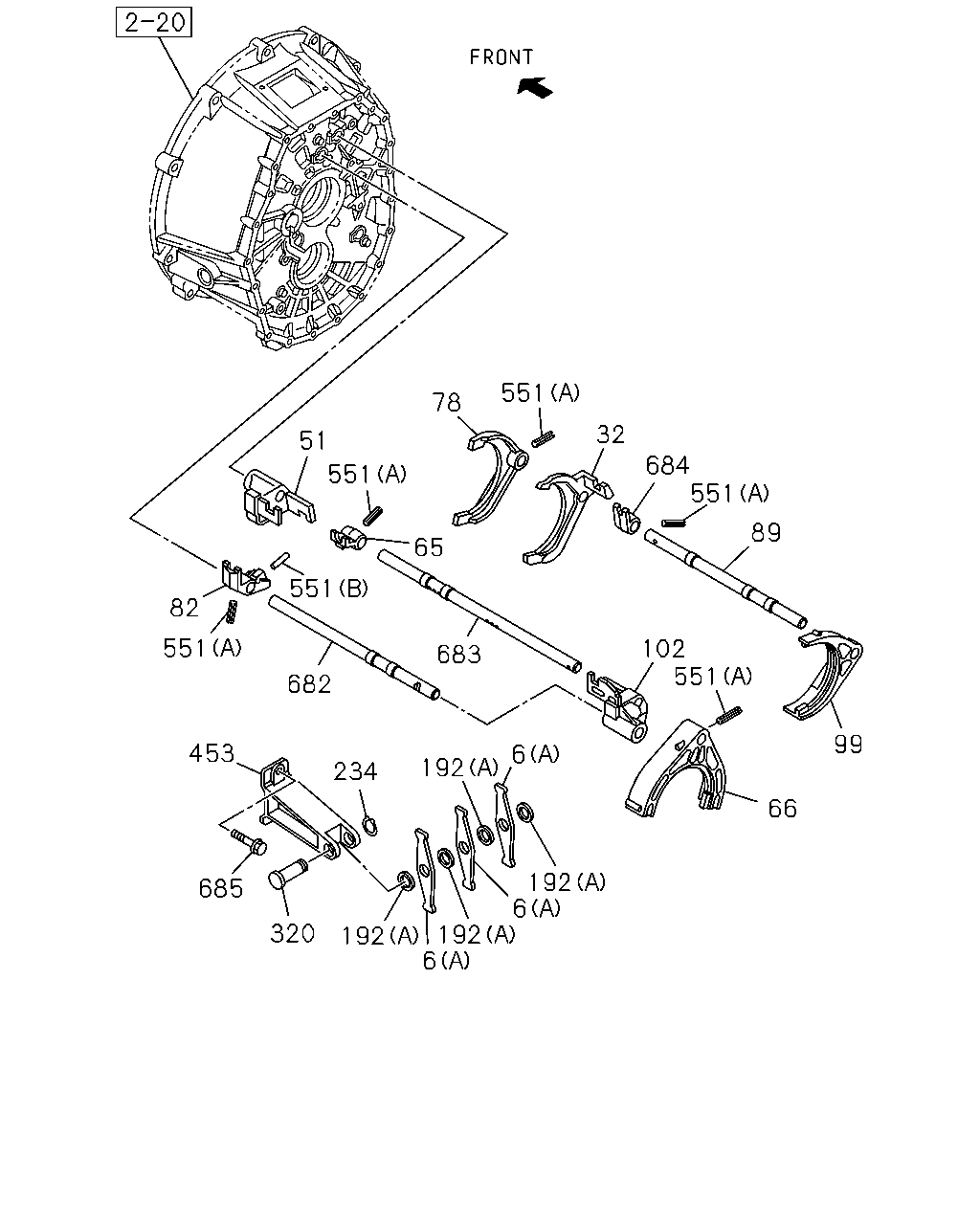

551 78 32 89 551 684 102 551 99 66 6 683 192 6 192 6 192 320 685 453 234 682 551 65 551 51 82 551 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8> (B)	8-98022-855-0	01	1	1302-
32	ARM; SHIFT,1ST & 2ND	8-98062-167-0	01	1	1302-1307
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1308-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1302-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1302-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1302-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1302-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1302-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1302-
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1302-1506
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL ASSISTOR SHIFT CONTROL<WX8> (B)	8-97305-661-0	02	1	1302-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1302-
320	SHAFT; LEVER	8-97377-928-0	01	1	1302-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
551	PIN; SPRING ASSISTOR SHIFT CONTROL<WX8> (C) L=25 OD=5	1-09748-032-0	01	1	1302-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1302-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1302-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1302-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1302-

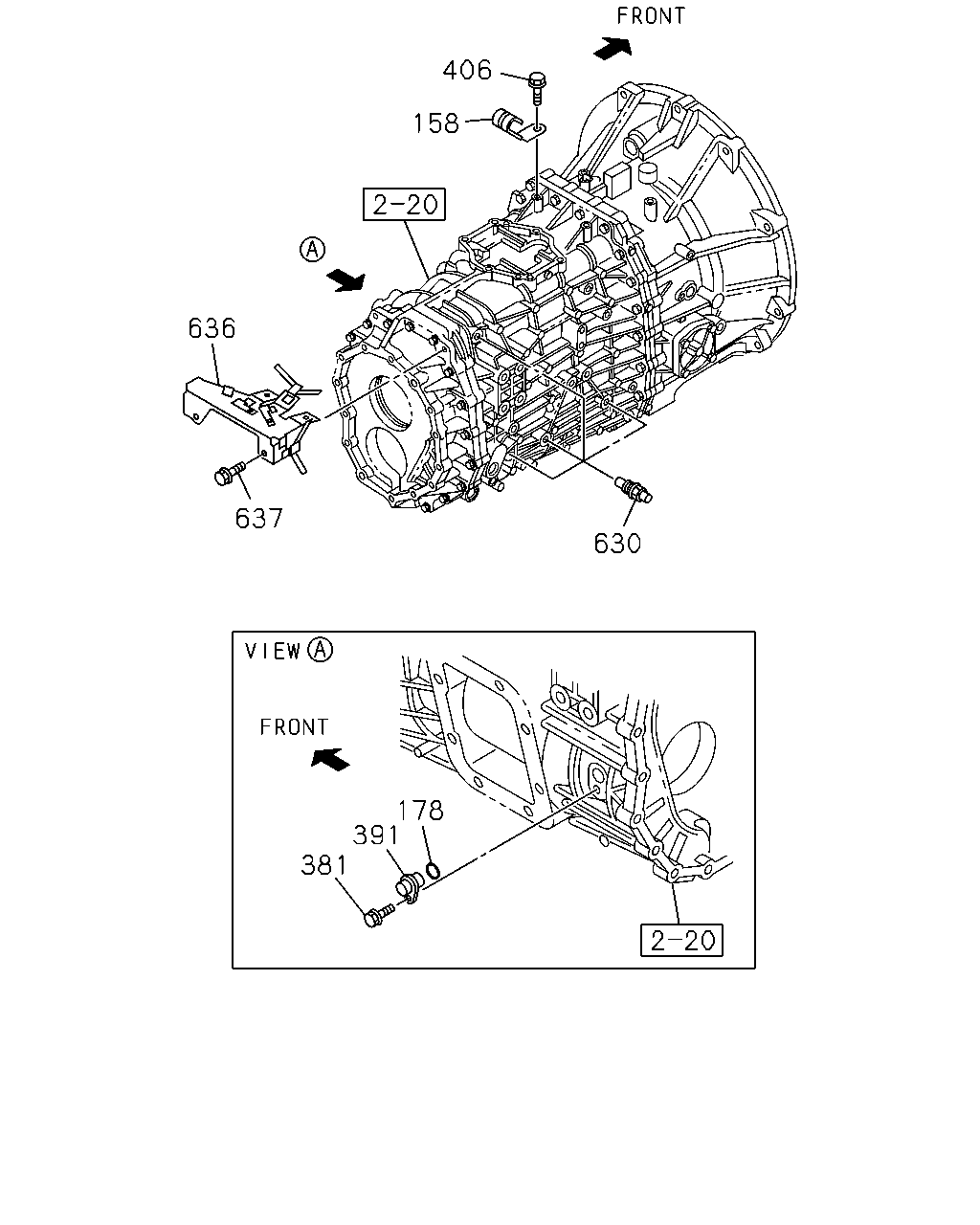

630 406 158 636 637 178 391 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1302-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1302-
381	BOLT M6X16 FLANGE	0-28650-616-0	01	1	1302-
391	PLUG; SW HOLE	8-97300-273-1	01	1	1302-
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	1302-
630	DETENT ASM	8-98019-536-0	04	1	1302-
636	BRACKET; CLIP	8-97610-096-2	01	1	1302-
637	BOLT; BRACKET M8X16 FLANGE	0-28050-816-0	02	1	1302-

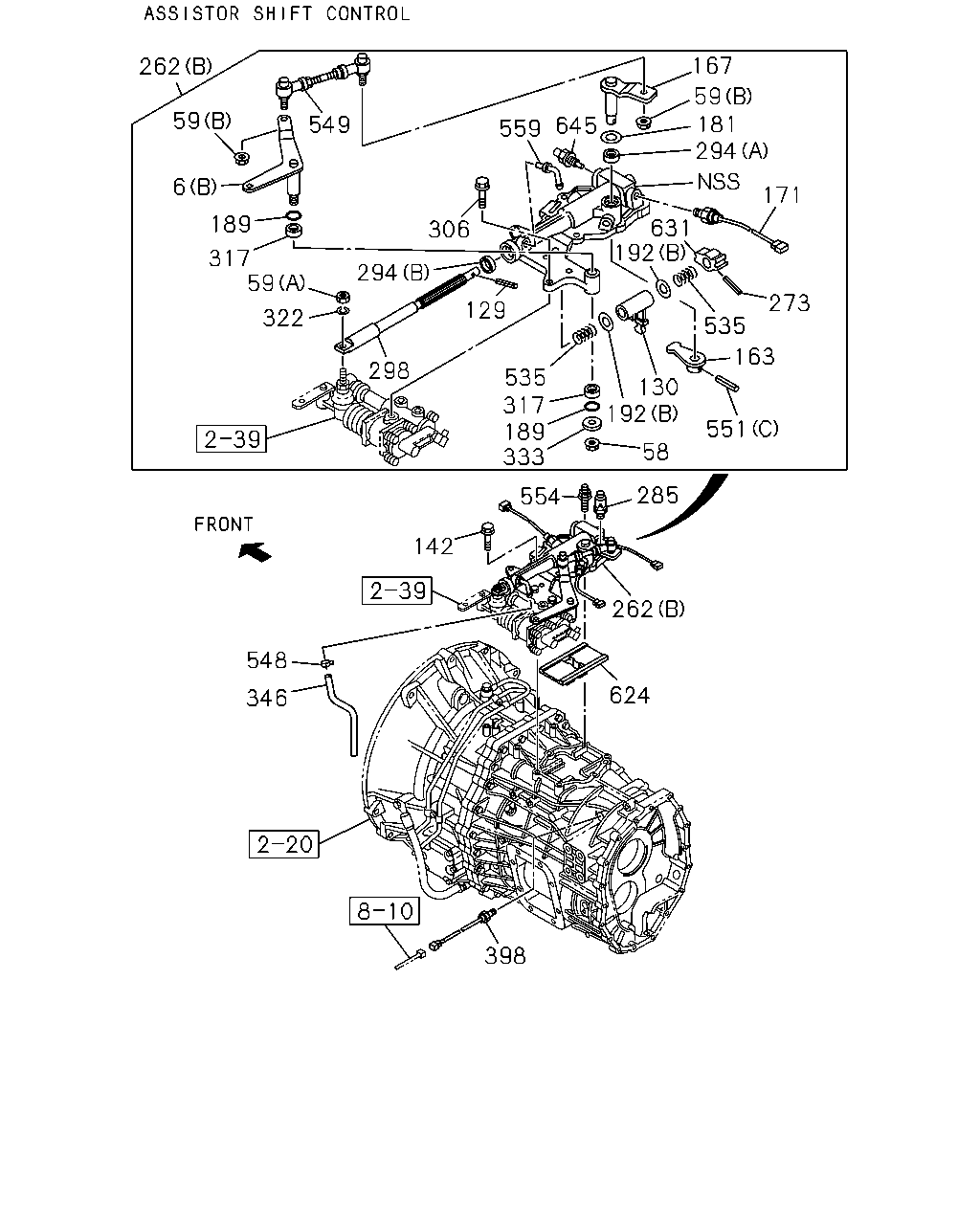

262 59 6 317 189 549 294 306 129 298 535 189 554 317 333 58 192 130 535 273 171 294 181 59 167 163 551 262 624 142 398 346 548 322 59 559 645 631 192 285

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8> (B)	8-98022-855-0	01	1	1302-
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	0-91180-108-0	02	1	1302-
129	PIN; SPR,SHIFT ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	8-98022-857-0	01	1	1302-
171	SWITCH; NEUTRAL ASSISTOR SHIFT CONTROL<WX8>	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL ASSISTOR SHIFT CONTROL<WX8>	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL ASSISTOR SHIFT CONTROL<WX8>	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL ASSISTOR SHIFT CONTROL<WX8> (B)	8-97305-661-0	02	1	1302-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1508-
273	PIN; SPR,STOPPER ASSISTOR SHIFT CONTROL<WX8> D=4.2 L=25	8-97103-142-0	01	1	1302-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	8-97363-225-0	01	1	1302-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1302-1507
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1302-
317	BUSHING; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09330-119-0	02	1	1302-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1302-
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER ASSISTOR SHIFT CONTROL<WX8>	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK ASSISTOR SHIFT CONTROL<WX8>	8-98022-841-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
551	PIN; SPRING ASSISTOR SHIFT CONTROL<WX8> (C) L=25 OD=5	1-09748-032-0	01	1	1302-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING ASSISTOR SHIFT CONTROL<WX8>	8-97305-666-0	01	1	1302-
645	DETENT ASM ASSISTOR SHIFT CONTROL<WX8>	8-98019-536-0	01	1	1302-

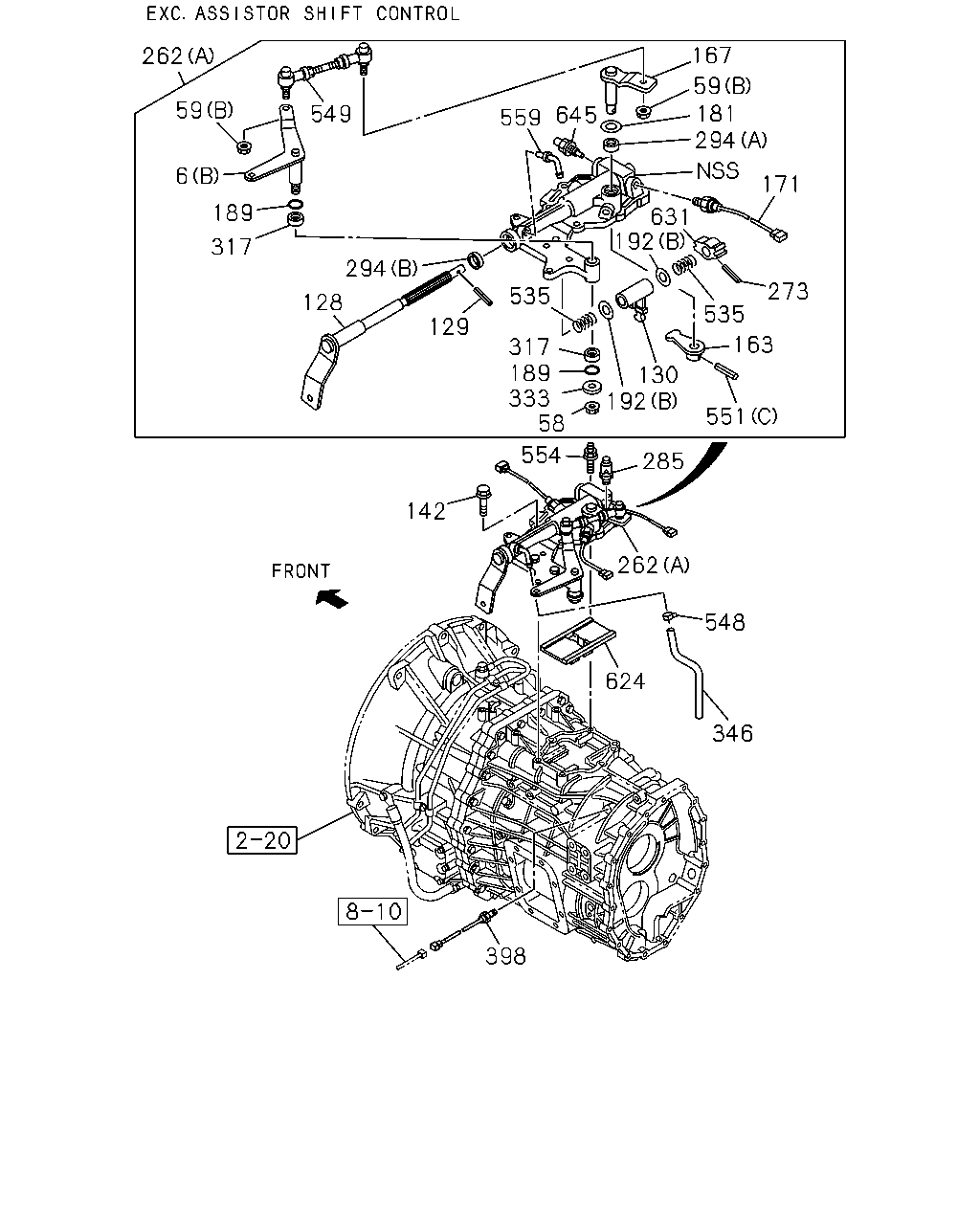

59 6 262 189 128 549 559 294 129 535 645 167 181 59 171 294 273 535 551 163 130 192 317 333 189 58 192 631 317 142 554 285 262 548 346 624 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8> (B)	8-98022-855-0	01	1	1302-
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	0-91180-108-0	02	1	1302-
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1302-1507
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1508-
129	PIN; SPR,SHIFT ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	8-98022-857-0	01	1	1302-
171	SWITCH; NEUTRAL ASSISTOR SHIFT CONTROL<WX8>	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL ASSISTOR SHIFT CONTROL<WX8>	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL ASSISTOR SHIFT CONTROL<WX8>	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL ASSISTOR SHIFT CONTROL<WX8> (B)	8-97305-661-0	02	1	1302-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1508-
273	PIN; SPR,STOPPER ASSISTOR SHIFT CONTROL<WX8> D=4.2 L=25	8-97103-142-0	01	1	1302-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	8-97363-225-0	01	1	1302-
317	BUSHING; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09330-119-0	02	1	1302-
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER ASSISTOR SHIFT CONTROL<WX8>	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK ASSISTOR SHIFT CONTROL<WX8>	8-98022-841-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
551	PIN; SPRING ASSISTOR SHIFT CONTROL<WX8> (C) L=25 OD=5	1-09748-032-0	01	1	1302-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING ASSISTOR SHIFT CONTROL<WX8>	8-97305-666-0	01	1	1302-
645	DETENT ASM ASSISTOR SHIFT CONTROL<WX8>	8-98019-536-0	01	1	1302-
