2-26 — MANUAL TRANSMISSION GEAR (#114712) — 676 parça

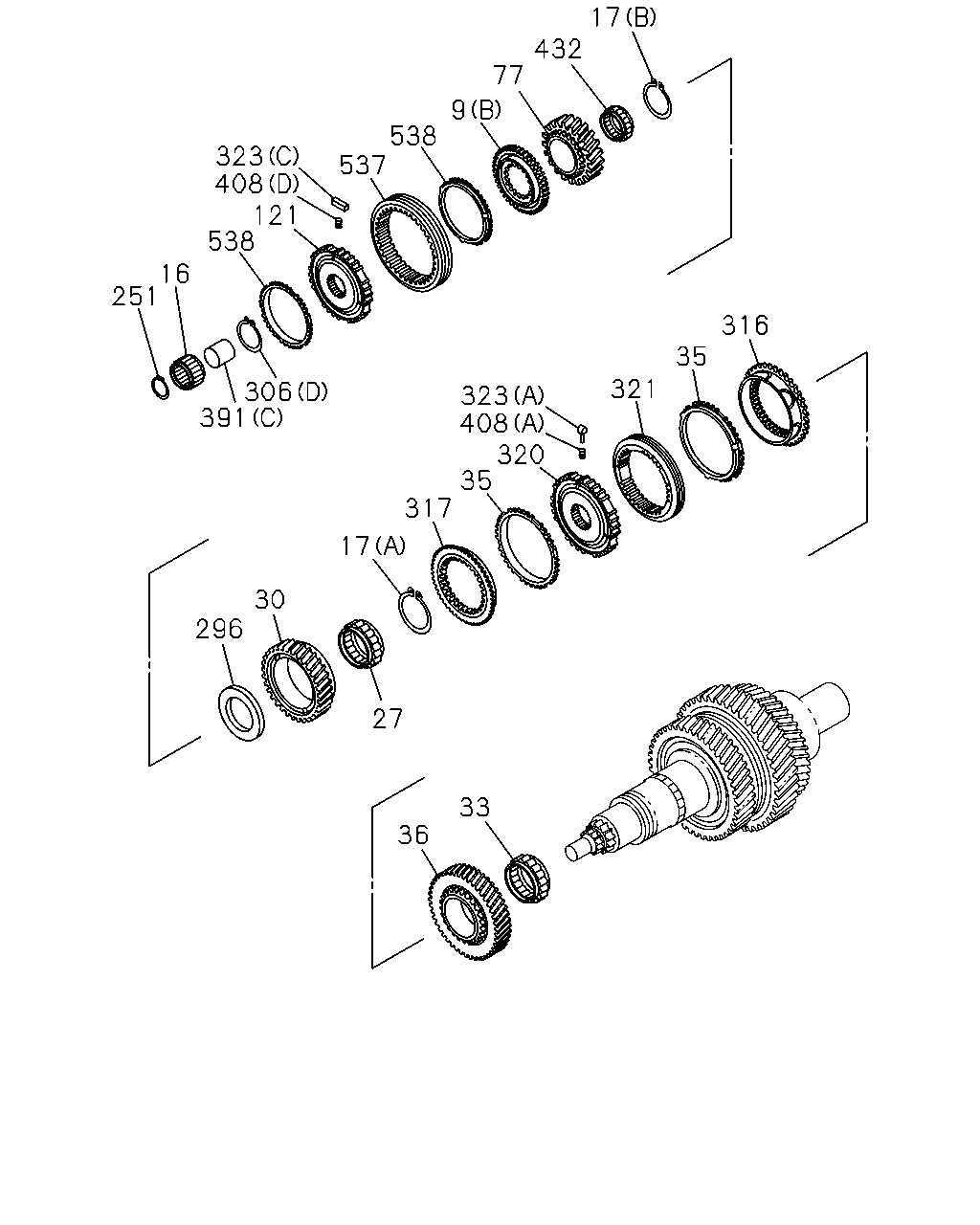

çizim 327310
323 408 121 537 538 9 77 432 17 538 16 251 306 391 323 408 320 321 35 316 317 35 17 30 296 27 33 36
BalonParca AdiParca NoAdetTipApplied Date A B
9 CLUTCH; DOG,TOP GEAR
(A) 		1-33219-326-0 01 1 1302- ●
9 CLUTCH; DOG,TOP GEAR
(B) 		1-33265-326-0 01 1 1302- ●
9 CLUTCH; DOG,TOP GEAR
(C) 		1-33265-631-0 01 1 1302- ●
16 BEARING; PILOT,MAINSHAFT 1-33239-362-0 01 1 1302- ●
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 1302- ●
17 RING; SNAP,4TH GEAR
(A) 		1-33259-115-0 01 1 1302- ●
17 RING; SNAP,4TH GEAR
(B) 		1-33259-118-0 01 1 1302-1311 ●
17 RING; SNAP,4TH GEAR
(B) 		1-33259-143-0 01 1 1312- ●
27 BEARING; 4TH GEAR 1-33259-116-0 01 1 1302-1311 ●
27 BEARING; 4TH GEAR 1-33259-142-0 01 1 1312- ●
27 BEARING; 4TH GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-106-0 02 1 1302-1305 ●
27 BEARING; 4TH GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-128-0 02 1 1302-1305 ●
27 BEARING; 4TH GEAR 1-33259-128-0 02 1 1306- ●
30 GEAR; 4TH,MAINSHAFT 1-33251-440-0 01 1 1302- ●
30 GEAR; 4TH,MAINSHAFT 1-33251-436-0 01 1 1302- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-107-0 01 1 1302-1311 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-136-0 01 1 1312- ●
33 BEARING; NEEDLE,3RD GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-065-0 01 1 1302-1305 ●
33 BEARING; NEEDLE,3RD GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-127-0 01 1 1302-1305 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-127-0 01 1 1306- ●
35 RING; BLOCK,4TH & 3RD 1-33265-498-0 02 1 1302- ●
36 GEAR; 3RD,MAINSHAFT 1-33251-445-0 01 1 1302- ●
36 GEAR; 3RD,MAINSHAFT 1-33252-478-0 01 1 1302- ●
77 GEAR; 6TH,MAINSHAFT 1-33252-483-0 01 1 1302- ●
121 HUB; CLU,6TH 1-33261-299-0 01 1 1302- ●
251 RING; SNAP 1-33239-363-0 01 1 1302- ●
296 WASHER; THRUST 1-33259-117-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(C) 		1-33259-111-0 01 1 1302-1311 ●
306 RING; SNAP,MAINSHAFT
(C) 		1-33259-141-0 01 1 1312- ●
306 RING; SNAP,MAINSHAFT
(D) 		1-38249-037-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=3.20 		1-33319-061-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.15 		1-33319-062-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.10 		1-33319-063-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.05 		1-33319-064-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.00 		1-33319-065-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.95 		1-33319-066-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.90 		1-33319-067-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.85 		1-33319-068-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.80 		1-33319-069-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.75 		1-33319-070-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.70 		1-33319-071-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.65 		1-33319-072-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.60 		1-33319-073-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.55 		1-33319-074-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.50 		1-33319-075-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.45 		1-33319-076-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.40 		1-33319-077-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.35 		1-33319-078-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.30 		1-33319-079-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.25 		1-33319-080-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.20 		1-33319-081-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.15 		1-33319-082-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.10 		1-33319-083-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.5 		1-43319-021-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.4 		1-43319-101-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.3 		1-43319-102-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.0 		1-43319-103-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.1 		1-43319-104-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.2 		1-43319-105-0 01 1 1302- ●
316 CLUTCH; DOG,3RD GEAR 1-33265-636-0 01 1 1302- ●
316 CLUTCH; DOG,3RD GEAR 1-33265-629-0 01 1 1302- ●
317 CLUTCH; DOG,4TH GEAR 1-33265-637-0 01 1 1302- ●
317 CLUTCH; DOG,4TH GEAR 1-33265-630-0 01 1 1302- ●
320 HUB; CLU,4TH & 3RD 1-33261-297-0 01 1 1302- ●
321 SLEEVE; SYN,4TH & 3RD 1-33262-241-0 01 1 1302- ●
323 INSERT
(C) 		1-33263-043-0 03 1 1302- ●
323 INSERT
(A) 		1-33263-030-0 06 1 1302- ● ●
323 INSERT
(B) 		1-33263-027-0 09 1 1302- ●
391 RING; INSIDE,SYN
(B) 		1-33259-109-0 02 1 1302- ●
391 RING; INSIDE,SYN
(C) 		1-33259-122-0 01 1 1302- ●
391 RING; INSIDE,SYN
(A) 		1-33259-132-0 02 1 1302- ●
408 SPRING
(D) 		1-33269-099-0 03 1 1302- ●
408 SPRING
(A) 		1-33269-042-0 06 1 1302- ● ●
408 SPRING
(B) 		1-33269-038-0 09 1 1302- ●
408 SPRING
(C) 		1-33269-039-0 09 1 1302- ●
432 BEARING; NEEDLE,4TH 1-33259-119-0 01 1 1302-1311 ●
432 BEARING; NEEDLE,4TH 1-33259-138-0 01 1 1312- ●
537 SLEEVE; SYN,5TH & 6TH 1-33259-120-0 01 1 1302-1311 ●
537 SLEEVE; SYN,5TH & 6TH 1-33259-139-0 01 1 1312- ●
538 RING; BLOCK,5TH & 6TH 1-33259-121-0 02 1 1302- ●

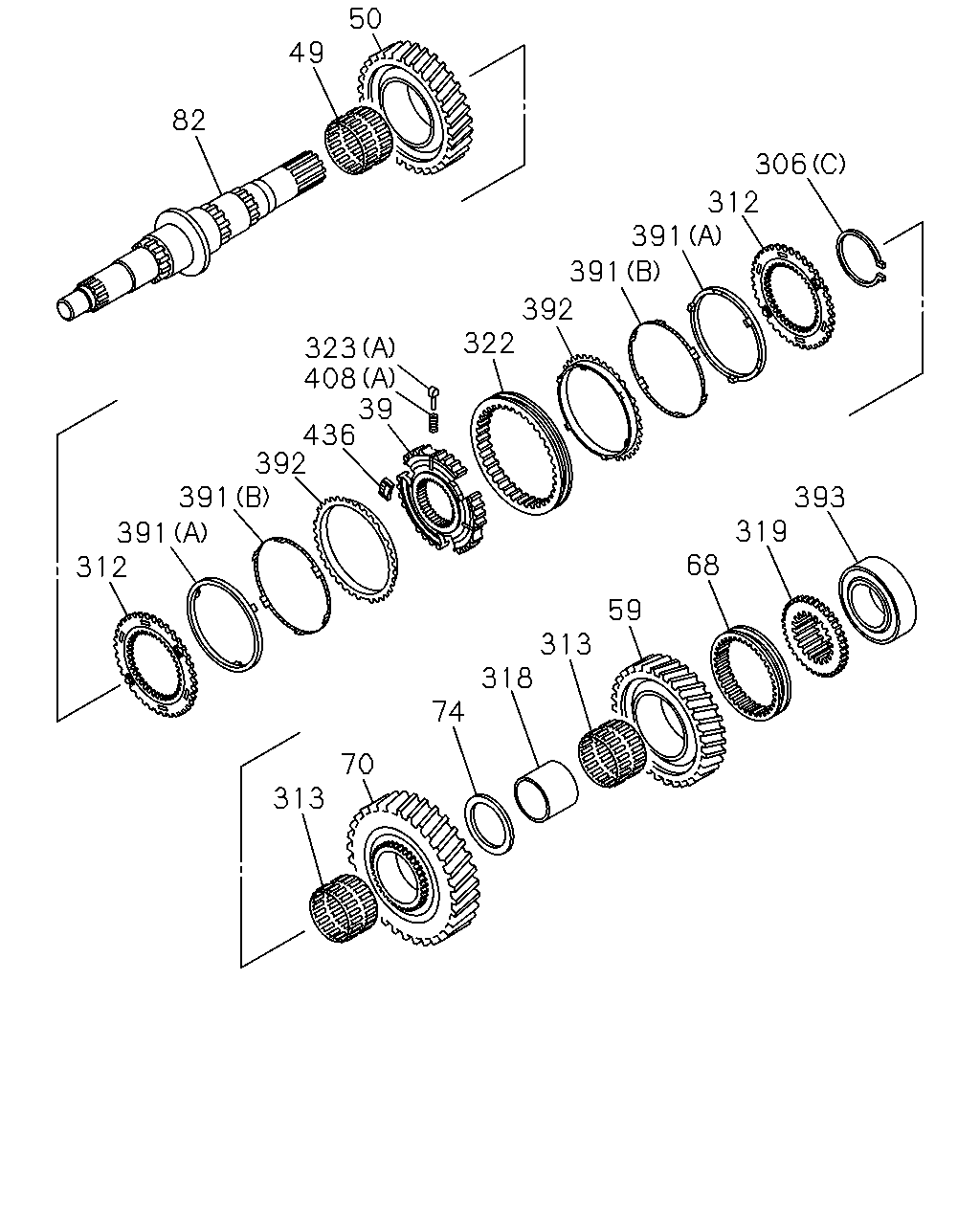

çizim 327429
82 49 50 306 312 391 391 392 322 323 408 436 39 392 391 391 312 313 74 70 318 59 313 68 319 393
BalonParca AdiParca NoAdetTipApplied Date A B
39 HUB; CLU,LOW & 2ND 1-33261-296-0 01 1 1302- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-107-0 01 1 1302-1311 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-136-0 01 1 1312- ●
49 BEARING; NEEDLE,2ND GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-058-0 02 1 1302-1305 ●
49 BEARING; NEEDLE,2ND GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-126-0 02 1 1302-1305 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-126-0 02 1 1306- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-437-0 01 1 1302- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-435-0 01 1 1302-1305 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-448-0 01 1 1306- ●
59 GEAR; REV MAINSHAFT
PTO CONTROL<SV6> 		1-33252-482-0 01 1 1302-1311 ●
59 GEAR; REV MAINSHAFT
EXC. PTO CONTROL<SV6> 		1-33252-484-0 01 1 1302-1311 ●
59 GEAR; REV MAINSHAFT 1-33252-484-0 01 1 1312- ●
59 GEAR; REV MAINSHAFT 1-33257-100-0 01 1 1302-1305 ●
59 GEAR; REV MAINSHAFT 1-33257-101-0 01 1 1306- ●
68 SLEEVE; 1ST TO REV 1-33259-075-0 01 1 1302- ●
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 1302- ●
70 GEAR; 1ST,MAINSHAFT 1-33252-481-0 01 1 1302- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-434-0 01 1 1302- ●
74 WASHER; THRUST,REV GEAR 1-33259-113-0 01 1 1302- ●
82 SHAFT; MAIN,TRANS 1-33231-341-0 01 1 1302- ●
82 SHAFT; MAIN,TRANS 1-33231-337-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(C) 		1-33259-111-0 01 1 1302-1311 ●
306 RING; SNAP,MAINSHAFT
(C) 		1-33259-141-0 01 1 1312- ●
306 RING; SNAP,MAINSHAFT
(D) 		1-38249-037-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=3.20 		1-33319-061-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.15 		1-33319-062-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.10 		1-33319-063-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.05 		1-33319-064-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.00 		1-33319-065-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.95 		1-33319-066-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.90 		1-33319-067-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.85 		1-33319-068-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.80 		1-33319-069-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.75 		1-33319-070-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.70 		1-33319-071-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.65 		1-33319-072-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.60 		1-33319-073-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.55 		1-33319-074-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.50 		1-33319-075-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.45 		1-33319-076-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.40 		1-33319-077-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.35 		1-33319-078-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.30 		1-33319-079-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.25 		1-33319-080-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.20 		1-33319-081-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.15 		1-33319-082-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.10 		1-33319-083-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.5 		1-43319-021-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.4 		1-43319-101-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.3 		1-43319-102-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.0 		1-43319-103-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.1 		1-43319-104-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.2 		1-43319-105-0 01 1 1302- ●
312 CLUTCH; DOG,1ST GEAR 1-33265-634-0 02 1 1302- ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-112-0 02 1 1302- ●
313 BEARING; NEEDLE,LOW GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-047-0 01 1 1302-1305 ●
313 BEARING; NEEDLE,LOW GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-124-0 01 1 1302-1305 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-124-0 01 1 1306- ●
318 COLLAR; DIST,REV GEAR 1-33259-114-0 01 1 1302- ●
319 CLUTCH; SLIDING 1-33265-635-0 01 1 1302-1311 ●
319 CLUTCH; SLIDING 1-33265-648-0 01 1 1312- ●
322 SLEEVE; SYN,LOW & 2ND 1-33262-240-0 01 1 1302- ●
323 INSERT
(C) 		1-33263-043-0 03 1 1302- ●
323 INSERT
(A) 		1-33263-030-0 06 1 1302- ● ●
323 INSERT
(B) 		1-33263-027-0 09 1 1302- ●
391 RING; INSIDE,SYN
(B) 		1-33259-109-0 02 1 1302- ●
391 RING; INSIDE,SYN
(C) 		1-33259-122-0 01 1 1302- ●
391 RING; INSIDE,SYN
(A) 		1-33259-132-0 02 1 1302- ●
392 RING; OUTSIDE,SYN 1-33259-110-0 02 1 1302- ●
393 BEARING; MAINSHAFT END 1-33219-330-0 01 1 1302- ●
393 BEARING; MAINSHAFT END 1-33259-104-0 01 1 1302- ●
408 SPRING
(D) 		1-33269-099-0 03 1 1302- ●
408 SPRING
(A) 		1-33269-042-0 06 1 1302- ● ●
408 SPRING
(B) 		1-33269-038-0 09 1 1302- ●
408 SPRING
(C) 		1-33269-039-0 09 1 1302- ●
436 KEY; LOW & 2ND 1-33269-046-0 03 1 1302- ●
çizim 327467
325 1 3 301
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; TOP GEAR,TRANS 1-33215-037-0 01 1 1302- ●
1 SHAFT; TOP GEAR,TRANS 1-33215-036-0 01 1 1302- ●
3 BEARING; TOP GEAR SHAFT 1-33219-324-0 01 1 1302- ●
3 BEARING; TOP GEAR SHAFT 1-33219-320-0 01 1 1302- ●
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33139-042-0 01 1 1302- ●
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33139-043-0 01 1 1302- ●
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33139-045-0 01 1 1302- ●
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33139-046-0 01 1 1302- ●
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33139-201-0 01 1 1302- ●
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33139-202-0 01 1 1302- ●
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33139-206-0 01 1 1302- ●
301 SHIM; TOP GEAR SHAFT
ASSISTOR SHIFT CONTROL<WX8> T=1.20 		1-33139-047-0 01 1 1302-1305 ●
301 SHIM; TOP GEAR SHAFT
T=1.20 		1-33139-047-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
ASSISTOR SHIFT CONTROL<WX8> T=1.10 		1-33139-050-0 01 1 1302-1305 ●
301 SHIM; TOP GEAR SHAFT
T=1.10 		1-33139-050-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
ASSISTOR SHIFT CONTROL<WX8> T=1.05 		1-33139-203-0 01 1 1302-1305 ●
301 SHIM; TOP GEAR SHAFT
ASSISTOR SHIFT CONTROL<WX8> T=1.15 		1-33139-204-0 01 1 1302-1305 ●
301 SHIM; TOP GEAR SHAFT
T=1.15 		1-33139-204-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
ASSISTOR SHIFT CONTROL<WX8> T=1.25 		1-33139-205-0 01 1 1302-1305 ●
301 SHIM; TOP GEAR SHAFT
T=1.25 		1-33139-205-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
ASSISTOR SHIFT CONTROL<WX8> T=0.90 		1-33139-207-0 01 1 1302-1305 ●
301 SHIM; TOP GEAR SHAFT
ASSISTOR SHIFT CONTROL<WX8> T=0.95 		1-33139-208-0 01 1 1302-1305 ●
301 SHIM; TOP GEAR SHAFT
ASSISTOR SHIFT CONTROL<WX8> T=1.00 		1-33139-209-0 01 1 1302-1305 ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.80 		1-33139-039-0 01 1 1302-1305 ●
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33139-039-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.70 		1-33139-041-0 01 1 1302-1305 ●
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33139-041-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.30 		1-33139-223-0 01 1 1302-1305 ●
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33139-223-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.25 		1-33139-224-0 01 1 1302-1305 ●
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33139-224-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.20 		1-33139-225-0 01 1 1302-1305 ●
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33139-225-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.15 		1-33139-226-0 01 1 1302-1305 ●
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33139-226-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.10 		1-33139-227-0 01 1 1302-1305 ●
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33139-227-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.05 		1-33139-228-0 01 1 1302-1305 ●
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33139-228-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.00 		1-33139-229-0 01 1 1302-1305 ●
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33139-229-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.95 		1-33139-230-0 01 1 1302-1305 ●
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33139-230-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.90 		1-33139-231-0 01 1 1302-1305 ●
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33139-231-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.85 		1-33139-232-0 01 1 1302-1305 ●
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33139-232-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.75 		1-33139-233-0 01 1 1302-1305 ●
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33139-233-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.65 		1-33139-234-0 01 1 1302-1305 ●
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33139-234-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) 15" CLUTCH(RE9) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> T=1.50 		8-98080-571-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
15" CLUTCH(RE9) EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=1.50 		8-98080-571-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) 15" CLUTCH(RE9) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> T=1.60 		8-98080-572-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
15" CLUTCH(RE9) EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=1.60 		8-98080-572-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 1302-1305 ●
325 SHIM; COUNTER SHAFT BRG
ASSISTOR SHIFT CONTROL<WX8> T=1.40 		1-33389-051-0 01 1 1302-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.30 		1-33389-053-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
T=1.20 		1-33389-056-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
T=1.10 		1-33389-058-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO CONTROL<SV6> T=1.35 		1-33389-052-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.35 		1-33389-052-0 01 1 1312- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO CONTROL<SV6> T=1.25 		1-33389-055-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.25 		1-33389-055-0 01 1 1312- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO CONTROL<SV6> T=1.15 		1-33389-057-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.15 		1-33389-057-0 01 1 1312- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=1.55 		1-33389-048-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=1.45 		1-33389-050-0 01 1 1302-1305 ●
325 SHIM; COUNTER SHAFT BRG
ASSISTOR SHIFT CONTROL<WX8> T=1.45 		1-33389-050-0 01 1 1302-1305 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO CONTROL<SV6> T=1.45 		1-33389-050-0 01 1 1306-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 1312- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=1.65 		1-33389-077-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=1.75 		1-33389-078-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=1.85 		1-33389-079-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=1.95 		1-33389-080-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=2.05 		1-33389-081-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 1302-1305 ● ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) 15" CLUTCH(RE9) PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.60 		1-33389-047-0 01 1 1306- ● ●
325 SHIM; COUNTER SHAFT BRG
15" CLUTCH(RE9) EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6>, ASSISTOR SHIFT CONTROL<WX8> T=1.60 		1-33389-047-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 1302-1305 ● ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) 15" CLUTCH(RE9) PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.50 		1-33389-049-0 01 1 1306- ● ●
325 SHIM; COUNTER SHAFT BRG
15" CLUTCH(RE9) EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6>, ASSISTOR SHIFT CONTROL<WX8> T=1.50 		1-33389-049-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1302- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1302- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1302- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1302- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.40 		1-33389-086-0 01 1 1302-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.35 		1-33389-087-0 01 1 1302-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.30 		1-33389-088-0 01 1 1302-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.25 		1-33389-089-0 01 1 1302-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1306- ●

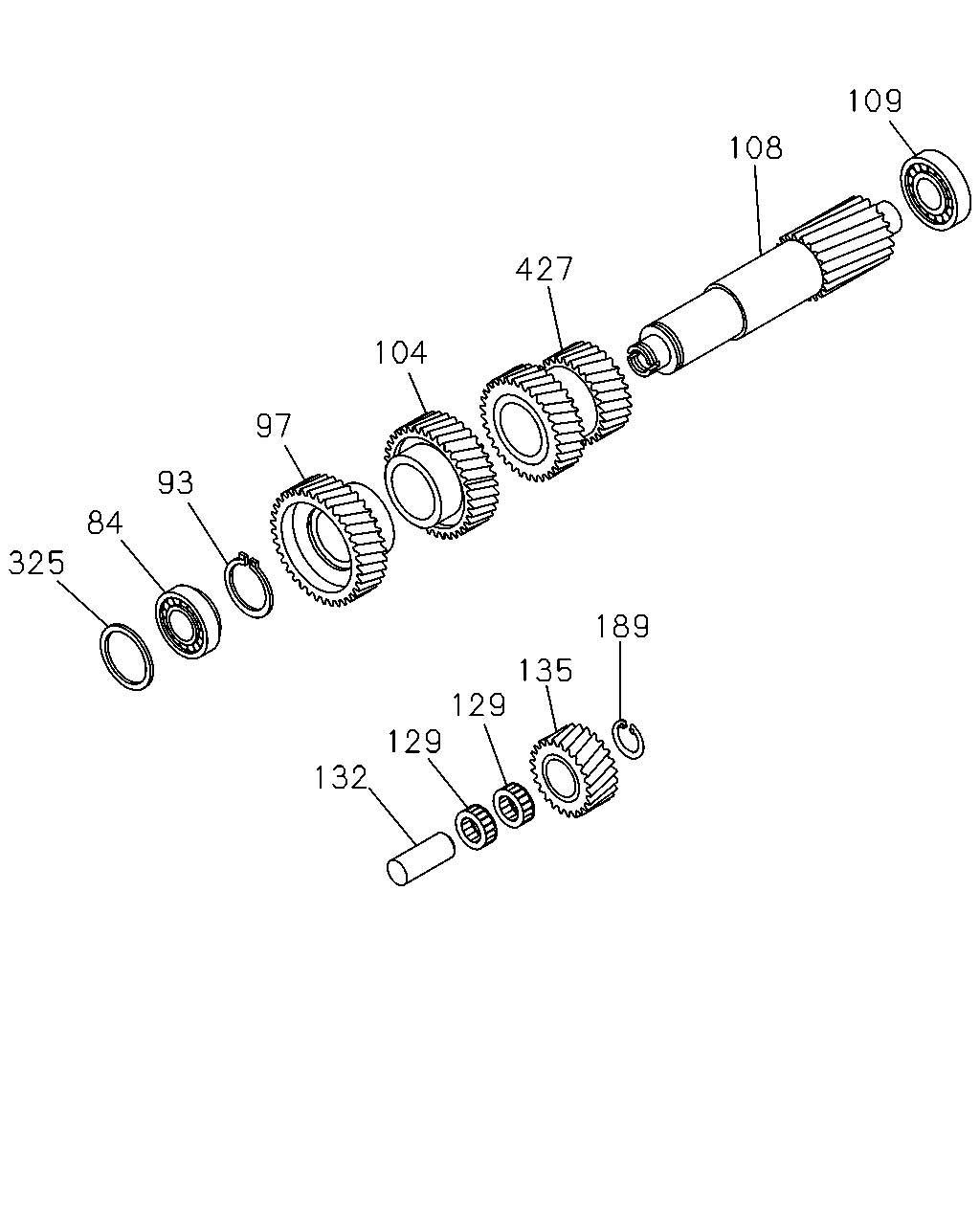

çizim 327498
109 108 427 104 97 93 84 325 132 129 129 135 189
BalonParca AdiParca NoAdetTipApplied Date A B
84 BEARING; COUNTER SHAFT,FRT 1-33239-360-0 01 1 1302- ●
84 BEARING; COUNTER SHAFT,FRT
PTO CONTROL<SV6> 		1-33312-016-0 01 1 1302-1305 ●
84 BEARING; COUNTER SHAFT,FRT
EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8> 		1-33312-016-0 01 1 1302-1305 ●
84 BEARING; COUNTER SHAFT,FRT 1-33312-016-0 01 1 1306- ●
84 BEARING; COUNTER SHAFT,FRT
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> 		1-33312-015-0 01 1 1302-1305 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.6 		1-33319-264-0 01 1 1306- ●
93 RING; SNAP,COUNTER FRT BRG 1-33319-257-0 01 1 1302- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-251-0 01 1 1302- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.5 		1-33319-252-0 01 1 1302- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.4 		1-33319-253-0 01 1 1302- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.3 		1-33319-254-0 01 1 1302- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.2 		1-33319-255-0 01 1 1302- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-256-0 01 1 1302- ●
97 GEAR; 5TH,COUNTER 1-33338-403-0 01 1 1302- ●
97 GEAR; 5TH,COUNTER 1-33338-398-0 01 1 1302- ●
104 GEAR; 4TH,COUNTER 1-33338-401-0 01 1 1302- ●
104 GEAR; 4TH,COUNTER 1-33338-397-0 01 1 1302- ●
108 SHAFT; COUNTER 1-33311-349-0 01 1 1302- ●
108 SHAFT; COUNTER 1-33311-347-0 01 1 1302- ●
109 BEARING; COUNTER SHAFT,RR 1-33239-361-0 01 1 1302- ●
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 1302- ●
129 BEARING; NEEDLE,IDLER 1-33369-025-0 02 1 1302- ●
129 BEARING; NEEDLE,IDLER
ASSISTOR SHIFT CONTROL<WX8> 		1-33369-013-0 02 1 1302-1305 ●
129 BEARING; NEEDLE,IDLER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33369-026-0 02 1 1302-1305 ●
129 BEARING; NEEDLE,IDLER 1-33369-026-0 02 1 1306- ●
132 SHAFT; REV 1-33351-043-0 01 1 1302- ●
132 SHAFT; REV 1-33351-024-0 01 1 1302- ●
135 GEAR; REV IDLER
PTO CONTROL<SV6> 		1-33361-093-0 01 1 1302-1311 ●
135 GEAR; REV IDLER
EXC. PTO CONTROL<SV6> 		1-33361-094-0 01 1 1302-1311 ●
135 GEAR; REV IDLER 1-33361-095-0 01 1 1312- ●
135 GEAR; REV IDLER 1-33361-092-0 01 1 1302-1305 ●
135 GEAR; REV IDLER 1-33361-096-0 01 1 1306- ●
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) 15" CLUTCH(RE9) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> T=1.50 		8-98080-571-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
15" CLUTCH(RE9) EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=1.50 		8-98080-571-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) 15" CLUTCH(RE9) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> T=1.60 		8-98080-572-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
15" CLUTCH(RE9) EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=1.60 		8-98080-572-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 1302-1305 ●
325 SHIM; COUNTER SHAFT BRG
ASSISTOR SHIFT CONTROL<WX8> T=1.40 		1-33389-051-0 01 1 1302-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.30 		1-33389-053-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
T=1.20 		1-33389-056-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
T=1.10 		1-33389-058-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO CONTROL<SV6> T=1.35 		1-33389-052-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.35 		1-33389-052-0 01 1 1312- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO CONTROL<SV6> T=1.25 		1-33389-055-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.25 		1-33389-055-0 01 1 1312- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO CONTROL<SV6> T=1.15 		1-33389-057-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.15 		1-33389-057-0 01 1 1312- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=1.55 		1-33389-048-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=1.45 		1-33389-050-0 01 1 1302-1305 ●
325 SHIM; COUNTER SHAFT BRG
ASSISTOR SHIFT CONTROL<WX8> T=1.45 		1-33389-050-0 01 1 1302-1305 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO CONTROL<SV6> T=1.45 		1-33389-050-0 01 1 1306-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 1312- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=1.65 		1-33389-077-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=1.75 		1-33389-078-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=1.85 		1-33389-079-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=1.95 		1-33389-080-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=2.05 		1-33389-081-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 1302-1305 ● ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) 15" CLUTCH(RE9) PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.60 		1-33389-047-0 01 1 1306- ● ●
325 SHIM; COUNTER SHAFT BRG
15" CLUTCH(RE9) EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6>, ASSISTOR SHIFT CONTROL<WX8> T=1.60 		1-33389-047-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 1302-1305 ● ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) 15" CLUTCH(RE9) PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.50 		1-33389-049-0 01 1 1306- ● ●
325 SHIM; COUNTER SHAFT BRG
15" CLUTCH(RE9) EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6>, ASSISTOR SHIFT CONTROL<WX8> T=1.50 		1-33389-049-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1302- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1302- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1302- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1302- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.40 		1-33389-086-0 01 1 1302-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.35 		1-33389-087-0 01 1 1302-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.30 		1-33389-088-0 01 1 1302-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.25 		1-33389-089-0 01 1 1302-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1306- ●
427 GEAR; 2ND & 3RD,COUNTER
PTO CONTROL<SV6> 		1-33332-131-0 01 1 1302-1305 ●
427 GEAR; 2ND & 3RD,COUNTER
EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8> 		1-33332-131-0 01 1 1302-1305 ●
427 GEAR; 2ND & 3RD,COUNTER
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> 		1-33332-130-0 01 1 1302-1305 ●
427 GEAR; 2ND & 3RD,COUNTER 1-33332-132-0 01 1 1306- ●

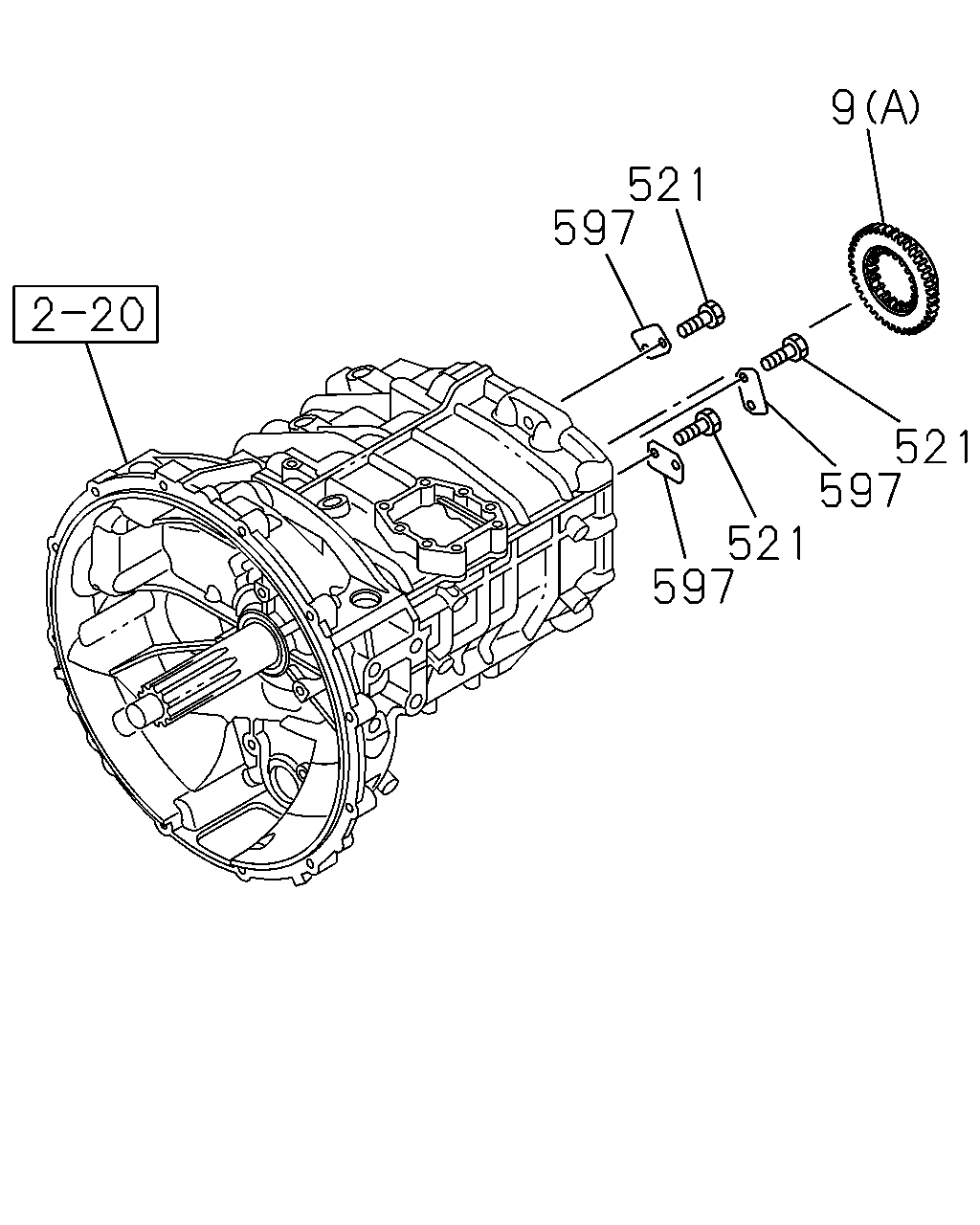

çizim 327534
597 21 9 521 597 521 597
BalonParca AdiParca NoAdetTipApplied Date A B
9 CLUTCH; DOG,TOP GEAR
(A) 		1-33219-326-0 01 1 1302- ●
9 CLUTCH; DOG,TOP GEAR
(B) 		1-33265-326-0 01 1 1302- ●
9 CLUTCH; DOG,TOP GEAR
(C) 		1-33265-631-0 01 1 1302- ●
21 HUB; CLU,4TH & 5TH 1-33261-295-0 01 1 1302- ●
521 BOLT 1-33129-003-0 06 1 1302-1311 ●
521 BOLT 1-34129-134-0 06 1 1312- ●
597 WASHER; TAB 1-33219-329-0 03 1 1302- ●

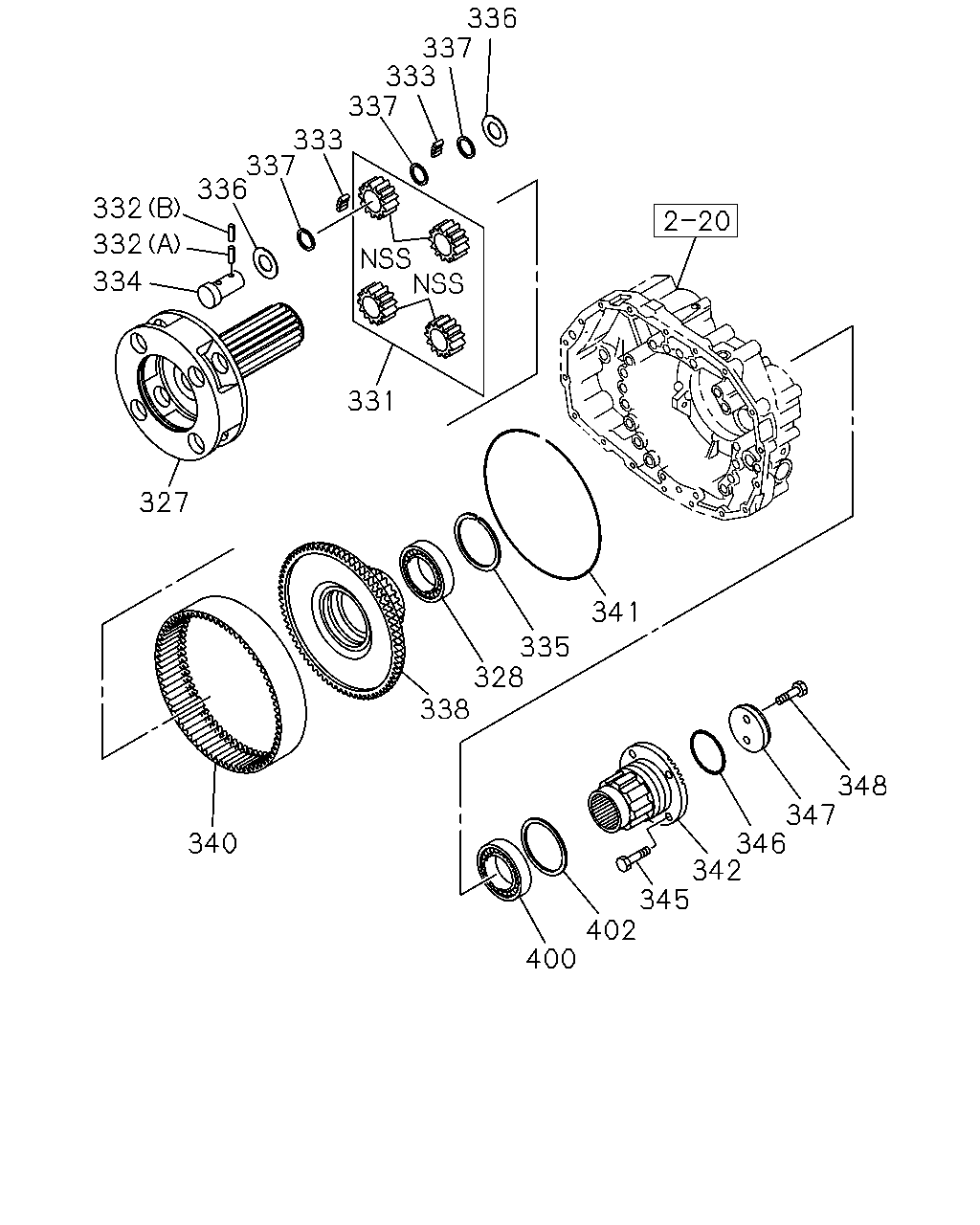

çizim 327536
348 347 346 342 345 402 400 340 338 328 335 341 327 331 334 332 332 336 337 333 337 333 337 336
BalonParca AdiParca NoAdetTipApplied Date A B
327 CARRIER; PLANETARY GEAR 1-33231-338-0 01 1 1302- ●
328 BEARING; CARRIER 1-33339-094-0 01 1 1302- ●
331 GEAR SET; PLANETARY 1-33239-350-0 01 1 1302- ●
332 PIN; LOCK,SHAFT
(A) 		1-33239-178-0 04 1 1302- ●
332 PIN; LOCK,SHAFT
(B) 		1-33239-179-0 04 1 1302- ●
333 ROLLER; PLANETARY GEAR 1-33239-232-0 AR 1 1302- ●
334 SHAFT; PLANETARY GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33239-351-0 04 1 1302-1305 ●
334 SHAFT; PLANETARY GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33239-359-0 04 1 1302-1305 ●
334 SHAFT; PLANETARY GEAR 1-33239-359-0 04 1 1306- ●
335 RING; SNAP,BEARING
T=2.50 		1-33339-075-0 01 1 1302- ●
335 RING; SNAP,BEARING
T=2.40 		1-33339-076-0 01 1 1302- ●
335 RING; SNAP,BEARING
T=2.30 		1-33339-077-0 01 1 1302- ●
335 RING; SNAP,BEARING
T=2.20 		1-33339-078-0 01 1 1302- ●
335 RING; SNAP,BEARING
T=2.10 		1-33339-079-0 01 1 1302- ●
335 RING; SNAP,BEARING
T=2.00 		1-33339-080-0 01 1 1302- ●
336 WASHER; THRUST,PLANETARY GEAR 1-33239-174-0 08 1 1302- ●
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 1302- ●
338 CARRIER; RING GEAR 1-33331-275-0 01 1 1302- ●
340 GEAR; RING
ASSISTOR SHIFT CONTROL<WX8> 		1-33339-095-0 01 1 1302-1305 ●
340 GEAR; RING
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33339-099-0 01 1 1302-1305 ●
340 GEAR; RING 1-33339-099-0 01 1 1306- ●
341 WIRE; LOCK,CARRIER 1-33339-096-0 01 1 1302- ●
342 FLANGE; OUTPUT 1-37243-432-0 01 1 1302-1311 ●
342 FLANGE; OUTPUT 1-37243-434-0 01 1 1312- ●
342 FLANGE; OUTPUT 1-37243-429-0 01 1 1302- ●
345 BOLT; FLANGE TO YOKE 1-37249-210-0 04 1 1302- ●
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 1302- ●
346 GASKET; FLANGE 1-37249-156-0 01 1 1302- ●
347 WASHER; FLANGE
PTO CONTROL<SV6> 		1-37249-208-0 01 1 1302-1311 ●
347 WASHER; FLANGE
EXC. PTO CONTROL<SV6> 		1-37249-211-0 01 1 1302-1311 ●
347 WASHER; FLANGE 1-37249-211-0 01 1 1312- ●
347 WASHER; FLANGE 1-09509-060-0 01 1 1302- ●
348 BOLT; SHAFT 1-36139-024-0 01 1 1302-1311 ●
348 BOLT; SHAFT 1-36139-025-0 01 1 1312- ●
348 BOLT; SHAFT 1-37249-207-0 02 1 1302-1305 ●
348 BOLT; SHAFT 1-37249-215-0 02 1 1306- ●
400 BEARING; OUTPUT SHAFT RR 1-33139-212-0 01 1 1302- ●
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=2.20 		1-33139-064-0 01 1 1302-1305 ●
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=2.10 		1-33139-065-0 01 1 1302-1305 ●
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=2.00 		1-33139-066-0 01 1 1302-1305 ●
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=1.90 		1-33139-067-0 01 1 1302-1305 ●
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=1.80 		1-33139-068-0 01 1 1302-1305 ●
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=1.70 		1-33139-069-0 01 1 1302-1305 ●
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=1.60 		1-33139-070-0 01 1 1302-1305 ●
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=1.50 		1-33139-071-0 01 1 1302-1305 ●
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=1.40 		1-33139-072-0 01 1 1302-1305 ●
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=1.30 		1-33139-073-0 01 1 1302-1305 ●

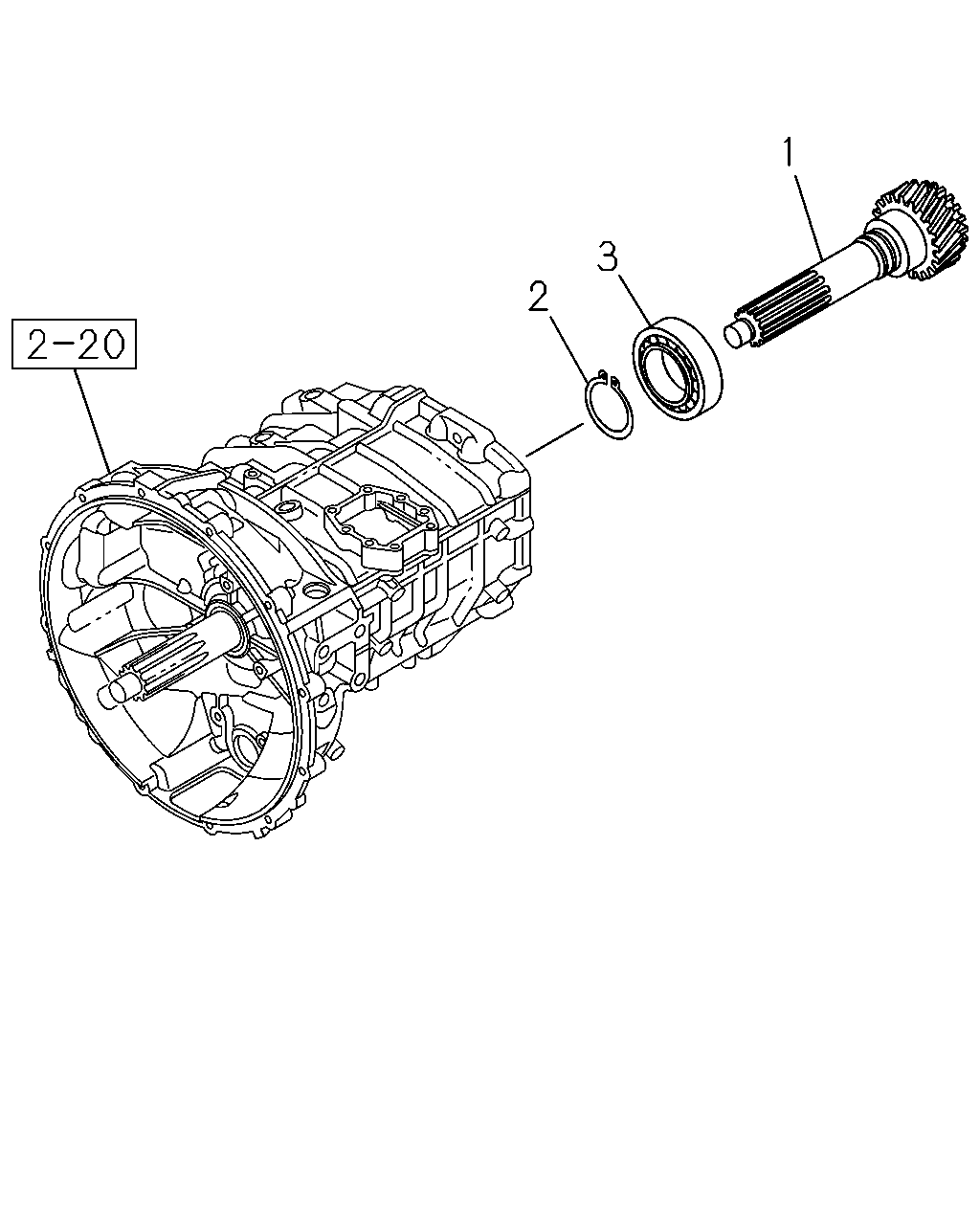

çizim 327562
1 3 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; TOP GEAR,TRANS 1-33215-037-0 01 1 1302- ●
1 SHAFT; TOP GEAR,TRANS 1-33215-036-0 01 1 1302- ●
2 RING; SNAP,TOP GEAR SHAFT 1-33219-325-0 01 1 1302- ●
3 BEARING; TOP GEAR SHAFT 1-33219-324-0 01 1 1302- ●
3 BEARING; TOP GEAR SHAFT 1-33219-320-0 01 1 1302- ●
çizim 327566
339 66 324 42 66 126 339 408 408 323
BalonParca AdiParca NoAdetTipApplied Date A B
42 SLEEVE 1-33262-195-0 01 1 1302- ●
66 RING; BLOCK,SYN 1-33339-069-0 02 1 1302- ●
126 RING; SNAP,CLU HUB
T=2.8 		1-33259-050-0 01 1 1302- ●
126 RING; SNAP,CLU HUB
T=2.7 		1-33259-051-0 01 1 1302- ●
126 RING; SNAP,CLU HUB
T=2.6 		1-33259-052-0 01 1 1302- ●
126 RING; SNAP,CLU HUB
T=2.5 		1-33259-053-0 01 1 1302- ●
126 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 1302- ●
126 RING; SNAP,CLU HUB
T=4.0 		1-33269-047-0 01 1 1302- ●
126 RING; SNAP,CLU HUB
T=3.9 		1-33269-048-0 01 1 1302- ●
126 RING; SNAP,CLU HUB
T=3.8 		1-33269-049-0 01 1 1302- ●
126 RING; SNAP,CLU HUB
T=3.7 		1-33269-050-0 01 1 1302- ●
323 INSERT
(C) 		1-33263-043-0 03 1 1302- ●
323 INSERT
(A) 		1-33263-030-0 06 1 1302- ● ●
323 INSERT
(B) 		1-33263-027-0 09 1 1302- ●
324 HUB; CLU 1-33261-230-0 01 1 1302- ●
339 CLUTCH; PLANETARY GEAR
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33265-649-0 01 1 1306- ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-453-0 01 1 1302-1305 ●
339 CLUTCH; PLANETARY GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33265-453-0 01 1 1306- ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-632-0 01 1 1302- ●
408 SPRING
(D) 		1-33269-099-0 03 1 1302- ●
408 SPRING
(A) 		1-33269-042-0 06 1 1302- ● ●
408 SPRING
(B) 		1-33269-038-0 09 1 1302- ●
408 SPRING
(C) 		1-33269-039-0 09 1 1302- ●

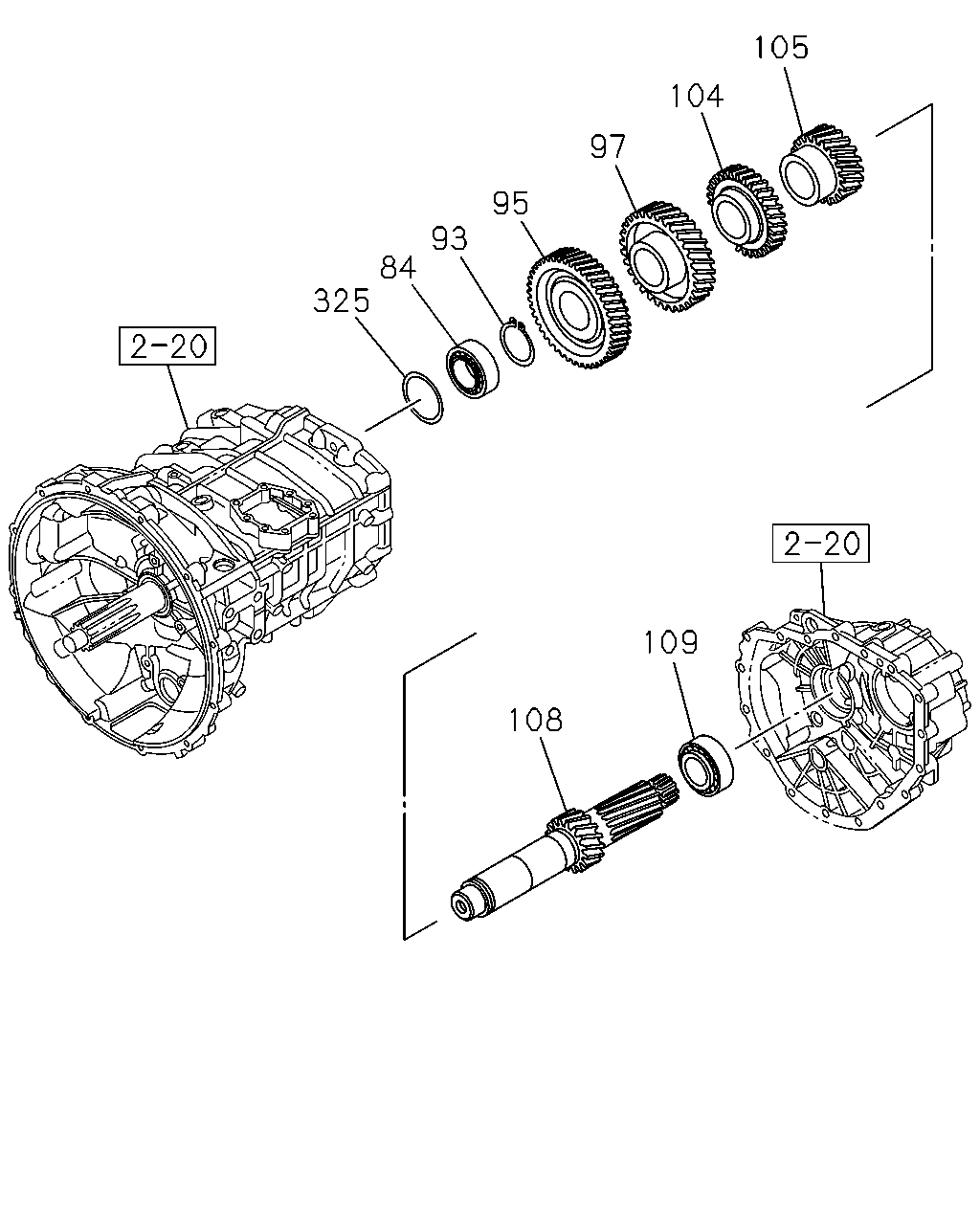

çizim 330917
325 84 93 95 97 104 105 109 108
BalonParca AdiParca NoAdetTipApplied Date A B
84 BEARING; COUNTER SHAFT,FRT 1-33239-360-0 01 1 1302- ●
84 BEARING; COUNTER SHAFT,FRT
PTO CONTROL<SV6> 		1-33312-016-0 01 1 1302-1305 ●
84 BEARING; COUNTER SHAFT,FRT
EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8> 		1-33312-016-0 01 1 1302-1305 ●
84 BEARING; COUNTER SHAFT,FRT 1-33312-016-0 01 1 1306- ●
84 BEARING; COUNTER SHAFT,FRT
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> 		1-33312-015-0 01 1 1302-1305 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.6 		1-33319-264-0 01 1 1306- ●
93 RING; SNAP,COUNTER FRT BRG 1-33319-257-0 01 1 1302- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-251-0 01 1 1302- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.5 		1-33319-252-0 01 1 1302- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.4 		1-33319-253-0 01 1 1302- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.3 		1-33319-254-0 01 1 1302- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.2 		1-33319-255-0 01 1 1302- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-256-0 01 1 1302- ●
95 GEAR; REV,COUNTER 1-33338-404-0 01 1 1302- ●
97 GEAR; 5TH,COUNTER 1-33338-403-0 01 1 1302- ●
97 GEAR; 5TH,COUNTER 1-33338-398-0 01 1 1302- ●
104 GEAR; 4TH,COUNTER 1-33338-401-0 01 1 1302- ●
104 GEAR; 4TH,COUNTER 1-33338-397-0 01 1 1302- ●
105 GEAR; 3RD,COUNTER 1-33338-399-0 01 1 1302- ●
108 SHAFT; COUNTER 1-33311-349-0 01 1 1302- ●
108 SHAFT; COUNTER 1-33311-347-0 01 1 1302- ●
109 BEARING; COUNTER SHAFT,RR 1-33239-361-0 01 1 1302- ●
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) 15" CLUTCH(RE9) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> T=1.50 		8-98080-571-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
15" CLUTCH(RE9) EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=1.50 		8-98080-571-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) 15" CLUTCH(RE9) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> T=1.60 		8-98080-572-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
15" CLUTCH(RE9) EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=1.60 		8-98080-572-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 1302-1305 ●
325 SHIM; COUNTER SHAFT BRG
ASSISTOR SHIFT CONTROL<WX8> T=1.40 		1-33389-051-0 01 1 1302-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.30 		1-33389-053-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
T=1.20 		1-33389-056-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
T=1.10 		1-33389-058-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO CONTROL<SV6> T=1.35 		1-33389-052-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.35 		1-33389-052-0 01 1 1312- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO CONTROL<SV6> T=1.25 		1-33389-055-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.25 		1-33389-055-0 01 1 1312- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO CONTROL<SV6> T=1.15 		1-33389-057-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.15 		1-33389-057-0 01 1 1312- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=1.55 		1-33389-048-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=1.45 		1-33389-050-0 01 1 1302-1305 ●
325 SHIM; COUNTER SHAFT BRG
ASSISTOR SHIFT CONTROL<WX8> T=1.45 		1-33389-050-0 01 1 1302-1305 ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO CONTROL<SV6> T=1.45 		1-33389-050-0 01 1 1306-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 1312- ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=1.65 		1-33389-077-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=1.75 		1-33389-078-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=1.85 		1-33389-079-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=1.95 		1-33389-080-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> T=2.05 		1-33389-081-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1302-1311 ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1312- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 1302-1305 ● ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) 15" CLUTCH(RE9) PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.60 		1-33389-047-0 01 1 1306- ● ●
325 SHIM; COUNTER SHAFT BRG
15" CLUTCH(RE9) EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6>, ASSISTOR SHIFT CONTROL<WX8> T=1.60 		1-33389-047-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 1302-1305 ● ●
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) 15" CLUTCH(RE9) PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.50 		1-33389-049-0 01 1 1306- ● ●
325 SHIM; COUNTER SHAFT BRG
15" CLUTCH(RE9) EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6>, ASSISTOR SHIFT CONTROL<WX8> T=1.50 		1-33389-049-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1302- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1302- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1302- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1302- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 1302- ●
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.40 		1-33389-086-0 01 1 1302-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.35 		1-33389-087-0 01 1 1302-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.30 		1-33389-088-0 01 1 1302-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1306- ●
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.25 		1-33389-089-0 01 1 1302-1305 ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1306- ●
çizim 331032
82 313 70 67 68 126 314 59 393 330 306 311 27 27 18 32 41 429 49 49 50 315 41 323 408 44 316 36 33 306 16 569 233 230 30 317 233 408 21 234 9 174
BalonParca AdiParca NoAdetTipApplied Date A B
9 CLUTCH; DOG,TOP GEAR
(A) 		1-33219-326-0 01 1 1302- ●
9 CLUTCH; DOG,TOP GEAR
(B) 		1-33265-326-0 01 1 1302- ●
9 CLUTCH; DOG,TOP GEAR
(C) 		1-33265-631-0 01 1 1302- ●
16 BEARING; PILOT,MAINSHAFT 1-33239-362-0 01 1 1302- ●
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 1302- ●
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 1302- ●
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 1302- ●
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 1302- ●
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 1302- ●
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 1302- ●
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 1302- ●
21 HUB; CLU,4TH & 5TH 1-33261-295-0 01 1 1302- ●
27 BEARING; 4TH GEAR 1-33259-116-0 01 1 1302-1311 ●
27 BEARING; 4TH GEAR 1-33259-142-0 01 1 1312- ●
27 BEARING; 4TH GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-106-0 02 1 1302-1305 ●
27 BEARING; 4TH GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-128-0 02 1 1302-1305 ●
27 BEARING; 4TH GEAR 1-33259-128-0 02 1 1306- ●
30 GEAR; 4TH,MAINSHAFT 1-33251-440-0 01 1 1302- ●
30 GEAR; 4TH,MAINSHAFT 1-33251-436-0 01 1 1302- ●
32 COLLAR; 3RD GEAR 1-33259-059-0 01 1 1302-1305 ●
32 COLLAR; 3RD GEAR 1-33259-140-0 01 1 1306- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-107-0 01 1 1302-1311 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-136-0 01 1 1312- ●
33 BEARING; NEEDLE,3RD GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-065-0 01 1 1302-1305 ●
33 BEARING; NEEDLE,3RD GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-127-0 01 1 1302-1305 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-127-0 01 1 1306- ●
36 GEAR; 3RD,MAINSHAFT 1-33251-445-0 01 1 1302- ●
36 GEAR; 3RD,MAINSHAFT 1-33252-478-0 01 1 1302- ●
41 RING; BLOCK,2ND & 3RD 1-33265-498-0 02 1 1302- ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-231-0 01 1 1302-1305 ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-303-0 01 1 1306- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-107-0 01 1 1302-1311 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-136-0 01 1 1312- ●
49 BEARING; NEEDLE,2ND GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-058-0 02 1 1302-1305 ●
49 BEARING; NEEDLE,2ND GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-126-0 02 1 1302-1305 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-126-0 02 1 1306- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-437-0 01 1 1302- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-435-0 01 1 1302-1305 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-448-0 01 1 1306- ●
59 GEAR; REV MAINSHAFT
PTO CONTROL<SV6> 		1-33252-482-0 01 1 1302-1311 ●
59 GEAR; REV MAINSHAFT
EXC. PTO CONTROL<SV6> 		1-33252-484-0 01 1 1302-1311 ●
59 GEAR; REV MAINSHAFT 1-33252-484-0 01 1 1312- ●
59 GEAR; REV MAINSHAFT 1-33257-100-0 01 1 1302-1305 ●
59 GEAR; REV MAINSHAFT 1-33257-101-0 01 1 1306- ●
67 HUB; CLU,1ST TO REV
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-048-0 01 1 1302-1305 ●
67 HUB; CLU,1ST TO REV
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-135-0 01 1 1302-1305 ●
67 HUB; CLU,1ST TO REV 1-33259-135-0 01 1 1306- ●
68 SLEEVE; 1ST TO REV 1-33259-075-0 01 1 1302- ●
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 1302- ●
70 GEAR; 1ST,MAINSHAFT 1-33252-481-0 01 1 1302- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-434-0 01 1 1302- ●
82 SHAFT; MAIN,TRANS 1-33231-341-0 01 1 1302- ●
82 SHAFT; MAIN,TRANS 1-33231-337-0 01 1 1302- ●
126 RING; SNAP,CLU HUB
T=2.8 		1-33259-050-0 01 1 1302- ●
126 RING; SNAP,CLU HUB
T=2.7 		1-33259-051-0 01 1 1302- ●
126 RING; SNAP,CLU HUB
T=2.6 		1-33259-052-0 01 1 1302- ●
126 RING; SNAP,CLU HUB
T=2.5 		1-33259-053-0 01 1 1302- ●
126 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 1302- ●
126 RING; SNAP,CLU HUB
T=4.0 		1-33269-047-0 01 1 1302- ●
126 RING; SNAP,CLU HUB
T=3.9 		1-33269-048-0 01 1 1302- ●
126 RING; SNAP,CLU HUB
T=3.8 		1-33269-049-0 01 1 1302- ●
126 RING; SNAP,CLU HUB
T=3.7 		1-33269-050-0 01 1 1302- ●
174 SYNCHRONIZER ASM; 2ND-3RD
ASSISTOR SHIFT CONTROL<WX8> 		1-33260-169-0 01 1 1302-1305 ●
230 SLEEVE; 4TH TO 5TH 1-33262-239-0 01 1 1302- ●
233 RING; BLOCK 4TH TO 5TH 1-33269-096-0 02 1 1302- ●
234 SYNCHRONIZER ASM; 4TH TO 5TH
ASSISTOR SHIFT CONTROL<WX8> 		1-33260-170-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(C) 		1-33259-111-0 01 1 1302-1311 ●
306 RING; SNAP,MAINSHAFT
(C) 		1-33259-141-0 01 1 1312- ●
306 RING; SNAP,MAINSHAFT
(D) 		1-38249-037-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=3.20 		1-33319-061-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.15 		1-33319-062-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.10 		1-33319-063-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.05 		1-33319-064-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=3.00 		1-33319-065-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.95 		1-33319-066-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.90 		1-33319-067-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.85 		1-33319-068-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.80 		1-33319-069-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.75 		1-33319-070-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.70 		1-33319-071-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.65 		1-33319-072-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.60 		1-33319-073-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.55 		1-33319-074-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.50 		1-33319-075-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.45 		1-33319-076-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.40 		1-33319-077-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.35 		1-33319-078-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.30 		1-33319-079-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.25 		1-33319-080-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.20 		1-33319-081-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.15 		1-33319-082-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.10 		1-33319-083-0 01 1 1302-1305 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.5 		1-43319-021-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.4 		1-43319-101-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.3 		1-43319-102-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.0 		1-43319-103-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.1 		1-43319-104-0 01 1 1302- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.2 		1-43319-105-0 01 1 1302- ●
311 PIPE; MAINSHAFT 1-33239-349-0 01 1 1302- ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-112-0 02 1 1302- ●
313 BEARING; NEEDLE,LOW GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-047-0 01 1 1302-1305 ●
313 BEARING; NEEDLE,LOW GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-124-0 01 1 1302-1305 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-124-0 01 1 1306- ●
314 BEARING; NEEDLE,REV GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-055-0 01 1 1302-1305 ●
314 BEARING; NEEDLE,REV GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-125-0 01 1 1302-1305 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-125-0 01 1 1306- ●
315 CLUTCH; DOG,2ND GEAR 1-33265-629-0 01 1 1302- ●
316 CLUTCH; DOG,3RD GEAR 1-33265-636-0 01 1 1302- ●
316 CLUTCH; DOG,3RD GEAR 1-33265-629-0 01 1 1302- ●
317 CLUTCH; DOG,4TH GEAR 1-33265-637-0 01 1 1302- ●
317 CLUTCH; DOG,4TH GEAR 1-33265-630-0 01 1 1302- ●
323 INSERT
(C) 		1-33263-043-0 03 1 1302- ●
323 INSERT
(A) 		1-33263-030-0 06 1 1302- ● ●
323 INSERT
(B) 		1-33263-027-0 09 1 1302- ●
330 GEAR; SUN 1-33259-105-0 01 1 1302-1305 ●
330 GEAR; SUN 1-33259-134-0 01 1 1306- ●
393 BEARING; MAINSHAFT END 1-33219-330-0 01 1 1302- ●
393 BEARING; MAINSHAFT END 1-33259-104-0 01 1 1302- ●
408 SPRING
(D) 		1-33269-099-0 03 1 1302- ●
408 SPRING
(A) 		1-33269-042-0 06 1 1302- ● ●
408 SPRING
(B) 		1-33269-038-0 09 1 1302- ●
408 SPRING
(C) 		1-33269-039-0 09 1 1302- ●
429 SLEEVE; 2ND & 3RD 1-33262-192-0 01 1 1302-1305 ●
429 SLEEVE; 2ND & 3RD 1-33262-244-0 01 1 1306- ●
569 DAM; OIL 1-33269-097-0 01 1 1302- ●
çizim 331056
129 135 129 132 460
BalonParca AdiParca NoAdetTipApplied Date A B
129 BEARING; NEEDLE,IDLER 1-33369-025-0 02 1 1302- ●
129 BEARING; NEEDLE,IDLER
ASSISTOR SHIFT CONTROL<WX8> 		1-33369-013-0 02 1 1302-1305 ●
129 BEARING; NEEDLE,IDLER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33369-026-0 02 1 1302-1305 ●
129 BEARING; NEEDLE,IDLER 1-33369-026-0 02 1 1306- ●
132 SHAFT; REV 1-33351-043-0 01 1 1302- ●
132 SHAFT; REV 1-33351-024-0 01 1 1302- ●
135 GEAR; REV IDLER
PTO CONTROL<SV6> 		1-33361-093-0 01 1 1302-1311 ●
135 GEAR; REV IDLER
EXC. PTO CONTROL<SV6> 		1-33361-094-0 01 1 1302-1311 ●
135 GEAR; REV IDLER 1-33361-095-0 01 1 1312- ●
135 GEAR; REV IDLER 1-33361-092-0 01 1 1302-1305 ●
135 GEAR; REV IDLER 1-33361-096-0 01 1 1306- ●
460 RING; SNAP,REV SHAFT 1-34119-044-0 01 1 1302- ●
çizim 331343
345 342 347 348
BalonParca AdiParca NoAdetTipApplied Date A B
342 FLANGE; OUTPUT 1-37243-432-0 01 1 1302-1311 ●
342 FLANGE; OUTPUT 1-37243-434-0 01 1 1312- ●
342 FLANGE; OUTPUT 1-37243-429-0 01 1 1302- ●
345 BOLT; FLANGE TO YOKE 1-37249-210-0 04 1 1302- ●
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 1302- ●
347 WASHER; FLANGE
PTO CONTROL<SV6> 		1-37249-208-0 01 1 1302-1311 ●
347 WASHER; FLANGE
EXC. PTO CONTROL<SV6> 		1-37249-211-0 01 1 1302-1311 ●
347 WASHER; FLANGE 1-37249-211-0 01 1 1312- ●
347 WASHER; FLANGE 1-09509-060-0 01 1 1302- ●
348 BOLT; SHAFT 1-36139-024-0 01 1 1302-1311 ●
348 BOLT; SHAFT 1-36139-025-0 01 1 1312- ●
348 BOLT; SHAFT 1-37249-207-0 02 1 1302-1305 ●
348 BOLT; SHAFT 1-37249-215-0 02 1 1306- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
