2-26A — MANUAL TRANSMISSION GEAR (#114710) — 134 parça
çizim 330840
93 84 517 314 57 58 24 516 241 20 20 39 584 586 585 582 563 241 95 582 561 106 579 577 174 108 590 582 105 589 588 20 579 587 517 24 516 592 596 398 320 118 174 582 104 15 593 325 506 223
BalonParca AdiParca NoAdetTipApplied Date
15 COLLAR; 4TH GEAR 8-98146-345-0 01 1 1302-
20 SLEEVE
(A) Z=45 		8-97241-296-1 03 1 1302-1308
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1309-1311
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312-1508
20 SLEEVE
(A) Z=45 		8-98258-279-0 03 1 1509-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1309-1508
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1302-
39 HUB; CLU,LOW & 2ND
Z=45 		8-98075-732-0 01 1 1302-1501
39 HUB; CLU,LOW & 2ND
Z=45 		8-98303-646-0 01 1 1502-1507
39 HUB; CLU,LOW & 2ND
Z=45 		8-98309-852-0 01 1 1508-
57 SLEEVE; REV
Z=45 		8-94421-871-1 01 1 1302-
58 HUB; CLU,REV
Z=45-27 		8-98005-296-0 01 1 1302-
84 BEARING; COUNTER SHAFT,FRT 8-97377-957-1 01 1 1302-
93 RING; SNAP,COUNTER FRT BRG 8-97377-958-0 01 1 1302-
95 GEAR; REV,COUNTER
Z=44 		8-98005-229-0 01 1 1302-
104 GEAR; 4TH,COUNTER
Z=29 		8-98198-297-0 01 1 1302-
105 GEAR; 3RD,COUNTER
Z=35 		8-98168-501-0 01 1 1302-
106 GEAR; 2ND,COUNTER
Z=44 		8-98140-884-0 01 1 1302-
108 SHAFT; COUNTER
Z=27-42-26 		8-98223-607-0 01 1 1302-1501
108 SHAFT; COUNTER
Z=27-42-26 		8-98303-643-0 01 1 1502-
118 GEAR; 6TH,COUNTER
Z=17 		8-98005-292-1 01 1 1302-
174 SYNCHRONIZER ASM; 2ND-3RD 8-98315-823-2 02 1 1509-
223 NUT; COUNTER SHAFT END
M34 FLANGE 		8-98005-894-0 01 1 1302-
241 RING; SNAP
(A) ID=46.5 T=1.8 		8-97254-743-0 01 1 1302-
241 RING; SNAP
(B) ID=96 T=2.5 		8-98009-391-0 01 1 1302-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1302-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1302-
320 HUB; CLU,4TH & 3RD
Z=45 		8-98075-733-0 01 1 1302-1501
320 HUB; CLU,4TH & 3RD
Z=45 		8-98303-649-0 01 1 1502-1507
320 HUB; CLU,4TH & 3RD
Z=45 		8-98309-859-0 01 1 1508-
325 SHIM; COUNTER SHAFT BRG
T=1.56 		8-97377-994-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.62 		8-97377-995-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.68 		8-97377-996-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.74 		8-97377-997-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		8-97377-998-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.26 		8-98009-373-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.32 		8-98009-374-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.38 		8-98009-375-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.44 		8-98009-376-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98009-377-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.14 		8-98022-218-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.20 		8-98022-219-0 01 1 1302-
398 GEAR; COUNTER
Z=22 		8-97380-568-0 01 1 1302-
506 COLLAR; 6TH,COUNTER 8-97377-965-0 01 1 1302-
516 SPRING; SYNCHRO,INDEX 8-98032-197-0 09 1 1302-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1302-
561 GEAR; LOW,COUNTER
Z=44 		8-98000-330-0 01 1 1302-
563 COLLAR; 1ST GEAR 8-98146-345-0 01 1 1302-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 01 1 1302-1510
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 02 1 1511-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 01 1 1302-1510
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 02 1 1511-
579 CLAMP; HOSE
ID=16 		8-97329-628-0 06 1 1302-1510
579 CLAMP; HOSE
ID=16 		8-97329-628-0 07 1 1511-
582 BEARING; NEEDLE,COUNTER GEAR 8-97253-110-0 04 1 1302-
584 RING; BLOCK,2ND
Z=45 		8-98223-605-1 01 1 1302-1308
584 RING; BLOCK,2ND
Z=45 		8-98034-770-0 01 1 1309-1508
585 RING; OUTSIDE,2ND 8-97241-309-1 01 1 1302-1508
586 RING; INSIDE,2ND 8-98223-606-1 01 1 1302-1308
586 RING; INSIDE,2ND 8-97241-312-1 01 1 1309-1508
587 CASE; PUMP,COUNTER 8-98212-196-0 01 1 1302-1501
587 CASE; PUMP,COUNTER 8-98303-650-0 01 1 1502-
588 RING; BLOCK,3RD
Z=45 		8-98223-605-1 01 1 1302-1308
588 RING; BLOCK,3RD
Z=45 		8-97241-306-1 01 1 1309-1508
589 RING; OUTSIDE,3RD 8-97241-309-1 01 1 1302-1508
590 RING; INSIDE,3RD 8-98223-606-1 01 1 1302-1308
590 RING; INSIDE,3RD 8-97241-312-1 01 1 1309-1508
592 RING; BLOCK,4TH
Z=45 		8-97241-306-1 01 1 1302-
593 BEARING; COUNTER MIDDLE 8-97377-976-0 01 1 1302-
596 BEARING; ROOLER,COUNTER END 8-97377-968-0 01 1 1302-

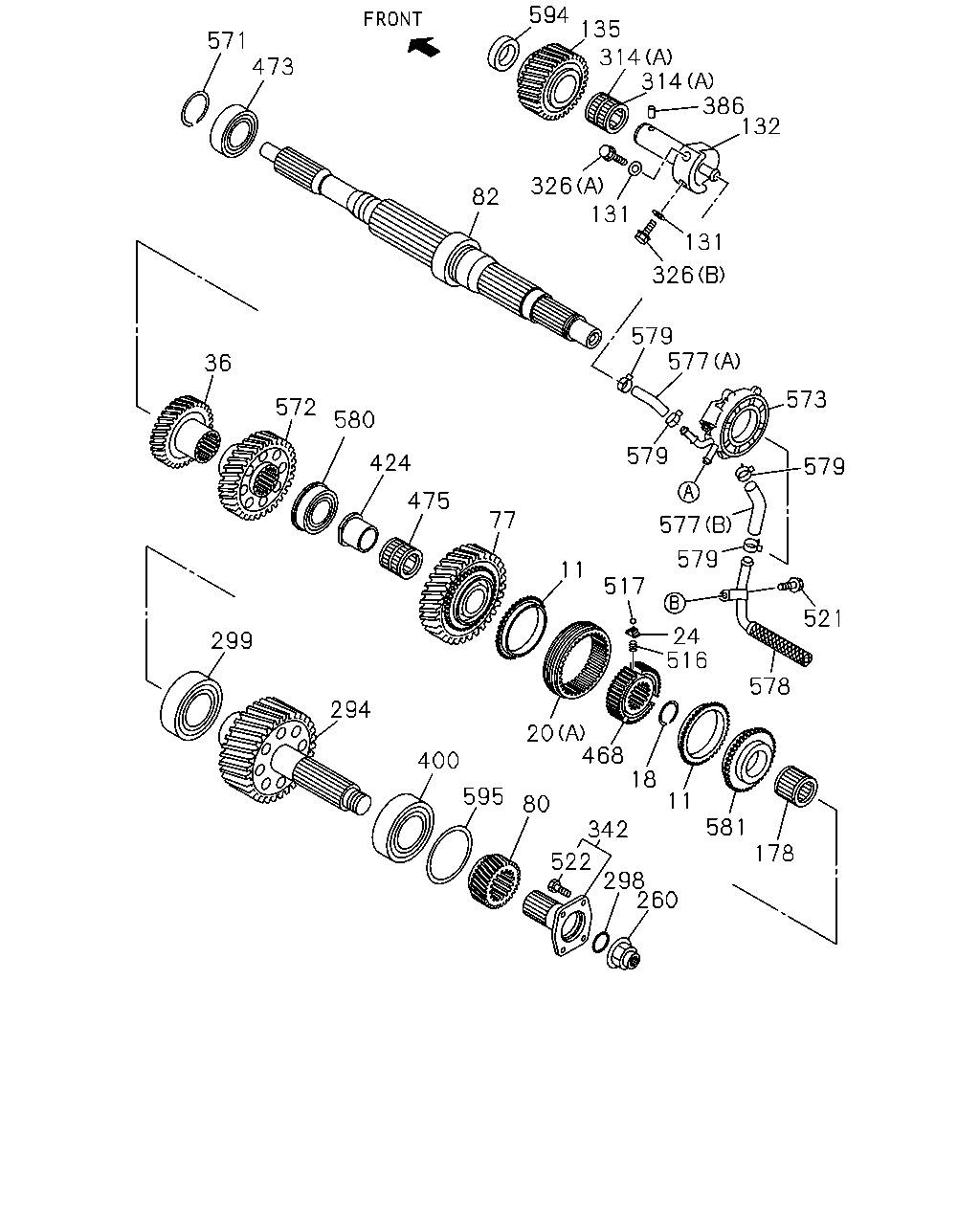

çizim 330945
571 594 314 386 314 82 326 131 326 579 36 572 424 580 475 77 11 517 24 516 577 573 579 299 294 400 595 80 522 298 260 20 468 18 578 581 178 11 342 579 579 577 521 131 135 132 473
BalonParca AdiParca NoAdetTipApplied Date
11 RING; BLOCK,5TH & 6TH
Z=45 		8-97241-306-1 02 1 1302-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1302-
20 SLEEVE
(A) Z=45 		8-97241-296-1 03 1 1302-1308
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1309-1311
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312-1508
20 SLEEVE
(A) Z=45 		8-98258-279-0 03 1 1509-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1309-1508
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1302-
36 GEAR; 3RD,MAINSHAFT
Z=29 		8-98168-499-0 01 1 1302-
77 GEAR; 6TH,MAINSHAFT
Z=46 		8-98137-256-0 01 1 1302-
80 GEAR; SPD DRIVE
Z=5 		8-97377-978-1 01 1 1302-
82 SHAFT; MAIN,TRANS
Z=13-21-19-26 		8-98140-880-0 01 1 1302-1308
82 SHAFT; MAIN,TRANS
Z=13-21-19-26 		8-98245-057-0 01 1 1309-
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0 		9-09571-410-0 02 1 1302-
132 SHAFT; REV 8-98009-372-0 01 1 1302-
135 GEAR; REV IDLER
Z=27 		8-98005-601-1 01 1 1302-
178 BEARING; NEEDLE,MAINSHAFT 8-97253-099-1 01 1 1302-
260 NUT; MAINSHAFT END
M36 FLANGE 		8-98014-140-0 01 1 1302-
294 SHAFT; OUTPUT
Z=43 		8-97380-571-0 01 1 1302-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5 		1-09623-380-0 01 1 1302-
299 BEARING; OUTPUT SHAFT FRT 8-97377-970-0 01 1 1302-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1302-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1302-
326 BOLT; REV SHAFT
(A) M10X50 FLANGE 		0-29261-050-0 01 1 1302-
326 BOLT; REV SHAFT
(B) M10X50 		8-98014-738-0 01 1 1302-
342 FLANGE; OUTPUT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 		8-98155-334-0 01 1 1302-
342 FLANGE; OUTPUT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 		8-98155-332-0 01 1 1302-
386 PIN; REV SHAFT
OD=4 L=8 		9-08150-408-0 01 1 1302-
400 BEARING; OUTPUT SHAFT RR 8-97377-977-0 01 1 1302-
424 COLLAR; 6TH GEAR 8-98125-318-0 01 1 1302-
468 HUB; CLU,5TH & 6TH
Z=45 		8-98075-734-0 01 1 1302-
473 BEARING; INPUT SHAFT 8-97377-950-0 01 1 1302-
475 BEARING; 6TH
COLLAR OD=-49.999 		8-98101-505-0 01 1 1302-
475 BEARING; 6TH
COLLAR OD=50.000- 		8-98142-265-0 01 1 1302-
516 SPRING; SYNCHRO,INDEX 8-98032-197-0 09 1 1302-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1302-
521 BOLT
M8X12 FLANGE 		0-28050-812-0 01 1 1302-
522 BOLT; FLANGE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) M14X43 KNURL 		8-98014-003-0 04 1 1302-
522 BOLT; FLANGE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) M16X51 W/MARK 		1-46219-086-0 04 1 1302-
571 RING; SNAP,BRG 8-97377-951-0 01 1 1302-
572 GEAR; 4TH,INPUT
Z=37 		8-98168-500-0 01 1 1302-
573 PUMP ASM; OIL 8-98212-241-0 01 1 1302-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 01 1 1302-1510
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 02 1 1511-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 01 1 1302-1510
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 02 1 1511-
578 SCREEN; OIL PUMP 8-98009-345-0 01 1 1302-1510
578 SCREEN; OIL PUMP 8-98009-345-0 02 1 1511-
579 CLAMP; HOSE
ID=16 		8-97329-628-0 06 1 1302-1510
579 CLAMP; HOSE
ID=16 		8-97329-628-0 07 1 1511-
580 BEARING; MAINSHAFT RR 8-97377-953-0 01 1 1302-
581 CLUTCH; DOG,5TH GEAR 8-97377-956-0 01 1 1302-
594 WASHER; THRUST,REV IDLE 8-98005-633-0 01 1 1302-
595 SHIM; OUTPUT SHAFT
T=1.44 		8-97377-984-0 01 1 1302-
595 SHIM; OUTPUT SHAFT
T=1.50 		8-97377-985-0 01 1 1302-
595 SHIM; OUTPUT SHAFT
T=1.56 		8-97377-986-0 01 1 1302-
595 SHIM; OUTPUT SHAFT
T=1.62 		8-97377-987-0 01 1 1302-
595 SHIM; OUTPUT SHAFT
T=1.68 		8-97377-988-0 01 1 1302-
595 SHIM; OUTPUT SHAFT
T=1.74 		8-97377-989-0 01 1 1302-
595 SHIM; OUTPUT SHAFT
T=1.80 		8-97377-990-0 01 1 1302-
595 SHIM; OUTPUT SHAFT
T=1.86 		8-97377-991-0 01 1 1302-
595 SHIM; OUTPUT SHAFT
T=1.38 		8-98009-379-0 01 1 1302-
595 SHIM; OUTPUT SHAFT
T=1.26 		8-98022-221-0 01 1 1302-
595 SHIM; OUTPUT SHAFT
T=1.32 		8-98022-222-0 01 1 1302-
