2-26 — MANUAL TRANSMISSION GEAR (#114706) — 122 parça

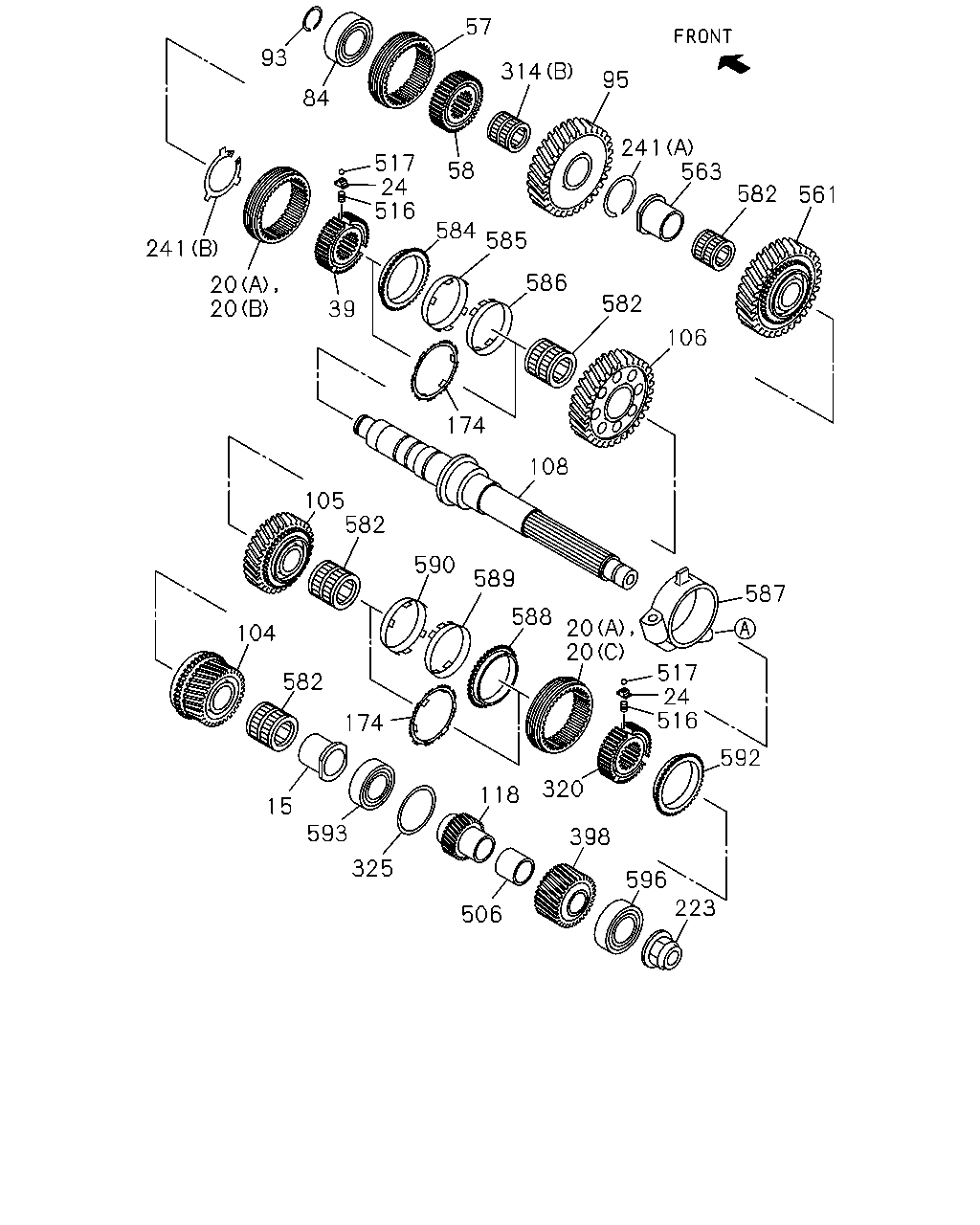

çizim 330843
93 57 84 95 314 517 584 24 58 241 582 561 106 582 586 585 39 20 20 241 174 105 582 590 589 588 20 20 517 24 516 592 587 596 223 398 506 118 325 593 15 582 104 174 320 108 563 516
BalonParca AdiParca NoAdetTipApplied Date
15 COLLAR; 4TH GEAR 8-98146-345-0 01 1 1302-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1309-1508
20 SLEEVE
(A) Z=45 		8-97241-296-1 03 1 1302-1308
20 SLEEVE
(C) Z=45 		8-97241-296-1 02 1 1309-1311
20 SLEEVE
(C) Z=45 		8-98258-279-0 02 1 1312-1508
20 SLEEVE
(A) Z=45 		8-98258-279-0 03 1 1509-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1302-
39 HUB; CLU,LOW & 2ND
Z=45 		8-98075-732-0 01 1 1302-1501
39 HUB; CLU,LOW & 2ND
Z=45 		8-98303-646-0 01 1 1502-1507
39 HUB; CLU,LOW & 2ND
Z=45 		8-98309-852-0 01 1 1508-
57 SLEEVE; REV
Z=45 		8-94421-871-1 01 1 1302-
58 HUB; CLU,REV
Z=45-27 		8-98005-296-0 01 1 1302-
84 BEARING; COUNTER SHAFT,FRT 8-97377-957-1 01 1 1302-
93 RING; SNAP,COUNTER FRT BRG 8-97377-958-0 01 1 1302-
95 GEAR; REV,COUNTER
Z=44 		8-98005-229-0 01 1 1302-
104 GEAR; 4TH,COUNTER
Z=29 		8-98198-297-0 01 1 1302-
105 GEAR; 3RD,COUNTER
Z=35 		8-98168-501-0 01 1 1302-
106 GEAR; 2ND,COUNTER
Z=44 		8-98140-884-0 01 1 1302-
108 SHAFT; COUNTER
Z=27-42-26 		8-98223-607-0 01 1 1302-1501
108 SHAFT; COUNTER
Z=27-42-26 		8-98303-643-0 01 1 1502-
118 GEAR; 6TH,COUNTER
Z=17 		8-98005-292-1 01 1 1302-
174 SYNCHRONIZER ASM; 2ND-3RD 8-98315-823-2 02 1 1509-
223 NUT; COUNTER SHAFT END
M34 FLANGE 		8-98005-894-0 01 1 1302-
241 RING; SNAP
(A) ID=46.5 T=1.8 		8-97254-743-0 01 1 1302-
241 RING; SNAP
(B) ID=96 T=2.5 		8-98009-391-0 01 1 1302-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1302-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1302-
320 HUB; CLU,4TH & 3RD
Z=45 		8-98075-733-0 01 1 1302-1501
320 HUB; CLU,4TH & 3RD
Z=45 		8-98303-649-0 01 1 1502-1507
320 HUB; CLU,4TH & 3RD
Z=45 		8-98309-859-0 01 1 1508-
325 SHIM; COUNTER SHAFT BRG
T=1.56 		8-97377-994-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.62 		8-97377-995-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.68 		8-97377-996-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.74 		8-97377-997-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		8-97377-998-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.26 		8-98009-373-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.32 		8-98009-374-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.38 		8-98009-375-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.44 		8-98009-376-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98009-377-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.14 		8-98022-218-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.20 		8-98022-219-0 01 1 1302-
398 GEAR; COUNTER
Z=22 		8-97380-568-0 01 1 1302-
506 COLLAR; 6TH,COUNTER 8-97377-965-0 01 1 1302-
516 SPRING; SYNCHRO,INDEX 8-98032-197-0 09 1 1302-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1302-
561 GEAR; LOW,COUNTER
Z=44 		8-98000-330-0 01 1 1302-
563 COLLAR; 1ST GEAR 8-98146-345-0 01 1 1302-
582 BEARING; NEEDLE,COUNTER GEAR 8-97253-110-0 04 1 1302-
584 RING; BLOCK,2ND
Z=45 		8-98223-605-1 01 1 1302-1308
584 RING; BLOCK,2ND
Z=45 		8-98034-770-0 01 1 1309-1508
585 RING; OUTSIDE,2ND 8-97241-309-1 01 1 1302-1508
586 RING; INSIDE,2ND 8-98223-606-1 01 1 1302-1308
586 RING; INSIDE,2ND 8-97241-312-1 01 1 1309-1508
587 CASE; PUMP,COUNTER 8-98212-196-0 01 1 1302-1501
587 CASE; PUMP,COUNTER 8-98303-650-0 01 1 1502-
588 RING; BLOCK,3RD
Z=45 		8-98223-605-1 01 1 1302-1308
588 RING; BLOCK,3RD
Z=45 		8-97241-306-1 01 1 1309-1508
589 RING; OUTSIDE,3RD 8-97241-309-1 01 1 1302-1508
590 RING; INSIDE,3RD 8-98223-606-1 01 1 1302-1308
590 RING; INSIDE,3RD 8-97241-312-1 01 1 1309-1508
592 RING; BLOCK,4TH
Z=45 		8-97241-306-1 01 1 1302-
593 BEARING; COUNTER MIDDLE 8-97377-976-0 01 1 1302-
596 BEARING; ROOLER,COUNTER END 8-97377-968-0 01 1 1302-

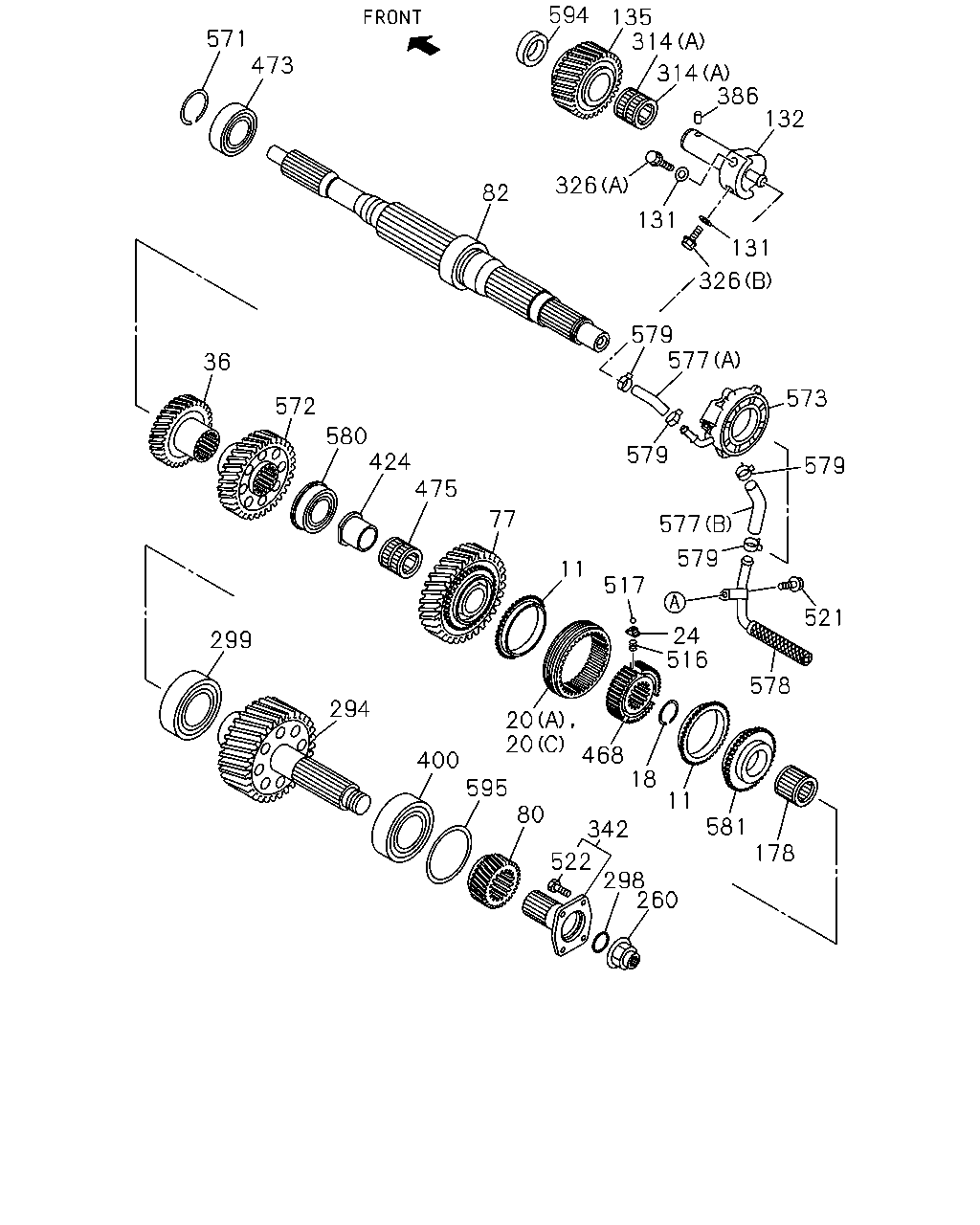

çizim 331048
594 135 314 314 386 132 326 82 131 131 326 577 579 573 579 577 579 579 517 11 77 475 424 580 572 36 473 571 24 516 578 521 581 11 18 468 20 20 400 294 299 595 80 342 522 298 260 178
BalonParca AdiParca NoAdetTipApplied Date
11 RING; BLOCK,5TH & 6TH
Z=45 		8-97241-306-1 02 1 1302-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1302-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1309-1508
20 SLEEVE
(A) Z=45 		8-97241-296-1 03 1 1302-1308
20 SLEEVE
(C) Z=45 		8-97241-296-1 02 1 1309-1311
20 SLEEVE
(C) Z=45 		8-98258-279-0 02 1 1312-1508
20 SLEEVE
(A) Z=45 		8-98258-279-0 03 1 1509-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1302-
36 GEAR; 3RD,MAINSHAFT
Z=29 		8-98168-499-0 01 1 1302-
77 GEAR; 6TH,MAINSHAFT
Z=46 		8-98137-256-0 01 1 1302-
80 GEAR; SPD DRIVE
Z=5 		8-97377-978-1 01 1 1302-
82 SHAFT; MAIN,TRANS
Z=13-21-19-26 		8-98140-880-0 01 1 1302-1308
82 SHAFT; MAIN,TRANS
Z=13-21-19-26 		8-98245-057-0 01 1 1309-
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0 		9-09571-410-0 02 1 1302-
132 SHAFT; REV 8-98009-372-0 01 1 1302-
135 GEAR; REV IDLER
Z=27 		8-98005-601-1 01 1 1302-
178 BEARING; NEEDLE,MAINSHAFT 8-97253-099-1 01 1 1302-
260 NUT; MAINSHAFT END
M36 FLANGE 		8-98014-140-0 01 1 1302-
294 SHAFT; OUTPUT
Z=43 		8-97380-571-0 01 1 1302-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5 		1-09623-380-0 01 1 1302-
299 BEARING; OUTPUT SHAFT FRT 8-97377-970-0 01 1 1302-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1302-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1302-
326 BOLT; REV SHAFT
(A) M10X50 FLANGE 		0-29261-050-0 01 1 1302-
326 BOLT; REV SHAFT
(B) M10X50 		8-98014-738-0 01 1 1302-
342 FLANGE; OUTPUT
EXC. PARKING BRAKE DRUM 8.5"(B1S) 		8-98155-334-0 01 1 1302-
386 PIN; REV SHAFT
OD=4 L=8 		9-08150-408-0 01 1 1302-
400 BEARING; OUTPUT SHAFT RR 8-97377-977-0 01 1 1302-
424 COLLAR; 6TH GEAR 8-98125-318-0 01 1 1302-
468 HUB; CLU,5TH & 6TH
Z=45 		8-98075-734-0 01 1 1302-
473 BEARING; INPUT SHAFT 8-97377-950-0 01 1 1302-
475 BEARING; 6TH
COLLAR OD=-49.999 		8-98101-505-0 01 1 1302-
475 BEARING; 6TH
COLLAR OD=50.000- 		8-98142-265-0 01 1 1302-
516 SPRING; SYNCHRO,INDEX 8-98032-197-0 09 1 1302-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1302-
521 BOLT
M8X12 FLANGE 		0-28050-812-0 01 1 1302-
522 BOLT; FLANGE
EXC. PARKING BRAKE DRUM 8.5"(B1S) M14X43 KNURL 		8-98014-003-0 04 1 1302-
571 RING; SNAP,BRG 8-97377-951-0 01 1 1302-
572 GEAR; 4TH,INPUT
Z=37 		8-98168-500-0 01 1 1302-
573 PUMP ASM; OIL 8-98212-241-0 01 1 1302-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 01 1 1302-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 01 1 1302-
578 SCREEN; OIL PUMP 8-98009-345-0 01 1 1302-
579 CLAMP; HOSE
ID=16 		8-97329-628-0 06 1 1302-
580 BEARING; MAINSHAFT RR 8-97377-953-0 01 1 1302-
581 CLUTCH; DOG,5TH GEAR 8-97377-956-0 01 1 1302-
594 WASHER; THRUST,REV IDLE 8-98005-633-0 01 1 1302-
595 SHIM; OUTPUT SHAFT
T=1.44 		8-97377-984-0 01 1 1302-
595 SHIM; OUTPUT SHAFT
T=1.50 		8-97377-985-0 01 1 1302-
595 SHIM; OUTPUT SHAFT
T=1.56 		8-97377-986-0 01 1 1302-
595 SHIM; OUTPUT SHAFT
T=1.62 		8-97377-987-0 01 1 1302-
595 SHIM; OUTPUT SHAFT
T=1.68 		8-97377-988-0 01 1 1302-
595 SHIM; OUTPUT SHAFT
T=1.74 		8-97377-989-0 01 1 1302-
595 SHIM; OUTPUT SHAFT
T=1.80 		8-97377-990-0 01 1 1302-
595 SHIM; OUTPUT SHAFT
T=1.86 		8-97377-991-0 01 1 1302-
595 SHIM; OUTPUT SHAFT
T=1.38 		8-98009-379-0 01 1 1302-
595 SHIM; OUTPUT SHAFT
T=1.26 		8-98022-221-0 01 1 1302-
595 SHIM; OUTPUT SHAFT
T=1.32 		8-98022-222-0 01 1 1302-
