Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#114702) — 300 parça

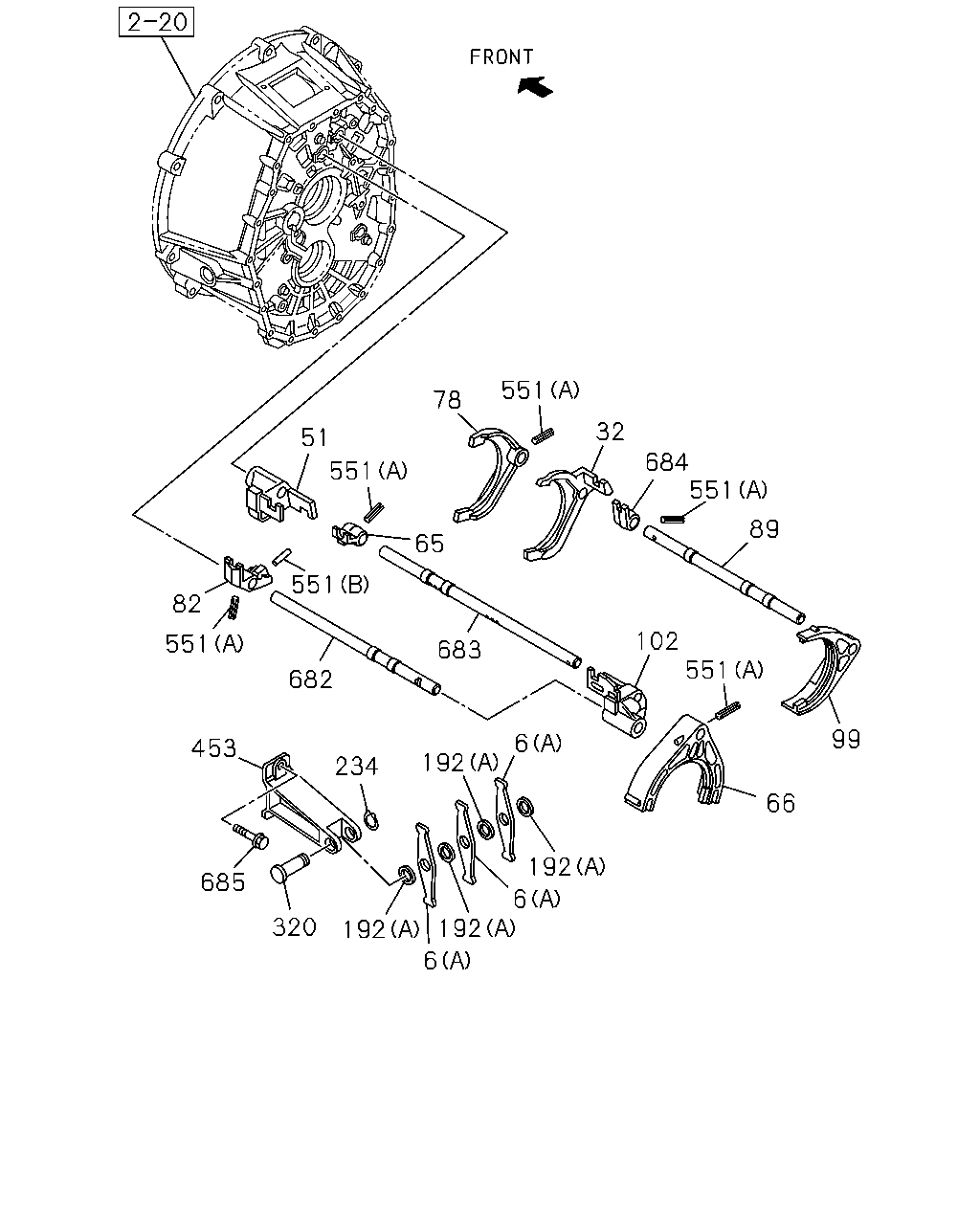

192 66 99 551 89 102 683 6 192 6 192 6 192 320 685 453 234 682 551 551 82 551 51 78 551 65 684 32 551

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1302-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-
6	LEVER; RELAY 6HK1-TCN ENG(82L) (B)	8-98022-855-0	01	1	1302-
32	ARM; SHIFT,1ST & 2ND	8-98062-167-0	01	1	1302-1307
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1308-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1302-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1302-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1302-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1302-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1302-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1302-
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1302-1506
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1302-
320	SHAFT; LEVER	8-97377-928-0	01	1	1302-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1302-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1302-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1302-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1302-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1302-

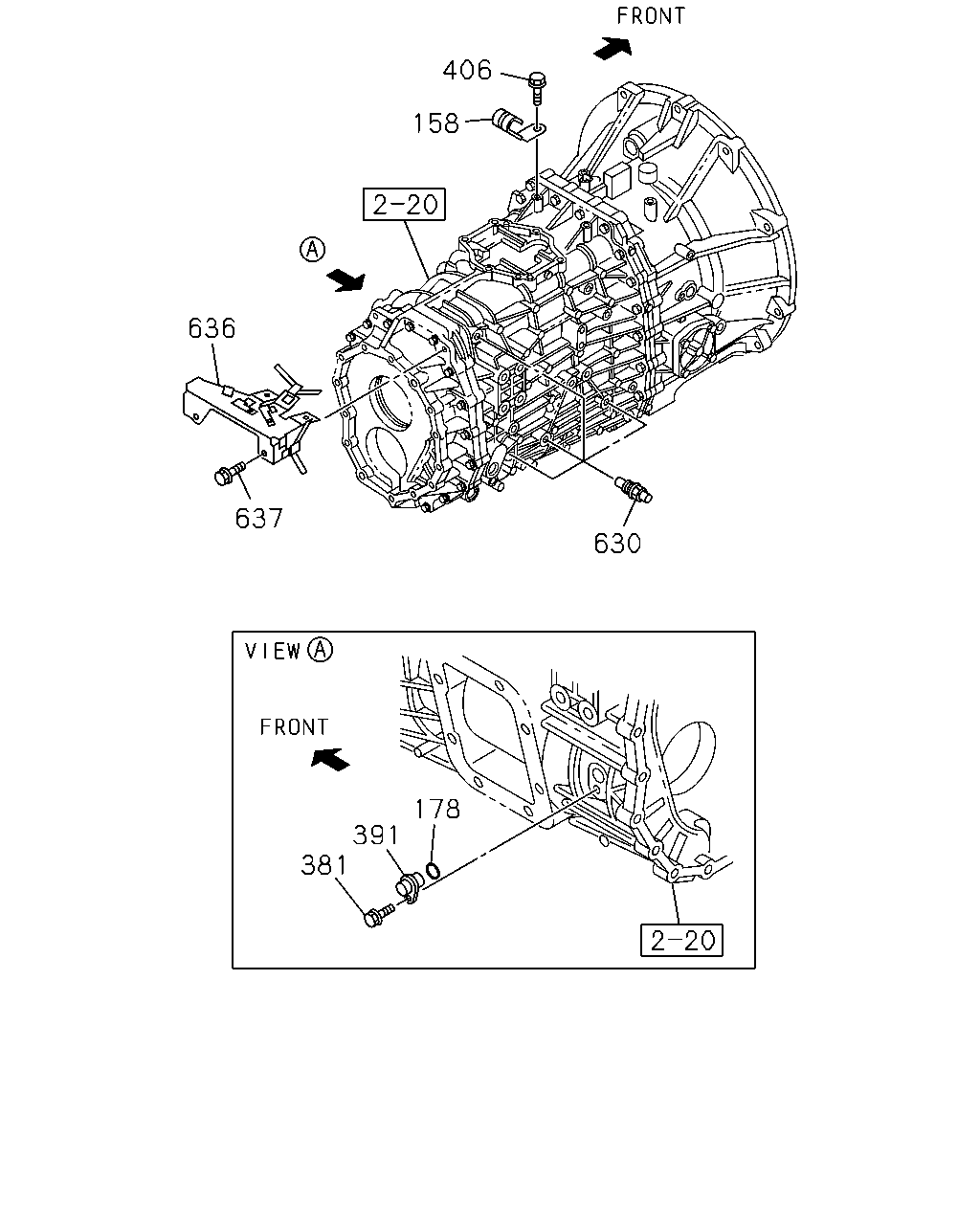

406 158 630 637 636 391 178 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1302-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1302-
381	BOLT M6X16 FLANGE	0-28650-616-0	01	1	1302-
391	PLUG; SW HOLE	8-97300-273-1	01	1	1302-
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	1302-
630	DETENT ASM	8-98019-536-0	04	1	1302-
636	BRACKET; CLIP 4HK1-TCS ENG(RJS)	8-97610-092-1	01	1	1302-1502
636	BRACKET; CLIP 6HK1-TCN ENG(82L)	8-97610-096-2	01	1	1302-
637	BOLT; BRACKET M8X16 FLANGE	0-28050-816-0	02	1	1302-1502
637	BOLT; BRACKET 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	02	1	1503-

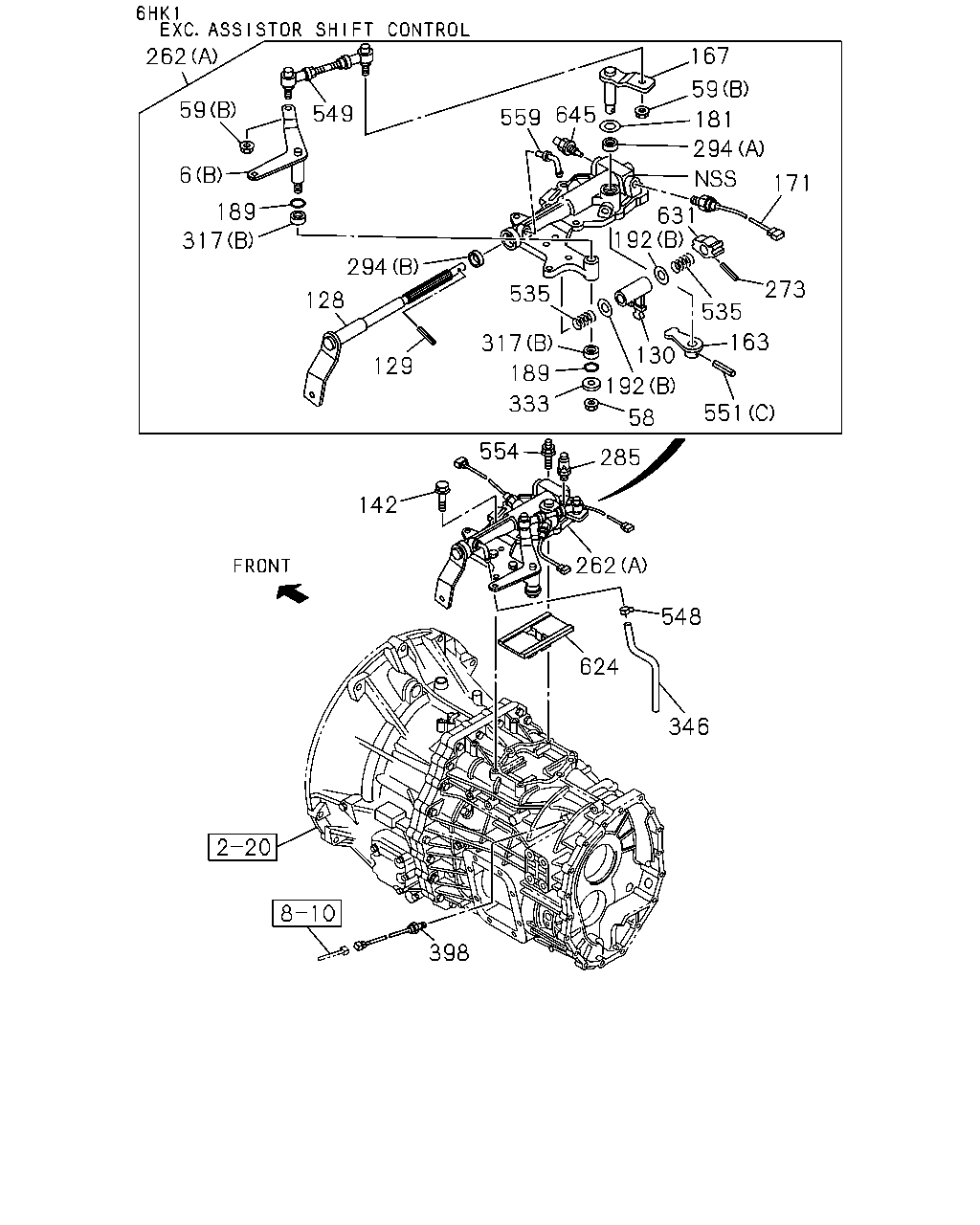

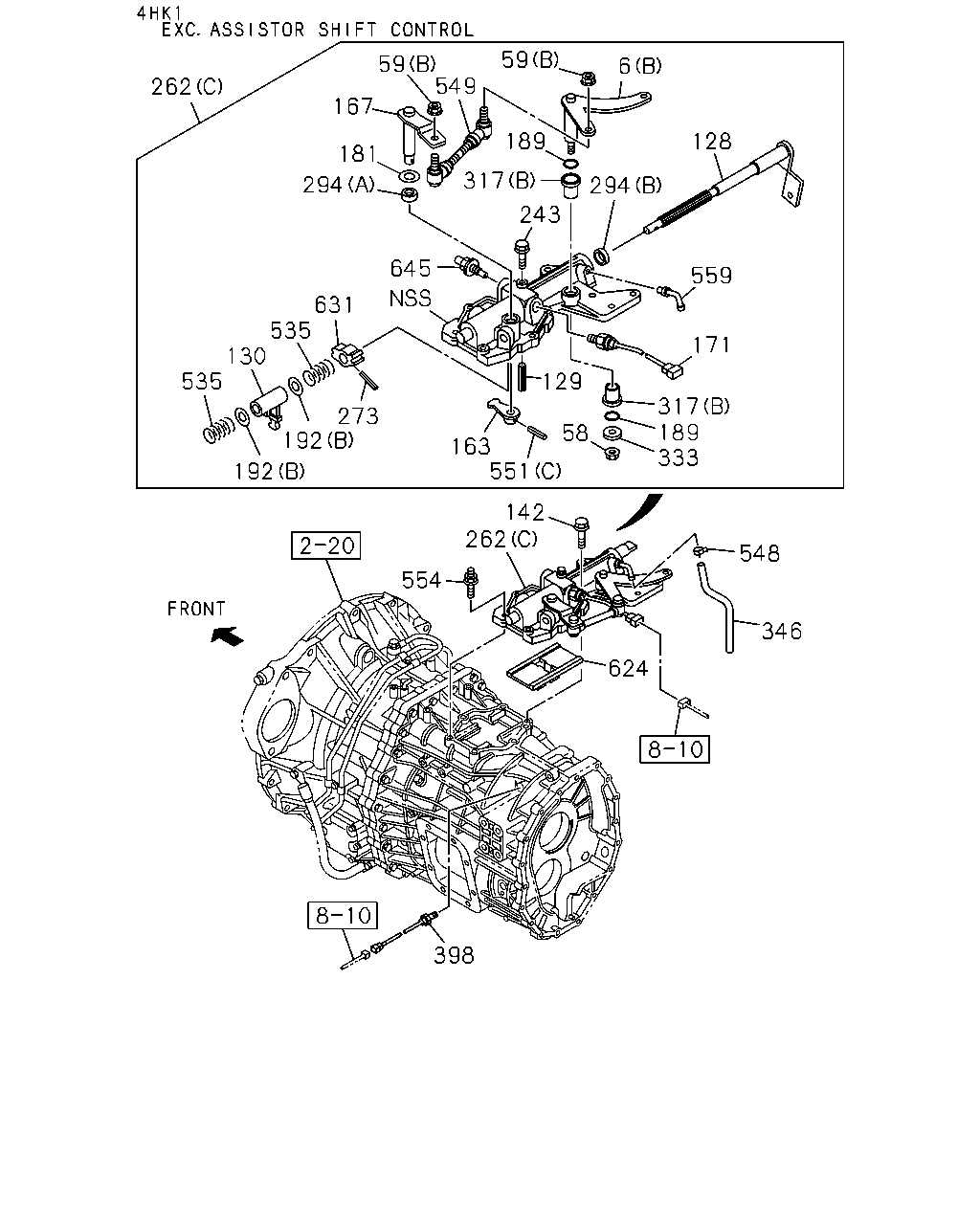

262 59 549 6 189 317 294 128 129 559 645 167 59 181 294 171 273 535 163 551 130 192 58 285 554 142 262 624 346 548 333 189 317 535 631 192 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1302-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-
6	LEVER; RELAY 6HK1-TCN ENG(82L) (B)	8-98022-855-0	01	1	1302-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-106-0	01	1	1302-1507
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-345-0	01	1	1508-
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1302-1507
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1508-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1302-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98207-563-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98211-654-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-037-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-332-1	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-
317	BUSHING; LEVER (B)	1-09330-119-0	02	1	1302-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1302-
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1302-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1302-
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1302-
645	DETENT ASM	8-98019-536-0	01	1	1302-

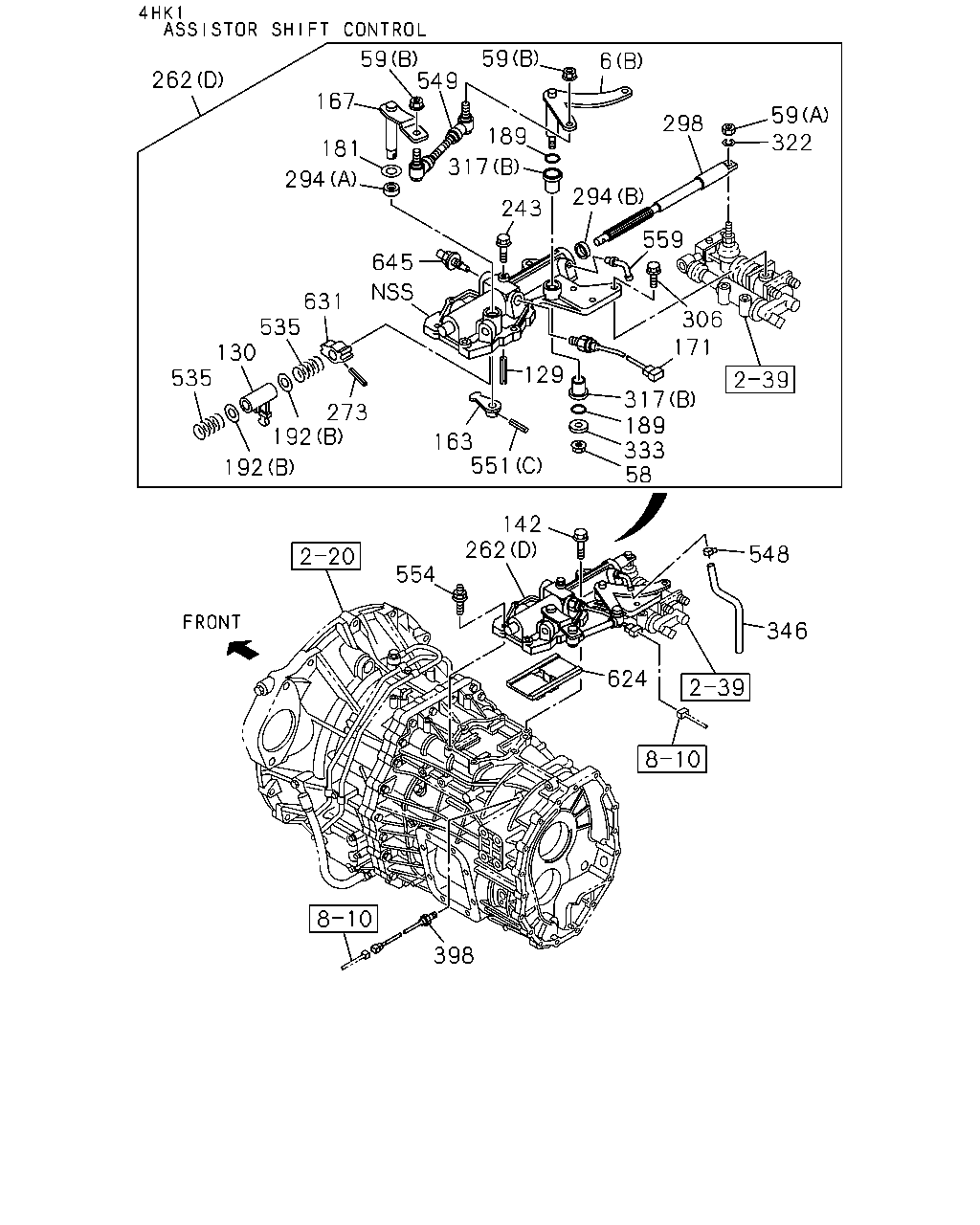

262 167 59 59 549 189 317 243 294 298 59 322 559 306 171 317 189 333 58 551 129 163 273 192 192 535 130 535 631 645 294 181 6 142 262 554 624 548 346 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1302-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-
6	LEVER; RELAY 6HK1-TCN ENG(82L) (B)	8-98022-855-0	01	1	1302-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1302-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
243	BOLT; COVER 4HK1-TCS ENG(RJS) M6X12 FLANGE	1-33739-842-0	01	1	1302-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98207-563-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98211-654-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-037-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-332-1	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	1302-1507
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1302-1507
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1302-
317	BUSHING; LEVER (B)	1-09330-119-0	02	1	1302-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1302-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1302-
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1302-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1302-
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1302-
645	DETENT ASM	8-98019-536-0	01	1	1302-

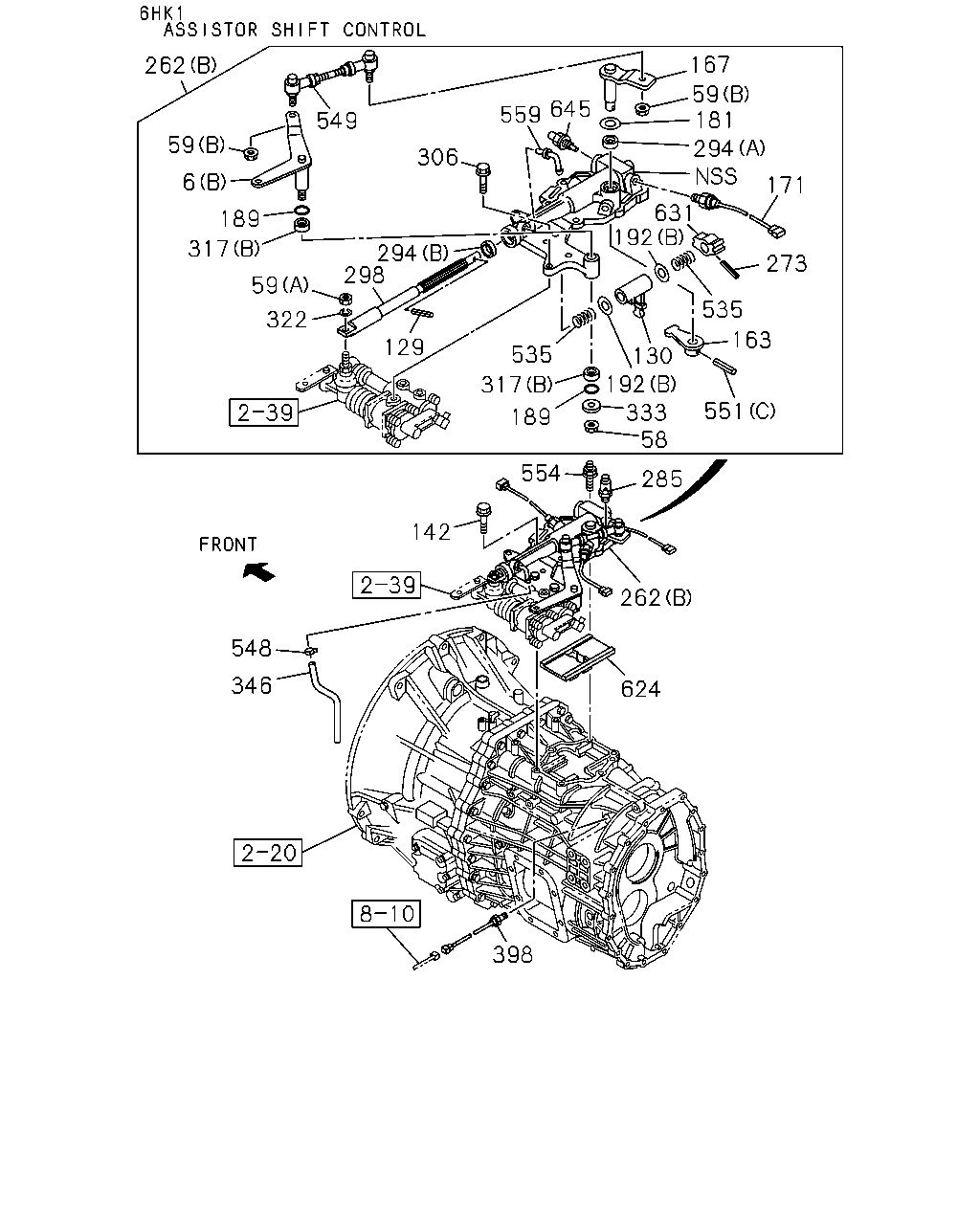

59 59 6 128 559 171 317 189 333 129 58 551 163 142 262 554 624 548 346 398 192 192 273 631 535 130 535 645 294 181 167 549 189 317 294 243 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1302-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-
6	LEVER; RELAY 6HK1-TCN ENG(82L) (B)	8-98022-855-0	01	1	1302-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-106-0	01	1	1302-1507
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-345-0	01	1	1508-
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1302-1507
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1508-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1302-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
243	BOLT; COVER 4HK1-TCS ENG(RJS) M6X12 FLANGE	1-33739-842-0	01	1	1302-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98207-563-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98211-654-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-037-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-332-1	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-
317	BUSHING; LEVER (B)	1-09330-119-0	02	1	1302-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1302-
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1302-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1302-
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1302-
645	DETENT ASM	8-98019-536-0	01	1	1302-

262 59 6 317 549 189 59 322 298 294 129 535 317 189 130 192 333 58 551 163 535 273 171 294 181 59 167 645 559 306 262 285 554 142 548 346 398 624 631 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1302-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-
6	LEVER; RELAY 6HK1-TCN ENG(82L) (B)	8-98022-855-0	01	1	1302-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1302-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98207-563-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98211-654-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-037-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-332-1	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	1302-1507
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1302-1507
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1302-
317	BUSHING; LEVER (B)	1-09330-119-0	02	1	1302-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1302-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1302-
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1302-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1302-
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1302-
645	DETENT ASM	8-98019-536-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
